Two Ways to Create a Queue Receiver

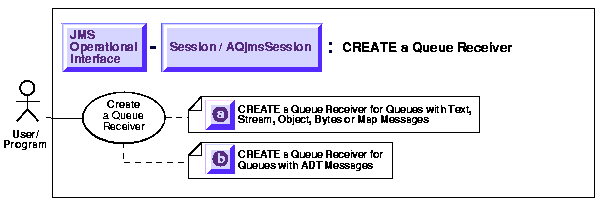

Figure 14-18 Use Case Diagram: Two Ways to Create a QueueReceiver

To refer to the table of all basic operations having to do with the Operational Interface see: "Use Case Model: Operational Interface -- Basic Operations"

This section explains two ways to create a queue receiver:

1. Create a Queue Receiver for Queues of Standard JMS Type Messages

2. Create a Queue Receiver for Queues of Oracle Object Type (ADT) Messages
