Create a Topic Receiver for a Topic of Standard JMS Type Messages

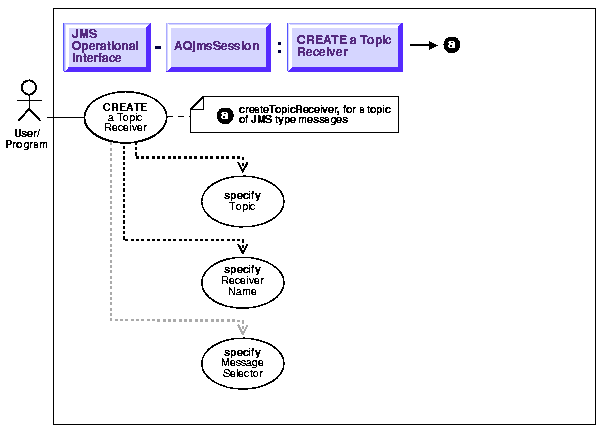

Figure 15-26 Use Case Diagram: Publish-Subscribe - Create a Topic Receiver for a Topic of Standard JMS Type Messages

To refer to the table of all basic operations having to do with the Operational Interface see: "Use Case Model: Operational Interface -- Basic Operations"

Purpose

Create a topic receiver for a topic of standard jms type messages.

Usage Notes

AQ allows messages to be sent to specified recipients. These receivers may or may not be subscribers of the topic. If the receiver is not a subscriber to the topic, it will receive only those messages that are explicitly addressed to it.

This method must be used order to create a TopicReceiver object for consumers that are not 'Durable Subscribers'.A message selector can be specified. The syntax for the message selector is the same as that of a QueueReceiver.

Syntax

• Java (JDBC): Oracle8i Supplied Java Packages Reference,oracle.jms, AQjmsSession.createTopicReceiver

Example

 TopicConnectionFactory    tc_fact   = null;
TopicConnection           t_conn    = null;
TopicSession              t_sess    = null;
TopicSession              jms_sess;
Topic                     shipped_orders;
int                       myport = 5521;
TopicReceiver             receiver;

/* create connection and session */
tc_fact = AQjmsFactory.getTopicConnectionFactory("MYHOSTNAME",
                                                  "MYSID", myport, "oci8");
t_conn = tc_fact.createTopicConnection("jmstopic", "jmstopic");
jms_sess = t_conn.createTopicSession(true, Session.CLIENT_ACKNOWLEDGE);

shipped_orders = ((AQjmsSession )jms_sess).getTopic("WS", "Shipped_Orders_
Topic");

receiver = ((AQjmsSession)jms_sess).createTopicReceiver(shipped_orders,
"WesternRegion", null);
