Create a Topic Receiver for a Topic of Oracle Object Type (ADT) Messages

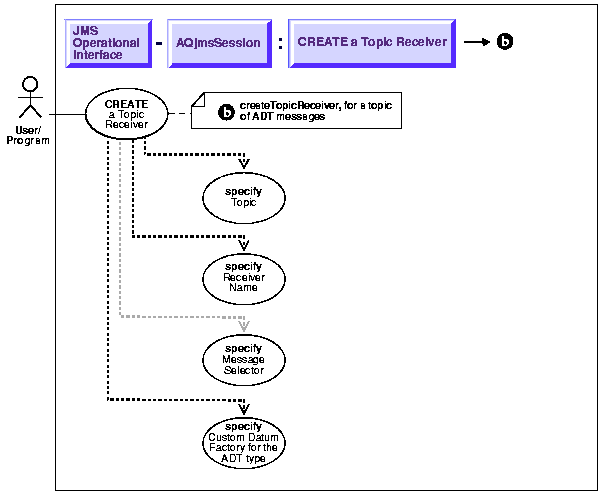

Figure 15-27 Use Case Diagram: Publish-Subscribe - Create a Topic Receiver for a Topic of Oracle Object Type (ADT) Messages

To refer to the table of all basic operations having to do with the Operational Interface see: "Use Case Model: Operational Interface -- Basic Operations"

Purpose

Create a topic receiver for a topic of adt messages with selector.

Usage Notes

AQ allows messages to be sent to all subscribers of a topic or to specified recipients. These receivers may or may not be subscribers of the topic. If the receiver is not a subscriber to the topic, it will receive only those messages that are explicitly addressed to it.

This method must be used order to create a TopicReceiver object for consumers that are not 'Durable Subscribers'. The CustomDatumFactory of the Oracle Object type of the queue must be specified. A message selector can also be specified. This can be null. The syntax for the message selector is the same as that of a QueueReceiver.

Syntax

• Java (JDBC): Oracle8i Supplied Java Packages Reference,oracle.jms, AQjmsSession.createTopicReceiver

Example

TopicConnectionFactory    tc_fact   = null;
TopicConnection           t_conn    = null;
TopicSession              t_sess    = null;
TopicSession              jms_sess;
Topic                     shipped_orders;
int                       myport = 5521;
TopicReceiver             receiver;

/* create connection and session */
tc_fact = AQjmsFactory.getTopicConnectionFactory("MYHOSTNAME",
                                                  "MYSID", myport, "oci8");
t_conn = tc_fact.createTopicConnection("jmstopic", "jmstopic");
jms_sess = t_conn.createTopicSession(true, Session.CLIENT_ACKNOWLEDGE);

shipped_orders = ((AQjmsSession )jms_sess).getTopic("WS", "Shipped_Orders_
Topic");

receiver = ((AQjmsSession)jms_sess).createTopicReceiver(shipped_orders,
"WesternRegion", null);
