Registering through the Database with a JDBC URL

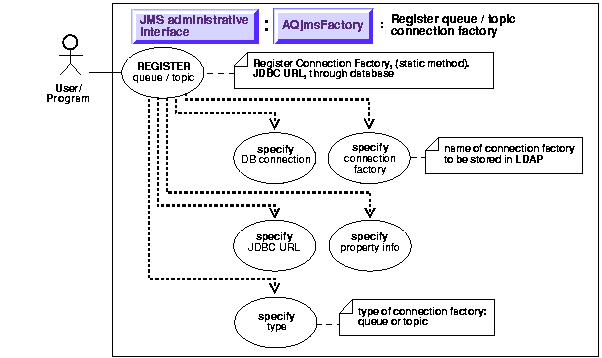

Figure 13-4 Use Case Diagram: Register through the Database with a JDBC URL

Text description of the illustration adq13jad19.gif

To refer to the table of all basic operations having to do with the Operational Interface see: "Use Case Model: Operational Interface -- Basic Operations"

Purpose

Register a queue/topic connection factory through the database with a JDBC URL to LDAP.

Usage Notes

registerConnectionFactory is a static method. To successfully register the connection factory, the DB connection passed to registerConnectionFactory must be granted AQ_ADMINISTRATOR_ROLE. After registration, look up the connection factory using JNDI.

Syntax

See Java (JDBC): Oracle9i Supplied Java Packages Reference, oracle.jms, AQjmsFactory.registerConnectionFactory.

Example

String                        url;
java.sql.connection           db_conn;

url = "jdbc:oracle:thin:@sun-123:1521:db1";
db_conn = DriverManager.getConnection(url, "scott", "tiger");
AQjmsFactory.registerConnectionFactory(db_conn, "topic_conn1", url,
				       null,  "topic");
