A
OC4J-Specific DTD Reference

This appendix describes the elements contained within the OC4J-specific EJB deployment descriptor: orion-ejb-jar.dtd. Some of the elements within this deployment descriptor are too complex for this appendix, so references to another source may be mentioned.

The description of this deployment descriptor has been divided into the following sections:

Overall description of section order--The required ordering of this XML file is described in "OC4J-Specific Deployment Descriptor for EJBs".
DTD listing--The official DTD, without comments, is shown in "DTD Listing". This is printed as a quick reference on the number of elements required within another element.
Element description--An alphabetical listing and description for each element is discussed in "Element Description".

Whenever you deploy an application, OC4J automatically generates the OC4J-specific XML file with the default elements. If you want to change these defaults, you must copy the orion-ejb-jar.xml file to where your original ejb-jar.xml file is located and change it in this location. If you change the XML file within the deployed location, OC4J simply overwrites these changes when the application is deployed again. The changes only stay constant when changed in the development directories.

Oracle recommends that you add your OC4J-specific XML files within the recommended development structure as shown in Figure A-1.

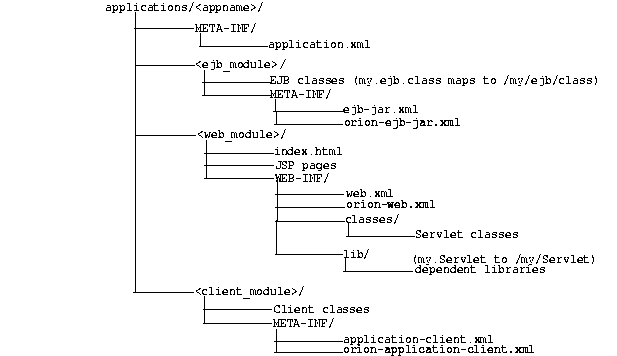

Figure A-1 Development Application Directory Structure

Text description of the illustration dtdxmla.gif

OC4J-Specific Deployment Descriptor for EJBs

The OC4J-specific deployment descriptor contains extended deployment information for session beans, entity beans, message driven beans, and security for these EJBs. The major element structure within this deployment descriptor has the following structure:

<orion-ejb-jar deployment-time=... deployment-version=...>
 <enterprise-beans>
   <session-deployment ...></session-deployment>
   <entity-deployment ...></entity-deployment>
   <message-driven-deployment ...></message-driven-deployment>
   <jem-deployment ...></jem-deployment>
   <jem-server-extension ...></jem-server-extension>
</enterprise-beans>
 <assembly-descriptor>
   <security-role-mapping ...></security-role-mapping>
   <default-method-access></default-method-access>
 </assembly-descriptor>
</orion-ejb-jar>

Each section under the <orion-ejb-jar> main tag has its own purpose. These are described in the sections below:

Enterprise Beans Section

The <enterprise-beans> section defines additional deployment information for all EJBs: session beans, entity beans, and message driven beans. There is a section for each type of EJB.

The following sections describe the elements within <enterprise-beans> element;

Session Bean Section

The <session-bean> section provides additional deployment information for a session bean deployed within this JAR file. The <session-bean> section contains the following structure:

<session-deployment call-timeout=... copy-by-value=... location=...
      max-tx-retries=... name=... persistence-filename=... timeout=...
      wrapper=...
  <env-entry-mapping name=...> </env-entry-mapping
  <ejb-ref-mapping location=... name=... />
  <resource-ref-mapping location=... name=... >
    <lookup-context location=...>
       <context-attribute name=... value=... />
    </lookup-context>
  </resource-ref-mapping>
</session-deployment>

Entity Bean Section

The <entity-bean> section provides additional deployment information for an entity bean deployed within this JAR file. The <entity-bean> section contains the following structure:

<entity-deployment call-timeout=... clustering-schema=... copy-by-value=...
      data-source=... exclusive-write-access=... isolation=... location=...
      max-tx-retries=... name=... table=... validity-timeout=... wrapper=...>
  <primkey-mapping>
   <cmp-field-mapping ejb-reference-home=... name=... persistence-name=...
      persistence-type=...></cmp-field-mapping>
  </primkey-mapping>
  <cmp-field-mapping ejb-reference-home=... name=... persistence-name=...
      persistence-type=...> </cmp-field-mapping>
  <finder-method partial=... query=... >
   <method></method>
  </finder-method>
  <env-entry-mapping name=...></env-entry-mapping>
  <ejb-ref-mapping location=... name=... />
  <resource-ref-mapping location=... name=... >
    <lookup-context location=...>
       <context-attribute name=... value=... />
    </lookup-context>
  </resource-ref-mapping>
</entity-deployment>

Message Driven Bean Section

The <message-driven-bean> section provides additional deployment information for a message driven bean deployed within this JAR file. The <message-driven-bean> section contains the following structure:

<message-driven-deployment connection-factory-location=...

      destination-location=... name=...>
  <env-entry-mapping name=...></env-entry-mapping>
  <ejb-ref-mapping location=... name=... />
  <resource-ref-mapping location=... name=... >
    <lookup-context location=...>
       <context-attribute name=... value=... />
    </lookup-context>
  </resource-ref-mapping>
</message-driven-deployment>

AC4J Active EJB Section

The <jem-server-extension> section defines the JNDI name of the database where the AC4J Databus is installed. The <jem-server-extension> contains the following structure:

<jem-server-extension data-source-location=...>
  <description></description>
</jem-server-extension>

The <jem-deployment> section provides additional deployment information for an active EJB deployed within this JAR file. The <jem-deployment> section contains the following structure:

 <jem-deployment jem-name=... ejb-name=...>
   <description></description>
   <called-by>
     <caller  caller-identity=.../>
   </called-by>
   <security-identity>
    <description></description>
    <use-caller-identity></use-caller-identity>
   </security-identity>
 </jem-deployment>

CMP Field Mapping Section

The mapping of logical names to actual names can be a complex process. See "Object-Relational Mapping of Persistent Fields" for a discussion on mapping CMP data fields.

The following are the XML elements used for CMP persistent data field mapping within the orion-ejb-jar.xml file:

<cmp-field-mapping ejb-reference-home=... name=... persistence-name=...
      persistence-type=...>
   <fields>
      <cmp-field-mapping ejb-reference-home=... name=... persistence-name=...
          persistence-type=...></cmp-field-mapping>
   </fields>
   <properties>
      <cmp-field-mapping ejb-reference-home=... name=... persistence-name=...
            persistence-type=...></cmp-field-mapping>
   </properties>
   <entity-ref home=...>
      <cmp-field-mapping ejb-reference-home=... name=... persistence-name=...
          persistence-type=...></cmp-field-mapping>
   </entity-ref>
   <list-mapping table=...>
      <primkey-mapping>
         <cmp-field-mapping ejb-reference-home=... name=... persistence-name=...
             persistence-type=...></cmp-field-mapping>
      </primkey-mapping>
      <value-mapping immutable="true|false" type=...>
         <cmp-field-mapping ejb-reference-home=... name=... persistence-name=...
             persistence-type=...></cmp-field-mapping>
      </value-mapping>
   </list-mapping>
   <collection-mapping table=...>
      <primkey-mapping>
         <cmp-field-mapping ejb-reference-home=... name=... persistence-name=...
             persistence-type=...></cmp-field-mapping>
      </primkey-mapping>
      <value-mapping immutable="true|false" type=...>
         <cmp-field-mapping ejb-reference-home=... name=... persistence-name=...
             persistence-type=...></cmp-field-mapping>
      </value-mapping>
   </collection-mapping>
   <set-mapping table=...>
      <primkey-mapping>
         <cmp-field-mapping ejb-reference-home=... name=... persistence-name=...
             persistence-type=...></cmp-field-mapping>
      </primkey-mapping>
      <value-mapping immutable="true|false" type=...>
         <cmp-field-mapping ejb-reference-home=... name=... persistence-name=...
             persistence-type=...></cmp-field-mapping>
      </value-mapping>
   </set-mapping>
   <map-mapping table=...>
      <primkey-mapping>
         <cmp-field-mapping ejb-reference-home=... name=... persistence-name=...
             persistence-type=...></cmp-field-mapping>
      </primkey-mapping>
      <map-key-mapping type=...>
         <cmp-field-mapping ejb-reference-home=... name=... persistence-name=...
             persistence-type=...></cmp-field-mapping>
      </map-key-mapping>
      <value-mapping immutable="true|false" type=...>
         <cmp-field-mapping ejb-reference-home=... name=... persistence-name=...
             persistence-type=...></cmp-field-mapping>
      </value-mapping>
   </map-mapping>
</cmp-field-mapping>

Method Definition

The following structure is used to specify the methods (and possibly parameters of that method) of the bean.

<method>
   <description></description>
   <ejb-name></ejb-name>
   <method-intf></method-intf>
   <method-name></method-name>
   <method-params>
     <method-param></method-param>
   </method-params>
</method>

The style used can be one of the following:

When referring to all the methods of the specified enterprise bean's home and remote interfaces, specify the methods as follows:

    <method>
            <ejb-name>EJBNAME</ejb-name>
            <method-name>*</method-name>
    </method>

When referring to multiple methods with the same overloaded name, specify the methods as follows:

   	<method>
	<ejb-name>EJBNAME</ejb-name>
   		<method-name>METHOD</method-name>
	</method>>

When referring to a single method within a set of methods with an overloaded name, you can specify each parameter within the method as follows:

 	<method>
	<ejb-name>EJBNAME</ejb-name>
		<method-name>METHOD</method-name>
			<method-params>
			 	<method-param>PARAM-1</method-param>
			   	<method-param>PARAM-2</method-param>
			          			...
			   	<method-param>PARAM-n</method-param>
			</method-params>
	<method>

Assembly Descriptor Section

In addition to specifying deployment information for individual beans, you can also specify addition deployment information for security in the <assembly-descriptor> section. The <assembly-descriptor> section contains the following structure:

<assembly-descriptor>
  <security-role-mapping impliesAll=... name=...>
   <group name=... />
   <user name=... />
  </security-role-mapping>
  <default-method-access>
   <security-role-mapping impliesAll=... name=...>
    <group name=... />
    <user name=... />
   </security-role-mapping>
  </default-method-access>
</assembly-descriptor>

DTD Listing

The following lists the orion-ejb-jar.xml DTD to show the ordering required, and optional parameters for each element. The definitions for each element is described in "Element Description".

<!ELEMENT properties (cmp-field-mapping*)>
<!ELEMENT fields (cmp-field-mapping*)>
<!ELEMENT session-deployment (env-entry-mapping*, ejb-ref-mapping*,
  resource-ref-mapping*)>
<!ATTLIST session-deployment call-timeout CDATA #IMPLIED
  copy-by-value CDATA #IMPLIED
  location CDATA #IMPLIED
  max-tx-retries CDATA #IMPLIED
  name CDATA #IMPLIED
  persistence-filename CDATA #IMPLIED
  timeout CDATA #IMPLIED
  wrapper CDATA #IMPLIED
  replication CDATA #IMPLIED>
<!ELEMENT collection-mapping (primkey-mapping, value-mapping)>
<!ATTLIST collection-mapping table CDATA #IMPLIED>
<!ELEMENT resource-ref-mapping (lookup-context?)>
<!ATTLIST resource-ref-mapping location CDATA #IMPLIED
  name CDATA #REQUIRED>
<!ELEMENT method-intf (#PCDATA)>
<!ELEMENT entity-ref (cmp-field-mapping)>
<!ATTLIST entity-ref home CDATA #IMPLIED>
<!ELEMENT enterprise-beans ((session-deployment | entity-deployment |
  message-driven-deployment | jem-deployment)+, jem-server-extension?)>
<!ELEMENT ejb-ref-mapping (#PCDATA)>
<!ATTLIST ejb-ref-mapping location CDATA #IMPLIED
  name CDATA #REQUIRED>
<!ELEMENT primkey-mapping (cmp-field-mapping)>
<!ELEMENT description (#PCDATA)>
<!ELEMENT env-entry-mapping (#PCDATA)>
<!ATTLIST env-entry-mapping name CDATA #IMPLIED>
<!ELEMENT security-role-mapping (group*, user*)>
<!ATTLIST security-role-mapping impliesAll CDATA #IMPLIED
  name CDATA #IMPLIED>
<!ELEMENT method-params (method-param*)>
<!ELEMENT cmp-field-mapping
  (fields|properties|entity-ref|list-mapping|collection-mapping|set-mapping|
  map-mapping|field-persistence-manager)?>
<!ATTLIST cmp-field-mapping ejb-reference-home CDATA #IMPLIED
  name CDATA #IMPLIED
  persistence-name CDATA #IMPLIED
  persistence-type CDATA #IMPLIED>
<!ELEMENT list-mapping (primkey-mapping, value-mapping)>
<!ATTLIST list-mapping table CDATA #IMPLIED>
<!ELEMENT group (#PCDATA)>
<!ATTLIST group name CDATA #IMPLIED>
<!ELEMENT default-method-access (security-role-mapping)>
<!ELEMENT map-key-mapping (cmp-field-mapping)>
<!ATTLIST map-key-mapping type CDATA #IMPLIED>
<!ELEMENT map-mapping (primkey-mapping, map-key-mapping, value-mapping)>
<!ATTLIST map-mapping table CDATA #IMPLIED>
<!ELEMENT value-mapping (cmp-field-mapping)>
<!ATTLIST value-mapping immutable CDATA #IMPLIED
  type CDATA #IMPLIED>
<!ELEMENT method-param (#PCDATA)>
<!ELEMENT user (#PCDATA)>
<!ATTLIST user name CDATA #IMPLIED>
<!ELEMENT lookup-context (context-attribute+)>
<!ATTLIST lookup-context location CDATA #IMPLIED>
<!ELEMENT context-attribute (#PCDATA)>
<!ATTLIST context-attribute name CDATA #IMPLIED
  value CDATA #IMPLIED>
<!ELEMENT set-mapping (primkey-mapping, value-mapping)>
<!ATTLIST set-mapping table CDATA #IMPLIED>
<!ELEMENT message-driven-deployment (env-entry-mapping*, ejb-ref-mapping*,
  resource-ref-mapping*)>
<!ATTLIST message-driven-deployment cache-timeout CDATA #IMPLIED
  connection-factory-location CDATA #IMPLIED
  destination-location CDATA #IMPLIED
  max-instances CDATA #IMPLIED
  min-instances CDATA #IMPLIED
  name CDATA #IMPLIED>
<!ELEMENT jem-server-extension (description?, data-bus?)>
<!ATTLIST jem-server-extension
  data-source-location CDATA #REQUIRED
  scheduling-threads CDATA #IMPLIED>
<!ELEMENT data-bus EMPTY>
<!ATTLIST data-bus
  data-bus-name CDATA #REQUIRED
  url CDATA #IMPLIED>
<!ELEMENT jem-deployment (description?, data-bus?, called-by,
  security-identity)>
<!ATTLIST jem-deployment
  jem-name CDATA #REQUIRED
  ejb-name CDATA #REQUIRED>
<!ELEMENT called-by (caller+)>
<!ELEMENT caller EMPTY>
<!ATTLIST caller
  caller-identity CDATA #REQUIRED>
<!ELEMENT security-identity
  (description?,(use-caller-identity|run-as-specified-identity))>
<!ELEMENT use-caller-identity EMPTY>
<!ELEMENT run-as-specified-identity (description?, role-name)>
<!ELEMENT role-name (#PCDATA)>
<!ELEMENT ejb-name (#PCDATA)>
<!ELEMENT field-persistence-manager (property)>
<!ATTLIST field-persistence-manager class CDATA #IMPLIED>
<!ELEMENT property (#PCDATA)>
<!ATTLIST property name CDATA #IMPLIED
  value CDATA #IMPLIED>
<!ELEMENT finder-method (method)>
<!ATTLIST finder-method partial CDATA #IMPLIED
  query CDATA #IMPLIED>
<!ELEMENT method (description?, ejb-name, method-intf?, method-name,
  method-params?)>
<!ELEMENT entity-deployment (primkey-mapping?, cmp-field-mapping*,
  finder-method*, env-entry-mapping*, ejb-ref-mapping*, resource-ref-mapping*)>
<!ATTLIST entity-deployment call-timeout CDATA #IMPLIED
  clustering-schema CDATA #IMPLIED
  copy-by-value CDATA #IMPLIED
  data-source CDATA #IMPLIED
  exclusive-write-access CDATA #IMPLIED
  instance-cache-timeout CDATA #IMPLIED
  location CDATA #IMPLIED
  isolation (commited | serializable | uncommited | repeatable_reads)
    CDATA #IMPLIED
  locking-mode (pessimistic | optimistic | read-only | old_pessimistic)
  max-instances CDATA #IMPLIED
  min-instances CDATA #IMPLIED
  max-instances-per-pk CDATA #IMPLIED
  min-instances-per-pk CDATA #IMPLIED
  max-tx-retries CDATA #IMPLIED
  update-changed-fields-only (true | false) "true"
  name CDATA #IMPLIED
  pool-cache-timeout CDATA #IMPLIED
  table CDATA #IMPLIED
  validity-timeout CDATA #IMPLIED
  wrapper CDATA #IMPLIED>
<!ELEMENT orion-ejb-jar (enterprise-beans, assembly-descriptor)>
<!ATTLIST orion-ejb-jar deployment-time CDATA #IMPLIED
  deployment-version CDATA #IMPLIED>
<!ELEMENT assembly-descriptor (security-role-mapping*, default-method-access?)>
<!ELEMENT method-name (#PCDATA)>

Element Description

<assembly-descriptor>

The mapping of the assembly descriptor elements.

<cmp-field-mapping>

Deployment information for a container-managed persistence field. If no subtags are used to define different behavior, the field is persisted through serialization or native handling of "recognized" primitive types.

Attributes:

ejb-reference-home - The JNDI-location of the fields remote EJB-home if the field is an entity EJBObject or an EJBHome.
name - The name of the field.
persistence-name - The name of the field in the database table.
persistence-type - The database type (valid values varies from database to database) of the field.

<collection-mapping>

Specifies a relational mapping of a Collection type. A Collection consists of n unordered items (order isnt specified and not relevant). The field containing the mapping must be of type java.util.Collection.

Attiributes:

table - The name of the table in the database.

<context-attribute>

An attribute sent to the context. The only mandatory attribute in JNDI is the 'java.naming.factory.initial' which is the classname of the context factory implementation.

Attributes:

name - The name of the attribute.
value - The value of the attribute.

<default-method-access>

The default method access policy for methods not tied to a method-permission.

<description>

A short description.

<ejb-name>

The ejb-name element specifies an enterprise bean's name. This name is assigned by the ejb-jar file producer to name the enterprise bean in the ejb-jar file's deployment descriptor. The name must be unique among the names of the enterprise beans in the same ejb-jar file. The enterprise bean code does not depend on the name; therefore the name can be changed during the application-assembly process without breaking the enterprise bean's function. There is no architected relationship between the ejb-name in the deployment descriptor and the JNDI name that the Deployer will assign to the enterprise bean's home. The name must conform to the lexical rules for an NMTOKEN.

<ejb-ref-mapping>

The ejb-ref element that is used for the declaration of a reference to another enterprise bean's home. The ejb-ref-mapping element ties this to a JNDI-location when deploying.

Attributes:

location - The JNDI location to look up the EJB home from.
name - The ejb-ref's name. Matches the name of an ejb-ref in ejb-jar.xml.

<enterprise-beans>

The beans contained in this EJB JAR file.

<entity-deployment>

Deployment information for an entity bean.

Attributes:

call-timeout - The time (long milliseconds in decimal) to wait for an EJB if it is busy (before throwing a RemoteException, treating it as a deadlock). This is also used as a SQL query timeout. If the timeout occurs before the SQL query finishes, a SQL exception is thrown. If zero, the timeout is disabled. The default is 90 seconds.
clustering-schema - The name of the data-source used if using container-managed persistence.
copy-by-value - Whether or not to copy all the incoming/outgoing parameters for all incoming and outgoing EJB calls. Set to 'false' if your application does not assume copy-by-value semantics for these parameters. The default is 'true'.
data-source - The name of the data source used if using container-managed persistence.
disable-wrapper-cache - If true, a pool of wrapper instances is not maintained. The default is false.
exclusive-write-access - Whether or not the EJB-server has exclusive write (update) access to the database backend. This can be used only for entity beans that use a "read_only" locking mode. In this case, it increases the performance for common bean operations and enables better caching. The default is false.
instance-cache-timeout - The amount of time in seconds that entity wrapper instances are assigned to an identity. If you specify 'never', you retain the wrapper instances until they are garbage collected. The default is 60 seconds.
isolation - Specifies the isolation-level for database actions. The valid values for Oracle databases are 'serializable' and 'committed'. The default is 'committed'. Non-Oracle databases can be the following: 'none', 'committed', 'serializable', 'uncommitted', and 'repeatable_read'.
location - The JNDI-name this bean will be bound to.
locking-mode - The concurrency modes configure when to block to manage resource contention or when to execute in parallel. The concurrency modes are as follows:
- PESSIMISTIC: This manages resource contention and does not allow parallel execution. Only one user at a time is allowed to execute the entity bean at a single time.
- OPTIMISTIC: Multiple users can execute the entity bean in parallel. It does not monitor resource contention; thus, the burden of the data consistency is placed on the database isolation modes. This is the default.
- READ-ONLY: Multiple users can execute the entity bean in parallel. The container does not allow any updates to the bean's state.
max-instances - The number of maximum bean implementation instances to be kept instantiated or pooled. The default is 10.
min-instances - The number of minimum bean implementation instances to be kept instantiated or pooled. The default is 0.
max-instances-per-pk - The number of maximum wrapper instances to be kept instantiated or pooled. The default is 50.
min-instances-per-pk - The number of minimum wrapper instances to be kept instantiated or pooled. The default is 0.
max-tx-retries - The number of times to retry a transaction that was rolled back due to system-level failures. The default is 3. Consider setting to zero if using the serializable isolation level. Within a transaction, the container uses the max-tx-retries value of the first invoked bean within the transaction
name - The name of the bean, this matches the name of a bean in the assembly descriptor (ejb-jar.xml).
pool-cache-timeout - The amount of time in seconds that the bean implementation instances are to be kept in the "pooled" (unassigned) state, specifying 'never' retains the instances until they are garbage collected. The default is 60.
table - The name of the table in the database if using container-managed persistence.
validity-timeout - The maximum amount of time (in milliseconds) that an entity is valid in the cache (before being reloaded). Useful for loosely coupled environments where rare updates from legacy systems occur. This attribute is only valid for entity beans with locking mode of read_only and when exclusive-write-access="true" (the default).
update-changed-fields-only - Specifies whether the container updates only modified fields or all fields to persistence storage for CMP entity beans when ejbStore is invoked. The default is true, which specifies to only update modified fields.
wrapper - Name of the OC4J wrapper class for this bean. (internal server attribute, do not edit)

<entity-ref>

Specified the configuration for persisting an entity reference via it's primary key. The child-tag of this tag is the specification of how to persist the primary key.

Attributes:

home - JNDI location of the EJBHome to get lookup the beans at.

<env-entry-mapping>

Overrides the value of an env-entry in the assembly descriptor. It is used to keep the EAR clean from deployment-specific values. The body is the value.

Attribute:

name - The name of the context parameter.

<fields>

Specifies the configuration of a field-based (java class field) mapping persistence for this field. The fields that are to be persisted have to be public, non-static, non-final and the type of the containing object has to have an empty constructor.

<finder-method>

The definition of a container-managed finder method. This defines the selection criteria in a findByXXX() method in the bean's home.

Attributes:

partial - Whether or not the specified query is a partial one. A partial query is the 'where' clause or the 'order' (if it starts with order) clause of the SQL query. Queries are partial by default. If partial="false" is specified then the full query is to be entered as value for the query attribute and you need to make sure that the query produces a result-set containing all of the CMP fields. This is useful when doing advances queries involving table joins and similar.
query - The query part of an SQL statement. This is the section following the WHERE keyword in the statement. Special tokens are $number which denotes an method argument number and $name which denotes a cmp-field name. For instance the query for "findByAge(int age)" would be (assuming the cmp-field is named 'age'): "$1 = $age".

<group>

A group that this <security-role-mapping> implies. That is, all members of the specified group are included in this role.

Attributes:

name - The name of the group.

<jem-deployment>

Specifies an active EJB for deployment into the AC4J container.

Attributes:

called-by - Provides the user identity of who will call this bean through the Databus.
security-identity - describes if the Databus should use the caller or run-as identity.

<jem-server-extension>

Describes the database server where the Databus is installed

Attributes:

data-source-location - Provides the JNDI data source definition of the database where the Databus exists. The data source is configured in the data-sources.xml file.

<list-mapping>

Specifies a relational mapping of a List type. A List is a sequential (where order/index is important) Collection of items. The field containing the mapping must be of type java.util.List or the legacy types java.util.Vector or Type[].

Attributes:

table - The name of the table in the database.

<lookup-context>

The specification of an optional javax.naming.Context implementation used for retrieving the resource. This is useful when using third party modules, such as a third party JMS server. Either use the context implementation supplied by the resource vendor or, if none exists, write an implementation that negotiates with the vendor software.

Attribute:

location - The name looked for in the foreign context when retrieving the resource.

<map-key-mapping>

Specifies a mapping of the map key. Map keys are always immutable.

Attributes:

type - The fully qualified class name of the type of the value. Examples are com.acme.Product, java.lang.String etc.

<map-mapping>

Specifies a relational mapping of a Map type. A Map consists of n unique keys and their mapping to values. The field containing the mapping must be of type java.util.Map or the legacy types java.util.Hashtable or java.util.Properties.

Attributes:

table - The name of the table in the database.

<message-driven-deployment>

Deployment information for a MDB.

Attributes:

connection-factory-location - The JNDI location of the connection factory to use.
destination-location - The JNDI location of the destination (queue/topic) to use.
max-instances - The maximum number of bean instances to instantiate. The default is -1, which implies an infinite number.
min-instances - The minimum number of bean instances to instantiate.
name - The name of the bean, this matches the name of a bean in the assembly descriptor (ejb-jar.xml).

<method>

Specify the methods (and possibly parameters of that method) of the bean.

<method-intf>

The method-intf element allows a method element to differentiate between the methods with the same name and signature that are defined in both the remote and home interfaces. The method-intf element must be one of the following: Home or Remote.

<method-name>

The method-name element contains a name of an enterprise bean method, or the asterisk (*) character. The asterisk is used when the element denotes all the methods of an enterprise bean's remote and home interfaces.

<method-param>

The method-param element contains the fully-qualified Java type name of a method parameter.

<method-params>

The method-params element contains a list of the fully-qualified Java type names of the method parameters.

<orion-ejb-jar>

An orion-ejb-jar.xml file contains the OC4J-specific deployment information for an EJB. It is used to specify initial deployment properties. After each deployment the deployment file is reformatted and altered by the server for additional information.

Attributes:

deployment-time - The time (long milliseconds in decimal) of the last deployment, if not matching the last editing date the jar will be redeployed. (internal server value, do not edit)
deployment-version - The version of OC4J this jar was deployed with, if it's not matching the current version then it will be redeployed. (internal server value, do not edit)

<primkey-mapping>

Designates how the primary key is mapped.

<properties>

Specifies the configuration of a property-based (bean properties) mapping persistence for this field. The properties have to adhere to the usual JavaBeans specification and the type of the containing object has to have an empty constructor This is also designated within the EJB specification.

<resource-ref-mapping>

The resource-ref element is used for the declaration of a reference to an external resource such as a data source, JMS queue, or mail session. The resource-ref-mapping ties this to a JNDI-location when deploying.

Attributes:

location - The JNDI location to look up the resource factory from.
name - The resource-ref name. Matches the name of an resource-ref in ejb-jar.xml.

<security-role-mapping>

The runtime mapping (to groups and users) of a role. Maps to a security-role of the same name in the assembly descriptor.

Attributes:

impliesAll - Whether or not this mapping implies all users. The default is false.
name - The name of the role

<session-deployment>

Deployment information for a session bean.

Attributes:

cache-timeout--How long to keep stateless sessions cached in the pool. Only applies to stateless session beans. The default is 60. Legal values are positive integer values or 'never'.
call-timeout--The time (long milliseconds in decimal) to wait for an EJB if it is busy. After this times out, a RemoteException is thrown and the EJB is treated as involved in a deadlock. If value is set to 0, OC4J waits for the EJB "forever". This is the default.
copy-by-value--Whether or not to copy (clone) all the incoming and outgoing parameters in EJB calls. Set to 'false' if you are certain that your application does not assume copy-by-value semantics for a speed-up. The default is 'true'.
location--The JNDI-name that this bean will be bound to.
max-tx-retries--The number of times to retry a transaction that was rolled back due to system-level failures. The default is 3. Within a transaction, the container uses the max-tx-retries value of the first invoked bean within the transaction.
name--The name of the bean, which matches the name of a bean in the assembly section of the EJB deployment descriptor (ejb-jar.xml).
persistence-filename--Path to the file where sessions are stored across restarts.
timeout--Inactivity timeout in seconds. If the value is zero or negative, then all timeouts are disabled. The default is 30 minutes.
wrapper--Name of the OC4J wrapper class for this bean. This is an internal server value and should not be edited.

<set-mapping>

Specifies a relational mapping of a Set type. A Set consists of n unique unordered items (order is not specified and not relevant). The field containing the mapping must be of type java.util.Set.

Attributes:

table - The name of the table in the database.

<user>

A user that this security-role-mapping implies.

Attributes:

name - The name of the user.

<value-mapping>

Specified a mapping of the primary key part of a set of fields.

Attributes:

immutable - Whether or not the value can be trusted to be immutable once added to the Collection/Map. Setting this to true will optimize database operations extensively. The default value is "true" for set-mapping and map-mappings and "false" for collection-mapping and list-mapping.
type - The fully qualified class name of the type of the value. Examples are com.acme.OrderEntry, java.lang.String, and so on.

AOC4J-Specific DTD Reference

Figure A-1 Development Application Directory Structure

OC4J-Specific Deployment Descriptor for EJBs

Enterprise Beans Section

Session Bean Section

Entity Bean Section

Message Driven Bean Section

AC4J Active EJB Section

CMP Field Mapping Section

Method Definition

Assembly Descriptor Section

DTD Listing

Element Description

A
OC4J-Specific DTD Reference
