1
Introduction

This chapter describes the Simple Mail Transfer Protocol (SMTP) adapter and the hardware and software requirements.

This chapter contains these topics:

• SMTP Adapter Overview

• SMTP Adapter System Requirements

• SMTP Adapter Known Limitations

SMTP Adapter Overview

The SMTP adapter enables an Oracle SMTP application to be integrated with other applications using Oracle9iAS InterConnect. This adapter is useful in all enterprise application integration (EAI) environments where e-mail uses the Internet Message Access Protocol 4 (IMAP4) and SMTP transport protocols. EAI is the integration of applications and business processes within the same company (known as an enterprise).

The SMTP adapter can monitor incoming messages in the form of e-mail placed on an IMAP server. The SMTP adapter is also capable of sending messages to SMTP servers. The payload type (the data being delivered to a destination) for this adapter is one of the following:

• Extensible Markup Language (XML) data

• Data definition description language (D3L) data

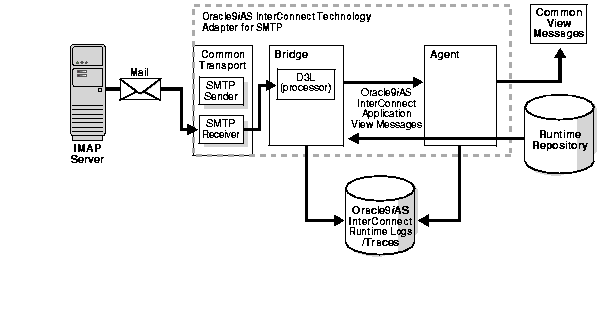

Figure 1-1 depicts the data flow of incoming messages (from an IMAP server to Oracle9iAS InterConnect).

Figure 1-1 Incoming Messages

Text description of the illustration asism001.gif

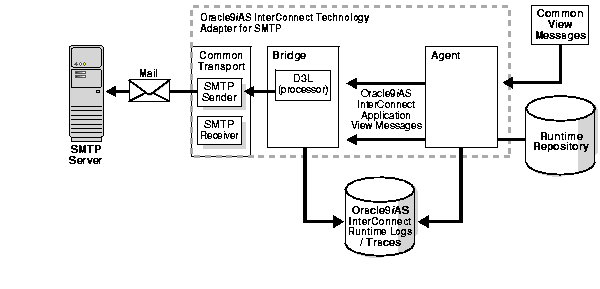

Figure 1-2 depicts the data flow of outgoing messages (from Oracle9iAS InterConnect to an SMTP server).

Figure 1-2 Outgoing Messages

Text description of the illustration asism002.gif

SMTP Adapter System Requirements

The following sections describe SMTP adapter system requirements:

• Hardware Requirements

• Software Requirements

Hardware Requirements

Table 1-1 lists the hardware requirements for the computer on which to install the SMTP adapter.

Table 1-1 Hardware Requirements

Hardware	Windows NT/2000	UNIX
Memory	128 MB	128 MB
Service pack	Windows NT 4.0 Service Pack 6 or later Windows 2000 Service Pack 1 or later	Not applicable
Disk space	500 MB	500 MB

Software Requirements

The following sections describe SMTP adapter software requirements:

• Operating System Requirements

• JRE Requirements

Operating System Requirements

Table 1-2 lists the operating system requirements for the computer on which to install the SMTP adapter.

Table 1-2 Operating System Requirements

Operating System	Platform	Version
Windows NT/2000	Any	Version that supports at least 400 MHz
UNIX	IBM AIX-Based Systems	Version 4.3.3
	Compaq Tru64 UNIX	Version 5.0a/5.1
	HP 9000 Series HP-UX	Version 11.0/11i
	SUSE LINUX	Version 7.2
	Sun SPARC Solaris	Version 2.6

JRE Requirements

Oracle9iAS InterConnect uses Java Runtime Environment (JRE) 1.3, which is installed with its components.

SMTP Adapter Known Limitations

The SMTP adapter has the following limitations:

• The IMAP server with Secure Socket Layer (SSL) is not supported.

• Only multiple endpoints (destinations) for outgoing messages (from Oracle9iAS InterConnect to SMTP servers) are supported. For incoming messages (IMAP server to Oracle9iAS InterConnect), only a single endpoint is supported.

• The sending endpoint and receiving endpoints are restricted to SMTP endpoints.

• Only IMAP4 server is supported in this release. Post Office Protocol 3 (POP3) is not supported.

• In multiple instance cases, ensure that each application instance has a separate receiving endpoint. Otherwise, different instances of adapters may attempt to process the same message concurrently.
