18
XML Schema Processor for C++

This chapter contains the following sections:

• Oracle XML Schema Processor for C++ Features
• Invoking XML Schema Processor for C++
• XML Schema Processor for C++ Usage Diagram
• Running the Provided XML Schema Sample Programs

Oracle XML Schema Processor for C++ Features

The XML Schema Processor for C++ is a companion component to the XML Parser for C++ that allows support to simple and complex datatypes into XML applications with Oracle9i.

The XML Schema Processor for C++ supports the W3C XML Schema Recommendation, with the goal being that it be 100% fully conformant when XML Schema becomes a W3C Recommendation. This makes writing custom applications that process XML documents straightforward in the Oracle9i environment, and means that a standards-compliant XML Schema Processor is part of the Oracle9i platform on every operating system where Oracle9i is ported.

See Also: Chapter 4, "XML Parser for Java", for more information about XML Schema and why you would want to use XML Schema.

Oracle XML Schema for C++ Features

XML Schema Processor for C++ has the following features:

• Supports simple and complex types
• Built upon the XML Parser for C++
• Supports the W3C XML Schema Recommendation

The XML Schema Processor for C++ class is XMLSchema.

See Also: Oracle9i XML API Reference - XDK and Oracle XML DB

Online Documentation

Documentation for Oracle XML Schema Processor for C++ is located in the doc directory in your install area.

Standards Conformance

The Schema Processor conforms to the following standards:

• W3C recommendation for Extensible Markup Language (XML) 1.0
• W3C recommendation for Document Object Model Level 1.0
• W3C recommendation for Namespaces in XML
• W3C recommendation for XML Schema

XML Schema Processor for C++: Provided Software

Table 18-1 lists the supplied files and directories with this release:

Table 18-1 XML Schema Processor for C++: Supplied Files

Directory an d Files	Description
license.html	Licensing agreement
readme.html	This file
bin	Schema processor executable, "schema"
doc	API documentation
include	header files
lib	XML/XSL/Schema & support libraries
mesg	Error message files
sample	Example usage of the Schema processor

Table 18-2 lists the included libraries:

Table 18-2 XML Schema Processor for C++: Supplied Libraries

Included Library	Description
libxml9.a	XML Parser/XSL Processor
libxsd9.a	XML Schema Processor
libcore9.a	CORE functions
libnls9.a	Globalization Support

Invoking XML Schema Processor for C++

The XML Schema Processor can be called as an executable by invoking bin/schema in the install area. This takes two arguments:

• XML instance document
• Optionally, a default schema

The Schema processor can also be invoked by writing code using the supplied APIs. The code must be compiled using the headers in the include/ subdirectory and linked against the libraries in the lib/ subdirectory. See Makefile in the sample/ subdirectory for details on how to build your program.

An error message file is provided in the mesg/ subdirectory. Currently, the only message file is in English although message files for other languages may be supplied in future releases.

XML Schema Processor for C++ Usage Diagram

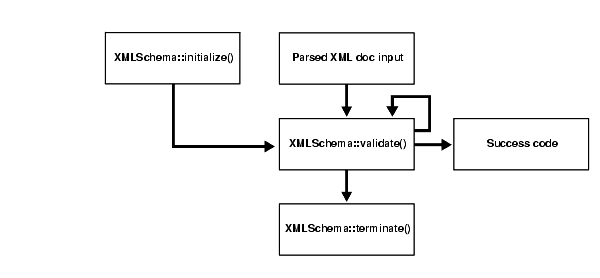

Figure 18-1 illustrates the calling sequence of XMl Schema Processor for C++, as follows:

The sequence of calls to the processor is: initialize, validate, validate,..., validate, terminate.

1. The initialize call is invoked once at the beginning of a session; it returns a Schema context which is used throughout the session.
2. The instance document to be validated is first parsed with the XML parser.
3. The XML context for the instance is then passed to the Schema validate function, along with an optional schema URL.
4. If no explicit schema is defined in the instance document, the default schema will be used.
5. More documents may then be validated using the same schema context.
6. When the session is over, the Schema tear down function is called, which releases all memory allocated by the loaded schemas.

Figure 18-1 XML Schema Processor for C++ Usage Diagram

Text description of the illustration adxml093.gif

Running the Provided XML Schema Sample Programs

This directory contains a sample XML Schema application that illustrates how to use Oracle XML Schema Processor with its API. Table 18-3 lists the provided sample files.

Table 18-3 XML Schema for C++ Samples Provided

Sample File	Description
Makefile	Makefile to build the sample programs and run them, verifying correct output.
xsdtest.cpp	Trivial program which invokes the XML Schema for C++ API
car.{xsd,xml,std}	Sample Schema, instance document, expected output respectively, after running xsdtest on them.
aq.{xsd,xml,std}	Second sample Schema's, instance document, expected output respectively, after running xsdtest on them.
pub.{xsd,xml,std}	Third sample Schema's, instance document, expected output respectively, after running xsdtest on them.

To build the sample programs, run make.

To build the programs and run them, comparing the actual output to expected output, run make sure.
