This chapter shows you how to implement Oracle dynamic SQL Method 4, which lets your program accept or build dynamic SQL statements that contain a varying number of host variables.
New applications should be developed using the newer ANSI SQL Method 4 described in Chapter 10, "ANSI Dynamic SQL".The ANSI Method 4 supports all Oracle types, while the older Oracle Method 4 does not support cursor variables, tables of group items, the DML returning clause, and LOBs.
Subjects discussed include the following:
Note:
For a discussion of dynamic SQL Methods 1, 2, and 3, and an overview of Oracle Method 4, see Chapter 9, "Oracle Dynamic SQL"Before looking into the requirements of Method 4, you should be familiar with the terms select-list item and place-holder. Select-list items are the columns or expressions following the keyword SELECT in a query. For example, the following dynamic query contains three select-list items:
SELECT ENAME, JOB, SAL + COMM FROM EMP WHERE DEPTNO = 20
Place-holders are dummy bind (input) variables that hold places in a SQL statement for actual bind variables. You do not declare place-holders and can name them anything you like. Place-holders for bind variables are most often used in the SET, VALUES, and WHERE clauses. For example, the following dynamic SQL statements each contain two place-holders.
INSERT INTO EMP (EMPNO, DEPTNO) VALUES (:E, :D) DELETE FROM DEPT WHERE DEPTNO = :DNUM AND LOC = :DLOC
Place-holders cannot reference table or column names.
Unlike Methods 1, 2, and 3, dynamic SQL Method 4 lets your program:
Accept or build dynamic SQL statements that contain an unknown number of select-list items or place-holders
Take explicit control over datatype conversion between Oracle9i and COBOL types
To add this flexibility to your program, you must give the runtime library additional information.
Pro*COBOL generates calls to Oracle9 for all executable dynamic SQL statements. If a dynamic SQL statement contains no select-list items or place-holders, the database needs no additional information to execute the statement. The following DELETE statement falls into this category:
* Dynamic SQL statement... MOVE 'DELETE FROM EMP WHERE DEPTNO = 30' TO STMT.
However, most dynamic SQL statements contain select-list items or place-holders for bind variables, as shown in the following UPDATE statement:
* Dynamic SQL statement with place-holders... MOVE 'UPDATE EMP SET COMM = :C WHERE EMPNO = :E' TO STMT.
To execute a dynamic SQL statement that contains select-list items or place-holders for bind variables, or both, the database needs information about the program variables that will hold output or input values. Specifically, the database needs the following information:
The number of select-list items and the number of bind variables
The length of each select-list item and bind variable
The datatype of each select-list item and bind variable
The memory address of each output variable that will store the value of a select-list item, and the address of each bind variable
For example, to write the value of a select-list item, the database needs the address of the corresponding output variable.
All the information the database needs about select-list items or place-holders for bind variables, except their values, is stored in a program data structure called the SQL Descriptor Area (SQLDA).
Descriptions of select-list items are stored in a select SQLDA, and descriptions of place-holders for bind variables are stored in a bind SQLDA.
The values of select-list items are stored in output buffers; the values of bind variables are stored in input buffers. You use the library routine SQLADR to store the addresses of these data buffers in a select or bind SQLDA, so that the database knows where to write output values and read input values.
How do values get stored in these data variables? A FETCH generates output values using a cursor, and input values are filled in by your program, typically from information entered interactively by the user.
You use the DESCRIBE statement to help get the information the database needs. The DESCRIBE SELECT LIST statement examines each select-list item to determine its name, datatype, constraints, length, scale, and precision, then stores this information in the select SQLDA for your use. For example, you might use select-list names as column headings in a printout. DESCRIBE also stores the total number of select-list items in the SQLDA.
The DESCRIBE BIND VARIABLES statement examines each place-holder to determine its name and length, then stores this information in an input buffer and bind SQLDA for your use. For example, you might use place-holder names to prompt the user for the values of bind variables.
This section describes the SQLDA data structure in detail. You learn how to declare it, what variables it contains, how to initialize them, and how to use them in your program.
Method 4 is required for dynamic SQL statements that contain an unknown number of select-list items or place-holders for bind variables. To process this kind of dynamic SQL statement, your program must explicitly declare SQLDAs, also called descriptors. Each descriptor corresponds to a group item in your program.
A select descriptor stores descriptions of select-list items and the addresses of output buffers that hold the names and values of select-list items.
Note:
The name of a select-list item can be a column name, a column alias, or the text of an expression such as SAL + COMM.A bind descriptor stores descriptions of bind variables and indicator variables and the addresses of input buffers where the names and values of bind variables and indicator variables are stored.
Remember, some descriptor variables contain addresses, not values. Therefore, you must declare data buffers to hold the values. You decide the sizes of the required input and output buffers. Because COBOL does not support pointers, you must use the library subroutine SQLADR to get the addresses of input and output buffers. You learn how to call SQLADR in the section "Using SQLADR".
If your program has more than one active dynamic SQL statement, each statement must have its own SQLDA. You can declare any number of SQLDAs with different names. For example, you might declare three select SQLDAs named SELDSC1, SELDSC2, and SELDSC3, so that you can FETCH from three concurrently open cursors. However, non-concurrent cursors can reuse SQLDAs.

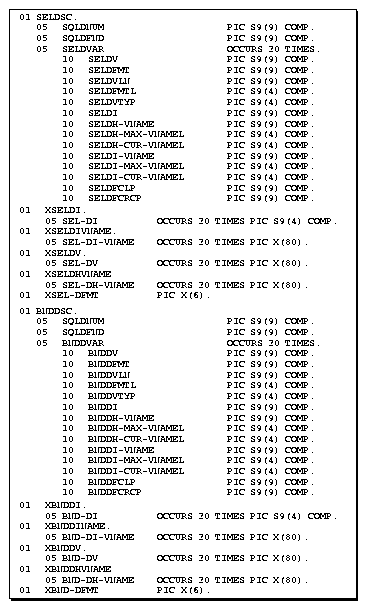

To declare select and bind SQLDAs, you can code them into your program using the sample select and bind SQLDAs shown in Figure 11-1. You can modify the table dimensions to suit your needs.
Note:
For byte-swapped platforms, use COMP5 instead of COMP when declaring a SQLDA.Figure 11-1 Sample Pro*COBOL SQLDA Descriptors and Data Buffers
You can store the SQLDAs in files (named SELDSC and BNDDSC, for example), and then copy the files into your program with the INCLUDE statement as follows:
EXEC SQL INCLUDE SELDSC END-EXEC. EXEC SQL INCLUDE BNDDSC END-EXEC.

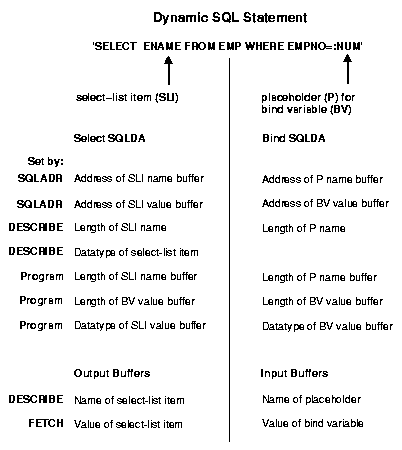

Figure 11-2 shows whether variables are set by SQLADR calls, DESCRIBE commands, FETCH commands, or program assignments.
This section explains the purpose and use of each variable in the SQLDA.
This variable specifies the maximum number of select-list items or place-holders that can be included in DESCRIBE. Thus, SQLDNUM determines the number of elements in the descriptor tables.
Before issuing a DESCRIBE command, you must set this variable to the dimension of the descriptor tables. After the DESCRIBE, you must reset it to the actual number of variables in the DESCRIBE, which is stored in SQLDFND.
The SQLDFND variable is the actual number of select-list items or place-holders found by the DESCRIBE command.
SQLDFND is set by DESCRIBE. If SQLDFND is negative, the DESCRIBE command found too many select-list items or place-holders for the size of the descriptor. For example, if you set SQLDNUM to 10 but DESCRIBE finds 11 select-list items or place-holders, SQLDFND is set to -11. If this happens, you cannot process the SQL statement without reallocating the descriptor.
After the DESCRIBE, you must set SQLDNUM equal to SQLDFND.
The SELDV | BNDDV table contains the addresses of data buffers that store select-list or bind-variable values.
You must set the elements of SELDV or BNDDV using SQLADR.
The following statement
EXEC SQL FETCH ... USING DESCRIPTOR ...
directs the database to store FETCHed select-list values in the data buffers addressed by SELDV(1) through SELDV(SQLDNUM). Thus, the database stores the Jth select-list value in SEL-DV(J).
You must set the bind descriptors before issuing the OPEN command. The following statement
EXEC SQL OPEN ... USING DESCRIPTOR ...
directs Oracle9 to execute the dynamic SQL statement using the bind-variable values addressed by BNDDV(1) through BNDDV(SQLDNUM). (Typically, the values are entered by the user.) The database finds the Jth bind-variable value in BND-DV(J).
The SELDFMT | BNDDFMT table contains the addresses of data buffers that store select-list or bind-variable conversion format strings. You can currently use it only for COBOL packed decimals. The format for the conversion string is PP.+SS or PP.-SS where PP is the precision and SS is the scale. For definitions of precision and scale, see the section "Extracting Precision and Scale".
The use of format strings is optional. If you want a conversion format for the Jth select-list item or bind variable, set SELDFMT(J) or BNDDFMT(J) using SQLADR, then store the packed-decimal format (07.+02
for example) in SEL-DFMT or BND-DFMT. Otherwise, set SELDFMT(J) or BNDDFMT(J) to zero.
The SELDVLN | BNDDVLN table contains the lengths of select-list variables or bind-variable values stored in the data buffers.
DESCRIBE SELECT LIST sets the table of lengths to the maximum expected for each select-list item. However, you might want to reset some lengths before issuing a FETCH command. FETCH returns at most n characters, where n is the value of SELDVLN(J) before the FETCH command.
The format of the length differs among datatypes. For CHAR select-list items, DESCRIBE SELECT LIST sets SELDVLN(J) to the maximum length in bytes of the select-list item. For NUMBER select-list items, scale and precision are returned respectively in the low and next-higher bytes of the variable. You can use the library routine SQLPRC to extract precision and scale values from SELDVLN. See the section "Extracting Precision and Scale".
You must reset SELDVLN(J) to the required length of the data buffer before the FETCH. For example, when coercing a NUMBER to a COBOL character string, set SELDVLN(J) to the precision of the number plus two for the sign and decimal point. When coercing a NUMBER to a COBOL floating point number, set SELDVLN(J) to the length of the appropriate floating point type on your system.
For more information about the lengths of coerced datatypes, see the section "Converting Data".
You must set the Bind Descriptor lengths before issuing the OPEN command. For example, you can use the following statements to set the lengths of bind-variable character strings entered by the user:
PROCEDURE DIVISION. ... PERFORM GET-INPUT-VAR VARYING J FROM 1 BY 1 UNTIL J > SQLDNUM IN BNDDSC. ... GET-INPUT-VAR. DISPLAY "Enter value of ", BND-DH-VNAME(J). ACCEPT INPUT-STRING. UNSTRING INPUT-STRING DELIMITED BY " " INTO BND-DV(J) COUNT IN BNDDVLN(J).
Because Oracle9i accesses a data buffer indirectly, using the address in SELDV(J) or BNDDV(J), it does not know the length of the value in that buffer. If you want to change the length Oracle9i uses for the Jth select-list or bind-variable value, reset SELDVLN(J) or BNDDVLN(J) to the length you need. Each input or output buffer can have a different length.
This is a table containing the lengths of select-list or bind-variable conversion format strings. Currently, you can use it only for COBOL packed decimal.
The use of format strings is optional. If you want a conversion format for the Jth select-list item or bind variable, set SELDFMTL(J) before the FETCH or BNDDFMTL(J) before the OPEN to the length of the packed-decimal format stored in SEL-DFMT or BND-DFMT. Otherwise, set SELDFMTL(J) or BNDDFMTL(J) to zero.
If the value of SELDFMTL(J) or BNDDFMTL(J) is zero, SELDFMT(J) or BNDDFMT(J) are not used.
The SELDVTYP | BNDDVTYP table contains the datatype codes of select-list or bind-variable values. These codes determine how Oracle9i data is converted when stored in the data buffers addressed by elements of SELDV. The datatype descriptor table is further described in "Converting Data".
DESCRIBE SELECT LIST sets the table of datatype codes to the internal datatype (for example, VARCHAR2, CHAR, NUMBER, or DATE) of the items in the select list.
Before a FETCH is executed, you might want to reset some datatypes because the internal format of datatypes can be difficult to handle. For display purposes, it is usually a good idea to coerce the datatype of select-list values to VARCHAR2. For calculations, you might want to coerce numbers from Oracle9i to COBOL format. See "Coercing Datatypes".
The high bit of SELDVTYP(J) is set to indicate the NULL/not NULL status of the Jth select-list column. You must always clear this bit before issuing an OPEN or FETCH command. Use the library routine SQLNUL to retrieve the datatype code and clear the NULL/not NULL bit. For more information, see: "Handling NULL/Not NULL Datatypes".
It is best to change the NUMBER internal datatype to an external datatype compatible with that of the COBOL data buffer addressed by SELDV(J).
DESCRIBE BIND VARIABLES sets the table of datatype codes to zeros. You must reset the table of datatypes before issuing the OPEN command. The code represents the external (COBOL) datatype of the buffer addressed by BNDDV(J). Often, bind-variable values are stored in character strings, so the datatype table elements are set to 1 (the VARCHAR2 datatype code).
To change the datatype of the Jth select-list or bind-variable value, reset SELDVTYP(J) or BNDDVTYP(J) to the datatype you want.
The SELDI | BNDDI table contains the addresses of data buffers that store indicator-variable values. You must set the elements of SELDI or BNDDI using SQLADR.
You must set this table before issuing the FETCH command. When Oracle9i executes the statement
EXEC SQL FETCH ... USING DESCRIPTOR ...
if the Jth returned select-list value is NULL, the buffer addressed by SELDI(J) is set to -1. Otherwise, it is set to zero (the value is not NULL) or a positive integer (the value was truncated).
You must initialize this table and set the associated indicator variables before issuing the OPEN command. When Oracle9i executes the statement
EXEC SQL OPEN ... USING DESCRIPTOR ...
the buffer addressed by BNDDI(J) determines whether the Jth bind variable is NULL. If the value of an indicator variable is -1, its associated bind variable is NULL.
The SELDH-VNAME | BNDDH-VNAME table contains the addresses of data buffers that store select-list or place-holder names as they appear in dynamic SQL statements. You must set the elements of SELDH-VNAME or BNDDH-VNAME using SQLADR before issuing the DESCRIBE command.
DESCRIBE directs Oracle9i to store the name of the Jth select-list item or place-holder in the data buffer addressed by SELDH-VNAME(J) or BNDDH-VNAME(J). Thus, Oracle9i stores the Jth select-list or place-holder name in SEL-DH-VNAME(J) or BND-DH-VNAME(J).
Note:
The SELDH-VNAME | BNDDH-VNAME table contains only the name of the column, and not the table-qualifier.column name, even if you provide it in your SQL statement. If, for example, you were to do a describe of select-list in the SQL statementselect a.owner from all_tables
the software will return not a.owner
, but instead, owner
. If necessary, you should use column aliases to correctly identify a column in the select list.SELDH-MAX-VNAMEL | BNDDH-MAX-VNAMEL
The SELDH-MAX-VNAMEL | BNDDH-MAX-VNAMEL table contains the maximum lengths of the data buffers that store select-list or place-holder names. The buffers are addressed by the elements of SELDH-VNAME or BNDDH-VNAME.
You must set the elements of SELDH-MAX-VNAMEL or BNDDH-MAX-VNAMEL before issuing the DESCRIBE command. Each select-list or place-holder name buffer can have a different length.
SELDH-CUR-VNAMEL | BNDDH-CUR-VNAMEL
The SELDH-CUR-VNAMEL | BNDDH-CUR-VNAMEL table contains the actual lengths of the names of the select-list or place-holder. DESCRIBE sets the table of actual lengths to the number of characters in each select-list or place-holder name.
The SELDI-VNAME | BNDDI-VNAME table contains the addresses of data buffers that store indicator-variable names.
You can associate indicator-variable values with select-list items and bind variables. However, you can associate indicator-variable names only with bind variables. You can use this table only with bind descriptors. You must set the elements of BNDDI-VNAME using SQLADR before issuing the DESCRIBE command.
DESCRIBE BIND VARIABLES directs Oracle9i to store any indicator-variable names in the data buffers addressed by BNDDI-VNAME(1) through BNDDI-VNAME(SQLDNUM). Thus, Oracle9i stores the Jth indicator-variable name in BND-DI-VNAME(J).
SELDI-MAX-VNAMEL | BNDDI-MAX-VNAMEL
The SELDI-MAX-VNAMEL | BNDDI-MAX-VNAMEL table contains the maximum lengths of the data buffers that store indicator-variable names. The buffers are addressed by the elements of SELDI-VNAME or BNDDI-VNAME.
You can associate indicator-variable names only with bind variables. You can use this table only with bind descriptors.
You must set the elements BNDDI-MAX-VNAMEL(1) through BNDDI-MAX-VNAMEL(SQLDNUM) before issuing the DESCRIBE command. Each indicator-variable name buffer can have a different length.
SELDI-CUR-VNAMEL | BNDDI-CUR-VNAMEL
The SELDI-CUR-VNAMEL | BNDDI-CUR-VNAMEL table contains the actual lengths of the names of the indicator variables. You can associate indicator-variable names only with bind variables. You can use this table only with bind descriptors.
DESCRIBE BIND VARIABLES sets the table of actual lengths to the number of characters in each indicator-variable name.
The SELDFCLP | BNDDFCLP table is reserved for future use. It must be present because Oracle9i expects the group item SELDSC or BNDDSC to be a certain size. You must currently set the elements of SELDFCLP and BNDDFCLP to zero.
The SELDFCRCP | BNDDFCRCP table is reserved for future use. It must be present because Oracle9i expects the group item SELDSC or BNDDSC to be a certain size. You must set the elements of SELDFCRCP and BNDDFCRCP to zero.
You need a working knowledge of the following subjects to implement dynamic SQL Method 4:
Using the library routine SQLADR
converting data
coercing datatypes
handling NULL/not NULL datatypes
You must call the library subroutine SQLADR to get the addresses of data buffers that store input and output values. You store the addresses in a bind or select SQLDA so that Oracle9i knows where to read bind-variable values or write select-list values.
CALL "SQLADR" USING BUFFER, ADDRESS.
where:
Is a data buffer that stores the value or name of a select-list item, bind variable, or indicator variable.
Is an integer variable that returns the address of the data buffer.
A call to SQLADR stores the address of BUFFER in ADDRESS. The next example uses SQLADR to initialize the select descriptor tables SELDV, SELDH-VNAME, and SELDI. Their elements address data buffers for select-list values, select-list names, and indicator values.
PROCEDURE DIVISION. ... PERFORM INIT-SELDSC VARYING J FROM 1 BY 1 UNTIL J > SQLDNUM IN SELDSC. ... INIT-SELDSC. CALL "SQLADR" USING SEL-DV(J), SELDV(J). CALL "SQLADR" USING SEL-DH-VNAME(J), SELDH-VNAME(J). CALL "SQLADR" USING SEL-DI(J), SELDI(J).
This section provides more detail about the datatype descriptor table. In host programs that use neither datatype equivalencing nor dynamic SQL Method 4, the conversion between internal and external datatypes is determined at precompile time. By default, Pro*COBOL assigns a specific external datatype to each host variable. For example, Pro*COBOL assigns the INTEGER external datatype to host variables of type PIC S9(n) COMP.
However, Method 4 lets you control data conversion and formatting. You specify conversions by setting datatype codes in the datatype descriptor table.
Internal datatypes specify the formats used by Oracle9i to store column values in database tables to represent pseudocolumn values.
When you issue a DESCRIBE SELECT LIST command, Oracle9i returns the internal datatype code for each select-list item to the SELDVTYP (datatype) descriptor table. For example, the datatype code for the Jth select-list item is returned to SELDVTYP(J).
Table 11-1 shows the internal datatypes and their codes:
Table 11-1 Internal Datatypes and Related Codes
Internal Datatype | Code |
---|---|
VARCHAR2 NUMBER LONG ROWID DATE RAW LONG RAW CHAR |
1 2 8 11 12 23 24 96 |
External datatypes specify the formats used to store values in input and output host variables.
The DESCRIBE BIND VARIABLES command sets the BNDDVTYP table of datatype codes to zeros. Therefore, you must reset the codes before issuing the OPEN command. The codes tell Oracle9i which external datatypes to expect for the various bind variables. For the Jth bind variable, reset BNDDVTYP(J) to the external datatype you want.
The following table shows the external datatypes and their codes, as well as the corresponding COBOL datatypes:
Table 11-2 Oracle External and Related COBOL Datatypes
Name | Code | COBOL Datatype |
---|---|---|
VARCHAR2 |
1 |
PIC X(n) when MODE=ANSI |
NUMBER |
2 |
PIC X(n) |
INTEGER |
3 |
PIC S9(n) COMP PIC S9(n) COMP5 (COMP5 for byte-swapped platforms) |
FLOAT |
4 |
COMP-1 COMP-2 |
STRING (0) |
5 |
PIC X(n) |
VARNUM |
6 |
PIC X(n) |
DECIMAL |
7 |
PIC S9(n)V9(n) COMP-3 |
LONG |
8 |
PIC X(n) |
VARCHAR (2) |
9 |
PIC X(n) VARYING PIC N(n) VARYING |
ROWID |
11 |
PIC X(n) |
DATE |
12 |
PIC X(n) |
VARRAW (2) |
15 |
PIC X(n) |
RAW |
23 |
PIC X(n) |
LONG RAW |
24 |
PIC X(n) |
UNSIGNED |
68 |
(not supported) |
DISPLAY |
91 |
PIC S9...9V9...9 DISPLAY SIGN LEADING SEPARATE PIC S9(n)V9(n) DISPLAY SIGN LEADING SEPARATE |
LONG VARCHAR (2) |
94 |
PIC X(n) |
LONG VARRAW (2) |
95 |
PIC X(n) |
CHARF |
96 |
PIC X(n) when MODE = ANSI PIC N(n) when MODE = ANSI |
CHARZ (0) |
97 |
PIC X(n) |
CURSOR |
102 |
SQL-CURSOR |
Notes:
For more information about the datatypes and their formats, see "The Oracle Database 10g Datatypes".
PL/SQL provides a variety of predefined scalar and composite datatypes. A scalar type has no internal components. A composite type has internal components that can be manipulated individually. Table 11-4 shows the predefined PL/SQL scalar datatypes and their internal datatype equivalence
Table 11-3 PL/SQL Datatype Equivalences with Internal Datatypes
PL/SQL Datatype | Oracle Internal Datatype |
---|---|
VARCHAR VARCHAR2 |
VARCHAR2 |
BINARY_INTEGER DEC DECIMAL DOUBLE PRECISION FLOAT INT INTEGER NATURAL NUMBER NUMERIC POSITIVE REAL SMALLINT |
NUMBER |
LONG |
LONG |
ROWID |
ROWID |
DATE |
DATE |
RAW |
RAW |
LONG RAW |
LONG RAW |
CHAR CHARACTER STRING |
CHAR |
For a select descriptor, DESCRIBE SELECT LIST can return any of the internal datatypes. Often, as in the case of character data, the internal datatype corresponds exactly to the external datatype you want to use. However, a few internal datatypes map to external datatypes that can be difficult to handle. Thus, you might want to reset some elements in the SELDVTYP descriptor table.
For example, you might want to reset NUMBER values to FLOAT values, which correspond to PIC S9(n)V9(n) COMP-1 values in COBOL. Oracle9i does any necessary conversion between internal and external datatypes at FETCH time. Be sure to reset the datatypes after the DESCRIBE SELECT LIST but before the FETCH.
For a bind descriptor, DESCRIBE BIND VARIABLES does not return the datatypes of bind variables, only their number and names. Therefore, you must explicitly set the BNDDVTYP table of datatype codes to tell Oracle9i the external datatype of each bind variable. Oracle9i does any necessary conversion between external and internal datatypes at OPEN time.
When you reset datatype codes in the SELDVTYP or BNDDVTYP descriptor table, you are "coercing datatypes." For example, to coerce the Jth select-list value to VARCHAR2, use the following statement:
* Coerce select-list value to VARCHAR2. MOVE 1 TO SELDVTYP(J).
When coercing a NUMBER select-list value to VARCHAR2 for display purposes, you must also extract the precision and scale bytes of the value and use them to compute a maximum display length. Then, before the FETCH, you must reset the appropriate element of the SELDVLN (length) descriptor table to tell Oracle9i the buffer length to use. To specify the length of the Jth select-list value, set SELDVLN(J) to the length you need.
For example, if DESCRIBE SELECT LIST finds that the Jth select-list item is of type NUMBER, and you want to store the returned value in a COBOL variable declared as PIC S9(n)V9(n) COMP-1, simply set SELDVTYP(J) to 4 and SELDVLN(J) to the length of COMP-1 numbers on your system.
In some cases, the internal datatypes that DESCRIBE SELECT LIST returns might not suit your purposes. Two examples of this are DATE and NUMBER. When you DESCRIBE a DATE select-list item, Oracle9i returns the datatype code 12 to the SELDVTYP table. Unless you reset the code before the FETCH, the date value is returned in its 7-byte internal format. To get the date in its default character format, you must change the datatype code from 12 to 1 (VARCHAR2) and increase the SELDVLN value from 7 to 9.
Similarly, when you DESCRIBE a NUMBER select-list item, Oracle9i returns the datatype code 2 to the SELDVTYP table. Unless you reset the code before the FETCH, the numeric value is returned in its internal format, which is probably not desired. Therefore, change the code from 2 to 1 (VARCHAR2), 3 (INTEGER), 4 (FLOAT), or some other appropriate datatype.
Extracting Precision and Scale
The library subroutine SQLPRC extracts precision and scale. Normally, it is used after the DESCRIBE SELECT LIST, and its first parameter is SELDVLN(J). To call SQLPRC, use the following syntax
CALL "SQLPRC" USING LENGTH, PRECISION, SCALE.
where:
Syntax | Description |
---|---|
LENGTH | Is an integer variable that stores the length of a NUMBER value. The scale and precision of the value are stored in the low and next-higher bytes, respectively. |
PRECISION | Is an integer variable that returns the precision of the NUMBER value. Precision is the number of significant digits. It is set to zero if the select-list item refers to a NUMBER of unspecified size. In this case, because the size is unspecified, assume the maximum precision, 38. |
SCALE | Is an integer variable that returns the scale of the NUMBER value. Scale specifies where rounding will occur. For example, a scale of 2 means the value is rounded to the nearest hundredth (3.456 becomes 3.46); a scale of -3 means that the number is rounded to the nearest thousand (3.456 becomes 3000). |
The following example shows how SQLPRC is used to compute maximum display lengths for NUMBER values that will be coerced to VARCHAR2:
WORKING-STORAGE SECTION. 01 PRECISION PIC S9(9) COMP. 01 SCALE PIC S9(9) COMP. 01 DISPLAY-LENGTH PIC S9(9) COMP. 01 MAX-LENGTH PIC S9(9) COMP VALUE 80. ... PROCEDURE DIVISION. ... PERFORM ADJUST-LENGTH VARYING J FROM 1 BY 1 UNTIL J > SQLDNUM IN SELDSC. ADJUST-LENGTH. * If datatype is NUMBER, extract precision and scale. IF SELDVTYP(J) = 2 CALL "SQLPRC" USING SELDVLN(J), PRECISION, SCALE. MOVE 0 TO DISPLAY-LENGTH. * Precision is set to zero if the select-list item * refers to a NUMBER of unspecified size. We allow for * a maximum precision of 10. IF SELDVTYP(J) = 2 AND PRECISION = 0 MOVE 10 TO DISPLAY-LENGTH. * Allow for possible decimal point and sign. IF SELDVTYP(J) = 2 AND PRECISION > 0 ADD 2 TO PRECISION MOVE PRECISION TO DISPLAY-LENGTH. ...
Notice that the first parameter in the subroutine call is the Jth element in the table of select-list lengths.
The SQLPRC procedure, defined in the SQLLIB runtime library, returns zero as the precision and scale values for certain SQL datatypes. The SQLPR2 procedure is similar to SQLPRC in that it has the same syntax and returns the same binary values, except for the datatypes shown in this table:
For every select-list column (not expression), DESCRIBE SELECT LIST returns a NULL/not NULL indication in the datatype table of the select descriptor. If the Jth select-list column is constrained to be not NULL, the high-order bit of SELDVTYP(J) datatype variable is clear; otherwise, it is set.
Before using the datatype in an OPEN or FETCH statement, if the NULL status bit is set, you must clear it. Never set the bit.
You can use the library routine SQLNUL to find out if a column allows NULL datatypes and to clear the datatype's NULL status bit. You call SQLNUL using the syntax
CALL "SQLNUL" USING VALUE-TYPE, TYPE-CODE, NULL-STATUS.
where:
Syntax | Description |
---|---|
VALUE-TYPE | Is a 2-byte integer variable that stores the datatype code of a select-list column. |
TYPE-CODE | Is a 2-byte integer variable that returns the datatype code of the select-list column with the high-order bit cleared. |
NULL-STATUS | Is an integer variable that returns the NULL status of the select-list column. 1 means that the column allows NULLs; 0 means that it does not. |
The following example shows how to use SQLNUL:
WORKING-STORAGE SECTION. ... * Declare variable for subroutine call. 01 NULL-STATUS PIC S9(9) COMP. ... PROCEDURE DIVISION. MAIN. EXEC SQL WHENEVER SQLERROR GOTO SQL-ERROR END-EXEC. ... PERFORM HANDLE-NULLS VARYING J FROM 1 BY 1 UNTIL J > SQLDNUM IN SELDSC. ... HANDLE-NULLS. * Find out if column is NOT NULL, and clear high-order bit. CALL "SQLNUL" USING SELDVTYP(J), SELDVTYP(J), NULL-STATUS. * If NULL-STATUS = 1, NULLs are allowed.
Notice that the first and second parameters in the subroutine call are the same. Respectively, they are the datatype variable before and after its NULL status bit is cleared.
Method 4 can be used to process any dynamic SQL statement. In the example in "Using Host Tables with Method 4", a query is processed so that you can see how both input and output host variables are handled.
To process the dynamic query, our example program takes the following steps:
Declare a host string to hold the query text.
Declare select and bind descriptors.
Set the maximum number of select-list items and place-holders that can be DESCRIBEd.
Initialize the select and bind descriptors.
Store the query text in the host string.
PREPARE the query from the host string.
DECLARE a cursor FOR the query.
DESCRIBE the bind variables INTO the bind descriptor.
Reset the number of place-holders to the number actually found by DESCRIBE.
Get values for the bind variables found by DESCRIBE.
OPEN the cursor USING the bind descriptor.
DESCRIBE the select list INTO the select descriptor.
Reset the number of select-list items to the number actually found by DESCRIBE.
Reset the length and datatype of each select-list item for display purposes.
FETCH a row from the database INTO data buffers using the select descriptor.
Process the select-list values returned by FETCH.
CLOSE the cursor when there are no more rows to FETCH.
Note:
If the dynamic SQL statement is not a query or contains a known number of select-list items or place-holders, then some of the preceding steps are unnecessary.This section discusses each step in more detail. A full-length example program illustrating Method 4 is seen at the end of this chapter. With Method 4, you use the following sequence of embedded SQL statements:
EXEC SQL PREPARE <statement_name> FROM {:<host_string> | <string_literal>} END-EXEC. EXEC SQL DECLARE <cursor_name> CURSOR FOR <statement_name> END-EXEC. EXEC SQL DESCRIBE BIND VARIABLES FOR <statement_name> INTO <bind_descriptor_name> END-EXEC. EXEC SQL OPEN <cursor_name> [USING DESCRIPTOR <bind_descriptor_name>] END-EXEC. EXEC SQL DESCRIBE [SELECT LIST FOR] <statement_name> INTO <select_descriptor_name> END-EXEC. EXEC SQL FETCH <cursor_name> USING DESCRIPTOR <select_descriptor_name> END-EXEC. EXEC SQL CLOSE <cursor_name> END-EXEC.
If the number of select-list items in a dynamic query is known, you can omit DESCRIBE SELECT LIST and use the following Method 3 FETCH statement:
EXEC SQL FETCH <cursor_name> INTO <host_variable_list> END-EXEC.
Alternatively, if the number of place-holders for bind variables in a dynamic SQL statement is known, you can omit DESCRIBE BIND VARIABLES and use the following Method 3 OPEN statement:
EXEC SQL OPEN <cursor_name> [USING <host_variable_list>] END-EXEC.
The next section illustrates how these statements allow your host program to accept and process a dynamic SQL statement using descriptors.
Note:
Several figures accompany the following discussion. To avoid cluttering the figures, it was necessary to confine descriptor tables to 3 elements and to limit the maximum length of names and values to 5 and 10 characters, respectively.Your program needs a host variable to store the text of the dynamic SQL statement. The host variable (SELECTSTMT in our example) must be declared as a character string:
EXEC SQL BEGIN DECLARE SECTION END-EXEC. ... 01 SELECTSTMT PIC X(120). EXEC SQL END DECLARE SECTION END-EXEC.
Because the query in our example might contain an unknown number of select-list items or place-holders, you must declare select and bind descriptors. Instead of hard-coding the SQLDAs, you use INCLUDE to copy them into your program, as follows:
EXEC SQL INCLUDE SELDSC END-EXEC. EXEC SQL INCLUDE BNDDSC END-EXEC.
For reference, the INCLUDEd declaration of SELDSC follows:
WORKING-STORAGE SECTION. ... 01 SELDSC. 05 SQLDNUM PIC S9(9) COMP. 05 SQLDFND PIC S9(9) COMP. 05 SELDVAR OCCURS 3 TIMES. 10 SELDV PIC S9(9) COMP. 10 SELDFMT PIC S9(9) COMP. 10 SELDVLN PIC S9(9) COMP. 10 SELDFMTL PIC S9(4) COMP. 10 SELDVTYP PIC S9(4) COMP. 10 SELDI PIC S9(9) COMP. 10 SELDH-VNAME PIC S9(9) COMP. 10 SELDH-MAX-VNAMEL PIC S9(4) COMP. 10 SELDH-CUR-VNAMEL PIC S9(4) COMP. 10 SELDI-VNAME PIC S9(9) COMP. 10 SELDI-MAX-VNAMEL PIC S9(4) COMP. 10 SELDI-CUR-VNAMEL PIC S9(4) COMP. 10 SELDFCLP PIC S9(9) COMP. 10 SELDFCRCP PIC S9(9) COMP. 01 XSELDI. 05 SEL-DI OCCURS 3 TIMES PIC S9(9) COMP. 01 XSELDIVNAME. 05 SEL-DI-VNAME OCCURS 3 TIMES PIC X(5). 01 XSELDV. 05 SEL-DV OCCURS 3 TIMES PIC X(10). 01 XSELDHVNAME. 05 SEL-DH-VNAME OCCURS 3 TIMES PIC X(5).
You next set the maximum number of select-list items or place-holders that can be described, as follows:
MOVE 3 TO SQLDNUM IN SELDSC. MOVE 3 TO SQLDNUM IN BNDDSC.
You must initialize several descriptor variables. Some require the library subroutine SQLADR.
In our example, you store the maximum lengths of name buffers in the SELDH-MAX-VNAMEL, BNDDH-MAX-VNAMEL, and BNDDI-MAX-VNAMEL tables, and use SQLADR to store the addresses of value and name buffers in the SELDV, SELDI, BNDDV, BNDDI, SELDH-VNAME, BNDDH-VNAME, and BNDDI-VNAME tables.
PROCEDURE DIVISION. ... PERFORM INIT-SELDSC VARYING J FROM 1 BY 1 UNTIL J > SQLDNUM IN SELDSC. PERFORM INIT-BNDDSC VARYING J FROM 1 BY 1 UNTIL J > SQLDNUM IN BNDDSC. ... INIT-SELDSC. MOVE SPACES TO SEL-DV(J). MOVE SPACES TO SEL-DH-VNAME(J). MOVE 5 TO SELDH-MAX-VNAMEL(J). CALL "SQLADR" USING SEL-DV(J), SELDV(J). CALL "SQLADR" USING SEL-DH-VNAME(J), SELDH-VNAME(J). CALL "SQLADR" USING SEL-DI(J), SELDI(J). ... INIT-BNDDSC. MOVE SPACES TO BND-DV(J). MOVE SPACES TO BND-DH-VNAME(J). MOVE SPACES TO BND-DI-VNAME(J). MOVE 5 TO BNDDH-MAX-VNAMEL(J). MOVE 5 TO BNDDI-MAX-VNAMEL(J). CALL "SQLADR" USING BND-DV(J), BNDDV(J). CALL "SQLADR" USING BND-DH-VNAME(J), BNDDH-VNAME(J). CALL "SQLADR" USING BND-DI(J), BNDDI(J). CALL "SQLADR" USING BND-DI-VNAME(J), BNDDI-VNAME(J). ...

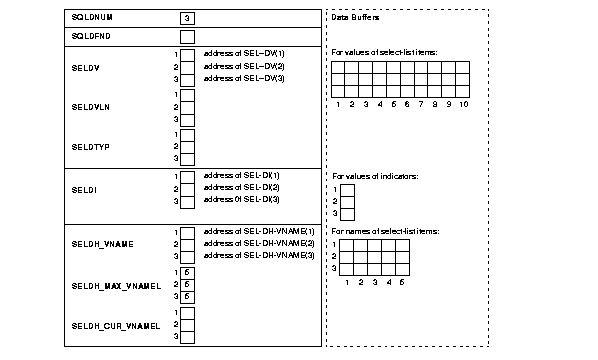

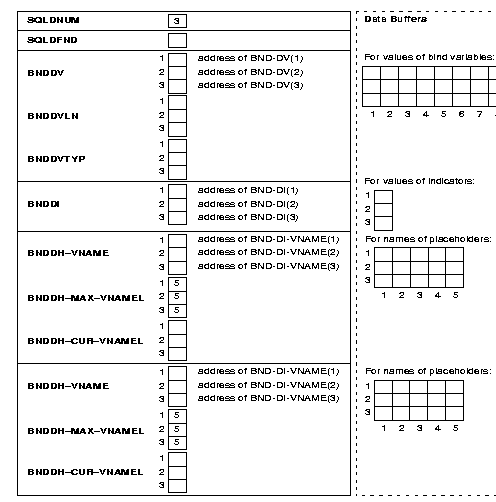

Figure 11-3 and Figure 11-4 represent the resulting descriptors.
Figure 11-3 Initialized Select Descriptor
Next, you prompt the user for a SQL statement, then store the input string in SELECTSTMT as follows:
DISPLAY "Enter a SELECT statement: " WITH NO ADVANCING. ACCEPT SELECTSTMT.
We assume the user entered the following string:
SELECT ENAME, EMPNO, COMM FROM EMP WHERE COMM < :BONUS
PREPARE parses the SQL statement and gives it a name. In our example, PREPARE parses the host string SELECTSTMT and gives it the name SQLSTMT, as follows:
EXEC SQL PREPARE SQLSTMT FROM :SELECTSTMT END-EXEC.
DECLARE CURSOR defines a cursor by giving it a name and associating it with a specific SELECT statement.
To declare a cursor for static queries, use the following syntax:
EXEC SQL DECLARE cursor_name CURSOR FOR SELECT ...
To declare a cursor for dynamic queries, the statement name given to the dynamic query by PREPARE replaces the static query. In our example, DECLARE CURSOR defines a cursor named EMPCURSOR and associates it with SQLSTMT, as follows:
EXEC SQL DECLARE EMPCURSOR CURSOR FOR SQLSTMT END-EXEC.
Note:
You must declare a cursor for all dynamic SQL statements, not just queries. With non-queries, OPENing the cursor executes the dynamic SQL statement.DESCRIBE BIND VARIABLES puts descriptions of bind variables into a bind descriptor. In our example, DESCRIBE readies BNDDSC as follows:
EXEC SQL DESCRIBE BIND VARIABLES FOR SQLSTMT INTO BNDDSC END-EXEC.
Note that BNDDSC must not be prefixed with a colon.
The DESCRIBE BIND VARIABLES statement must follow the PREPARE statement but precede the OPEN statement.

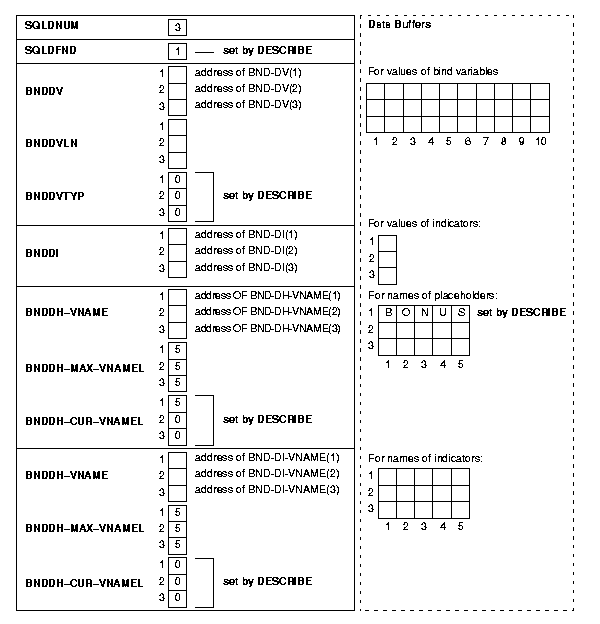

Figure 11-5 shows the bind descriptor in our example after the DESCRIBE. Notice that DESCRIBE has set SQLDFND to the actual number of place-holders found in the processed SQL statement.
Figure 11-5 Bind Descriptor after the DESCRIBE
Next, you must reset the maximum number of place-holders to the number actually found by DESCRIBE, as follows:
IF SQLDFND IN BNDDSC < 0 DISPLAY "Too many bind variables" GOTO ROLL-BACK ELSE MOVE SQLDFND IN BNDDSC TO SQLDNUM IN BNDDSC END-IF.
Your program must get values for the bind variables in the SQL statement. How the program gets the values is up to you. For example, they can be hard-coded, read from a file, or entered interactively.
In our example, a value must be assigned to the bind variable that replaces the place-holder BONUS in the query WHERE clause. Prompt the user for the value, then process it, as follows:
PROCEDURE DIVISION. ... PERFORM GET-INPUT-VAR VARYING J FROM 1 BY 1 UNTIL J > SQLDNUM IN BNDDSC. ... GET-INPUT-VAR. ... * Replace the 0 DESCRIBEd into the datatype table * with a 1 to avoid an "invalid datatype" Oracle error. MOVE 1 TO BNDDVTYP(J). * Get value of bind variable. DISPLAY "Enter value of ", BND-DH-VNAME(J). ACCEPT INPUT-STRING. UNSTRING INPUT-STRING DELIMITED BY " " INTO BND-DV(J) COUNT IN BNDDVLN(J).

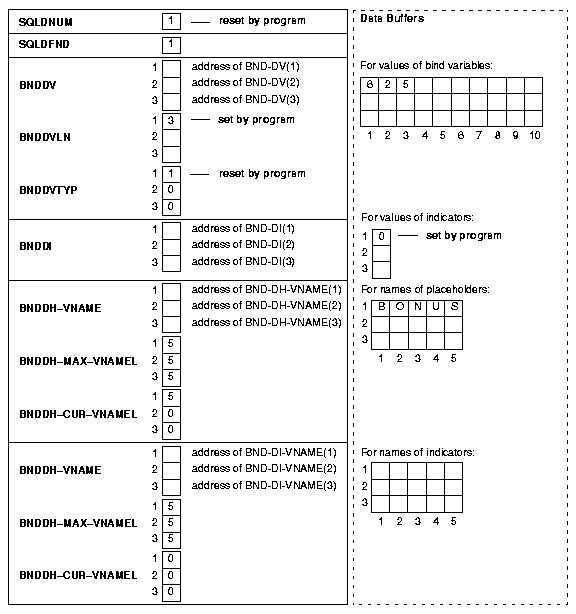

Assuming that the user supplied a value of 625 for BONUS, the next table shows the resulting bind descriptor.
Figure 11-6 Bind Descriptor after Assigning Values
The OPEN statement for dynamic queries is similar to the one for static queries, except the cursor is associated with a bind descriptor. Values determined at run time and stored in buffers addressed by elements of the bind descriptor tables are used to evaluate the SQL statement. With queries, the values are also used to identify the active set.
In our example, OPEN associates EMPCURSOR with BNDDSC as follows:
EXEC SQL OPEN EMPCUR USING DESCRIPTOR BNDDSC END-EXEC.
Remember, BNDDSC must not be prefixed with a colon.
Then, OPEN executes the SQL statement. With queries, OPEN also identifies the active set and positions the cursor at the first row.
If the dynamic SQL statement is a query, the DESCRIBE SELECT LIST statement must follow the OPEN statement but precede the FETCH statement.
DESCRIBE SELECT LIST puts descriptions of select-list items into a select descriptor. In our example, DESCRIBE readies SELDSC as follows:
EXEC SQL DESCRIBE SELECT LIST FOR SQLSTMT INTO SELDSC END-EXEC.
Accessing the data dictionary, DESCRIBE sets the length and datatype of each select-list value.

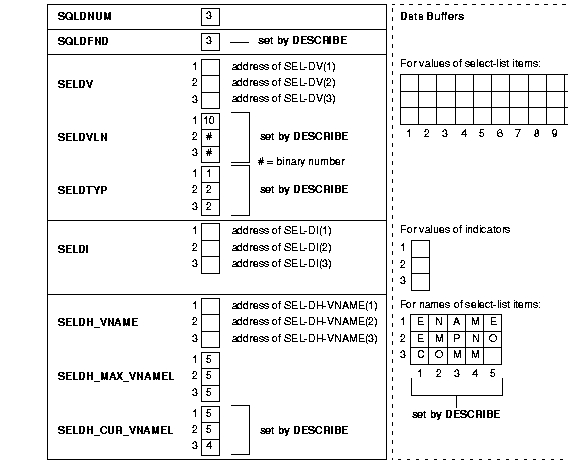

Figure 11-7 shows the select descriptor in our example after the DESCRIBE. Notice that DESCRIBE has set SQLDFND to the actual number of items found in the query select list. If the SQL statement is not a query, SQLDFND is set to zero. Also notice that the NUMBER lengths are not usable yet. For columns defined as NUMBER, you must use the library subroutine SQLPRC to extract precision and scale. See the section "Coercing Datatypes".
Figure 11-7 Select Descriptor after the DESCR
Next, you must reset the maximum number of select-list items to the number actually found by DESCRIBE, as follows:
MOVE SQLDFND IN SELDSC TO SQLDNUM IN SELDSC.
Before fetching the select-list values, the example resets some elements in the length and datatype tables for display purposes.
PROCEDURE DIVISION. ... PERFORM COERCE-COLUMN-TYPE VARYING J FROM 1 BY 1 UNTIL J > SQLDNUM IN SELDSC. ... COERCE-COLUMN-TYPE. * Clear NULL bit. CALL "SQLNUL" USING SELDVTYP(J), SELDVTYP(J), NULL-STATUS. * If datatype is DATE, lengthen to 9 characters. IF SELDVTYP(J) = 12 MOVE 9 TO SELDVLN(J). * If datatype is NUMBER, extract precision and scale. MOVE 0 TO DISPLAY-LENGTH. IF SELDVTYP(J) = 2 AND PRECISION = 0 MOVE 10 TO DISPLAY-LENGTH. IF SELDVTYP(J) = 2 AND PRECISION > 0 ADD 2 TO PRECISION MOVE PRECISION TO DISPLAY-LENGTH. IF SELDVTYP(J) = 2 IF DISPLAY-LENGTH > MAX-LENGTH DISPLAY "Column value too large for data buffer." GO TO END-PROGRAM ELSE MOVE DISPLAY-LENGTH TO SELDVLN(J). * Coerce datatypes to VARCHAR2. MOVE 1 TO SELDVTYP(J).
Figure 11-8 shows the resulting select descriptor. Notice that the NUMBER lengths are now usable and that all the datatypes are VARCHAR2. The lengths in SELDVLN(2) and SELDVLN(3) are 6 and 9 because we increased the DESCRIBEd lengths of 4 and 7 by 2 to allow for a possible sign and decimal point.
Figure 11-8 Select Descriptor before the FETCH
FETCH returns a row from the active set, stores select-list values in the data buffers, and advances the cursor to the next row in the active set. If there are no more rows, FETCH sets SQLCODE in the SQLCA, the SQLCODE variable, or the SQLSTATE variable to the "no data found" error code. In the following example, FETCH returns the values of columns ENAME, EMPNO, and COMM to SELDSC:
EXEC SQL FETCH EMPCURSOR USING DESCRIPTOR SELDSC END-EXEC.

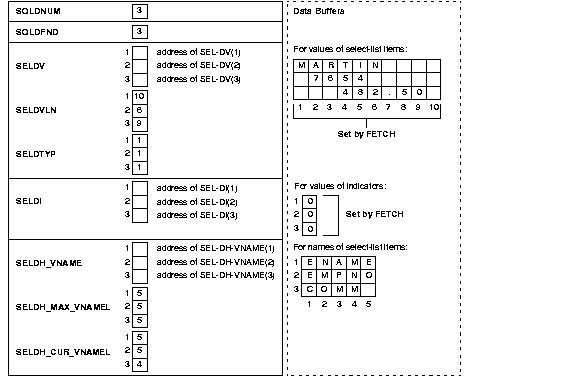

Figure 11-9 shows the select descriptor in our example after the FETCH. Notice that Oracle9i has stored the select-list and indicator values in the data buffers addressed by the elements of SELDV and SELDI.
For output buffers of datatype 1, Oracle9i, using the lengths stored in SELDVLN, left-justifies CHAR or VARCHAR2 data, and right-justifies NUMBER data.
The value MARTIN
was retrieved from a VARCHAR2(10) column in the EMP table. Using the length in SELDVLN(1), Oracle9i left-justifies the value in a 10-byte field, filling the buffer.
The value 7654 was retrieved from a NUMBER(4) column and coerced to 7654
. However, the length in SELDVLN(2) was increased by two to allow for a possible sign and decimal point, so Oracle9i right-justifies the value in a 6-byte field.
The value 482.50 was retrieved from a NUMBER(7,2) column and coerced to 482.50. Again, the length in SELDVLN(3) was increased by two, so Oracle9i right-justifies the value in a 9-byte field.
After the FETCH, your program can process the select-list values returned by FETCH. In our example, values for columns ENAME, EMPNO, and COMM are processed.
CLOSE disables the cursor. In our example, CLOSE disables EMPCURSOR as follows:
EXEC SQL CLOSE EMPCURSOR END-EXEC
Figure 11-9 Select Descriptor after the FETCH
To use input or output host tables with Method 4, you must use the optional FOR clause to tell Oracle9 the size of your host table. For more information about the FOR clause, see Chapter 7, "Host Tables".
Set descriptor entries for the Jth select-list item or bind variable, but instead of addressing a single data buffer, SELDVLN(J) or BNDDVLN(J) addresses a table of data buffers. Then use a FOR clause in the EXECUTE or FETCH statement, as appropriate, to tell Oracle9i the number of table elements you want to process.
This procedure is necessary because Oracle9i has no other way of knowing the size of your host table.
In the following example, two input host tables are used to insert 8 pairs of values of EMPNO and DEPTNO into the table EMP. Note that EXECUTE can be used for non-queries with Method 4.
IDENTIFICATION DIVISION. PROGRAM-ID. DYN4INS. ENVIRONMENT DIVISION. DATA DIVISION. WORKING-STORAGE SECTION. 01 BNDDSC. 02 SQLDNUM PIC S9(9) COMP VALUE 2. 02 SQLDFND PIC S9(9) COMP. 02 BNDDVAR OCCURS 2 TIMES. 03 BNDDV PIC S9(9) COMP. 03 BNDDFMT PIC S9(9) COMP. 03 BNDDVLN PIC S9(9) COMP. 03 BNDDFMTL PIC S9(4) COMP. 03 BNDDVTYP PIC S9(4) COMP. 03 BNDDI PIC S9(9) COMP. 03 BNDDH-VNAME PIC S9(9) COMP. 03 BNDDH-MAX-VNAMEL PIC S9(4) COMP. 03 BNDDH-CUR-VNAMEL PIC S9(4) COMP. 03 BNDDI-VNAME PIC S9(9) COMP. 03 BNDDI-MAX-VNAMEL PIC S9(4) COMP. 03 BNDDI-CUR-VNAMEL PIC S9(4) COMP. 03 BNDDFCLP PIC S9(9) COMP. 03 BNDDFCRCP PIC S9(9) COMP. 01 XBNDDI. 03 BND-DI OCCURS 2 TIMES PIC S9(4) COMP. 01 XBNDDIVNAME. 03 BND-DI-VNAME OCCURS 2 TIMES PIC X(80). 01 XBNDDV. * Since you know what the SQL statement will be, you can set * up a two-dimensional table with a maximum of 2 columns and * 8 rows. Each element can be up to 10 characters long. (You * can alter these values according to your needs.) 03 BND-COLUMN OCCURS 2 TIMES. 05 BND-ELEMENT OCCURS 8 TIMES PIC X(10). 01 XBNDDHVNAME. 03 BND-DH-VNAME OCCURS 2 TIMES PIC X(80). 01 COLUMN-INDEX PIC 999. 01 ROW-INDEX PIC 999. 01 DUMMY-INTEGER PIC 9999. EXEC SQL BEGIN DECLARE SECTION END-EXEC. 01 USERNAME PIC X(20). 01 PASSWD PIC X(20). 01 DYN-STATEMENT PIC X(80). 01 NUMBER-OF-ROWS PIC S9(4) COMP. EXEC SQL END DECLARE SECTION END-EXEC. EXEC SQL INCLUDE SQLCA END-EXEC. PROCEDURE DIVISION. START-MAIN. EXEC SQL WHENEVER SQLERROR GOTO SQL-ERROR END-EXEC. MOVE "SCOTT" TO USERNAME. MOVE "TIGER" TO PASSWD. EXEC SQL CONNECT :USERNAME IDENTIFIED BY :PASSWD END-EXEC. DISPLAY "Connected to Oracle". * Initialize bind and select descriptors. PERFORM INIT-BNDDSC THRU INIT-BNDDSC-EXIT VARYING COLUMN-INDEX FROM 1 BY 1 UNTIL COLUMN-INDEX > 2. * Set up the SQL statement. MOVE SPACES TO DYN-STATEMENT. MOVE "INSERT INTO EMP(EMPNO, DEPTNO) VALUES(:EMPNO,:DEPTNO)" TO DYN-STATEMENT. DISPLAY DYN-STATEMENT. * Prepare the SQL statement. EXEC SQL PREPARE S1 FROM :DYN-STATEMENT END-EXEC. * Describe the bind variables. EXEC SQL DESCRIBE BIND VARIABLES FOR S1 INTO BNDDSC END-EXEC. PERFORM Z-BIND-TYPE THRU Z-BIND-TYPE-EXIT VARYING COLUMN-INDEX FROM 1 BY 1 UNTIL COLUMN-INDEX > 2. IF SQLDFND IN BNDDSC < 0 DISPLAY "TOO MANY BIND VARIABLES." GO TO SQL-ERROR ELSE DISPLAY "BIND VARS = " WITH NO ADVANCING MOVE SQLDFND IN BNDDSC TO DUMMY-INTEGER DISPLAY DUMMY-INTEGER MOVE SQLDFND IN BNDDSC TO SQLDNUM IN BNDDSC. MOVE 8 TO NUMBER-OF-ROWS. PERFORM GET-ALL-VALUES THRU GET-ALL-VALUES-EXIT VARYING ROW-INDEX FROM 1 BY 1 UNTIL ROW-INDEX > NUMBER-OF-ROWS. * Execute the SQL statement. EXEC SQL FOR :NUMBER-OF-ROWS EXECUTE S1 USING DESCRIPTOR BNDDSC END-EXEC. DISPLAY "INSERTED " WITH NO ADVANCING. MOVE SQLERRD(3) TO DUMMY-INTEGER. DISPLAY DUMMY-INTEGER WITH NO ADVANCING. DISPLAY " ROWS.". GO TO END-SQL. SQL-ERROR. * Display any SQL error message and code. DISPLAY SQLERRMC. EXEC SQL ROLLBACK WORK RELEASE END-EXEC. STOP RUN. END-SQL. EXEC SQL WHENEVER SQLERROR CONTINUE END-EXEC. EXEC SQL COMMIT WORK RELEASE END-EXEC. STOP RUN. INIT-BNDDSC. * Start of COBOL PERFORM procedures, initialize the bind * descriptor. MOVE 80 TO BNDDH-MAX-VNAMEL(COLUMN-INDEX). CALL "SQLADR" USING BND-DH-VNAME(COLUMN-INDEX) BNDDH-VNAME(COLUMN-INDEX). MOVE 80 TO BNDDI-MAX-VNAMEL(COLUMN-INDEX). CALL "SQLADR" USING BND-DI-VNAME(COLUMN-INDEX) BNDDI-VNAME (COLUMN-INDEX). MOVE 10 TO BNDDVLN(COLUMN-INDEX). CALL "SQLADR" USING BND-ELEMENT(COLUMN-INDEX,1) BNDDV(COLUMN-INDEX). MOVE ZERO TO BNDDI(COLUMN-INDEX). CALL "SQLADR" USING BND-DI(COLUMN-INDEX) BNDDI(COLUMN-INDEX). MOVE ZERO TO BNDDFMT(COLUMN-INDEX). MOVE ZERO TO BNDDFMTL(COLUMN-INDEX). MOVE ZERO TO BNDDFCLP(COLUMN-INDEX). MOVE ZERO TO BNDDFCRCP(COLUMN-INDEX). INIT-BNDDSC-EXIT. EXIT. Z-BIND-TYPE. * Replace the 0s DESCRIBEd into the datatype table with 1s to * avoid an "invalid datatype" Oracle error. MOVE 1 TO BNDDVTYP(COLUMN-INDEX). Z-BIND-TYPE-EXIT. EXIT. GET-ALL-VALUES. * Get the bind variables for each row. DISPLAY "ENTER VALUES FOR ROW NUMBER ",ROW-INDEX. PERFORM GET-BIND-VARS VARYING COLUMN-INDEX FROM 1 BY 1 UNTIL COLUMN-INDEX > SQLDFND IN BNDDSC. GET-ALL-VALUES-EXIT. EXIT. GET-BIND-VARS. * Get the value of each bind variable. DISPLAY " ENTER VALUE FOR ",BND-DH-VNAME(COLUMN-INDEX) WITH NO ADVANCING. ACCEPT BND-ELEMENT(COLUMN-INDEX,ROW-INDEX). GET-BIND-VARS-EXIT. EXIT.
This program shows the basic steps required to use dynamic SQL Method 4. After logging on, the program prompts the user for a SQL statement, prepares statement, declares a cursor, checks for any bind variables using DESCRIBE BIND, opens the cursor, and describes any select-list variables. If the input SQL statement is a query, the program fetches each row of data, then closes the cursor.
*************************************************************** * Sample Program 10: Dynamic SQL Method 4 * * * * This program shows the basic steps required to use dynamic * * SQL Method 4. After logging on to ORACLE, the program * * prompts the user for a SQL statement, PREPAREs the * * statement, DECLAREs a cursor, checks for any bind variables * * using DESCRIBE BIND, OPENs the cursor, and DESCRIBEs any * * select-list variables. If the input SQL statement is a * * query, the program FETCHes each row of data, then CLOSEs * * the cursor. * *************************************************************** IDENTIFICATION DIVISION. PROGRAM-ID. DYNSQL4. ENVIRONMENT DIVISION. DATA DIVISION. WORKING-STORAGE SECTION. 01 BNDDSC. 02 SQLDNUM PIC S9(9) COMP VALUE 20. 02 SQLDFND PIC S9(9) COMP. 02 BNDDVAR OCCURS 20 TIMES. 03 BNDDV PIC S9(9) COMP. 03 BNDDFMT PIC S9(9) COMP. 03 BNDDVLN PIC S9(9) COMP. 03 BNDDFMTL PIC S9(4) COMP. 03 BNDDVTYP PIC S9(4) COMP. 03 BNDDI PIC S9(9) COMP. 03 BNDDH-VNAME PIC S9(9) COMP. 03 BNDDH-MAX-VNAMEL PIC S9(4) COMP. 03 BNDDH-CUR-VNAMEL PIC S9(4) COMP. 03 BNDDI-VNAME PIC S9(9) COMP. 03 BNDDI-MAX-VNAMEL PIC S9(4) COMP. 03 BNDDI-CUR-VNAMEL PIC S9(4) COMP. 03 BNDDFCLP PIC S9(9) COMP. 03 BNDDFCRCP PIC S9(9) COMP. 01 XBNDDI. 03 BND-DI OCCURS 20 TIMES PIC S9(4) COMP. 01 XBNDDIVNAME. 03 BND-DI-VNAME OCCURS 20 TIMES PIC X(80). 01 XBNDDV. 03 BND-DV OCCURS 20 TIMES PIC X(80). 01 XBNDDHVNAME. 03 BND-DH-VNAME OCCURS 20 TIMES PIC X(80). 01 SELDSC. 02 SQLDNUM PIC S9(9) COMP VALUE 20. 02 SQLDFND PIC S9(9) COMP. 02 SELDVAR OCCURS 20 TIMES. 03 SELDV PIC S9(9) COMP. 03 SELDFMT PIC S9(9) COMP. 03 SELDVLN PIC S9(9) COMP. 03 SELDFMTL PIC S9(4) COMP. 03 SELDVTYP PIC S9(4) COMP. 03 SELDI PIC S9(9) COMP. 03 SELDH-VNAME PIC S9(9) COMP. 03 SELDH-MAX-VNAMEL PIC S9(4) COMP. 03 SELDH-CUR-VNAMEL PIC S9(4) COMP. 03 SELDI-VNAME PIC S9(9) COMP. 03 SELDI-MAX-VNAMEL PIC S9(4) COMP. 03 SELDI-CUR-VNAMEL PIC S9(4) COMP. 03 SELDFCLP PIC S9(9) COMP. 03 SELDFCRCP PIC S9(9) COMP. 01 XSELDI. 03 SEL-DI OCCURS 20 TIMES PIC S9(4) COMP. 01 XSELDIVNAME. 03 SEL-DI-VNAME OCCURS 20 TIMES PIC X(80). 01 XSELDV. 03 SEL-DV OCCURS 20 TIMES PIC X(80). 01 XSELDHVNAME. 03 SEL-DH-VNAME OCCURS 20 TIMES PIC X(80). 01 TABLE-INDEX PIC 9(3). 01 VAR-COUNT PIC 9(2). 01 ROW-COUNT PIC 9(4). 01 NO-MORE-DATA PIC X(1) VALUE "N". 01 NULLS-ALLOWED PIC S9(9) COMP. 01 PRECISION PIC S9(9) COMP. 01 SCALE PIC S9(9) COMP. 01 DISPLAY-LENGTH PIC S9(9) COMP. 01 MAX-LENGTH PIC S9(9) COMP VALUE 80. 01 COLUMN-NAME PIC X(30). 01 NULL-VAL PIC X(80) VALUE SPACES. EXEC SQL BEGIN DECLARE SECTION END-EXEC. 01 USERNAME PIC X(20). 01 PASSWD PIC X(20). 01 DYN-STATEMENT PIC X(80). EXEC SQL END DECLARE SECTION END-EXEC. EXEC SQL INCLUDE SQLCA END-EXEC. PROCEDURE DIVISION. START-MAIN. EXEC SQL WHENEVER SQLERROR GOTO SQL-ERROR END-EXEC. DISPLAY "USERNAME: " WITH NO ADVANCING. ACCEPT USERNAME. DISPLAY "PASSWORD: " WITH NO ADVANCING. ACCEPT PASSWD. EXEC SQL CONNECT :USERNAME IDENTIFIED BY :PASSWD END-EXEC. DISPLAY "CONNECTED TO ORACLE AS USER: ", USERNAME. * INITIALIZE THE BIND AND SELECT DESCRIPTORS. PERFORM INIT-BNDDSC VARYING TABLE-INDEX FROM 1 BY 1 UNTIL TABLE-INDEX > 20. PERFORM INIT-SELDSC VARYING TABLE-INDEX FROM 1 BY 1 UNTIL TABLE-INDEX > 20. * GET A SQL STATEMENT FROM THE OPERATOR. DISPLAY "ENTER SQL STATEMENT WITHOUT TERMINATOR:". DISPLAY ">" WITH NO ADVANCING. ACCEPT DYN-STATEMENT. DISPLAY " ". * PREPARE THE SQL STATEMENT AND DECLARE A CURSOR. EXEC SQL PREPARE S1 FROM :DYN-STATEMENT END-EXEC. EXEC SQL DECLARE C1 CURSOR FOR S1 END-EXEC. * DESCRIBE ANY BIND VARIABLES. EXEC SQL DESCRIBE BIND VARIABLES FOR S1 INTO BNDDSC END-EXEC. IF SQLDFND IN BNDDSC < 0 DISPLAY "TOO MANY BIND VARIABLES." GO TO END-SQL ELSE DISPLAY "NUMBER OF BIND VARIABLES: " WITH NO ADVANCING MOVE SQLDFND IN BNDDSC TO VAR-COUNT DISPLAY VAR-COUNT MOVE SQLDFND IN BNDDSC TO SQLDNUM IN BNDDSC END-IF. * REPLACE THE 0S DESCRIBED INTO THE DATATYPE FIELDS OF THE * BIND DESCRIPTOR WITH 1S TO AVOID AN "INVALID DATATYPE" * ORACLE ERROR MOVE 1 TO TABLE-INDEX. FIX-BIND-TYPE. MOVE 1 TO BNDDVTYP(TABLE-INDEX) ADD 1 TO TABLE-INDEX IF TABLE-INDEX <= 20 GO TO FIX-BIND-TYPE. * LET THE USER FILL IN THE BIND VARIABLES. IF SQLDFND IN BNDDSC = 0 GO TO DESCRIBE-ITEMS. MOVE 1 TO TABLE-INDEX. GET-BIND-VAR. DISPLAY "ENTER VALUE FOR ", BND-DH-VNAME(TABLE-INDEX). ACCEPT BND-DV(TABLE-INDEX). ADD 1 TO TABLE-INDEX IF TABLE-INDEX <= SQLDFND IN BNDDSC GO TO GET-BIND-VAR. * OPEN THE CURSOR AND DESCRIBE THE SELECT-LIST ITEMS. DESCRIBE-ITEMS. EXEC SQL OPEN C1 USING DESCRIPTOR BNDDSC END-EXEC. EXEC SQL DESCRIBE SELECT LIST FOR S1 INTO SELDSC END-EXEC. IF SQLDFND IN SELDSC < 0 DISPLAY "TOO MANY SELECT-LIST ITEMS." GO TO END-SQL ELSE DISPLAY "NUMBER OF SELECT-LIST ITEMS: " WITH NO ADVANCING MOVE SQLDFND IN SELDSC TO VAR-COUNT DISPLAY VAR-COUNT DISPLAY " " MOVE SQLDFND IN SELDSC TO SQLDNUM IN SELDSC END-IF. * COERCE THE DATATYPE OF ALL SELECT-LIST ITEMS TO VARCHAR2. IF SQLDNUM IN SELDSC > 0 PERFORM COERCE-COLUMN-TYPE VARYING TABLE-INDEX FROM 1 BY 1 UNTIL TABLE-INDEX > SQLDNUM IN SELDSC DISPLAY " ". * FETCH EACH ROW AND PRINT EACH SELECT-LIST VALUE. IF SQLDNUM IN SELDSC > 0 PERFORM FETCH-ROWS UNTIL NO-MORE-DATA = "Y". DISPLAY " " DISPLAY "NUMBER OF ROWS PROCESSED: " WITH NO ADVANCING. MOVE SQLERRD(3) TO ROW-COUNT. DISPLAY ROW-COUNT. * CLEAN UP AND TERMINATE. EXEC SQL CLOSE C1 END-EXEC. EXEC SQL COMMIT WORK RELEASE END-EXEC. DISPLAY " ". DISPLAY "HAVE A GOOD DAY!". DISPLAY " ". STOP RUN. * DISPLAY ORACLE ERROR MESSAGE AND CODE. SQL-ERROR. DISPLAY " ". DISPLAY SQLERRMC. END-SQL. EXEC SQL WHENEVER SQLERROR CONTINUE END-EXEC. EXEC SQL ROLLBACK WORK RELEASE END-EXEC. STOP RUN. * PERFORMED SUBROUTINES BEGIN HERE: * INIT-BNDDSC: INITIALIZE THE BIND DESCRIPTOR. INIT-BNDDSC. MOVE SPACES TO BND-DH-VNAME(TABLE-INDEX). MOVE 80 TO BNDDH-MAX-VNAMEL(TABLE-INDEX). CALL "SQLADR" USING BND-DH-VNAME(TABLE-INDEX) BNDDH-VNAME(TABLE-INDEX). MOVE SPACES TO BND-DI-VNAME(TABLE-INDEX). MOVE 80 TO BNDDI-MAX-VNAMEL(TABLE-INDEX). CALL "SQLADR" USING BND-DI-VNAME(TABLE-INDEX) BNDDI-VNAME (TABLE-INDEX). MOVE SPACES TO BND-DV(TABLE-INDEX). MOVE 80 TO BNDDVLN(TABLE-INDEX). CALL "SQLADR" USING BND-DV(TABLE-INDEX) BNDDV(TABLE-INDEX). MOVE ZERO TO BND-DI(TABLE-INDEX). CALL "SQLADR" USING BND-DI(TABLE-INDEX) BNDDI(TABLE-INDEX). MOVE ZERO TO BNDDFMT(TABLE-INDEX). MOVE ZERO TO BNDDFMTL(TABLE-INDEX). MOVE ZERO TO BNDDFCLP(TABLE-INDEX). MOVE ZERO TO BNDDFCRCP(TABLE-INDEX). * INIT-SELDSC: INITIALIZE THE SELECT DESCRIPTOR. INIT-SELDSC. MOVE SPACES TO SEL-DH-VNAME(TABLE-INDEX). MOVE 80 TO SELDH-MAX-VNAMEL(TABLE-INDEX). CALL "SQLADR" USING SEL-DH-VNAME(TABLE-INDEX) SELDH-VNAME(TABLE-INDEX). MOVE SPACES TO SEL-DI-VNAME(TABLE-INDEX). MOVE 80 TO SELDI-MAX-VNAMEL(TABLE-INDEX). CALL "SQLADR" USING SEL-DI-VNAME(TABLE-INDEX) SELDI-VNAME (TABLE-INDEX). MOVE SPACES TO SEL-DV(TABLE-INDEX). MOVE 80 TO SELDVLN(TABLE-INDEX). CALL "SQLADR" USING SEL-DV(TABLE-INDEX) SELDV(TABLE-INDEX). MOVE ZERO TO SEL-DI(TABLE-INDEX). CALL "SQLADR" USING SEL-DI(TABLE-INDEX) SELDI(TABLE-INDEX). MOVE ZERO TO SELDFMT(TABLE-INDEX). MOVE ZERO TO SELDFMTL(TABLE-INDEX). MOVE ZERO TO SELDFCLP(TABLE-INDEX). MOVE ZERO TO SELDFCRCP(TABLE-INDEX). * COERCE SELECT-LIST DATATYPES TO VARCHAR2. COERCE-COLUMN-TYPE. CALL "SQLNUL" USING SELDVTYP(TABLE-INDEX) SELDVTYP(TABLE-INDEX) NULLS-ALLOWED. * IF DATATYPE IS DATE, LENGTHEN TO 9 CHARACTERS. IF SELDVTYP(TABLE-INDEX) = 12 MOVE 9 TO SELDVLN(TABLE-INDEX). * IF DATATYPE IS NUMBER, SET LENGTH TO PRECISION. IF SELDVTYP(TABLE-INDEX) = 2 CALL "SQLPRC" USING SELDVLN(TABLE-INDEX) PRECISION SCALE. MOVE 0 TO DISPLAY-LENGTH. IF SELDVTYP(TABLE-INDEX) = 2 AND PRECISION = 0 MOVE 40 TO DISPLAY-LENGTH. IF SELDVTYP(TABLE-INDEX) = 2 AND PRECISION > 0 ADD 2 TO PRECISION MOVE PRECISION TO DISPLAY-LENGTH. IF SELDVTYP(TABLE-INDEX) = 2 IF DISPLAY-LENGTH > MAX-LENGTH DISPLAY "COLUMN VALUE TOO LARGE FOR DATA BUFFER." GO TO END-SQL ELSE MOVE DISPLAY-LENGTH TO SELDVLN(TABLE-INDEX). * COERCE DATATYPES TO VARCHAR2. MOVE 1 TO SELDVTYP(TABLE-INDEX). * DISPLAY COLUMN HEADING. MOVE SEL-DH-VNAME(TABLE-INDEX) TO COLUMN-NAME. DISPLAY COLUMN-NAME(1:SELDVLN(TABLE-INDEX)), " " WITH NO ADVANCING. *FETCH A ROW AND PRINT THE SELECT-LIST VALUE. FETCH-ROWS. EXEC SQL FETCH C1 USING DESCRIPTOR SELDSC END-EXEC. IF SQLCODE NOT = 0 MOVE "Y" TO NO-MORE-DATA. IF SQLCODE = 0 PERFORM PRINT-COLUMN-VALUES VARYING TABLE-INDEX FROM 1 BY 1 UNTIL TABLE-INDEX > SQLDNUM IN SELDSC DISPLAY " ". *PRINT A SELECT-LIST VALUE. PRINT-COLUMN-VALUES. IF SEL-DI(TABLE-INDEX) = -1 DISPLAY NULL-VAL(1:SELDVLN(TABLE-INDEX)), " " WITH NO ADVANCING ELSE DISPLAY SEL-DV(TABLE-INDEX)(1:SELDVLN(TABLE-INDEX)), " " WITH NO ADVANCING END-IF.
