If your development platform does not support threads, you may ignore this chapter.
The sections of this chapter are:
Multithreaded applications have multiple threads executing in a shared address space. Threads are "lightweight" subprocesses that execute within a process. They share code and data segments, but have their own program counters, machine registers and stack. Variables declared without the thread-local attribute in working storage (as opposed to local-storage or thread-local storage) are common to all threads, and a mutual exclusivity mechanism is often required to manage access to these variables from multiple threads within an application. Mutexes are the synchronization mechanism to insure that data integrity is preserved.
For further discussion of mutexes, see texts on multithreading. For more detailed information about multithreaded applications, see the documentation of your threads functions.
Pro*COBOL supports development of multithreaded Oracle9i Server applications (on platforms that support multithreaded applications) using the following:
A command-line option to generate thread-safe code.
Embedded SQL statements and directives to support multithreading.
Thread-safe SQLLIB and other client-side Oracle9i libraries.
Note:
While your platform may support a particular thread package, see your platform-specific Oracle documentation to determine whether Oracle9i supports it.The chapter's topics discuss how to use the preceding features to develop multithreaded Pro*COBOL applications:
Runtime contexts for multithreaded applications.
Two models for using runtime contexts.
User-interface features for multithreaded applications.
Programming considerations for writing multithreaded applications with Pro*COBOL.
Sample multithreaded Pro*COBOL applications.
To loosely couple a thread and a connection, in Pro*COBOL we introduce the concept of a runtime context. The runtime context includes the following resources and their current states:
Zero or more connections to one or more Oracle servers.
Zero or more cursors used for the server connections.
Inline options, such as MODE, HOLD_CURSOR, RELEASE_CURSOR, and SELECT_ERROR.
Rather than simply supporting a loose coupling between threads and connections, Pro*COBOL enables you to loosely couple threads with runtime contexts. Pro*COBOL enables your application to define a handle to a runtime context, and pass that handle from one thread to another.

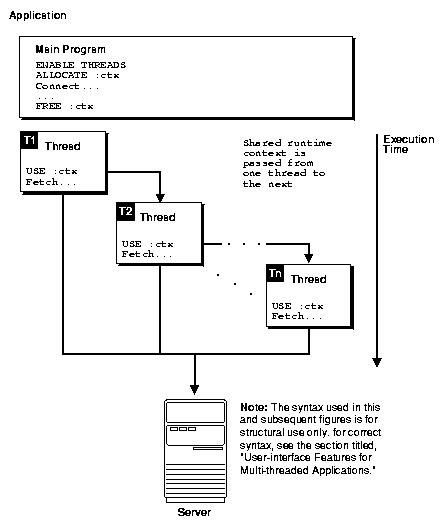

For example, an interactive application spawns a thread, T1, to execute a query and return the first 10 rows to the application. T1 then terminates. After obtaining the necessary user input, another thread, T2, is spawned (or an existing thread is used) and the runtime context for T1 is passed to T2 so it can fetch the next 10 rows by processing the same cursor.This is shown in Figure 12-1:
Figure 12-1 Loosely Coupling Connections and Threads
Two possible models for using runtime contexts in multithreaded applications are shown here:
Multiple threads sharing a single runtime context.
Multiple threads using separate runtime contexts.
Regardless of the model you use for runtime contexts, you cannot share a runtime context between multiple threads at the same time. If two or more threads attempt to use the same runtime context simultaneously, a runtime error occurs

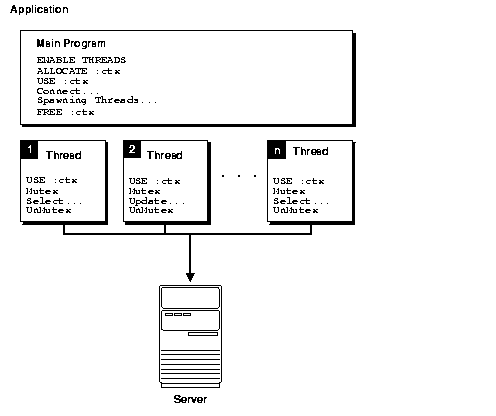

Figure 12-2 shows an application running in a multithreaded environment. The various threads share a single runtime context to process one or more SQL statements. Again, runtime contexts cannot be shared by multiple threads at the same time. The mutexes in Figure 12-2 show how to prevent concurrent usage.
Figure 12-2 Context Sharing Among Threads

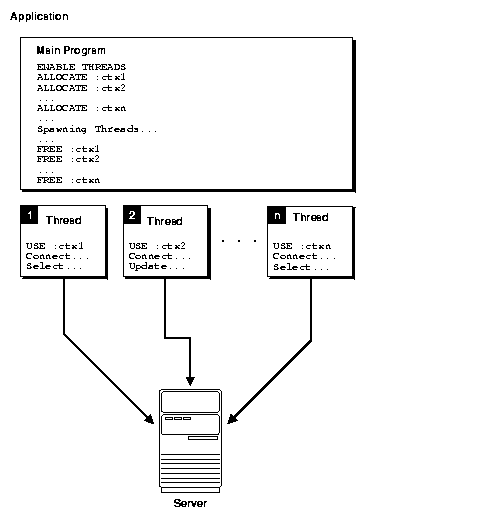

Figure 12-3 shows an application that executes multiple threads using multiple runtime contexts. In this situation, the application does not require mutexes, because each thread has a dedicated runtime context.
Figure 12-3 No Context Sharing Among Threads
Pro*COBOL provides the following user-interface features to support multithreaded applications:
Host variables can be declared in the LOCAL-STORAGE and the THREAD-LOCAL-STORAGE sections.
The command-line option THREADS=YES | NO.
Embedded SQL statements and directives.
Thread-safe SQLLIB public functions.
With THREADS=YES specified on the command line, Pro*COBOL ensures that the generated code is thread-safe, given that you follow the guidelines described in "Multithreading Programming Considerations". With THREADS=YES specified, Pro*COBOL verifies that all SQL statements execute within the scope of a user-defined runtime context. If your program does not meet this requirement, a precompiler error is returned. See "THREADS".
The following embedded SQL statements and directives support the definition and usage of runtime contexts and threads:
EXEC SQL ENABLE THREADS END-EXEC.
EXEC SQL CONTEXT ALLOCATE :context_var END-EXEC.
EXEC SQL CONTEXT USE { :context_var | DEFAULT} END-EXEC.
EXEC SQL CONTEXT FREE :context_var END-EXEC.
For these EXEC SQL statements, context_var is the handle to the runtime context and must be declared of type SQL-CONTEXT as follows:
01 SQL-CONTEXT context_var END-EXEC.
Using DEFAULT means that the default (global) runtime context will be used in all embedded SQL statements that lexically follow until another CONTEXT USE statement overrides it.
Examples illustrating the various uses of context statements are shown.
You cannot declare host tables of SQL-CONTEXT. Instead, declare a host table of S9(9) COMP variables and then pass them to the subprogram one at a time after redeclaring them in the subprogram as SQL-CONTEXT.
This executable SQL statement initializes a process that supports multiple threads. This must be the first executable SQL statement in a program that contains a multithreaded application. There can only be one ENABLE THREADS statement in all files of an application, or an error results. For more detailed information, see "ENABLE THREADS (Executable Embedded SQL Extension)".
This executable SQL statement allocates and initializes memory for the specified runtime context; the runtime-context variable must be declared of type SQL_CONTEXT. For more detailed information, see "CONTEXT ALLOCATE (Executable Embedded SQL Extension)".
The EXEC SQL CONTEXT USE directive instructs the precompiler to use the specified runtime context for subsequent executable SQL statements. The runtime context specified must be previously allocated using an EXEC SQL CONTEXT ALLOCATE statement.
The EXEC SQL CONTEXT USE directive works similarly to the EXEC SQL WHENEVER directive in that it affects all executable SQL statements which positionally follow it in a given source file without regard to standard COBOL scope rules.
For more detailed information, see "CONTEXT USE (Oracle Embedded SQL Directive)", and "CONTEXT ALLOCATE (Executable Embedded SQL Extension)".
The EXEC SQL CONTEXT FREE executable SQL statement frees the memory associated with the specified runtime context and places a null pointer in the host program variable. For more detailed information, see "CONTEXT FREE (Executable Embedded SQL Extension)".
Runtime contexts can be passed using arguments defined in the Linkage Section. Multithreaded Pro*C/C++ programs can call Pro*COBOL subprograms and Pro*COBOL programs can call subprograms written in Pro*C/C++.
While Oracle9i ensures that the SQLLIB code is thread-safe, you are responsible for ensuring that your source code is designed to work properly with threads. For example, carefully consider the scope of the variables you use.
In addition, multithreading requires design decisions regarding the following:
Including one SQLCA for each runtime context.
Declaring the SQLDA as a thread-safe group item, like the SQLCA, typically an auto variable, one for each runtime context.
Declaring host variables in a thread-safe fashion, in other words, carefully consider your use of static and global host variables.
Avoiding simultaneous use of a runtime context in multiple threads.
Whether or not to use default database connections or to explicitly define them using the AT clause.
No more than one executable embedded SQL statement, for example, EXEC SQL UPDATE, may be outstanding on a runtime context at a given time.
Existing requirements for precompiled applications also apply. For example, all references to a given cursor must appear in the same source file.
The code fragments in this section show how to use multiple contexts, and demonstrate the scope of the context use statement.
In the first example, the precompiler option setting THREADS=YES is not needed, because we are not generating threads:
IDENTIFICATION DIVISION. PROGRAM-ID. MAIN. ... * declare a context area 01 CTX1 SQL-CONTEXT. 01 UID1 PIC X(11) VALUE "SCOTT/TIGER". 01 UID2 PIC X(10) VALUE "MARY/LION" PROCEDURE DIVISION. ... * allocate context area EXEC SQL CONTEXT ALLOCATE :CTX1 END-EXEC. EXEC SQL CONTEXT USE :CTX1 END-EXEC. * all statements until the next context use will use CTX1 EXEC SQL CONNECT :UID1 END-EXEC. EXEC SQL SELECT .... EXEC SQL CONTEXT USE DEFAULT END-EXEC. * all statements physically after the preceding lines will use the default context EXEC SQL CONNECT :UID2 END-EXEC. EXEC SQL INSERT ... ...
This next example shows multiple contexts. One context is used by the generated thread while the other is used by the main program. The started thread, SUBPRGM1, will use context CTX1, which is passed to it through the LINKAGE SECTION. This example also demonstrates the scope of the CONTEXT USE statement.
Note:
You must precompile the main program file, and the main program of every subsequent example in this section, with the option THREADS=YES.IDENTIFICATION DIVISION. PROGRAM-ID. MAIN. ... * declare two context areas 01 CTX1 SQL-CONTEXT. 01 CTX2 SQL-CONTEXT. PROCEDURE DIVISION. * enable threading EXEC SQL ENABLE THREADS END-EXEC. * allocate context areas EXEC SQL CONTEXT ALLOCATE :CTX1 END-EXEC. EXEC SQL CONTEXT ALLOCATE :CTX2 END-EXEC. * include your code to start thread "SUBPGM1" using CTX1 here. EXEC SQL CONTEXT USE :CTX2 END-EXEC. * all statement physically after the preceding lines will use CTX2 EXEC SQL CONNECT :USERID END-EXEC. EXEC SQL INSERT ..... ...
The thread SUBPRGM1
is in a another file:
PROGRAM-ID. SUBPRGM1. ... 01 USERID PIC X(11) VALUE "SCOTT/TIGER". LINKAGE SECTION. 01 CTX1 SQL-CONTEXT. PROCEDURE DIVISION USING CTX1. EXEC SQL CONTEXT USE :CTX1 END-EXEC. EXEC SQL CONNECT :USERID END-EXEC. EXEC SQL SELECT ... ...
The following example uses multiple threads. Each thread has its own context. If the threads are to be executed concurrently, each thread must have its own context. Contexts are passed to the thread with the USING CLAUSE of the START statement and are declared in the LINKAGE SECTION of the threaded subprogram.
IDENTIFICATION DIVISION. PROGRAM-ID. MAIN. ... DATA DIVISION. 01 CTX1 SQL-CONTEXT. 01 CTX2 SQL-CONTEXT. PROCEDURE DIVISION. ... EXEC SQL ENABLE THREADS END-EXEC. EXEC SQL CONTEXT ALLOCATE :CTX1 END-EXEC. EXEC SQL CONTEXT ALLOCATE :CTX2 END-EXEC. * include your code to start thread "SUBPGM" using CTX1 here. * include your code to start thread "SUBPGM" using CTX2 here. ...
The thread SUBPGM is placed in another file:
PROGRAM-ID. SUBPGM. ... DATA DIVISION. ... 01 USERID PIC X(11) VALUE "SCOTT/TIGER". ... LINKAGE SECTION. 01 CTX SQL-CONTEXT. PROCEDURE DIVISION USING CTX. EXEC SQL CONTEXT USE :CTX END-EXEC. EXEC SQL CONNECT :USERID END-EXEC. EXEC SQL SELECT .... ...
The next example is based on the previous example, but does the connection in the top level program and passes the connection with the context to the threaded subprogram.
IDENTIFICATION DIVISION. PROGRAM-ID. MAIN. ... DATA DIVISION. 01 CTX1 SQL-CONTEXT. 01 CTX2 SQL-CONTEXT. 01 USERID PIC X(11) VALUE "SCOTT/TIGER". ROCEDURE DIVISION. EXEC SQL ENABLE THREADS END-EXEC. EXEC SQL CONTEXT ALLOCATE :CTX1 END-EXEC. EXEC SQL CONTEXT ALLOCATE :CTX2 END-EXEC. EXEC SQL CONTEXT USE :CTX1 END-EXEC. EXEC SQL CONNECT :USERID END-EXEC. EXEC SQL CONTEXT USE :CTX2 END-EXEC. EXEC SQL CONNECT :USERID END-EXEC. * include your code to start thread "SUBPGM" using CTX1 here. * include your code to start thread "SUBPGM" using CTX2 here. ...
The thread SUBPRGM
is in another file:
PROGRAM-ID. SUBPGM. ... LINKAGE SECTION. 01 CTX SQL-CONTEXT. PROCEDURE DIVISION USING CTX. EXEC SQL CONTEXT USE :CTX END-EXEC. EXEC SQL SELECT .... ...
The following example shows multiple threads which share a context. Note that in this case, the threads must be serialized.
IDENTIFICATION DIVISION. PROGRAM-ID. MAIN. ... DATA DIVISION. 01 CTX1 SQL-CONTEXT. PROCEDURE DIVISION. EXEC SQL ENABLE THREADS END-EXEC. EXEC SQL CONTEXT ALLOCATE :CTX1 END-EXEC. * include your code to start thread1 "SUBPGM1" using CTX1 here. * include your code to wait for thread1 here. * include your code to start thread2 "SUBPGM2" using CTX1 here. ...
There are two separate files for the two threads. First there is:
PROGRAM-ID. SUBPGM1. ... DATA DIVISION. .. 01 USERID PIC X(11) VALUE "SCOTT/TIGER". ... LINKAGE SECTION. 01 CTX SQL-CONTEXT. PROCEDURE DIVISION USING CTX. EXEC SQL CONTEXT USE :CTX END-EXEC. ... EXEC SQL CONNECT :USERID END-EXEC.
Another file contains SUBPGM2:
PROGRAM-ID. SUBPGM2. ... DATA DIVISION. ... LINKAGE SECTION. 01 CTX SQL-CONTEXT. PROCEDURE DIVISION USING CTX. EXEC SQL CONTEXT USE :CTX END-EXEC. EXEC SELECT .... ...
This multi-file application demonstrates one way to use the SQLLIB runtime context area (SQL-CONTEXT) to support multiple threads. Precompile with THREADS=YES.
The main program, orathrd2, declares an array of S9(9) COMP variables to be used to hold the sqllib contexts. It enables threading through the
EXEC SQL ENABLE THREADS END-EXEC.
statement and then calls the subprogram oracon (in file oracon.pco
) to allocate the threads. oracon also establishes a connection for each allocated context.
Next, ORTHRD2 passes the context to one of the threaded entry points, THREAD-1 or THREAD-2. THREAD-1 simply selects and displays the salary for an employee. THREAD-2 selects and updates the salary for that employee. Since THREAD-2 issues a commit, the update is visible to threads that do the SELECT after it has committed. (But not those which run concurrently with the update.) Note that the output will vary from run to run because the timing of the update and commit is non-determinant.
It is important to remember that concurrent threads must each have their own contexts. Contexts may be passed to and used by subsequent threads, but threads may not use the same context concurrently. This model could be used for connection pooling, where the maximum number of connections are created initially and passed to threads as available, to execute user's requests.
An array of S9(9) COMP variables is used because you cannot currently declare an array of SQL-CONTEXT.
Note: This program was developed specifically for a Sun workstation running Solaris and MicroFocus ServerExpress compiler and uses vendor-specific directives and functionality.
See your platform-specific documentation for the specific COBOL statements that support multithreading.
The main program is in file orathrd2.pco
:
$SET REENTRANT MF IDENTIFICATION DIVISION. PROGRAM-ID. ORATHRD2. ENVIRONMENT DIVISION. DATA DIVISION. WORKING-STORAGE SECTION. 78 MAX-LOOPS VALUE 10. 01 THREAD-ID USAGE POINTER. 01 TP-1 USAGE THREAD-POINTER OCCURS MAX-LOOPS. 01 IDEN-4 PIC 9(4). 01 LOOP-COUNTER PIC 9(2) COMP-X EXTERNAL. 01 PEMPNO PIC S9(4) COMP EXTERNAL. 01 ISAL PIC S9(4) COMP VALUE ZERO. EXEC SQL INCLUDE SQLCA END-EXEC. THREAD-LOCAL-STORAGE SECTION. 01 CONTEXT-AREA PIC S9(9) COMP OCCURS MAX-LOOPS. PROCEDURE DIVISION. MAIN SECTION. PERFORM INITIALISATION PERFORM ORACLE-CONNECTIONS VARYING LOOP-COUNTER FROM 1 BY 1 UNTIL LOOP-COUNTER > MAX-LOOPS PERFORM VARYING LOOP-COUNTER FROM 1 BY 1 UNTIL LOOP-COUNTER > MAX-LOOPS PERFORM START-THREAD END-PERFORM STOP RUN. *--------------------------------------------------------------- * CHECK THAT WE ARE RUNNING UNDER A MULTI THREADED RTS. *--------------------------------------------------------------- INITIALISATION SECTION. CALL "CBL_THREAD_SELF" USING THREAD-ID ON EXCEPTION DISPLAY "NO THREAD SUPPORT IN THIS RTS" STOP RUN END-CALL IF RETURN-CODE = 1008 DISPLAY "CANNOT RUN THIS TEST ON SINGLE THREADED RTS" STOP RUN END-IF DISPLAY "MULTI-THREAD RTS" * ENABLING THREADS MUST BE DONE ONCE BEFORE ANY CONTEXT USEAGE EXEC SQL ENABLE THREADS END-EXEC. IF SQLCODE NOT = ZERO DISPLAY 'ERROR ENABLING ORACLE THREAD SUPPORT ' ' - ABORTING : ' SQLERRMC STOP RUN END-IF * SET A VALUE FOR THE EMPLOYEE NUMBER. BECAUSE THIS IS AN * EXTERNAL VARIABLE, A COPY OF ITS VALUE IS VISIBLE TO THE * OTHER MODULES IN THIS APPLICATION MOVE 7566 TO PEMPNO EXIT SECTION. *----------------------------------------------------------------- * CREATE THREADS AND START WITH EITHER THREAD-1 OR THREAD-2 *----------------------------------------------------------------- START-THREAD SECTION. IF LOOP-COUNTER = 2 OR LOOP-COUNTER = 5 START "THREAD-2 " USING CONTEXT-AREA(LOOP-COUNTER) IDENTIFIED BY TP-1(LOOP-COUNTER) STATUS IS IDEN-4 ON EXCEPTION DISPLAY "THREAD CREATE FAILED" END-START IF IDEN-4 NOT = ZERO DISPLAY "THREAD CREATE FAILED RETURNED " IDEN-4 END-IF ELSE START "THREAD-1 " USING CONTEXT-AREA(LOOP-COUNTER) IDENTIFIED BY TP-1(LOOP-COUNTER) STATUS IS IDEN-4 ON EXCEPTION DISPLAY "THREAD CREATE FAILED" END-START IF IDEN-4 NOT = ZERO DISPLAY "THREAD CREATE FAILED RETURNED " IDEN-4 END-IF END-IF. START-THREAD-END. EXIT SECTION. *----------------------------------------------------------------- * ALLOCATE CONTEXT AREAS ESTABLISH CONNECTION WITH EACH AREA. *----------------------------------------------------------------- ORACLE-CONNECTIONS SECTION. CALL "ORACON" USING CONTEXT-AREA(LOOP-COUNTER). ORACLE-CONNECTIONS-END. EXIT SECTION.
Here is the file thread-1.pco
:
* This is Thread 1. It selects and displays the data for * the employee. The context area upon which a connection * has been established is passed to the thread through the * linkage section. In a multi-file application, you * can pass the context through the linkage section. * Precompile with THREADS=YES. * $SET REENTRANT MF IDENTIFICATION DIVISION. PROGRAM-ID. THREAD-1. ENVIRONMENT DIVISION. DATA DIVISION. WORKING-STORAGE SECTION. 01 PEMPNO PIC S9(4) COMP EXTERNAL. LOCAL-STORAGE SECTION. 01 DEMPNO PIC Z(4) VALUE ZERO. 01 PEMP-NAME1 PIC X(15) VARYING VALUE SPACES. 01 PSAL-VALUE1 PIC S9(7)V99 COMP-3 VALUE ZERO. 01 ISAL1 PIC S9(4) COMP VALUE ZERO. 01 DSAL-VALUE PIC +(7).99 VALUE ZERO. EXEC SQL INCLUDE SQLCA END-EXEC. LINKAGE SECTION. 01 CONTEXT-AREA1 SQL-CONTEXT. *--------------------------------------------------------------- * USING THE PASSED IN CONTEXT, SELECT AND DISPLAY THE * DATA FOR EMPLOYEE. *--------------------------------------------------------------- PROCEDURE DIVISION USING CONTEXT-AREA1. MAIN SECTION. EXEC SQL WHENEVER SQLERROR GOTO SELECT-ERROR END-EXEC EXEC SQL CONTEXT USE :CONTEXT-AREA1 END-EXEC EXEC SQL SELECT ENAME, SAL INTO :PEMP-NAME1, :PSAL-VALUE1:ISAL1 FROM EMP WHERE EMPNO = :PEMPNO END-EXEC IF ISAL1 < ZERO MOVE ZERO TO PSAL-VALUE1 END-IF MOVE PEMPNO TO DEMPNO MOVE PSAL-VALUE1 TO DSAL-VALUE DISPLAY "FOR EMP ", DEMPNO, " NAME ", PEMP-NAME1-ARR(1:PEMP-NAME1-LEN), " THE CURRENT SALARY IS ", DSAL-VALUE EXIT PROGRAM. *--------------------------------------------------------------- * THERE HAS BEEN AN ERROR WHEN SELECTING FROM THE EMP TABLE *--------------------------------------------------------------- SELECT-ERROR SECTION. EXEC SQL WHENEVER SQLERROR CONTINUE END-EXEC DISPLAY "HIT AN ORACLE ERROR SELECTING EMPNO 7566" DISPLAY "SQLCODE = ", SQLCODE DISPLAY "ERROR TEXT ", SQLERRMC(1:SQLERRML) GOBACK EXIT SECTION.
Here is the file thread-2.pco
:
* This is Thread 2. The program will select, then update, * increment, and then commit the salary. It uses the passed-in * context upon which a connection has previously been established. * Precompile with THREADS=YES. * $SET REENTRANT MF IDENTIFICATION DIVISION. PROGRAM-ID. THREAD-2. ENVIRONMENT DIVISION. DATA DIVISION. WORKING-STORAGE SECTION. 01 PEMPNO PIC S9(4) COMP EXTERNAL. LOCAL-STORAGE SECTION. 01 DEMPNO PIC Z(4) VALUE ZERO. 01 PEMP-NAME2 PIC X(15) VARYING VALUE SPACES. 01 PSAL-VALUE2 PIC S9(7)V99 COMP-3 VALUE 100. 01 ISAL2 PIC S9(4) COMP VALUE ZERO. 01 DSAL-VALUE PIC +(7).99 VALUE ZERO. EXEC SQL INCLUDE SQLCA END-EXEC. LINKAGE SECTION. 01 CONTEXT-AREA2 SQL-CONTEXT. *--------------------------------------------------------------- * USING THE PASSED IN CONTEXT AREA, FIRST SELECT TO GET INITIAL * VALUES, INCREMENT THE SALARY, UPDATE AND COMMIT. *--------------------------------------------------------------- PROCEDURE DIVISION USING CONTEXT-AREA2. MAIN SECTION. EXEC SQL WHENEVER SQLERROR GOTO UPDATE-ERROR END-EXEC EXEC SQL CONTEXT USE :CONTEXT-AREA2 END-EXEC EXEC SQL SELECT ENAME, SAL INTO :PEMP-NAME2, :PSAL-VALUE2:ISAL2 FROM EMP WHERE EMPNO = :PEMPNO END-EXEC ADD 10 TO PSAL-VALUE2 EXEC SQL UPDATE EMP SET SAL = :PSAL-VALUE2 WHERE EMPNO = :PEMPNO END-EXEC MOVE PEMPNO TO DEMPNO MOVE PSAL-VALUE2 TO DSAL-VALUE DISPLAY "FOR EMP ", DEMPNO, " NAME ", PEMP-NAME2-ARR(1:PEMP-NAME2-LEN), " THE UPDATED SALARY IS ", DSAL-VALUE * THIS COMMIT IS REQUIRED, OTHERWISE THE DATABASE * WILL BLOCK SINCE THE UPDATES ARE TO THE SAME ROW EXEC SQL COMMIT WORK END-EXEC EXIT PROGRAM. *--------------------------------------------------------------- * THERE HAS BEEN AN ERROR WHEN UPDATING THE SAL IN THE EMP TABLE *--------------------------------------------------------------- UPDATE-ERROR SECTION. EXEC SQL WHENEVER SQLERROR CONTINUE END-EXEC DISPLAY "HIT AN ORACLE ERROR UPDATING EMPNO 7566" DISPLAY "SQLCODE = ", SQLCODE DISPLAY "ERROR TEXT ", SQLERRMC(1:SQLERRML) GOBACK EXIT SECTION.
The file oracon.pco
follows:
* This program allocates SQLLIB runtime contexts, stores * a pointer to the context in the variable which was * passed in from the main program through the linkage section, * and establishes a connection on the allocated context. * * This program is written for Merant MicroFocus COBOL and uses * vendor-specific directives and functionality. Precompile * with THREADS=YES. * $SET REENTRANT MF IDENTIFICATION DIVISION. PROGRAM-ID. ORACON. ENVIRONMENT DIVISION. DATA DIVISION. WORKING-STORAGE SECTION. 01 LOGON-STRING PIC X(40) VALUE SPACES. EXEC SQL INCLUDE SQLCA END-EXEC. LINKAGE SECTION. 01 CONTEXT SQL-CONTEXT. PROCEDURE DIVISION USING CONTEXT. MAIN SECTION. *----------------------------------------------------------------- * ALLOCATE CONTEXT AREAS ESTABLISH CONNECTION WITH EACH AREA. *----------------------------------------------------------------- ORACLE-CONNECTION SECTION. MOVE "SCOTT/TIGER" TO LOGON-STRING EXEC SQL CONTEXT ALLOCATE :CONTEXT END-EXEC IF SQLCODE NOT = ZERO DISPLAY 'ERROR ALLOCATING CONTEXT ' '- ABORTING : ' SQLERRMC GOBACK ELSE DISPLAY 'CONTEXT ALLOCATED' END-IF EXEC SQL CONTEXT USE :CONTEXT END-EXEC EXEC SQL CONNECT :LOGON-STRING END-EXEC IF SQLCODE NOT = ZERO DISPLAY 'ERROR CONNECTING SECOND THREAD TO THE DATABASE ' '- ABORT TEST : ' SQLERRMC GOBACK ELSE DISPLAY 'CONNECTION ESTABLISHED' END-IF EXIT SECTION.
