This chapter provides an overview of how to use Oracle XML DB. The examples here illustrate techniques for accessing and managing XML content in purchase orders. The format and data of XML purchase orders are well suited for Oracle XML DB storage and processing techniques because purchase orders are highly structured XML documents. However, the majority of techniques introduced here can also be used to manage other types of XML documents, such as containing unstructured or semistructured data. This chapter also further explains Oracle XML DB concepts introduced in Chapter 1, "Introduction to Oracle XML DB".
This chapter contains these topics:
Before the introduction of Oracle XML DB, there were two ways to store XML content in Oracle Database:
Use Oracle XML Developer's Kit (XDK) to parse the XML document outside Oracle Database, and store the extracted XML data as rows in one or more tables in the database.
Store the XML document in Oracle Database using a Character Large Object (CLOB
), Binary Large Object (BLOB
), Binary File (BFILE
), or VARCHAR
column.
In both cases, Oracle Database is unaware that it is managing XML content.
The introduction of Oracle XML DB and the XMLType
datatype provides new techniques that facilitate the persistence of XML content in the database. These techniques include the ability to store XML documents in an XMLType
column or table, or in Oracle XML DB Repository. Storing XML as an XMLType
column or table makes Oracle Database aware that the content is XML. This allows the database to:
Perform XML-specific validations, operations, and optimizations on the XML content
Facilitate highly efficient processing of XML content by Oracle XML DB
Oracle9i release 1 (9.0.1) introduced a new datatype, XMLType
, to facilitate native handling of XML data in the database:
XMLType
can represent an XML document in the database, so it is accessible in SQL.
XMLType
has built-in methods that operate on XML content. For example, you can use XMLType
methods to create, extract, and index XML data stored in Oracle Database.
XMLType
functionality is also available through a set of Application Program Interfaces (APIs) provided in PL/SQL and Java.
XMLType
can be used in PL/SQL stored procedures for parameters, return values, and variables
With XMLType
, SQL developers can leverage the power of the relational database while working in the context of XML. XML developers can leverage the power of XML standards while working in the context of a relational database.
XMLType
can be used as the datatype of columns in tables and views. XMLType
variables can be used in PL/SQL stored procedures as parameters and return values. You can also use XMLType
in SQL, PL/SQL, C, Java (through JDBC), and Oracle Data Provider for .NET (ODP.NET).
The XMLType
API provides a number of useful methods that operate on XML content. For example, method extract()
extracts one or more nodes from an XMLType
instance. Many of these XMLType
methods are also provided as SQL functions. For example, SQL function extract
corresponds to XMLType
method extract()
.
Oracle XML DB functionality is based on the Oracle XML Developer's Kit C implementations of the relevant XML standards such as XML Parser, XML DOM, and XML Schema Validator.
The XMLType
datatype and application programming interface (API) enable SQL operations on XML content and XML operations on SQL content:
Versatile API. XMLType
has a versatile API for application development that includes built-in functions, indexing, and navigation support.
XMLType and SQL. You can use XMLType
in SQL statements, combined with other datatypes. For example, you can query XMLType
columns and join the result of the extraction with a relational column. Oracle Database determines an optimal way to run such queries.
Oracle XML DB lets you create B*Tree indexes on the object-relational tables that provide structured storage of XMLType
tables and columns.
Oracle Text indexing supports text indexing of the content of structured and unstructured XMLType
tables and columns.
The CTXXPATH
domain index type of Oracle Text provides an XML-specific text index with transactional semantics. This index type can speed up certain XPath-based searches on both structured and unstructured content.
Function-based indexes can be used to create indexes on explicit XPath expressions for both structured and unstructured XMLType
storage.
Use XMLType
any time you want to use the database as a persistent storage of XML. XMLType
functionality includes the following:
SQL queries on part of or the whole XML document – SQL functions existsNode
and extract
provide the necessary SQL query functions over XML documents.
XPath access using SQL functions existsNode
and extract
– XMLType
uses the built-in C XML parser and processor and hence provides better performance and scalability when used inside the server.
Strong typing inside SQL statements and PL/SQL functions – The strong typing offered by XMLType
ensures that the values passed in are XML values and not any arbitrary text string.
Indexing on XPath document queries – XMLType
has methods that you can use to create function-based indexes that optimize searches.
Separation of applications from storage models – Using XMLType
instead of CLOB
values or relational storage allows applications to gracefully move to various storage alternatives later without affecting any of the query or DML statements in the application.
Support for future optimizations – New XML functionality will support XMLType
. Because Oracle Database is natively aware that XMLType
can store XML data, better optimizations and indexing techniques can be done. By writing applications to use XMLType
, these optimizations and enhancements can be easily achieved and preserved in future releases without your needing to rewrite applications.
XMLType
data can be stored in two ways:
In Large Objects (LOBs) – LOB storage maintains content fidelity, also called document fidelity. The original XML is preserved, including whitespace. An entire XML document is stored as a whole in a LOB. For non-schema-based storage, XMLType
offers a Character Large Object (CLOB) storage option.
In Structured storage (in tables and views) – Structured storage maintains DOM (Document Object Model) fidelity.
Native XMLType
instances contain hidden columns that store this extra information that does not fit into the SQL object model. This information can be accessed through APIs in SQL or Java, using functions such as extractNode()
.
Changing XMLType
storage from structured storage to LOB, or vice versa, is possible using database IMPORT
and EXPORT
. Your application code does not need to change. You can then change XML storage options when tuning your application, because each storage option has its own benefits.
Table 3-1 summarizes some advantages and disadvantages to consider when selecting your Oracle XML DB storage option. Storage options are also discussed in Table 1-3, "XML Storage Options: Structured or Unstructured" and Chapter 2, "Getting Started with Oracle XML DB".
Table 3-1 XML Storage Options in Oracle XML DB
The following examples create XMLType
columns and tables for managing XML content in Oracle Database:
You can load XML content into Oracle XML DB using several techniques:
Table-based loading:
Path-based repository loading techniques:
You can use a simple INSERT
operation in SQL or PL/SQL to load an XML document into the database. Before the document can be stored as an XMLType
column or table, it must be converted into an XMLType
instance using one of the XMLType
constructors.
See Also:
Oracle Database PL/SQL Packages and Types Reference for a description of the XMLType
constructors
XMLType
constructors allow an XMLType
instance to be created from different sources, including VARCHAR
, CLOB
, and BFILE
values. The constructors accept additional arguments that reduce the amount of processing associated with XMLType
creation. For example, if you are sure that a given source XML document is valid, you can provide an argument to the constructor that disables the type-checking that is otherwise performed.
In addition, if the source data is not encoded in the database character set, an XMLType
instance can be constructed using a BFILE
or BLOB
value. The encoding of the source data is specified through the character set id (csid
) argument of the constructor.
Create a SQL Directory That Points to the Needed Directory
Example 3-3 shows how to insert XML content into an XMLType
table. Before making this insertion, you must create a SQL directory object that points to the directory containing the file to be processed. To do this, you must have the CREATE ANY DIRECTORY
privilege.
CREATE DIRECTORY xmldir AS path_to_folder_containing_XML_file';
Example 3-4 Inserting XML Content into an XML Type Table Using Java
This example shows how to load XML content into Oracle XML DB by first creating an XMLType
instance in Java, given a Document Object Model (DOM).
public void doInsert(Connection conn, Document doc) throws Exception { String SQLTEXT = "INSERT INTO purchaseorder VALUES (?)"; XMLType xml = null; xml = XMLType.createXML(conn,doc); OraclePreparedStatement sqlStatement = null; sqlStatement = (OraclePreparedStatement) conn.prepareStatement(SQLTEXT); sqlStatement.setObject(1,xml); sqlStatement.execute(); } 1 row selected.
The "Simple Bulk Loader Application" available on the Oracle Technology Network (OTN) site at http://www.oracle.com/technology/sample_code/tech/xml/xmldb/content.html
demonstrates how to load a directory of XML files into Oracle XML DB using Java Database Connectivity (JDBC). JDBC is a set of Java interfaces to Oracle Database.
Example 3-5 shows, in C, how to insert XML content into an XMLType
table by creating an XMLType
instance given a DOM.
Example 3-5 Inserting XML Content into an XMLType Table Using C
#include "stdio.h" #include <xml.h> #include <stdlib.h> #include <string.h> #include <ocixmldb.h> OCIEnv *envhp; OCIError *errhp; OCISvcCtx *svchp; OCIStmt *stmthp; OCIServer *srvhp; OCIDuration dur; OCISession *sesshp; oratext *username = "QUINE"; oratext *password = "CURRY"; oratext *filename = "AMCEWEN-20021009123336171PDT.xml"; oratext *schemaloc = "http://localhost:8080/source/schemas/poSource/xsd/purchaseOrder.xsd"; /*--------------------------------------------------------*/ /* Execute a SQL statement that binds XML data */ /*--------------------------------------------------------*/ sword exec_bind_xml(OCISvcCtx *svchp, OCIError *errhp, OCIStmt *stmthp, void *xml, OCIType *xmltdo, OraText *sqlstmt) { OCIBind *bndhp1 = (OCIBind *) 0; sword status = 0; OCIInd ind = OCI_IND_NOTNULL; OCIInd *indp = &ind; if(status = OCIStmtPrepare(stmthp, errhp, (OraText *)sqlstmt, (ub4)strlen((const char *)sqlstmt), (ub4) OCI_NTV_SYNTAX, (ub4) OCI_DEFAULT)) return OCI_ERROR; if(status = OCIBindByPos(stmthp, &bndhp1, errhp, (ub4) 1, (dvoid *) 0, (sb4) 0, SQLT_NTY, (dvoid *) 0, (ub2 *)0, (ub2 *)0, (ub4) 0, (ub4 *) 0, (ub4) OCI_DEFAULT)) return OCI_ERROR; if(status = OCIBindObject(bndhp1, errhp, (CONST OCIType *) xmltdo, (dvoid **) &xml, (ub4 *) 0, (dvoid **) &indp, (ub4 *) 0)) return OCI_ERROR; if(status = OCIStmtExecute(svchp, stmthp, errhp, (ub4) 1, (ub4) 0, (CONST OCISnapshot*) 0, (OCISnapshot*) 0, (ub4) OCI_DEFAULT)) return OCI_ERROR; return OCI_SUCCESS; } /*--------------------------------------------------------*/ /* Initialize OCI handles, and connect */ /*--------------------------------------------------------*/ sword init_oci_connect() { . . . } /*--------------------------------------------------------*/ /* Free OCI handles, and disconnect */ /*--------------------------------------------------------*/ void free_oci() { . . . } void main() { OCIType *xmltdo; xmldocnode *doc; ocixmldbparam params[1]; xmlerr err; xmlctx *xctx; oratext *ins_stmt; sword status; xmlnode *root; oratext buf[10000]; /* Initialize envhp, svchp, errhp, dur, stmthp */ init_oci_connect(); /* Get an XML context */ params[0].name_ocixmldbparam = XCTXINIT_OCIDUR; params[0].value_ocixmldbparam = &dur; xctx = OCIXmlDbInitXmlCtx(envhp, svchp, errhp, params, 1); if (!(doc = XmlLoadDom(xctx, &err, "file", filename, "schema_location", schemaloc, NULL))) { printf("Parse failed.\n"); return; } else printf("Parse succeeded.\n"); root = XmlDomGetDocElem(xctx, doc); printf("The xml document is :\n"); XmlSaveDom(xctx, &err, (xmlnode *)doc, "buffer", buf, "buffer_length", 10000, NULL); printf("%s\n", buf); /* Insert the document into my_table */ ins_stmt = (oratext *)"insert into purchaseorder values (:1)"; status = OCITypeByName(envhp, errhp, svchp, (const text *) "SYS", (ub4) strlen((const char *)"SYS"), (const text *) "XMLTYPE", (ub4) strlen((const char *)"XMLTYPE"), (CONST text *) 0, (ub4) 0, OCI_DURATION_SESSION, OCI_TYPEGET_HEADER, (OCIType **) &xmltdo); if (status == OCI_SUCCESS) { status = exec_bind_xml(svchp, errhp, stmthp, (void *)doc, xmltdo, ins_stmt); } if (status == OCI_SUCCESS) printf ("Insert successful\n"); else printf ("Insert failed\n"); /* Free XML instances */ if (doc) XmlFreeDocument((xmlctx *)xctx, (xmldocnode *)doc); /* Free XML CTX */ OCIXmlDbFreeXmlCtx(xctx); free_oci(); }
See Also: Appendix D, "Oracle-Supplied XML Schemas and Examples" for a complete listing of this example |
When loading large XML files consisting of a collection of smaller XML documents, it is often more efficient to use Simple API for XML (SAX) parsing to break the file into a set of smaller documents, and then insert those documents. SAX is an XML standard interface provided by XML parsers for event-based applications.
You can use SAX to load a database table from very large XML files in the order of 30 Mb or larger, by creating individual documents from a collection of nodes. You can also bulk load XML files.
See Also:
http://www.oracle.com/technology/sample_code/tech/xml/xmldb/content.html
, "SAX Loader Application" for an example of how to do thisUse SQL*Loader to load large amounts of XML data into Oracle Database. SQL*Loader loads in one of two modes, conventional or direct path. Table 3-2 compares these modes.
Table 3-2 Comparing SQL*Loader Conventional and Direct Load Modes
Conventional Load Mode | Direct Path Load Mode |
---|---|
Uses SQL to load data into Oracle Database. This is the default mode. |
Bypasses SQL and streams the data directly into Oracle Database. |
Advantage: Follows SQL semantics. For example triggers are fired and constraints are checked. |
Advantage: This loads data much faster than the conventional load mode. |
Disadvantage: This loads data slower than with the direct load mode. |
Disadvantage: SQL semantics are not obeyed. For example triggers are not fired and constraints are not checked. |
See Also:
Example 29-1, "Loading Very Large XML Documents Into Oracle Database Using SQL*Loader" for an example of direct loading of XML data.
You can also store XML documents in Oracle XML DB Repository, and access these documents using path-based rather than table-based techniques. To load an XML document into the repository under a given path, use PL/SQL package DBMS_XDB
. This is illustrated by the following example.
Example 3-6 Inserting XML Content into the Repository Using PL/SQL DBMS_XDB
DECLARE res BOOLEAN; BEGIN res := DBMS_XDB.createResource('/home/QUINE/purchaseOrder.xml', bfilename('XMLDIR', 'purchaseOrder.xml'), nls_charset_id('AL32UTF8')); END;/
Many operations for configuring and using Oracle XML DB are based on processing one or more XML documents – for example, registering an XML schema and performing an XSL transformation. The easiest way to make these XML documents available to Oracle Database is to load them into Oracle XML DB Repository.
You can load XML documents from a local file system into Oracle XML DB Repository using protocols such as WebDAV, from Windows Explorer or other tools that support WebDAV. Figure 3-1 shows a simple drag and drop operation for copying the contents of the SCOTT
folder from the local hard drive to the poSource
folder in the Oracle XML DB Repository.

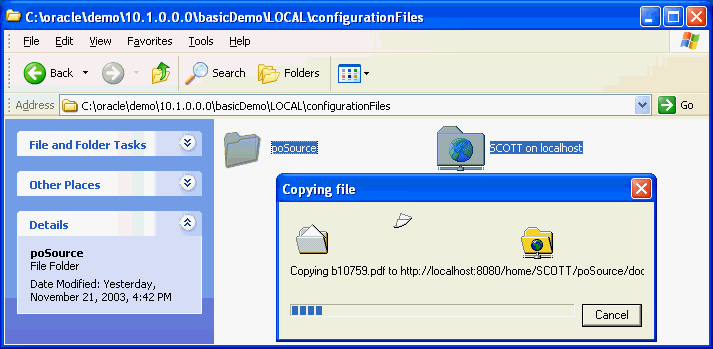

Figure 3-1 Using Windows Explorer to Load Content into the Repository

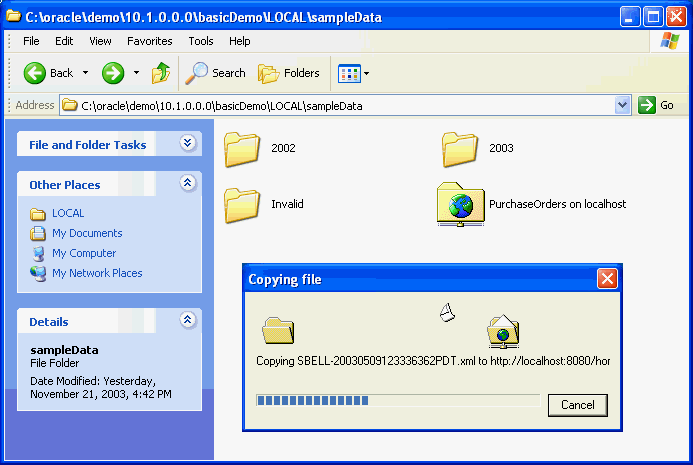

The copied folder might contain, for example, an XML schema document, an HTML page, and some XSLT style sheets.
Note: Oracle XML DB Repository can also store content that is not XML data, such as HTML files, JPEG images, word documents, as well as XML documents (schema-based and non-schema-based). |
This section describes how character sets of XML documents are determined.
Caution:
AL32UTF8 is the Oracle Database character set that is appropriate forXMLType
data. It is equivalent to the IANA registered standard UTF-8 encoding, which supports all valid XML characters.
Do not confuse Oracle Database database character set UTF8 (no hyphen) with database character set AL32UTF8 or with character encoding UTF-8. Database character set UTF8 has been superseded by AL32UTF8. Do not use UTF8 for XML data. UTF8 supports only Unicode version 3.1 and earlier; it does not support all valid XML characters. AL32UTF8 has no such limitation.
Using database character set UTF8 for XML data could potentially stop a system or affect security negatively. If a character that is not supported by the database character set appears in an input-document element name, a replacement character (usually "?
") will be substituted for it. This will terminate parsing and raise an exception. It could cause a fatal error.
Each XML document is composed of units called entities. Each entity in an XML document may use a different encoding for its characters. Entities that are stored in an encoding other than UTF-8 or UTF-16 must begin with a declaration containing an encoding specification indicating the character encoding in use. For example:
<?xml version='1.0' encoding='EUC-JP' ?>
Entities encoded in UTF-16 must begin with the Byte Order Mark (BOM), as described in Appendix F of the XML 1.0 Reference. For example, on big-endian platforms, the BOM required of a UTF-16 data stream is #xFEFF
.
In the absence of both the encoding declaration and the BOM, the XML entity is assumed to be encoded in UTF-8. Because ASCII is a subset of UTF-8, ASCII entities do not require an encoding declaration.
In many cases, external sources of information are available, besides the XML data, to provide the character encoding in use. For example, the encoding of the data can be obtained from the charset
parameter of the Content-Type field in an HTTP(S) request as follows:
Content-Type: text/xml; charset=ISO-8859-4
In releases prior to Oracle Database 10g Release 1, all XML documents were assumed to be in the database character set, regardless of the document encoding declaration. With Oracle Database 10g Release 1, the document encoding is detected from the encoding declaration when the document is loaded into the database.
However, if the XML data is obtained from a CLOB
or VARCHAR
value, then the encoding declaration is ignored, because these two data types are always encoded in the database character set.
In addition, when loading data into Oracle XML DB, either through programmatic APIs or transfer protocols, you can provide external encoding to override the document encoding declaration. An error is raised if you try to load a schema-based XML document that contains characters that are not legal in the determined encoding.
The following examples show different ways to specify external encoding:
Using PL/SQL function DBMS_XDB.createResource
to create a file resource from a BFILE
, you can specify the file encoding with the CSID
argument. If a zero CSID
is specified then the file encoding is auto-detected from the document encoding declaration.
CREATE DIRECTORY xmldir AS '/private/xmldir'; CREATE OR REPLACE PROCEDURE loadXML(filename VARCHAR2, file_csid NUMBER) IS xbfile BFILE; RET BOOLEAN; BEGIN xbfile := bfilename('XMLDIR', filename); ret := DBMS_XDB.createResource('/public/mypurchaseorder.xml', xbfile, file_csid); END;/
Use the FTP protocol to load documents into Oracle XML DB. Use the quote set_charset
FTP command to indicate the encoding of the files to be loaded.
FTP> quote set_charset Shift_JIS FTP> put mypurchaseorder.xml
Use the HTTP(S) protocol to load documents into Oracle XML DB. Specify the encoding of the data to be transmitted to Oracle XML DB in the request header.
Content-Type: text/xml; charset= EUC-JP
XML documents stored in Oracle XML DB can be retrieved using a SQL client, programmatic APIs, or transfer protocols. You can specify the encoding of the retrieved data (except in Oracle Database releases prior to 10g, where XML data is retrieved only in the database character set).The character set for an XML document retrieved from the database is determined in the following ways:
SQL Client – If a SQL client (such as SQL*Plus) is used to retrieve XML data, then the character set is determined by the client-side environment variable NLS_LANG
. In particular, this setting overrides any explicit character-set declarations in the XML data itself.
For example, if you set the client side NLS_LANG
variable to AMERICAN_AMERICA.AL32UTF8
and then retrieve an XML document with encoding EUC_JP
provided by declaration <?xml version="1.0" encoding="EUC-JP"?>
, the character set of the retrieved document is AL32UTF8
, not EUC_JP
.
PL/SQL and APIs – Using PL/SQL or programmatic APIs, you can retrieve XML data into VARCHAR
, CLOB
, or XMLType
datatypes. As for SQL clients, you can control the encoding of the retrieved data by setting NLS_LANG
.
You can also retrieve XML data into a BLOB
value using XMLType
and URIType
methods. These methods let you specify the character set of the returned BLOB
value. Here is an example:
CREATE OR REPLACE FUNCTION getXML(pathname VARCHAR2, charset VARCHAR2) RETURN BLOB IS xblob BLOB; BEGIN SELECT e.RES.getBlobVal(nls_charset_id(charset)) INTO xblob FROM RESOURCE_VIEW e WHERE ANY_PATH = pathname; RETURN xblob; END;/
FTP – You can use the FTP quote set_nls_locale
command to set the character set:
FTP> quote set_nls_locale EUC-JP FTP> get mypurchaseorder.xml
See Also:
FTP Quote MethodsHTTP(S) – You can use the Accept-Charset
parameter in an HTTP(S) request:
/httptest/mypurchaseorder.xml 1.1 HTTP/Host: localhost:2345 Accept: text/* Accept-Charset: iso-8859-1, utf-8
See Also:
Controlling Character Sets for HTTP(S)The W3C XML Schema Recommendation defines a standardized language for specifying the structure, content, and certain semantics of a set of XML documents. An XML schema can be considered the metadata that describes a class of XML documents. The XML Schema Recommendation is described at: http://www.w3.org/TR/xmlschema-0/
Documents conforming to a given XML schema can be considered as members or instances of the class defined by that XML schema. Consequently the term instance document is often used to describe an XML document that conforms to a given XML schema. The most common use of an XML schema is to validate that a given instance document conforms to the rules defined by the XML schema.
The W3C Schema working group publishes an XML schema, often referred to as the "Schema for Schemas". This XML schema provides the definition, or vocabulary, of the XML Schema language. All valid XML schemas can be considered as members of the class defined by this XML schema. This means that an XML schema is an XML document that conforms to the class defined by the XML schema published at http://www.w3.org/2001/XMLSchema
.
XML schemas can be authored and edited using any of the following:
A simple text editor, such as emacs or vi
An XML schema-aware editor, such as the XML editor included with Oracle JDeveloper
An explicit XML schema-authoring tool, such as XMLSpy from Altova Corporation
The XML Schema language defines 47 scalar datatypes. This provides for strong typing of elements and attributes. The W3C XML Schema Recommendation also supports object-oriented techniques such as inheritance and extension, hence you can design XML schema with complex objects from base data types defined by the XML Schema language. The vocabulary includes constructs for defining and ordering, default values, mandatory content, nesting, repeated sets, and redefines. Oracle XML DB supports all the constructs, except for redefines.
The following example purchaseOrder.xsd
, is a standard W3C XML schema example fragment, in its native form, as an XML Document:
Example 3-7 Purchase-Order XML Schema, purchaseOrder.xsd
<xs:schema xmlns:xs="http://www.w3.org/2001/XMLSchema" version="1.0"> <xs:element name="PurchaseOrder" type="PurchaseOrderType"/> <xs:complexType name="PurchaseOrderType"> <xs:sequence> <xs:element name="Reference" type="ReferenceType"/> <xs:element name="Actions" type="ActionsType"/> <xs:element name="Reject" type="RejectionType" minOccurs="0"/> <xs:element name="Requestor" type="RequestorType"/> <xs:element name="User" type="UserType"/> <xs:element name="CostCenter" type="CostCenterType"/> <xs:element name="ShippingInstructions" type="ShippingInstructionsType"/> <xs:element name="SpecialInstructions" type="SpecialInstructionsType"/> <xs:element name="LineItems" type="LineItemsType"/> </xs:sequence> </xs:complexType> <xs:complexType name="LineItemsType"> <xs:sequence> <xs:element name="LineItem" type="LineItemType" maxOccurs="unbounded"/> </xs:sequence> </xs:complexType> <xs:complexType name="LineItemType"> <xs:sequence> <xs:element name="Description" type="DescriptionType"/> <xs:element name="Part" type="PartType"/> </xs:sequence> <xs:attribute name="ItemNumber" type="xs:integer"/> </xs:complexType> <xs:complexType name="PartType"> <xs:attribute name="Id"> <xs:simpleType> <xs:restriction base="xs:string"> <xs:minLength value="10"/> <xs:maxLength value="14"/> </xs:restriction> </xs:simpleType> </xs:attribute> <xs:attribute name="Quantity" type="moneyType"/> <xs:attribute name="UnitPrice" type="quantityType"/> </xs:complexType> <xs:simpleType name="ReferenceType"> <xs:restriction base="xs:string"> <xs:minLength value="18"/> <xs:maxLength value="30"/> </xs:restriction> </xs:simpleType> <xs:complexType name="ActionsType"> <xs:sequence> <xs:element name="Action" maxOccurs="4"> <xs:complexType> <xs:sequence> <xs:element name="User" type="UserType"/> <xs:element name="Date" type="DateType" minOccurs="0"/> </xs:sequence> </xs:complexType> </xs:element> </xs:sequence> </xs:complexType> <xs:complexType name="RejectionType"> <xs:all> <xs:element name="User" type="UserType" minOccurs="0"/> <xs:element name="Date" type="DateType" minOccurs="0"/> <xs:element name="Comments" type="CommentsType" minOccurs="0"/> </xs:all> </xs:complexType> <xs:complexType name="ShippingInstructionsType"> <xs:sequence> <xs:element name="name" type="NameType" minOccurs="0"/> <xs:element name="address" type="AddressType" minOccurs="0"/> <xs:element name="telephone" type="TelephoneType" minOccurs="0"/> </xs:sequence> </xs:complexType> <xs:simpleType name="moneyType"> <xs:restriction base="xs:decimal"> <xs:fractionDigits value="2"/> <xs:totalDigits value="12"/> </xs:restriction> </xs:simpleType> <xs:simpleType name="quantityType"> <xs:restriction base="xs:decimal"> <xs:fractionDigits value="4"/> <xs:totalDigits value="8"/> </xs:restriction> </xs:simpleType> <xs:simpleType name="UserType"> <xs:restriction base="xs:string"> <xs:minLength value="0"/> <xs:maxLength value="10"/> </xs:restriction> </xs:simpleType> <xs:simpleType name="RequestorType"> <xs:restriction base="xs:string"> <xs:minLength value="0"/> <xs:maxLength value="128"/> </xs:restriction> </xs:simpleType> <xs:simpleType name="CostCenterType"> <xs:restriction base="xs:string"> <xs:minLength value="1"/> <xs:maxLength value="4"/> </xs:restriction> </xs:simpleType> <xs:simpleType name="VendorType"> <xs:restriction base="xs:string"> <xs:minLength value="0"/> <xs:maxLength value="20"/> </xs:restriction> </xs:simpleType> <xs:simpleType name="PurchaseOrderNumberType"> <xs:restriction base="xs:integer"/> </xs:simpleType> <xs:simpleType name="SpecialInstructionsType"> <xs:restriction base="xs:string"> <xs:minLength value="0"/> <xs:maxLength value="2048"/> </xs:restriction> </xs:simpleType> <xs:simpleType name="NameType"> <xs:restriction base="xs:string"> <xs:minLength value="1"/> <xs:maxLength value="20"/> </xs:restriction> </xs:simpleType> <xs:simpleType name="AddressType"> <xs:restriction base="xs:string"> <xs:minLength value="1"/> <xs:maxLength value="256"/> </xs:restriction> </xs:simpleType> <xs:simpleType name="TelephoneType"> <xs:restriction base="xs:string"> <xs:minLength value="1"/> <xs:maxLength value="24"/> </xs:restriction> </xs:simpleType> <xs:simpleType name="DateType"> <xs:restriction base="xs:date"/> </xs:simpleType> <xs:simpleType name="CommentsType"> <xs:restriction base="xs:string"> <xs:minLength value="1"/> <xs:maxLength value="2048"/> </xs:restriction> </xs:simpleType> <xs:simpleType name="DescriptionType"> <xs:restriction base="xs:string"> <xs:minLength value="1"/> <xs:maxLength value="256"/> </xs:restriction> </xs:simpleType> </xs:schema>
See Also:
Appendix A, "XML Schema Primer" for a more detailed listing of XML schemapurchaseOrder.xsd

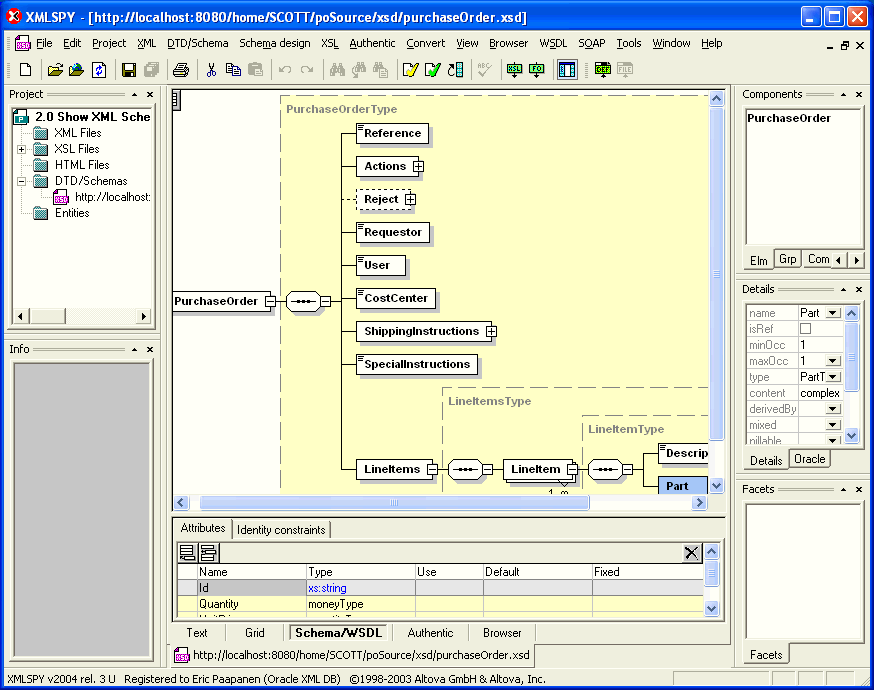

Figure 3-2 shows the purchase-order XML schema displayed using XMLSpy. XMLSpy is a graphical and user-friendly tool from Altova Corporation for creating and editing XML schema and XML documents. See http://www.altova.com
for details. XMLSpy also supports WebDAV and FTP protocols hence can directly access and edit content stored in Oracle XML DB Repository.
Figure 3-2 XMLSpy Graphical Representation of the PurchaseOrder XML Schema
The PurchaseOrder XML schema is a simple XML schema that demonstrates key features of a typical XML document:
Global element PurchaseOrder
is an instance of the complexType
PurchaseOrderType
PurchaseOrderType
defines the set of nodes that make up a PurchaseOrder
element
LineItems
element consists of a collection of LineItem
elements
Each LineItem
element consists of two elements: Description
and Part
Part
element has attributes Id
, Quantity
, and UnitPrice
This section describes the use of XML Schema with Oracle XML DB.
The following paragraphs describe the main reasons for using XML schema with Oracle XML DB.
The most common usage of XML Schema is as a mechanism for validating that instance documents conform to a given XML schema. The XMLType
datatype methods isSchemaValid()
and schemaValidate()
allow Oracle XML DB to validate the contents of an instance document stored in an XMLType
, against an XML schema.
An XML schema can also be used as a constraint when creating tables or columns of XMLType
. For example, the XMLType
is constrained to storing XML documents compliant with one of the global elements defined by the XML schema.
Oracle XML DB also uses XML schema as a mechanism for defining how the contents of an XMLType
should be stored inside the database. Currently Oracle XML DB provides two options:
Unstructured storage. The content of the XMLType
is persisted as XML text using a CLOB
datatype. This option is available for non-schema-based and schema-based XML content. When the XML is to be stored and retrieved as complete documents, unstructured storage may be the best solution as it offers the fastest rates of throughput when storing and retrieving XML content.
Structured storage. The content of the XMLType
is persisted as a set of SQL objects. The structured storage option is only available when the XMLType
table or column has been constrained to a global element defined by XML schema.
If there is a need to extract or update sections of the document, perform XSL transformation on the document, or work through the DOM API, then structured storage may be the preferred storage type. Structured storage allows all these operations to take place more efficiently but at a greater overhead when storing and retrieving the entire document.
Structured storage of XML documents is based on decomposing the content of the document into a set of SQL objects. These SQL objects are based on the SQL 1999 Type framework. When an XML schema is registered with Oracle XML DB, the required SQL type definitions are automatically generated from the XML schema.
A SQL type definition is generated from each complexType
defined by the XML schema. Each element or attribute defined by the complexType
becomes a SQL attribute in the corresponding SQL type. Oracle XML DB automatically maps the 47 scalar data types defined by the XML Schema Recommendation to the 19 scalar datatypes supported by SQL. A varray type is generated for each element and this can occur multiple times.
The generated SQL types allow XML content, compliant with the XML schema, to be decomposed and stored in the database as a set of objects without any loss of information. When the document is ingested the constructs defined by the XML schema are mapped directly to the equivalent SQL types. This allows Oracle XML DB to leverage the full power of Oracle Database when managing XML and can lead to significant reductions in the amount of space required to store the document. It can also reduce the amount of memory required to query and update XML content.
The W3C XML Schema Recommendation defines an annotation mechanism that allows vendor-specific information to be added to an XML schema. Oracle XML DB uses this to control the mapping between the XML schema and the SQL object model.
Annotating an XML schema allows control over the naming of the SQL objects and attributes created. Annotations can also be used to override the default mapping between the XML schema data types and SQL data types and to specify which table should be used to store the data.
Note:
As always:SQL is case-insensitive, but names in SQL code are implicitly uppercase, unless you enclose them in double-quotes.
XML is case-sensitive. You must refer to SQL names in XML code using the correct case: uppercase SQL names must be written as uppercase.
For example, if you create a table named my_table
in SQL without using double-quotes, then you must refer to it in XML as "MY_TABLE
".
Annotations are also used to control how collections in an XML document are stored in the database. Currently there are four options:
Character Large Object (CLOB
). The entire set of elements is persisted as XML text stored in a CLOB
column.
Varray in a LOB. Each element in the collection is converted into a SQL object. The collection of SQL objects is serialized and stored in a LOB column.
Varray as a nested table. Each element in the collection is converted into a SQL object. The collection of SQL objects is stored as a set of rows in an Index Organized Nested Table (IOT).
Varray as a set of XMLType
values. Each element in the collection is treated as a separate XMLType
value. The collection of XMLType
values is stored as a set of rows in an XMLType
table.
These storage options allow you to tune the performance of applications that use XMLType
datatypes to store XML in the database.
However, there is no requirement to annotate an XML schema before using it with Oracle XML DB. Oracle XML DB uses a set of default assumptions when processing an XML schema that contains no annotations.
Before annotating an XML schema you must first declare the Oracle XML DB namespace. The Oracle XML DB namespace is defined as:
http://xmlns.oracle.com/xdb
The namespace is declared in the XML schema by adding a namespace declaration such as the following to the root element of the XML schema:
xmlns:xdb="http://xmlns.oracle.com/xdb"
Note the use of a namespace prefix (xdb
). This makes it possible to abbreviate the namespace to xdb
when adding annotations.
Example 3-8 shows the beginning of the PurchaseOrder
XML schema with annotations. See Example D-1 for the complete schema listing.
Example 3-8 Annotated Purchase-Order XML Schema, purchaseOrder.xsd
<xs:schema xmlns:xs="http://www.w3.org/2001/XMLSchema" xmlns:xdb="http://xmlns.oracle.com/xdb" version="1.0" xdb:storeVarrayAsTable="true"> <xs:element name="PurchaseOrder" type="PurchaseOrderType" xdb:defaultTable="PURCHASEORDER"/> <xs:complexType name="PurchaseOrderType" xdb:SQLType="PURCHASEORDER_T"> <xs:sequence> <xs:element name="Reference" type="ReferenceType" minOccurs="1" xdb:SQLName="REFERENCE"/> <xs:element name="Actions" type="ActionsType" xdb:SQLName="ACTIONS"/> <xs:element name="Reject" type="RejectionType" minOccurs="0" xdb:SQLName="REJECTION"/> <xs:element name="Requestor" type="RequestorType" xdb:SQLName="REQUESTOR"/> <xs:element name="User" type="UserType" minOccurs="1" xdb:SQLName="USERID"/> <xs:element name="CostCenter" type="CostCenterType" xdb:SQLName="COST_CENTER"/> <xs:element name="ShippingInstructions" type="ShippingInstructionsType" xdb:SQLName="SHIPPING_INSTRUCTIONS"/> <xs:element name="SpecialInstructions" type="SpecialInstructionsType" xdb:SQLName="SPECIAL_INSTRUCTIONS"/> <xs:element name="LineItems" type="LineItemsType" xdb:SQLName="LINEITEMS"/> </xs:sequence> </xs:complexType> <xs:complexType name="LineItemsType" xdb:SQLType="LINEITEMS_T"> <xs:sequence> <xs:element name="LineItem" type="LineItemType" maxOccurs="unbounded" xdb:SQLName="LINEITEM" xdb:SQLCollType="LINEITEM_V"/> </xs:sequence> </xs:complexType> <xs:complexType name="LineItemType" xdb:SQLType="LINEITEM_T"> <xs:sequence> <xs:element name="Description" type="DescriptionType" xdb:SQLName="DESCRIPTION"/> <xs:element name="Part" type="PartType" xdb:SQLName="PART"/> </xs:sequence> <xs:attribute name="ItemNumber" type="xs:integer" xdb:SQLName="ITEMNUMBER" xdb:SQLType="NUMBER"/> </xs:complexType> <xs:complexType name="PartType" xdb:SQLType="PART_T"> <xs:attribute name="Id" xdb:SQLName="PART_NUMBER" xdb:SQLType="VARCHAR2"> <xs:simpleType> <xs:restriction base="xs:string"> <xs:minLength value="10"/> <xs:maxLength value="14"/> </xs:restriction> </xs:simpleType> </xs:attribute> <xs:attribute name="Quantity" type="moneyType" xdb:SQLName="QUANTITY"/> <xs:attribute name="UnitPrice" type="quantityType" xdb:SQLName="UNITPRICE"/> </xs:complexType> <xs:simpleType name="ReferenceType"> <xs:restriction base="xs:string"> <xs:minLength value="18"/> <xs:maxLength value="30"/> </xs:restriction> </xs:simpleType> <xs:complexType name="ActionsType" xdb:SQLType="ACTIONS_T"> <xs:sequence> <xs:element name="Action" maxOccurs="4" xdb:SQLName="ACTION" xdb:SQLCollType="ACTION_V"> <xs:complexType xdb:SQLType="ACTION_T"> <xs:sequence> <xs:element name="User" type="UserType" xdb:SQLName="ACTIONED_BY"/> <xs:element name="Date" type="DateType" minOccurs="0" xdb:SQLName="DATE_ACTIONED"/> </xs:sequence> </xs:complexType> </xs:element> </xs:sequence> </xs:complexType> <xs:complexType name="RejectionType" xdb:SQLType="REJECTION_T"> <xs:all> <xs:element name="User" type="UserType" minOccurs="0" xdb:SQLName="REJECTED_BY"/> <xs:element name="Date" type="DateType" minOccurs="0" xdb:SQLName="DATE_REJECTED"/> <xs:element name="Comments" type="CommentsType" minOccurs="0" xdb:SQLName="REASON_REJECTED"/> </xs:all> </xs:complexType> <xs:complexType name="ShippingInstructionsType" xdb:SQLType="SHIPPING_INSTRUCTIONS_T"> <xs:sequence> <xs:element name="name" type="NameType" minOccurs="0" xdb:SQLName="SHIP_TO_NAME"/> <xs:element name="address" type="AddressType" minOccurs="0" xdb:SQLName="SHIP_TO_ADDRESS"/> <xs:element name="telephone" type="TelephoneType" minOccurs="0" xdb:SQLName="SHIP_TO_PHONE"/> </xs:sequence> </xs:complexType> <xs:simpleType name="moneyType"> <xs:restriction base="xs:decimal"> <xs:fractionDigits value="2"/> <xs:totalDigits value="12"/> </xs:restriction> </xs:simpleType> <xs:simpleType name="quantityType"> <xs:restriction base="xs:decimal"> <xs:fractionDigits value="4"/> <xs:totalDigits value="8"/> </xs:restriction> </xs:simpleType> <xs:simpleType name="UserType"> <xs:restriction base="xs:string"> <xs:minLength value="0"/> <xs:maxLength value="10"/> </xs:restriction> </xs:simpleType> <xs:simpleType name="RequestorType"> <xs:restriction base="xs:string"> <xs:minLength value="0"/> <xs:maxLength value="128"/> </xs:restriction> </xs:simpleType> <xs:simpleType name="CostCenterType"> <xs:restriction base="xs:string"> <xs:minLength value="1"/> <xs:maxLength value="4"/> </xs:restriction> </xs:simpleType> <xs:simpleType name="VendorType"> <xs:restriction base="xs:string"> <xs:minLength value="0"/> <xs:maxLength value="20"/> </xs:restriction> </xs:simpleType> <xs:simpleType name="PurchaseOrderNumberType"> <xs:restriction base="xs:integer"/> </xs:simpleType> <xs:simpleType name="SpecialInstructionsType"> <xs:restriction base="xs:string"> <xs:minLength value="0"/> <xs:maxLength value="2048"/> </xs:restriction> </xs:simpleType> <xs:simpleType name="NameType"> <xs:restriction base="xs:string"> <xs:minLength value="1"/> <xs:maxLength value="20"/> </xs:restriction> </xs:simpleType> <xs:simpleType name="AddressType"> <xs:restriction base="xs:string"> <xs:minLength value="1"/> <xs:maxLength value="256"/> </xs:restriction> </xs:simpleType> <xs:simpleType name="TelephoneType"> <xs:restriction base="xs:string"> <xs:minLength value="1"/> <xs:maxLength value="24"/> </xs:restriction> </xs:simpleType> <xs:simpleType name="DateType"> <xs:restriction base="xs:date"/> </xs:simpleType> <xs:simpleType name="CommentsType"> <xs:restriction base="xs:string"> <xs:minLength value="1"/> <xs:maxLength value="2048"/> </xs:restriction> </xs:simpleType> <xs:simpleType name="DescriptionType"> <xs:restriction base="xs:string"> <xs:minLength value="1"/> <xs:maxLength value="256"/> </xs:restriction> </xs:simpleType> </xs:schema>
The PurchaseOrder
XML schema defines the following two namespaces:
http://www.w3c.org/2001/XMLSchema
. This is reserved by W3C for the Schema for Schemas.
http://xmlns.oracle.com/xdb
. This is reserved by Oracle for the Oracle XML DB schema annotations.
The PurchaseOrder
schema uses several annotations, including the following:
defaultTable
annotation in the PurchaseOrder
element. This specifies that XML documents, compliant with this XML schema are stored in a database table called purchaseorder
.
SQLType
annotation.
The first occurrence of SQLType
specifies that the name of the SQL type generated from complexType PurchaseOrderType
is purchaseorder_t
.
The second occurrence of SQLType
specifies that the name of the SQL type generated from the complexType LineItemType
is lineitem_t
and the SQL type that manages the collection of LineItem
elements is lineitem_v
.
SQLName
annotation. This provides an explicit name for each SQL attribute of purchaseorder_t
.
Figure 3-3 shows the XMLSpy Oracle tab, which facilitates adding Oracle XML DB schema annotations to an XML schema while working in the graphical editor.

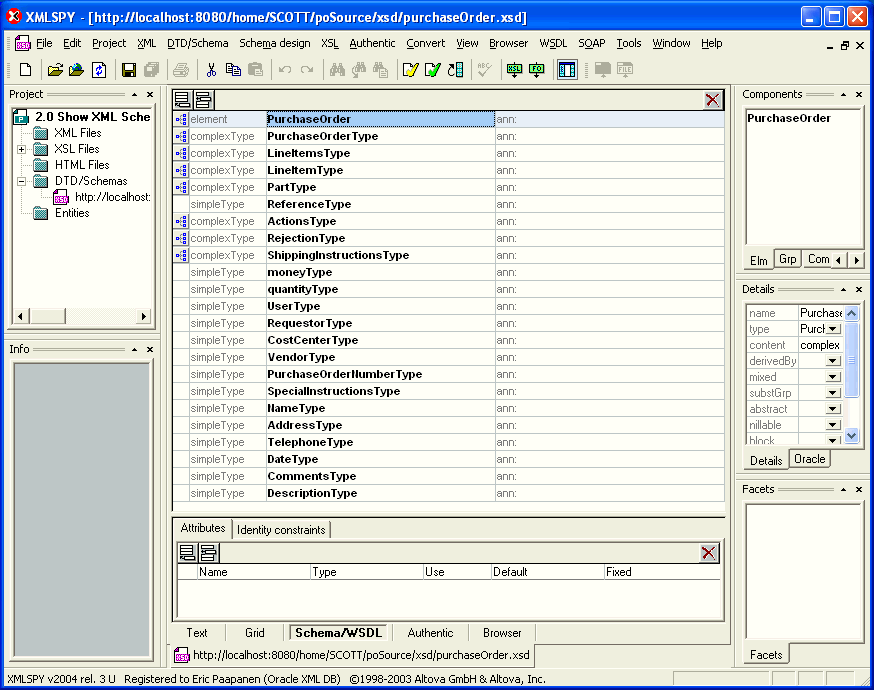

Figure 3-3 XMLSpy Showing Support for Oracle XML DB Schema Annotations
For an XML schema to be useful to Oracle XML DB you must first register it with Oracle XML DB. After it has been registered, it can be used for validating XML documents and for creating XMLType
tables and columns bound to the XML schema.
Two items are required to register an XML schema with Oracle XML DB:
The XML schema document
A string that can be used as a unique identifier for the XML schema, after it is registered with Oracle Database. Instance documents use this unique identifier to identify themselves as members of the class defined by the XML schema. The identifier is typically in the form of a URL, and is often referred to as the schema location hint.
You register an XML schema with PL/SQL procedure DBMS_XMLSCHEMA.registerschema
. See Example 3-9. By default, when an XML schema is registered, Oracle XML DB automatically generates all of the SQL object types and XMLType
tables required to manage the instance documents.
XML schemas can be registered as global or local.
See Also:
"Schema Registration Considerations" for considerations to keep in mind when you register an XML schema
Chapter 5, "XML Schema Storage and Query: Basic" for a discussion of the differences between global and local schemas
Oracle Database PL/SQL Packages and Types Reference for information on DBMS_XMLSCHEMA.registerschema
Example 3-9 Registering an XML Schema with DBMS_XMLSCHEMA.registerSchema
BEGIN DBMS_XMLSCHEMA.registerSchema( 'http://localhost:8080/source/schemas/poSource/xsd/purchaseOrder.xsd', XDBURIType('/source/schemas/poSource/xsd/purchaseOrder.xsd').getClob(), TRUE, TRUE, FALSE, TRUE); END; /
In this example, the unique identifier for the XML schema is:
http://localhost:8080/source/schemas/poSource/xsd/purchaseOrder.xsd
The XML schema document was previously loaded into Oracle XML DB Repository at this path: /source/schemas/poSource/xsd/purchaseOrder.xsd
.
During XML schema registration, an XDBURIType
accesses the content of the XML schema document, based on its location in the repository. Flags passed to procedure registerSchema
specify that the XML schema must be registered as a local schema, and that SQL objects and tables must be generated by the registration process.
Procedure DBMS_XMLSCHEMA.registerSchema
performs the following operations:
Parses and validates the XML schema
Creates a set of entries in Oracle Data Dictionary that describe the XML schema
Creates a set of SQL object definitions, based on complexTypes
defined in the XML schema
Creates an XMLType
table for each global element defined by the XML schema
Example 3-10 illustrates the creation of object types during XML schema registration with Oracle XML DB.
Example 3-10 Objects Created During XML Schema Registration
DESCRIBE purchaseorder_t purchaseorder_t is NOT FINAL Name Null? Type ----------------------------------------- -------- ---------------------------- SYS_XDBPD$ XDB.XDB$RAW_LIST_T REFERENCE VARCHAR2(30 CHAR) ACTIONS ACTIONS_T REJECTION REJECTION_T REQUESTOR VARCHAR2(128 CHAR) USERID VARCHAR2(10 CHAR) COST_CENTER VARCHAR2(4 CHAR) SHIPPING_INSTRUCTIONS SHIPPING_INSTRUCTIONS_T SPECIAL_INSTRUCTIONS VARCHAR2(2048 CHAR) LINEITEMS LINEITEMS_T DESCRIBE lineitems_t lineitems_t is NOT FINAL Name Null? Type ----------------------------------------- -------- ---------------------------- SYS_XDBPD$ XDB.XDB$RAW_LIST_T LINEITEM LINEITEM_V DESCRIBE lineitem_v lineitem_v VARRAY(2147483647) OF LINEITEM_T LINEITEM_T is NOT FINAL Name Null? Type ----------------------------------------- -------- ---------------------------- SYS_XDBPD$ XDB.XDB$RAW_LIST_T ITEMNUMBER NUMBER(38) DESCRIPTION VARCHAR2(256 CHAR) PART PART_T
This example shows that SQL type definitions were created when the XML schema was registered with Oracle XML DB. These SQL type definitions include:
purchaseorder_t
. This type is used to persist the SQL objects generated from a PurchaseOrder
element. When an XML document containing a PurchaseOrder
element is stored in Oracle XML DB the document is shredded (broken up), and the contents of the document are stored as an instance of purchaseorder_t
.
lineitems_t
, lineitem_v
, and lineitem_t
. These types manage the collection of LineItem
elements that may be present in a PurchaseOrder
document. Type lineitems_t
consists of a single attribute lineitem
, defined as an instance of type lineitem_v
. Type lineitem_v
is defined as a varray of linteitem_t
objects. There is one instance of the lineitem_t
object for each LineItem
element in the document.
A number of issues can arise when working with large, complex XML schemas. Sometimes the error ORA-01792: maximum number of columns in a table or view is 1000
is encountered when registering an XML schema or creating a table based on a global element defined by an XML schema. This error occurs when an attempt is made to create an XMLType
table or column based on a global element, and the global element is defined as a complexType
that contains a very large number of element and attribute definitions. The error only occurs when creating an XMLType
table or column that uses object-relational storage. When object-relational storage is selected, the XMLType
is persisted as a SQL type. When a table or column is based on a SQL type, each attribute defined by the type counts as a column in the underlying table. If the SQL type contains attributes that are based on other SQL types, the attributes defined by those types also count as columns in the underlying table. If the total number of attributes in all the SQL types exceeds the Oracle Database limit of 1000 columns in a table the storage table cannot be created. As the total number of elements and attributes defined by a complexType
reaches 1000, it is no longer possible to create a single table that can manage the SQL objects generated when an instance of the type is stored in the database.To resolve this, you must reduce the total number of attributes in the SQL types that are used to create the storage tables. Looking at the schema, there are two approaches for achieving this:
Use a top-down technique with multiple XMLType
tables that manage the XML documents. This technique reduces the number of SQL attributes in the SQL type hierarchy for a given storage table. As long as none of the tables have to manage more than 1000 attributes, the problem is resolved.
Use a bottom-up technique that reduces the number of SQL attributes in the SQL type hierarchy, collapsing some of elements and attributes defined by the XML schema so that they are stored as a single CLOB
value.
Both techniques rely on annotating the XML schema to define how a particular complexType
will be stored in the database.
For the top-down technique, annotations SQLInline="false"
and defaultTable
force some subelements in the XML document to be stored as rows in a separate XMLType
table. Oracle XML DB maintains the relationship between the two tables using a REF
of XMLType
. Good candidates for this approach are XML schemas that define a choice, where each element within the choice is defined as a complexType
, or where the XML schema defines an element based on a complexType
that contains a very large number of element and attribute definitions.
The bottom-up technique involves reducing the total number of attributes in the SQL object types by choosing to store some of the lower level complexTypes
as CLOB
values, rather than as objects. This is achieved by annotating the complexType
or the usage of the complexType
with SQLType="CLOB"
.
Which technique you use depends on the application and the type of queries and updates to be performed against the data.
By default, when an XML schema is registered with the database, Oracle XML DB generates a default table for each global element defined by the XML schema.
You can use the xdb:defaultTable
attribute to specify the name of the default table for a given global element. Each xdb:defaultTable
attribute value you provide must be unique among all schemas registered by a given database user. If you do not supply a nonempty default table name for some element, then a unique name is provided automatically.
In practice, however, you do not want to create a default table for most global elements. Elements that never serve as the root element for an XML instance document do not need default tables — such tables are never used. Creating default tables for all global elements can lead to significant overhead in processor time and space used, especially if an XML schema contains a large number of global element definitions.
As a general rule, then, you want to prevent the creation of a default table for any global element (or any local element stored out of line) that you are sure will not be used as a root element in any document. You can do this in one of the following ways:
Add the annotation xdb:defaultTable=""
to the definition of each global element that will not appear as the root element of an XML instance document. Using this approach, you allow automatic default-table creation, in general, and you prohibit it explicitly where needed, using xdb:defaultTable=""
.
Set the genTables
parameter to false
when registering the XML schema, and then manually create the default table for each global element that can legally appear as the root element of an instance document. Using this approach, you inhibit automatic default-table creation, and you create only the tables that are needed, by hand.
After an XML schema has been registered with Oracle XML DB, it can be referenced when defining tables that contain XMLType
columns or creating XMLType
tables.
Example 3-11 shows how to manually create the PurchaseOrder
table, the default table for PurchaseOrder
elements.
Example 3-11 Creating an XMLType Table that Conforms to an XML Schema
CREATE TABLE purchaseorder OF XMLType XMLSCHEMA "http://localhost:8080/source/schemas/poSource/xsd/purchaseOrder.xsd" ELEMENT "PurchaseOrder" VARRAY "XMLDATA"."ACTIONS"."ACTION" STORE AS TABLE action_table ((PRIMARY KEY (NESTED_TABLE_ID, SYS_NC_ARRAY_INDEX$)) ORGANIZATION INDEX OVERFLOW) VARRAY "XMLDATA"."LINEITEMS"."LINEITEM" STORE AS TABLE lineitem_table ((PRIMARY KEY (NESTED_TABLE_ID, SYS_NC_ARRAY_INDEX$)) ORGANIZATION INDEX OVERFLOW);
Each member of the varray that manages the collection of LineItem
elements is stored as a row in nested table lineitem_table
. Each member of the varray that manages the collection of Action
elements is stored in the nested table action_table
. Because of the column specification ORGANIZATION INDEX OVERFLOW
, the nested tables are index-organized. Because of the PRIMARY KEY
specification, they automatically contain pseudocolumn NESTED_TABLE_ID
and column SYS_NC_ARRAY_INDEX$
, which are required to link them back to the parent column.
This CREATE TABLE
statement is equivalent to the CREATE TABLE
statement automatically generated by Oracle XML DB when the schema annotation storeVarrayAsTable="true"
is included in the root element of the PurchaseOrder
XML schema (and genTables="true"
is set during schema registration). When this annotation is used, the nested tables generated by the XML schema registration process are given system-generated names, which can be difficult to work with. You can give them more meaningful names using the SQL statement RENAME TABLE
.
Note:
AnnotationstoreVarrayAsTable="true"
causes element collections to be persisted as rows in an index-organized table (IOT). Oracle Text does not support IOTs. Do not use this annotation if you will need to use Oracle Text indexes for text-based ora:contains
searches over a collection of elements. See "ora:contains Searches Over a Collection of Elements". To provide for searching with Oracle Text indexes:
Set genTables="false"
during schema registration.
Create the necessary tables manually, without using the clause ORGANIZATION INDEX OVERFLOW
, so the tables will be heap-organized instead of index-organized (IOT).
Example 3-12 Using DESCRIBE for an XML Schema-Based XMLType Table
A SQL*Plus DESCRIBE
statement (it can be abbreviated to DESC
), can be used to view information about an XMLType
table.
DESCRIBE purchaseorder Name Null? Type ----------------------------------------- -------- ---------------------------- TABLE of SYS.XMLTYPE(XMLSchema "http://localhost:8080/source/schemas/poSource/xsd/purchaseOrder.xsd" Element "PurchaseOrder") STORAGE Object-relational TYPE "PURCHASEORDER_T"
The output of the DESCRIBE
statement shows the following information about the purchaseorder
table:
The table is an XMLType
table
The table is constrained to storing PurchaseOrder
documents as defined by the PurchaseOrder
XML schema
Rows in this table are stored as a set of objects in the database
SQL type purchaseorder_t
is the base object for this table
The XML schema in Example 3-11 specifies that the PurchaseOrder
table is the default table for PurchaseOrder
elements. When an XML document compliant with the XML schema is inserted into Oracle XML DB Repository using protocols or PL/SQL, the content of the XML document is stored as a row in the purchaseorder
table.
When an XML schema is registered as a global schema, you must grant the appropriate access rights on the default table to all other users of the database before they can work with instance documents that conform to the globally registered XML schema.
Before an XML document can be inserted into an XML schema-based XMLType
table or column the document must identify the associated XML schema. There are two ways to do this:
Explicitly identify the XML schema when creating the XMLType
. This can be done by passing the name of the XML schema to the XMLType
constructor, or by invoking the XMLType
createSchemaBasedXML()
method.
Use the XMLSchema-instance
mechanism to explicitly provide the required information in the XML document. This option can be used when working with Oracle XML DB.
The advantage of the XMLSchema-instance
mechanism is that it allows the Oracle XML DB protocol servers to recognize that an XML document inserted into Oracle XML DB Repository is an instance of a registered XML schema. The content of the instance document is automatically stored in the default table defined by that XML schema.
The XMLSchema-instance
mechanism is defined by the W3C XML Schema working group. It is based on adding attributes that identify the target XML schema to the root element of the instance document. These attributes are defined by the XMLSchema-instance
namespace.
To identify an instance document as a member of the class defined by a particular XML schema you must declare the XMLSchema-instance
namespace by adding a namespace declaration to the root element of the instance document. For example:
xmlns:xsi=http://www.w3.org/2001/XMLSchema-instance
Once the XMLSchema-instance
namespace has been declared and given a namespace
prefix, attributes that identify the XML schema can be added to the root element of the instance document. In the preceding example, the namespace prefix for the XMLSchema-instance
namespace was defined as xsi
. This prefix can then be used when adding the XMLSchema-instance
attributes to the root element of the instance document.
Which attributes must be added depends on a number of factors. There are two possibilities, noNamespaceSchemaLocation
and schemaLocation
. Depending on the XML schema, one or both of these attributes is required to identify the XML schemas that the instance document is associated with.
If the target XML schema does not declare a target namespace, the noNamespaceSchemaLocation
attribute is used to identify the XML schema. The value of the attribute is the schema location hint. This is the unique identifier passed to PL/SQL procedure DBMS_XMLSCHEMA.registerSchema
when the schema is registered with the database.
For the purchaseOrder.xsd
XML schema, the correct definition of the root element of the instance document would read as follows:
<PurchaseOrder xmlns:xsi=http://www.w3.org/2001/XMLSchema-instance xsi:noNamespaceSchemaLocation= "http://localhost:8080/source/schemas/poSource/xsd/purchaseOrder.xsd">
If the target XML schema declares a target namespace, then the schemaLocation
attribute is used to identify the XML schema. The value of this attribute is a pair of values separated by a space:
the value of the target namespace declared in the XML schema
the schema location hint, the unique identifier passed to procedure DBMS_XMLSCHEMA.registerSchema
when the schema is registered with the database
For example, assume that the PurchaseOrder
XML schema includes a target namespace declaration. The root element of the schema would look like this:
<xs:schema targetNamespace="http://demo.oracle.com/xdb/purchaseOrder"
xmlns:xs="http://www.w3.org/2001/XMLSchema"
xmlns:xdb="http://xmlns.oracle.com/xdb"
version="1.0" xdb:storeVarrayAsTable="true">
<xs:element name="PurchaseOrder" type="PurchaseOrderType"
xdb:defaultTable="PURCHASEORDER"/>
In this case, the correct form of the root element of the instance document would read as follows:
<PurchaseOrder xnlns="http://demo.oracle.com/xdb/purchaseOrder" xmlns:xsi=http://www.w3.org/2001/XMLSchema-instance xsi:schemaLocation= "http://demo.oracle.com/xdb/purchaseOrder http://mdrake-lap:8080/source/schemas/poSource/xsd/purchaseOrder.xsd">
When the XML schema includes elements defined in multiple namespaces, an entry must occur in the schemaLocation
attribute for each of the XML schemas. Each entry consists of the namespace declaration and the schema location hint. The entries are separated from each other by one or more whitespace characters. If the primary XML schema does not declare a target namespace, then the instance document also needs to include a noNamespaceSchemaLocation
attribute that provides the schema location hint for the primary XML schema.
One advantage of using Oracle XML DB to manage XML content is that SQL can be used to supplement the functionality provided by XML schema. Combining the power of SQL and XML with the ability of the database to enforce rules makes the database a powerful framework for managing XML content.
Only well-formed XML documents can be stored in XMLType
tables or columns. A well-formed XML document is one that conforms to the syntax of the XML version declared in its XML declaration. This includes having a single root element, properly nested tags, and so forth. Additionally, if the XMLType
table or column is constrained to an XML schema, only documents that conform to that XML schema can be stored in that table or column. Any attempt to store or insert any other kind of XML document in an XML schema-based XMLType
raises an error. Example 3-13 illustrates this.
Example 3-13 Error From Attempting to Insert an Incorrect XML Document
INSERT INTO purchaseorder VALUES (XMLType(bfilename('XMLDIR', 'Invoice.xml'), nls_charset_id('AL32UTF8'))); INSERT INTO purchaseorder * ERROR at line 1: ORA-30937: No schema definition for 'Invoice' (namespace '') in parent '#document'
Such an error only occurs when content is inserted directly into an XMLType
table. It indicates that Oracle XML DB did not recognize the document as a member of the class defined by the XML schema. For a document to be recognized as a member of the class defined by the schema, the following conditions must be true:
The name of the XML document root element must match the name of global element used to define the XMLType
table or column.
The XML document must include the appropriate attributes from the XMLSchema-instance
namespace, or the XML document must be explicitly associated with the XML schema using the XMLType
constructor or the createSchemaBasedXML()
method.
If the constraining XML schema declares a targetNamespace
, then the instance documents must contain the appropriate namespace declarations to place the root element of the document in the targetNamespace
defined by the XML schema.
Note:
XML constraints are enforced only within individual XML documents. Database (SQL) constraints are enforced across sets of XML documents.This section describes the differences between partial and full XML schema validation used when inserting XML documents into the database.
When an XML document is inserted into an XML schema-based XMLType
table or column, Oracle XML DB performs a partial validation of the document. It ensures only that all the mandatory elements and attributes are present and that there are no unexpected elements or attributes in the document. That is, it ensures only that the structure of the XML document conforms to the SQL type definitions that were derived from the XML schema. Because complete schema validation is very costly, Oracle XML DB does not try to ensure that the instance document is fully compliant with the XML schema. Example 3-14 provides an example of failing partial validation while inserting an XML document into table PurchaseOrder
:
Example 3-14 ORA-19007 When Inserting Incorrect XML Document (Partial Validation)
INSERT INTO purchaseorder VALUES(XMLType(bfilename('XMLDIR', 'InvalidElement.xml'), nls_charset_id('AL32UTF8'))); XMLType * ERROR at line 4: ORA-30937: No schema definition for 'UserName' (namespace '##local') in parent 'PurchaseOrder' ORA-06512: at "SYS.XMLTYPE", line 259 ORA-06512: at "SYS.XMLTYPE", line 284 ORA-06512: at line 1
When full validation of the instance document against the XML schema is required, you can enable XML schema validation using either of the following:
Table level CHECK
constraint
PL/SQL BEFORE INSERT
trigger
Both approaches ensure that only valid XML documents can be stored in the XMLType
table.
The advantage of a TABLE CHECK
constraint is that it is easy to code. The disadvantage is that it is based on the XMLisValid()
SQL function, so it can only indicate whether or not the XML document is valid. When the XML document is invalid it cannot provide any information as to why it is invalid.
A BEFORE INSERT
trigger requires slightly more code. The trigger validates the XML document by invoking the XMLType
schemaValidate()
method. The advantage of using schemaValidate()
is that the exception raised provides additional information about what was wrong with the instance document. Using a BEFORE INSERT
trigger also makes it possible to attempt corrective action when an invalid document is encountered.
Full XML schema validation costs processing time and memory. By leaving the decision of whether or not to force a full XML schema validation to you, Oracle XML DB lets you perform full XML schema validation only when necessary. If you can rely on the application validating the XML document, you can obtain higher overall throughput by avoiding overhead associated with a full validation. If you cannot be sure about the validity of the incoming XML documents, you can rely on the database to ensure that the XMLType
table or column only contains schema-valid XML documents.
In Example 3-15, the XML document InvalidReference
is a not a valid XML document, according to the XML schema. The XML schema defines a minimum length of 18 characters for the text node associated with the Reference
element. In this document, the node contains the value SBELL-20021009
, which is only 14 characters long. Partial validation would not catch this error. Unless the constraint or trigger are present, attempts to insert this document into the database would succeed. Example 3-15 shows how to force a full XML schema validation by adding a CHECK
constraint to an XMLType
table.
Example 3-15 Using CHECK Constraint to Force Full XML Schema Validation
Here, a CHECK
constraint is added to PurchaseOrder
table. Any attempt to insert an invalid document into the table fails:
ALTER TABLE purchaseorder
ADD CONSTRAINT validate_purchaseorder
CHECK (XMLIsValid(OBJECT_VALUE) = 1);
Table altered.
INSERT INTO purchaseorder
VALUES (XMLType(bfilename('XMLDIR', 'InvalidReference.xml'),
nls_charset_id('AL32UTF8')));
INSERT INTO purchaseorder
*
ERROR at line 1:
ORA-02290: check constraint (QUINE.VALIDATE_PURCHASEORDER) violated
The pseudocolumn name OBJECT_VALUE
can be used to access the content of an XMLType
table from within a trigger.
Example 3-16 Using BEFORE INSERT Trigger to Enforce Full XML Schema Validation
This example shows how to use a BEFORE INSERT
trigger to validate that the data being inserted into the XMLType
table conforms to the specified XML schema.
CREATE OR REPLACE TRIGGER validate_purchaseorder
BEFORE INSERT ON purchaseorder
FOR EACH ROW
BEGIN
IF (:new.OBJECT_VALUE IS NOT NULL) THEN :new.OBJECT_VALUE.schemavalidate();
END IF;
END;
/
Trigger created.
INSERT INTO purchaseorder VALUES (XMLType(bfilename('XMLDIR', 'InvalidReference.xml'),
nls_charset_id('AL32UTF8')));
*
ERROR at line 2:
ORA-31154: invalid XML document
ORA-19202: Error occurred in XML processing
LSX-00221: "SBELL-20021009" is too short (minimum length is 18)
ORA-06512: at "SYS.XMLTYPE", line 333
ORA-06512: at "QUINE.VALIDATE_PURCHASEORDER", line 3
ORA-04088: error during execution of trigger 'QUINE.VALIDATE_PURCHASEORDER'
The W3C XML Schema Recommendation defines a powerful language for defining the contents of an XML document. However, there are a number of simple data management concepts not currently addressed by the W3C XML Schema Recommendation. These include the ability to ensure that the value of an element or attribute:
Is unique across a set of XML documents (a UNIQUE
constraint)
Exists in a particular data source outside the current document (FOREIGN KEY
constraint)
The mechanisms used to enforce integrity on XML are the same mechanisms used to enforce integrity on conventional relational data. Simple rules such as uniqueness and foreign-key relationships, are enforced by specifying constraints. More complex rules are enforced by specifying database triggers. Example 3-17 and Example 3-18 illustrate how you can use SQL constraints to enforce referential integrity.
Oracle XML DB makes it possible to use the database to enforce business rules on XML content, in addition to rules that can be specified using the XML schema constructs. The database enforces these business rules regardless of whether XML is inserted directly into a table or uploaded using one of the protocols supported by Oracle XML DB Repository.
Example 3-17 Applying Database Integrity Constraints and Triggers to an XMLType Table
ALTER TABLE purchaseorder ADD CONSTRAINT reference_is_unique UNIQUE (XMLDATA."REFERENCE"); Table altered. ALTER TABLE purchaseorder ADD CONSTRAINT user_is_valid FOREIGN KEY (XMLDATA."USERID") REFERENCES hr.employees(email); Table altered. INSERT INTO purchaseorder VALUES (XMLType(bfilename('XMLDIR', 'purchaseOrder.xml'), nls_charset_id('AL32UTF8'))); 1 row created. INSERT INTO purchaseorder VALUES (XMLType(bfilename('XMLDIR', 'DuplicateReference.xml'), nls_charset_id('AL32UTF8'))); INSERT INTO purchaseorder * ERROR at line 1: ORA-00001: unique constraint (QUINE.REFERENCE_IS_UNIQUE) violated INSERT INTO purchaseorder VALUES (XMLType(bfilename('XMLDIR', 'InvalidUser.xml'), nls_charset_id('AL32UTF8'))); INSERT INTO purchaseorder * ERROR at line 1: ORA-02291: integrity constraint (QUINE.USER_IS_VALID) violated - parent key not found
The uniqueness constraint reference_is_unique
ensures that the value of the node /PurchaseOrder/Reference/text()
is unique across all documents stored in the purchaseorder
table. The foreign key constraint user_is_valid
ensures that the value of the node /PurchaseOrder/User/text()
corresponds to one of the values in the email
column in the employees
table.
Oracle XML DB constraints must be specified in terms of attributes of the SQL types used to manage the XML content.
The text node associated with the Reference
element in the XML document DuplicateRefernce.xml
contains the same value as the corresponding node in XML document PurchaseOrder.xml
. This means that attempting to store both documents in Oracle XML DB violates the constraint reference_is_unique
.
The text node associated with the User
element in XML document InvalidUser.xml
contains the value HACKER
. There is no entry in the employees
table where the value of the email
column is HACKER
. Attempting to store this document in Oracle XML DB violates the constraint user_is_valid
.
Integrity rules defined using constraints and triggers are also enforced when XML schema-based XML content is loaded into Oracle XML DB Repository.
Example 3-18 Enforcing Database Integrity When Loading XML Using FTP
This example shows that database integrity is also enforced when a protocol, such as FTP, is used to upload XML schema-based XML content into Oracle XML DB Repository.
$ ftp localhost 2100 Connected to localhost. 220 mdrake-sun FTP Server (Oracle XML DB/Oracle Database 10g Enterprise Edition Release 10.1.0.0.0 - Beta) ready. Name (localhost:oracle10): QUINE 331 pass required for QUINE Password: 230 QUINE logged in ftp> cd /source/schemas 250 CWD Command successful ftp> put InvalidReference.xml 200 PORT Command successful 150 ASCII Data Connection 550- Error Response ORA-00604: error occurred at recursive SQL level 1 ORA-31154: invalid XML document ORA-19202: Error occurred in XML processing LSX-00221: "SBELL-20021009" is too short (minimum length is 18) ORA-06512: at "SYS.XMLTYPE", line 333 ORA-06512: at "QUINE.VALIDATE_PURCHASEORDER", line 3 ORA-04088: error during execution of trigger 'QUINE.VALIDATE_PURCHASEORDER' 550 End Error Response ftp> put InvalidElement.xml 200 PORT Command successful 150 ASCII Data Connection 550- Error Response ORA-30937: No schema definition for 'UserName' (namespace '##local') in parent 'PurchaseOrder' 550 End Error Response ftp> put DuplicateReference.xml 200 PORT Command successful 150 ASCII Data Connection 550- Error Response ORA-00604: error occurred at recursive SQL level 1 ORA-00001: unique constraint (QUINE.REFERENCE_IS_UNIQUE) violated 550 End Error Response ftp> put InvalidUser.xml 200 PORT Command successful 150 ASCII Data Connection 550- Error Response ORA-00604: error occurred at recursive SQL level 1 ORA-02291: integrity constraint (QUINE.USER_IS_VALID) violated - parent key not found 550 End Error Response
When an error occurs while a document is being uploaded with a protocol, Oracle XML DB provides the client with the full SQL error trace. How the error is interpreted and reported to you is determined by the error-handling built into the client application. Some clients, such as the command line FTP tool, reports the error returned by Oracle XML DB, while others, such as Microsoft Windows Explorer, simply report a generic error message.
Another major advantage of using Oracle XML DB to manage XML content is that it leverages the power of Oracle Database to deliver powerful, flexible capabilities for querying and updating XML content, including the following:
Retrieving nodes and fragments within an XML document
Updating nodes and fragments within an XML document
Creating indexes on specific nodes within an XML document
Indexing the entire content of an XML document
Determining whether an XML document contains a particular node
Oracle XML DB includes new XMLType
methods and XML-specific SQL functions. WIth these you can query and update XML content stored in Oracle Database. They use the W3C XPath Recommendation to identify the required node or nodes. Every node in an XML document can be uniquely identified by an XPath expression. An XPath expression consists of a slash-separated list of element names, attributes names, and XPath functions. XPath expressions may contain indexes and conditions that determine which branch of the tree is traversed in determining the target nodes.
By supporting XPath-based methods and functions, Oracle XML DB makes it possible for XML programmers to query and update XML documents in a familiar, standards-compliant manner.
Note:
Oracle SQL functions andXMLType
methods respect the W3C XPath recommendation, which states that if an XPath expression targets no nodes when applied to XML data, then an empty sequence must be returned; an error must not be raised.
The specific semantics of an Oracle SQL function or XMLType
method that applies an XPath-expression to XML data determines what is returned. For example, SQL function extract
returns NULL
if its XPath-expression argument targets no nodes, and the updating SQL functions, such as deleteXML
, return the input XML data unchanged. An error is never raised if no nodes are targeted, but updating SQL functions may raise an error if an XPath-expression argument targets inappropriate nodes, such as attribute nodes or text nodes.
This section describes techniques for querying Oracle XML DB and retrieving XML content. This section contains these topics:
Retrieving the Content of an XML Document Using Pseudocolumn OBJECT_VALUE
Accessing Fragments or Nodes of an XML Document Using EXTRACT
Accessing Text Nodes and Attribute Values Using EXTRACTVALUE
Using XMLSEQUENCE to Perform SQL Operations on XMLType Fragments
Examples in this section are based on the following PurchaseOrder
XML document:
Example 3-19 PurchaseOrder XML Instance Document
<PurchaseOrder xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation= "http://localhost:8080/source/schemas/poSource/xsd/purchaseOrder.xsd"> <Reference>SBELL-2002100912333601PDT</Reference> <Actions> <Action> <User>SVOLLMAN</User> </Action> </Actions> <Reject/> <Requestor>Sarah J. Bell</Requestor> <User>SBELL</User> <CostCenter>S30</CostCenter> <ShippingInstructions> <name>Sarah J. Bell</name> <address>400 Oracle Parkway Redwood Shores CA 94065 USA</address> <telephone>650 506 7400</telephone> </ShippingInstructions> <SpecialInstructions>Air Mail</SpecialInstructions> <LineItems> <LineItem ItemNumber="1"> <Description>A Night to Remember</Description> <Part Id="715515009058" UnitPrice="39.95" Quantity="2"/> </LineItem> <LineItem ItemNumber="2"> <Description>The Unbearable Lightness Of Being</Description> <Part Id="37429140222" UnitPrice="29.95" Quantity="2"/> </LineItem> <LineItem ItemNumber="3"> <Description>Sisters</Description> <Part Id="715515011020" UnitPrice="29.95" Quantity="4"/> </LineItem> </LineItems> </PurchaseOrder>
The OBJECT_VALUE
pseudocolumn can be used as an alias for the value of an object table. For an XMLType
table that consists of a single column of XMLType
, the entire XML document is retrieved. (OBJECT_VALUE
replaces the value(x)
and SYS_NC_ROWINFO$
aliases used in releases prior to Oracle Database10g Release 1.)
Example 3-20 Using OBJECT_VALUE to Retrieve an Entire XML Document
In this example, the SQL*Plus settings PAGESIZE
and LONG
are used to ensure that the entire document is printed correctly, without line breaks. (The output has been formatted for readability.)
SET LONG 10000 SET PAGESIZE 100 SELECT OBJECT_VALUE FROM purchaseorder; OBJECT_VALUE ----------------------------------------------------------------------- <PurchaseOrder xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="http://localhost:8080/source/schemas /poSource/xsd/purchaseOrder.xsd"> <Reference>SBELL-2002100912333601PDT</Reference> <Actions> <Action> <User>SVOLLMAN</User> </Action> </Actions> <Reject/> <Requestor>Sarah J. Bell</Requestor> <User>SBELL</User> <CostCenter>S30</CostCenter> <ShippingInstructions> <name>Sarah J. Bell</name> <address>400 Oracle Parkway Redwood Shores CA 94065 USA</address> <telephone>650 506 7400</telephone> </ShippingInstructions> <SpecialInstructions>Air Mail</SpecialInstructions> <LineItems> <LineItem ItemNumber="1"> <Description>A Night to Remember</Description> <Part Id="715515009058" UnitPrice="39.95" Quantity="2"/> </LineItem> <LineItem ItemNumber="2"> <Description>The Unbearable Lightness Of Being</Description> <Part Id="37429140222" UnitPrice="29.95" Quantity="2"/> </LineItem> <LineItem ItemNumber="3"> <Description>Sisters</Description> <Part Id="715515011020" UnitPrice="29.95" Quantity="4"/> </LineItem> </LineItems> </PurchaseOrder> 1 row selected.
SQL function extract
returns the nodes that match an XPath expression. Nodes are returned as an instance of XMLType
. The result of extract
can be either a complete document or an XML fragment. The functionality of SQL function extract
is also available through XMLType
method extract()
.
Example 3-21 Accessing XML Fragments Using EXTRACT
This query returns an XMLType
value containing the Reference
element that matches the XPath expression.
SELECT extract(OBJECT_VALUE, '/PurchaseOrder/Reference') FROM purchaseorder; EXTRACT(OBJECT_VALUE, '/PURCHASEORDER/REFERENCE') --------------------------------------------------- <Reference>SBELL-2002100912333601PDT</Reference> 1 row selected.
This query returns an XMLType
value containing the first LineItem
element in the LineItems
collection:
SELECT extract(OBJECT_VALUE, '/PurchaseOrder/LineItems/LineItem[1]') FROM purchaseorder; EXTRACT(OBJECT_VALUE, '/PURCHASEORDER/LINEITEMS/LINEITEM[1]') -------------------------------------------------------------------------------- <LineItem ItemNumber="1"> <Description>A Night to Remember</Description> <Part Id="715515009058" UnitPrice="39.95" Quantity="2"/> </LineItem> 1 row selected.
The following query returns an XMLType
value containing the three Description
elements that match the XPath expression. These elements are returned as nodes in a single XMLType
, so the XMLType
value does not have a single root node. It is treated as an XML fragment.
SELECT extract(OBJECT_VALUE, '/PurchaseOrder/LineItems/LineItem/Description') FROM purchaseorder; EXTRACT(OBJECT_VALUE, '/PURCHASEORDER/LINEITEMS/LINEITEM/DESCRIPTION') -------------------------------------------------------------------------------- <Description>A Night to Remember</Description> <Description>The Unbearable Lightness Of Being</Description> <Description>Sisters</Description> 1 row selected.
The SQL function extractValue
returns the value of the text node or attribute value that matches the supplied XPath expression. The value is returned as a SQL scalar value. The XPath expression passed to extractValue
must uniquely identify a single text node or attribute value within the document.
Example 3-22 Accessing a Text Node Value Using EXTRACTVALUE
This query returns the value of the text node associated with the Reference
element that matches the XPath expression. The value is returned as a VARCHAR2
value:
SELECT extractValue(OBJECT_VALUE, '/PurchaseOrder/Reference') FROM purchaseorder; EXTRACTVALUE(OBJECT_VALUE, '/PURCHASEORDER/REFERENCE) ---------------------------------------------------------------------- SBELL-2002100912333601PDT 1 row selected.
The followingquery returns the value of the text node associated with the Description
element associated with the first LineItem
element. The value is returned as a VARCHAR2
value. The first LineItem
element is indicated by the index [1]
.
SELECT extractValue(OBJECT_VALUE, '/PurchaseOrder/LineItems/LineItem[1]/Description') FROM purchaseorder; EXTRACTVALUE(OBJECT_VALUE, '/PURCHASEORDER/LINEITEMS/LINEITEM[1]/DESCRIPTION') ------------------------------------------------------------------------------ A Night to Remember 1 row selected.
The following query returns the value of the text node associated with a Description
element contained in a LineItem
element. The particular LineItem
element is specified by an Id
attribute value. The value returned is of type VARCHAR2
. The predicate that identifies which LineItem
element to process is enclosed in square brackets ([]
). The at-sign character (@
) specifies that Id
is an attribute rather than an element.
SELECT extractValue( OBJECT_VALUE, '/PurchaseOrder/LineItems/LineItem[Part/@Id="715515011020"]/Description') FROM purchaseorder; EXTRACTVALUE(OBJECT _VALUE, '/PURCHASEORDER/LINEITEMS/LINEITEM[PART/@ID="715515011020"]/DESCRIPTION') --------------------------------------------------------------------------------- Sisters 1 row selected.
The following examples show invalid uses of SQL function extractValue
. In the first example, the XPath expression matches three nodes in the document (to be valid, it must match only one). In the second example, the XPath expression identifies a parent node, not a leaf node (text node or attribute value).
Example 3-23 Invalid Uses of EXTRACTVALUE
SELECT extractValue(OBJECT_VALUE, '/PurchaseOrder/LineItems/LineItem/Description') FROM purchaseorder; SELECT extractValue(OBJECT_VALUE, '/PurchaseOrder/LineItems/LineItem/Description') * ERROR at line 1: ORA-01427: single-row subquery returns more than one row SELECT extractValue(OBJECT_VALUE,'/PurchaseOrder/LineItems/LineItem[1]') FROM purchaseorder; FROM purchaseorder * ERROR at line 3: ORA-19026: EXTRACTVALUE can only retrieve value of leaf node SELECT extractValue(OBJECT_VALUE, '/PurchaseOrder/LineItems/LineItem/Description/text()') FROM purchaseorder; SELECT extractValue(OBJECT_VALUE, '/PurchaseOrder/LineItems/LineItem/Description/text()') * ERROR at line 1: ORA-01427: single-row subquery returns more than one row
Depending on whether or not XPath rewrite takes place, the last two queries can also result in the following error being reported:
ORA-01427: single-row subquery returns more than one row
The SQL function existsNode
evaluates whether or not a given document contains a node that matches a W3C XPath expression. Function existsNode
returns true (1
) if the document contains the node specified by the XPath expression supplied to the function and false (0
) if it does not. Since XPath expressions can contain predicates, existsNode
can determine whether or not a given node exists in the document, and whether or not a node with the specified value exists in the document. The functionality provided by SQL function existsNode
is also available through XMLType
method existsNode
.
Example 3-24 Searching XML Content Using EXISTSNODE
This query uses SQL function existsNode
to check if the XML document contains an element named Reference
that is a child of the root element PurchaseOrder
:
SELECT COUNT(*) FROM purchaseorder WHERE existsNode(OBJECT_VALUE, '/PurchaseOrder/Reference') = 1; COUNT(*) ---------- 132 1 row selected.
This query checks if the value of the text node associated with the Reference
element is SBELL-2002100912333601PDT
:
SELECT count(*) FROM purchaseorder WHERE existsNode(OBJECT_VALUE, '/PurchaseOrder[Reference="SBELL-2002100912333601PDT"]') = 1; COUNT(*) ---------- 1 1 row selected.
This query checks if the value of the text node associated with the Reference
element is SBELL-XXXXXXXXXXXXXXXXXX
:
SELECT count(*) FROM purchaseorder WHERE existsNode( OBJECT_VALUE, '/PurchaseOrder/Reference[Reference="SBELL-XXXXXXXXXXXXXXXXXX"]') = 1; COUNT(*) ---------- 0 1 row selected.
This query checks if the XML document contains a root element PurchaseOrder
that contains a LineItems
element that contains a LineItem
element that contains a Part
element with an Id
attribute:
SELECT count(*) FROM purchaseorder WHERE existsNode(OBJECT_VALUE, '/PurchaseOrder/LineItems/LineItem/Part/@Id') = 1; COUNT(*) ---------- 132 1 row selected.
This query checks if the XML document contains a root element PurchaseOrder
that contains a LineItems
element that contains a LineItem
element that contains a Part
element with Id
attribute value 715515009058
:
SELECT count(*) FROM purchaseorder WHERE existsNode( OBJECT_VALUE, '/PurchaseOrder/LineItems/LineItem/Part[@Id="715515009058"]') = 1; COUNT(*) ---------- 21
This query checks if the XML document contains a root element PurchaseOrder
that contains a LineItems
element whose third LineItem
element contains a Part
element with Id
attribute value 715515009058
:
SELECT count(*) FROM purchaseorder WHERE existsNode( OBJECT_VALUE, '/PurchaseOrder/LineItems/LineItem[3]/Part[@Id="715515009058"]') = 1; COUNT(*) ---------- 1 1 row selected.
This query uses SQL function extractValue
to limit the results of the SELECT
statement to rows where the text node associated with the User
element starts with the letter S
. XPath 1.0 does not include support for LIKE
-based queries:
SELECT extractValue(OBJECT_VALUE, '/PurchaseOrder/Reference') "Reference" FROM purchaseorder WHERE extractValue(OBJECT_VALUE, '/PurchaseOrder/User') LIKE 'S%'; Reference ------------------------------ SBELL-20021009123336231PDT SBELL-20021009123336331PDT SKING-20021009123336321PDT ... 36 rows selected.
This query uses extractValue
to perform a join based on the values of a node in an XML document and data in another table:
SELECT extractValue(OBJECT_VALUE, '/PurchaseOrder/Reference') "Reference" FROM purchaseorder, hr.employees e WHERE extractValue(OBJECT_VALUE, '/PurchaseOrder/User') = e.email AND e.employee_id = 100; Reference ------------------------------ SKING-20021009123336321PDT SKING-20021009123337153PDT SKING-20021009123335560PDT SKING-20021009123336952PDT SKING-20021009123336622PDT SKING-20021009123336822PDT SKING-20021009123336131PDT SKING-20021009123336392PDT SKING-20021009123337974PDT SKING-20021009123338294PDT SKING-20021009123337703PDT SKING-20021009123337383PDT SKING-20021009123337503PDT 13 rows selected.
The examples in the preceding section demonstrate how SQL function extractValue
can be used in a SELECT
list to return information contained in an XML document. You can also use these functions in a WHERE
clause to determine whether or not a document must be included in the result set of a SELECT
, UPDATE
, or DELETE
statement.
You can use SQL function existsNode
to restrict the result set to documents containing nodes that match an XPath expression. You can use SQL function extractValue
when joining across multiple tables based on the value of one or more nodes in the XML document. Also, you can use use extractValue
whenever specifying a condition is easier with SQL (for example, using keyword LIKE
for pattern matching) than with XPath.
Example 3-25 Limiting the Results of a SELECT Using EXISTSNODE in a WHERE Clause
This query shows how to use SQL function existsNode
to limit the results of the SELECT
statement to rows where the text node associated of the User
element contains the value SBELL
:
SELECT extractValue(OBJECT_VALUE, '/PurchaseOrder/Reference') "Reference" FROM purchaseorder WHERE existsNode(OBJECT_VALUE, '/PurchaseOrder[User="SBELL"]') = 1; Reference ------------------------------ SBELL-20021009123336231PDT SBELL-20021009123336331PDT SBELL-20021009123337353PDT SBELL-20021009123338304PDT SBELL-20021009123338505PDT SBELL-20021009123335771PDT SBELL-20021009123335280PDT SBELL-2002100912333763PDT SBELL-2002100912333601PDT SBELL-20021009123336362PDT SBELL-20021009123336532PDT SBELL-20021009123338204PDT SBELL-20021009123337673PDT 13 rows selected.
Example 3-26 Finding the Reference for any PurchaseOrder Using extractValue and existsNode
This example uses SQL functions extractValue
and existsNode
to find the Reference
element for any PurchaseOrder
element whose first LineItem
element contains an order for the item with Id
715515009058
. Function existsNode
is used in the WHERE
clause to determine which rows are selected, and extractValue
is used in the SELECT
list to control which part of the selected documents appears in the result.
SELECT extractValue(OBJECT_VALUE, '/PurchaseOrder/Reference') "Reference" FROM purchaseorder WHERE existsNode( OBJECT_VALUE, '/PurchaseOrder/LineItems/LineItem[1]/Part[@Id="715515009058"]') = 1; Reference ------------------------------ SBELL-2002100912333601PDT 1 row selected.
Example 3-21 demonstrates how the SQL function extract
returns an XMLType
value containing the node or nodes that matched the supplied XPath expression. When the document contains multiple nodes that match the supplied XPath expression, extract
returns an XML fragment containing all of the matching nodes. A fragment differs from a document in that it has no single root element.
This kind of result is common when extract
is used to retrieve the set of elements contained in a collection (in this case each node in the fragment will be of the same type), or when the XPath expression terminates in a wildcard (where the nodes in the fragment can be of different types).
SQL function XMLSequence
can perform SQL operations on an XMLType
value that contains a fragment. It generates a collection of XMLType
objects from an XMLType
containing a fragment. The collection contains one XMLType
value for each of the top-level elements in the fragment. This collection of XMLType
objects can then be converted into a virtual table using the SQL table
function. Converting the fragment into a virtual table makes it easier to use SQL to process the results of an extract
function call that returns multiple nodes.
Example 3-27 Using XMLSEQUENCE and TABLE to View Description Nodes
This example demonstrates how to access the text nodes for each Description
element in the PurchaseOrder
document.
An initial attempt uses SQL function extractValue
. It fails, because there is more than one Description
element in the document.
SELECT extractValue(p.OBJECT_VALUE, '/PurchaseOrder/LineItems/LineItem/Description') FROM purchaseorder p WHERE existsNode(p.OBJECT_VALUE, '/PurchaseOrder[Reference="SBELL-2002100912333601PDT"]') = 1; SELECT extractValue(p.OBJECT_VALUE, '/PurchaseOrder/LineItems/LineItem/Description') * ERROR at line 1: ORA-01427: single-row subquery returns more than one row
A second attempt uses SQL function extract
to access the required values. This returns the set of Description
nodes as a single XMLType
object containing a fragment consisting of the three Description
nodes. This is better, but not ideal, because the objective is to perform further SQL-based processing on the values in the text nodes.
SELECT extract(p.OBJECT_VALUE, '/PurchaseOrder/LineItems/LineItem/Description')
FROM purchaseorder p
WHERE existsNode(p.OBJECT_VALUE,
'/PurchaseOrder[Reference="SBELL-2002100912333601PDT"]')
= 1;
EXTRACT(P.OBJECT_VALUE,'/PURCHASEORDER/LINEITEMS/LINEITEM/DESCRIPTION')
--------------------------------------------------------------------------------
<Description>A Night to Remember</Description>
<Description>The Unbearable Lightness Of Being</Description>
<Description>Sisters</Description>
1 row selected.
To use SQL to process the contents of the text nodes, you must convert the collection of Description
nodes into a virtual table using SQL functions XMLSequence
and table
. These functions convert the three Description
nodes retuned by extract
into a virtual table consisting of three XMLType
objects, each of which contains a single Description
element.
SELECT value(des) FROM purchaseorder p, table(XMLSequence( extract(p.OBJECT_VALUE, '/PurchaseOrder/LineItems/LineItem/Description'))) des WHERE existsNode(p.OBJECT_VALUE, '/PurchaseOrder[Reference="SBELL-2002100912333601PDT"]') = 1; VALUE(DES) -------------------------------------------------------------------------------- <Description>A Night to Remember</Description> <Description>The Unbearable Lightness Of Being</Description> <Description>Sisters</Description> 3 rows selected.
Since each XMLType
value in the virtual table contains a single Description
element, the SQL function extractValue
can be used to access the value of the text node associated with the each Description
element.
SELECT extractValue(value(des), '/Description') FROM purchaseorder p, table(XMLSequence( extract(p.OBJECT_VALUE, '/PurchaseOrder/LineItems/LineItem/Description'))) des WHERE existsNode(p.OBJECT_VALUE, '/PurchaseOrder[Reference="SBELL-2002100912333601PDT"]') = 1; EXTRACTVALUE(VALUE(DES),'/DESCRIPTION') -------------------------------------------------------------------------------- A Night to Remember The Unbearable Lightness Of Being Sisters 3 rows selected.
Note: There is a correlated join between the results of the SQL functiontable and the row operated on by the SQL function extract . The table that provides input to extract must appear before the table expression in the FROM list. The correlated join ensures a one-to-many (1:N) relationship between the rows generated by the SQL function table and the row containing the value that is processed by extract . |
Example 3-28 Counting the Number of Elements in a Collection Using XMLSEQUENCE
This example demonstrates how to use SQL function XMLSequence
to count the number of elements in a collection. It also shows how SQL keywords such as ORDER BY
and GROUP BY
can be applied to results returned by the SQL function extractValue
.
In this case, the query first locates the set of XML documents that match the XPath argument to SQL function existsNode
. It then generates a virtual table containing the set of LineItem
nodes for each document selected. Finally, it counts the number of LineItem
nodes for each PurchaseOrder
document. The correlated join ensures that the GROUP BY
correctly determines which LineItem
elements belong to which PurchaseOrder
element.
SELECT extractValue(p.OBJECT_VALUE, '/PurchaseOrder/Reference'), count(*) FROM purchaseorder p, table(XMLSequence( extract(p.OBJECT_VALUE, '/PurchaseOrder/LineItems/LineItem'))) d WHERE existsNode(p.OBJECT_VALUE, '/PurchaseOrder[User="SBELL"]') = 1 GROUP BY extractValue(p.OBJECT_VALUE, '/PurchaseOrder/Reference') ORDER BY extractValue(p.OBJECT_VALUE, '/PurchaseOrder/Reference'); EXTRACTVALUE(P.OBJECT_VALUE,'/ COUNT(*) ------------------------------ ---------- SBELL-20021009123335280PDT 20 SBELL-20021009123335771PDT 21 SBELL-2002100912333601PDT 3 SBELL-20021009123336231PDT 25 SBELL-20021009123336331PDT 10 SBELL-20021009123336362PDT 15 SBELL-20021009123336532PDT 14 SBELL-20021009123337353PDT 10 SBELL-2002100912333763PDT 21 SBELL-20021009123337673PDT 10 SBELL-20021009123338204PDT 14 SBELL-20021009123338304PDT 24 SBELL-20021009123338505PDT 20 13 rows selected.
Example 3-29 Counting the Number of Child Elements in an Element Using XMLSEQUENCE
The following example demonstrates how to use SQL function XMLSequence
to count the number of child elements of a given element. The XPath expression passed to the SQL function extract
contains a wildcard (*
) that matches the elements that are direct descendants of a PurchaseOrder
element. The XMLType
value returned by extract
contains the set of nodes that match the XPath expression. Function XMLSequence
transforms each top-level element in the fragment into a separate XMLType
object, and the SQL function table
converts the collection returned by XMLSequence
into a virtual table. Counting the number of rows in the virtual table provides the number of child elements in the PurchaseOrder
element.
SELECT count(*)
FROM purchaseorder p,
table(XMLSequence(extract(p.OBJECT_VALUE, '/PurchaseOrder/*'))) n
WHERE existsNode(p.OBJECT_VALUE,
'/PurchaseOrder[Reference="SBELL-2002100912333601PDT"]')
= 1;
COUNT(*)
----------
9
1 row selected.
The XML-specific functions and methods provided by Oracle XML DB can be used to create conventional relational views that provide relational access to XML content. This allows programmers, tools, and applications that understand Oracle Database, but not XML, to work with XML content stored in the database.
The relational views can use XPath expressions and SQL functions such as extractValue
to define a mapping between columns in the view and nodes in the XML document. For performance reasons this approach is recommended when XML documents are stored as XMLType
instead of CLOB
; that is, when they are stored using object-relational storage techniques.
Example 3-30 Creating Relational Views On XML Content
This example shows how to create a simple relational view that exposes XML content:
CREATE OR REPLACE VIEW purchaseorder_master_view(reference, requestor, userid, costcenter, ship_to_name, ship_to_address, ship_to_phone, instructions) AS SELECT extractValue(OBJECT_VALUE, '/PurchaseOrder/Reference'), extractValue(OBJECT_VALUE, '/PurchaseOrder/Requestor'), extractValue(OBJECT_VALUE, '/PurchaseOrder/User'), extractValue(OBJECT_VALUE, '/PurchaseOrder/CostCenter'), extractValue(OBJECT_VALUE, '/PurchaseOrder/ShippingInstructions/name'), extractValue(OBJECT_VALUE, '/PurchaseOrder/ShippingInstructions/address'), extractValue(OBJECT_VALUE, '/PurchaseOrder/ShippingInstructions/telephone'), extractValue(OBJECT_VALUE, '/PurchaseOrder/SpecialInstructions') FROM purchaseorder; View created. DESCRIBE purchaseorder_master_view Name Null? Type ----------------------------------------------------------------------- REFERENCE VARCHAR2(30 CHAR) REQUESTOR VARCHAR2(128 CHAR) USERID VARCHAR2(10 CHAR) COSTCENTER VARCHAR2(4 CHAR) SHIP_TO_NAME VARCHAR2(20 CHAR) SHIP_TO_ADDRESS VARCHAR2(256 CHAR) SHIP_TO_PHONE VARCHAR2(24 CHAR) INSTRUCTIONS VARCHAR2(2048 CHAR)
This example creates view purchaseorder_master_view
. There is one row in the view for each row in table purchaseorder
.
The CREATE OR REPLACE VIEW
statement defines the set of columns that make up the view. The SELECT
statement uses XPath expressions and function extractValue
to map the nodes in the XML document to the columns defined by the view. This technique can be used when there is a one-to-one (1:1) relationship between documents in the XMLType
table and the rows in the view.
Example 3-31 Using a View to Access Individual Members of a Collection
This example shows how to use SQL functions extract
and XMLSequence
for a one-to-many (1:N) relationship between the documents in the XMLType
table and rows in the view. This situation arises when the view must provide access to the individual members of a collection and expose the members of a collection as a set of rows.
CREATE OR REPLACE VIEW purchaseorder_detail_view(reference, itemno, description, partno, quantity, unitprice) AS SELECT extractValue(OBJECT_VALUE, '/PurchaseOrder/Reference'), extractValue(value(ll), '/LineItem/@ItemNumber'), extractValue(value(ll), '/LineItem/Description'), extractValue(value(ll), '/LineItem/Part/@Id'), extractValue(value(ll), '/LineItem/Part/@Quantity'), extractValue(value(ll), '/LineItem/Part/@UnitPrice') FROM purchaseorder p, table(XMLSequence(extract(OBJECT_VALUE, '/PurchaseOrder/LineItems/LineItem'))) ll; View created. DESCRIBE purchaseorder_detail_view Name Null? Type -------------------------------------------------------------- REFERENCE VARCHAR2(30 CHAR) ITEMNO NUMBER(38) DESCRIPTION VARCHAR2(1024) PARTNO VARCHAR2(56) QUANTITY NUMBER(12,2) UNITPRICE NUMBER(8,4)
This example creates a view called purchaseorder_detail_view
. There will be one row in the view for each LineItem
element that occurs in the XML documents stored in table purchaseorder
.
The CREATE OR REPLACE VIEW
statement defines the set of columns that make up the view. The SELECT
statement uses extract
to access the set of LineItem
elements in each PurchaseOrder
document. It then uses SQL functions XMLSequence
and table
to create a virtual table that contains one XML document for each LineItem
in the purchaseorder
table.
The XPath expressions passed to SQL function extractValue
are used to map the nodes in the LineItem
documents to the columns defined by the view. The Reference
element included in the view to create a foreign key that can used to joins rows in purchaseorder_detail_view
to the corresponding row in purchaseorder_master_view
. The correlated join in the CREATE VIEW
statement ensures that the one-to-many (1:N) relationship between the Reference
element and the associated LineItem
elements is maintained when the view is accessed.
As can be seen from the output of the DESCRIBE
statement, both views appear to be a standard relational views. Since the XMLType
table referenced in the CREATE OR REPLACE VIEW
statements is based on an XML schema, Oracle XML DB can determine the datatypes of the columns in the views from the information contained in the XML schema.
The following examples show some of the benefits provided by creating relational views over XMLType
tables and columns.
Example 3-32 SQL queries on XML Content Using Views
This example uses a simple query against the master view. A conventional SELECT
statement selects rows where the userid
column starts with S
.
SELECT reference, costcenter, ship_to_name FROM purchaseorder_master_view WHERE userid LIKE 'S%'; REFERENCE COST SHIP_TO_NAME ------------------------------ ---- -------------- SBELL-20021009123336231PDT S30 Sarah J. Bell SBELL-20021009123336331PDT S30 Sarah J. Bell SKING-20021009123336321PDT A10 Steven A. King ... 36 rows selected.
The following query is based on a join between the master view and the detail view. A conventional SELECT
statement finds the purchaseorder_detail_view
rows where the value of the itemno
column is 1
and the corresponding purchaseorder_master_view
row contains a userid
column with the value SBELL
.
SELECT d.reference, d.itemno, d.partno, d.description FROM purchaseorder_detail_view d, purchaseorder_master_view m WHERE m.reference = d.reference AND m.userid = 'SBELL' AND d.itemno = 1; REFERENCE ITEMNO PARTNO DESCRIPTION ------------------------------ ------------------------------------------------ SBELL-20021009123336231PDT 1 37429165829 Juliet of the Spirits SBELL-20021009123336331PDT 1 715515009225 Salo SBELL-20021009123337353PDT 1 37429141625 The Third Man SBELL-20021009123338304PDT 1 715515009829 Nanook of the North SBELL-20021009123338505PDT 1 37429122228 The 400 Blows SBELL-20021009123335771PDT 1 37429139028 And the Ship Sails on SBELL-20021009123335280PDT 1 715515011426 All That Heaven Allows SBELL-2002100912333763PDT 1 715515010320 Life of Brian - Python SBELL-2002100912333601PDT 1 715515009058 A Night to Remember SBELL-20021009123336362PDT 1 715515012928 In the Mood for Love SBELL-20021009123336532PDT 1 37429162422 Wild Strawberries SBELL-20021009123338204PDT 1 37429168820 Red Beard SBELL-20021009123337673PDT 1 37429156322 Cries and Whispers 13 rows selected.
Because the views look and act like standard relational views they can be queried using standard relational syntax. No XML-specific syntax is required in either the query or the generated result set.
By exposing XML content as relational data, Oracle XML DB allows advanced database features, such as business intelligence and analytic capabilities, to be applied to XML content. Even though the business intelligence features themselves are not XML-aware, the XML-SQL duality provided by Oracle XML DB allows these features to be applied to XML content.
Example 3-33 Querying XML Using Views of XML Content
This example demonstrates how to use relational views over XML content to perform business-intelligence queries on XML documents. The query selects PurchaseOrder
documents that contain orders for titles identified by UPC codes 715515009058
and 715515009126
.
SELECT partno, count(*) "No of Orders", quantity "No of Copies" FROM purchaseorder_detail_view WHERE partno IN (715515009126, 715515009058) GROUP BY rollup(partno, quantity); PARTNO No of Orders No of Copies -------------- ------------ ------------ 715515009058 7 1 715515009058 9 2 715515009058 5 3 715515009058 2 4 715515009058 23 715515009126 4 1 715515009126 7 3 715515009126 11 34 9 rows selected.
The query determines the number of copies of each title that are ordered in each PurchaseOrder
document. For part number 715515009126
, there are four PurchaseOrder
documents where one copy of the item is ordered and seven PurchaseOrder
documents where three copies of the item are ordered.
See Also:
Chapter 4, "XMLType Operations" for a description of XMLType
datatype and functions
Appendix B, "XPath and Namespace Primer" for an introduction to the W3C XPath Recommendation
Oracle XML DB allows update operations to take place on XML content. Update operations can either replace the entire contents of a document or parts of a document. The ability to perform partial updates on XML documents is very powerful, particularly when trying to make small changes to large documents, as it can significantly reduce the amount of network traffic and disk input-output required to perform the update.
SQL function updateXML
enables partial update of an XML document stored as an XMLType
value. It allows multiple changes to be made to the document in a single operation. Each change consists of an XPath expression that identifies a node to be updated, and the new value for the node.
Example 3-34 Updating XML Content Using UPDATEXML
This example uses SQL function updateXML
to update the text node associated with the User
element.
SELECT extractValue(OBJECT_VALUE, '/PurchaseOrder/User') FROM purchaseorder WHERE existsNode(OBJECT_VALUE, '/PurchaseOrder[Reference="SBELL-2002100912333601PDT"]') = 1; EXTRACTVAL ---------- SBELL 1 row selected. UPDATE purchaseorder SET OBJECT_VALUE = updateXML(OBJECT_VALUE, '/PurchaseOrder/User/text()','SKING') WHERE existsNode(OBJECT_VALUE, '/PurchaseOrder[Reference="SBELL-2002100912333601PDT"]') = 1; 1 row updated. SELECT extractValue(OBJECT_VALUE, '/PurchaseOrder/User') FROM purchaseorder WHERE existsNode(OBJECT_VALUE, '/PurchaseOrder[Reference="SBELL-2002100912333601PDT"]') = 1; EXTRACTVAL ---------- SKING 1 row selected.
Example 3-35 Replacing an Entire Element Using UPDATEXML
This example uses SQL function updateXML
to replace an entire element within the XML document. The XPath expression references the element, and the replacement value is passed as an XMLType
object.
SELECT extract(OBJECT_VALUE, '/PurchaseOrder/LineItems/LineItem[1]') FROM purchaseorder WHERE existsNode(OBJECT_VALUE, '/PurchaseOrder[Reference="SBELL-2002100912333601PDT"]') = 1; EXTRACT(OBJECT_VALUE,'/PURCHASEORDER/LINEITEMS/LINEITEM[1]') -------------------------------------------------------------------------------- <LineItem ItemNumber="1"> <Description>A Night to Remember</Description> <Part Id="715515009058" UnitPrice="39.95" Quantity="2"/> </LineItem> 1 row selected. UPDATE purchaseorder SET OBJECT_VALUE = updateXML( OBJECT_VALUE, '/PurchaseOrder/LineItems/LineItem[1]', XMLType('<LineItem ItemNumber="1"> <Description>The Lady Vanishes</Description> <Part Id="37429122129" UnitPrice="39.95" Quantity="1"/> </LineItem>')) WHERE existsNode(OBJECT_VALUE, '/PurchaseOrder[Reference="SBELL-2002100912333601PDT"]') = 1; 1 row updated. SELECT extract(OBJECT_VALUE, '/PurchaseOrder/LineItems/LineItem[1]') FROM purchaseorder WHERE existsNode(OBJECT_VALUE, '/PurchaseOrder[Reference="SBELL-2002100912333601PDT"]') = 1; EXTRACT(OBJECT_VALUE, '/PURCHASEORDER/LINEITEMS/LINEITEM[1]') ------------------------------------------------------------ <LineItem ItemNumber="1"> <Description>The Lady Vanishes</Description> <Part Id="37429122129" UnitPrice="39.95" Quantity="1"/> </LineItem> 1 row selected.
Example 3-36 Incorrectly Updating a Node That Occurs Multiple Times In a Collection
This example show a common error that occurs when using SQL function updateXML
to update a node occurring multiple times in a collection. The UPDATE
statement sets the value of the text node of a Description
element to "The Wizard of Oz
", where the current value of the text node is "Sisters
". The statement includes an existsNode
expression in the WHERE
clause that identifies the set of nodes to be updated.
SELECT extractValue(value(li), '/Description')
FROM purchaseorder p,
table(XMLSequence(
extract(p.OBJECT_VALUE,
'/PurchaseOrder/LineItems/LineItem/Description'))) li
WHERE existsNode(OBJECT_VALUE,
'/PurchaseOrder[Reference="SBELL-2002100912333601PDT"]')
= 1;
EXTRACTVALUE(VALUE(LI),'/DESCRIPTION')
-------------------------------------
The Lady Vanishes
The Unbearable Lightness Of Being
Sisters
3 rows selected.
UPDATE purchaseorder
SET OBJECT_VALUE =
updateXML(OBJECT_VALUE,
'/PurchaseOrder/LineItems/LineItem/Description/text()',
'The Wizard of Oz')
WHERE existsNode(OBJECT_VALUE,
'/PurchaseOrder/LineItems/LineItem[Description="Sisters"]')
= 1
AND existsNode(OBJECT_VALUE,
'/PurchaseOrder[Reference="SBELL-2002100912333601PDT"]')
= 1;
1 row updated.
SELECT extractValue(value(li), '/Description')
FROM purchaseorder p,
table(XMLSequence(
extract(p.OBJECT_VALUE,
'/PurchaseOrder/LineItems/LineItem/Description'))) li
WHERE existsNode(OBJECT_VALUE,
'/PurchaseOrder[Reference="SBELL-2002100912333601PDT"]')
= 1;
EXTRACTVALUE(VALUE(LI),'/DESCRIPTION')
--------------------------------------------------------------------------------
The Wizard of Oz
The Wizard of Oz
The Wizard of Oz
3 rows selected.
Instead of updating the required node, SQL function updateXML
updates the values of all text nodes that belong to the Description
element. This is the correct behavior, but it is not what was intended. The WHERE
clause can only be used to identify which documents must be updated, not which nodes within the document must be updated.
After the document has been selected, the XPath expression passed to updateXML
determines which nodes within the document must be updated. In this case, the XPath expression identified all three Description
nodes, so all three of the associated text nodes were updated. See Example 3-37 for the correct way to update the nodes.
Example 3-37 Correctly Updating a Node That Occurs Multiple Times In a Collection
To correctly use SQL function updateXML
to update a node that occurs multiple times within a collection, use the XPath expression passed to updateXML
to identify which nodes in the XML document to update. By introducing the appropriate predicate into the XPath expression, you can limit which nodes in the document are updated. This example shows the correct way of updating one node within a collection:
SELECT extractValue(value(des), '/Description') FROM purchaseorder p, table(XMLSequence( extract(p.OBJECT_VALUE, '/PurchaseOrder/LineItems/LineItem/Description'))) des WHERE existsNode(OBJECT_VALUE, '/PurchaseOrder[Reference="SBELL-2002100912333601PDT"]') = 1; EXTRACTVALUE(OBJECT_VALUE,'/DESCRIPTION') ------------------------------------------------------------------------------ A Night to Remember The Unbearable Lightness Of Being Sisters 3 rows selected. UPDATE purchaseorder SET OBJECT_VALUE = updateXML( OBJECT_VALUE, '/PurchaseOrder/LineItems/LineItem/Description[text()="Sisters"]/text()', 'The Wizard of Oz') WHERE existsNode(OBJECT_VALUE, '/PurchaseOrder[Reference="SBELL-2002100912333601PDT"]') = 1; 1 row updated. SELECT extractValue(value(des), '/Description') FROM purchaseorder p, table(XMLSequence( extract(p.OBJECT_VALUE, '/PurchaseOrder/LineItems/LineItem/Description'))) des WHERE existsNode(OBJECT_VALUE, '/PurchaseOrder[Reference="SBELL-2002100912333601PDT"]') = 1; EXTRACTVALUE(VALUE(L),'/DESCRIPTION') ------------------------------------- A Night to Remember The Unbearable Lightness Of Being The Wizard of Oz 3 rows selected.
Example 3-38 Changing Text Node Values Using UPDATEXML
SQL function updateXML
allows multiple changes to be made to the document in one statement. This example shows how to change the values of text nodes belonging to the User
and SpecialInstructions
elements in one statement.
SELECT extractValue(OBJECT_VALUE, '/PurchaseOrder/CostCenter') "Cost Center", extractValue(OBJECT_VALUE, '/PurchaseOrder/SpecialInstructions') "Instructions" FROM purchaseorder WHERE existsNode(OBJECT_VALUE, '/PurchaseOrder[Reference="SBELL-2002100912333601PDT"]') = 1; Cost Center Instructions ------------ ------------ S30 Air Mail 1 row selected.
This single UPDATE
SQL statement changes the User
and SpecialInstruct
element text node values:
UPDATE purchaseorder SET OBJECT_VALUE = updateXML(OBJECT_VALUE, '/PurchaseOrder/CostCenter/text()', 'B40', '/PurchaseOrder/SpecialInstructions/text()', 'Priority Overnight Service') WHERE existsNode(OBJECT_VALUE, '/PurchaseOrder[Reference="SBELL-2002100912333601PDT"]') = 1; 1 row updated. SELECT extractValue(OBJECT_VALUE, '/PurchaseOrder/CostCenter') "Cost Center", extractValue(OBJECT_VALUE, '/PurchaseOrder/SpecialInstructions') "Instructions" FROM purchaseorder WHERE existsNode(OBJECT_VALUE, '/PurchaseOrder[Reference="SBELL-2002100912333601PDT"]') = 1; Cost Center Instructions ------------ -------------------------- B40 Priority Overnight Service 1 row selected.
The way SQL functions like updateXML
modify an XML document is determined mainly by whether or not the XML document is based on an XML schema, and how the XML document is stored:
XML documents stored in CLOB values. When a SQL function like updateXML
modifies an XML document stored as a CLOB
(whether schema-based or not), Oracle XML DB performs the update by creating a Document Object Model (DOM) from the XML document and using DOM API methods to modify the appropriate XML data. After modification, the updated DOM is returned back to the underlying CLOB
object.
XML documents stored object-relationally. When a SQL function like updateXML
modifies a schema-based XML document that is stored object-relationally, Oracle XML DB can use XPath rewrite to modify the underlying object in place. This is a partial update. Partial updates translate the XPath argument to the SQL function into an equivalent SQL operation. The SQL operation then directly modifies the attributes of underlying objects. Such a partial update can be much quicker than a DOM-based update. This can make a significant difference when executing a SQL statement that applies a SQL function like updateXML
to a large number of documents.
See Also:
Chapter 6, "XPath Rewrite"Namespace support is a key feature of the W3C XML Recommendations. Oracle XML DB fully supports the W3C Namespace Recommendation. All XMLType
methods and XML-specific SQL functions work with XPath expressions that include namespace prefixes. All methods and functions accept an optional namespace
argument that provides the namespace declarations for correctly resolving namespace prefixes used in XPath expressions. The namespace
parameter is required whenever the provided XPath expression contains namespace prefixes. When the namespace
parameter is not provided, Oracle XML DB makes the following assumptions about the XPath expression:
If the content of the XMLType
is not based on a registered XML schema any term in the XPath expression that does include a namespace prefix is assumed to be in the noNamespace
namespace.
If the content of the XMLType
is based on a registered XML schema any term in the XPath expression that does not include a namespace prefix is assumed to be in the targetNamespace
declared by the XML schema. If the XML schema does not declare a targetnamespace
, this defaults to the noNamespace
namespace.
When the namespace
parameter is provided the parameter must provide an explicit declaration for the default namespace in addition to the prefixed namespaces, unless the default namespace is the noNamespace
namespace.
Failing to correctly define the namespaces required to resolve XPath expressions results in XPath-based operations not working as expected. When the namespace declarations are incorrect or missing, the result of the operation is normally null, rather than an error. To avoid confusion, Oracle strongly recommends that you always pass the set of namespace declarations, including the declaration for the default namespace, when any namespaces other than the noNamespace
namespace are present in either the XPath expression or the target XML document.
Oracle XML DB processes SQL functions such as extract
, extractValue
, and existsNode
— and their equivalent XMLType
methods — using DOM-based or SQL-based techniques:
DOM-Based XMLType Processing (Functional Evaluation). Oracle XML DB performs the required processing by constructing a DOM from the contents of the XMLType
object. It uses methods provided by the DOM API to perform the required operation on the DOM. If the operation involves updating the DOM tree, then the entire XML document has to be written back to disc when the operation is completed. The process of using DOM-based operations on XMLType
data is referred to as functional evaluation.
The advantage of functional evaluation is that it can be used regardless of whether the XMLType
is stored using structured or unstructured storage techniques The disadvantage of functional evaluation is that it much more expensive than XPath rewrite, and does not scale across large numbers of XML documents.
SQL-Based XMLType Processing (XPath rewrite). Oracle XML DB constructs a SQL statement that performs the processing required to complete the function or method. The SQL statement works directly against the object-relational data structures that underly a schema-based XMLType
. This process is referred to as XPath rewrite. See Chapter 6, "XPath Rewrite".
The advantage of XPath rewrite is that it allows Oracle XML DB to evaluate XPath-based SQL functions and methods at near relational speeds. This allows these operations to scale across large numbers of XML documents. The disadvantage of XPath rewrite is that since it relies on direct access and updating the objects used to store the XML document, it can only be used when the XMLType
is stored using XML schema-based object-relational storage techniques.
XPath rewrite improves the performance of SQL statements containing XPath-based functions by converting the functions into conventional relational SQL statements. This insulates the database optimizer from having to understand the XPath notation and the XML data model. The database optimizer processes the rewritten SQL statement in the same manner as any other SQL statement. In this way, it can derive an execution plan based on conventional relational algebra. This results in the execution of SQL statements with XPath-based functions with near relational performance.
When Can XPath Rewrite Occur?
For XPath rewrite to take place the following conditions must be satisfied:
The XMLType
column or table containing the XML documents must be based on a registered XML schema.
The XMLType
column or table must be stored using structured (object-relational) storage techniques.
It must be possible to map the nodes referenced by the XPath expression to attributes of the underlying SQL object model.
Understanding the concept of XPath rewrite and the conditions under which XPath rewrite takes place is key to developing Oracle XML DB applications that deliver satisfactory levels of scalability and performance.
See Also:
Chapter 6, "XPath Rewrite"XPath rewrite on its own cannot guarantee scalable and performant applications. The performance of SQL statements generated by XPath rewrite is ultimately determined by the available indexes and the way data is stored on disk. Also, as with any other SQL application, a DBA must monitor the database and optimize storage and indexes if the application is to perform well.
The good news, from a DBA perspective, is that this information is nothing new. The same skills are required to tune an XML application as for any other database application. All of the tools that DBAs typically use with SQL-based applications can be applied to XML-based applications using Oracle XML DB functions.
Example 3-39 Using EXPLAIN PLAN to Analyze the Selection of PurchaseOrders
This example shows how to use an EXPLAIN PLAN
to look at the execution plan for selecting the set of PurchaseOrders
created by user SBELL
.
EXPLAIN PLAN FOR SELECT extractValue(OBJECT_VALUE, '/PurchaseOrder/Reference') "Reference" FROM purchaseorder WHERE existsNode(OBJECT_VALUE, '/PurchaseOrder[User="SBELL"]') = 1; Explained. PLAN_TABLE_OUTPUT -------------------------------------------------------------------------------- Plan hash value: 841749721 ---------------------------------------------------------------------------------- | Id | Operation | Name | Rows | Bytes | Cost (%CPU)| Time | ---------------------------------------------------------------------------------- | 0 | SELECT STATEMENT | | 1 | 24 | 5 (0)| 00:00:01| |* 1 | TABLE ACCESS FULL| PURCHASEORDER | 1 | 24 | 5 (0)| 00:00:01| ---------------------------------------------------------------------------------- Predicate Information (identified by operation id): --------------------------------------------------- 1 - filter("PURCHASEORDER"."SYS_NC00022$"='SBELL') Note----- - dynamic sampling used for this statement 17 rows selected.
Oracle XML DB supports the creation of three kinds of index on XML content:
Text-based indexes – These can be created on any XMLType
table or column.
Function-based indexes – These can be created on any XMLType
table or column.
B-Tree indexes – When the XMLType
table or column is based on structured storage techniques, conventional B-Tree indexes can be created on underlying SQL types.
Indexes are typically created by using SQL function extractValue
, although it is also possible to create indexes based on other functions such as existsNode
. During the index creation process Oracle XML DB uses XPath rewrite to determine whether it is possible to map between the nodes referenced in the XPath expression used in the CREATE INDEX
statement and the attributes of the underlying SQL types. If the nodes in the XPath expression can be mapped to attributes of the SQL types, then the index is created as a conventional B-Tree index on the underlying SQL objects. If the XPath expression cannot be restated using object-relational SQL then a function-based index is created.
Example 3-40 Creating an Index on a Text Node
This example shows creation of index purchaseorder_user_index
on the value of the User
element text node.
CREATE INDEX purchaseorder_user_index ON purchaseorder(extractValue(OBJECT_VALUE, '/PurchaseOrder/User'));
At first glance, the index appears to be a function-based index. However, where the XMLType
table or column being indexed is based on object-relational storage, XPath rewrite determines whether the index can be re-stated as an index on the underlying SQL types. In this example, the CREATE INDEX
statement results in the index being created on the userid
attribute of the purchaseorder_t
object.
The following EXPLAIN PLAN
is generated when the same query used in Example 3-39 is executed after the index has been created. It shows that the query plan will make use of the newly created index. The new execution plan is much more scalable — compare the EXPLAIN PLAN
of Example 3-39.
EXPLAIN PLAN FOR SELECT extractValue(OBJECT_VALUE, '/PurchaseOrder/Reference') "Reference" FROM purchaseorder WHERE existsNode(OBJECT_VALUE, '/PurchaseOrder[User="SBELL"]') = 1; Explained. PLAN_TABLE_OUTPUT -------------------------------------------------------------------------------------------------------- Plan hash value: 713050960 -------------------------------------------------------------------------------------------------------- | Id | Operation | Name | Rows | Bytes | Cost (%CPU)| Time | -------------------------------------------------------------------------------------------------------- | 0 | SELECT STATEMENT | | 1 | 24 | 3 (0)| 00:00:01 | | 1 | TABLE ACCESS BY INDEX ROWID| PURCHASEORDER | 1 | 24 | 3 (0)| 00:00:01 | |* 2 | INDEX RANGE SCAN | PURCHASEORDER_USER_INDEX | 1 | | 1 (0)| 00:00:01 | -------------------------------------------------------------------------------------------------------- Predicate Information (identified by operation id): --------------------------------------------------- 2 - access("PURCHASEORDER"."SYS_NC00022$"='SBELL') 18 rows selected.
One key benefit of the relational database is that you do not need to change your application logic when the indexes change. This is also true for XML applications that leverage Oracle XML DB capabilities. The optimizer automatically uses the index whenever it is appropriate.
The majority of XML documents contain collections of repeating elements. For Oracle XML DB to be able to efficiently process the collection members, it is important that the storage model for managing the collection provide an efficient way of accessing the individual members of the collection. Selecting the correct storage structure makes it possible to index elements within the collection and perform direct operations on individual elements within the collection.
Oracle XML DB offers the following ways to manage the members of a collection:
When a collection is stored as a CLOB
value, you cannot directly access its members.
When a varray is stored as a LOB, you cannot directly access members of the collection.
Storing the members as XML text in a CLOB
value means that any operation on the collection requires parsing the contents of the CLOB
and then using functional evaluation to perform the required operation.
Converting the collection into a set of SQL objects that are serialized into a LOB removes the need to parse the documents. However any operations on the members of the collection still require that the collection be loaded from disk into memory before the necessary processing can take place.
When a varray is stored as a nested table, you can directly access members of the collection.
When a varray is stored as an XMLType
value, you can directly access members of the collection.
In the latter two cases (nested table and XMLType
), each member of the varray becomes a row in a table, so you can access it directly though SQL.
Example 3-41 shows the execution plan for a query to find the Reference
element from any document that contains an order for part number 717951002372 (Part
element with an Id
attribute of value 717951002372
).
Example 3-41 EXPLAIN PLAN For a Selection of LineItem Elements
In this example, the collection of LineItem
elements has been stored as rows in the index-organized, nested table lineitem_table
.
EXPLAIN PLAN FOR SELECT extractValue(OBJECT_VALUE, '/PurchaseOrder/Reference') "Reference" FROM purchaseorder WHERE existsNode(OBJECT_VALUE, '/PurchaseOrder/LineItems/LineItem/Part[@Id="717951002372"]') = 1; Explained. PLAN_TABLE_OUTPUT --------------------------------------------------------------------------------------------- Plan hash value: 47905112 ------------------------------------------------------------------------------------------------------- | Id | Operation | Name | Rows | Bytes | Cost (%CPU)| Time | ------------------------------------------------------------------------------------------------------- | 0 | SELECT STATEMENT | | 22 | 14300 | 10 (10)| 00:00:01 | | 1 | NESTED LOOPS | | 22 | 14300 | 10 (10)| 00:00:01 | | 2 | SORT UNIQUE | | 22 | 2640 | 8 (0)| 00:00:01 | |* 3 | INDEX UNIQUE SCAN | LINEITEM_TABLE_DATA | 22 | 2640 | 8 (0)| 00:00:01 | |* 4 | INDEX RANGE SCAN | LINEITEM_PART_INDEX | 9 | | 2 (0)| 00:00:01 | | 5 | TABLE ACCESS BY INDEX ROWID| PURCHASEORDER | 1 | 530 | 1 (0)| 00:00:01 | |* 6 | INDEX UNIQUE SCAN | LINEITEM_TABLE_MEMBERS | 1 | | 0 (0)| 00:00:01 | ------------------------------------------------------------------------------------------------------- Predicate Information (identified by operation id): --------------------------------------------------- 3 - access("SYS_NC00011$"='717951002372') 4 - access("SYS_NC00011$"='717951002372') 6 - access("NESTED_TABLE_ID"="PURCHASEORDER"."SYS_NC0003400035$") 20 rows selected.
The execution plan shows that the query will be resolved by performing a full scan of the index that contains the contents of the nested table. Each time an entry is found that matches the XPath expression passed to existsNode
, the parent row is located using the value of pseudocolumn NESTED_TABLE_ID
. Since the nested table is an Indexed Organized Table (IOT), this plan effectively resolves the query by a full scan of lineitem_table
. This plan might be acceptable if there are only a few hundred documents in the purchaseorder
table, but it would be unacceptable if there are thousands or millions of documents in the table.
To improve the performance of this query, create an index that allows direct access to pseudocolumn NESTED_TABLE_ID
, given the value of the Id
attribute. Unfortunately, Oracle XML DB does not allow indexes on collections to be created using XPath expressions. To create the index, you must understand the structure of the SQL object used to manage the LineItem
elements. Given this information, you can create the required index using conventional object-relational SQL.
Here, the LineItem
element is stored as an instance of the lineitem_t
object. The Part
element is stored as an instance of the SQL type part_t
. The Id
attribute is mapped to the part_number
attribute. Given this information, you can create a composite index on the part_number
attribute and pseudocolumn NESTED_TABLE_ID
that will allow direct access to the purchaseorder
documents that contain LineItem
elements that reference the required part.
Example 3-42 Creating an Index for Direct Access to a Nested Table
This example uses object-relational SQL to create the required index:
CREATE INDEX lineitem_part_index ON lineitem_table l(l.part.part_number, l.NESTED_TABLE_ID); Index created. EXPLAIN PLAN FOR SELECT extractValue(OBJECT_VALUE, '/PurchaseOrder/Reference') "Reference" FROM purchaseorder WHERE existsNode(OBJECT_VALUE, '/PurchaseOrder/LineItems/LineItem/Part[@Id="717951002372"]') = 1; Explained. PLAN_TABLE_OUTPUT ------------------------------------------------------------------------------------------------------- Plan hash value: 497281434 ------------------------------------------------------------------------------------------------------- | Id | Operation | Name | Rows | Bytes | Cost (%CPU)| Time | ------------------------------------------------------------------------------------------------------- | 0 | SELECT STATEMENT | | 22 | 1012 | 4 (25)| 00:00:01 | | 1 | NESTED LOOPS | | 22 | 1012 | 4 (25)| 00:00:01 | | 2 | SORT UNIQUE | | 22 | 418 | 2 (0)| 00:00:01 | |* 3 | INDEX RANGE SCAN | LINEITEM_PART_INDEX | 22 | 418 | 2 (0)| 00:00:01 | | 4 | TABLE ACCESS BY INDEX ROWID| PURCHASEORDER | 1 | 27 | 1 (0)| 00:00:01 | |* 5 | INDEX UNIQUE SCAN | LINEITEM_TABLE_MEMBERS | 1 | | 0 (0)| 00:00:01 | ------------------------------------------------------------------------------------------------------- Predicate Information (identified by operation id): --------------------------------------------------- 3 - access("SYS_NC00011$"='717951002372') 5 - access("NESTED_TABLE_ID"="PURCHASEORDER"."SYS_NC0003400035$") 18 rows selected.
The EXPLAIN PLAN
output shows that the same query as Example 3-42 will now make use of the newly created index. The query is resolved by using index lineitem_part_index
to determine which documents in the purchaseorder
table satisfy the condition in the XPath expression argument to function existsNode
. This query is much more scalable with the indexes.
The query syntax has not changed. XPath rewrite has allowed the optimizer to analyze the query and this analysis determines that the new indexes purchaseorder_user_index
and lineitem_part_index
provide a more efficient way to resolve the queries.
The EXPLAIN PLAN
output for a query on an XMLType
table created as a result of calling PL/SQL procedure DBMS_XMLSCHEMA.register_schema
contains a filter similar to the following:
3 - filter(SYS_CHECKACL("ACLOID","OWNERID",xmltype(''<privilege xmlns="http://xmlns.oracle.com/xdb/acl.xsd" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://xmlns.oracle.com/xdb/acl.xsd http://xmlns.oracle.com/xdb/acl.xsd DAV:http://xmlns.oracle.com/xdb/dav.xsd"> <read-properties/><read-contents/></privilege>''))=1)
This shows that ACL-based security is implemented for this table. In this example, the filter checks that the user performing the SQL query has read-contents
privilege on each of the documents to be accessed.
Oracle XML DB Repository uses an ACL-based security mechanism that allows control of access to XML content document by document, rather than table by table. When XML content is accessed using a SQL statement, the SYS_CHECKACL
predicate is automatically added to the WHERE
clause to ensure that the security defined is enforced at the SQL level.
Enforcing ACL-based security adds overhead to the SQL query. If ACL-based security is not required, use procedure disable_hierarchy
in package DBMS_XDBZ
to turn off ACL checking. After calling this procedure, the SYS_CHECKACL
filter no longer appears in the output generated by EXPLAIN PLAN
.
See Also:
Oracle Database PL/SQL Packages and Types Reference for information on procedureDBMS_XDBZ.disable_hierarchy
Example 3-43 EXPLAIN PLAN Generated When XPath Rewrite Does Not Occur
This example shows the kind of EXPLAIN PLAN
output generated when Oracle XML DB cannot perform XPath rewrite. Function existsNode
appears in the EXPLAIN
output (line 3), indicating that the query will not be rewritten.
Predicate Information (identified by operation id):
---------------------------------------------------
1 - access("NESTED_TABLE_ID"=:B1)
2 - access("NESTED_TABLE_ID"=:B1)
3 - filter(EXISTSNODE(SYS_MAKEXML('C0A5497E8DCF110BE034080020E5CF39',
3044, "SYS_ALIAS_4". "XMLEXTRA",
"SYS_ALIAS_4"."XMLDATA"),
'/PurchaseOrder[User="SBELL"]')
=1)
5 - access("NESTED_TABLE_ID"=:B1)
6 - access("NESTED_TABLE_ID"=:B1)
In this situation, Oracle XML DB constructs a pre-filtered result set based on any other conditions specified in the query WHERE
clause. It then filters the rows in this potential result set to determine which rows belong in the actual result set. The filtering is performed by constructing a DOM on each document and performing a functional evaluation (using the methods defined by the DOM API) to determine whether or not each document is a member of the actual result set.
Performance can be poor when there are many documents in the potential result set. However, when the use of additional predicates in the WHERE
clause leads to a small number of documents in the potential result set, this may be not be a problem.
XMLType
and XPath abstractions make it possible for you to develop applications that are independent of the underlying storage technology. As in conventional relational applications, creating and dropping indexes makes it possible to tune the performance of an application without having to rewrite it.
Oracle XML DB provides a number of ways to generate XML from relational data. The most powerful and flexible method is based on the evolving SQL/XML standard. This ANSI standard defines a set of SQL functions that allow XML to be generated directly from a SELECT
statement. Using these functions, a query can generate one or more XML documents, rather than a traditional tabular result set. The SQL/XML standard functions are allow almost any shape of XML data to be generated. These functions include the following:
XMLElement
creates a element
XMLAttributes
adds attributes to an element
XMLForest
creates forest of elements
XMLAgg
creates a single element from a collection of elements
Example 3-44 Using SQL/XML Functions to Generate XML
This query generates an XML document that contains information from the tables departments
, locations
, countries
, employees
, and jobs
:
SELECT XMLElement( "Department", XMLAttributes(d.Department_id AS "DepartmentId"), XMLForest(d.department_name AS "Name"), XMLElement( "Location", XMLForest(street_address AS "Address", city AS "City", state_province AS "State", postal_code AS "Zip", country_name AS "Country")), XMLElement( "EmployeeList", (SELECT XMLAgg( XMLElement( "Employee", XMLAttributes(e.employee_id AS "employeeNumber"), XMLForest( e.first_name AS "FirstName", e.last_name AS "LastName", e.email AS "EmailAddress", e.phone_number AS "PHONE_NUMBER", e.hire_date AS "StartDate", j.job_title AS "JobTitle", e.salary AS "Salary", m.first_name || ' ' || m.last_name AS "Manager"), XMLElement("Commission", e.commission_pct))) FROM hr.employees e, hr.employees m, hr.jobs j WHERE e.department_id = d.department_id AND j.job_id = e.job_id AND m.employee_id = e.manager_id))) AS XML FROM hr.departments d, hr.countries c, hr.locations l WHERE department_name = 'Executive' AND d.location_id = l.location_id AND l.country_id = c.country_id;
The query returns the following XML:
XML -------------------------------------------------------------------------------- <Department DepartmentId="90"><Name>Executive</Name><Location><Address>2004 Charade Rd</Address><City>Seattle</City><State>Washingto n</State><Zip>98199</Zip><Country>United States of America</Country></Location><EmployeeList><Employee employeeNumber="101"><FirstNa me>Neena</FirstName><LastName>Kochhar</LastName><EmailAddress>NKOCHHAR</EmailAdd ess><PHONE_NUMBER>515.123.4568</PHONE_NUMBER><Start Date>1989-09-21</StartDate><JobTitle>Administration Vice President</JobTitle><Salary>17000</Salary><Manager>Steven King</Manager><Com mission></Commission></Employee><Employee employeeNumber="102"><FirstName>Lex</FirstName><LastName>De Haan</LastName><EmailAddress>L DEHAAN</EmailAddress><PHONE_NUMBER>515.123.4569</PHONE NUMBER><StartDate>1993-01-13</StartDate><JobTitle>Administration Vice Presiden t</JobTitle><Salary>17000</Salary><Manager>Steven King</Manager><Commission></Commission></Employee></EmployeeList></Department>
This query generates element Department
for each row in the departments
table.
Each Department
element contains attribute DepartmentID
. The value of DepartmentID
comes from the department_id
column. The Department
element contains sub-elements Name
, Location
, and EmployeeList
.
The text node associated with the Name
element will come from the name
column in the departments
table.
The Location
element will have child elements Address
, City
, State
, Zip
, and Country
. These elements are constructed by creating a forest of named elements from columns in the locations
and countries
tables. The values in the columns become the text node for the named element.
The Employeelist
element will contain an aggregation of Employee
Elements. The content of the EmployeeList
element is created by a subquery that returns the set of rows in the employees
table that correspond to the current department. Each Employee
element will contain information about the employee. The contents of the elements and attributes for each Employee
element is taken from tables employees
and jobs
.
The output generated by the SQL/XML functions is not pretty-printed. This allows these functions to avoid creating a full DOM when generating the required output, and reduce the size of the generated document.
This lack of pretty-printing by SQL/XML functions will not matter to most applications. However, it makes verifying the generated output manually more difficult. When pretty-printing is required, invoke XMLType
method extract()
on the generated document to force construction of a DOM and pretty-print the output. Since invoking extract()
forces a conventional DOM to be constructed, this technique should not be used when working with queries that create large documents.
Example 3-45 Forcing Pretty-Printing by Invoking Method extract() on the Result
This example shows how to force pretty-printing by invoking XMLType
method extract()
on the result generated by SQL function XMLElement
.
SELECT XMLElement(
"Department",
XMLAttributes(d.department_id AS "DepartmentId"),
XMLForest(d.department_name AS "Name"),
XMLElement("Location",
XMLForest(street_address AS "Address",
city AS "City",
state_province AS "State",
postal_code AS "Zip",
country_name AS "Country")),
XMLElement(
"EmployeeList",
(SELECT XMLAgg(
XMLElement(
"Employee",
XMLAttributes(e.employee_id AS "employeeNumber"),
XMLForest(e.first_name AS "FirstName",
e.last_name AS "LastName",
e.email AS "EmailAddress",
e.phone_number AS "PHONE_NUMBER",
e.hire_date AS "StartDate",
j.job_title AS "JobTitle",
e.salary AS "Salary",
m.first_name || ' ' || m.last_name AS "Manager"),
XMLElement("Commission", e.commission_pct)))
FROM hr.employees e, hr.employees m, hr.jobs j
WHERE e.department_id = d.department_id
AND j.job_id = e.job_id
AND m.employee_id = e.manager_id))).extract('/*')
AS XML
FROM hr.departments d, hr.countries c, hr.locations l
WHERE department_name = 'Executive'
AND d.location_id = l.location_id
AND l.country_id = c.country_id;
XML
--------------------------------------------------------------------------------
<Department DepartmentId="90">
<Name>Executive</Name>
<Location>
<Address>2004 Charade Rd</Address>
<City>Seattle</City>
<State>Washington</State>
<Zip>98199</Zip>
<Country>United States of America</Country>
</Location>
<EmployeeList>
<Employee employeeNumber="101">
<FirstName>Neena</FirstName>
<LastName>Kochhar</LastName>
<EmailAddress>NKOCHHAR</EmailAddress>
<PHONE_NUMBER>515.123.4568</PHONE_NUMBER>
<StartDate>1989-09-21</StartDate>
<JobTitle>Administration Vice President</JobTitle>
<Salary>17000</Salary>
<Manager>Steven King</Manager>
<Commission/>
</Employee>
<Employee employeeNumber="102">
<FirstName>Lex</FirstName>
<LastName>De Haan</LastName>
<EmailAddress>LDEHAAN</EmailAddress>
<PHONE_NUMBER>515.123.4569</PHONE_NUMBER>
<StartDate>1993-01-13</StartDate>
<JobTitle>Administration Vice President</JobTitle>
<Salary>17000</Salary>
<Manager>Steven King</Manager>
<Commission/>
</Employee>
</EmployeeList>
</Department>
1 row selected.
All SQL/XML functions return XMLType
values. This means that you can use them to create XMLType
views over conventional relational tables. Example 3-46 illustrates this. XMLType
views are object views, so each row in the view must be identified by an object id. The object id must be specified in the CREATE VIEW
statement.
Example 3-46 Creating XMLType Views Over Conventional Relational Tables
CREATE OR REPLACE VIEW department_xml OF XMLType
WITH OBJECT ID (substr(extractValue(OBJECT_VALUE, '/Department/Name'), 1, 128))
AS
SELECT XMLElement(
"Department",
XMLAttributes(d.department_id AS "DepartmentId"),
XMLForest(d.department_name AS "Name"),
XMLElement("Location", XMLForest(street_address AS "Address",
city AS "City",
state_province AS "State",
postal_code AS "Zip",
country_name AS "Country")),
XMLElement(
"EmployeeList",
(SELECT XMLAgg(
XMLElement(
"Employee",
XMLAttributes (e.employee_id AS "employeeNumber" ),
XMLForest(e.first_name AS "FirstName",
e.last_name AS "LastName",
e.email AS "EmailAddress",
e.phone_number AS "PHONE_NUMBER",
e.hire_date AS "StartDate",
j.job_title AS "JobTitle",
e.salary AS "Salary",
m.first_name || ' ' ||
m.last_name AS "Manager"),
XMLElement("Commission", e.commission_pct)))
FROM hr.employees e, hr.employees m, hr.jobs j
WHERE e.department_id = d.department_id
AND j.job_id = e.job_id
AND m.employee_id = e.manager_id))).extract('/*')
AS XML
FROM hr.departments d, hr.countries c, hr.locations l
WHERE d.location_id = l.location_id
AND l.country_id = c.country_id;
View created.
The XMLType
view allows relational data to be persisted as XML content. Rows in XMLType
views can be persisted as documents in Oracle XML DB Repository. The contents of an XMLType
view can be queried, as shown in Example 3-47.
Example 3-47 Querying XMLType Views
This example shows a simple query against an XMLType
view. The XPath expression passed to SQL function existsNode
restricts the result set to the node that contains the Executive
department information.
SELECT OBJECT_VALUE FROM department_xml WHERE existsNode(OBJECT_VALUE, '/Department[Name="Executive"]') = 1; OBJECT_VALUE ------------------------------------------------ <Department DepartmentId="90"> <Name>Executive</Name> <Location> <Address>2004 Charade Rd</Address> <City>Seattle</City> <State>Washington</State> <Zip>98199</Zip> <Country>United States of America</Country> </Location> <EmployeeList> <Employee employeeNumber="101"> <FirstName>Neena</FirstName> <LastName>Kochhar</LastName> <EmailAddress>NKOCHHAR</EmailAddress> <PHONE_NUMBER>515.123.4568</PHONE_NUMBER> <StartDate>1989-09-21</StartDate> <JobTitle>Administration Vice President</JobTitle> <Salary>17000</Salary> <Manager>Steven King</Manager> <Commission/> </Employee> <Employee employeeNumber="102"> <FirstName>Lex</FirstName> <LastName>De Haan</LastName> <EmailAddress>LDEHAAN</EmailAddress> <PHONE_NUMBER>515.123.4569</PHONE_NUMBER> <StartDate>1993-01-13</StartDate> <JobTitle>Administration Vice President</JobTitle> <Salary>17000</Salary> <Manager>Steven King</Manager> <Commission/> </Employee> </EmployeeList> </Department> 1 row selected.
As can be seen from the following EXPLAIN PLAN
output, Oracle XML DB is able to correctly rewrite the XPath in the existsNode
expression into a SELECT
statement on the underlying relational tables .
EXPLAIN PLAN FOR SELECT OBJECT_VALUE FROM department_xml WHERE existsNode(OBJECT_VALUE, '/Department[Name="Executive"]') = 1; Explained. PLAN_TABLE_OUTPUT ------------------------------------------------------------------------------------------------------- Plan hash value: 1218413855 ------------------------------------------------------------------------------------------------------- | Id | Operation | Name | Rows | Bytes | Cost (%CPU)| Time | ------------------------------------------------------------------------------------------------------- | 0 | SELECT STATEMENT | | 27 | 2160 | 12 (17)| 00:00:01 | | 1 | SORT AGGREGATE | | 1 | 114 | | | |* 2 | HASH JOIN | | 10 | 1140 | 7 (15)| 00:00:01 | |* 3 | HASH JOIN | | 10 | 950 | 5 (20)| 00:00:01 | | 4 | TABLE ACCESS BY INDEX ROWID | EMPLOYEES | 10 | 680 | 2 (0)| 00:00:01 | |* 5 | INDEX RANGE SCAN | EMP_DEPARTMENT_IX | 10 | | 1 (0)| 00:00:01 | | 6 | TABLE ACCESS FULL | JOBS | 19 | 513 | 2 (0)| 00:00:01 | | 7 | TABLE ACCESS FULL | EMPLOYEES | 107 | 2033 | 2 (0)| 00:00:01 | |* 8 | FILTER | | | | | | |* 9 | HASH JOIN | | 27 | 2160 | 5 (20)| 00:00:01 | | 10 | NESTED LOOPS | | 23 | 1403 | 2 (0)| 00:00:01 | | 11 | TABLE ACCESS FULL | LOCATIONS | 23 | 1127 | 2 (0)| 00:00:01 | |* 12 | INDEX UNIQUE SCAN | COUNTRY_C_ID_PK | 1 | 12 | 0 (0)| 00:00:01 | | 13 | TABLE ACCESS FULL | DEPARTMENTS | 27 | 513 | 2 (0)| 00:00:01 | | 14 | SORT AGGREGATE | | 1 | 114 | | | |* 15 | HASH JOIN | | 10 | 1140 | 7 (15)| 00:00:01 | |* 16 | HASH JOIN | | 10 | 950 | 5 (20)| 00:00:01 | | 17 | TABLE ACCESS BY INDEX ROWID| EMPLOYEES | 10 | 680 | 2 (0)| 00:00:01 | |* 18 | INDEX RANGE SCAN | EMP_DEPARTMENT_IX | 10 | | 1 (0)| 00:00:01 | | 19 | TABLE ACCESS FULL | JOBS | 19 | 513 | 2 (0)| 00:00:01 | | 20 | TABLE ACCESS FULL | EMPLOYEES | 107 | 2033 | 2 (0)| 00:00:01 | ------------------------------------------------------------------------------------------------------- Predicate Information (identified by operation id): --------------------------------------------------- 2 - access("M"."EMPLOYEE_ID"="E"."MANAGER_ID") 3 - access("J"."JOB_ID"="E"."JOB_ID") 5 - access("E"."DEPARTMENT_ID"=:B1) 8 - filter(EXISTSNODE("XMLTYPE"."EXTRACT"(XMLELEMENT("Department",XMLATTRIBUTES(TO_CHAR("D". "DEPARTMENT_ID") AS "DepartmentId"),XMLELEMENT("Name","D"."DEPARTMENT_NAME"),XMLELEMENT("Locati on",CASE WHEN "STREET_ADDRESS" IS NOT NULL THEN XMLELEMENT("Address","STREET_ADDRESS") ELSE NULL END ,XMLELEMENT("City","CITY"),CASE WHEN "STATE_PROVINCE" IS NOT NULL THEN XMLELEMENT("State","STATE_PROVINCE") ELSE NULL END ,CASE WHEN "POSTAL_CODE" IS NOT NULL THEN XMLELEMENT("Zip","POSTAL_CODE") ELSE NULL END ,CASE WHEN "COUNTRY_NAME" IS NOT NULL THEN XMLELEMENT("Country","COUNTRY_NAME") ELSE NULL END ),XMLELEMENT("EmployeeList", (SELECT "XMLAGG"(XMLELEMENT("Employee",XMLATTRIBUTES(TO_CHAR("E"."EMPLOYEE_ID") AS "employeeNumber"),CASE WHEN "E"."FIRST_NAME" IS NOT NULL THEN XMLELEMENT("FirstName","E"."FIRST_NAME") ELSE NULL END ,XMLELEMENT("LastName","E"."LAST_NAME"),XMLELEMENT("EmailAddress","E"."EMAIL"),CASE WHEN "E"."PHONE_NUMBER" IS NOT NULL THEN XMLELEMENT("PHONE_NUMBER","E"."PHONE_NUMBER") ELSE NULL END ,XMLELEMENT("StartDate",LTRIM(TO_CHAR("E"."HIRE_DATE",'SYYYY-MM-DD'))),XMLELEMENT("JobTitle ","J"."JOB_TITLE"),CASE WHEN "E"."SALARY" IS NOT NULL THEN XMLELEMENT("Salary",TO_CHAR("E"."SALARY")) ELSE NULL END ,CASE WHEN "M"."FIRST_NAME"||' '||"M"."LAST_NAME" IS NOT NULL THEN XMLELEMENT("Manager","M"."FIRST_NAME"||' '||"M"."LAST_NAME") ELSE NULL END ,XMLELEMENT("Commission",TO_CHAR("E"."COMMISSION_PCT")))) FROM "HR"."JOBS" "J","HR"."EMPLOYEES" "M","HR"."EMPLOYEES" "E" WHERE "E"."DEPARTMENT_ID"=:B1 AND "M"."EMPLOYEE_ID"="E"."MANAGER_ID" AND "J"."JOB_ID"="E"."JOB_ID"))),'/*'),'/Department[Name ="Executive"]')=1) 9 - access("D"."LOCATION_ID"="L"."LOCATION_ID") 12 - access("L"."COUNTRY_ID"="C"."COUNTRY_ID") 15 - access("M"."EMPLOYEE_ID"="E"."MANAGER_ID") 16 - access("J"."JOB_ID"="E"."JOB_ID") 18 - access("E"."DEPARTMENT_ID"=:B1) 59 rows selected.
Note:
XPath rewrite on XML expressions that operate onXMLType
views is only supported when nodes referenced in the XPath expression are not descendants of an element created using SQL function XMLAgg
.Another way to generate XML from relational data is with SQL function DBURIType
. Function DBURIType
exposes one or more rows in a given table or view as a single XML document. The name of the root element is derived from the name of the table or view. The root element contains a set of ROW
elements. There is one ROW
element for each row in the table or view. The children of each ROW
element are derived from the columns in the table or view. Each child element contains a text node with the value of the column for the given row.
Example 3-48 Accessing DEPARTMENTS Table XML Content Using DBURIType and getXML()
This example shows how to use SQL function DBURIType
to access the contents of the deptartments
table in schema hr
. The example uses method getXML()
to return the resulting document as an XMLType
instance.
SELECT DBURIType('/HR/DEPARTMENTS').getXML() FROM DUAL;
DBURITYPE('/HR/DEPARTMENTS').GETXML()
------------------------------------------------------
<?xml version="1.0"?>
<DEPARTMENTS>
<ROW>
<DEPARTMENT_ID>10</DEPARTMENT_ID>
<DEPARTMENT_NAME>Administration</DEPARTMENT_NAME>
<MANAGER_ID>200</MANAGER_ID>
<LOCATION_ID>1700</LOCATION_ID>
</ROW>
...
<ROW>
<DEPARTMENT_ID>20</DEPARTMENT_ID>
<DEPARTMENT_NAME>Marketing</DEPARTMENT_NAME>
<MANAGER_ID>201</MANAGER_ID>
<LOCATION_ID>1800</LOCATION_ID>
</ROW>
</DEPARTMENTS>
SQL function DBURIType
allows XPath notations to be used to control how much of the data in the table or view is returned when the table or view is accessed using DBURIType
. Predicates in the XPath expression allow control over which of the rows in the table are included in the generated document.
Example 3-49 Using a Predicate in the XPath Expression to Restrict Which Rows Are Included
This example demonstrates how to use a predicate in an XPath expression to restrict the rows that are included in the generated XML document. Here, the XPath expression restricts the XML document to DEPARTMENT_ID
columns with value 10
.
SELECT DBURIType('/HR/DEPARTMENTS/ROW[DEPARTMENT_ID="10"]').getXML() FROM DUAL; DBURITYPE('/HR/DEPARTMENTS/ROW[DEPARTMENT_ID="10"]').GETXML() ------------------------------------------------------------------ <?xml version="1.0"?> <ROW> <DEPARTMENT_ID>10</DEPARTMENT_ID> <DEPARTMENT_NAME>Administration</DEPARTMENT_NAME> <MANAGER_ID>200</MANAGER_ID> <LOCATION_ID>1700</LOCATION_ID> </ROW> 1 row selected.
As can be seen from the examples in this section, SQL function DBURIType
provides a simple way to expose some or all rows in a relational table as one or more XML documents. The URL passed to function DBURIType
can be extended to return a single column from the view or table, but in that case the URL must also include predicates that identify a single row in the target table or view. For example, the following URI would return just the value of the department_name
column for the departments
row where the department_id
column has value 10
.
SELECT DBURIType( '/HR/DEPARTMENTS/ROW[DEPARTMENT_ID="10"]/DEPARTMENT_NAME').getXML() FROM DUAL; DBURITYPE('/HR/DEPARTMENTS/ROW[DEPARTMENT_ID="10"]/DEPARTMENT_NAME').GETXML() ----------------------------------------------------------------------------- <?xml version="1.0"?> <DEPARTMENT_NAME>Administration</DEPARTMENT_NAME> 1 row selected.
SQL function DBURIType
does not provide the flexibility of the SQL/XML SQL functions: DBURIType
provides no way to control the shape of the generated document. The data can only come from a single table or view. The generated document consists of one or more ROW
elements. Each ROW
element contains a child for each column in the target table. The names of the child elements are derived from the column names.
To control the names of the XML elements, to include columns from more than one table, or to control which columns from a table appear in the generated document, create a relational view that exposes the desired set of columns as a single row, and then use function DBURIType
to generate an XML document from the contents of that view.
The W3C XSLT Recommendation defines an XML language for specifying how to transform XML documents from one form to another. Transformation can include mapping from one XML schema to another or mapping from XML to some other format such as HTML or WML.
See Also:
Appendix C, "XSLT Primer" for an introduction to the W3C XSL and XSLT recommendationsXSL transformation is typically expensive in terms of the amount of memory and processing required. Both the source document and style sheet have to be parsed and loaded into memory structures that allow random access to different parts of the documents. Most XSL processors use DOM to provide the in-memory representation of both documents. The XSL processor then applies the style sheet to the source document, generating a third document.
Oracle XML DB includes an XSLT processor that allows XSL transformations to be performed inside the database. In this way, Oracle XML DB can provide XML-specific memory optimizations that significantly reduce the memory required to perform the transformation. It can also eliminate overhead associated with parsing the documents. These optimizations are only available when the source for the transformation is a schema-based XML document, however.
Oracle XML provides three options for invoking the XSL processor.
SQL function XMLtransform
XMLType
method transform()
PL/SQL package DBMS_XSLPROCESSOR
Each of these options expects the source document and XSL style sheet to be provided as XMLType
objects. The result of the transformation is also expected to be a valid XML document. This means that any HTML generated by the transformation must be XHTML, which is valid XML and valid HTML
Example 3-50 XSLT Style Sheet Example: PurchaseOrder.xsl
This example shows part of an XSLT style sheet, PurchaseOrder.xsl
. The complete style sheet is given in "XSL Style Sheet Example, PurchaseOrder.xsl".
<?xml version="1.0" encoding="WINDOWS-1252"?> <xsl:stylesheet version="1.0" xmlns:xsl="http://www.w3.org/1999/XSL/Transform" xmlns:xdb="http://xmlns.oracle.com/xdb" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"> <xsl:template match="/"> <html> <head/> <body bgcolor="#003333" text="#FFFFCC" link="#FFCC00" vlink="#66CC99" alink="#669999"> <FONT FACE="Arial, Helvetica, sans-serif"> <xsl:for-each select="PurchaseOrder"/> <xsl:for-each select="PurchaseOrder"> <center> <span style="font-family:Arial; font-weight:bold"> <FONT COLOR="#FF0000"> <B>PurchaseOrder </B> </FONT> </span> </center> <br/> <center> <xsl:for-each select="Reference"> <span style="font-family:Arial; font-weight:bold"> <xsl:apply-templates/> </span> </xsl:for-each> </center> </xsl:for-each> <P> <xsl:for-each select="PurchaseOrder"> <br/> </xsl:for-each> <P/> <P> <xsl:for-each select="PurchaseOrder"> <br/> </xsl:for-each> </P> </P> <xsl:for-each select="PurchaseOrder"/> <xsl:for-each select="PurchaseOrder"> <table border="0" width="100%" BGCOLOR="#000000"> <tbody> <tr> <td WIDTH="296"> <P> <B> <FONT SIZE="+1" COLOR="#FF0000" FACE="Arial, Helvetica, sans-serif">Internal</FONT> </B> </P> ... </td> <td width="93"/> <td valign="top" WIDTH="340"> <B> <FONT COLOR="#FF0000"> <FONT SIZE="+1">Ship To</FONT> </FONT> </B> <xsl:for-each select="ShippingInstructions"> <xsl:if test="position()=1"/> </xsl:for-each> <xsl:for-each select="ShippingInstructions"> </xsl:for-each> ...
These is nothing Oracle XML DB-specific about this style sheet. The style sheet can be stored in an XMLType
table or column, or stored as non-schema-based XML inside Oracle XML DB Repository.
Performing transformations inside the database allows Oracle XML DB to optimize features such as memory usage, I/O operations, and network traffic. These optimizations are particularly effective when the transformation operates on a small subset of the nodes in the source document.
In traditional XSL processors, the entire source document must be parsed and loaded into memory before XSL processing can begin. This process requires significant amounts of memory and processor. When only a small part of the document is processed this is inefficient.
When Oracle XML DB performs XSL transformations on a schema-based XML document there is no need to parse the document before processing can begin. The lazily loaded virtual DOM eliminates the need to parse the document, by loading content directly from disk as the nodes are accessed. The lazy load also reduces the amount of memory required to perform the transformation, because only the parts of the document that are processed are loaded into memory.
Example 3-51 Applying a Style Sheet Using TRANSFORM
This example shows how to use SQL function XMLtransform
to apply an XSL style sheet to a document stored in an XMLType
table, producing HTML code. SQL function XDBURIType
reads the XSL style sheet from Oracle XML DB Repository. Method extract()
is called here on the result of XMLtransform
merely to force pretty-printing, for clarity.
In the interest of brevity, only part of the result of the transformation is shown here; omitted parts are indicated with an ellipsis (. . .
). Figure 3-8 shows what the transformed result looks like in a Web browser.
SELECT XMLtransform( OBJECT_VALUE, XDBURIType('/source/schemas/poSource/xsl/purchaseOrder.xsl').getXML()).extract('/*') FROM purchaseorder WHERE existsNode(OBJECT_VALUE, '/PurchaseOrder[Reference="SBELL-2002100912333601PDT"]')=1; XMLTRANSFORM(OBJECT_VALUE, XDBURITYPE('/SOURCE/SCHEMAS/POSOURCE/XSL/PURCHASEORDER.XSL').GETXML()) -------------------------------------------------------------------------------------------- <html> <head/> <body bgcolor="#003333" text="#FFFFCC" link="#FFCC00" vlink="#66CC99" alink="#669999"> <FONT FACE="Arial, Helvetica, sans-serif"> <center> <span style="font-family:Arial; font-weight:bold"> <FONT COLOR="#FF0000"> <B>PurchaseOrder </B> </FONT> </span> </center> <br/> <center> <span style="font-family:Arial; font-weight:bold">SBELL-2002100912333601PDT</span> </center> <P> <br/> <P/> <P> <br/> </P> </P> <table border="0" width="100%" BGCOLOR="#000000"> <tbody> <tr> <td WIDTH="296"> <P> <B> <FONT SIZE="+1" COLOR="#FF0000" FACE="Arial, Helvetica, sans-serif">Internal</FONT> </B> </P> <table border="0" width="98%" BGCOLOR="#000099"> . . . </table> </td> <td width="93"/> <td valign="top" WIDTH="340"> <B> <FONT COLOR="#FF0000"> <FONT SIZE="+1">Ship To</FONT> </FONT> </B> <table border="0" BGCOLOR="#999900"> . . . </table> </td> </tr> </tbody> </table> <br/> <B> <FONT COLOR="#FF0000" SIZE="+1">Items:</FONT> </B> <br/> <br/> <table border="0"> . . . </table> </FONT> </body> </html> 1 row selected.
Oracle XML DB Repository makes it possible to organize XML content using a file - folder metaphor. This lets you use a URL to uniquely identify XML documents stored in the database. This approach appeals to XML developers used to using constructs such as URLs and XPath expressions to identify content.
Oracle XML DB Repository is modelled on the DAV standard. The DAV standard uses the term resource to describe any file or folder managed by a WebDAV server. A resource consists of a combination of metadata and content. The DAV specification defines the set of (system-defined) metadata properties that a WebDAV server is expected to maintain for each resource and the set of XML documents that a DAV server and DAV-enabled client uses to exchange metadata.
Although Oracle XML DB Repository can manage any kind of content, it provides specialized capabilities and optimizations related to managing resources where the content is XML.
All of the metadata and content managed by Oracle XML DB Repository is stored using a set of tables in the database schema owned by database user XDB
. User XDB
is a locked account installed with DBCA or by running the script catqm.sql
. Script catqm.sql
is located in the directory ORACLE_HOME/rdbms/admin
. The repository can be uninstalled using DBCA or by running the script catnoqm.sql
. Great care should be taken when running catnoqm.sql
as this will drop all content stored in Oracle XML DB Repository and invalidate any XMLType
tables or columns associated with registered XML schemas.
When using a relational database to maintain hierarchical folder structures, ensuring a high degree of concurrency when adding and removing items in a folder is a challenge. In conventional file system there is no concept of a transaction. Each operation (add a file, create a subfolder, rename a file, delete a file, and so on) is treated as an atomic transaction. Once the operation has completed the change is immediately available to all other users of the file system.
Note:
As a consequence of transactional semantics enforced by the database, folders created using SQL statements will not be visible to other database users until the transaction is committed. Concurrent access to Oracle XML DB Repository is controlled by the same mechanism used to control concurrency in Oracle Database. The integration of the repository with Oracle Database provides strong management options for XML content.One key advantage of Oracle XML DB Repository is the ability to use SQL for repository operations in the context of a logical transaction. Applications can create long-running transactions that include updates to one or more folders. In this situation a conventional locking strategy that takes an exclusive lock on each updated folder or directory tree would quickly result in significant concurrency problems.
Queued Folder Modifications are Locked Until Committed
Oracle XML DB solves this by providing for name-level locking rather than folder-level locking. Repository operations such as creating, renaming, moving, or deleting a sub-folder or file do not require that your operation be granted an exclusive write lock on the target folder. The repository manages concurrent folder operations by locking the name within the folder rather than the folder itself. The name and the modification type are put on a queue.Only when the transaction is committed is the folder locked and its contents modified. Hence Oracle XML DB allows multiple applications to perform concurrent updates on the contents of a folder. The queue is also used to manage folder concurrency by preventing two applications from creating objects with the same name.Queuing folder modifications until commit time also minimizes I/O when a number of changes are made to a single folder in the same transaction.This is useful when several applications generate files quickly in the same directory, for example when generating trace or log files, or when maintaining a spool directory for printing or email delivery.
There are two ways to work with content stored in Oracle XML DB Repository:
Using industry standard protocols such as HTTP(S), WebDAV, or FTP to perform document level operations such as insert, update and delete.
By directly accessing Oracle XML DB Repository content at the table or row level using SQL.
Oracle XML DB supports industry-standard internet protocols such as HTTP(S), WebDav, and FTP. The combination of protocol support and URL-based access makes it possible to insert, retrieve, update, and delete content stored in Oracle Database from standard desktop applications such as Windows Explorer, Microsoft Word, and XMLSpy.
Figure 3-4 shows Windows Explorer used to insert a folder from the local hard drive into Oracle Database. Windows Explorer includes support for the WebDAV protocol. WebDAV extends the HTTP standard, adding additional verbs that allow an HTTP server to act as a file server.
When a Windows Explorer copy operation or FTP input command is used to transfer a number of documents into Oracle XML DB Repository, each put
or post
command is treated as a separate atomic operation. This ensures that the client does not get confused if one of the file transfers fails. It also means that changes made to a document through a protocol are visible to other users as soon as the request has been processed.
Figure 3-4 Copying Files into Oracle XML DB Repository
The following example shows commands issued and output generated when a standard command line FTP tool loads documents into Oracle XML DB Repository:
Example 3-52 Uploading Content into the Repository Using FTP
$ ftp mdrake-sun 2100 Connected to mdrake-sun. 220 mdrake-sun FTP Server (Oracle XML DB/Oracle Database 10g Enterprise Edition Release 10.1.0.1.0 - Beta) ready. Name (mdrake-sun:oracle10): QUINE 331 pass required for QUINE Password: 230 QUINE logged in ftp> cd /source/schemas 250 CWD Command successful ftp> mkdir PurchaseOrders 257 MKD Command successful ftp> cd PurchaseOrders 250 CWD Command successful ftp> mkdir 2002 257 MKD Command successful ftp> cd 2002 250 CWD Command successful ftp> mkdir "Apr" 257 MKD Command successful ftp> put "Apr/AMCEWEN-20021009123336171PDT.xml" "Apr/AMCEWEN-20021009123336171PDT.xml" 200 PORT Command successful 150 ASCII Data Connection 226 ASCII Transfer Complete local: Apr/AMCEWEN-20021009123336171PDT.xml remote: Apr/AMCEWEN-20021009123336171PDT.xml 4718 bytes sent in 0.0017 seconds (2683.41 Kbytes/s) ftp> put "Apr/AMCEWEN-20021009123336271PDT.xml" "Apr/AMCEWEN-20021009123336271PDT.xml" 200 PORT Command successful 150 ASCII Data Connection 226 ASCII Transfer Complete local: Apr/AMCEWEN-20021009123336271PDT.xml remote: Apr/AMCEWEN-20021009123336271PDT.xml 4800 bytes sent in 0.0014 seconds (3357.81 Kbytes/s) ..... ftp> cd "Apr" 250 CWD Command successful ftp> ls -l 200 PORT Command successful 150 ASCII Data Connection -rw-r--r1 QUINE oracle 0 JUN 24 15:41 AMCEWEN-20021009123336171PDT.xml -rw-r--r1 QUINE oracle 0 JUN 24 15:41 AMCEWEN-20021009123336271PDT.xml -rw-r--r1 QUINE oracle 0 JUN 24 15:41 EABEL-20021009123336251PDT.xml -rw-r--r1 QUINE oracle 0 JUN 24 15:41 PTUCKER-20021009123336191PDT.xml -rw-r--r1 QUINE oracle 0 JUN 24 15:41 PTUCKER-20021009123336291PDT.xml -rw-r--r1 QUINE oracle 0 JUN 24 15:41 SBELL-20021009123336231PDT.xml -rw-r--r1 QUINE oracle 0 JUN 24 15:41 SBELL-20021009123336331PDT.xml -rw-r--r1 QUINE oracle 0 JUN 24 15:41 SKING-20021009123336321PDT.xml -rw-r--r1 QUINE oracle 0 JUN 24 15:41 SMCCAIN-20021009123336151PDT.xml -rw-r--r1 QUINE oracle 0 JUN 24 15:41 SMCCAIN-20021009123336341PDT.xml -rw-r--r1 QUINE oracle 0 JUN 24 15:41 VJONES-20021009123336301PDT.xml 226 ASCII Transfer Complete remote: -l 959 bytes received in 0.0027 seconds (349.45 Kbytes/s) ftp> cd ".." 250 CWD Command successful .... ftp> quit 221 QUIT Goodbye. $
The key point demonstrated by both of these examples is that neither Windows Explorer nor the FTP tool is aware that it is working with Oracle XML DB. Since the tools and Oracle XML DB both support open Internet protocols they simply work with each other out of the box.
Any tool that understands the WebDAV or FTP protocol can be used to create content managed by Oracle XML DB Repository. No additional software has to installed on the client or the mid-tier.
When the contents of the folders are viewed using a tool such as Windows Explorer or FTP, the length of any schema-based XML documents contained in the folder is shown as zero (0) bytes. This was designed as such for two reasons:
It is not clear what the size of the document should be. Is it the size of the CLOB
instance generated by printing the document, or the number of bytes required to store the objects used to persist the document inside the database?
Regardless of which definition is chosen, calculating and maintaining this information is costly.
Figure 3-5 shows Internet Explorer using a URL and the HTTP protocol to view an XML document stored in the database.

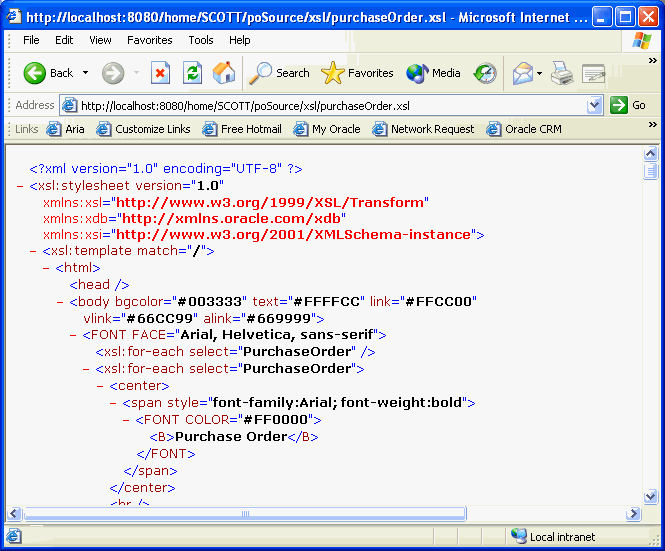

Figure 3-5 Path-Based Access Using HTTP and a URL
Oracle XML DB Repository can be accessed and updated directly from SQL. This means that any application or programming language that can use SQL to interact with Oracle Database can also access and update content stored in the repository. Oracle XML DB includes PL/SQL package DBMS_XDB
, which provides methods that allow resources to be created, modified, and deleted programmatically.
Example 3-53 Creating a Text Document Resource Using DBMS_XDB
This example shows how to create a resource using DBMS_XDB
. Here the resource will be a simple text document containing the supplied text.
DECLARE res BOOLEAN; BEGIN res := DBMS_XDB.createResource('/home/QUINE/NurseryRhyme.txt', bfilename('XMLDIR', 'tdadxdb-03-01.txt'), nls_charset_id('AL32UTF8')); END; /
This section describes features for accessing and updating Oracle XML DB Repository content.
Access XML Documents Using SQL
Content stored in the repository can be accessed and updated from SQL and PL/SQL. You can interrogate the structure of the repository in complex ways. For example, you can query to determine how many files with extension .xsl
are under a location other than /home/mystylesheetdir
.
You can also mix path-based repository access with content-based access. You can, for example, ask "How many documents not under /home/purchaseOrders
have a node identified by the XPath /PurchaseOrder/User/text()
with a value of KING
?"
All of the metadata for managing the repository is stored in a database schema owned by the database user XDB. This user is created during Oracle XML DB installation. The primary table in this schema is an XMLType
table called XDB$RESOURCE
. This contains one row for each resource (file or folder) in the repository. Documents in this table are referred to as resource documents . The XML schema that defines the structure of an Oracle XML DB resource document is registered under URL, "http://xmlns.oralce.com/xdb/XDBResource.xsd
.
Repository Content is Exposed Through RESOURCE_VIEW and PATH_VIEW
Table XDB$RESOURCE
is not directly exposed to SQL programmers. Instead, the contents of the repository are exposed through two public views, RESOURCE_VIEW
and PATH_VIEW
. Through these views, you can access and update both the metadata and the content of documents stored in the repository. Both views contain a virtual column, RES
. Use RES
to access and update resource documents with SQL statements using a path notation. Operations on the views use underlying tables in the repository.
Use EXISTS_PATH and UNDER_PATH to Include Path-Based Predicates in the WHERE Clause
Oracle XML DB includes two repository-specific SQL functions: exists_path
and under_path
. Use these functions to include path-based predicates in the WHERE
clause of a SQL statement. SQL operations can select repository content based on the location of the content in the repository folder hierarchy. The hierarchical index ensures that path-based queries are executed efficiently.
When XML schema-based XML documents are stored in the repository, the document content is stored as an object in the default table identified by the XML schema. The repository contains only metadata about the document and a pointer (REF
of XMLType
) that identifies the row in the default table that contains the content.
Documents Other Than XML Can Be Stored In the Repository
It is also possible to store other kinds of documents in the repository. When a document that is not XML or is not schema-based XML is stored in the repository, the document content is stored in a LOB along with the metadata about the document.
PL/SQL Packages to Create, Delete, Rename, Move, ... Folders and Documents
Since Oracle XML DB repository can be accessed and updated using SQL, any application capable of calling a PL/SQL procedure can use the repository. All SQL and PL/SQL repository operations are transactional, and access to the repository and its contents is subject to database security, as well as the repository Access Control Lists (ACLs).
With supplied PL/SQL packages DBMS_XDB
, DBMS_XDBZ
, and DBMS_XDB_VERSION
, you can create, delete, and rename documents and folders, move a file or folder within the folder hierarchy, set and change the access permissions on a file or folder, and initiate and manage versioning.
Example 3-54 Using PL/SQL Package DBMS_XDB To Create Folders
This example shows PL/SQL package DBMS_XDB
used to create a set of subfolders beneath folder /public
.
DECLARE RESULT BOOLEAN; BEGIN IF (NOT DBMS_XDB.existsResource('/public/mysource')) THEN result := DBMS_XDB.createFolder('/public/mysource'); END IF; IF (NOT DBMS_XDB.existsResource('/public/mysource/schemas')) THEN result := DBMS_XDB.createFolder('/public/mysource/schemas'); END IF; IF (NOT DBMS_XDB.existsResource('/public/mysource/schemas/poSource')) THEN result := DBMS_XDB.createFolder('/public/mysource/schemas/poSource'); END IF; IF (NOT DBMS_XDB.existsResource('/public/mysource/schemas/poSource/xsd')) THEN result := DBMS_XDB.createFolder('/public/mysource/schemas/poSource/xsd'); END IF; IF (NOT DBMS_XDB.existsResource('/public/mysource/schemas/poSource/xsl')) THEN result := DBMS_XDB.createFolder('/public/mysource/schemas/poSource/xsl'); END IF; END; /
You can access the content of documents stored in Oracle XML DB Repository in several ways. The easiest way is to use XDBURIType
. XDBURIType
uses a URL to specify which resource to access. The URL passed to the XDBURIType
is assumed to start at the root of the repository. Datatype XDBURIType
provides methods getBLOB()
, getCLOB()
, and getXML()
to access the different kinds of content that can be associated with a resource.
Example 3-55 Using XDBURIType to Access a Text Document in the Repository
This example shows how to use XDBURIType
to access the content of the text document:
SELECT XDBURIType('/home/QUINE/NurseryRhyme.txt').getClob() FROM DUAL; XDBURITYPE('/HOME/QUINE/NURSERYRHYME.TXT').GETCLOB() ---------------------------------------------------- Mary had a little lamb Its fleece was white as snow and everywhere that Mary went that lamb was sure to go 1 row selected.
Example 3-56 Using XDBURIType and a Repository Resource to Access Content
The contents of a document can also be accessed using the resource document. This example shows how to access the content of a text document:
SELECT DBMS_XMLGEN.convert( extract(RES, '/Resource/Contents/text/text()', 'xmlns="http://xmlns.oracle.com/xdb/XDBResource.xsd"').getClobVal(), 1) FROM RESOURCE_VIEW r WHERE equals_path(RES, '/home/QUINE/NurseryRhyme.txt') = 1; DBMS_XMLGEN.CONVERT(EXTRACT(RES,'/RESOURCE/CONTENTS/TEXT/TEXT()','XMLNS="HTTP:// -------------------------------------------------------------------------------- Mary had a little lamb Its fleece was white as snow and everywhere that Mary went that lamb was sure to go 1 row selected.
SQL function extract
, rather than extractValue
, is used to access the text node. This returns the content of the text node as an XMLType
instance, which makes it possible to access the content of the node using XMLType
method getCLOBVal()
. Hence, you can access the content of documents larger than 4K. Here, DBMS_XMLGEN.convert
removes any entity escaping from the text.
Example 3-57 Accessing XML Documents Using Resource and Namespace Prefixes
The content of non-schema-based and schema-based XML documents can also be accessed through the resource. This example shows how to use an XPath expression that includes nodes from the resource document and nodes from the XML document to access the contents of a PurchaseOrder
document using the resource.
SELECT extractValue(value(des), '/Description') FROM RESOURCE_VIEW r, table( XMLSequence( extract(RES, '/r:Resource/r:Contents/PurchaseOrder/LineItems/LineItem/Description', 'xmlns:r="http://xmlns.oracle.com/xdb/XDBResource.xsd"'))) des WHERE equals_path(RES, '/home/QUINE/PurchaseOrders/2002/Mar/SBELL-2002100912333601PDT.xml') = 1; EXTRACTVALUE(VALUE(L),'/DESCRIPTION') -------------------------------------------- A Night to Remember The Unbearable Lightness Of Being The Wizard of Oz 3 rows selected.
In this case, a namespace prefix was used to identify which nodes in the XPath expression are members of the resource namespace. This was necessary as the PurchaseOrder
XML schema does not define a namespace and it was not possible to apply a namespace prefix to nodes in the PurchaseOrder document.
The content of a schema-based XML document can be accessed in two ways.
In the same manner as for non-schema-based XML documents, by using the resource document. This allows the RESOURCE_VIEW
to be used to query different types of schema-based XML documents with a single SQL statement.
As a row in the default table that was defined when the XML schema was registered with Oracle XML DB.
The XMLRef
element in the resource document provides the join key required when a SQL statement needs to access or update metadata and content as part of a single operation.
The following queries use joins based on the value of the XMLRef
to access resource content.
Example 3-58 Querying Repository Resource Data Using REF and the XMLRef Element
This example locates a row in the defaultTable
based on a path in Oracle XML DB Repository. SQL function ref
locates the target row in the default table based on value of the XMLRef
element contained in the resource document.
SELECT extractValue(value(des), '/Description') FROM RESOURCE_VIEW r, purchaseorder p, table(XMLSequence(extract(OBJECT_VALUE, '/PurchaseOrder/LineItems/LineItem/Description'))) des WHERE equals_path(res, '/home/QUINE/PurchaseOrders/2002/Mar/SBELL-2002100912333601PDT.xml') = 1 AND ref(p) = extractValue(res, '/Resource/XMLRef'); EXTRACTVALUE(VALUE(L),'/DESCRIPTION') ------------------------------------- A Night to Remember The Unbearable Lightness Of Being The Wizard of Oz 3 rows selected.
Example 3-59 Selecting XML Document Fragments Based on Metadata, Path, and Content
This example shows how this technique makes it possible to select fragments from XML documents based on metadata, path, and content. The statement returns the value of the Reference
element for documents foldered under the path /home/QUINE/PurchaseOrders/2002/Mar
and contain orders for part number 715515009058.
SELECT extractValue(OBJECT_VALUE, '/PurchaseOrder/Reference') FROM RESOURCE_VIEW r, purchaseorder p WHERE under_path(res, '/home/QUINE/PurchaseOrders/2002/Mar') = 1 AND ref(p) = extractValue(res, '/Resource/XMLRef') AND existsNode(OBJECT_VALUE, '/PurchaseOrder/LineItems/LineItem/Part[@Id="715515009058"]') = 1; EXTRACTVALUE(OBJECT_VALUE,'/PU ------------------------------ CJOHNSON-20021009123335851PDT LSMITH-2002100912333661PDT SBELL-2002100912333601PDT 3 rows selected.
In general, when accessing the content of schema-based XML documents, joining RESOURCE_VIEW
or PATH_VIEW
with the default table is more efficient than using the RESOURCE_VIEW
or PATH_VIEW
on their own. The explicit join between the resource document and the default table tells Oracle XML DB that the SQL statement will only work on one type of XML document. This allows XPath rewrite to be used to optimize the operation on the default table as well as the operation on the resource.
You can also update the content of documents stored in Oracle XML DB Repository using protocols or SQL.
The most popular content authoring tools now support HTTP, FTP, and WebDAV protocols. These tools can use a URL and the HTTP verb get
to access the content of a document, and the HTTP verb put
to save the contents of a document. Hence, given the appropriate access permissions, a simple URL is all you need to access and edit content stored in Oracle XML DB Repository.
Figure 3-6 shows how, with the WebDAV support included in Microsoft Word, you can use Microsoft Word to update and edit a document stored in Oracle XML DB Repository.

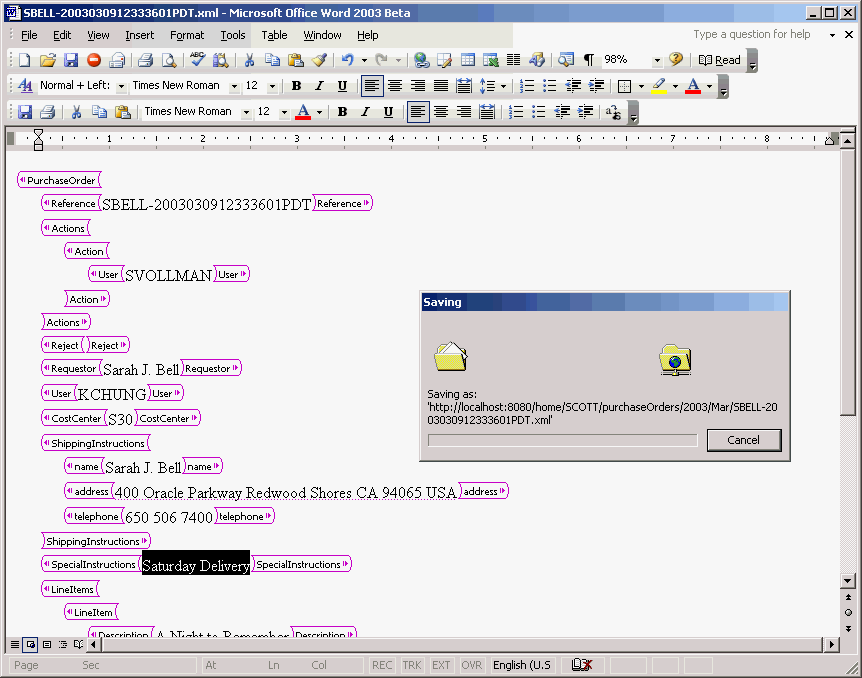

Figure 3-6 Using Microsoft Word to Update and Edit Content Stored in Oracle XML DB
When an editor like Microsoft Word updates an XML document stored in Oracle XML DB the database receives an input stream containing the new content of the document. Unfortunately products such as Word do not provide Oracle XML DB with any way of identifying what changes have taken place in the document. This means that partial updates are not possible and it is necessary to re-parse the entire document, replacing all the objects derived from the original document with objects derived from the new content.
SQL functions such as updateXML
can be used to update the content of any document stored in Oracle XML DB Repository. The content of the document can be modified by updating the resource document, or, in the case of schema-based XML documents, by updating the default table that contains the content of the document.
Example 3-60 Updating a Document Using UPDATE and UPDATEXML on the Resource
This example shows how to update the contents of a simple text document using the SQL UPDATE
statement and SQL function updateXML
on the resource document. An XPath expression is passed to updateXML
as the target of the update operation, identifying the text node belonging to element /Resource/Contents/text
.
DECLARE file BFILE; contents CLOB; dest_offset NUMBER := 1; src_offset NUMBER := 1; lang_context NUMBER := 0; conv_warning NUMBER := 0; BEGIN file := bfilename('XMLDIR', 'tdadxdb-03-02.txt'); DBMS_LOB.createTemporary(contents, true, DBMS_LOB.SESSION); DBMS_LOB.fileopen(file, DBMS_LOB.file_readonly); DBMS_LOB.loadClobfromFile(contents, file, DBMS_LOB.getLength(file), dest_offset, src_offset, nls_charset_id('AL32UTF8'), lang_context, conv_warning); DBMS_LOB.fileclose(file); UPDATE RESOURCE_VIEW SET res = updateXML(res, '/Resource/Contents/text/text()', contents, 'xmlns="http://xmlns.oracle.com/xdb/XDBResource.xsd"') WHERE equals_path(res, '/home/QUINE/NurseryRhyme.txt') = 1; DBMS_LOB.freeTemporary(contents); END; /
The technique for updating the content of a document by updating the associated resource has the advantage that it can be used to update any kind of document stored in Oracle XML DB Repository.
Example 3-61 Updating a Node in the XML Document Using UPDATE and UPDATEXML
This example shows how to update a node in an XML document by performing an update on the resource document. Here, SQL function updateXML
changes the value of the text node associated with the User
element.
UPDATE RESOURCE_VIEW SET res = updateXML(res, '/r:Resource/r:Contents/PurchaseOrder/User/text()', 'SKING', 'xmlns:r="http://xmlns.oracle.com/xdb/XDBResource.xsd"') WHERE equals_path( res, '/home/QUINE/PurchaseOrders/2002/Mar/SBELL-2002100912333601PDT.xml') = 1; 1 row updated. SELECT extractValue(res, '/r:Resource/r:Contents/PurchaseOrder/User/text()', 'xmlns:r="http://xmlns.oracle.com/xdb/XDBResource.xsd"') FROM RESOURCE_VIEW WHERE equals_path( res, '/home/QUINE/PurchaseOrders/2002/Mar/SBELL-2002100912333601PDT.xml') = 1; EXTRACTVALUE(RES, '/R:RESOURCE/R:CONTENTS/PURCHASEORDER/USER/TEXT()', 'XMLNS:R="HTTP://XMLNS.ORACLE.COM/XDB/XDBRESOURCE.XSD"') --------------------------------------------------------------------- SKING 1 row selected.
You can update XML schema-based XML documents by performing the update operation directly on the default table used to manage the content of the document. If the document must be located by a WHERE
clause that includes a path or conditions based on metadata, then the UPDATE
statement must use a join between the resource and the default table.
In general, when updating the contents of XML schema-based XML documents, joining the RESOURCE_VIEW
or PATH_VIEW
with the default table is more efficient than using the RESOURCE_VIEW
or PATH_VIEW
on their own. The explicit join between the resource document and the default table tells Oracle XML DB that the SQL statement will only work on one type of XML document. This allows a partial-update to be used on the default table and resource.
Example 3-62 Updating XML Schema-Based Documents in the Repository
In this example, SQL function updateXML
operates on the default table with the target row identified by a path. The row to be updated is identified by a ref
. The value of the ref
is obtained from the resource document identified by SQL function equals_path
. This effectively limits the update to the row corresponding to the resource identified by the specified path.
UPDATE purchaseorder p SET OBJECT_VALUE = updateXML(OBJECT_VALUE, '/PurchaseOrder/User/text()', 'SBELL') WHERE ref(p) = (SELECT extractValue(res,'/Resource/XMLRef') FROM RESOURCE_VIEW WHERE equals_path(res, '/home/QUINE/PurchaseOrders/2002/Mar/SBELL-2002100912333601PDT.xml') = 1); 1 row updated. SELECT extractValue(OBJECT_VALUE, '/PurchaseOrder/User/text()') FROM purchaseorder p, RESOURCE_VIEW WHERE ref(p) = extractValue(res, '/Resource/XMLRef') AND equals_path(res, '/home/QUINE/PurchaseOrders/2002/Mar/SBELL-2002100912333601PDT.xml') = 1; EXTRACTVAL ---------- SBELL 1 row selected.
You can control access to the resources in Oracle XML DB Repository by using Access Control Lists (ACLs). An ACL is a list of access control entries, each of which grants or denies a set of privileges to a specific principal. The principal can be a database user, a database role, an LDAP user, an LDAP group or the special principal dav:owner
, which refers to the owner of the resource. Each resource in the repository is protected by an ACL. The ACL determines what privileges, such as read-properties
and update
, a user has on the resource. Each repository operation includes a check of the ACL to determine if the current user is allowed to perform the operation. By default, a new resource inherits the ACL of its parent folder. But you can set the ACL of a resource using procedure DBMS_XDB.setACL()
. For more details on Oracle XML DB resource security, see Chapter 24, "Repository Resource Security".
In the following example, the current user is QUINE
. The query gives the number of resources in the folder /public
. Assume that there are only two resources in this folder: f1
and f2
. Also assume that the ACL on f1
grants the read-properties
privilege to QUINE
while the ACL on f2
does not grant QUINE
any privileges. A user needs the read-properties
privilege on a resource for it to be visible to the user. The result of the query is 1
, because only f1
is visible to QUINE
.
SELECT count(*) FROM RESOURCE_VIEW r WHERE under_path(r.res, '/public') = 1; COUNT(*) ---------- 1
When working from SQL, normal transactional behavior is enforced. Multiple calls to SQL functions such as updateXML
can be used within a single logical unit of work. Changes made through functions like updateXML
are not visible to other database users until the transaction is committed. At any point, ROLLBACK
can be used to back out the set of changes made since the last commit.
In Oracle XML DB, the system-defined metadata for each resource is preserved as an XML document. The structure of these resource documents is defined by the XDBResource.xsd
XML schema. This schema is registered as a global XML schema at URL http://xmlns.oracle.com/xdb/XDBResource.xsd
.
Oracle XML DB allows you access to metadata and information about the folder hierarchy using two public views, RESOURCE_VIEW
and PATH_VIEW
.
RESOURCE_VIEW
contains one entry for each file or folder stored in Oracle XML DB Repository. The view has two columns. Column RES
contains the resource – an XML document that manages the metadata properties associated with the resource content. Column ANY_PATH
contains a valid URL that the current user can pass to XDBURIType
to access the resource content. If this content is not binary data, then the resource itself also contains the content.
Oracle XML DB supports the concept of linking. Linking makes it possible to define multiple paths to a given document. A separate XML document, called the link-properties document, maintains metadata properties that are specific to the path, rather than to the resource. Whenever a resource is created, an initial link is also created.
PATH_VIEW
exposes the link-properties documents. There is one entry in PATH_VIEW
for each possible path to a document. PATH_VIEW
has three columns. Column RES
contains the resource document pointed to by this link. Column PATH
contains the path that the link allows to be used to access the resource. Column LINK
contains the link-properties document (metadata) for this PATH
.
Example 3-63 Viewing RESOURCE_VIEW and PATH_VIEW Structures
The following example shows the description of public views RESOURCE_VIEW
and PATH_VIEW
:
DESCRIBE RESOURCE_VIEW Name Null? Type ------------------------------------------------------------- RES SYS.XMLTYPE(XMLSchema "http://xmlns.oracle.com/xdb/XDBResource.xsd" Element "Resource") ANY_PATH VARCHAR2(4000) RESID RAW(16) DESCRIBE PATH_VIEW Name Null? Type ------------------------------------------------------------- PATH VARCHAR2(1024) RES SYS.XMLTYPE(XMLSchema "http://xmlns.oracle.com/xdb/XDBResource.xsd" Element "Resource") LINK SYS.XMLTYPE RESID RAW(16)
Oracle XML DB provides two SQL functions, equals_path
and under_path
, that can be used to perform folder-restricted queries. Such queries limit SQL statements that operate on the RESOURCE_VIEW
or PATH_VIEW
to documents that are at a particular location in Oracle XML DB folder hierarchy. Function equals_path
restricts the statement to a single document identified by the specified path. Function under_path
restricts the statement to those documents that exist beneath a certain point in the hierarchy.
The following examples demonstrate simple folder-restricted queries against resource documents stored in RESOURCE_VIEW
and PATH_VIEW
.
Example 3-64 Accessing Resources Using EQUALS_PATH and RESOURCE_VIEW
The following query uses SQL function equals_path
and RESOURCE_VIEW
to access the resource created in Example 3-63.
SELECT r.RES.getClobVal() FROM RESOURCE_VIEW r WHERE equals_path(res, '/home/QUINE/NurseryRhyme.txt') = 1; R.RES.GETCLOBVAL() -------------------------------------------------------------------------------- <Resource xmlns="http://xmlns.oracle.com/xdb/XDBResource.xsd" Hidden="false" Invalid="false" Container="false" CustomRslv="false" VersionHistory="false" StickyRef="true"> <CreationDate>2004-08-06T12:12:48.022251</CreationDate> <ModificationDate>2004-08-06T12:12:53.215519</ModificationDate> <DisplayName>NurseryRhyme.txt</DisplayName> <Language>en-US</Language> <CharacterSet>UTF-8</CharacterSet> <ContentType>text/plain</ContentType> <RefCount>1</RefCount> <ACL> <acl description= "Private:All privileges to OWNER only and not accessible to others" xmlns="http://xmlns.oracle.com/xdb/acl.xsd" xmlns:dav="DAV:" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://xmlns.oracle.com/xdb/acl.xsd http://xmlns.oracle.com/xdb/acl.xsd"> <ace> <principal>dav:owner</principal> <grant>true</grant> <privilege> <all/> </privilege> </ace> </acl> </ACL> <Owner>QUINE</Owner> <Creator>QUINE</Creator> <LastModifier>QUINE</LastModifier> <SchemaElement>http://xmlns.oracle.com/xdb/XDBSchema.xsd#text</SchemaElement> <Contents> <text>Hickory Dickory Dock The Mouse ran up the clock The clock struck one The Mouse ran down Hickory Dickory Dock </text> </Contents> </Resource> 1 row selected.
As Example 3-64 shows, a resource document is an XML document that captures the set of metadata defined by the DAV standard. The metadata includes information such as CreationDate
, Creator
, Owner
, ModificationDate
, and DisplayName
. The content of the resource document can be queried and updated just like any other XML document, using SQL functions such as extract
, extractValue
, existsNode
, and updateXML
.
Example 3-65 Determining the Path to XSL Style Sheets Stored in the Repository
The first query finds a path to each of the XSL style sheets stored in Oracle XML DB Repository. It performs a search based on the DisplayName
ending in .xsl
.
SELECT ANY_PATH FROM RESOURCE_VIEW WHERE extractValue(RES, '/Resource/DisplayName') LIKE '%.xsl'; ANY_PATH ------------------------------------------- /source/schemas/poSource/xsl/empdept.xsl /source/schemas/poSource/xsl/purchaseOrder.xsl 2 rows selected.
Example 3-66 Counting Resources Under a Path
This example counts the number of resources (files and folders) under the path /home/QUINE/PurchaseOrders
. Using RESOURCE_VIEW
rather than PATH_VIEW
ensures that any resources that are the target of multiple links are only counted once. SQL function under_path
restricts the result set to documents that can be accessed using a path that starts from /home/QUINE/PurchaseOrders
.
SELECT count(*) FROM RESOURCE_VIEW WHERE under_path(RES, '/home/QUINE/PurchaseOrders') = 1; COUNT(*) ---------- 145 1 row selected.
Example 3-67 Listing the Folder Contents in a Path
This query lists the contents of the folder identified by path /home/QUINE/PurchaseOrders/2002/Apr
. This is effectively a directory listing of the folder.
SELECT PATH FROM PATH_VIEW WHERE under_path(RES, '/home/QUINE/PurchaseOrders/2002/Apr') = 1; PATH ---------------------------------------------------------------------- /home/QUINE/PurchaseOrders/2002/Apr/AMCEWEN-20021009123336171PDT.xml /home/QUINE/PurchaseOrders/2002/Apr/AMCEWEN-20021009123336271PDT.xml /home/QUINE/PurchaseOrders/2002/Apr/EABEL-20021009123336251PDT.xml /home/QUINE/PurchaseOrders/2002/Apr/PTUCKER-20021009123336191PDT.xml /home/QUINE/PurchaseOrders/2002/Apr/PTUCKER-20021009123336291PDT.xml /home/QUINE/PurchaseOrders/2002/Apr/SBELL-20021009123336231PDT.xml /home/QUINE/PurchaseOrders/2002/Apr/SBELL-20021009123336331PDT.xml /home/QUINE/PurchaseOrders/2002/Apr/SKING-20021009123336321PDT.xml /home/QUINE/PurchaseOrders/2002/Apr/SMCCAIN-20021009123336151PDT.xml /home/QUINE/PurchaseOrders/2002/Apr/SMCCAIN-20021009123336341PDT.xml /home/QUINE/PurchaseOrders/2002/Apr/VJONES-20021009123336301PDT.xml 11 rows selected.
Example 3-68 Listing the Links Contained in a Folder
This query lists the set of links contained in the folder identified by the path /home/QUINE/PurchaseOrders/2002/Ap
r where the DisplayName
element in the associated resource starts with an S
.
SELECT PATH FROM PATH_VIEW WHERE extractValue(RES, '/Resource/DisplayName') like 'S%' AND under_path(RES, '/home/QUINE/PurchaseOrders/2002/Apr') = 1; PATH ---------------------------------------------------------------------- /home/QUINE/PurchaseOrders/2002/Apr/SBELL-20021009123336231PDT.xml /home/QUINE/PurchaseOrders/2002/Apr/SBELL-20021009123336331PDT.xml /home/QUINE/PurchaseOrders/2002/Apr/SKING-20021009123336321PDT.xml /home/QUINE/PurchaseOrders/2002/Apr/SMCCAIN-20021009123336151PDT.xml /home/QUINE/PurchaseOrders/2002/Apr/SMCCAIN-20021009123336341PDT.xml 5 rows selected.
Example 3-69 Finding Paths to Resources that Contain Purchase-Order XML Documents
This query finds a path to each resource in Oracle XML DB Repository that contains a PurchaseOrder
document. The documents are identified based on the metadata property SchemaElement
that identifies the XML schema URL and global element for schema-based XML data stored in the repository.
SELECT ANY_PATH FROM RESOURCE_VIEW WHERE existsNode(RES, '/Resource[SchemaElement= "http://localhost:8080/source/schemas/poSource/xsd/purchaseOrder.xsd#PurchaseOrder"]') = 1;
This returns the following paths, each of which contains a PurchaseOrder
document:
ANY_PATH
-----------------------------------------------------------------------
/home/QUINE/PurchaseOrders/2002/Apr/AMCEWEN-20021009123336171PDT.xml
/home/QUINE/PurchaseOrders/2002/Apr/AMCEWEN-20021009123336271PDT.xml
/home/QUINE/PurchaseOrders/2002/Apr/EABEL-20021009123336251PDT.xml
/home/QUINE/PurchaseOrders/2002/Apr/PTUCKER-20021009123336191PDT.xml
...
132 rows selected.
In a conventional relational database, path-based access and folder-restricted queries would have to be implemented using CONNECT BY
operations. Such queries are expensive, so path-based access and folder-restricted queries would become inefficient as the number of documents and depth of the folder hierarchy increase.
To address this issue, Oracle XML DB introduces a new index type, the hierarchical index. A hierarchical index allows the database to resolve folder-restricted queries without relying on a CONNECT BY
operation. Hence Oracle XML DB can execute path-based and folder-restricted queries efficiently. The hierarchical index is implemented as an Oracle domain index. This is the same technique used to add Oracle Text indexing support and many other advanced index types to the database.
Example 3-70 EXPLAIN Plan Output for a Folder-Restricted Query
This example shows the EXPLAIN PLAN
output generated for a folder-restricted query. As shown, the hierarchical index XDBHI_IDX
will be used to resolve the query.
EXPLAIN PLAN FOR SELECT PATH FROM PATH_VIEW WHERE extractValue(RES, '/Resource/DisplayName') LIKE 'S%' AND under_path(RES, '/home/QUINE/PurchaseOrders/2002/Apr') = 1; Explained. PLAN_TABLE_OUTPUT ------------------------------------------------------------------------------------------------------ Plan hash value: 2568289845 ------------------------------------------------------------------------------------------------------ | Id | Operation | Name | Rows | Bytes | Cost (%CPU)| Time | ------------------------------------------------------------------------------------------------------ | 0 | SELECT STATEMENT | | 127 | 22606 | 35 (9)| 00:00:01 | | 1 | NESTED LOOPS | | 127 | 22606 | 35 (9)| 00:00:01 | | 2 | NESTED LOOPS | | 127 | 20447 | 34 (6)| 00:00:01 | | 3 | NESTED LOOPS | | 127 | 16891 | 34 (6)| 00:00:01 | |* 4 | TABLE ACCESS BY INDEX ROWID | XDB$RESOURCE | 1 | 131 | 3 (0)| 00:00:01 | |* 5 | DOMAIN INDEX | XDBHI_IDX | | | | | | 6 | COLLECTION ITERATOR PICKLER FETCH| | | | | | |* 7 | INDEX UNIQUE SCAN | XDB_PK_H_LINK | 1 | 28 | 0 (0)| 00:00:01 | |* 8 | INDEX UNIQUE SCAN | SYS_C003013 | 1 | 17 | 0 (0)| 00:00:01 | ------------------------------------------------------------------------------------------------------ Predicate Information (identified by operation id): --------------------------------------------------- 4 - filter("P"."SYS_NC00011$" LIKE 'S%') 5 - access("XDB"."UNDER_PATH"(SYS_MAKEXML('8758D485E6004793E034080020B242C6',734,"XMLEXTRA" ,"XMLDATA"),'/home/QUINE/PurchaseOrders/2002/Apr',9999)=1) 7 - access("H"."PARENT_OID"=SYS_OP_ATG(VALUE(KOKBF$),3,4,2) AND "H"."NAME"=SYS_OP_ATG(VALUE(KOKBF$),2,3,2)) 8 - access("R2"."SYS_NC_OID$"=SYS_OP_ATG(VALUE(KOKBF$),3,4,2)) 25 rows selected.
Oracle XML DB provides special handling for XML documents. The rules for storing the contents of schema-based XML document are defined by the XML schema. The content of the document is stored in the default table associated with the global element definition.
Oracle XML DB Repository also stores files that do not contain XML data, such as JPEG images or Word documents. The XML schema for each resource defines which elements are allowed, and specifies whether the content of these files is to be stored as BLOB
or CLOB
instances. The content of a non-schema-based XML document is stored as a CLOB
instance in the repository.
There is one resource and one link-properties document for every file or folder in the repository. If there are multiple access paths to a given document there will be a link-properties document for each possible link. Both the resource document and the link-properties are stored as XML documents. All these documents are stored in tables in the repository.
When an XML file is loaded into the repository, the following sequence of events that takes place:
Oracle XML DB examines the root element of the XML document to see if it is associated with a known (registered) XML schema. This involves looking to see if the document includes a namespace declaration for the XMLSchema-instance
namespace, and then looking for a schemaLocation
or noNamespaceSchemaLocation
attribute that identifies which XML schema the document is associated with.
If the document is based on a known XML schema, then the metadata for the XML schema is loaded from the XML schema cache.
The XML document is parsed and decomposed into a set the SQL objects derived from the XML schema.
The SQL objects created from the XML file are stored in the default table defined when the XML schema was registered with the database.
A resource document is created for each document processed. This allows the content of the document to be accessed using the repository. The resource document for a schema-based XMLType
includes an element XMLRef
. This contents of this element is a REF of XMLType
that can be used to locate the row in the default table containing the content associated with the resource.
The HTTP server built into Oracle XML DB makes it possible to use a browser to access any document stored in Oracle XML DB Repository. Since a resource can include a REF
to a row in an XMLType
table or view it is possible to use path-based access to access this type of content.
Oracle XML DB includes the DBUri
servlet that makes it possible to access the content of any table or view directly from a browser. DBUri
servlet uses the facilities of the DBURIType
to generate a simple XML document from the contents of the table. The servlet is C- based and installed in the Oracle XML DB HTTP server. By default the servlet is installed under the virtual directory /oradb
.
The URL passed to the DBUri
Servlet is an extension of the URL passed to the DBURIType
. The URL is simply extended with the address and port number of the Oracle XML DB HTTP server and the virtual root that directs HTTP(S) requests to the DBUri
servlet. The default configuration for this is /oradb
.
This means that the URL: http://localhost:8080/oradb/HR/DEPTARTMENTS
,
would return an XML document containing the contents of the DEPARTMENTS
table in the HR database schema, assuming that the Oracle XML DB HTTP server is running on port 8080, the virtual root for the DBUri servlet
is /oradb
, and that the user making the request has access to the HR
database schema.
DBUri
servlet accepts parameters that allow you to specify the name of the ROW
tag and MIME-type of the document that is returned to the client.
Content in XMLType
table or view can also be accessed through the DBUri servlet
. When the URL passed to the DBUri servlet
references an XMLType
table or XMLType
view the URL can be extended with an XPath expression that can determine which documents in the table or row are returned. The XPath expression appended to the URL can reference any node in the document.
XML generated by DBUri servlet can be transformed using the XSLT processor built into Oracle XML DB. This allows XML generated by DBUri servlet
to be presented in a more legible format such as HTML.
Style sheet processing is initiated by specifying a transform parameter as part of the URL passed to DBUri servlet
. The style sheet is specified using a URI that references the location of the style sheet within database. The URI can either be a DBURIType
value that identifies a XMLType
column in a table or view, or a path to a document stored in Oracle XML DB Repository. The style sheet is applied directly to the generated XML before it is returned to the client. When using DBUri servlet for XSLT processing it is good practice to use the contenttype
parameter to explicitly specify the MIME type of the generated output.
If the XML document being transformed is stored as schema-based XMLType
, then Oracle XML DB can reduce the overhead associated with XSL transformation by leveraging the capabilities of the lazily loaded virtual DOM.
Figure 3-7 shows how DBUri
can access a row in the purchaseorder
table.

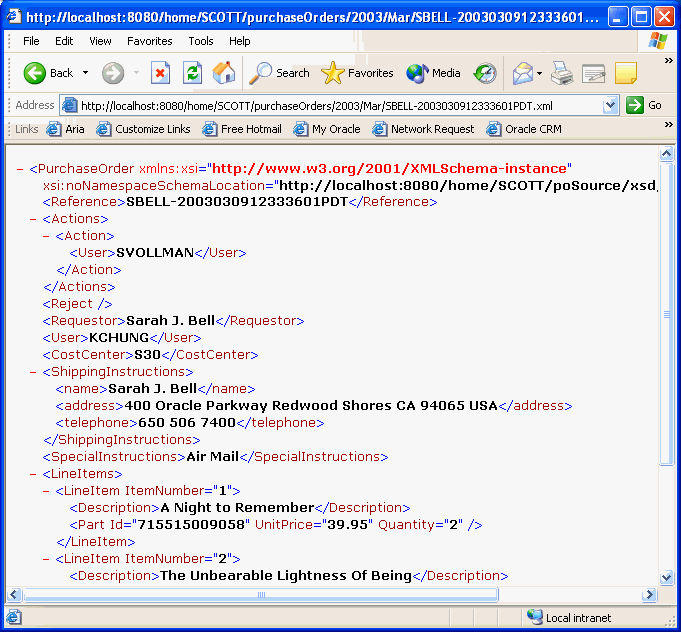

Figure 3-7 Using DBUri Servlet to Access XML Content
The root of the URL is /oradb
, so the URL is passed to the DBUri servlet that accesses the purchaseorder
table in the SCOTT
database schema, rather than as a resource in Oracle XML DB Repository. The URL includes an XPath expression that restricts the result set to those documents where node /PurchaseOrder/Reference/text()
contains the value specified in the predicate. The contenttype
parameter sets the MIME type of the generated document to text/xml
.
Figure 3-8 shows how an XSL transformation can be applied to XML content generated by the DBUri servlet. In this example the URL passed to the DBUri includes the transform parameter. This causes the DBUri servlet to use SQL functino XMLtransform
to apply the style sheet /home/SCOTT/xsl/purchaseOrder.xsl
to the PurchaseOrder
document identified by the main URL, before returning the document to the browser. This style sheet transforms the XML document to a more user-friendly HTML page. The URL also uses contentType
parameter to specify that the MIME-type of the final document will be text/html
.

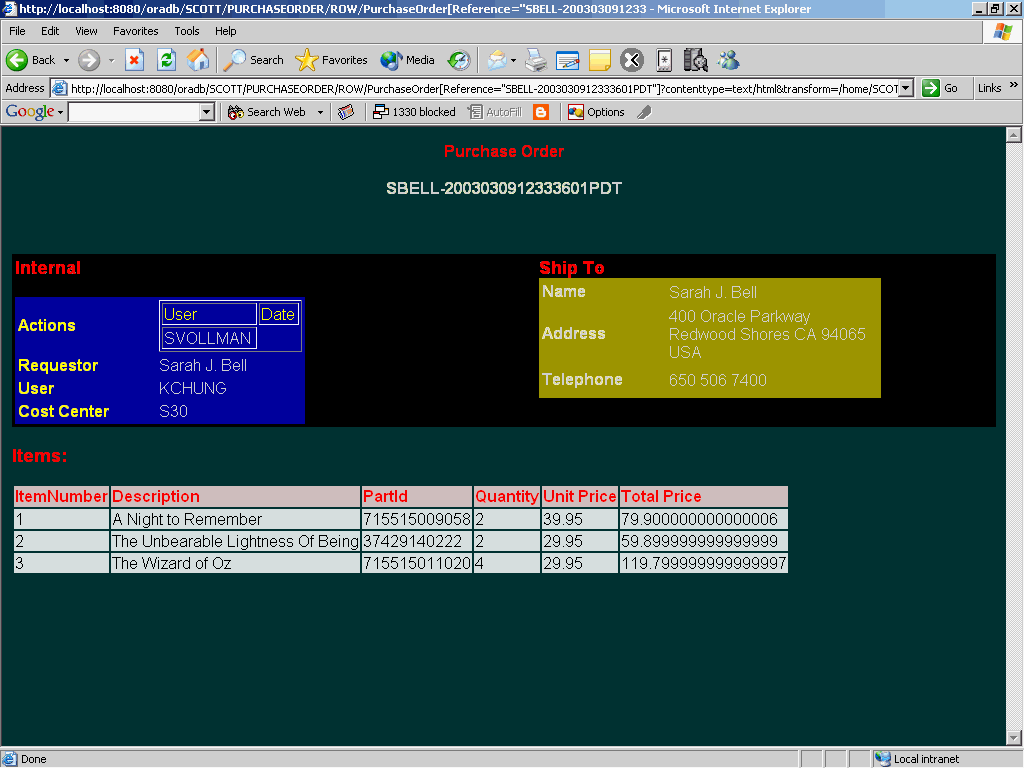

Figure 3-8 Database XSL Transformation of a PurchaseOrder Using DBUri Servlet
Figure 3-9 shows the departments
table displayed as an HTML document. You need no code to achieve this, you only need an XMLType
view, based on SQL/XML functions, an industry-standard XSL style sheet, and DBUri
servlet.

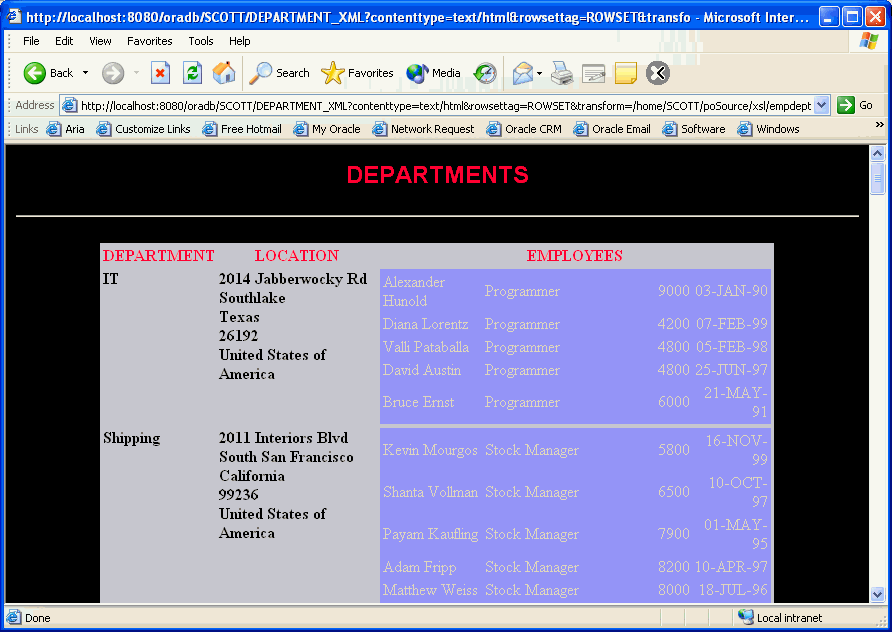

Figure 3-9 Database XSL Transformation of Departments Table Using DBUri Servlet
