This chapter describes how to access data in Oracle XML DB Repository using standard protocols such as FTP and HTTP(S)/WebDAV, and other Oracle XML DB resource Application Program Interfaces (APIs). It also introduces you to using RESOURCE_VIEW
and PATH_VIEW
as the SQL mechanism for accessing and manipulating repository data. It includes a table for comparing repository operations through the various resource APIs.
This chapter contains these topics:
Using the foldering feature in Oracle XML DB you can store content in the database in hierarchical structures, as opposed to traditional relational database structures.
Figure 20-1 is an example of a hierarchical structure that shows a typical tree of folders and files in Oracle XML DB Repository. The top of the tree shows '/', the root folder.
Foldering allows applications to access hierarchically indexed content in the database using the FTP, HTTP(S), and WebDAV protocol standards as if the database content were stored in a file system.
This chapter provides an overview of how to access data in Oracle XML DB Repository folders using the standard protocols. It discusses APIs that you can use to access the repository object hierarchy using Java, SQL, and PL/SQL.

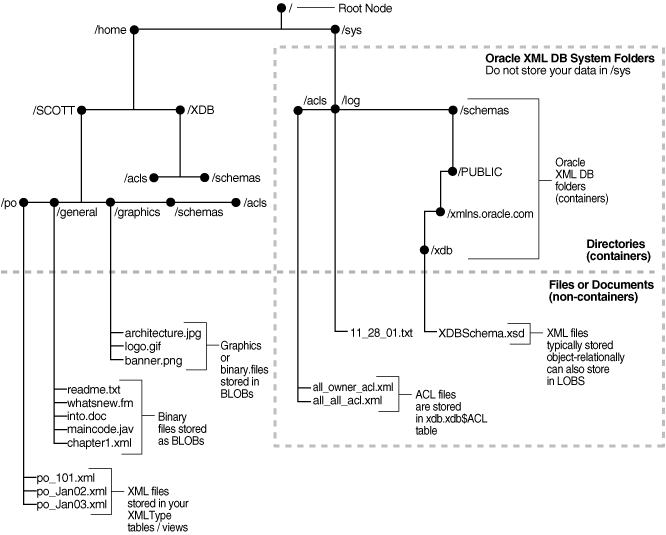

Figure 20-1 A Folder Tree, Showing Hierarchical Structures in the Repository
Note:
Folder/sys
is used by Oracle XML DB to maintain system-defined XML schemas, Access Control Lists (ACLs), and so on. Do not add or modify any data in folder /sys
.See Also:
Chapter 22, "Java Access to Repository Data Using Resource API for Java"
Chapter 25, "FTP, HTTP(S), and WebDAV Access to Repository Data"
Oracle XML DB Repository is the set of database objects, across all XML and database schemas, that are mapped to path names. It is a connected, directed, acyclic graph of resources, with a single root node (/
). Each resource in the graph has one or more associated path names: the repository supports multiple links to a given resource. The repository can be thought of as a file system of objects rather than files.
The following list describes terms used in Oracle XML DB Repository:
resource – Any object or node in the repository hierarchy. Resources are identified by URLs.
folder – A resource that can contain other resources. Sometimes called a directory.
path name – A hierarchical name representing a path to a resource. It is composed of a slash (/
) representing the root, possibly followed by path elements separated by slashes. A path element is the name of a repository resource. A path element may be composed of any character in the database character set except \
and /
, which have special meaning in Oracle XML DB. The slash (/
) is the default name separator in a path name. The backslash (\
) is used to escape special characters, giving them a literal interpretation. The Oracle XML DB configuration file, xdbconfig.xml
, contains a list of user-defined characters that must not appear within a path name (<invalid-pathname-chars>
).
resource name or link name – The name of a resource within its parent folder. Resource names must be unique within a folder and are case-sensitive. Resource names are always in the UTF-8 character set (NVARCHAR
).
resource content – The body, or data, of a resource. This is what you get when you treat the resource as a file and ask for its content. This is always of type XMLType
.
XDBBinary
element – An XML element that contains binary data. It is defined by the Oracle XML DB XML schema. XDBBinary
elements are stored in the repository whenever unstructured binary data is uploaded into Oracle XML DB.
access control list (ACL) – A list of database users that allowed access to one or more specific resources.
Many terms used by Oracle XML DB have common synonyms used in other contexts, as shown in Table 20-1.
Table 20-1 Synonyms for Oracle XML DB Foldering Terms
Synonym | Foldering Term | Usage |
---|---|---|
collection |
folder |
WebDAV |
directory |
folder |
operating systems |
privilege |
privilege |
permission |
right |
privilege |
various |
WebDAV folder |
folder |
web folder |
role |
group |
access control |
revision |
version |
RCS, CVS |
file system |
repository |
operating systems |
hierarchy |
repository |
various |
file |
resource |
operating systems |
binding |
link |
WebDAV |
The list of supplied Oracle XML DB Repository files and folders is as follows. In addition to using these, you can create your own folders and files wherever you want.
/public /sys /sys/acls /sys/acls/all_all_acl.xml /sys/acls/all_owner_acl.xml /sys/acls/bootstrap_acl.xml /sys/acls/ro_all_acl.xml /sys/apps /sys/asm /sys/log /sys/schemas /sys/schemas/PUBLIC /sys/schemas/PUBLIC/www.w3.org /sys/schemas/PUBLIC/www.w3.org/2001 /sys/schemas/PUBLIC/www.w3.org/2001/xml.xsd /sys/schemas/PUBLIC/xmlns.oracle.com /sys/schemas/PUBLIC/xmlns.oracle.com/xdb /sys/schemas/PUBLIC/xmlns.oracle.com/xdb/XDBFolderListing.xsd /sys/schemas/PUBLIC/xmlns.oracle.com/xdb/XDBResource.xsd /sys/schemas/PUBLIC/xmlns.oracle.com/xdb/XDBSchema.xsd /sys/schemas/PUBLIC/xmlns.oracle.com/xdb/XDBStandard.xsd /sys/schemas/PUBLIC/xmlns.oracle.com/xdb/acl.xsd /sys/schemas/PUBLIC/xmlns.oracle.com/xdb/dav.xsd /sys/schemas/PUBLIC/xmlns.oracle.com/xdb/log /sys/schemas/PUBLIC/xmlns.oracle.com/xdb/log/ftplog.xsd /sys/schemas/PUBLIC/xmlns.oracle.com/xdb/log/httplog.xsd /sys/schemas/PUBLIC/xmlns.oracle.com/xdb/log/xdblog.xsd /sys/schemas/PUBLIC/xmlns.oracle.com/xdb/stats.xsd /sys/schemas/PUBLIC/xmlns.oracle.com/xdb/xdbconfig.xsd /xdbconfig.xml
Oracle XML DB Repository resources conform to the Oracle XML DB XML schema xdbresource.xsd
. The elements in a resource include those needed to persistently store WebDAV-defined properties, such as creation date, modification date, WebDAV locks, owner, ACL, language, and character set.
Contents Element in Resource Index
A resource index has a special element called Contents
that contains the contents of the resource.
The XML schema for a resource also defines an any
element, with maxoccurs
attribute unbounded. An any
element can contain any element outside of the Oracle XML DB XML namespace. Arbitrary instance-defined properties can be associated with the resource.
Oracle XML DB stores Oracle XML DB Repository data in a set of tables and indexes to which you have access. If you register an XML schema and request that the tables be generated by Oracle XML DB, then the tables are created in your database schema. You are then able to see or modify them. Other users will not be able to see your tables unless you grant them permission to do so.
The names of the generated tables are assigned by Oracle XML DB and can be obtained by finding the xdb:defaultTable
attribute in your XML schema document (or in the default XML schema document). When you register an XML schema, you can alternatively provide your own table name, instead of using the default name supplied by Oracle XML DB.
Applications that need to define structured storage for resources can do so by either:
Subclassing the Oracle XML DB resource type. Subclassing Oracle XML DB resources requires privileges on the table XDB$RESOURCE
.
Storing data that conforms to a visible, registered XML schema.
The data relating a folder to its contents is managed by the Oracle XML DB hierarchical index. This provides a fast mechanism for evaluating path names, similar to the directory mechanisms used by operating-system file systems.
Resources that are folders have the Container
attribute set to TRUE
.
To resolve a resource name in a folder, the current user must have the following privileges:
resolve
privilege on the folder
read-properties
on the resource in that folder
If the user does not have these privileges, then the user receives an access denied
error. Folder listings and other queries will not return a row when the read-properties
privilege is denied on its resource.
Caution:
Error handling in path-name resolution differentiates between invalid resource names and resources that are not folders, for compatibility with file systems. Because Oracle XML DB resources are accessible from outside Oracle XML DB Repository (using SQL), denying read access on a folder that contains a resource does not prevent read access to that resource.There are two ways to access Oracle XML DB Repository resources:
Navigational or path-based access. This is achieved using a hierarchical index of objects or resources. Each resource has one or more unique path names that reflect its location in the hierarchy. You can use navigational access to reference any XMLType
object in the database, without regard to its location in the relational tablespace. See "Navigational or Path Access".
SQL access to the repository. This is done using special views that expose resource properties and path names, and map hierarchical access operators onto the Oracle XML DB schema. See "Query-Based Access".
Figure 20-2 illustrates these two Oracle XML DB data access options.
See Also:
"Oracle XML DB Application Design: A. How Structured Is Your Data?" for guidance on selecting an access method
Table 20-3, "Accessing Oracle XML DB Repository: API Options" for a summary comparison of the access methods
Figure 20-2 Repository Data Access Options
A Uniform Resource Locator (URL) is used to access an Oracle XML DB resource. A URL includes the host name, protocol information, path name, and resource name of the object.
Oracle XML DB folders support the same protocol standards used by many operating systems. This allows an Oracle XML DB folder to function just like a native folder or directory in supported operating-system environments. For example, you can:
Use Windows Explorer to open and access Oracle XML DB folders and resources the same way you access other directories or resources in the Windows NT file system, as shown in Figure 20-3.
Access Oracle XML DB Repository data using HTTP(S)/WebDAV from an Internet Explorer browser, such as when viewing Web Folders, as shown in Figure 20-4.

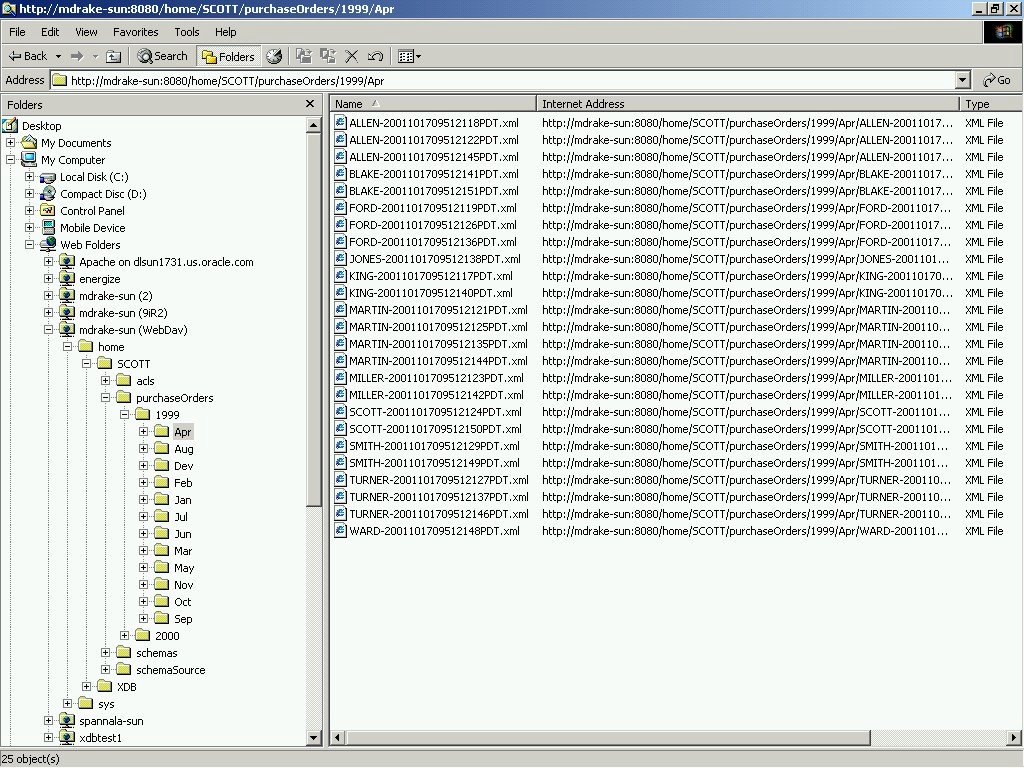

Figure 20-3 Oracle XML DB Folders in Windows Explorer

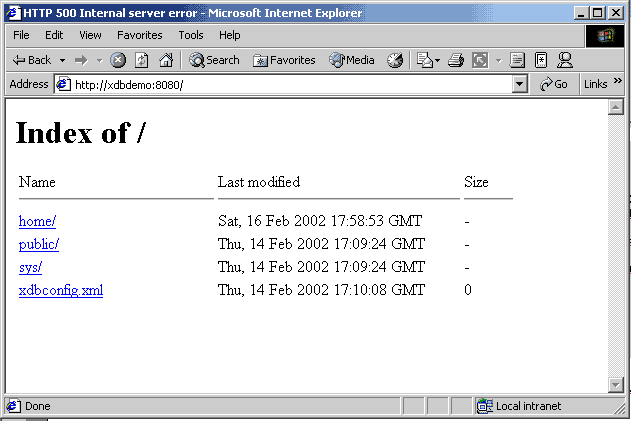

Figure 20-4 Accessing Repository Data Using HTTP(S)/WebDAV and Navigational Access From IE Browser: Viewing Web Folders
Oracle Net Services provides one way of accessing database resources. Oracle XML DB support for Internet protocols provides another way of accessing database resources.
Oracle Net Services is optimized for record-oriented data. Internet protocols are designed for stream-oriented data, such as binary files or XML text documents. Oracle XML DB protocol access is a valuable alternative to Net Services in the following scenarios:
Direct database access from file-oriented applications using the database like a file system
Heterogeneous application server environments that require a uniform data access method (such as XML over HTTP, which is supported by most data servers, including MS SQL Server, Exchange, Notes, many XML databases, stock quote services and news feeds)
Application server environments that require data in the form of XML text
Web applications that use client-side XSL to format datagrams that do not need much application processing
Web applications that use Java servlets that run inside the database
Web access to XML-oriented stored procedures
Follow these steps to use Oracle XML DB protocol access:
A connection object is established, and the protocol might read part of the request.
The protocol decides whether the user is already authenticated and wants to reuse an existing session or the connection must be re-authenticated (the latter is more common).
An existing session is pulled from the session pool, or else a new one is created.
If authentication has not been provided, and the request is HTTP get
or head
, then the session is run as the ANONYMOUS
user. If the session has already been authenticated as the ANONYMOUS
user, then there is no cost to reuse the existing session. If authentication has been provided, then the database re-authentication routines are used to authenticate the connection.
The request is parsed.
(HTTP only) If the requested path name maps to a servlet, then the servlet is invoked using Java Virtual Machine (VM). The servlet code writes the response to a response stream or asks XMLType
instances to do so.
When the protocol indicates that a resource is to be retrieved, the path name to the resource is resolved. Resources being fetched are always streamed out as XML, with the exception of resources containing the XDBBinary
element, an element defined to be the XML binary data type, which have their contents streamed out in RAW form.
When the protocol indicates that a resource must be stored, Oracle XML DB checks the document file name extension for .xml
, .xsl
, .xsd
, and so on. If the document is XML, then a pre-parse step is done, whereby enough of the resource is read to determine the XML schemaLocation
and namespace
of the root element in the document. If a registered schema is located at the schemaLocation
URL, and it has a definition for the root element of the current document, then the default table specified for that root element is used to store the contents of the resource.
Oracle XML DB supports Internet protocols at the XMLType
level by using the writeToStream()
Java method on XMLType
. This method is natively implemented, and writes XMLType
data directly to the protocol request stream. This avoids Java VM execution costs and the overhead of converting database data through Java datatypes and creating Java objects, resulting in significantly higher performance. Performance is further enhanced if the Java code deals only with XML element trees that are close to the root, and does not traverse too many of the leaf elements, so that relatively few Java objects are created.
Automatic Storage Management (ASM) organizes database files into disk groups for simplified management and added benefits such as database mirroring and I/O balancing.
Repository access using protocols and resource APIs (such as DBMS_XDB
) extends to Automatic Storage Management (ASM) files. ASM files are accessed in the virtual repository folder /sys/asm
. However, this access is reserved for DBAs; it is not intended for developers.
A typical use of such access is to copy ASM files from one database instance to another. For example, a DBA can view folder /sys/asm
in a graphical user interface using the WebDAV protocol, and then drag-and-drop a copy of a data-pump dumpset from an ASM disk group to an operating-system file system.
Virtual folder /sys/asm
is created by default during Oracle XML DB installation. If the database is not configured to use ASM, the folder is empty and no operations are permitted on it.
Folder /sys/asm
contains folders and subfolders that follow the hierarchy defined by the structure of an ASM fully qualified filename:
It contains a subfolder for each mounted disk group.
A disk-group folder contains a subfolder for each database that uses that disk group. In addition, a disk-group folder may contain files and folders corresponding to ASM aliases created by the administrator.
A database folder contains file-type folders.
A file-type folder contains ASM files, which are binary.

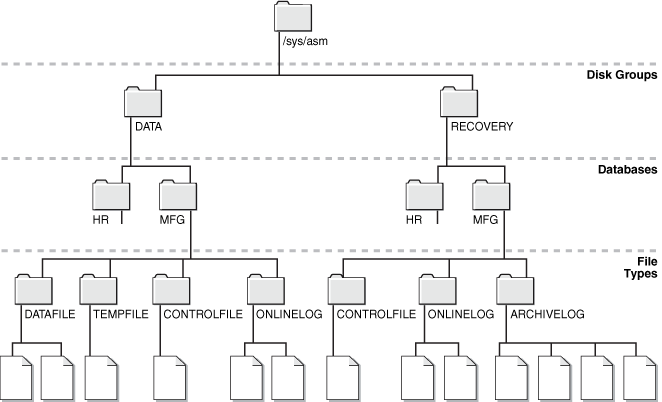

This hierarchy is shown in Figure 20-5, which omits directories created for aliases, for simplicity.
The following usage restrictions apply to virtual folder /sys/asm
. You cannot:
query /sys/asm
using SQL
put regular files under /sys/asm
(you can only only put ASM files there)
move (rename) an ASM file to a different ASM disk group or to a folder outside ASM
create hard links to existing ASM files or directories
In addition:
You must have DBA privileges to view folder /sys/asm
.
To access /sys/asm
using Oracle XML DB protocols, you must log in as a user other than SYS
.
Again, ASM virtual-folder operations are intended only for DBAs, not developers.
See Also:
"Using FTP with ASM Files" for an example of using protocol FTP with /sys/asm
Oracle Database Administrator's Guide for information on the syntax of a fully qualified ASM filename and details on the virtual folder structure
There are two views that enable SQL access to Oracle XML DB Repository data:
PATH_VIEW
RESOURCE_VIEW
Table 20-2 summarizes the differences between PATH_VIEW
and RESOURCE_VIEW
.
Table 20-2 Differences Between PATH_VIEW and RESOURCE_VIEW
PATH_VIEW | RESOURCE_VIEW |
---|---|
Contains link properties |
No link properties |
Has one row for each unique path in repository |
Has one row for each resource in repository |
Rows in these two repository views are of XMLType
. In the RESOURCE_VIEW
, the single path associated with a resource is arbitrarily chosen from among the possible paths that refer to the resource. Oracle XML DB provides SQL functions like under_path
that enable applications to search for the resources contained (recursively) within a particular folder, obtain the resource depth, and so on.
DML can be used on the repository views to insert, rename, delete, and update resource properties and contents. Programmatic APIs must be used for other operations, such as creating links to existing resources.
See Also:
Chapter 22, "SQL Access Using RESOURCE_VIEW and PATH_VIEW" for details on SQL access to Oracle XML DB Repository
Oracle XML DB implements Java Servlet API, version 2.2, with the following exceptions:
All servlets must be distributable. They must expect to run in different VMs.
WAR and web.xml
files are not supported. Oracle XML DB supports a subset of the XML configurations in this file. An XSL style sheet can be applied to the web.xml
to generate servlet definitions. An external tool must be used to create database roles for those defined in the web.xml
file.
JSP (Java Server Pages) support can be installed as a servlet and configured manually.
HTTPSession
and related classes are not supported.
Only one servlet context (that is, one Web application) is supported.
The three main ways you can access data stored in Oracle XML DB Repository resources are through:
Oracle XML DB resource APIs for Java
A combination of Oracle XML DB resource views API and Oracle XML DB resource API for PL/SQL
Internet protocols (HTTP(S)/WebDAV and FTP) and Oracle XML DB protocol server
Table 20-3 lists common Oracle XML DB Repository operations and describes how these operations can be accomplished using each of the three methods. The table shows functionality common to three methods. Note that not all the methods are equally suited to a particular set of tasks.
See Also:
Chapter 22, "Java Access to Repository Data Using Resource API for Java"
Chapter 25, "FTP, HTTP(S), and WebDAV Access to Repository Data"
Table 20-3 Accessing Oracle XML DB Repository: API Options
Data Access | SQL and PL/SQL | Protocols |
---|---|---|
Create resource |
DBMS_XDB.createResource() INSERT INTO PATH_VIEW VALUES (path, res, linkprop); |
HTTP: FTP: |
Update resource contents |
UPDATE RESOURCE_VIEW SET resource = updateXML(res, '/Resource/Contents', lob) WHERE equals_path(res, path) > 0 |
HTTP: FTP: |
Update resource properties |
UPDATE RESOURCE_VIEW SET resource = updateXML(res, '/Resource/propname1', newval, '/Resource/propname2' ...) WHERE equals_path(res, path) > 0 |
WebDAV: |
Update resource ACL |
UPDATE RESOURCE_VIEW SET resource = updateXML(res, '/ Resource/ACL', XMLType) WHERE equals_path(res, path) > 0 |
— |
Unlink resource (delete if last link) |
DBMS_XDB.deleteResource() DELETE FROM RESOURCE_VIEW WHERE equals_path(res, path) > 0 |
HTTP: FTP: |
Forcibly remove all links to resource |
DBMS_XDB.deleteResource() DELETE FROM PATH_VIEW WHERE extractValue(res, 'display_name') = 'My resource' |
FTP: |
Move resource |
UPDATE PATH_VIEW SET path = newpath WHERE equals_path(res, path) > 0 |
WebDAV: FTP: |
Copy resource |
INSERT INTO PATH_VIEW SELECT newpath, res, link FROM PATH_VIEW WHERE equals_path(res, oldpath) > 0 |
WebDAV: |
Create link to existing resource |
CALL DBMS_XDB.link(srcpath IN VARCHAR2, linkfolder IN VARCHAR2, linkname IN VARCHAR2); |
— |
Get binary or text representation of resource contents |
SELECT XDBURIType(path).getBlob() FROM DUAL; SELECT p.res.extract('/Resource/Contents') FROM RESOURCE_VIEW p WHERE equals_path(res, path) > 0 |
HTTP: FTP: |
Get |
SELECT XDBURIType(path).getBlob().getXML FROM DUAL; SELECT extract(res, '/Resource/Contents/*') FROM RESOURCE_VIEW p WHERE equals_path(Res, path) > 0 |
— |
Get resource properties |
SELECT extractValue(res, '/Resource/XXX') FROM RESOURCE_VIEW WHERE equals_path(res, path) > 0 |
WebDAV: |
List directory |
SELECT PATH FROM PATH_VIEW WHERE under_path(res, path, 1) > 0 |
WebDAV: |
Create folder |
Call DBMS_XDB.createFolder(VARCHAR2) |
WebDAV: FTP: |
Unlink folder |
DBMS_XDB.deleteResource() DELETE FROM PATH_VIEW WHERE equals_path(res, path) > 0; |
HTTP: FTP: |
Forcibly delete folder and all links to it |
Call DBMS_XDB.deleteResource(VARCHAR2); |
— |
Get resource with a row lock |
SELECT ... FROM RESOURCE_VIEW FOR UPDATE ...; |
— |
Add WebDAV lock on resource |
DBMS_XDB.LockResource(path, true, true); |
WebDAV: FTP: |
Remove WebDAV lock |
BEGIN DBMS_XDB.GetLockToken(path, deltoken); DBMS_XDB.UnlockToken(path, deltoken); END; |
WebDAV: FTP: |
Commit changes |
COMMIT; |
Automatic commit after each request |
Rollback changes |
ROLLBACK; |
— |
You can set access control privileges on Oracle XML DB folders and resources.
See Also:
Chapter 24, "Repository Resource Security" for more detail on using access control on Oracle XML DB folders
