This chapter introduces Source
objects, which you use to specify a query. With a Source
, you specify the data that you want to retrieve from the data store and the analytical or other operations that you want to perform on the data. Chapter 6, "Making Queries Using Source Methods", provides examples of using Source
objects. Using Template
objects to make modifiable queries is discussed in Chapter 10, "Creating Dynamic Queries".
This chapter includes the following topics:
For information on how to get the complete code for most of the examples in this chapter, see the topic "Sample Schema for OLAP API Examples" in Chapter 1.
After you have used the classes in the oracle.olapi.metadata.mdm
package to get MdmSource
objects that represent OLAP metadata measures and dimensions, you can get Source
objects from them. You can also create other Source
objects with methods of a DataProvider
. You can then use the Source
objects to create a query that specifies the data that you want to retrieve from the database. To retrieve the data, you create a Cursor
for the Source
.
With the methods of a Source
, you can specify selections of dimension or measure values and specify operations on the elements of the Source
, such as mathematical calculations, comparisons, and ordering, adding or removing elements of a query. The Source
class has a few basic methods and many shortcut methods that use one or more of the basic methods. The most complex basic methods are the join(Source joined, Source comparison, int comparisonRule, boolean visible)
method and the recursiveJoin(Source joined, Source comparison, Source parent, int comparisonRule, boolean parentsFirst, boolean parentsRestrictedToBase, int maxIterations, boolean visible)
method. The many other signatures of the join
and recursiveJoin
methods are shortcuts for certain operations of the basic methods.
In this chapter, the information about the join
method applies equally to the recursiveJoin
method, except where otherwise noted. With the join
method, you can select elements of a Source
and, most importantly, you can relate the elements of one Source
to those of another Source
. For example, to specify the dimension members that retrieving the data of a measure requires, you use a join
method to relate the dimension to the measure.
A Source
has certain characteristics, such as a type and a data type, and it sometimes has one or more inputs or outputs. This chapter describes these concepts. It also describes the different kinds of Source
objects and how you get them, the join
method and other Source
methods, and how you use those methods to specify a query.
The kinds of Source
objects that you use to specify data and to perform analysis, and the ways that you get them, are the following:
Primary Source
objects, which are returned by the getSource
method of an MdmSource
object such as an MdmDimension
or an MdmMeasure
. A primary Source
provides access to the data that the MdmSource
represents. Getting primary Source
objects is usually the first step in creating a query. You then typically select elements from the primary Source
objects, thereby producing derived Source
objects.
Derived Source
objects, which you get by calling some of the methods of a Source
object. Methods such as join
return a new Source
that is based on the Source
on which you call the method. All queries on the data store, other than a simple list of values specified by the primary Source
for an MdmSubdimension
, such as an MdmLevelHierarchy
or an MdmLevel
, are derived Source
objects.
Fundamental Source
objects, which are returned by the getSource
method of a FundamentalMetadataObject
. These Source
objects represent the OLAP API data types.
List or range Source
objects, which are returned by the createConstantSource
, createListSource
or createRangeSource
methods of a DataProvider
. Typically, you use this kind of Source
as the joined
or comparison
parameter to a join
method.
Empty, null, or void Source
objects. Empty and void Source
objects are returned by the getEmptySource
or getVoidSource
method of a DataProvider
, and null Source
objects are returned by the nullSource
method of a Source
. An empty Source
has no elements. A void or null Source
has one element that has the value of null
. The difference between them is that the type of a void Source
is the FundamentalMetadataObject
for the Value data type, and the type of a null Source
is the Source
whose nullSource
method returned it. Typically, you use these kinds of Source
objects as the joined
or comparison
parameter to a join
method.
Dynamic Source
objects, which are returned by the getSource
method of a DynamicDefinition
. A dynamic Source
is usually a derived Source
. It is generated by a Template
, which you use to create a dynamic query that you can revise after interacting with an end user.
Parameterized Source
objects, which are returned by the createParameterizedSource
methods of a DataProvider
. Like a list or range Source
, you use a parameterized Source
as a parameter to the join
method. Unlike a list or range Source
, however, you can change the value that the Parameter
represents after the join operation and thereby change the selection that the derived Source
represents. You can create a Cursor
for that derived Source
and retrieve the results of the query. You can then change the value of the Parameter
, and, without having to create a new Cursor
for the derived Source
, use that same Cursor
to retrieve the results of the modified query.
Placeholder Source
objects, which are returned by the getSource
method of the FundamentalMetadataObject
that represents a placeholder for a specific data type. You get the FundamentalMetadataObject
for a placeholder with methods of a FundamentalMetadataProvider
such as the getNumberPlaceholder
or getStringPlaceholder
methods. Oracle OLAP uses placeholder Source
objects in Assignment
objects in an MdmModel
or CustomModel
. In an Assignment
, a placeholder Source
represents the Source
for the current dimensioned Source
to which the value is being assigned. You can use a placeholder Source
in creating a custom dimension member and Oracle OLAP automatically adds an Assignment
to the appropriate Model
.
The Source
class has the following subclasses:
BooleanSource
DateSource
NumberSource
StringSource
These subclasses have different data types and implement Source
methods that require those data types. Each subclass also implements methods unique to it, such as the implies
method of a BooleanSource
or the indexOf
method of a StringSource
.
A Source
has a data type and a type, a Source
identification (ID), and a SourceDefinition
. This topic describes these concepts. Some Source
objects have one or more inputs or outputs. Those complex concepts are discussed in the "Inputs and Outputs of a Source" topic. Some Source

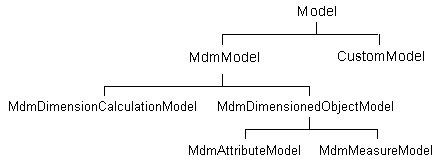

objects have an associated Model
object, which is discussed in the "Model Objects and Source Objects" topic.
As described in Chapter 2, "Understanding OLAP API Metadata", the OLAP API has a class, FundamentalMetadataObject
, that represents the data type of the elements of an MdmSource
. The data type of a Source
is represented by a fundamental Source
. For example, a BooleanSource
has elements that have Java boolean
values. The data type of a BooleanSource
is the fundamental Source
that represents OLAP API Boolean values.
To get the fundamental Source
that represents the data type of a Source
, call the getDataType
method of the Source
. You can also get a fundamental Source
by calling the getSource
method of a FundamentalMetadataObject
.
Example 5-1 demonstrates getting the fundamental Source
for the OLAP API String data type, the Source
for the data type of an MdmPrimaryDimension
, and the Source
for the data type of the Source
for the MdmPrimaryDimension
, and comparing them to verify that they are all the same object. In the example, dp
is the DataProvider
and mdmProdDim
is the MdmPrimaryDimension
for the Product dimension.
Example 5-1 Getting the Data Type of a Source
FundamentalMetadataProvider fmp = dp.getFundamentalMetadataProvider(); FundamentalMetadataObject fmoStringDataType = fmp.getStringDataType(); Source stringDataTypeSource = fmoStringDataType.getSource(); FundamentalMetadataObject fmoMdmProdDimDataType = mdmProdDim.getDataType(); Source mdmProdDimDataTypeSource = fmoMdmProdDimDataType.getSource(); Source prodDim = mdmProdDim.getSource(); Source prodDimDataTypeSource = prodDim.getDataType(); if(stringDataTypeSource == prodDimDataTypeSource && mdmProdDimDataTypeSource == prodDimDataTypeSource) println("The Source objects for the data types are the same."); else println("The Source objects for the data types are not the same.");
The example displays the following:
The Source objects for the data types are the same.
Along with a data type, a Source
has a type, which is the Source
from which the elements of the Source
are drawn. The type of a Source
determines whether the join
method can match the Source
to an input of another Source
. The only Source
that does not have a type is the fundamental Source
for the OLAP API Value data type, which represents the set of all values, and from which all other Source
objects ultimately descend.
The type of a fundamental Source
is the data type of the Source
. The type of a list or range Source
is the data type of the values of the elements of the list or range Source
.
The type of a primary Source
is one of the following:
The fundamental Source
that represents the data type of the values of the elements of the primary Source
. For example, the Source
returned by getSource
method of a typical MdmMeasure
is the fundamental Source
that represents the set of all OLAP API number values.
The Source
for the MdmSource
of which the MdmSource
of the primary Source
is a component. For example, the type of the Source
returned by the getSource
method of an MdmLevelHierarchy
is the Source
for the MdmPrimaryDimension
of which the hierarchy is a component.
The type of a derived Source
is one of the following:
The base Source
, which is the Source
whose method returned the derived Source
. A Source
returned by the alias
, extract
, join
, recursiveJoin
, or value
methods, or one of their shortcuts, has the base Source
as the type. An exception is the derived Source
returned by the distinct
method, whose type is the type of the base Source
rather than the base Source
itself.
A fundamental Source
. Methods such as position
and count
return a Source
the type of which is the fundamental Source
for the OLAP API Integer data type. Methods that make comparisons, such as eq
, le
, and so on, return a Source
the type of which is the fundamental Source
for the Boolean data type. Methods that perform aggregate functions, such as the NumberSource
methods total
and average
, return as the type of the Source
a fundamental Source
that represents the function.
You can find the type by calling the getType
method of a Source
.
A Source
derived from another Source
is a subtype of the Source
from which it is derived. You can use the isSubtypeOf
method to determine if a Source
is a subtype of another Source
.
For example, in Example 5-2 the myList
object is a list Source
. The example uses myList
to select values from prodHier
, a Source
for the default MdmLevelHierarchy
of the MdmPrimaryDimension
for the Product dimension. In the example, dp
is the DataProvider
.
Example 5-2 Using the isSubtypeOf Method
Source myList = dp.createListSource(new String[] { "PRODUCT_PRIMARY_AW::FAMILY_AW::4", "PRODUCT_PRIMARY_AW::FAMILY_AW::5", "PRODUCT_PRIMARY_AW::FAMILY_AW::7", "PRODUCT_PRIMARY_AW::FAMILY_AW::8"}); Source prodSel = prodHier.selectValues(myList); if (prodSel.isSubtypeOf(prodHier)) println("prodSel is a subtype of prodHier."); else println("prodSel is not a subtype of prodHier.");
Because prodSel
is a subtype of prodHier
, the condition in the if
statement is true and the example displays the following:
prodSel is a subtype of prodHier.
The type of both myList
and prodHier
is the fundamental String Source
. The type of prodSel
is prodHier
because the elements of prodSel
are derived from the elements of prodHier
.
The supertype of a Source
is the type of the type of a Source
, and so on, up through the types to the Source
for the fundamental Value data type. For example, the fundamental Value Source
is the type of the fundamental String Source
, which is the type of prodHier
, which is the type of prodSel
. The fundamental Value Source
and the fundamental String Source
are both supertypes of prodSel
. The prodSel
Source
is a subtype of prodHier
, and of the fundamental String Source
, and of the fundamental Value Source
.
A Source
has an identification, an ID, which is a String
that uniquely identifies it during the current connection to the database. You can get the identification by calling the getID
method of a Source
. For example, the following code gets the identification of the Source
for the MdmPrimaryDimension
for the Product dimension and displays the value.
println("The Source ID of prodDim is " + prodDim.getID());
The preceding code displays the following:
The Source ID of prodDim is Hidden..D_GLOBAL_AW.PRODUCT_AW
The text displayed by Example 5-9 has several examples of Source
identifications.
Each Source
has a SourceDefinition
object, which records information about the Source
. The different kinds of Source
objects have different kinds of SourceDefinition
objects. For example, the fundamental Source
for an MdmPrimaryDimension
has an MdmSourceDefinition
, which is a subclass of HiddenDefinition
, which is a subclass of SourceDefinition
.
The SourceDefinition
of a Source
that is produced by a call to the join
method is an instance of the JoinDefinition
class. From a JoinDefinition
you can get information about the parameters of the join operation that produced the Source
, such as the base Source
, the joined Source
, the comparison Source
, the comparison rule, and the value of the visible
parameter.
The inputs and the outputs of a Source
are complex and powerful aspects of the class. This section describes the concepts of inputs and outputs and provides examples of how they are related.
A Source
that has inputs is a dimensioned Source
. An input of a Source
is also a Source
. An input indicates that the values of the dimensioned Source
depend upon an unspecified set of values of the input. A Source
that matches to the input provides the values that the input requires. You match an input to a dimensioned Source
by using the join
method. For information on how to match a Source
to an input, see "Matching a Source To an Input".
Certain Source
objects always have one or more inputs. They are the Source
objects for the MdmDimensionedObject
subclasses MdmMeasure
and MdmAttribute
. They have inputs because the values of a measure or attribute are specified by the values of their dimensions. The inputs of the Source
for the measure or attribute are the Source
objects for the dimensions of the measure or the attribute. Before you can retrieve the data for a measure or an attribute, you must match each input to a Source
that provides the required values.
Some Source
methods produce a Source
that has an input. You can produce a Source
that has an input by using the extract
, position
, or value
methods. These methods provide a means of producing a Source
whose elements are a subset of the elements of another Source
. A Source
produced by one of these methods has the base Source
as an input.
For example, in the following code, the base Source
is prodHier
. The value
method produces prodHierValues
, which has prodHier
as an input.
Source prodHierValues = prodHier.value();
The input provides the means to select values from prodHier
, as demonstrated by Example 5-2. The selectValues
method in Example 5-2 is a shortcut for the following join
method.
Source prodSel = prodHier.join(prodHier.value(), myList, Source.COMPARISON_RULE_SELECT, false);
The parameters of the join
method specify the elements of the base Source
that appear in the resulting Source
. In the example, the joined
parameter is the Source
produced by the prodHier.value()
method. The resulting unnamed Source
has prodHier
as an input. The input is matched by the base of the join
method, which is also prodHier
. The result of the join operation, prodSel
, has the values of prodHier
that match the values of prodHier
that are in the comparison Source
, myList
.
If the joined Source
were prodHier
and not the Source
produced by prodHier.value()
, then the comparison would be between the Source
object itself and the values of the comparison Source
and not between the values of the Source
and the values of the comparison Source
. Because the joined Source
object does not match any of the values of the comparison Source
, the result of the join
method would have all of the elements of prodHier
instead of having only the values of prodHier
that are specified by the values of the joined Source
that match the values of the comparison Source
as specified by the comparison rule.
The input of a Source
produced by the position
or value
method, and an input intrinsic to an MdmDimensionedObject
, are regular inputs. A regular input causes the join
method, when it matches a Source
to the input, to compare the values of the comparison Source
to the values of the Source
that has the input rather than to the input Source
itself.
The input of a Source
produced by the extract
method is an extraction input. An extraction input differs from a regular input in that, when a value of the Source
that has the extraction input is a Source
, the join
method extracts the values of the Source
that is a value of the Source
that has the input. The join
method then compares the values of the comparison Source
to the extracted values rather than to the Source
itself.
A Source
can have from zero to many inputs. You can get all of the inputs of a Source
by calling the getInputs
method, the regular inputs by calling the getRegularInputs
method, and the extraction inputs by calling the getExtractionInputs
method. Each of those methods returns a Set
of Source
objects.
The join
method returns a Source
that has the elements of the base Source
that are specified by the parameters of the method. If the value of the visible
parameter is true
, then the joined Source
becomes an output of the returned Source
. An output of a Source
returned by the join
method has the elements of the joined Source
that specify the elements of the returned Source
. An output is a means of identifying the elements of the joined Source
that specify the elements of the Source
that has the output.
A Source
can have from zero to many outputs. You can get the outputs of a Source
by calling the getOutputs
method, which returns a List
of Source
objects.
A Source
with more than one output has one or more elements for each set of the elements of the outputs. For example, a Source
that represents a measure that has had all of the inputs matched, and has had the Source
objects that match the inputs turned into outputs, has a single type element for each set of the elements of the outputs because each data value of the measure is identified by a unique set of the values of the dimensions. A Source
that represents dimension values that are selected by some operation performed on the data of a measure, however, might have more than one element for each set of the elements of the outputs. An example is a Source
that represents product values that have unit costs greater than a certain amount. Such a Source
might have several products for each time period that have a unit cost greater than the specified amount.
Example 5-3 produces a selection of the elements of shipHier
, which is a Source
for a hierarchy of a dimension of customer values. The customers are grouped by a shipment origination and destination hierarchy.
Example 5-3 Using the join Method To Produce a Source Without an Output
Source custValuesToSelect = dp.createListSource(new String[] {"SHIPMENTS_AW::REGION_AW::9", "SHIPMENTS_AW::REGION_AW::10"}); Source shipHierValues = shipHier.value(); Source custSel = shipHier.join(shipHierValues, custValuesToSelect, Source.COMPARISON_RULE_SELECT, false);
The shipHierValues
Source
has an input of shipHier
. In the join
method in the example, the base Source
, shipHier
, matches the input of the joined Source
, shipHierValues
because the base and the input are the same object. The join
method selects the elements of the base shipHier
whose values match the values of the joined shipHier
that are specified by the comparison Source
, custValuesToSelect
. The method produces a Source
, custSel
, that has only the selected elements of shipHier
. Because the visible
parameter is false
, the joined Source
is not an output of custSel
. The custSel
Source
therefore has only two elements, the values of which are SHIPMENTS_AW::REGION_AW::9
and SHIPMENTS_AW::REGION_AW::10
.
You produce a Source
that has an output by specifying true
as the visible
parameter to the join
method. Example 5-4 joins the Source
objects for the dimension selections from Example 5-2 and Example 5-3 to produce a Source
, custSelByProdSel
, that has one output. The custSelByProdSel
Source
has the elements from custSel
that are specified by the elements of prodSel
.
The comparison Source
is an empty Source
, which has no elements and which is the result of the getEmptySource
method of the DataProvider
, dp
. The comparison rule value, COMPARISON_RULE_REMOVE
, selects only the elements of prodSel
that are not in the comparison Source
. Because the comparison Source
has no elements, all of the elements of the joined Source
are selected. Each of the elements of the joined Source
specify all of the elements of the base Source
. The resulting Source
, custSelByProdSel
, therefore has all of the elements of custSel
.
Because the visible
parameter is true
in Example 5-4, prodSel
is an output of custSelByProdSel
. Therefore, for each element of the output, custSelByProdSel
has the elements of custSel
that are specified by that element of the output. Because the custSel
and prodSel
are both simple lists of dimension values, the result is the cross product of the elements of both Source
objects.
Example 5-4 Using the join Method To Produce a Source With an Output
Source custSelByProdSel = custSel.join(prodSel, dp.getEmptySource(), Source.COMPARISON_RULE_REMOVE, true);
To actually retrieve the data specified by custSelByProdSel
, you must create a Cursor
for it. Such a Cursor
contains the values shown in the following table, which has headings added that indicate that the values from the output, prodSel
, are in the left column and the values from the elements of the custSelByProdSel
Source
, which are derived from the type, custSel
, are in the right column.
Output Values Type Values ------------------------- ---------------------------- PRODUCT_PRIMARY_AW::FAMILY::4 SHIPMENTS_AW::REGION_AW::10 PRODUCT_PRIMARY_AW::FAMILY::4 SHIPMENTS_AW::REGION_AW::9 PRODUCT_PRIMARY_AW::FAMILY::5 SHIPMENTS_AW::REGION_AW::10 PRODUCT_PRIMARY_AW::FAMILY::5 SHIPMENTS_AW::REGION_AW::9 PRODUCT_PRIMARY_AW::FAMILY::8 SHIPMENTS_AW::REGION_AW::10 PRODUCT_PRIMARY_AW::FAMILY::8 SHIPMENTS_AW::REGION_AW::9 PRODUCT_PRIMARY_AW::FAMILY::7 SHIPMENTS_AW::REGION_AW::10 PRODUCT_PRIMARY_AW::FAMILY::7 SHIPMENTS_AW::REGION_AW::9
The custSelByProdSel
Source
has two type elements, and the output of the custSelByProdSel
has four elements. The number of elements of custSelByProdSel
is eight because for this Source
, each output element specifies the same set of two type elements.
Each join operation that specifies a visible
parameter of true
adds an output to the list of outputs of the resulting Source
. For example, if a Source
has two outputs and you call one of the join
methods that produces an output, then the Source
that results from the join operation has three outputs. You can get the outputs of a Source
by calling the getOutputs
method, which returns a List
of Source
objects.
Example 5-5 demonstrates joining a measure to selections from the dimensions of the measure, thus matching to the inputs of the measure Source
objects that provide the required elements. Because the last two join
methods match the dimension selections to the inputs of the measure, the resulting Source
does not have any inputs. Because the visible
parameter in those joins is true
, the last join
method produces a Source
that has two outputs.
Example 5-5 gets the Source
for the measure of unit costs. That Source
, unitCost
, has two inputs, which are the primary Source
objects for the Time and Product dimensions, which are the dimensions of unit cost. The example gets the Source
objects for level hierarchies of the dimensions, which are subtypes of the Source
objects for the dimensions. It produces selections of the level hierarchies and then joins those selections to the measure. The result, unitCostSel
, specifies the unit costs of the selected products at the selected times.
Example 5-5 Using the join Method To Match Source Objects To Inputs
Source unitCost = mdmUnitCost.getSource(); Source calendar = mdmCalendar.getSource(); Source prodHier = mdmProdHier.getSource(); Source timeSel = calendar.join(calendar.value(), dp.createListSource(new String[] {"CALENDAR_YEAR_AW::MONTH_AW::47", "CALENDAR_YEAR_AW::MONTH_AW::59"}), Source.COMPARISON_RULE_SELECT, false); Source prodSel = prodHier.join(prodHier.value(), dp.createListSource(new String[] {"PRODUCT_PRIMARY_AW::ITEM_AW::13", "PRODUCT_PRIMARY_AW::ITEM_AW::14", "PRODUCT_PRIMARY_AW::ITEM_AW::15"}), Source.COMPARISON_RULE_SELECT, false); Source unitCostSel = unitCost.join(timeSel, dp.getEmptySource(), Source.COMPARISON_RULE_REMOVE, true) .join(prodSel, dp.getEmptySource(), Source.COMPARISON_RULE_REMOVE, true);
The unnamed Source
that results from joining timeSel
to unitCost
has one output, which is timeSel
. Joining prodSel
to that unnamed Source
produces unitCostSel
, which has two outputs, timeSel
and prodSel
. The unitCostSel
Source
has the elements from the type, unitCost
, that are specified by the outputs.
A Cursor
for unitCostSel
contains the following, displayed as a table with headings added that indicate the structure of the Cursor
. A Cursor
has the same structure as the associated Source
. The unit cost values are formatted as dollar values.
Output 1 Output 2 Type Values Values Values ------------------------------- ------------------------- -------- PRODUCT_PRIMARY_AW::ITEM_AW::13 CALENDAR_YEAR_AW::MONTH_AW::47 2897.40 PRODUCT_PRIMARY_AW::ITEM_AW::13 CALENDAR_YEAR_AW::MONTH_AW::59 2376.73 PRODUCT_PRIMARY_AW::ITEM_AW::14 CALENDAR_YEAR_AW::MONTH_AW::47 3238.36 PRODUCT_PRIMARY_AW::ITEM_AW::14 CALENDAR_YEAR_AW::MONTH_AW::59 3015.90 PRODUCT_PRIMARY_AW::ITEM_AW::15 CALENDAR_YEAR_AW::MONTH_AW::47 2847.47 PRODUCT_PRIMARY_AW::ITEM_AW::15 CALENDAR_YEAR_AW::MONTH_AW::59 2819.85
Output 1 has the values from prodSel
, output 2 has the values from timeSel
, and the type values are the values from unitCost
that are specified by the output values.
Because these join operations are performed by most OLAP API applications, the API provides shortcuts for these and many other join operations. Example 5-6 uses shortcuts for the join operations in Example 5-5 to produce the same result.
Source unitCost = mdmUnitCost.getSource(); StringSource calendar = (StringSource) mdmCalendar.getSource(); StringSource prodHier =(StringSource) mdmProdHier.getSource(); Source timeSel = calendar.selectValues(new String[] {"CALENDAR_YEAR_AW::MONTH_AW::47", "CALENDAR_YEAR_AW::MONTH_AW::59"}), Source prodSel = prodHier.selectValues(new String[] {"PRODUCT_PRIMARY_AW::ITEM_AW::13", "PRODUCT_PRIMARY_AW::ITEM_AW::14", "PRODUCT_PRIMARY_AW::ITEM_AW::15"}), Source unitCostSel = unitCost.join(timeSel).join(prodSel);
In a join operation, a Source
-to-input match occurs only between the base Source
and the joined Source
. A Source
matches an input if one of the following conditions is true.
The Source
is the same object as the input or it is a subtype of the input.
The Source
has an output that is the same object as the input or the output is a subtype of the input.
The output has an output that is the same object as the input or is a subtype of the input.
The join operation looks for the conditions in the order in the preceding list. It searches the list of outputs of the Source
recursively, looking for a match to the input. The search ends with the first matching Source
. An input can match with only one Source
, and two inputs cannot match with the same Source
.
When a Source
matches an input, the result of the join
method has the elements of the base that match the elements specified by the parameters of the method. You can determine if a Source
matches another Source
, or an output of the other Source
, by passing the Source
to the findMatchFor
method of the other Source
.
When a Source
matches an input, the resulting Source
does not have that input. Matching a Source
to an input does not affect the outputs of the base Source
or the joined Source
. If a base Source
has an output that matches the input of the joined Source
, the resulting Source
does not have the input but it does have the output.
If the base Source
or the joined Source
in a join operation has an input that is not matched in the operation, then the unmatched input is an input of the resulting Source
.
The comparison Source
of a join
method does not participate in the input matching. If the comparison Source
has an input, then that input is not matched and the Source
returned by the join
method has that same input.
Example 5-7 demonstrates a base Source
matching the input of the joined Source
in a join operation. The example uses the position
method to produce a Source
that has an input, and then uses the join
method to match the base of the join operation to the input of the joined Source
.
Example 5-7 Matching the Base Source to an Input of the Joined Source
Source myList = dp.createListSource(new String[] "PRODUCT_PRIMARY_AW::FAMILY_AW::4", "PRODUCT_PRIMARY_AW::FAMILY_AW::5", "PRODUCT_PRIMARY_AW::FAMILY_AW::7", "PRODUCT_PRIMARY_AW::FAMILY_AW::8"}); Source pos = dp.createListSource(new int[] {2, 4}); Source myListPos = myList.position(); Source myListSel = myList.join(myListPos, pos, Source.COMPARISON_RULE_SELECT, false);
In Example 5-7, the position
method returns myListPos
, which has the elements of myList
and which has myList
as an input. The join
method matches the base myList
to the input of the joined Source
, myListPos
.
The comparison Source
, pos
, specifies the positions of the elements of myListPos
to match to the positions of the elements of myList
. The elements of the resulting Source
, myListSel
, are the elements of myList
whose positions match those specified by the parameters of the join
method.
A Cursor
for myListSel
has the following values.
PRODUCT_PRIMARY_AW::FAMILY_AW::5 PRODUCT_PRIMARY_AW::FAMILY_AW::8
If the visible
parameter in Example 5-7 were true
instead of false
, then the result would have elements from myList
and an output of myListPos
. A Cursor
for myListSel
in that case would have the following values, displayed as a table with headings added that indicate the output and type values.
Output Type Values Values ------ ------------------------- 2 PRODUCT_PRIMARY_AW::FAMILY_AW::5 4 PRODUCT_PRIMARY_AW::FAMILY_AW::8
Example 5-8 demonstrates matching outputs of the joined Source
to two inputs of the base Source
. In the example, units
is a Source
for an MdmMeasure
. It has as inputs the primary Source
objects for the Time, Product, Customer, and Channel dimensions.
The DataProvider
is dp
, and prodHier
, shipHier
, calendar
, and chanHier
are the Source
objects for the default hierarchies of the Product, Customer, Time, and Channel dimensions, respectively. Those Source
objects are subtypes of the Source
objects for the dimensions that are the inputs of units
.
The join
method of prodHier
in the first line of Example 5-8 results in prodSel
, which specifies selected product values. In that method, the joined Source
is the result of the value
method of prodHier
. The joined Source
has the same elements as prodHier
, and it has prodHier
as an input. The comparison Source
is the list Source
that is the result of the createListSource
method of the DataProvider
.
The base Source
of the join
method, prodHier
, matches the input of the joined Source
. Because prodHier
is the input of the joined Source
, the Source
returned by the join
method has only the elements of the base, prodHier
, that match the elements of the joined Source
that appear in the comparison Source
. Because the visible
parameter value is false
, the resulting Source
does not have the joined Source
as an output. The next three similar join operations in Example 5-8 result in selections for the other three dimensions.
The join
method of timeSel
has custSel
as the joined Source
. The comparison Source
is the result of the getEmptySource
method, so it has no elements. The comparison rule specifies that the elements of the joined Source
that are present in the comparison Source
do not appear in the resulting Source
. Because the comparison Source
has no elements, all of the elements of the joined Source
are selected. The true
value for the visible
parameter causes the joined Source
to be an output of the Source
returned by the join
method. The returned Source
, custSelByTime
, has the selected elements of the Customer dimension and has timeSel
as an output.
The join
method of prodSel
has custSelByTime
as the joined Source
. It produces prodByCustByTime
, which has the selected elements from the Product dimension and has custSelByTime
as an output. Example 5-8 then joins the dimension selections to the units
Source
.
The dimension selections are subtypes of the Source
objects that are the inputs of units
, and therefore the selections match the inputs of units
. The input for the Product dimension is matched by prodByCustByTime
because prodByCustByTime
is a subtype of prodSel
, which is a subtype of prodHier
. The input for the Customer dimension is matched by the custSelByTime
, which is the output of prodByCustByTime
.
The custSelByTime
Source
is a subtype of custSel
, which is a subtype of shipHier
. The input for the times dimension is matched by timeSel
, which is the output of custSelByTime
. The timeSel
Source
is a subtype of calendar
.
Example 5-8 Matching an Input of the Base Source to an Output of the Joined Source
Source prodSel = prodHier.join(prodHier.value(), dp.createListSource(new String[] {"PRODUCT_PRIMARY_AW::FAMILY_AW::4", "PRODUCT_PRIMARY_AW::FAMILY_AW::5"}), Source.COMPARISON_RULE_SELECT, false); Source custSel = shipHier.join(shipHier.value(), dp.createListSource(new String[] {"SHIPMENTS_AW::REGION_AW::9", "SHIPMENTS_AW::REGION_AW::10"}), Source.COMPARISON_RULE_SELECT, false); Source timeSel = calendar.join(calendar.value(), dp.createConstantSource( "CALENDAR_YEAR_AW::YEAR::4"), Source.COMPARISON_RULE_SELECT, false); Source chanSel = chanHier.join(chanHier.value(), dp.createConstantSource( "CHANNEL_PRIMARY_AW::CHANNEL_AW::4"), Source.COMPARISON_RULE_SELECT, false); Source custSelByTime = custSel.join(timeSel, dp.getEmptySource(), Source.COMPARISON_RULE_REMOVE, true); Source prodByCustByTime = prodSel.join(custSelByTime, dp.getEmptySource(), Source.COMPARISON_RULE_REMOVE, true); Source selectedUnits = units.join(prodByCustByTime, dp.getEmptySource(), Source.COMPARISON_RULE_REMOVE, true) .join(promoSel, dp.getEmptySource(), Source.COMPARISON_RULE_REMOVE, true ), .join(chanSel, dp.getEmptySource(), Source.COMPARISON_RULE_REMOVE, true);
A Cursor
for selectedUnits
contains the following values, displayed in a crosstab format with column headings and formatting added. The table has only the local values of the dimension elements. The first two lines are the page edge values of the crosstab, which are the values of the chanSel
output of selectedUnits
, and the value of timeSel
, which is an output of the prodByCustByTime
output of selectedUnits
. The row edge values of the crosstab are the customer values in the left column, and the column edge values are the products values that head the middle and right columns.
The crosstab has only the local value portion of the unique values of the dimension elements. The measure values are the units sold values specified by the selected dimension values.
4 4 Products ---------- Customers 4 5 --------- --- ---- 9 215 439 10 846 1748
The following table has the same results except that the dimension element values are replaced by the short descriptions of those values.
Internet 2001 Products ------------------------- Customers Portable PCs Desktop PCs ------------- ------------ ----------- Europe 215 439 North America 846 1748
To demonstrate turning inputs into outputs, Example 5-9 uses units
, which is the Source
for the Units measure, and defaultHiers
, which is an ArrayList
of the Source
objects for the default hierarchies of the dimensions of the measure. The example gets the inputs and outputs of the Source
for the measure. It displays the Source
identifications of the Source
for the measure and for the inputs of the Source
. The inputs of the Source
for the measure are the Source
objects for the MdmPrimaryDimension
objects that are the dimensions of the measure.
Example 5-9 next displays the number of inputs and outputs of the Source
for the measure. Using the join(Source joined)
method, which produces a Source
that has the elements of the base of the join operation as the elements of it and the joined
parameter Source
as an output, it joins one of the hierarchy Source
objects to the Source
for the measure, and displays the number of inputs and outputs of the resulting Source
. It then joins each remaining hierarchy Source
to the result of the previous join operation and displays the number of inputs and outputs of the resulting Source
.
Finally the example gets the outputs of the Source
produced by the last join operation, and displays the Source
identifications of the outputs. The outputs of the last Source
are the Source
objects for the default hierarchies, which the example joined to the Source
for the measure. Because the Source
objects for the hierarchies are subtypes of the Source
objects for the MdmPrimaryDimension
objects that are the inputs of the measure, they match those inputs.
Example 5-9 Matching the Inputs of a Measure and Producing Outputs
Set inputs = units.getInputs(); Iterator inputsItr = inputs.iterator(); List outputs = units.getOutputs(); Source input = null; int i = 1; println("The inputs of " + units.getID() + " are:"); while(inputsItr.hasNext()) { input = (Source) inputsItr.next(); println(i + ": " + input.getID()); i++; } println(" "); int setSize = inputs.size(); for(i = 0; i < (setSize + 1); i++) { println(units.getID() + " has " + inputs.size() + " inputs and " + outputs.size() + " outputs."); if (i < setSize) { input = defaultHiers.get(i); println("Joining " + input.getID() + " to " + units.getID()); units = units.join(input); inputs = units.getInputs(); outputs = units.getOutputs(); } } println("The outputs of " + units.getID() + " are:"); Iterator outputsItr = outputs.iterator(); i = 1; while(outputsItr.hasNext()) { Source output = (Source) outputsItr.next(); println(i + ": " + output.getID()); i++; }
The text displayed by the example is the following:
The inputs of Hidden..M_GLOBAL_AW.UNITS_CUBE_AW.UNITS_AW are: 1: Hidden..D_GLOBAL_AW.PRODUCT_AW 2: Hidden..D_GLOBAL_AW.CHANNEL_AW 3: Hidden..D_GLOBAL_AW.CUSTOMER_AW 4: Hidden..D_GLOBAL_AW.TIME_AW Hidden..M_GLOBAL_AW.UNITS_CUBE_AW.UNITS_AW has 4 inputs and 0 outputs. Joining Hidden..D_GLOBAL_AW.PRODUCT_AW.PRODUCT_PRIMARY_AW to Hidden..M_GLOBAL_AW.UNITS_CUBE_AW.UNITS_AW Join.30 has 3 inputs and 1 outputs. Joining Hidden..D_GLOBAL_AW.CUSTOMER_AW.SHIPMENTS_AW to Join.30 Join.31 has 2 inputs and 2 outputs. Joining Hidden..D_GLOBAL_AW.TIME_AW.CALENDAR_YEAR_AW to Join.31 Join.32 has 1 inputs and 3 outputs. Joining Hidden..D_GLOBAL_AW.CHANNEL_AW.CHANNEL_PRIMARY_AW to Join.32 Join.33 has 0 inputs and 4 outputs. The outputs of Join.33 are: 1: Hidden..D_GLOBAL_AW.CHANNEL_AW.CHANNEL_PRIMARY_AW 2: Hidden..D_GLOBAL_AW.TIME_AW.CALENDAR_YEAR_AW 3: Hidden..D_GLOBAL_AW.CUSTOMER_AW.SHIPMENTS_AW 4: Hidden..D_GLOBAL_AW.PRODUCT_AW.PRODUCT_PRIMARY_AW
Note that as each successive Source
for a hierarchy is joined to the result of the previous join operation, it becomes the first output in the List
of outputs of the resulting Source
. Therefore, the first output of Join.33
is Hidden..D_GLOBAL_AW.CHANNEL_AW.CHANNEL_PRIMARY_AW
, and the last output is Hidden..D_GLOBAL_AW.PRODUCT_AW.PRODUCT_PRIMARY_AW
.
Parameterized Source
objects provide a way of specifying a query and retrieving different result sets for the query by changing the set of elements specified by the parameterized Source
. You create a parameterized Source
with a createParameterizedSource
method of the DataProvider
that you are using. In creating the parameterized Source
, you supply a Parameter
object. The Parameter
supplies the value that the parameterized Source
specifies.
Parameter
objects are similar to CursorInput
objects in that you use them to specify an initial value for a Source
that is part of a query. A typical use of both Parameter
and CursorInput
objects is to specify the page edges of a cube. Example 6-9 demonstrates using Parameter
objects to specify page edges.
An advantage of Parameter
objects over CursorInput
objects is that with Parameter
objects you can easily fetch from the server only the set of elements that you currently need. Example 6-15 demonstrates using Parameter
objects to fetch different sets of elements.
When you create a Parameter
object, you supply an initial value for the Parameter
. You then create the parameterized Source
using the Parameter
. You include the parameterized Source
in specifying a query. You create a Cursor
for the query. You can change the value of the Parameter
with the setValue
method, which changes the set of elements that the query specifies. Using the same Cursor
, you can then display the new set of values.
Example 5-10 demonstrates the use of a Parameter
and a parameterized Source
to specify an element in a measure dimension. It creates a list Source
that has as element values the Source
objects for Unit Cost and Unit Price measures. The example creates a StringParameter
object that has as an initial value the unique identifying String
for the Source
for the Unit Cost measure. That StringParameter
is then used to create a parameterized Source
.
The example extracts the values from the measures, and then selects the data values that are specified by joining the dimension selections to the measure specified by the parameterized Source
. It creates a Cursor
for the resulting query and displays the results. After resetting the Cursor
position and changing the value of the measParam
StringParameter
, the example displays the values of the Cursor
again.
The dp
object is the DataProvider
. The getContext
method gets a Context10g
object that has a method that displays the values of the Cursor
with only the local value of the dimension elements.
Example 5-10 Using a Parameterized Source With a Measure Dimension
Source measDim = dp.createListSource(new Source[] {unitCost, unitPrice}); // Get the unique identifiers of the Source objects for the measures. String unitCostID = unitCost.getID(); String unitPriceID = unitPrice.getID(); // Create a StringParameter using one of the IDs as the initial value. StringParameter measParam = new StringParameter(dp, unitCostID); // Create a parameterized Source. StringSource measParamSrc = dp.createParameterizedSource(measParam); // Extract the values from the measure dimension elements, and join // them to the specified measure and the dimension selections. Source result = measDim.extract().join(measDim, measParamSrc) .join(prodSelShortDescr) .join(timeSelShortDescr); // Get the TransactionProvider and prepare and commit the // current transaction. These operations are not shown. // Create a Cursor. CursorManagerSpecification cMngrSpec = dp.createCursorManagerSpecification(results); SpecifiedCursorManager spCMngr = dp.createCursorManager(cMngrSpec); Cursor resultsCursor = spCMngr.createCursor(); // Display the results. getContext().displayCursor(resultsCursor, true); //Reset the Cursor position to 1. resultsCursor.setPosition(1); // Change the value of the parameterized Source. measParam.setValue(unitPriceID); // Display the results again. getContext().displayCursor(resultsCursor, true);
The following table displays the first set of values of resultsCursor
, with column headings and formatting added. The left column of the table has the local value of the Time dimension hierarchy. The second column from the left has the short value description of the time value. The third column has the local value of the Product dimension hierarchy. The fourth column has the short value description of the product value. The fifth column has the Unit Cost measure value for the time and product.
Time Description Product Description Unit Cost ---- ----------- ------- --------------- --------- 58 Apr-01 13 Envoy Standard 2360.78 58 Apr-01 14 Envoy Executive 2952.85 59 May-01 13 Envoy Standard 2376.73 59 May-01 14 Envoy Executive 3015.90
The following table displays the second set of values of resultsCursor
in the same format. This time the fifth column has values from the Unit Price measure.
Time Description Product Description Unit Price ---- ----------- ------- --------------- ---------- 58 Apr-01 13 Envoy Standard 2412.42 58 Apr-01 14 Envoy Executive 3107.65 59 May-01 13 Envoy Standard 2395.63 59 May-01 14 Envoy Executive 3147.85
This topic describes the Model
interface and the implementations of it, and the relationship of Model
and Source
objects. It also presents examples of creating custom Model
objects and performing other tasks that involve Source
and Model
objects.
A Model
is analogous to the Oracle SQL MODEL
clause. With a Model
you can assign a value to the Source
for a dimensioned object for one or more sets of members of the dimensions of the object. The value that the Model
assigns can be anything from a simple constant to the result of a complex calculation involving several other Source
objects with nested Model
objects.
The value that a Model
assigns for a set of dimension members is represented by an Assignment
object. A Model
can have one or more Assignment
objects. Each dimension member in the set is represented by a Qualification
object. An Assignment
has one or more Qualification
objects.
The value that the Assignment
assigns is specified by a Source
. An Assignment
also has an integer that specifies a precedence that affects the order in which Oracle OLAP calculates a value and assigns it. If you create more that one Assignment
for a Model
without specifying a precedence, then the order in which Oracle OLAP calculates and assigns the values is not guaranteed.
A Model
assigns values for existing dimension members. You can use a Model
to assign a different value for a dimension member, or to assign a value for a set of members of more than one dimension, or to assign a different value for a specific measure for the set of dimension members, or to assign a value for the dimension member for an attribute.
When you create a custom dimension member, you specify an assignment value for it. Oracle OLAP automatically adds an Assignment
object that specifies the value for the custom member to the appropriate Model
for the dimension. Oracle OLAP assigns that value as the measure value for any measure dimensioned by the dimension.
Figure 5-1 illustrates the class hierarchy of the Model
interface and the classes that implement it. The oracle.olapi.metadata.mdm.MdmModel
class implements the Model
interface for MdmObject
objects. Another implementation of the Model
interface is the CustomModel
class in the oracle.olapi.data.source
package.
Figure 5-1 The Model Interface and Implementations
A Model
has one or more inputs, which are the Source
objects for which the model assigns values. The inputs are equivalent to the list of dimensions of an OLAP DML or SQL Model
. For example, the MdmDimensionCalculationModel
returned by the getNumberCalcModel
method of an MdmStandardDimension
has as an input the Source
for that same MdmStandardDimension
. The MdmDimensionedObjectModel
returned by the getModel
method of an MdmAttribute
has as an input the Source
for the MdmPrimaryDimension
that dimensions the attribute. The MdmDimensionedObjectModel
returned by getModel
method of an MdmMeasure
has as inputs the Source
objects for the MdmPrimaryDimension
objects that dimension the measure.
A Model
can have one or more parents, which are other Model
objects from which the Model
inherits Assignment
objects. An MdmMeasureModel
has as parents the MdmDimensionCalculationModel
objects of the dimensions associated with it. MdmAttributeModel
and MdmDimensionCalculationModel
objects do not have parent Model
objects.
A CustomModel
can have inputs and it can have parent Model
objects. When you create a CustomModel
object, you can specify inputs and parent Model
objects for it. A CustomModel
can have also have outputs, which MdmModel
objects do not have.
You can create a series of CustomModel
objects and have them inherit Assignment
objects from each other. The following restrictions apply to the inheritance of an Assignment
by one CustomModel
from another:
The inheritance cannot be circular. For example, if customModelB
inherits from customModelA
, then customModelA
cannot inherit from customModelB
.
The type and the outputs of the CustomModel
objects must be the same.
If a parent CustomModel
has an input, then the child CustomModel
must also specify that input. The child CustomModel
can have additional inputs, but it must specify the inputs of the parent CustomModel
objects.
After creating a CustomModel
and adding any assignments to it, you can create a Source
for it by calling the createSolvedSource
method of the CustomModel
. With the defaultValues
parameter of the createSolvedSource
method, you can specify a Source
that supplies default values for the Source
returned by the method. If you do not specify a Source
for the default values, then the default values of the resulting Source
are null
.
The Source.extract
method is implemented as a CustomModel
. An advantage of using your own CustomModel
over the extract
method is that you can assign the measure value to a String
other than a Source
ID. Example 5-11 demonstrates using the extract
method and then using a CustomModel
to achieve the same result. It also demonstrates using another CustomModel
to achieve a result that assigns the measure values to a different set of String
values.
In the example, unitPrice
and unitCost
are NumberSource
objects for the Unit Price and Unit Cost measures, and dp
is the DataProvider
. The prodSel
object is a Source
that represents the selection of three members of the Product dimension.
Example 5-11 Implementing the extract Method As a CustomModel
// Create a Source that represents a calculation involving two measures. Source calculation = unitPrice.minus(unitCost); // Create a list Source that has Source objects as element values. Source sourceListSrc = dp.createListSource(new Source[] {unitPrice, unitCost, calculation}); // Use the extract method to get the values of the Source components of the // list and join Source objects that match the inputs. Source resultUsingExtract = sourceListSrc.extract() .join(sourceListSrc) .join(prodSel) .join(calendar, "CALENDAR_YEAR_AW::MONTH_AW::47"); // Produce the same result using a CustomModel directly. CustomModel customModel = dp.createModel(sourceListSrc); customModel.assign(unitPrice.getID(), unitPrice); customModel.assign(unitCost.getID(), unitCost); customModel.assign(calculation.getID(), calculation); Source measValForSrc = customModel.createSolvedSource(); Source resultUsingCustomModel = measValForSrc.join(sourceListSrc) .join(prodSel) .join(calendar, "CALENDAR_YEAR_AW::MONTH_AW::47"); // Create a list Source that has String objects as element values. Source stringListSrc = dp.createListSource(new String[] {"price", "cost", "markup"}); // Create a CustomModel for the list Source. CustomModel customModel2 = dp.createModel(stringListSrc); customModel2.assign("price", unitPrice); customModel2.assign("cost", unitCost); customModel2.assign("markup", calculation); Source measValForSrc2 = customModel2.createSolvedSource(); Source resultUsingCustomModel2 = measValForSrc2.join(stringListSrc) .join(prodSel) .join(calendar, "CALENDAR_YEAR_AW::MONTH_AW::47");
Cursor
objects for resultUsingExtract
and resultUsingCustomModel
have the same values, which are the following, shown with formatting added:
PRODUCT_PRIMARY_AW::ITEM_AW::13 Hidden..M_GLOBAL.PRICE_CUBE.UNIT_PRICE 3118.61 PRODUCT_PRIMARY_AW::ITEM_AW::13 Hidden..M_GLOBAL.PRICE_CUBE.UNIT_COST 2897.40 PRODUCT_PRIMARY_AW::ITEM_AW::13 Join.2 221.21 PRODUCT_PRIMARY_AW::ITEM_AW::14 Hidden..M_GLOBAL.PRICE_CUBE.UNIT_PRICE 3442.86 PRODUCT_PRIMARY_AW::ITEM_AW::14 Hidden..M_GLOBAL.PRICE_CUBE.UNIT_COST 3238.36 PRODUCT_PRIMARY_AW::ITEM_AW::14 Join.2 204.50 PRODUCT_PRIMARY_AW::ITEM_AW::15 Hidden..M_GLOBAL.PRICE_CUBE.UNIT_PRICE 2962.14 PRODUCT_PRIMARY_AW::ITEM_AW::15 Hidden..M_GLOBAL.PRICE_CUBE.UNIT_COST 2847.47 PRODUCT_PRIMARY_AW::ITEM_AW::15 Join.2 114.67
A Cursor
for resultUsingCustomModel2
has the following values, shown with formatting added:
PRODUCT_PRIMARY_AW::ITEM_AW::13 price 3118.61 PRODUCT_PRIMARY_AW::ITEM_AW::13 cost 2897.40 PRODUCT_PRIMARY_AW::ITEM_AW::13 markup 221.21 PRODUCT_PRIMARY_AW::ITEM_AW::14 price 3442.86 PRODUCT_PRIMARY_AW::ITEM_AW::14 cost 3238.36 PRODUCT_PRIMARY_AW::ITEM_AW::14 markup 204.50 PRODUCT_PRIMARY_AW::ITEM_AW::15 price 2962.14 PRODUCT_PRIMARY_AW::ITEM_AW::15 cost 2847.47 PRODUCT_PRIMARY_AW::ITEM_AW::15 markup 114.67
The value that is specified by the assigned
Source
of an Assignment
object can be the result of a calculation that involves another Assignment
object. Each custom member adds an Assignment
to the appropriate MdmDimensionCalculationModel
object of the dimension.
Example 5-12 creates the same custom member of the Product dimension that Example 2-1 creates. It then creates a second custom member for the dimension. In Example 5-12, the value assigned by the second custom member depends on the value assigned by the first custom member.
As in Example 2-1, Example 5-12 uses the DataProvider
object, dp
, to get the placeholder Source
, ph
, for the Number data type from the DataProvider
. the example uses the placeholder in defining the objects, calc
and dependentCalc
, that define the values that Oracle OLAP assigns for the custom members.
The calc
object defines the value assigned for the first custom member as the value specified by product item 14 plus the value specified by item 15. The dependentCalc
object defines the value assigned for the second custom member as the value specified by the first custom member, product item 60, plus the value specified by item 13.
The prodSel
object specifies the dimension members for items 13, 14, and 15 and the custom members, items 60 and 61. The unitCost
and unitPrice
objects are Source
objects for the Unit Cost and Unit Price measures, and the calendar
object is the Source
for the Calendar Year hierarchy of the Time dimension.
The result
object is the query produced by joining the Source
objects for the Unit Cost and Unit Price measures to the Source
objects for the selected members of the dimensions of the measures. The join
method used to join the Time dimension value, CALENDAR_YEAR_AW::MONTH_AW::47
, to the result of the previous join
operations causes the Time value to not appear in the result
object.
Example 5-12 Creating an Assignment That Depends on Another Assignment
Source ph = dp.getFundamentalMetadataProvider() .getNumberPlaceholder() .getSource(); Source calc = ((NumberSource) (ph.join(prodHier, "PRODUCT_PRIMARY_AW::ITEM_AW::14"))) .plus( (NumberSource) (ph.join(prodHier, "PRODUCT_PRIMARY_AW::ITEM_AW::15"))); MdmStandardMember mdmItem60 = mdmProdStdDim.createCustomMember("60", mdmItemLevel, "4", calc, 10); Source dependentCalc = ((NumberSource) (ph.join(prodHier, "PRODUCT_PRIMARY_AW::ITEM_AW::60"))) .plus( (NumberSource) (ph.join(prodHier, "PRODUCT_PRIMARY_AW::ITEM_AW::13"))); MdmStandardMember mdmItem61 = mdmProdStdDim.createCustomMember("61", mdmItemLevel, "4", dependentCalc, 10); StringSource prodSel = prodHier.selectValues( new String[]{"PRODUCT_PRIMARY_AW::ITEM_AW::13", "PRODUCT_PRIMARY_AW::ITEM_AW::14", "PRODUCT_PRIMARY_AW::ITEM_AW::15", "PRODUCT_PRIMARY_AW::ITEM_AW::60" "PRODUCT_PRIMARY_AW::ITEM_AW::61"}); Source result = unitPrice.join(unitCost) .join(prodSel) .join(calendar, "CALENDAR_YEAR_AW::MONTH_AW::47");
A Cursor
for result
has the following values, with column headings and formatting added:
Product Item Cost Price ------------------------------- ------- ------- PRODUCT_PRIMARY_AW::ITEM_AW::13 2897.40 3118.61 PRODUCT_PRIMARY_AW::ITEM_AW::14 3238.36 3442.86 PRODUCT_PRIMARY_AW::ITEM_AW::15 2847.47 2962.14 PRODUCT_PRIMARY_AW::ITEM_AW::60 6085.83 6405.00 PRODUCT_PRIMARY_AW::ITEM_AW::61 8983.23 9523.61
Example 5-13 creates a custom member of the Product dimension that has an assigned value that is the result of an aggregation operation. The example uses the Source
for an MdmAttribute
that relates marketing managers to dimension members in the Item level of a dimension hierarchy.
Like Example 5-12, this example uses a placeholder Source
, ph
, in creating the calc
object, which defines the value that Oracle OLAP assigns for the custom member. The calc
object represents the total of the measure values specified by a set of dimension members.
The example creates the custom member and then specifies a short value description for it. Next, the example appends the custom member to the selection of products. Finally, it produces the result
query by joining the Source
for the Sales measure to the Source
objects for the short value description of the Product dimension and the selected members of the dimensions of the measure. The particular join
method that is used to join the Customer dimension value, SHIPMENTS_AW::SHIP_TO_AW::106
, the Channel dimension value, CHANNEL_PRIMARY_AW::TOTAL_CHANNEL_AW::1
, and the Time dimension value, CALENDAR_YEAR_AW::YEAR_AW::3
, to the result of the previous join
operations causes the Customer, Channel, and Time values to not appear in the result
object.
Example 5-13 Creating a Custom Member That Assigns an Aggregated Value
// Select the members of the level that are managed by a marketing manager. Source prodForManager = itemLevel.join(mktMngrAttr, "Jackson"); Source calc = ((NumberSource) (ph.join(prodHier, new String[] {"PRODUCT_PRIMARY_AW::ITEM_AW::24", "PRODUCT_PRIMARY_AW::ITEM_AW::25", "PRODUCT_PRIMARY_AW::ITEM_AW::26", "PRODUCT_PRIMARY_AW::ITEM_AW::33", "PRODUCT_PRIMARY_AW::ITEM_AW::34", "PRODUCT_PRIMARY_AW::ITEM_AW::35", "PRODUCT_PRIMARY_AW::ITEM_AW::36", "PRODUCT_PRIMARY_AW::ITEM_AW::37", "PRODUCT_PRIMARY_AW::ITEM_AW::38", "PRODUCT_PRIMARY_AW::ITEM_AW::39"}))).total(); MdmStandardMember mdmMktMngrTotal = mdmProdStdDim.createCustomMember("65", // member local value mdmItemLevel, // member level "4", // parent local value calc, // calculation Source 10); // precedence value mdmMktMngrTotal.setShortDescription("Marketing Manager Total"); Source mktMngrWithTotal = prodForManager.appendValue( prodHier.selectValue( "PRODUCT_PRIMARY_AW::ITEM_AW::65")); Source result = sales.join(prodShortDescr.join(mktMngrWithTotal)) .join(shipHier, "SHIPMENTS_AW::SHIP_TO_AW::106") .join(chanHier, "CHANNEL_PRIMARY_AW::TOTAL_CHANNEL_AW::1") .join(calendar, ""CALENDAR_YEAR_AW::YEAR_AW::3");
The following is a crosstab display of the values of a Cursor
for result
. The display includes only the local value of the Product dimension members and has column headings and formatting added.
Product Description Sales Amount ------- ---------------------------- ------------ 24 56Kbps V.90 Type II Modem 39,178.31 25 512MB USB Drive 16,665.00 26 1GB USB Drive 11,762.41 33 56Kbps V.92 Type II Fax/Modem 24,136.29 34 Internal 48X CD-ROM 3,290.74 35 Internal - DVD-RW - 8X 16,654.33 36 External 48X CD-ROM 2,589.97 37 External - DVD-RW - 8X 18,340.97 38 Internal 48X CD-ROM 926.50 39 Internal - DVD-RW - 6X 25,605.98 65 Marketing Manager Total 159,150.50
