This chapter describes the Oracle OLAP API Transaction
and TransactionProvider
interfaces and describes how you use implementations of those interfaces in an application. You must create a TransactionProvider
before you can create a DataProvider
, and you must use methods of the TransactionProvider
to prepare and commit a Transaction
before you can create a Cursor
for a derived Source
.
This chapter includes the following topics:
For information on how to get the complete code for the examples in this chapter, see the topic "Sample Schema for OLAP API Examples" in Chapter 1.
The Oracle OLAP API is transactional. Each step in creating a query occurs in the context of a Transaction
. One of the first actions of an OLAP API application is to create a TransactionProvider
. The TransactionProvider
provides Transaction
objects to the application.
The TransactionProvider
ensures the following:
A Transaction
is isolated from other Transaction
objects. Operations performed in a Transaction
are not visible in, and do not affect, other Transaction
objects.
If an operation in a Transaction
fails, its effects are undone (the Transaction
is rolled back).
The effects of a completed Transaction
persist.
When you create a derived Source
by calling a method of another Source
, the derived Source
is created in the context of the current Transaction
. The Source
is active in the Transaction
in which you create it or in a child Transaction
of that Transaction
.
You get or set the current Transaction
, or begin a child Transaction
, by calling methods of a TransactionProvider
. In a child Transaction
you can alter the query, for example by changing the selection of dimension elements or by performing a different mathematical or analytical operation on the data, which changes the state of a Template
that you created in the parent Transaction
. By displaying the data specified by the Source
produced by the Template
in the parent Transaction
and also displaying the data specified by the Source
produced by the Template
in the child Transaction
, you can provide the end user of your application with the means of easily altering a query and viewing the results of different operations on the same set of data, or the same operations on different sets of data.
The OLAP API has the following two types of Transaction
objects:
A read Transaction
. Initially, the current Transaction
is a read Transaction
. A read Transaction
is required for creating a Cursor
to fetch data from Oracle OLAP. For more information on Cursor
objects, see Chapter 9.
A write Transaction
. A write Transaction
is required for creating a derived Source
or for changing the state of a Template
. For more information on creating a derived Source
, see Chapter 5. For information on Template
objects, see Chapter 10.
In the initial read Transaction
, if you create a derived Source
or if you change the state of a Template
object, then a child write Transaction
is automatically generated. That child Transaction
becomes the current Transaction
.
If you then create another derived Source
or change the Template
state again, that operation occurs in the same write Transaction
. You can create any number of derived Source
objects, or make any number of Template
state changes, in that same write Transaction
. You can use those Source
objects, or the Source
produced by the Template
, to define a complex query.
Before you can create a Cursor
to fetch the result set specified by a derived Source
, you must move the Source
from the child write Transaction
into the parent read Transaction
. To do so, you prepare and commit the Transaction
.
To move a Source
that you created in a child Transaction
into the parent read Transaction
, call the prepareCurrentTransaction
and commitCurrentTransaction
methods of the TransactionProvider
. When you commit a child write Transaction
, a Source
you created in the child Transaction
moves into the parent read Transaction
. The child Transaction
disappears and the parent Transaction
becomes the current Transaction
. The Source
is active in the current read Transaction
and you can therefore create a Cursor
for it.
The following figure illustrates the process of moving a Source
created in a child write Transaction
into its parent read Transaction
.
Figure 7-1 Committing a Write Transaction into Its Parent Read Transaction
Getting and setting the current Transaction
, beginning a child Transaction
, and rolling back a Transaction
are operations that you use to allow an end user to make different selections starting from a given state of a dynamic query.
To present the end user with alternatives based on the same initial query, you do the following:
Create a Template
in a parent Transaction
and set the initial state for the Template
.
Get the Source
produced by the Template
, create a Cursor
to retrieve the result set, get the values from the Cursor
, and then display the results to the end user.
Begin a child Transaction
and modify the state of the Template
.
Get the Source
produced by the Template
in the child Transaction
, create a Cursor
, get the values, and display them.
You can then replace the first Template
state with the second one or discard the second one and retain the first.
To begin a child read Transaction
, call the beginSubtransaction
method of the TransactionProvider
you are using. In the child read Transaction
, if you change the state of a Template
, then a child write Transaction
begins automatically. The write Transaction
is a child of the child read Transaction
.
To get the data specified by the Source
produced by the Template
, you prepare and commit the write Transaction
into its parent read Transaction
. You can then create a Cursor
to fetch the data. The changed state of the Template
is not visible in the original parent. The changed state does not become visible in the parent until you prepare and commit the child read Transaction
into the parent read Transaction
.

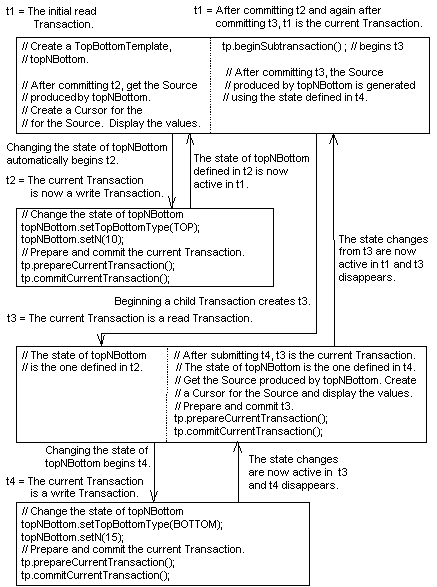

The following figure illustrates beginning a child read Transaction
, creating Source
objects in a write Transaction
, and committing the write Transaction
into its parent read Transaction
. The figure then shows committing the child read Transaction
into its parent read Transaction
. In the figure, tp
is the TransactionProvider
.
Figure 7-2 Committing a Child Read Transaction into Its Parent Transaction
After beginning a child read Transaction
, you can begin a child read Transaction
of that child, or a grandchild of the initial parent Transaction
. For an example of creating child and grandchild Transaction
objects, see Example 7-2.
You roll back, or undo, a Transaction
by calling the rollbackCurrentTransaction
method of the TransactionProvider
you are using. Rolling back a Transaction
discards any changes that you made during that Transaction
and makes the Transaction
disappear.
Before rolling back a Transaction
, you must close any CursorManager
objects you created in that Transaction
. After rolling back a Transaction
, any Source
objects that you created or Template
state changes that you made in the Transaction
are no longer valid. Any Cursor
objects you created for those Source
objects are also invalid.
Once you roll back a Transaction
, you cannot prepare and commit that Transaction
. Likewise, once you commit a Transaction
, you cannot roll it back.
Example 7-1 Rolling Back a Transaction
The following example uses the TopBottomTemplate
and SingleSelectionTemplate
classes that are described in Chapter 10, "Creating Dynamic Queries". In creating the TopBottomTemplate
and SingleSelectionTemplate
objects, the example uses the same code that appears in Example 10-4, "Getting the Source Produced by the Template". Example 7-1 does not show that code. This example sets the state of the TopBottomTemplate
. It begins a child Transaction
that sets a different state for the TopBottomTemplate
and then rolls back the child Transaction
. The TransactionProvider
is tp
. The println
method displays text through a PrintWriter
and the getContext
method gets a Context10g
object that has methods that create Cursor
objects and display their values through the PrintWriter
.
// The current Transaction is a read Transaction, t1. // Create a TopBottomTemplate using a hierarchy of the Product dimension // as the base and dp as the DataProvider. TopBottomTemplate topNBottom = new TopBottomTemplate(prodHier, dp); // Changing the state of a Template requires a write Transaction, so a // write child Transaction, t2, is automatically started. topNBottom.setTopBottomType(TopBottomTemplate.TOP_BOTTOM_TYPE_TOP); topNBottom.setN(10); topNBottom.setCriterion(singleSelections.getSource()); // Prepare and commit the Transaction t2. try { tp.prepareCurrentTransaction(); } catch(NotCommittableException e) { println("Cannot commit the Transaction. " + e); } tp.commitCurrentTransaction(); //t2 disappears // The current Transaction is now t1. // Get the dynamic Source produced by the TopBottomTemplate. Source result = topNBottom.getSource(); // Create a Cursor and display the results println("\nThe current state of the TopBottomTemplate" + "\nproduces the following values:\n"); getContext().displayTopBottomResult(result); // Start a child Transaction, t3. It is a read Transaction. tp.beginSubtransaction(); // t3 is the current Transaction // Change the state of topNBottom. Changing the state requires a // write Transaction so Transaction t4 starts automatically. topNBottom.setTopBottomType(TopBottomTemplate.TOP_BOTTOM_TYPE_BOTTOM); topNBottom.setN(15); // Prepare and commit the Transaction. The following method calls the // prepareCurrentTransaction and commitCurrentTransaction methods of the // TransactionProvider. prepareAndCommit() // t4 disappears // Create a Cursor and display the results. // t3 is the current Transaction println("\nIn the child Transaction, the state of the" + "\nTopBottomTemplate produces the following values:\n"); getContext().displayTopBottomResult(result); // The displayTopBottomResult method closes the CursorManager for the // Cursor created in t3. // Undo t3, which discards the state of topNBottom that was set in t4. tp.rollbackCurrentTransaction(); // t3 disappears // Transaction t1 is now the current Transaction and the state of // topNBottom is the one defined in t2. // To show the current state of the TopNBottom template Source, // prepare and commit the Transaction, create a Cursor, and display // its values. prepareAndCommit() println("\nAfter rolling back the child Transaction, the state of" + "\nthe TopBottomTemplate produces the following values:\n"); getContext().displayTopBottomResult(result);
Example 7-1 produces the following output.
The current state of the TopBottomTemplate produces the following values: 1. PRODUCT_PRIMARY_AW::TOTAL_PRODUCT_AW::1 2. PRODUCT_PRIMARY_AW::CLASS_AW::3 3. PRODUCT_PRIMARY_AW::FAMILY_AW::7 4. PRODUCT_PRIMARY_AW::CLASS_AW::2 5. PRODUCT_PRIMARY_AW::FAMILY_AW::9 6. PRODUCT_PRIMARY_AW::FAMILY_AW::6 7. PRODUCT_PRIMARY_AW::FAMILY_AW::11 8. PRODUCT_PRIMARY_AW::ITEM_AW::30 9. PRODUCT_PRIMARY_AW::ITEM_AW::28 10. PRODUCT_PRIMARY_AW::ITEM_AW::47 In the child Transaction, the state of the TopBottomTemplate produces the following values: 1. PRODUCT_PRIMARY_AW::ITEM_AW::36 2. PRODUCT_PRIMARY_AW::ITEM_AW::43 3. PRODUCT_PRIMARY_AW::ITEM_AW::44 4. PRODUCT_PRIMARY_AW::ITEM_AW::38 5. PRODUCT_PRIMARY_AW::ITEM_AW::22 6. PRODUCT_PRIMARY_AW::ITEM_AW::21 7. PRODUCT_PRIMARY_AW::ITEM_AW::42 8. PRODUCT_PRIMARY_AW::ITEM_AW::41 9. PRODUCT_PRIMARY_AW::ITEM_AW::15 10. PRODUCT_PRIMARY_AW::ITEM_AW::34 11. PRODUCT_PRIMARY_AW::ITEM_AW::14 12. PRODUCT_PRIMARY_AW::ITEM_AW::45 13. PRODUCT_PRIMARY_AW::ITEM_AW::13 14. PRODUCT_PRIMARY_AW::ITEM_AW::26 15. PRODUCT_PRIMARY_AW::ITEM_AW::18 After rolling back the child Transaction, the state of the TopBottomTemplate produces the following values: 1. PRODUCT_PRIMARY_AW::TOTAL_PRODUCT::1 2. PRODUCT_PRIMARY_AW::CLASS_AW::3 3. PRODUCT_PRIMARY_AW::FAMILY_AW::7 4. PRODUCT_PRIMARY_AW::CLASS_AW::2 5. PRODUCT_PRIMARY_AW::FAMILY_AW::9 6. PRODUCT_PRIMARY_AW::FAMILY_AW::6 7. PRODUCT_PRIMARY_AW::FAMILY_AW::11 8. PRODUCT_PRIMARY_AW::ITEM_AW::30 9. PRODUCT_PRIMARY_AW::ITEM_AW::28 10. PRODUCT_PRIMARY_AW::ITEM_AW::47
You get the current Transaction
by calling the getCurrentTransaction
method of the TransactionProvider
you are using, as in the following example.
Transaction t1 = tp.getCurrentTransaction();
To make a previously saved Transaction
the current Transaction
, you call the setCurrentTransaction
method of the TransactionProvider
, as in the following example.
tp.setCurrentTransaction(t1);
In the Oracle OLAP API, the
TransactionProvider
interface is implemented by the ExpressTransactionProvider
concrete class. Before you create a DataProvider
, you must create a new instance of an ExpressTransactionProvider
. You then pass that TransactionProvider
to the DataProvider
constructor. The TransactionProvider
provides Transaction
objects to your application.
As described in "Preparing and Committing a Transaction", you use the prepareCurrentTransaction
and commitCurrentTransaction
methods to make a derived Source
that you created in a child write Transaction
visible in the parent read Transaction
. You can then create a Cursor
for that Source
.
If you are using Template
objects in your application, then you might also use the other methods of TransactionProvider
to do the following:
Begin a child Transaction
.
Get the current Transaction
so you can save it.
Set the current Transaction
to a previously saved one.
Rollback, or undo, the current Transaction
, which discards any changes made in the Transaction
. Once a Transaction
has been rolled back, it is invalid and cannot be committed. Once a Transaction
has been committed, it cannot be rolled back. If you created a Cursor
for a Source
in a Transaction
, you must close the CursorManager
before rolling back the Transaction
.
Example 7-2 demonstrates the use of Transaction
objects to modify dynamic queries. Like Example 7-1, this example uses the same code to create TopBottomTemplate
and SingleSelectionTemplate
objects as does Example 10-4, "Getting the Source Produced by the Template". This example does not show that code.
To help track the Transaction
objects, this example saves the different Transaction
objects with calls to the getCurrentTransaction
method. In the example, tp
object is the TransactionProvider
. The println
method displays text through a PrintWriter
and the getContext
method gets a Context10g
object that has methods that create Cursor
objects and display their values through the PrintWriter
. The prepareAndCommit
method calls the prepareCurrentTransaction
and commitCurrentTransaction
methods of the TransactionProvider
.
Example 7-2 Using Child Transaction Objects
// The parent Transaction is the current Transaction at this point. // Save the parent read Transaction as parentT1. Transaction parentT1 = tp.getCurrentTransaction(); // Get the dynamic Source produced by the TopBottomTemplate. Source result = topNBottom.getSource(); // Create a Cursor and display the results. println("\nThe current state of the TopBottomTemplate" + "\nproduces the following values:\n"); getContext().displayTopBottomResult(result); // Begin a child Transaction of parentT1. tp.beginSubtransaction(); // This is a read Transaction. // Save the child read Transaction as childT2. Transaction childT2 = tp.getCurrentTransaction(); // Change the state of the TopBottomTemplate. This starts a // write Transaction, a child of the read Transaction childT2. topNBottom.setN(12); topNBottom.setTopBottomType(TopBottomTemplate.TOP_BOTTOM_TYPE_BOTTOM); // Save the child write Transaction as writeT3. Transaction writeT3 = tp.getCurrentTransaction(); // Prepare and commit the write Transaction writeT3. prepareAndCommit(); // The commit moves the changes made in writeT3 into its parent, // the read Transaction childT2. The writeT3 Transaction // disappears. The current Transaction is now childT2 // again but the state of the TopBottomTemplate has changed. // Create a Cursor and display the results of the changes to the // TopBottomTemplate that are visible in childT2. try { println("\nIn the child Transaction, the state of the" + "\nTopBottomTemplate produces the following values:\n"); getContext().displayTopBottomResult(result); } catch(Exception e) { println("Cannot display the results of the query. " + e); } // Begin a grandchild Transaction of the initial parent. tp.beginSubtransaction(); // This is a read Transaction. // Save the grandchild read Transaction as grandchildT4. Transaction grandchildT4 = tp.getCurrentTransaction(); // Change the state of the TopBottomTemplate. This starts another // write Transaction, a child of grandchildT4. topNBottom.setTopBottomType(TopBottomTemplate.TOP_BOTTOM_TYPE_TOP); // Save the write Transaction as writeT5. Transaction writeT5 = tp.getCurrentTransaction(); // Prepare and commit writeT5. prepareAndCommit() // Transaction grandchildT4 is now the current Transaction and the // changes made to the TopBottomTemplate state are visible. // Create a Cursor and display the results visible in grandchildT4. try { println("\nIn the grandchild Transaction, the state of the" + "\nTopBottomTemplate produces the following values:\n"); getContext().displayTopBottomResult(result); } catch(Exception e) { println(""Cannot display the results of the query. " + e); } // Commit the grandchild into the child. prepareAndCommit() // Transaction childT2 is now the current Transaction. // Instead of preparing and committing the grandchild Transaction, // you could rollback the Transaction, as in the following // method call: // rollbackCurrentTransaction(); // If you roll back the grandchild Transaction, then the changes // you made to the TopBottomTemplate state in the grandchild // are discarded and childT2 is the current Transaction. // Commit the child into the parent. prepareAndCommit() // Transaction parentT1 is now the current Transaction. Again, // you can roll back the childT2 Transaction instead of // preparing and committing it. If you do so, then the changes // you made in childT2 are discarded. The current Transaction // is be parentT1, which has the original state of // the TopBottomTemplate, without any of the changes made in // the grandchild or the child transactions.
Example 7-2 produces the following output.
The current state of the TopBottomTemplate produces the following values: 1. PRODUCT_PRIMARY_AW::TOTAL_PRODUCT::1 2. PRODUCT_PRIMARY_AW::CLASS_AW::3 3. PRODUCT_PRIMARY_AW::FAMILY_AW::7 4. PRODUCT_PRIMARY_AW::CLASS_AW::2 5. PRODUCT_PRIMARY_AW::FAMILY_AW::9 6. PRODUCT_PRIMARY_AW::FAMILY_AW::6 7. PRODUCT_PRIMARY_AW::FAMILY_AW::11 8. PRODUCT_PRIMARY_AW::ITEM_AW::30 9. PRODUCT_PRIMARY_AW::ITEM_AW::28 10. PRODUCT_PRIMARY_AW::ITEM_AW::47 In the child Transaction, the state of the TopBottomTemplate produces the following values: 1. PRODUCT_PRIMARY_AW::ITEM_AW::36 2. PRODUCT_PRIMARY_AW::ITEM_AW::43 3. PRODUCT_PRIMARY_AW::ITEM_AW::44 4. PRODUCT_PRIMARY_AW::ITEM_AW::38 5. PRODUCT_PRIMARY_AW::ITEM_AW::22 6. PRODUCT_PRIMARY_AW::ITEM_AW::21 7. PRODUCT_PRIMARY_AW::ITEM_AW::42 8. PRODUCT_PRIMARY_AW::ITEM_AW::41 9. PRODUCT_PRIMARY_AW::ITEM_AW::15 10. PRODUCT_PRIMARY_AW::ITEM_AW::34 11. PRODUCT_PRIMARY_AW::ITEM_AW::14 12. PRODUCT_PRIMARY_AW::ITEM_AW::45 In the grandchild Transaction, the state of the TopBottomTemplate produces the following values: 1. PRODUCT_PRIMARY_AW::TOTAL_PRODUCT::1 2. PRODUCT_PRIMARY_AW::CLASS_AW::3 3. PRODUCT_PRIMARY_AW::FAMILY_AW::7 4. PRODUCT_PRIMARY_AW::CLASS_AW::2 5. PRODUCT_PRIMARY_AW::FAMILY_AW::9 6. PRODUCT_PRIMARY_AW::FAMILY_AW::6 7. PRODUCT_PRIMARY_AW::FAMILY_AW::11 8. PRODUCT_PRIMARY_AW::ITEM_AW::30 9. PRODUCT_PRIMARY_AW::ITEM_AW::28 10. PRODUCT_PRIMARY_AW::ITEM_AW::47 11. PRODUCT_PRIMARY_AW::ITEM_AW::19 12. PRODUCT_PRIMARY_AW::ITEM_AW::24
