This chapter points to sources of information about developing applications for Windows and outlines a procedure for building and debugging external procedures.
This chapter contains these topics:
This section describes where to find information about developing applications specifically for Windows. These products are included on your Oracle Database Server CD-ROM.
Oracle Database includes an integrated Java Virtual Machine and JServer Accelerator. Oracle Database also provides Oracle Java Database Connectivity (JDBC) Drivers. For more information, see Oracle Database Java Developer's Guide.
Oracle Data Provider for .NET (ODP.NET) is an implementation of a data provider for Oracle Database. ODP.NET uses Oracle native APIs to offer fast and reliable access to Oracle data and features from any .NET application. ODP.NET also uses and inherits classes and interfaces available in the Microsoft .NET Framework Class Library. For more information:
Note:
Oracle Data Provider for .NET is supported on Microsoft Windows (x64) starting with the 10.2.0.3 release.Oracle XML products include XML Developer's Kit (XDK) and Oracle XML SQL Utility. For more information:
Oracle Database support for internet applications includes Oracle Portal, which enables you to publish your data to the Web, Oracle HTTP Server, and PL/SQL Embedded Gateway, which offers PL/SQL procedures stored in Oracle Database that can be started through browsers. For more information:
Oracle Portal Installation Guide and Tutorial
Oracle Enterprise Manager Grid Control Installation and Basic Configuration
Note:
Oracle Portal and Oracle HTTP Server are not supported on Oracle Database for Microsoft Windows (x64).Oracle COM Automation feature enables Java stored procedure developers and COM/COM+ developers to load COM+ objects from an Oracle Database. For more information:
Oracle Objects for OLE (OO4O) provides easy access to data stored in Oracle Database servers with any programming or scripting language that supports the Microsoft COM Automation and ActiveX technology. These include Visual Basic, Visual C++, Visual Basic For Applications (VBA), IIS Active Server Pages (VBScript and JavaScript), and others. For more information:
Note:
Oracle Objects for OLE (OO4O) is not supported on Oracle Database 10g Release 2 (10.2) for 64-bit Windows.Oracle Database for Windows permits enhanced deployment of COM/COM+ components in Microsoft Transaction Server, using Oracle Database as the resource manager. For more information:
Oracle Provider for OLE DB is an OLE DB data provider that offers high performance and efficient access to Oracle data by OLE DB and ADO consumers.
Open Database Connectivity (ODBC) provides a common C programming interface for applications to access data from database management systems. Access to databases is managed by the ODBC Driver Manager. The driver manager provides the linkage between an ODBC application and an ODBC driver for a specific database management system.
Oracle ODBC Driver provides access to Oracle databases for applications written using the ODBC interface.
Oracle Technology Network has both Oracle home based ODBC driver and Instant Client enabled ODBC driver.
Note:
Download Instant Client enabled ODBC driver fromhttp://www.oracle.com/technetwork/database/features/instant-client/index.html
Oracle Database provides a comprehensive set of APIs for Windows application developers and is well suited for both Java, .NET, and COM/COM+ development. Oracle Database is integrated with Microsoft's development and deployment components. Performance and data access on Windows is enhanced in the following areas:
Wide variety of data access methods for Windows and internet applications
Wizards and assistants to speed application development
Microsoft Distributed Transaction Coordinator integration: Oracle Services for Microsoft Transaction Server
Platform extensions for internet application development
Developers are able to deploy their database applications more quickly by using the data access method with which they are familiar, rather than having to learn a new one. An Oracle Database server can communicate with Windows clients in a variety of methods, as described in Table 15-1.
Table 15-1 Oracle Data Access Methods
Development Environment | Data Access Method |
---|---|
Java |
JDBC SQLJ |
.NET |
ODP.NET |
COM/COM+ |
Oracle Provider for OLE DB COM/COM+ Automation Feature |
By using Oracle Database data access interfaces, developers can take advantage of specific Oracle Database features. These interfaces also offer flexibility and adherence to open standards.
Use Oracle 64-bit components to create your applications. To migrate your business logic, refer to Migration Tips on the Microsoft Developer Network (MSDN) Web site at http://msdn.microsoft.com/en-us/library/aa384214(VS.85).aspx
.
Note:
NCHAR
columns in user tables are not changed during the migration. To change NCHAR
columns in user tables, refer to "Upgrade User NCHAR Columns" in Oracle Database Upgrade Guide.This section describes how to create and use external procedures on Windows. The following files are located in ORACLE_BASE
\
ORACLE_HOME
\rdbms\extproc
:
extern.c
is the code example shown in "Writing an External Procedure"
make.bat
is the batch file that builds the dynamic link library
extern.sql
automates the instructions described in "Registering an External Procedure" and "Executing an External Procedure"
External procedures are functions written in a third-generation language (C, for example) and callable from within PL/SQL or SQL as if they were a PL/SQL routine or function. External procedures let you take advantage of strengths and capabilities of a third-generation programming language in a PL/SQL environment.
Note:
Oracle Database also provides a special purpose interface, the call specification, that lets you call external procedures from other languages, as long as they are callable by C.The main advantages of external procedures are:
Performance, because some tasks are performed more efficiently in a third-generation language than in PL/SQL, which is better suited for SQL transaction processing
Code re-usability, because dynamic link libraries (DLLs) can be called directly from PL/SQL programs on the server or in client tools
You can use external procedures to perform specific processes:
Solving scientific and engineering problems
Analyzing data
Controlling real-time devices and processes
Caution:
Special security precautions are warranted when configuring a listener to handle external procedures. See "Modifying Configuration of External Procedures for Higher Security" and Oracle Database Net Services Administrator's Guide for more information.To create and use an external procedure, perform the following sequential steps:
Executing an External Procedure
Note:
You must have a C compiler and linker installed on your system to build DLLs.Note:
You can combine the instructions described in the fourth and fifth tasks into one SQL script that automates the task of registering and executing your external procedure. SeeORACLE_BASE
\
ORACLE_HOME
\rdbms\extproc\extern.sql
for an example of a SQL script that combines these steps.This section describes installation and configuration of Oracle Database and Oracle Net.
Follow the steps in Oracle Database Installation Guide for Microsoft Windows x64 to install these products on your Windows server:
During database server installation, Oracle Net Configuration Assistant configures listener.ora
and tnsnames.ora
files for external procedure calls.
When an application calls an external procedure, Oracle Net Listener starts an external procedure agent called EXTPROC. Using a network connection established by the listener, the application passes the following information to EXTPROC:
DLL name
External procedure name
Parameters (if necessary)
EXTPROC then loads the DLL, runs the external procedure, and passes back any values returned by the external procedure.
If you overwrite default listener.ora
and tnsnames.ora
files, then you must manually configure the following files for the external procedure behavior described previously to occur:
ORACLE_BASE
\
ORACLE_HOME
\network\admin\listener.ora
ORACLE_BASE
\
ORACLE_HOME
\network\admin\tnsnames.ora
Caution:
Additional security may be required for the listener in a production environment. See Oracle Database Net Services Administrator's Guide for more information.Using a third-generation programming language, you can write functions to be built into DLLs and started by EXTPROC. The following is a simple Microsoft Visual C++ example of an external procedure called FIND_MAX
:
Note:
Because external procedures are built into DLLs, they must be explicitly exported. In this example, theDLLEXPORT
storage class modifier exports the function FIND_MAX
from a dynamic link library.#include <windows.h> #define NullValue -1 /* This function tests if x is at least as big as y. */ long __declspec(dllexport) find_max(long x, short x_indicator, long y, short y_indicator, short *ret_indicator) { /* It can be tricky to debug DLL's that are being called by a process that is spawned only when needed, as in this case. Therefore try using the DebugBreak(); command. This will start your debugger. Uncomment the line with DebugBreak(); in it and you can step right into your code. */ /* DebugBreak(); */ /* First check to see if you have any nulls. */ /* Just return a null if either x or y is null. */ if ( x_indicator==NullValue || y_indicator==NullValue) { *ret_indicator = NullValue; return(0); } else { *ret_indicator = 0; /* Signify that return value is not null. */ if (x >= y) return x; else return y; } }
After writing your external procedure(s) in a third-generation programming language, use the appropriate compiler and linker to build a DLL, making sure to export the external procedures as noted previously. See your compiler and linker documentation for instructions on building a DLL and exporting its functions.
You can build the external procedure FIND_MAX
, created in "Writing an External Procedure", into a DLL called extern.dll
by going to ORACLE_BASE
\
ORACLE_HOME
\rdbms\extproc
and typing make
. After building the DLL, you can move it to any directory on your system.
Starting with Oracle9i release 2, however, the default behavior of EXTPROC is to load DLLs only from ORACLE_HOME
\bin
or ORACLE_HOME
\lib
. To load DLLs from other directories, you must set environment variable EXTPROC_DLLS
to a colon (:) separated list of DLL names qualified with their complete paths. The preferred way to set this environment variable is through the ENVS
parameter in listener.ora
.
See Also:
Oracle Database Application Developer's Guide - Fundamentals for more information about EXTPROCOnce you have built a DLL containing your external procedure(s), you must register your external procedure(s) with Oracle Database:
To create a PL/SQL library to map to the DLL:
Set environment variable EXTPROC_DLLS
in the ENVS
parameter in listener.ora
. For example:
SID_LIST_LISTENER = (SID_LIST = (SID_DESC = (SID_NAME=PLSExtProc) (ENVS=EXTPROC_DLLS=C:\oracle\product\10.2.0\db_1\rdbms\extproc\extern.dll) (ORACLE_HOME=C:\oracle\product\10.2.0\db_1) (PROGRAM=extproc) ) )
Start SQL*Plus:
C:\> sqlplus
Connect to the database with appropriate username and password.
Create the PL/SQL library using the CREATE LIBRARY
command:
SQL> CREATE LIBRARY externProcedures AS 'C:\oracle\product\10.2.0\db_1\rdbms\ extproc\extern.dll';
where externProcedures
is an alias library (essentially a schema object in the database), and
C:\oracle\product\10.2.0\db_1\rdbms\extproc\extern.dll
is the path to the Windows operating system dllextern.dll
. This example uses C:\oracle\product\10.2.0
as your Oracle base and db_1
as your Oracle home.
Note:
The DBA must grant theEXECUTE
privilege on the PL/SQL library to users who want to call the library's external procedure from PL/SQL or SQL.Create a PL/SQL program unit specification.
Do this by writing a PL/SQL subprogram that uses the EXTERNAL
clause instead of declarations and a BEGIN...END
block. The EXTERNAL
clause is the interface between PL/SQL and the external procedure. The EXTERNAL
clause identifies the following information about the external procedure:
Name
DLL alias
Programming language in which it was written
Calling standard (defaults to C if omitted)
In the following example, externProcedures
is a DLL alias. You need the EXECUTE
privilege for this library. The external procedure to call is find_max
. If enclosed in double quotation marks, it becomes case-sensitive. The LANGUAGE
term specifies the language in which the external procedure was written.
CREATE OR REPLACE FUNCTION PLS_MAX( x BINARY_INTEGER, y BINARY_INTEGER) RETURN BINARY_INTEGER AS EXTERNAL LIBRARY externProcedures NAME "find_max" LANGUAGE C PARAMETERS ( x long, -- stores value of x x_INDICATOR short, -- used to determine if x is a NULL value y long, -- stores value of y y_INDICATOR short -- used to determine if y is a NULL value RETURN INDICATOR short ); -- need to pass pointer to return value's -- indicator variable to determine if NULL -- This means that my function will be defined as: -- long max(long x, short x_indicator, -- long y, short y_indicator, short * ret_indicator)
To run an external procedure, you must call the PL/SQL program unit (that is, the alias for the external function) that registered the external procedure. These calls can appear in any of the following:
Anonymous blocks
Standalone and packaged subprograms
Methods of an object type
Database triggers
SQL statements (calls to packaged functions only)
In "Registering an External Procedure", PL/SQL function PLS_MAX
registered external procedure find_max
. Follow these steps to run find_max
:
Call PL/SQL function PLS_MAX
from a PL/SQL routine named UseIt
:
SET SERVER OUTPUT ON CREATE OR REPLACE PROCEDURE UseIt AS a integer; b integer; c integer; BEGIN a := 1; b := 2; c := PLS_MAX(a,b); dbms_output.put_line('The maximum of '||a||' and '||b||' is '||c); END;
Run the routine:
SQL> EXECUTE UseIt;
An agent process is started for each session to access a system at the same time leading to several thousand agent processes running concurrently. The agent processes operate regardless of whether each individual agent process is actually active at the moment. Agent processes and open connections can consume a disproportionate amount of system resources. This problem is addressed by using multithreaded agent architecture.
The multithreaded agent architecture uses a pool of shared agent threads. The tasks requested by the user sessions are put in a queue and are picked up by the first available multithreaded agent thread. Because only a small percentage of user connections are active at a given moment, using a multithreaded architecture allows for more efficient use of system resources.
See Also:
Part III of Oracle Database Application Developer's Guide - Fundamentals
"Multithreaded Agents" in Oracle Database Heterogeneous Connectivity Administrator's Guide
Usually, when an external procedure fails, its C prototype is faulty. That is, the prototype does not match the one generated internally by PL/SQL. This can happen if you specify an incompatible C datatype. For example, to pass an OUT
parameter of type REAL
, you must specify float
*
. Specifying float
, double
*
, or any other C datatype will result in a mismatch.
In such cases, you might get a lost
RPC
connection
to
external
procedure
agent
error, which means that agent extproc
terminated abnormally because the external procedure caused a core dump. To avoid errors when declaring C prototype parameters, refer to Oracle Database Data Cartridge Developer's Guide.
To help you debug external procedures, PL/SQL provides utility package DEBUG_EXTPROC. To install the package, run script dbgextp.sql
, which you can find in the PL/SQL demo directory.
To use the package, follow instructions in dbgextp.sql
. Your Oracle Database account must have EXECUTE
privileges on the package and CREATE
LIBRARY
privileges.
To debug external procedures:
From Windows Task Manager, in the Processes dialog, select ExtProc.exe.
Right click, and select Debug.
Click OK in the message window.
If you have built your DLL in a debug fashion with Microsoft Visual C++, then Visual C++ is activated.
In the Visual C++ window, select Edit >
Breakpoints.
Use the breakpoint identified in dbgextp.sql
in the PL/SQL demo directory.
See Also:
ORACLE_BASE
\
ORACLE_HOME
\rdbms\extproc\readme.doc
(explains how to run the sample and provides debugging advice)
"Calling External Procedures" in Oracle Database Application Developer's Guide - Fundamentals
Package UTL_FILE
allows your PL/SQL programs to read and write operating system text files. It provides a restricted version of standard operating system stream file I/O, including open, put, get, and close operations. When you want to read or write a text file, you call the function fopen
, which returns a file handle for use in subsequent procedure calls. For example, the procedure put_line
writes a text string and line terminator to an open file, and the procedure get_line
reads a line of text from an open file into an output buffer.
FSEEK
, a UTL_FILE
subprogram, adjusts the file pointer forward or backward within the file by the number of bytes specified. In order for UTL_FILE.FSEEK
to work correctly, the lines in the file must have platform-specific line terminator characters. On Windows platforms the correct line terminator characters are <CR><LF>
.
This section discusses the following topics:
You must add a parameter to the registry before using Intercartridge Exchange.
Start Registry Editor from the command prompt:
C:\> regedit
The Registry Editor window appears.
Note:
For another way to configure your registry, see "Managing Registry Parameters with regedit"Add HTTP_PROXY
to the registry subkey of the Oracle home directory that you are using. The location of this parameter is determined by how many Oracle home directories are on your computer. If you have only one home directory, add HTTP_PROXY
to
HKEY_LOCAL_MACHINE\SOFTWARE\ORACLE\HOME0.
If you have multiple home directories, add it to
HKEY_LOCAL_MACHINE\SOFTWARE\ORACLE\KEY_HOME_NAME

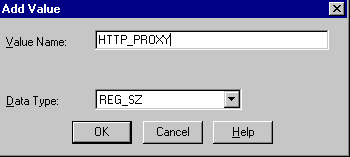

Choose Add Value from the Edit menu.
The Add Value dialog appears.
Type HTTP_PROXY
in the Value Name field and REG_SZ
in the Data Type field.
Click OK.

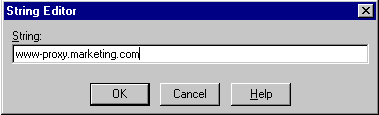

Type www-proxy.
your-site
in the String field.
In this example, the Web site is marketing.com
. You will enter the domain name of your actual Web site.
Intercartridge Exchange enables you to use a stored package called UTL_HTTP
to make Hypertext Transfer Protocol (HTTP) calls from PL/SQL, SQL, and SQL*Plus statements.
UTL_HTTP
can do both of the following:
Access data on the Internet
Call Oracle Web Application Server cartridges
UTL_HTTP
contains two similar entry points, known as packaged functions, that turn PL/SQL and SQL statements into HTTP callouts:
UTL_HTTP.REQUEST
UTL_HTTP.REQUEST_PIECES
Both packaged functions perform the following tasks:
Take a string universal resource locator (URL) of a site
Contact that site
Return data (typically HTML) obtained from that site
Declarations to use with both packaged functions are described in the following subsections.
UTL_HTTP.REQUEST
uses a URL as its argument and returns up to the first 2000 bytes of data retrieved from that URL. Specify UTL_HTTP.REQUEST
as follows:
FUNCTION REQUEST (URL IN VARCHAR2) RETURN VARCHAR2;
To use UTL_HTTP.REQUEST
from SQL*Plus, enter:
SQL> SELECT UTL_HTTP.REQUEST('HTTP://WWW.ORACLE.COM/') FROM DUAL;
which returns:
UTL_HTTP.REQUEST('HTTP://WWW.ORACLE.COM/') ------------------------------------------------------ <html> <head><title>Oracle Home Page</title> <!--changed Jan. 16, 19 1 row selected.
UTL_HTTP.REQUEST_PIECES
uses a URL as its argument and returns a PL/SQL table of 2000 bytes of data retrieved from the given URL. The final element can be shorter than 2000 characters. The UTL_HTTP.REQUEST_PIECES
return type is a PL/SQL table of type UTL_HTTP.HTML_PIECES
.
UTL_HTTP.REQUEST_PIECES
, which uses type UTL_HTTP.HTML_PIECES
, is specified as:
type html_pieces is table of varchar2(2000) index by binary_integer; function request_pieces (url in varchar2, max_pieces natural default 32767) return html_pieces;
A call to REQUEST_PIECES
can look like this example. Note the use of PL/SQL table method COUNT
to discover the number of pieces returned; it can be zero or more:
declare pieces utl_http.html_pieces; begin pieces := utl_http.request_pieces('http://www.oracle.com/'); for i in 1 .. pieces.count loop .... -- process each piece end loop; end;
The second argument to UTL_HTTP.REQUEST_PIECES
(MAX_PIECES
) is optional. MAX_PIECES
is the maximum number of pieces (each 2000 characters in length, except for the last, which can be shorter) that UTL_HTTP.REQUEST_PIECES
returns. If provided, that argument is usually a positive integer.
For example, the following block retrieves up to 100 pieces of data (each 2000 bytes, except perhaps the last) from the URL. The block prints the number of pieces retrieved and the total length, in bytes, of the data retrieved.
set serveroutput on declare x utl_http.html_pieces; begin x := utl_http.request_pieces('http://www.oracle.com/', 100); dbms_output.put_line(x.count || ' pieces were retrieved.'); dbms_output.put_line('with total length '); if x.count < 1 then dbms_output.put_line('0'); else dbms_output.put_line ((2000 * (x.count - 1)) + length(x(x.count))); end if; end; which displays: Statement processed. 4 pieces were retrieved. with total length 7687
Elements of the PL/SQL table returned by UTL_HTTP.REQUEST_PIECES
are successive pieces of data obtained from the HTTP request to that URL.
This subsection describes exceptions (errors) that can be raised by packaged functions UTL_HTTP.REQUEST
and UTL_HTTP.REQUEST_PIECES
.
PRAGMA
RESTRICT_REFERENCES
enables display of exceptions:
create or replace package utl_http is function request (url in varchar2) return varchar2; pragma restrict_references (request, wnds, rnds, wnps, rnps);
PRAGMA
RESTRICT_REFERENCES
enables display of exceptions:
create or replace package utl_http is type html_pieces is table of varchar2(2000) index by binary_integer; function request_pieces (url in varchar2, max_pieces natural default 32767) return html_pieces; pragma restrict_references (request_pieces, wnds, rnds, wnps, rnps);
If initialization of the HTTP callout subsystem fails for environmental reasons (such as lack of available memory), then exception UTL_HTTP.INIT_FAILED
is raised:
init_failed exception;
If the HTTP call fails due to failure of the HTTP daemon or because the argument to REQUEST
or REQUEST_PIECES
cannot be interpreted as a URL (because it is NULL
or has non-HTTP syntax), then exception UTL_HTTP.REQUEST_FAILED
is raised:
request_failed exception;
Unless explicitly caught by an exception handler, these first two exceptions are reported by a generic message that shows them as "user-defined" exceptions, even though they are defined in this system package:
ORA-06510: PL/SQL: unhandled user-defined exception
If any other exception is raised during processing of the HTTP request (for example, an out-of-memory error), then function UTL_HTTP.REQUEST
or UTL_HTTP.REQUEST_PIECES
reraises that exception.
If no response is received from a request to the given URL, because the function made no contact with a site corresponding to that URL, then a formatted HTML error message may be returned:
<HTML> <HEAD> <TITLE>Error Message</TITLE> </HEAD> <BODY> <H1>Fatal Error 500</H1> Can't Access Document: http://home.nothing.comm. <P> <B>Reason:</B> Can't locate remote host: home.nothing.comm. <P> <P><HR> <ADDRESS><A HREF="http://www.w3.org"> CERN-HTTPD3.0A</A></ADDRESS> </BODY> </HTML>
If UTL_HTTP.REQUEST
or UTL_HTTP.REQUEST_PIECES
raises an exception or returns an HTML-formatted error message, yet you believe that the URL argument is correct, try contacting that same URL with a browser to verify network availability from your computer.
