This chapter describes use of the registry for various Oracle Database for Windows components. It also lists recommended values and ranges for configuration parameters.
This chapter contains these topics:
Managing Registry Parameters with Oracle Administration Assistant for Windows
Modifying Oracle Counters for Windows Performance Monitor Parameters
Oracle Database for Windows uses configuration parameters to locate files and specify runtime parameters common to all Oracle products. When an Oracle program or application requires a translation for a particular configuration variable, Oracle Database for Windows uses the associated parameter. All Oracle parameters are stored in the registry.
Oracle Database for Windows stores its configuration information in a repository (the registry) that is organized in a tree format. The tree format consists of keys in the registry and parameter values for the keys. Keys and parameter values can be viewed and modified in Registry Editor.
Keys are folders that appear in the left pane of a Registry Editor window. A key contains subkeys or parameters.
Caution:
Although Registry Editor lets you view and modify registry keys and parameter values, you normally are not required to do so. In fact, you can render your system useless if you make incorrect changes. Therefore, only advanced users should edit the registry! Back up your system before making any changes in the registry.Parameters in Registry Editor appear as a string, consisting of three components:
Parameter name
Value class or type of entry
Value itself
For example, parameter ORACLE_SID
can have the following entry in the registry:
ORACLE_SID:reg_sz:orcl1
Value classes for Oracle Database for Windows parameters are:
String value with a REG_SZ
, REG_EXPAND_SZ
(for an expandable string), or a REG_MULTI_SZ
(for multiple strings) prefix to identify a parameter value entry as a data string
Binary value with a REG_DWORD
prefix to identify a value entry as a dword
(hexadecimal data) entry
Most Oracle Database for Windows parameter values are string types. Use Oracle Universal Installer defaults when a type is not given.
This section describes Oracle Database for Windows registry parameters for the following keys. Other products, such as Oracle Enterprise Manager, have additional keys and parameters that are not described in this chapter.
Note:
Oracle Database for 64-bit Windows has additional configuration parameters that enable and control large page support. See "Large Page Support".To modify these registry values, see "Managing Registry Parameters with regedit".
Each time you install Oracle products into a new Oracle home on your computer, HKEY_LOCAL_MACHINE\SOFTWARE\ORACLE\KEY_
HOME_NAME
is created. This subkey contains parameter values for most Oracle products.
Note:
See Appendix B, "Optimal Flexible Architecture", in Oracle Database Installation Guide for Microsoft Windows x64 for details on the PATH variable and registry values when you are working with multiple Oracle homes.HKEY_LOCAL_MACHINE\SOFTWARE\ORACLE\HKEY_LOCAL_MACHINE\SOFTWARE\ORACLE\KEY_
HOME_NAME
includes the following parameters for an Oracle home directory. Depending on products you install, additional parameters can also be created. See your Windows development manuals.
Specifies the location of Windows help files. The default value is
ORACLE_BASE\ORACLE_HOME\mshelp
Specifies supported language, territory, and character set. This parameter specifies the language in which messages appear, the territory and its conventions for calculating week and day numbers, and the character set displayed. Oracle Universal Installer sets this value during installation based on the language setting of the operating system. See Oracle Database Globalization Support Guide for a list of values.
Specifies current working directory. For example, if you set this parameter and then use ORADIM, a log file called oradim.log
is created in this directory. This parameter must be manually set.
Starts Oracle Database when OracleService
SID
service is started. The default value is true.
Specifies full path to initialization parameter file. The default value is ORACLE_BASE
\admin\DB_NAME\pfile\init.ora
When set to true
, the default value, this parameter shuts down the instance of Oracle Database identified by SID
when OracleService
SID
is stopped manually—using either the Control Panel or Net stop command.
Sets maximum time (in seconds) to wait for shutdown to complete before the service for a particular SID stops. The default value is 30
.
Specifies mode in which Oracle Database is shut down when you stop OracleService
SID
. Valid values are a
(abort), i
(immediate), and n
(normal). The default value is i
.
Specifies location of time zone file. Each file contains:
Valid time zone names
Offset from UTC
Abbreviation for standard time
Abbreviation for daylight savings time
In previous releases, the default value for ORA _TZFILE
was
ORACLE_BASE\ORACLE_HOME\oracore\zoneinfo\timezone.dat
Beginning with Oracle Database 10g Release 1 (10.1), the default value is
ORACLE_BASE\ORACLE_HOME\oracore\zoneinfo\timezlrg.dat
The former default, timezone.dat
, contains most commonly used time zones and is smaller for better database performance. The new default, timezlrg.dat
, includes time zones not defined in the smaller file. To enable use of the smaller file, the database administrator must:
Shut down Oracle Database.
Set ORA_TZFILE
to the full path name of the location of timezone.dat
file.
Restart Oracle Database.
To view time zone names, use SQL*Plus to make the following query:
SELECT * from v$timezone_names
If the larger timezlrg.dat
file is used, then it must stay in use unless the user is sure that no data uses one of the added time zones. Also, all databases that share information must use the same time zone file.
See Also:
Oracle Database Globalization Support Guide for lists of time zone names for both time zone filesSpecifies Windows processor affinity of each thread within the Oracle Database process. This parameter must be manually added. Oracle recommends consulting Oracle Support Services before changing this parameter. The format is:
name1:cpumask1;name2:cpumask2
Each name
setting must be the name of a background thread, user
for non-background (shadow) threads, or def
for any thread type not handled specifically.
The name
mask sets the affinity mask of the Oracle Database process. Valid background thread names include DBW0
, LGWR
, PMON
, SMON
, ARCH
, RECO
, CKPT
, TRWR
, SNP0
through SNP9
, P000
through P481
, and any other name found in the NAME
column of the v$bgprocess
data dictionary view.
Each affinity setting must be a valid affinity mask (or its numeric equivalent) for the corresponding name. Process affinity masks are used only when Oracle services are first started. Each thread's affinity is set only when the individual thread is started (for example, at database startup time for the background threads).
Specifies the top-level Oracle directory (for example, C:\oracle\product\10.2.0
) that contains ORACLE_HOME
, admin
, and oradata
. The default is ORACLE_BASE
.
Specifies the name of the group containing icons of the Oracle products installed. The parameter is added to your registry when you first install Oracle products, even if Oracle Universal Installer does not create a program group for Oracle products you have installed (for example, if you have installed only Oracle Net software). The default value is Oracle
-
HOME_NAME
.
Specifies Oracle home directory in which Oracle products are installed. This directory is immediately beneath the Oracle base directory in the Oracle directory hierarchy. The default value is the drive letter and name that you specify during installation.
The HKEY_LOCAL_MACHINE
location of Oracle parameters. The default value is software\oracle\HOME
ID.
Specifies home name of Oracle home directory in which Oracle products are installed. The default value is the name that you specify during installation.
Determines Windows scheduling priorities of threads within the Oracle Database management system process. The format is:
name1:priority1;name2:priority2 . . .
The name
class sets the priority
class of the Oracle Database process. Threads can be assigned priority either collectively or individually. The collective name user
designates non-background (shadow) threads; the collective name def
designates any thread type not handled specifically. Valid individual background thread names include DBW0
, LGWR
, PMON
, SMON
, ARCH0
, RECO
, CKPT
, TRWR
, SNP0
through SNP9
, and any other name found in the NAME
column of the v$bgprocess
data dictionary view.
The default value is class:normal; def:normal
.
Note:
ORACLE_PRIORITY
is not automatically created for you in the registry. When it is not defined in the registry, Windows default values are used for thread priorities.Specifies the name of the Oracle Database instance on the host computer. The value of this parameter is the SID for the instance. The default value is specified by the entry in the Database Identification window of Oracle Universal Installer.
Enables user authentication. When it is set to true
, it enables the server to differentiate between one username and another, whether they are local users, domain users, or domain users on another domain in your network. When it is set to false
, the domain is ignored, and the local user becomes the default value of the operating system user returned to the server. The default value is true
.
Enables client users to access Oracle Database as X.509-compliant enterprise users. This parameter is required only if you want to use enterprise users and roles in an Oracle Database computer running in a Windows 2000 domain. The default value is false
.
Specifies the location of backup database files. The default value is ORACLE_BASE
\
ORACLE_HOME
\database\archive
.
Specifies the location of backup database control files. The default value is ORACLE_BASE
\
ORACLE_HOME
\database
.
This subkey contains the following parameters:
HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet
contains four keys:
Control
Enum
HardwareProfiles
Services
The first three are used by the operating system. You can edit only the Services
subkey, which contains:
Oracle Counters for Windows Performance Monitor parameters appear in:
HKEY_LOCAL_MACHINE\SYSTEM\CURRENTCONTROLSET\SERVICES\ORACLEver\PERFORMANCE
where ORACLE
ver
refers to whatever version of Oracle Database is installed.
For multiple Oracle homes compliance starting with Oracle Database 10g Release 1 (10.1), parameters Hostname
, Username
, Password
, LOGFILE
, and PERF_FILE_NAME
have been moved to
HKEY_LOCAL_MACHINE\SYSTEM\CURRENTCONTROLSET\SERVICES\ORACLEver\PERFORMANCE\KEY_HOME_NAME.
Note:
Modify only theHostname
, Password
, and Username
values to point to any database. Oracle recommends that you use operfcfg
. See "Using operfcfg".For Oracle Counters for Windows Performance Monitor to display information for Oracle Database performance objects, it must log in to the database. Modify the following parameters if the default information is not applicable or if you want to access another database:
Hostname
displays the SID of the database that Oracle Counters for Windows Performance Monitor will connect to. The default value is blank, causing Oracle Counters for Windows Performance Monitor to connect to the default database on the computer.
If you specify a different SID, you must also add a connect descriptor for that SID to your tnsnames.ora
file. Oracle recommends that you use Oracle Net Configuration Assistant, but you can also copy, paste, and modify the following example:
SERVICE_NAME = (DESCRIPTION = (ADDRESS_LIST = (ADDRESS = (PROTOCOL = TCP)(HOST = HOST_NAME)(PORT = 1521)) ) (CONNECT_DATA = (SERVER = DEDICATED) (SERVICE_NAME = SERVICE_NAME) ) )
Password
displays the encrypted password for the username to access the database. The default value is MANAGER
(encrypted).
Username
displays the username to access the database. The default value is SYSTEM
.
Oracle Counters for Windows Performance Monitor requires the following parameters as entry points:
Close
specifies the close entry point for the DLL. The default value is CloseOracle
ver
PerformanceData
.
Collect
specifies the collect entry point for the DLL. The default value is CollectOracle
ver
PerformanceData
.
Library
specifies the name of the Oracle Counters for Windows Performance Monitor DLL. The default value is ORAPERF
ver
.dll
Open
specifies the open entry point for the DLL. The default value is OpenOracle
ver
PerformanceData
.
The following parameters specify Oracle Counters for Windows Performance Monitor log file and object configuration files:
LOGFILE
specifies the name of the Oracle Counters for Windows Performance Monitor log file. This log file reports any errors, such as Oracle Database objects not appearing or database access problems. The default value is ORACLE_BASE
\
ORACLE_HOME
\dbs\operf
ver
.log
.
PERF_FILE_NAME
specifies the location of the PERF
ver
.ora
file, which contains all performance objects displayed by Oracle Counters for Windows Performance Monitor. The default value is ORACLE_BASE
\
ORACLE_HOME
\dbs\perf
ver
.ora
HKEY_LOCAL_MACHINE\SYSTEM\CURRENTCONTROLSET\SERVICES
subkey contains additional subkeys that correspond to each Oracle Database service.
Each service subkey contains the following parameters:
DisplayName
specifies the service name of the instance whose SID
is SID
. The default value is the name of the service. For example, OracleServiceORCL1
, where ORCL1
is the SID
.
ImagePath
specifies the fully qualified path name of the executable started by the service and any command-line arguments passed into the executable at runtime. The default value is the path to the executable file of the product.
ObjectName
specifies the logon user account and computer to which the service should log on. The default value is LocalSystem
.
Oracle Real Application Clusters registry values are based on the clusterware. If you are not using the clusterware, then some of this information may not be applicable to your particular cluster environment.
Note:
Oracle Real Application Clusters is not supported on Windows XP and Windows Vista.This subkey contains the following values:
OCRROOT
points to the location of the Oracle Cluster Registry file
LOCAL_ONLY
which is set to False
for a cluster installation and True
for a single-instance database installation
Caution:
Do not edit your registry unless absolutely necessary. If an error occurs in your registry, then Oracle Database for Windows can stop functioning, and the registry itself can become unusable.To edit Oracle-related settings:
Start Registry Editor in one of two ways:
From the command prompt, enter:
C:\> regedit
Choose Start >
Run, enter regedit
in the Open field, and click OK.
The Registry Editor window appears.
Navigate to the values you want to view or modify by double-clicking appropriate keys.
The left-hand side of the window shows the hierarchy of registry keys, and the right-hand side of the window shows various values associated with a key.
Double-click the parameter to edit.

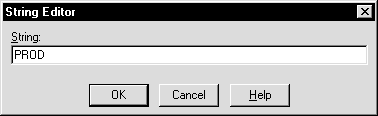

The String Editor dialog appears:
Make any necessary edits.
Click OK.
Choose Exit from the Registry menu.
To add a parameter to the registry:
Start Registry Editor in one of two ways:
From the command prompt, enter:
C:\> regedit
Choose Start >
Run, enter regedit
in the Open field, and click OK.
The Registry Editor window appears.
Navigate to the key to which you want to add the new value.
Choose Add Value from the Edit menu.

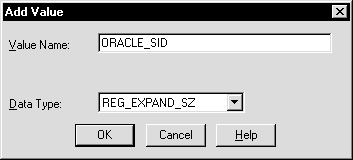

The Add Value dialog appears:
In the Value Name field, type the name of the value that you want to add to the currently selected key.
In the Data Type list, select the data type that you want to assign to the added value:
REG_SZ
, REG_EXPAND_SZ
(for an expandable string), or REG_MULTI_SZ
(for multiple strings) for a data string
Binary value with a REG_DWORD
prefix to identify a value entry as a DWORD
(hexadecimal data) entry
Click OK.
The String Editor dialog appears:
Type the value for the parameter.
Click OK.
Registry Editor adds the parameter.
Choose Exit from the Registry menu.
Instead of using regedit
to add, edit, and delete parameters for an Oracle home, you can use the Oracle Home Configuration snap-in, one of several snap-ins included as part of Oracle Administration Assistant for Windows. You must have Microsoft Management Console on your computer to use this product.
See Also:
"HKEY_LOCAL_MACHINE\SOFTWARE\ORACLE\KEY_HOME_NAME" for more information about Oracle home parametersTo start Oracle Administration Assistant for Windows:
Choose Start >
Programs >
Oracle - HOME_NAME >
Configuration and Migration Tools >
Administration Assistant for Windows.

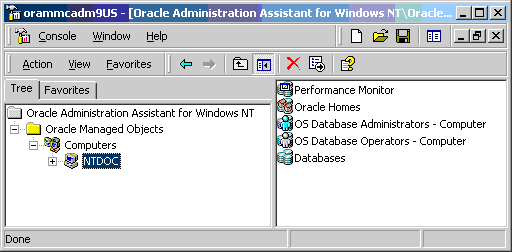

Oracle Administration Assistant for Windows starts.
Expand Oracle Homes.
Right-click the Oracle home that you want to modify.

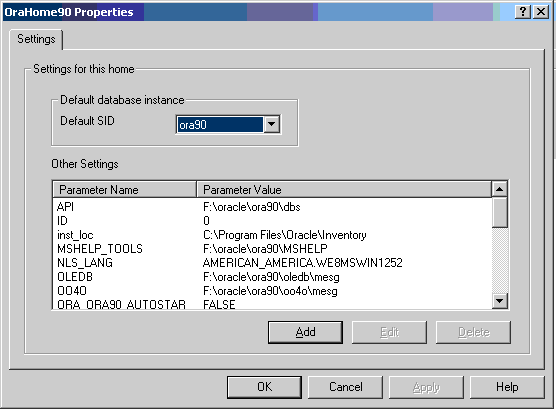

Click Properties. The Properties dialog appears.
To add an Oracle home parameter:
Click Add in the Properties dialog.
The Add Value dialog appears.
Enter the name in the Parameter Name field.
Enter the value in the Parameter Value field.
Click OK.
Click Apply.
Note:
With Oracle Administration Assistant for Windows, you can add parameters only with a datatype ofREG_SZ
. Use regedit
to add parameters with a datatype of REG_EXPAND_SZ
, REG_MULTI_SZ
, or REG_DWORD
.To change the default SID, select the SID from the Default SID list in the Properties dialog. To edit one of the other parameters:

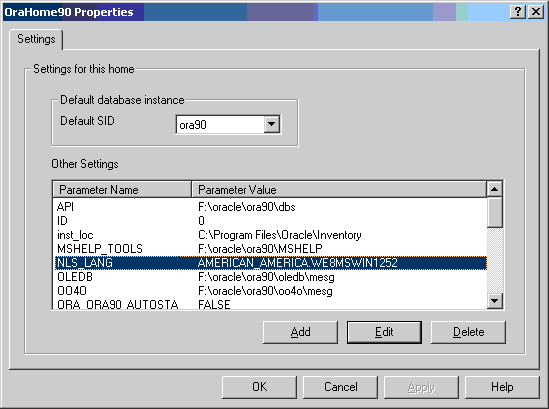

Select the parameter in the Other Settings list in the Properties dialog.
Click Edit.
The Edit Value dialog appears.
Modify the value.
Click OK.
Click Apply.
To delete an Oracle home parameter:
Select the parameter in the Other Settings list in the Properties dialog.
Click Delete.
Instead of using regedit
to modify Oracle Counters for Windows Performance Monitor's Hostname
, Password
, and Username
parameters, you can use operfcfg
or Oracle Administration Assistant for Windows.
See Also:
"Parameters for Oracle Counters for Windows Performance Monitor" for more information aboutHostname
, Password
, and Username
parametersoperfcfg
is an Oracle Database tool that you run from the command prompt. You must specify the system password by running operfcfg.exe
, located in the ORACLE_HOME\
bin
directory. operfcfg.exe
prompts for a user name, password, and TNS alias.
For example:
DRIVE_LETTER:\> ORACLE_HOME\bin\operfcfg.exe Enter user-name: system Enter password: password Enter tns-alias: orcl operfcfg: New registry values have been successfully set.
If you run the following command, then operfcfg.exe
does not prompt for a password:
operfcfg.exe -U user_name -D tns_alias
The -U
and -D
commands are optional.
The following examples illustrate the use of operfcfg
. First, to change user name to dba_admin
and leave database name at its current value, enter:
C:\> operfcfg -U dba_admin
To change username to dba_admin
and database name to prod
, enter:
C:\> operfcfg -U dba_admin -D prod
In the final example, you change host name
to a blank value, causing Oracle Counters for Windows Performance Monitor to connect to the default database on the computer. The current user name and password must be valid user accounts on this database. Enter:
C:\> operfcfg -D
Oracle Counters for Windows Performance Monitor snap-in is part of Oracle Administration Assistant for Windows. You must have Microsoft Management Console on your computer in order to use this product.
To use Oracle Counters for Windows Performance Monitor snap-in:
Choose Start >
Programs > Oracle - HOME_NAME >
Configuration and Migration Tools >
Administration Assistant for Windows.
Oracle Administration Assistant for Windows starts.
Right-click Performance Monitor.
Click Properties.
The Performance Monitor Properties dialog appears.
Modify the text in the Username, Password, or Database fields.
Click Apply.
