4.4 Overview of ADF Business Components Implementation Architecture

Before diving into each of the key components in subsequent chapters, it's good at the outset to understand a few guiding principles that have gone into the design and implementation of this layer of Oracle ADF.

4.4.1 Based on Standard Java and XML

Like the rest of Oracle ADF, the ADF Business Components technology is implemented in Java. The base components implement a large amount of generic, metadata-driven functionality to save you development time by standing on the shoulders of a rich layer of working, tested code. The metadata for ADF Business Components follow J2EE community best practice of using cleanly-separated XML files to hold the metadata that configures each component's runtime behavior.

Since ADF Business Components is often used for bet-your-business applications, it's important to understand that full source for Oracle ADF, including the ADF Business Components layer, is available to supported customers through Oracle Worldwide Support. The full source code for the framework can be an important tool to assist you in diagnosing problems and in correctly extending the base framework functionality for your needs.

4.4.2 Works with Any Application Server or Database

Because your business components are implemented using plain Java classes and XML files, you can use them in any runtime environment where a Java Virtual Machine is present. This means that services built using ADF Business Components are easy to use both inside a J2EE server — known as the "container" of your application at runtime — as well as outside. Customers routinely use application modules in such diverse configurations as command-line batch programs, web services, custom servlets, JSP pages, desktop-fidelity clients built using Swing, and others.

Applications built using ADF Business Components can run on any Java-capable application server, including any J2EE-compliant application server. As described in Section 4.6.1, "Choosing a Connection, SQL Flavor, and Type Map", in addition to building applications that target Oracle databases with numerous optimizations, you can also build applications that work with non-Oracle databases.

4.4.3 Implements All of the J2EE Design Patterns You Need

The ADF Business Components layer implements all of the popular J2EE design patterns that you would normally need to understand, implement, and debug yourself to create a real-world enterprise J2EE application. If it is important to you to cross-reference the names of some of these design patterns you might have read about in J2EE literature with how they are implemented by ADF Business Components, you can refer to Appendix E, "ADF Business Components J2EE Design Pattern Catalog".

4.4.4 Components are Organized into Packages

Since ADF Business Components is implemented in Java, it is implemented in Java classes and interfaces that are organized into packages. Java packages are identified by dot-separated names that developers use to arrange code into a hierarchical naming structure. To ensure your code won't clash with reusable code from other organizations, best practice dictates choosing package names that begin with your organization's name or web domain name. So, for example, the Apache organization chose org.apache.tomcat for a package name related to its Tomcat web server, while Oracle picked oracle.xml.parser as a package name for its XML parser. Components you create for an your own applications will live in a packages with names like com.yourcompany.yourapp and subpackages of these.

As a specific example, the ADF Business Components that make up the main business service for the SRDemo application are organized into the oracle.srdemo.model package, and subpackages. As shown in Figure 4-1, these components reside in the DataModel project in the workspace, and are organized broadly as follows:

• oracle.srdemo.model contains the SRService application module

• oracle.srdemo.model.queries contains the view objects

• oracle.srdemo.model.entities contains the entity objects

• oracle.srdemo.model.design contains UML diagrams documenting the service

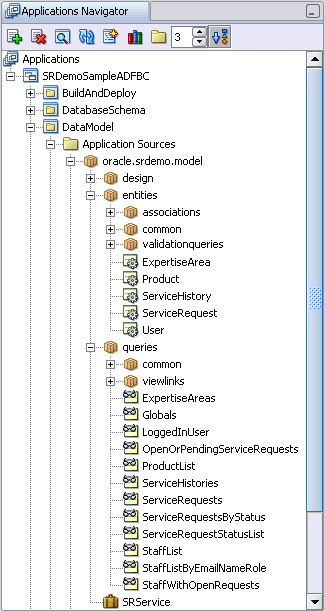

Figure 4-1 Organization of ADF Business Components in the SRDemo Application

In your own applications, you can choose any package organization that you believe best organizes them. In particular, keep in mind that you are not constrained to organize components of the same type into a single package as the creators of the SRDemo application have done.

Due to JDeveloper's support for refactoring, you can easily rename or move components to a different package structure at any time. In other words, you don't need to necessarily get the structure right the first time. Your business service's package structure will almost certainly evolve over time as you gain more experience with the ADF environment.

There is no "magic" number that describes the optimal number of components in a package. However, with experience, you'll realize that the correct structure for your team falls somewhere between the two extremes of:

• All components in a single package

• Each component in its own, separate package

As described in more detail in Section 25.7, "Working with Libraries of Reusable Business Components", since a package of ADF Business Components is the unit of granularity that JDeveloper supports importing for reuse in other projects, sometimes you'll also factor this consideration into how you choose to organize components.

4.4.5 Architecture of the Base ADF Business Components Layer

The classes and interfaces that comprise the pre-built code provided by the ADF Business Components layer live in the oracle.jbo package and numerous subpackages, however in your day to day work with ADF Business Components you'll mostly be working with classes and interfaces in the two key packages oracle.jbo and oracle.jbo.server. The oracle.jbo package contains all of the interfaces that are designed for the business service client to work with, while the oracle.jbo.server package contains the classes that implement these interfaces.

Note: The term "client" here means any code in the model, view or controller layers that accesses the application module component as a business service.

Figure 4-2 shows a concrete example of the application module component. The client interface for the application module is the ApplicationModule interface in the oracle.jbo package. This interface defines the names and signatures of methods that clients can use while working with the application module, but it does not include any specifics about the implementation of that functionality. The class that implements the base functionality of the application module component lives in the oracle.jbo.server package and is named ApplicationModuleImpl.

Figure 4-2 Oracle ADF Business Components Separate Interface and Implementation

4.4.6 Components Are Metadata-Driven With Optional Custom Java Code

Each kind of component in ADF Business Components comes with built-in runtime functionality that you control through declarative settings. These settings are stored in an XML component definition file with the same name as the component that it represents. When you need to write custom code for a component, you can enable an optional custom Java class for the component in question.

4.4.6.1 Example of an XML-Only Component

Figure 4-3 illustrates the XML component definition file for an application-specific component like an application module named YourService that you create in a package named com.yourcompany.yourapp. The corresponding XML component definition resides in a ./com/yourcompany/yourapp subdirectory of the JDeveloper's project's source path root directory. That XML file records the name of the Java class it should use at runtime to provide the application module implementation. In this case, the XML records the name of the base oracle.jbo.server.ApplicationModuleImpl class provided by Oracle ADF.

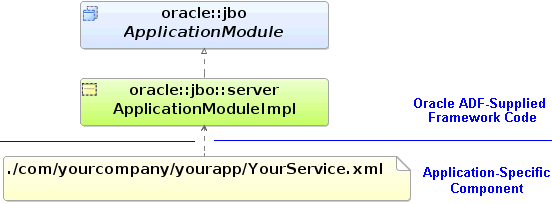

Figure 4-3 XML Component Definition File for an Application Module

If you have no need to extend the built-in functionality of a component in ADF Business Components, and no need to write any custom code to handle its built-in events, you can use the component in this XML-only fashion. This means your component is completely defined by its XML component definition and be fully-functionality without requiring any custom Java code or even a Java class file related to the component at all.

4.4.6.2 Example of a Component with Custom Java Class

When you need to add custom code to extend the base functionality of a component or to handle events, you can enable a custom Java class for any of the key types of ADF Business Components you create. You enable custom classes for a component on the Java panel of its respective component editor in JDeveloper. This creates a Java source file for a custom class related to the component whose name follows a configurable naming standard. This class, whose name is recorded in the component's XML component definition, provides a place where you can write the custom Java code required by that component. Once you've enabled a custom Java class for a component, you can navigate to it at any time using a corresponding Go To... Class option in the component's Application Navigator context menu.

Figure 4-4 illustrates what occurs when you enable a custom Java class for the YourService application module considered above. A YourServiceImpl.java source code file is created in the same directory in the source path as your component's XML component definition file. The YourService.xml file is updated to reflect the fact that at runtime the component should use the com.yourcompany.yourapp.YourServiceImpl class instead of the base ApplicationModuleImpl class.

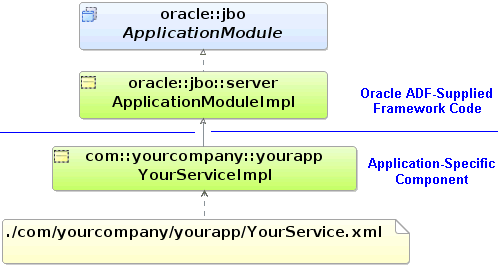

Figure 4-4 Component with Custom Java Class

Note: The examples in this guide use default settings for generated names of custom component classes and interfaces. If you want to change these defaults for your own applications, use the Business Components: Class Naming page of the JDeveloper Tools Preferences dialog. Changes you make only affect newly created components.

4.4.7 Recommendations for Configuring ADF Business Components Design Time Preferences

You can configure whether JDeveloper generates custom Java files by default for each component type that supports it, as well as whether JDeveloper maintains a list of Oracle ADF business components in each package using a package XML file. This section describes Oracle's recommendations to developers getting started with ADF Business Components on how to configure these options.

4.4.7.1 Recommendation for Initially Disabling Custom Java Generation

Your applications can freely mix XML-only components with components that have related custom Java files. For example, you can define a completely functional, updatable data model with declaratively enforced business rules using XML-only components. On the other end of the spectrum, some developers prefer to proactively generate Java classes for each component they create as part of their team's coding style.

For developers getting started with ADF Business Components, Oracle recommends initially configuring JDeveloper to not generate any custom Java classes by default. This way, you learn the reasons why custom Java is needed and you consciously enable it for the components that require it in your application. Over time, you will develop a personal preference of your own.

Note that this recommended setting is not the default, so you need to perform the following steps to configure the Java generation preferences as recommended here:

• Choose Tools | Preferences... from the JDeveloper main menu

• Select the Business Components preference category in the tree at the left

• Ensure all of the checkboxes are unchecked as shown in Figure 4-5, then click OK.

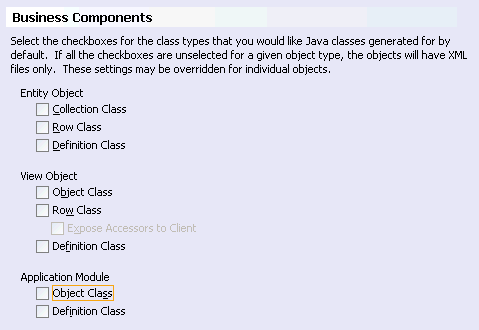

Figure 4-5 Setting Business Components Preferences to Generate No Java By Default

4.4.7.2 Recommendation for Disabling Use of Package XML File

By default, for upward compatibility with previously releases of Oracle ADF, JDeveloper maintains an XML file in each directory containing the names of the Oracle ADF business components that reside in that package. While previously required by the ADF runtime classes, this package XML file is optional in this version. Since maintaining this "package XML" file can complicate team development, Oracle recommends you disable the use of any package XML files by setting the Copy Package XML Files to Class Path option off in the Business Components: General panel of the IDE preferences as shown in Figure 4-6.

Figure 4-6 Disabling the Use of the Optional Package XML File for ADF Business Components

Note: To disable the use of package XML files in an existing project containing ADF Business Components, you can visit the Project Properties dialog, select the Business Components: Options panel, and uncheck the same checkbox as shown above.

4.4.8 Basic Datatypes

The Java language provides a number of built-in data types for working with strings, dates, numbers, and other data. When working with ADF Business Components, you can use these types, but by default you'll use an optimized set of types in the oracle.jbo.domain and oracle.ord.im packages. These types, shown in Table 4-1, improve the performance of working with data from the Oracle database by allowing the data to remain in its native, internal format avoiding costly type conversions when they are not necessary. For working with string-based data, by default ADF Business Components uses the regular java.lang.String type.

Table 4-1 Basic Data Types in the oracle.jbo.domain and oracle.ord.im Packages

Data Type	Represents
Number	Any numerical data
Date	Date with optional time
DBSequence	Sequential integer assigned by a database trigger
RowID	Oracle database ROWID
Timestamp	Timestamp value
TimestampTZ	Timestamp value with Timezone information
BFileDomain	Binary File (BFILE) object
BlobDomain	Binary Large Object (BLOB)
ClobDomain	Character Large Object (CLOB)
OrdImageDomain	Oracle Intermedia Image (ORDIMAGE)
OrdAudioDomain	Oracle Intermedia Audio (ORDAUDIO)
OrdVideoDomain	Oracle Intermedia Video (ORDVIDEO)
OrdDocDomain	Oracle Intermedia Document (ORDDOC)
Struct	User-defined object type
Array	User-defined collection type (e.g. VARRAY)

Note: The oracle.jbo.domain.Number class has the same class name as the built-in java.lang.Number type. Since the Java compiler implicitly imports java.lang.* into every class, you need to explicitly import the oracle.jbo.domain.Number class into any class that references this. Typically, JDeveloper will do this automatically for you, but when you begin to write more custom code of your own, you'll learn to recognize compiler or runtime errors related to "Number is an abstract class" mean that you are inadvertently using java.lang.Number instead of oracle.jbo.domain.Number. Adding the: import oracle.jbo.domain.Number; line at the top of your class, after the package line, avoids these kinds of errors.

4.4.9 Generic Versus Strongly-Typed APIs

When working with application modules, view objects, and entity objects, you can choose to use a set of generic APIs or can have JDeveloper generate code into a custom Java class to enable a strongly-typed API for that component. For example, when working with an view object, you can access the value of an attribute in any row of its result using a generic API like:

Row row = serviceRequestVO.getCurrentRow();
Date requestDate = (Date)row.getAttribute("RequestDate");

Notice that using the generic APIs, you pass string names for parameters, and you have to cast the return type to the expected type like Date shown in the example.

Alternatively, if you enable the strongly-typed style of working you can write code like this:

ServiceRequestsRow row = (ServiceRequestRow)serviceRequestVO.getCurrentRow();
Date requestDate = row.getRequestDate();

In this case, you work with generated method names whose return type is known at compile time, instead of passing string names and having to cast the results. Subsequent chapters explain how to enable this strongly-typed style of working if you prefer it.

4.4.10 Client-Accessible Components Can Have Custom Interfaces

By design, the entity objects in the business domain layer of business service implementation are not designed to be referenced directly by clients. Instead, clients work with the data queried by view objects as part of an application module's data model. Behind the scenes, as you'll learn in Section 7.7, "Understanding How View Objects and Entity Objects Cooperate at Runtime", the view object cooperates automatically with entity objects in the business domain layer to coordinate validating and saving the data the user changes.

Therefore, the client-visible components of your business service are the:

• Application Module — representing the service itself

• View Objects — representing the query components

• View Rows — representing each row in a given query component's results

4.4.10.1 Framework Client Interfaces for Components

The oracle.jbo package provides client-accessible API for your business service as a set of Java interfaces. In line with the design mentioned above, this package does not contain any Entity interface, or any methods that allow the client to directly work with entity objects. Instead, client code works with interfaces like:

• ApplicationModule — to work with the application module

• ViewObject — to work with the view object

• Row — to work with the view rows

4.4.10.2 Custom Client Interfaces for Components

When you begin adding custom code to your Oracle ADF business components that you want clients to be able to call, you can "publish" that functionality to clients for any client-visible component. For each of your components that publishes at least one custom method to clients on its client interface, JDeveloper automatically maintains the related Java interface file. So, assuming you were working with an application module like the SRService module used in the SRDemo application, you can have custom interfaces like:

• Custom Application Module Interface

  SRService extends ApplicationModule



• Custom View Object Interface

  StaffListByEmailNameRole extends ViewObject



• Custom View Row Interface

  StaffListRowClient extends Row



Client code can then cast one of the generic client interfaces to the more specific one that includes the selected set of client-accessible methods you've selected for your particular component.
