19.4 Using sessions.xml with a TopLink Data Control

You can create a data control from a TopLink sessions configuration file (sessions.xml), similarly to creating a data control from a TopLink map (see Section 19.5, "Using Multiple Maps with a TopLink Data Control").

Use the TopLink Data Control dialog (as shown in Figure 19-3), select TopLink Sessions Configuration, and then select the specific sessions configuration file (sessions.xml) and session.

To create a TopLink data control from a sessions configuration file (sessions.xml):

1. Right-click the sessions.xml file in the Navigator window and select Create Data Control.

2. On the TopLink Data Control dialog, select the TopLink Sessions Configuration option.

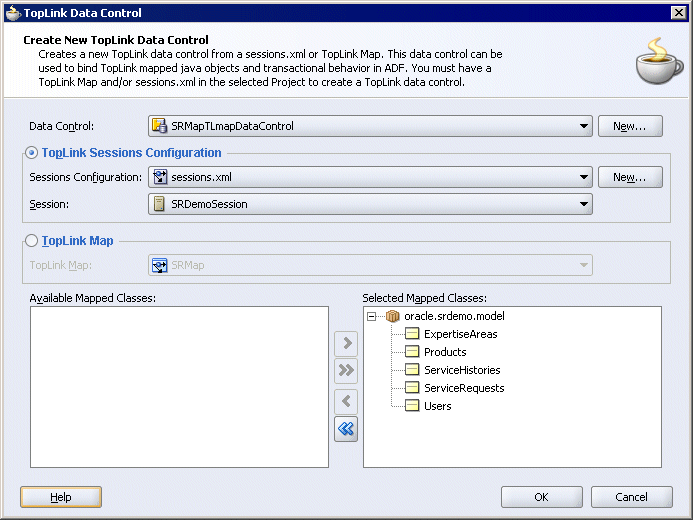

   Figure 19-3 Creating a TopLink Data Control (from a Sessions Configuration)




3. Select the specific sessions configuration file (or create a new configuration) and session. You can create a data control for any mapped classes.
