After the installation of BEA Tuxedo Mainframe Adapter for OSI TP is complete, you must configure the software. The proper configuration of TMA OSI TP sets up the gateway configuration.
This section covers the following topics:
The TMA OSI TP product software must be installed and accessible to your text editor. You must have file permission to access the install directory and modify the sample DMCONFIG file.
In addition, the following prerequisites must be met to successfully complete the configuration procedure:
$TUXDIR/udataobj/DMTYPE file defining the valid domain types must exist so the dmloadcf utility can load the binary configuration file and must contain a domain type of OSITPX. During the installation process if the DMTYPE file does not contain an OSI TP entry, the DMTYPE file is automatically updated with the required OSITP domain type.dmloadcf must match the UID in the RESOURCES section of the TUXCONFIG file.
Before you can invoke system commands, you must set several system environment variables. The following table provides descriptions of the four variables you must set. Most of the environment variables required by BEA Tuxedo Mainframe Adapter for OSI TP are set when you set up Tuxedo. Refer to your Tuxedo documentation for more information about setting the Tuxedo environment variables.
You must set OSIRUNDIR, before you can boot the gateway or run the osiadmin utility. If you do not set the OSIRUNDIR environment variable before you boot the gateway, you will receive a message telling you to set OSIRUNDIR. This environment variable specifies the path that the TMA gateway uses for runtime files. You can set the OSIRUNDIR environment variable through a script, a command line entry, or through the Windows System Properties in the Control Panel. The variable value should include the path and directory as appropriate for your operating system. If the directory does not exist, the system will create it for you.
The default transaction time on the server is determined at startup by an optional environment variable called GW_DFLT_TRANTIME. If you do not set this variable, the default value is 5 minutes (300 seconds). This environment variable can be set to a different value at startup, but if the value exceeds the maximum allowed for a LONG, then the value is reset to 300 and a LIBGWO_CAT msg 2204 is sent to the ULOG to indicate that the maximum has been exceeded.
| Note: | The maximum for a LONG is 2147483647. |
Whether you are defining a new gateway configuration or modifying an existing one, both processes are similar. Defining a gateway configuration requires the following steps:
osiadmin processor if you are upgrading from eLink OSI TP 1.3. Refer to Using the OSI TP Administration Utility for more information.DMCONFIG file with new gateway information. Refer to Implementing Native-A Encoding and
Understanding the DMCONFIG File for more information.dmconfig file by running the dmloadcf utility. Refer to
Processing a Configuration File with the dmloadcf Utility for more information.
After you perform these steps, you are ready to start the gateway using the Tuxedo tmboot command. Refer to the BEA Tuxedo Online Documentation for more information about Tuxedo commands.
To establish a gateway configuration, the BEA Tuxedo system must recognize the gateway servers, DMADM, GWADM, and GWOSITP. You define the TMA OSI TP administrative and gateway servers to the BEA Tuxedo system by editing the UBBCONFIG file.
Perform the following steps to define TMA OSI TP servers for BEA Tuxedo:
GROUPS section of the UBBCONFIG file, add a server group using the following format:OSIGRP GRPNO=1 LMID=SITE1
| Note: | OSIGRP is used as an example. You may give the group any name you wish. |
SERVERS section of the UBBCONFIG file, add the three server names: DMADM,GWADM,and GWOSITP.| Note: | The DMADM and GWADM entries should be placed in this order BEFORE GWOSITP in the UBBCONFIG file so the admin servers are loaded before the GWOSITP gateway server. |
| Note: | It is recommended that you set the RESTART parameter in the SERVERS section to Y so that the gateway will automatically restart in case of failure. |
The following file is a sample UBBCONFIG file that defines gateway servers to the BEA Tuxedo system.
#-----------------------------------
# TMA OSI TP Test; Client ubbconfig
#-----------------------------------
*RESOURCES
#---------------
# Replace IPCKEY
#---------------
IPCKEY 52029
MASTER SITE1
DOMAINID FRONTEND
PERM 0660
MAXACCESSERS 40
MAXSERVERS 80
MAXSERVICES 80
MAXCONV 120
MODEL SHM
LDBAL Y
MAXGTT 120
MAXBUFTYPE 16
MAXBUFSTYPE 32
SCANUNIT 5
SANITYSCAN 10
DBBLWAIT 5
BBLQUERY 50
BLOCKTIME 15
*MACHINES
#---------------------
# Replace machine name
#---------------------
DALNT45 LMID=SITE1
#------------------------------
# Replace directories as needed
#------------------------------
TUXDIR="c:\tuxedo"
APPDIR="D:\dwh\base\ositp\test\client"
TUXCONFIG="D:\dwh\base\ositp\test\client\tuxconfig"
TLOGDEVICE="D:\dwh\base\ositp\test\client\TLOG"
TLOGNAME="TLOG"
*GROUPS
OSIGRP2 GRPNO=2 LMID=SITE1
OSIGRP3 GRPNO=3 LMID=SITE1 TMSNAME="TMS" TMSCOUNT=2
*SERVERS
DEFAULT: RESTART=Y
DMADM SRVID=101 SRVGRP=OSIGRP2 CLOPT="-A" REPLYQ=N
GWADM SRVID=103 SRVGRP=OSIGRP2 CLOPT="-A"" REPLYQ=N
GWOSITP SRVID=104 SRVGRP=OSIGRP2 CLOPT="-A" GRACE=0" REPLYQ=N
CRPCSERV SRVID=8 SRVGRP=OSIGRP3 CLOPT="-A" RQADDR="rpcq"
CCONVSRV SRVID=9 SRVGRP=OSIGRP3 CLOPT="-A" RQADDR="convq "CONV=Y
MIN=3 MAX=5
*SERVICES
DEFAULT: LOAD=50 AUTOTRAN=N
CTOUPPER PRIO=50
CCONVRTN PRIO=50
CCONVRTN2 PRIO=50
CCONVRTN3 PRIO=50
CTOUPPER2 PRIO=50
Refer to the BEA Tuxedo Reference Manual for additional information about the UBBCONFIG file.
Following is a sample UBBCONFIG file and corresponding DMCONFIG file for multiple gateways that reside on the same physical system. Note that use of LDBAL=Y in the UBBCONFIG file is not required for multiple gateways. Loads are automatically balanced for multiple gateways.
*RESOURCES
IPCKEY 65952
MASTER "SITE1"
MODEL SHM
PERM 0660
LDBAL N # not needed for gateway load balancing
MAXACCESSERS 40
MAXSERVERS 80
MAXSERVICES 80
MAXGTT 120
SCANUNIT 5
SANITYSCAN 10
BLOCKTIME 15
MAXCONV 120
*MACHINES
"SITE1" LMID="SITE1"
TUXCONFIG="D:\tuxedo\configs\TUXCONFIG"
TUXDIR="D:\tuxedo"
APPDIR="D:\tuxedo\apps"
TLOGDEVICE="D:\tuxedo\log\TLOG"
ULOGPFX="D:\tuxedo\log\ULOG"
TLOGNAME=TLOG
TLOGSIZE=20
TYPE="SITE1"
*GROUPS
GROUP1 LMID="SITE1"
GRPNO=1
GROUP2 LMID="SITE1"
GRPNO=2
DMGRP LMID="SITE1"
GRPNO=3
*SERVERS
DEFAULT: RQPERM=0666
RPPERM=0666
MIN=1
MAX=1
CONV=N
MAXGEN=1
GRACE=86400
RESTART=Y
SYSTEM_ACCESS=FASTPATH
DMADM SRVGRP=DMGRP
SRVID=20
CLOPT="-A"
RESTART=Y
MAXGEN=2
REPLYQ=N
GWADM SRVGRP=GROUP1
SRVID=21
CLOPT="-A"
RESTART=Y
MAXGEN=2
REPLYQ=N
GWOSITP SRVGRP=GROUP1
SRVID=22
CLOPT="-A"
RESTART=Y
MAXGEN=2
REPLYQ=N
GWADM SRVGRP=GROUP2
SRVID=23
CLOPT="-A"
RESTART=Y
MAXGEN=2
REPLYQ=N
GWOSITP SRVGRP=GROUP2
SRVID=24
CLOPT="-A"
RESTART=Y
MAXGEN=2
REPLYQ=N
*SERVICES
DEFAULT: LOAD=50 AUTOTRAN=N
*DM_RESOURCES
VERSION="SITE1"
#
*DM_LOCAL_DOMAINS
"GW-1"
GWGRP = GROUP1
TYPE = OSITPX
DOMAINID = "GW-1"
BLOCKTIME = 30
DMTLOGDEV = "D:\tuxedo\log\DMLOG"
"GW-2"
GWGRP = GROUP2
TYPE = OSITPX
DOMAINID = "GW-2"
BLOCKTIME = 30
DMTLOGDEV = "D:\tuxedo\log\DMLOG2"
###############################################################
*DM_REMOTE_DOMAINS
DEFAULT:
"OPENTI" TYPE="OSITPX" DOMAINID="OPENTI"
###############################################################
*DM_OSITPX
"GW-1"
AET="{1.3.145.62.103},{2}"
TAILOR_PATH="d:\tuxedo\configs\tailor.txt"
# Inserted from OSITP's config file:
NWADDR="//SITE1:102"
"GW-2"
AET="{1.3.145.62.103},{3}"
TAILOR_PATH="d:\tuxedo\configs\tailor2.txt"
# Inserted from OSITP's config file:
NWADDR="//SITE1:2000" #second gateway must use another
#IP or different port number
"OPENTI"
AET="{1.3.122.61.203},{20}"
NWADDR="122.61.203.20"
*DM_LOCAL_SERVICES
*DM_REMOTE_SERVICES
DEFAULT: TRANTIME=300
# Tuxedo will alternate outgoing calls between the two LDOMs.
callSvc2 RDOM="OPENTI" LDOM="GW-1" PRIO=66
callSvc2 RDOM="OPENTI" LDOM="GW-2" PRIO=66
The following example uses the same UBBCONFIG file as in Listing 4-2 and shows how to configure one LDOM to support the non-multiplexed path and the other to support the multiplexed path.
*DM_RESOURCES
VERSION="SITE1"
#
*DM_LOCAL_DOMAINS
"GW-1"
GWGRP = GROUP1
TYPE = OSITPX
DOMAINID = "GW-1"
BLOCKTIME = 30
DMTLOGDEV = "D:\tuxedo\log\DMLOG"
"GW-2"
GWGRP = GROUP2
TYPE = OSITPX
DOMAINID = "GW-2"
BLOCKTIME = 30
DMTLOGDEV = "D:\tuxedo\log\DMLOG2"
###############################################################
*DM_REMOTE_DOMAINS
DEFAULT:
"OPENTI" TYPE="OSITPX" DOMAINID="OPENTI"
"dal2200" TYPE="OSITPX" DOMAINID="dal2200"
###############################################################
*DM_OSITPX
"GW-1"
AET="{1.3.145.62.103},{2}"
TAILOR_PATH="d:\tuxedo\configs\tailor.txt"
# Inserted from OSITP's config file:
NWADDR="//SITE1:102"
"GW-2"
AET="{1.3.145.62.103},{3}"
TAILOR_PATH="d:\tuxedo\configs\tailor2.txt"
# Inserted from OSITP's config file:
NWADDR="//SITE1:2000" #second gateway must use another
#IP or different port number
EXTENSIONS="MULTIPLEX_POLICY=DEMAND"
"OPENTI"
AET="{1.3.122.61.203},{20}"
NWADDR="122.61.203.20:2003"
EXTENSIONS="MULTIPLEX=Y"
"dal2200"
AET="{1.3.132.61.46},{3}"
XATMI_ENCODING="OLTP_TM2200"
NWADDR="132.61.46.3;132.61.147.1" #redundant IP addresses
T_SEL="OSITP"
*DM_LOCAL_SERVICES
*DM_REMOTE_SERVICES
DEFAULT: TRANTIME=300
# Tuxedo will alternate outgoing calls between the two LDOMs.
CallSvc1 RDOM="dal2200" LDOM="GW-1" PRIO=66
callSvc2 RDOM="OPENTI" LDOM="GW-2" PRIO=66
It is useful to use the Tuxedo MP model (for multiprocessors that do not have global shared memory or for networked applications) when you require two TMA OSI TP systems to exist in the same domain. (Refer to the BEA Tuxedo documentation for more information about the MODEL parameter.) A practical example of this is setting up a Windows NT cluster. The TMA OSI TP gateway supports active-active failover on an NT cluster. In the MP model case, there are two unique nodes, one defined as the master and a second one defined as a slave or backup system in the case of clustering. There is one UBBCONFIG and one DMCONFIG that physically exist on the master node. At TMBOOT time, a copy of the TUXCONFIG is propagated to the slave or backup system.
UBBCONFIG
*RESOURCES
IPCKEY 65952
MASTER SITE1,SITE2
MODEL MP
OPTIONS LAN
PERM 0660
LDBAL N # not needed for gateway load balancing
MAXACCESSERS 40
MAXSERVERS 80
MAXSERVICES 80
MAXGTT 120
SCANUNIT 5
SANITYSCAN 10
BLOCKTIME 15
MAXCONV 120
*MACHINES
"SITE1" LMID="SITE1"
TUXCONFIG="D:\tuxedo\configs\TUXCONFIG"
TUXDIR="D:\tuxedo"
APPDIR="D:\tuxedo\apps"
TLOGDEVICE="D:\tuxedo\log\TLOG"
ULOGPFX="D:\tuxedo\log\ULOG"
TLOGNAME=TLOG
TLOGSIZE=20
TYPE="INTEL"
"SITE2" LMID="SITE2"
TUXCONFIG="D:\tuxedo\configs\TUXCONFIG"
TUXDIR="D:\tuxedo"
APPDIR="D:\tuxedo\apps"
TLOGDEVICE="D:\tuxedo\log\TLOG"
ULOGPFX="D:\tuxedo\log\ULOG"
TLOGNAME=TLOG
TLOGSIZE=20
TYPE="INTEL"
*GROUPS
GROUP1 LMID="SITE1"
GRPNO=1
GROUP2 LMID="SITE2"
GRPNO=2
DMGRP LMID="SITE1"
GRPNO=3
*NETWORK
SITE1 NADDR="/SITE1:5020"
NLSADDR="//SITE1:5021"
SITE2 NADDR="//SITE2:5020"
NLSADDR="//SITE2:5021"
*SERVERS
DEFAULT: RQPERM=0666
REPLYQ=Y
RPPERM=0666
MIN=1
MAX=1
CONV=N
MAXGEN=1
GRACE=86400
RESTART=N
SYSTEM_ACCESS=FASTPATH
DMADM SRVGRP=DMGRP
SRVID=20
CLOPT="-A"
RESTART=Y
MAXGEN=2
REPLYQ=N
GWADM SRVGRP=GROUP1
SRVID=22
CLOPT="-A"
RESTART=Y
MAXGEN=2
REPLYQ=N
GWOSITP SRVGRP=GROUP1
SRVID=23
CLOPT="-A"
RESTART=Y
MAXGEN=2
REPLYQ=N
GWADM SRVGRP=GROUP2
SRVID=24
CLOPT="-A"
RESTART=Y
MAXGEN=2
REPLYQ=N
GWOSITP SRVGRP=GROUP2
SRVID=25
CLOPT="-A"
RESTART=Y
MAXGEN=2
REPLYQ=N
*SERVICES
DEFAULT: LOAD=50 AUTOTRAN=N
DMCONFIG
*DM_RESOURCES
VERSION="SITE1"
#
*DM_LOCAL_DOMAINS
"GW-1"
GWGRP = GROUP1
TYPE = OSITPX
DOMAINID = "GW-1"
BLOCKTIME = 30
DMTLOGDEV = "D:\tuxedo\log\DMLOG1"
DMTLOGNAME = "DMLOG"
"GW-2"
GWGRP = GROUP2
TYPE = OSITPX
DOMAINID = "GW-2"
BLOCKTIME = 30
DMTLOGDEV = "D:\tuxedo\log\DMLOG2"
DMTLOGNAME = "DMLOG"
###############################################################
*DM_REMOTE_DOMAINS
DEFAULT:
"OPENTI" TYPE="OSITPX" DOMAINID="OPENTI"
###############################################################
*DM_OSITPX
"GW-1"
AET="{1.3.145.62.103},{2}"
TAILOR_PATH="d:\tuxedo\configs\tailor1.txt"
# Inserted from OSITPX's config file:
NWADDR="//SITE1:102"
"GW-2"
AET="{1.3.145.62.103},{3}"
TAILOR_PATH="d:\tuxedo\configs\tailor2.txt"
# Inserted from OSITPX's config file:
NWADDR="//SITE2:102" # second gateway must use
# another IP or different
# port number
"OPENTI"
AET="{1.3.122.61.203},{20}"
NWADDR="122.61.203.20"
########################################################################*DM_LOCAL_SERVICES
###############################################################
*DM_REMOTE_SERVICES
DEFAULT: TRANTIME=300
# Each system will service different applications.
callSvc2 RDOM="OPENTI" LDOM="GW-1" PRIO=66
callSvc3 RDOM="OPENTI" LDOM="GW-2" PRIO=66

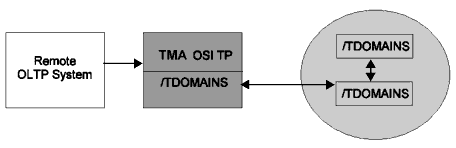

For this example, the TMA OSI TP gateway acts as a pass-through to allow access to services on other Tuxedo systems. The TMA OSI TP gateway receives service requests from a remote OLTP system and then forwards them through the /TDOMAINS gateway to a remote Tuxedo system. The systems are as follows:
Listing 4-7 shows a sample UBBCONFIG file and Listing 4-8 shows the corresponding DMCONFIG file for a pass-through configuration.
*RESOURCES
IPCKEY 65952
MASTER "SITE1"
MODEL SHM
PERM 0777
*MACHINES
"SITE1" LMID="SITE1"
TUXCONFIG="D:\tuxedo\appdir\TUXCONFIG"
TUXDIR="D:\tuxedo"
APPDIR="D:\tuxedo\appdir"
TLOGDEVICE="D:\tuxedo\log\TLOG"
ULOGPFX="D:\tuxedo\log\ULOG"
TLOGNAME=TLOG
TLOGSIZE=20
TYPE="SITE1"
*GROUPS
ADMGRP LMID="SITE1"
GRPNO=1
OSIGRP LMID="SITE1"
GRPNO=2
TDOMGRP LMID="SITE1"
GRPNO=3
OPENINFO=NONE
*SERVERS
DEFAULT: RQPERM=0666
RPPERM=0666
MIN=1
MAX=1
CONV=N
MAXGEN=1
GRACE=86400
RESTART=N
SYSTEM_ACCESS=FASTPATH
DMADM SRVGRP=ADMGRP
SRVID=20
CLOPT="-A"
RESTART=N
REPLYQ=N
GWADM SRVGRP=OSIGRP
SRVID=21
CLOPT="-A"
RESTART=N
REPLYQ=N
GWOSITP SRVGRP=OSIGRP
SRVID=22
CLOPT="-A"
RESTART=Y
REPLYQ=N
GWADM SRVGRP=TDOMGRP
SRVID=51
CONV=N
CLOPT="-A"
REPLYQ=N
RESTART=N
GWTDOMAIN SRVGRP=TDOMGRP
SRVID=52
CLOPT="-A"
REPLYQ=N
RESTART=Y
*SERVICES
DEFAULT: LOAD=50 AUTOTRAN=N
*DM_RESOURCES
VERSION="SITE1"
#
*DM_LOCAL_DOMAINS
# SECURITY=NONE
"osi-local"
GWGRP = OSIGRP
TYPE = OSITPX
DOMAINID = "local"
BLOCKTIME = 2000
AUDITLOG = "D:\tuxedo\log\AUDIT"
DMTLOGDEV = "D:\tuxedo\log\DMLOG"
DMTLOGSIZE = 2048
DMTLOGNAME = "DMLOG"
"td-local" GWGRP=TDOMGRP
TYPE=TDOMAIN
DOMAINID="td-local"
DMTLOGDEV="D:\tuxedo\log\TDMLOG"
###############################################################
*DM_REMOTE_DOMAINS
DEFAULT:
"osi-client" TYPE=OSITPX DOMAINID="osi-client"
"td-backend" TYPE=TDOMAIN DOMAINID="td-tpaix1"
###############################################################
*DM_TDOMAIN
"td-local" NWADDR="192.63.22.2:5000"
"td-backend" NWADDR="192.63.24.74:5000"
###############################################################
*DM_OSITPX
"osi-local"
AET="{1.3.192.63.22},{2}"
TAILOR_PATH="d:\tuxedo\configs\tailor.txt"
# the NWADDR for OSI TP may have the same IP as /TDOMAINS, but
# requires a different port number
NWADDR="192.63.22.2:102"
"osi-client"
AET="{1.3.192.23.2},{3}"
NWADDR="192.23.2.3"
T_SEL="OSITP"
###############################################################
*DM_LOCAL_SERVICES
# define the incoming services here, even though they reside on
# some remote /TDOMAIN machine. Include views also on this machine
# for TMA OSI TP to process incoming messages
callSvc1
###############################################################
*DM_REMOTE_SERVICES
DEFAULT:
# define the actual remote service request here. It will be
# routed by /TDOMAINS
callSvc1 RDOM="td-backend" LDOM="td-local" RNAME="callSvc1"
Note that the service that resides on the backend /TDOMAIN system must be defined as a local service on the TMA OSI TP system, so TMA OSI TP can process the incoming request. It must also be defined as a remote service so that the /TDOMAIN gateway can pass the service request to the backend /TDOMAIN system. The gateway system must have available the viewfiles and corresponding environment variables that are required by the service, even though the service exists on the backend system.
BEA TMA OSI TP supports the following two types of security:
The BEA Tuxedo UBBCONFIG and TMA OSI TP DMCONFIG files include five sections in which you specify security parameters for whichever type of security you want to implement:

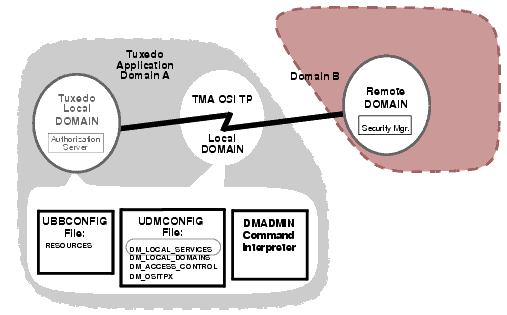

The following figure shows the relationships between security elements for TMA OSI TP.
To enable security, both the local and remote domains must support security. For Link Layer Security (LLS), the administrator must define the SECURITY in the *LOCAL_DOMAINS section as DM_PW and the OPTIONS parameter in the DM_OSITPX section must be set to SECURITY_SUPPORTED. The Local and Remote domain passwords should be set by the administrator through the dmadmin command passwd.
Whenever Link Layer Security is defined for the local domain and the remote domain, the passwd entered through dmadmin is hashed with a private key. The hashed value and private key are sent to the remote domain where it is compared with the hashed passwd on the remote system. This is a challenge response mechanism used to secure connections with a remote domain.
Three sections in the DMCONFIG file contain parameters affecting how TMA OSI TP controls access to the local Tuxedo domain:
DM_LOCAL_DOMAINS section contains a SECURITY parameter that specifies the type of security enforced for the Tuxedo local domain.
The SECURITY parameter settings in this section work in conjunction with the SECURITY parameter in the RESOURCES section of the Tuxedo domain's UBBCONFIG file to establish how TMA OSI TP controls access to the Tuxedo local domain. If this parameter is set to NONE or APP_PW, the TMA OSI TP domain takes no action with regard to security. If this parameter is set to DM_PW, the TMA OSI TP domain enforces security according to the security settings in the DM_PASSWORDS section of the BDMCONFIG file.
| Caution: | Do not delete the Tuxedo BDMCONFIG file. The DM_PW information will be lost if the file is deleted. When new passwords are entered, the GWOSITP service must be shut down and restarted for the passwords to take effect. |
DM_REMOTE_DOMAINS section contains an OPTIONS=SECURITY_SUPPORTED parameter that specifies the type of security enforced for the Tuxedo remote domain.DM_OSITPX section contains an OPTION of SECURITY_SUPPORTED, which indicates that the remote domain supports the OSI TP security extension. The OSI TP security extension allows OSI TP systems to perform link-layer security. The link layer security feature is activated when the DM_LOCAL_DOMAINS section has SECURITY=DM_PW set and OPTIONS=SECURITY_SUPPORTED is set for the remote domain.Refer to Enabling Tuxedo Authentication for more information about Tuxedo security.
The following sample is a DMCONFIG file that defines the necessary parameters for establishing Link Layer Security.
#------------------------------------
# TMA OSI TP test; Client dmconfig
#-------------------------------------
#
*DM_LOCAL_DOMAINS
dalnt8
GWGRP=G3
TYPE=OSITPX
DOMAINID="dalnt8"
BLOCKTIME=30
MAXDATALEN=56
DMTLOGDEV="D:\tuxedo\log\DMLOG"
SECURITY=DM_PW # turns link layer security on
DMTLOGNAME="DMLOG"
###############################################################
*DM_REMOTE_DOMAINS
dal2200 TYPE=OSITPX DOMAINID=dal2200 ACL_POLICY=GLOBAL
openti TYPE=OSITPX DOMAINID=openti ACL_POLICY=GLOBAL
icl2 TYPE=OSITPX DOMAINID=icl2
aseries TYPE=OSITPX DOMAINID="aseries1" ACL_POLICY=LOCAL
LOCAL_PRINCIPAL_NAME="MYNAME'
*DM_OSITPX
dalnt8
AET="{1.3.132.61.146},{3}"
TAILOR_PATH="D:\tuxedo\configs\tailor.txt"
NWADDR="//dalnt8:102"
DNS_RESOLUTION=STARTUP # This is the default
# Remote domain dal2200 supports security
dal2200
AET="{1.3.132.61.46},{3}"
XATMI_ENCODING="OLTP_TM2200"
NWADDR="132.61.146.3"
T_SEL="OSITP"
OPTIONS=SECURITY_SUPPORTED
# Remote domain openti supports security
openti
AET="{1.3.122.62.103},{209}"
NWADDR="122.62.103.209:2001"
OPTIONS=SECURITY_SUPPORTED
# Remote domain icl12 does not support security
icl2
AET="{1.3.142.60.203},{4}"
NWADDR="142.60.203.4"
T_SEL="ICLTP"
S_SEL="SSEL"
P_SEL="PSEL"
# Remote domain aseries1 does not support security
# DOMAINID "aseries1" shall be used as LOCALPRINCIPAL NAME
aseries1
AET="{1.3.123.55.222},{51}"
NWADDR="123.55.222.51"
XATMI_ENCODING="PRELIMINARY"
T_SEL="0x5453"
S_SEL="0x3F5C3F"
*DM_LOCAL_SERVICES
TOUPPERF
INRECTYPE="VIEW:V10"
OUTBUFTYPE="FML:"
COUPLING=LOOSE
TOUPPERF32
INRECTYPE="VIEW:V10"
OUTBUFTYPE="FML32:"
COUPLING=TIGHT
TOUPPERV
INBUFTYPE="X_C_TYPE:V10"
INRECTYPE="VIEW:upper"
COUPLING=LOOSE
TOUPPERC
INCRECTYPE="X_OCTET"
COUPLING-TIGHT
TOUPPERS
OUTRECTYPE="X_OCTET"
OUTBUFTYPE="STRING"
INRECTYPE="X_OCTET"
TOUPPERX
OUTRECTYPE="STRING"
OUTBUFTYPE="STRING"
INRECTYPE="X_OCTET"
*DM_REMOTE_SERVICES
DEFAULT: TRANTIME=300
ECHOXOCT RNAME="ECHOSRVR"
OUTBUFTYPE="X_COMMON:ECHOVIEW"
RDOM=dal2200
LDOM=dalnt8
ECHOXCOM RNAME="ECHOSRVR"
RDOM=openti
LDOM=dalnt8
AUTOPREPARE=Y
ECHOTYPE
RNAME="ECHOSRVR"
INBUFTYPE="X_C_TYPE:ECHOVIEW"
INRECTYPE="X_C_TYPE:ECHOVIEW"
OUTBUFTYPE="X_C_TYPE:ECHOVIEW"
OUTRECTYPE="X_C_TYPE:ECHOVIEW"
ECHOVIEW
RNAME="ECHOSRVR"
INBUFTYPE="VIEW:ECHOVIEW"
INRECTYPE="X_COMMON:ECHOVIEW"
OUTBUFTYPE="VIEW:ECHOVIEW"
OUTRECTYPE="X_COMMON:ECHOVIEW"
RDOM=icl2
LDOM=dalnt8
TPSUT_TYPE= "PRINTABLESTRING"
REM_TPSUT="tpmvs"
BEA TMA OSI TP gateway supports Tuxedo authentication and authorization at both the client side (for Tuxedo clients) and server side. Authentication and authorization at the client side works the same as /T domains. Authentication and authorization on the server side requires that the Link Layer Security, described previously, is configured for both the LOCAL DOMAIN and the REMOTE DOMAIN involved in the service call.
In order for user authentication at the server side domain to be performed, the SECURITY parameter defined in the servers local domain *RESOURCE section must be defined as either "APP_PW", "USER_AUTH", "ACL", or "MANDATORY_ACL".
When SECURITY is set to either "APP_PW" or "USER_AUTH", user authentication is performed. If the ACL_POLICY for the remote domain from which the call was issued is defined as LOCAL, then the user ID used for authentication will be the LOCAL_PRINCIPAL_NAME of the remote domain if it has been defined. If the LOCAL_PRINCIPAL_NAME has not been defined, then the user ID will be the DOMAINID of the remote domain. If the ACL_POLICY for the remote domain from which the call was issued is defined as GLOBAL, then the userid passed with the call is used for user authentication. The user ID is authenticated against the user IDs defined in the tpusr file.
When SECURITY is set to "ACL", then user authentication is performed as previously defined for "APP_PW" and "USER_AUTH". User authorization of the service, requested in the call, is also performed. ACL authorization requires that the services have been defined in the ACL Service list and that the user be a member of a group that is allowed access to this service. Services are added to the ACL Service list through the tpacladd command. If the requested service has not been added to the ACL Service list, then all users are allowed access to this service.
When SECURITY is set to "MANDATORY_ACL" authentication and authorization are performed identical to that for SECURITY equal "ACL", however, the request service must be defined in the ACL Service list and the users group must be allowed access to this service.
For more information regarding Tuxedo commands tpgrpadd, tpusradd, tpacladd, tpgrpmod, tpusrmod, tpaclmod, tpgrpdel, tpasrdel, and tpacldel, refer to the online BEA Tuxedo documentation at http://edocs.bea.com/tuxedo/tux80/index.htm.
The following sample shows a UBBCONFIG file. The example defines the necessary parameters for establishing Link Layer Security.
#--------------------------------------------------
# TMA OSI TP test ubbconfig for servers
#--------------------------------------------------
*RESOURCES
#-------------
Chnage IPCKEY
#-------------
IPCKEY 52029
MASTER SITE1
DOMAINID FRONTEND
PERM 0660
MAXACCESSSERS 40
MAXSERVERS 80
MAXSERVICES 80
MAXCONV 120
MODEL SHM
LDBAL Y
MAXGTT 120
MAXBUFTYPE 16
MAXBUFSTYPE 32
SCANUNIT 5
SANITYSCAN 10
DBBLWAIT 5
BBLQUERY 50
BLOCKTIME 15
SECURITY MANDATORY_ACL
#
*MACHINES
#-------------
#Replace machine name
#-------------
DALNT45 LMID=SITE1
#-------------
# Replace directories as needed
#-------------
TUXDIR="c:\tuxedo"
APPDIR="c:\ositp/test
TUXCONFIG="c:\tuxedo/udataobj\tuxconfig"
TLOGDEVICE="c:\ositp\test\TLOG
TLOGNAME=TLOG
*GROUPS
OSIGRP2 GRPNO=2 LMID-SITE1 TMSNAME="TMS" TMSCOUNT=2
OSIGRP2 GRPNO=3 LMID=SITE1
*SERVERS
DEFAULT:RESTART=N REPLYQ=Y
DMADM SRVID=101 SRVGRP=OSIGRP3 CLOPT="-A" REPLYQ=N
GWADM SRVID=102 SRVGRP=OSIGRP3 CLOPT="-A" REPLYQ=N
GWOSITP SRVID=103 SRVGRP=OSIGRP3 CLOPT="-A" GRACE=0 REPLYQ=N
CRPCSERV SRVID=8 SRVGRP=OSIGRP3 CLOPT="-A" RQADDR="rpcq"
CCONSRV SRVID=9 SRVGRP=OSIGRP3 CLOPT="-A" RQADDR="convq"
CONV=Y
*SERVICES
DEFAULT LOAD=50 AUTOTRAN=n
CTOUPPER PRIO=50
CCONVRTN PRIO=50
CCONVRTN2 PRIO=50
CCONVRTN3 PRIO=50
CTOUPPER2 PRIO=50
The following sample shows a DMCONFIG file. The example defines the necessary parameters for user authentication and authorization.
#----------------------------------
TMA OSI TP Test; Client dmconfig
#----------------------------------
#
*DM_LOCAL DOMAINS
dalnt8
GWGRP=G3
TYPE=OSITPX
DOMAINID="dalnt8"
BLOCKTIME=30
MAXDATALEN=56
DMTLOGDEV="D:\tuxedo\log\DMLOG"
DMTLOGNAME="DMLOG"
SECURITY=DM_PW # turns link layer security on
################################################################
*DM_REMOTE_DOMAINS
DAL2200 TYPE=OSITPX DOMAINID=DAL2200 ACL_POLICY=LOCAL
openti TYPE=OSITPX DOMAINID=openti ACL_POLICY=GLOBAL
icl2 TYPE=OSITPX DOMAINID=icl2
aseries TYPE=OSITPX DOMAINID="aseries1"
*DM_OSITPX
dalnt8
AET="{1.3.132.61.146},{3}"
TAILOR_PATH="d:\tuxedo\configs\tailor.txt"
NWADDR="//dalnt8:102"
DNS_RESOLUTION=STARTUP # This is the default
# Remote domain dal2200 supports security
dal2200
AET="{1.3.132.61.47},{3}"
XATMI_ENCODING="OLTP_TM2200"
NWADDR="132.61.47.3"
T_SEL="OSITP"
OPTIONS=SECURITY_SUPPORTED
# Remote domain openti supports security
openti
AET="{1.3.122.62.103},{209}"
NWADDR="122.62.103.209:2001"
OPTIONS=SECURITY_SUPPORTED
# Remote domain icl2 does not support security
icl2
AET="{1.3.142.60.203},{4}"
NWADDR="142.60.203.4"
T_SEL="ICLTP"
S_SEL="SSEL"
P_SEL="PSEL"
# Remote domain aseries1 does not support security
aseries1
AET="{1.3.123.55.222},{51}"
NWADDR="123.55.222.51"
XATMI_ENCODING="PRELIMINARY"
T_SEL="0X5453"
S_SEL="0X3F5C3F"
*DM_LOCAL_SERVICES
TOUPPERF
INRECTYPE="VIEW:view10"
OUTBUFTYPE="FML:"
COUPLING=LOOSE
TOUPPERF32
INRECTYPE="VIEW:view10"
OUTBUFTYPE="fml32"
COUPLING=TIGHT
TOUPPERV
INBUFTYPE="X_C_TYPE:v10"
INRECTYPE="VIEW:upper"
COUPLING=LOOSE
TOUPPERC
INCRECTYPE="X_OCTET"
COUPLING=TIGHT
TOUPPERS
OUTRECTYPE="X_OCTET"
OUTBUFTYPE="STRING"
INRECTYPE="X_OCTET"
TOUPPERX
OUTRECTYPE="STRING"
OUTBUFTYPE="STRING"
INRECTYPE="X_OCTET"
*DM_REMOTE_SERVICES
DEFAULT: TRANTIME=300
ECHOXOCT
RNAME="ECHOSRVR"
OUTBUFTYPE="X_COMMON:ECHOVIOEW"
RDOM=dal2200
LDOM=dalnt8
ECHOXCOM
RNAME="ECHOSRVR"
RDOM=openti
LDOM=dalnt8
AUTOPREPARE=Y
ECHOTYPE
RNAME="ECHOSRVR"
INBUFTYPE="X_C_TYPE:ECHOVIEW"
INRECTYPE="X_C_TYPE:ECHOVIEW"
OUTBUFTYPE="X_C_TYPE:ECHOVIEW"
OUTRECTYPE="X_C_TYPE:ECHOVIEW"
ECHOVIEW
RNAME="ECHOSRVR"
INBUFTYPE="VIEW:ECHOVIEW"
INRECTYPE="X_COMMON:ECHOVIEW"
OUTBUFTYPE="VIEW:ECHOVIEW"
OUTRECTYPE="X_COMMON:ECHOVIEW"
RDOM=icl2
LDOM=dalnt8
TPSUT_TYPE="PRINTABLESTRING"
REM_TPSUT="tpmvs"
The Native-A encoding feature in TMA OSI TP converts Tuxedo views into a format that is native to Unisys MCP mainframe systems. This feature moves most of the encode/decode processing from the Unisys MCP mainframe systems to the Tuxedo system.
Currently, the type of XATMI encoding must be configured for each RDOM using the XATMI_ENCODING parameter in the DM_OSITPX section of the DMCONFIG file. An XATMI_ENCODING keyword value of NATIVE_A_SERIES is used to indicate that the Tuxedo system will handle the encode/decode of data into the Native MCP format, not the Unisys MCP machine.
The following example is a *DM_OSITPX section of the DMCOMFIG file.
*DM_OSITPX
aseries1
AET="{1.3.123.55.22},{51}"
NWADDR="123.55.22.51"
XATMI_ENCODING="NATIVE_A_SERIES"
T_SEL="0x5453"
S_SEL="0x3F5C3F"
There is an optional CODEPAGE parameter on the RDOM statement in the DM_REMOTE_DOMAINS section of the DMCONFIG file. The CODEPAGE parameter is configured to specify the pair of code sets involved when translating character strings between the Tuxedo system and the MCP (A-Series) system. If XATMI_ENCODING is not set to NATIVE_A_SERIES, then the CODEPAGE parameter is ignored.
*DM_REMOTE_DOMAINS
...rdomTYPE=OSITPX DOMAINID="domainid" CODEPAGE="cpname"
Where cpname is a case-insensitive keyword from the following table.
If XATMI_ENCODING is not set to NATIVE_A_SERIES, then no conversion of character strings occurs. If XATMI_ENCODING is set to NATIVE_A_SERIES, then conversions occur according to the rules described in the following subsections.
All view fields of type string must be null-terminated on both the Tuxedo and NATIVE_A_SERIES encoding feature, string fields may contain any non-zero bytes, followed by a zero byte as a null-terminator.
All view fields of type string are always translated from the ISO character set to the MCP character set (as specified by the CODEPAGE parameter) when passing from the Tuxedo system to the MCP system. The input string must be null-terminated; any bytes after the null-terminator are ignored. The resulting string on the Unisys MCP system is null-terminated; any remaining space in the field is also padded with zero bytes.
Conversly, all view fields of type string are translated from the MCP character set to the ISO character set (as specified by the CODEPAGE parameter) when passing from the Unisys MCP system to the Tuxedo system. The input string must be null-terminated; any bytes after the null-terminator are ignored. The resulting string on the Tuxedo system is null-terminated; any remaining space in the field is also padded with zero bytes.
View fields of type carray need not be null-terminated. Carray fields may contain any non-zero bytes; if a zero byte is detected, it is treated as a null-terminator and scanning stops.
All view fields of type carray are always translated from the ISO character set to the MCP character set (as specified by the CODEPAGE parameter) when passing from the Tuxedo system to the Unisys MCP system. The input string may or may not be null-terminated; any bytes after a null-terminator are ignored. The resulting string on the MCP system is not null-terminated; any remaining space in the field is padded with EBCDIC space characters (0x40 bytes).
Conversly, all view fields of type carray are translated from the MCP character set to the ISO character set (as specified in the CODEPAGE parameter) when passing from the Tuxedo system to the Unisys MCP system. The input string may or may not be null-terminated; any bytes after a null-terminator are ignored. If the input string is not null-terminated, then any trailing EBCDIC space characters (0x40 bytes) are discarded before translation starts. The resulting string on the Tuxedo system is null-terminated if there is room; any remaining space in the field is also padded with zero bytes.
For existing users who plan to use the Native-A feature, it is important to note that fields of type carray are always translated. If you wish to transmit binary data that should not be translated, then you must change your view field type from carray to an array of type char.
View fields of type char may contain any arbitrary binary data. View fields of type char are never translated.
For existing users who plan to use the Native-A feature, it is important to note that fields of type char are never translated. If you want to have fields of type char translated, you need to change your view field type from char to carray. See the following example.
VIEW viewx
#
#type cname fbname count flag size null
#
int accountNum - 1 - - -
string firstName - 1 - 20 -
# Change middleInit from char to carray so it is translated
# char middleInit - 1 - - -
carray middleInit - 1 - 1 -
string laststName - 1 - 20 -
END
Conversly, you may wish to change other data types (e.g., carray) to type char to prevent then from being translated. See the following example:
VIEW viewy
#
#type cname fbname count flag size null
#
int accountNum - 1 - - -
string name - 1 - 50 -
#Change encryptKey from carray to char so it is not
#translated:
#carray encryptKey - 1 - 15 -
char encryptKey - 15 - - -
END
TMA OSI TP can optionally send messages to a peer DTP system compressed if the peer also supports OSI TP data compression. For compression to occur, the messages must follow these requirements.
To enable data compression, add the option "MULTIPLEXCOMPRESS=Y" to the EXTENSIONS parameter for the remote domain for which to send compressed data. A sample entry in the DMCONFIG file for data compression to occur would be as follows:
"MY-CLEARPATH"
AET="{1.3.192.33.322.12},{2476}
NWADDR="192.33.322.12:2476"
EXTENSIONS="MULTIPLEXCOMPRESS=Y"
If you are upgrading from eLink OSI TP 1.3, it is recommended that you use the osiadmin utility to update your DMCONFIG file; however, you may edit the DMCONFIG file manually. If you are upgrading from eLink OSI TP 4.0, you do not need to change your udmconfig input file. You can use it as input to the TMA OSI TP 9.1 dmloadcf utility. Similarly, if you are upgrading from eLink OSI TP 4.1 or 4.2, you do not need to change your dmconfig input file. You can use it as input to the TMA OSI TP 9.1 dmloadcf utility. Refer to Using the OSI TP Administration Utility, for more information about the osiadmin utility.
To edit the DMCONFIG file manually, perform the following steps:
DMCONFIG file in your installation directory and open it in any text editor.DMCONFIG file as necessary. Refer to the parameter descriptions in this section for details about defining your TMA OSI TP configuration. DMCONFIG file. | Note: | You may want to save the original DMCONFIG file with a different name or in a different directory. |
DMCONFIG file with the dmloadcf utility. This parses the input and creates a binary file: the BDMCONFIG file, which is used by GWOSITP.Refer to
Understanding the DMCONFIG File for more detailed information about the parameters in the DMCONFIG file.
Perform the following steps to modify the DMCONFIG file parameters:
You must define the local domains that use the OSI TP server group you defined in your Tuxedo UBBCONFIG file. Refer to Defining TMA OSI TP Servers for BEA Tuxedo for more information about the UBBCONFIG file.
Perform the following steps to define a local domain in the DM_LOCAL_DOMAINS section of the DMCONFIG file:
DOMAINID parameter.UBBCONFIG file with the GWGRP parameter.OSITPX with the TYPE parameter.DMTLOGSIZE parameter.DM_LOCAL_DOMAINS parameters that you require: AUDITLOG, BLOCKTIME, DMTLOGDEV, DMTLOGNAME, MAXRDTRAN, MAXTRAN, and SECURITY.*DM_LOCAL_DOMAINS
dalnt8
GWGRP = OSIGRP
TYPE = OSITPX
DOMAINID = "dalnt8"
BLOCKTIME = 30
DMTLOGDEV = "D:\tuxedo\log\DMLOG"
DMTLOGNAME = "DMLOG"
SECURITY = DM_PW # turns link layer security on
Refer to Sample Configuration File for more detailed information.
It is recommended that you use the importcfg command in the osiadmin utility to update remote domains if you are upgrading from eLink OSI TP 1.3; however, you can manually define remote domains. Refer to Using the OSI TP Administration Utility for more information about the osiadmin utility.
Perform the following steps to define remote domains in the DM_REMOTE_DOMAINS section of the DMCONFIG file:
There are no optional parameters for the DM_REMOTE_DOMAINS section.
*DM_REMOTE_DOMAINS
dal2200 TYPE=OSITPX DOMAINID="dal2200"
openti TYPE=OSITPX DOMAINID="openti"
icl2 TYPE=OSITPX DOMAINID="icl2"
aseries1 TYPE=OSITPX DOMAINID="aseries1"
Refer to DM_REMOTE_DOMAINS Section for more detailed information.
Perform the following steps to define addressing information for OSI TP domains in the DM_OSITPX section of the DMCONFIG file:
AET parameter.NWADDR parameter. If you are using multiple IP addresses, make sure to enter all the addresses on one line, and separate them with a semi-colon (;). Put double quotes around the entire address. DM_OSITPX parameters that you require: DNS_RESOLUTION, P_SEL, S_SEL, T_SEL, OPTIONS, TAILOR_PATH, and XATMI_ENCODING.*DM_OSITPX
dalnt8
AET="{1.3.144.23.103},{208}"
TAILOR_PATH="d:\tuxedo\configs\tailor.txt"
NWADDR="//dalnt8:102"
DNS_RESOLUTION=STARTUP # this is the default
dal2200
AET="{1.3.132.61.146},{3}"
XATMI_ENCODING="OLTP_TM2200"
NWADDR="132.61.146.3;132.61.147.1"
T_SEL="OSITP"
openti
AET="{1.3.122.62.103},{209}"
NWADDR="122.62.103.209"
icl2
AET="{1.3.142.60.203},{4}"
NWADDR="142.60.203.4"
T_SEL="ICLTP"
S_SEL="SSEL"
P_SEL="PSEL"
aseries1
AET="{1.3.123.55.222},{51}"
NWADDR="123.55.222.51"
XATMI_ENCODING="PRELIMINARY"
T_SEL="0x5453"
S_SEL="0x3F5C3F"
OPTIONS=SECURITY_SUPPORTED
Refer to DM_OSITPX Section for more detailed information.
In the DM_ACCESS_CONTROL section of the DMCONFIG file, specify a list of all the remote OSI TP domain IDs that can access the local domain with the ACLIST parameter. This parameter is optional.
*DM_ACCESS_CONTROL
mylist ACLIST = dalnt8, dal2200
Refer to DM_ACCESS CONTROL Section for more detailed information.
In the DM_LOCAL_SERVICES section of the DMCONFIG file, specify the Tuxedo services that will be made available to OSI TP applications and define their options with the ACL, COUPLING, INBUFTYPE, INRECTYPE, LDOM, OUTBUFTYPE, OUTRECTYPE, and RNAME parameters. If the local service supports transactions, make sure the group it belongs to contains a TMS name.
These DM_LOCAL_SERVICES parameters are all optional.
*DM_LOCAL_SERVICES
TOUPPERF
INRECTYPE="VIEW:view10"
OUTBUFTYPE="FML:"
COUPLING=LOOSE
TOUPPERF32
INRECTYPE="VIEW:view10a"
OUTBUFTYPE="FML32:"
COUPLING=TIGHT
TOUPPERV
INBUFTYPE="X_C_TYPE:v10"
INRECTYPE="VIEW:upper"
COUPLING=LOOSE
TOUPPERC OUTRECTYPE="X_OCTET" OUTBUFTYPE="CARRAY"
INRECTYPE="X_OCTET"
COUPLING=TIGHT
TOUPPERS OUTRECTYPE="X_OCTET" OUTBUFTYPE="STRING"
INRECTYPE="X_OCTET"
TOUPPERX OUTRECTYPE="STRING" OUTBUFTYPE="STRING"
INRECTYPE="X_OCTET"
Refer to DM_LOCAL_SERVICES Section for more detailed information.
In the DM_REMOTE_SERVICES section of the DMCONFIG file, specify the remote services that can be requested by Tuxedo applications and define their options with the AUTOPREPARE, CODEPAGE, CONV, INBUFTYPE, INRECTYPE, LDOM, OUTBUFTYPE, OUTRECTYPE, RDOM, RNAME, ROUTING, and TRANTIME parameters. These parameters are all optional.
*DM_REMOTE_SERVICES
DEFAULT: TRANTIME=300
ECHOXOCT RNAME="ECHOSRVR" OUTBUFTYPE="X_COMMON:ECHOVIEW" RDOM=dal2200 LDOM=dalnt8
ECHOXCOM RNAME="ECHOSRVR" RDOM=openti LDOM=dalnt8 AUTOPREPARE=Y
ECHOXCTYPE RNAME="ECHOSRVR"
INBUFTYPE="X_C_TYPE:ECHOVIEW"
INRECTYPE="X_COMMON:ECHOVIEW"
OUTBUFTYPE="X_C_TYPE:ECHOVIEW"
OUTRECTYPE="X_COMMON:ECHOVIEW"
RDOM=aseries1
LDOM=dalnt8
CONV=Y
ECHOVIEW RNAME="ECHOSRVR"
INBUFTYPE="VIEW:ECHOVIEW"
INRECTYPE="X_COMMON:ECHOVIEW"
OUTBUFTYPE="VIEW:ECHOVIEW"
OUTRECTYPE="X_COMMON:ECHOVIEW"
RDOM=icl2
LDOM=dalnt8
TPSUT_TYPE="PRINTABLESTRING"
REM_TPSUT="tpmvs"
Refer to DM_REMOTE_SERVICES Section for more detailed information.
Perform the following steps to define routing information for service requests in the DM_ROUTING section of the DMCONFIG file:
FIELD parameter.BUFTYPE parameter.RANGES parameter.*DM_ROUTING
ACCOUNT FIELD = branchid BUFTYPE = "View:account"
RANGE = "MIN - 1000:aseries1, 1001-3000:openti, *:dal2200"
Refer to DM_ROUTING Section for more detailed information.
The dmloadcf utility compiles the DMCONFIG file and creates a binary configuration file, BDMCONFIG, which is used by the DMADM server to control the run-time environment.
Figure 4-3 shows how the dmloadcf utility processes the configuration file. A description of the process follows the figure.
The dmloadcf utility is invoked from a command line with the following syntax:
dmloadcf [-c] [-n] [-y] [-bblocks] [-k] DMCONFIG_file
where the following options are valid:
BDMCONFIG file is not updated.
BDMCONFIG file. This parameter must be entered before the DMCONFIG file name.
-b option is large enough to hold the new BDMCONFIG tables, dmloadcf uses the specified value to create the new file system; otherwise, dmloadcf prints an error message and exits. If the -b option is not specified, dmloadcf creates a new file system large enough to hold the BDMCONFIG tables. The -b option is ignored if the file system already exists. The -b option is highly recommended if BDMCONFIG is a raw device (that has not been initialized) and should be set to the number of blocks on the raw device.
The dmloadcf utility prints an error message if any required section of the DMCONFIG file is missing. If a syntax error is found while parsing the input file, dmloadcf exits without performing any updates to the BDMCONFIG file.
A Tuxedo DMTYPE file is required to define the valid domain types. If this file does not exist, dmloadcf exits without performing any updates to the BDMCONFIG file.
The effective user ID of the person running dmloadcf must match the UID in the RESOURCES section of the TUXCONFIG file.
After syntax checking, dmloadcf verifies that the file pointed to by BDMCONFIG exists, is a valid Tuxedo System file system, and contains BDMCONFIG tables. If these conditions are not true and the -y option was not entered on the command line, the user is prompted to create and initialize the file with
Initialize BDMCONFIG file: path {y, q}?
where path is the complete file name of the BDMCONFIG file and "Y" indicates that the configuration file should be created.
If the BDMCONFIG file is determined to already have been initialized, dmloadcf ensures that the local domain described by that BDMCONFIG file is not running. If a local domain is running, dmloadcf prints an error message and exits. Otherwise, dmloadcf confirms that the file should be overwritten by prompting the user with:
"Really overwrite BDMCONFIG file {y, q}?"
Prompting is suppressed if the standard input or output are not terminals. Any response other than "y" or "Y" causes dmloadcf to exit without creating the configuration file. If the BDMCONFIG file is not properly initialized and the user has responded with "Y", dmloadcf creates the Tuxedo file system and then creates the BDMCONFIG tables.
If the SECURITY parameter is specified in the RESOURCES section of the TUXCONFIG file, then dmloadcf flushes the standard input, turns off terminal echo, and prompts the user for an application password.
Assuming no errors, and if all checks have passed, dmloadcf loads the DMCONFIG file into the BDMCONFIG file and overwrites all existing information found in the BDMCONFIG tables.
The following example shows how a binary configuration file is loaded from the bank.DMCONFIG ASCII file. The BDMCONFIG device is created (or reinitialized) with 2000 blocks:
dmloadcf -b 2000 -y bank.dmconfig
If an error is detected in the input, the erroneous line is printed to the standard error log along with a message indicating the problem. If a syntax error is found in the DMCONFIG file or the system is currently running, no information is updated in the BDMCONFIG file and dmloadcf exits.
If dmloadcf is run on an active node, the following error message is displayed:
*** dmloadcf cannot run on an active node ***
If dmloadcf is run by a person whose effective user ID doesn't match the UID specified in the TUXCONFIG file, the following error message is displayed:
*** UID is not effective user ID ***
Upon successful completion, dmloadcf exits. If the BDMCONFIG file is updated, a userlog message is generated to record this event.
The OSI TP TAILOR file is external to the DMCONFIG and is used for tuning OSI TP- specific tables. All parameters in the TAILOR file are optional with preset defaults.
Following is a list of valid TAILOR parameters:
| Note: | The parameters in the previous table with an asterisk (*) are valid for non-multiplexed connections only. |
| Note: | The parameters with double asterisks (**) apply only if you are using the multiplexing protocol. |
Following is more detailed information about each of the TAILOR file parameters:
| Note: | This parameter is valid for non-multiplexed connections only. |
| Note: | This parameter is only valid when using the multiplexing protocol. |
| Note: | This parameter is only valid when using the multiplexing protocol. |
numeric
tpcall() for this amount of time is subject to automatic termination. This default value is 3600 seconds.
| Note: | This parameter is valid for non-multiplexed connections only. |
EXTENSION parameter and the RdomAssocRetry keyword.
| Note: | This parameter is valid for non-multiplexed connections only. |
| Note: | This parameter is only valid when using the multiplexing protocol. |
| Note: | This parameter is only valid when using the multiplexing protocol. |
Y is specified the TCP/IP packets are sent out in a time period specified by the operating system. Most operating systems use a 2 hour time period. The default is N.
| Note: | This parameter is valid for non-multiplexed connections only. |
ACK is received from a remote machine. The default is N, the subsequent sends of TCP/IP packets may be held until an ACK is received. If Y is specified, the TCP/IP packets are sent immediately without waiting for an ACK of the previous send.
The BEA TMA OSI TP service suspend feature provides greater reliability for remote services by automatically suspending services for a remote domain that is unreachable. Automatic suspension prevents repeated calls to remote services that are no longer available. This feature is especially critical when load balancing between remote domains.
TMA OSI TP provides this service suspend feature by maintaining at least one association to every remote RDOM to determine its availability. If an association cannot be established, the services associated with that RDOM will immediately fail. Redundantly defined services will not attempt to use the unavailable RDOM and are diverted.
By default, TMA OSI TP will retry connections to an RDOM that has failed every 60 seconds. This delay may be overridden with the RdomAssocRetry tailor parameter described in the
Tuning OSI TP-Specific Tables with the TAILOR File section. It may also be overridden for specific RDOMs using the EXTENSIONS="RdomAssocRetry=n" parameter in the DM_OSITPX section, where n is the number of seconds to wait between retries. The value specified on the EXTENSIONS parameter overrides the corresponding tailor parameter. Refer to
DM_OSITPX Section for more information.
In test environments, RDOMs may be configured that are unavailable and are considered offline. TMA OSI TP continually tries to connect to these systems. To disable the RDOMs and the remote services configured to them, specify EXTENSIONS="ONLINE=N" on each offline RDOM in the DM_OSITPX section of the DMCONFIG file. At run-time, these RDOMs can be brought online using the ONLINE osiadmin command described in
Using osiadmin Commands.
|
