To create a form button or link to a popup window that allows users to select options from a structured list of objects, use the pt:standard.tree, pt:standard.treelink or pt:standard.treeurl tag.
Attribute | Description | Default | Syntax |
---|---|---|---|
pt:Class | The ID of the types of objects to display in the tree. Community pages are not supported. (REQUIRED) | value required | pt:Class='<classID1>,<classID2>,<classID3>,...' |
pt:RootID | The ID of the root folder to be displayed in the tree. Use ID 1 for all folders. (REQUIRED) | value required | pt:RootID='<folderID>' |
pt:SubmitMd | The mode in which the tree submits data to the opening page. Use mode 2 (javascript submit for remote development). When the data is submitted, the javascript function defined in pt:Submit is called on the main page. (REQUIRED) | value required (=2) | pt:SubmitMd='2' |
pt:Submit | The name of the javascript function in the parent page to call when the tree is submitted (can take in an array of objects with name, Object ID, and Class ID). Do not include parentheses ("()") in the value of this attribute. (REQUIRED) | value required | pt:Submit='<javascriptFunctionName>' |
pt:AllowEmpty | Allows users to click finish in a tree window with nothing selected: true=allow no selection; false=must select. | false | pt:AllowEmpty='true' or pt:AllowEmpty='false' |
pt:Display | Limits the display to the selected objects, referenced by Class ID and Object ID. Cannot be used to display folders. The Class ID of each object must be included in pt:Class. The pt:RootID must be specified even though it will be ignored. Note: Do not include any folder Class IDs (17, 20, 515) in the pt:Class value or the tree will not display correctly. | n/a | pt:Display='<classID1>,<objectID1>,<classID2>,<objectID2>,...' pt:Class='<classID1>,<classID2>,...' pt:RootID='1' |
pt:Form / pt:Input | Puts the AActivitySpace ID of the tree space into the target form input (used to reopen the tree after it has been created). The pt:Form attribute is the name of the parent form to which data will be passed back. The pt:Input attribute is the name of the target input in the parent form. The AActivitySpace ID of the tree space is placed in this input. | n/a | pt:Form='<formName>' pt:Input='in_hi_parentSpace' |
pt:Hide | Hides the specified objects. (See pt:openerLink for a list of Class IDs.) | n/a | pt:Hide='<classID1>,<objectID1>,<classID2>,<objectID2>,...' |
pt:Multi | Allows users to select multiple items: true=checkboxes, false=radio buttons. | false | pt:Multi='true' or pt:Multi='false' |
pt:Select | The default selected item(s) in the tree, referenced by Class ID and Object ID. | none | pt:Select='<classID1>,<objectID1>,<classID2>,<objectID2>,...' |
pt:SelectMd | The tree select mode: 1=compositeselect, 2=leafselect, 3=leafcompositeselect (1 = select folders; 2 = select objects; 3 = select folders and objects). | 2 | pt:SelectMd='<modeID>' |
pt:ShowRoot | Allows you to hide the root folder: true=display root folder, false=hide root folder (if false, subfolders are displayed at the top level). | true | pt:ShowRoot='true' or pt:ShowRoot='false' |
pt:SubTitle | Subtitle of the tree, for user instruction (e.g., "Choose a user."). | none | pt:SubTitle='<windowSubtitle>' |
pt:Title | Title of the tree popup window. | none | pt:Title='<windowTitle>' |
pt:windowFeatures | Allows you to define the features argument for the resulting window.open() function call, specifying the features for a standard browser window. | (see syntax) | pt:windowFeatures='location=no,menubar=no, resizable=yes,height=400,width=400' |
pt:windowName | Window name of the popup tree, used in the resulting window.open() function call. | '_blank1' | pt:windowName='<windowName>' |
pt:Access | Advanced attribute. Access level for the objects to be displayed: None=0, Read=1, Select =3, Edit=7, Admin=15 Note: For objects in the Knowledge Directory (folders and documents), only two levels of security are available (0 or 1). Use pt:Access='1' to allow users access to Knowledge Directory objects. | 3 | pt:Access='<accessLevel>' |
pt:CommunityMode / pt:CommunityID | Advanced attribute. Specifies whether to include community objects in the tree: 1=no communities, 2=this community (specified community + all parent communities), 3=all communities. Note: If CommunityMode=2, you must specify the community folder ID (not the community object ID) in the pt:CommunityID attribute. | 1 | pt:CommunityMode='<communityMode>' pt:CommunityMode='2' pt:CommunityID='<communityFolderID>' |
pt:DirMode | Advanced attribute. Specifies which mode to use when selecting objects from the Knowledge Directory: 1=Browse Mode; 2=Edit Mode Note: The default mode is Edit (2); users who do not have edit access to the Knowledge Directory will see an "access denied" error when they access the tree. | 2 | pt:DirMode='<dirMode>' |
<pt:standard.tree xmlns:pt='http://www.plumtree.com/xmlschemas/ptui/' value="Button Name" class="gContentSection" pt:windowName='myWindow' pt:windowFeatures='location=no,menubar=no,height=500,width=300' pt:RootID='1' pt:Multi='true' pt:SelectMd='2' pt:SubmitMd='2' pt:Submit='PickerSubmit' pt:Title='User' pt:SubTitle='Pick users' pt:Class='1'/>The pt:treeLink tag can be used in the same way, except that it generates an anchor tag using the supplied text instead of a form button. In this tree control, the selection is limited to one user.

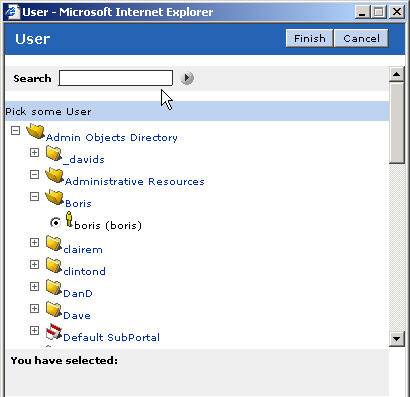

<pt:standard.treeLink xmlns:pt='http://www.plumtree.com/xmlschemas/ptui/' pt:windowName='myWindow' pt:windowFeatures='location=no,menubar=no,height=500,width=300' pt:RootID='1' pt:Multi='false' pt:SelectMd='2' pt:SubmitMd='2' pt:Submit='PickerSubmit' pt:Title='User' pt:SubTitle='Pick a user' pt:Class='1'>Pick a user</pt:standard.treeLink>Clicking the link opens a popup window that allows the user to browse and choose the referenced object type, as shown in the image below. (If the popup was opened using the first code sample, the tree would display checkboxes instead of radio buttons to allow multiple choices.)
function PickerSubmit (myInput) { item0Name = myInput[0].Name; item0ObjectID = myInput[0].ObjectID; item0ClassID = myInput[0].ClassID; item1Name = myInput[1].Name; item1ObjectID = myInput[1].ObjectID; item1ClassID = myInput[1].ClassID; ... }For optimum usability, the return array can be placed into hidden form elements and posted back to the source page so that the transformer link can specify which items should be selected if the user opens the dialog box again.
function returnFromFolderSelection(arrIn){ var tmpObject; var iLength; iLength = arrIn.length; if (iLength > 0) { tmpObject = arrIn[0]; document.Form1.HiddenSelectedFolderName.value = tmpObject.Name; document.Form1.HiddenSelectedFolderObjectID.value = tmpObject.ObjectID; document.Form1.HiddenSelectedFolderClassID.value = tmpObject.ClassID; } document.Form1.submit(); }
