The following sections describe how to develop ATMI application clients and/or servers in the Microsoft Visual C++ Integrated Development Environment (msdev
) on a Windows XP, or Windows Server 2003 system:
Because Oracle Tuxedo ATMI client but not server components can be installed on Windows XP, you can use the Microsoft Visual C++ IDE on these platforms to develop only ATMI application clients. In contrast, because both Oracle Tuxedo ATMI client and server components can be installed on Windows Server 2003, you can use the Microsoft Visual C++.Net IDE on the Windows Server 2003 platform to develop both ATMI application clients and servers.
Oracle Tuxedo ATMI integrates into the Microsoft Visual C++.Net IDE (msdev
) and emulates the functionality of msdev
when integration is not possible. This integration makes it easier for you to develop Oracle Tuxedo ATMI applications for 16-bit and 32-bit Windows operating systems.
The coding required to create Oracle Tuxedo ATMI service requests, send requests, set up conversational connections, and get replies is fundamentally the same in both UNIX and Windows Server 2003 environments. BuildTuxedo
and TUXDEV
are tools that help you in your development environment.
BuildTuxedo
is a single tool, tightly integrated with the msdev
build environment, that developers can use instead of the buildserver
, buildclient
, and buildclt
commands. (Of course, these commands are still available for those who prefer to use them.) The BuildTuxedo
system operates seamlessly on all currently supported Windows environments.TUXDEV
allows you to create, edit, and compile multiple 16/32-bit FML tables and multiple 16/32-bit VIEW files. It also uses Multiple Document Interface (MDI) architecture so that you can use multiple views of these file types simultaneously.
Both the buildclient()
and buildserver()
commands are available to Windows Server 2003 but not to Windows XP. Only the buildclient()
command is available to Windows XP, meaning that only Tuxedo application clients can be built on a Windows XP system. For more information about the build commands, see buildclient
(1)and buildserver
(1)in Oracle Tuxedo Command Reference.
There are differences between how the options to the buildclient()
and buildserver()
commands work on non-integrated development environments and on integrated development environments, as indicated in the following table.
To modify the build environment in an integrated development environment, follow these steps:
Note: | CC and CFLAGS are no longer needed. |
To specify the library and include paths in an integrated development environment, follow these steps:
To add BuildTuxedo
to the MSDEV Tools menu, follow these steps:
msdev

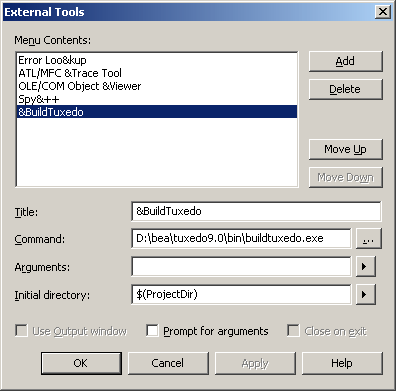

) graphical user interface (GUI), choose Tools External Tools. The External Tools window displays.&BuildTuxedo
in the empty field.Note: | To enable a letter key as a hot key, put an ampersand (&) before the appropriate letter. |
$(ProjectDir)
).Note: | To modify an item, highlight it and type over it. To move any item, highlight it and select the up or down arrow at the top of the Menu Contents box. |
BuildTuxedo
is now part of the MSDEV Tools menu.
BuildTuxedo
maintains a separate project file in the current directory for each Oracle Tuxedo ATMI application using it. When BuildTuxedo
begins, it searches for a valid project file in the current directory. If one is found, the various dialog controls are set to the values stored in the file and the dialog is displayed. The title bar displays the following information:
BuildTuxedo
project_name
Because your BuildTuxedo
project is closely associated with the msdev
project in the current directory, BuildTuxedo
also searches for two other files:
If BuildTuxedo
cannot find either of these files, it displays a warning and/or fails to activate. If the directory contains multiple BuildTuxedo
project files, or multiple msdev
project files or make files, menu items that contain appropriate target names are added to the System menu.
To save the current project file, select OK or Apply. To cancel any changes that you make to the project file or any file maintained by the Oracle Tuxedo system, click Cancel or Esc.
Before you can build your Oracle Tuxedo ATMI application in an IDE, you must set the following fundamental parameters in your environment:
To provide this information, access the BuildTuxedo
project_name dialog box in the msdev
GUI.

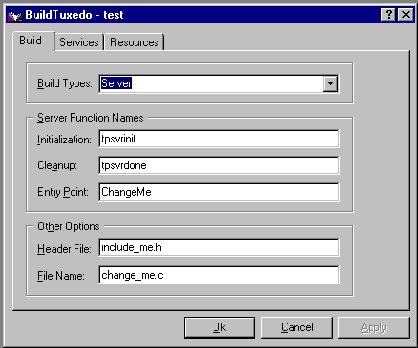

To specify the build type, header file, and filename, follow these steps:
Note: | Windows XP users can select only Workstation Client type. |
The Initialization and Cleanup options allow you to override the default init/exit functions by specifying valid function names. The Entry Point option allows you to specify the name of the function generated by BuildTuxedo
. After specifying its name, you can call the function from anywhere in the application.
In the header file, BuildTuxedo
adds the necessary pragma statements to build the current Oracle Tuxedo ATMI project correctly. BuildTuxedo
opens the file specified in the Header File field of the Build page, if the file is present; otherwise, it creates a new one. A section starting with:
//Begin Tuxedo Section*****DO NOT EDIT*****
//End Tuxedo Section
designates the area in the header file in which pragma statements are written. This area is maintained by BuildTuxedo
. If BuildTuxedo
does not locate this section in the file, it appends it to the end of the header file. Because all other text within the file remains unchanged, you can specify stdafx.h
as the header file.
Note: | If your project is new, and you select OK or Apply, you must select Files into Project from the MSDEV Insert menu. You then add the file generated by BuildTuxedo to the current project. You need to do this only for a new project or when you change the name of the C/C++ output file. |

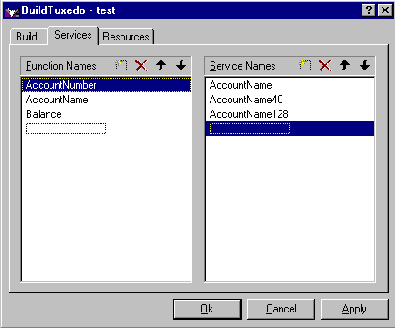

Select the Services tab to display the Services page, in which you specify function and service names.
In the Services page, two lists are used to maintain the service dispatch table:
Note: | To scroll up and down either list, use the arrow keys. |
Generally, the service and the function that performs the service are represented by the same name. For example, function x
performs service x
. In some cases, the function may have a different name from the service it performs. For example, in one case, function abc
performs services x
, y
, and z
. In another case, the service name may not be known until run time.
You must specify any function associated with a service when you build the server. For any function associated with a service, you must specify the service, the appropriate prototype, a C linkage, a void return, and a single TPSVCINFO
pointer parameter. To specify a function to which a service name can be mapped, you must add the function to the Function Name list. This information is required for the service dispatch table.
Note: | If you are using the buildserver(1)command, you can provide this information with the -s option. For more information about the -s option, see Programming an Oracle Tuxedo ATMI Application Using C or Programming an Oracle Tuxedo ATMI Application Using COBOL. |
To add or edit names on the Function Names list, follow these steps:
To specify a resource manager, follow these steps:
Note: | The Tuxedo Resource Manager field contains a list of Oracle Tuxedo resource managers available on the system, as defined in the %TUXDIR%\udataobj\RM file. If the file is not present, a default (NONE) is displayed. |
You should use the following procedure only if you have built the ATMI server application using the Debug configuration for your project.
To debug a server that has not been booted, follow these steps.
tmboot -n -d 1 -s
servername
to display the command-line options used by tmboot(1)to start servername
.tmboot -M
command to boot the BBL. (If necessary, boot additional application servers or machines.)msdev
, select Project Settings.Note: | Because Oracle Tuxedo libraries are not built with debugging information and source code is not provided, you cannot access the Oracle Tuxedo code directly. |
tmshutdown
at any Windows command prompt.WARNING: | Do not stop the server by selecting Debug Stop; the Oracle Tuxedo system may subsequently attempt to restart the server. |
Note: | To debug a server that is already running, type msdev -p nnn at any Windows command prompt, replacing nnn with the server’s process ID (represented by a decimal number). |
If you must develop an Oracle Tuxedo ATMI application using the command line instead of the Microsoft Visual C++ IDE GUI, use the buildserver(1)and buildclient(1)commands. To do this, specify the compiler and link options necessary to build an Oracle Tuxedo ATMI application. For information about using these tools, see the following documents:
To build a debug version of your ATMI application using buildserver
or buildclient
, you must compile all source files with the /Zi
and /Od
options. The /Zi
option enables debugging; the /Od
option disables optimization. In addition, you may need to define the _DEBUG
preprocessor directive. To complete the process, indicate the link option as follows:
-l"/link/debug:full /debugtype:both"
To install the Tuxdev
application, follow these steps:
msdev
) graphical user interface (GUI), choose Tools External Tools. The External Tools window displays.&Tuxdev
in the empty field.Note: | To enable a letter key as a hot key, put an ampersand (&) before the appropriate letter. |
Note: | To create a hot key for a tool, put an ampersand (&) before any letter in the tool name. This enables you to invoke the tool at any time simply by typing that letter. |
$(ProjectDir)
).Note: | To modify an item, highlight it and type over it. To move any item, highlight it and select the up or down arrow at the top of the Menu Contents box. |
Tuxdev
is now part of the MSDEV Tools menu.
Two editors are available in this environment: the FML Table Editor and the VIEW Table Editor. The user interface for both editors is similar to a workbook in which you can work on multiple views (that is, documents) simultaneously. You can also edit multiple files of various types at the same time. Both editors are similar to a Microsoft Excel spreadsheet:
To invoke the FML Table Editor, follow these steps:
tuxdev
(%TUXDIR%\bin
) and press Enter. tuxdev
and press Enter to display the Oracle Tuxedo Developer window.
|
|

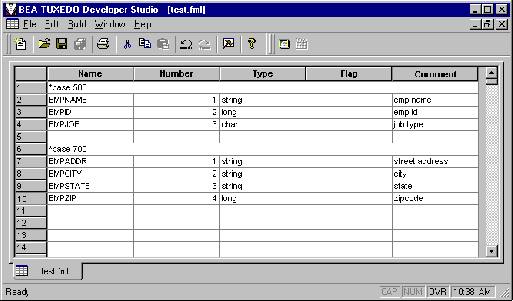

As shown in the preceding figure, the FML Table Editor contains five columns—Name, Number, Type, Flag, and Comment—and an unlimited number of rows.
The following table describes the purpose of each column in the FML Table Editor.
You can open new (unnamed) FML tables. A blank grid is created for the table named FML Table
x
, where x
is a value tracked by the MDI and incremented by one each time a new table is created. You can specify a name if and when the table is saved. You can also open an existing text file for editing. Unless otherwise specified, files are saved in the directory in which the file was opened in tabbed delimited format, with .fml
appended to the end of the filename when applicable. You can compile this file to produce either a 16-bit or 32-bit FML header file.
To invoke the VIEW Table Editor, follow these steps:
tuxdev
(%TUXDIR%\bin
) and press Enter.tuxdev
and press Enter to display the Oracle Tuxedo Developer window.
|
|

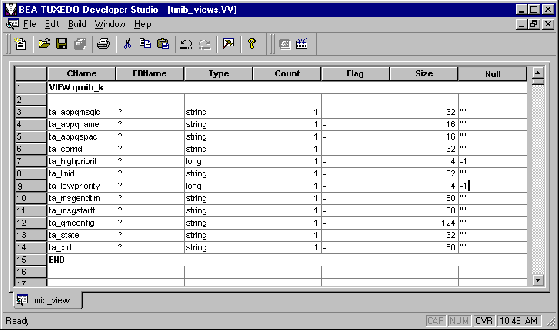

As shown in the preceding figure, the VIEW Table Editor contains seven columns— CName, FBName, Type, Count, Flag, Size, and Null—and an unlimited number of rows.
You can enter comments in the CName column, as long as the required pound sign (#) is shown at the beginning of each comment. Blank lines are also allowed. When a CName entry is not preceded by a pound sign and is not NULL, the line is assumed to be an active table entry.
The following table describes the purpose of each column in the VIEW Table Editor.
Note: | You must specify the following information to denote the start and end of the view information: |
Note: | VIEW t able_name. |
Note: | The information must appear in the CName column in a row by itself. You can enter multiple views within the same file, provided that each table entry is preceded by VIEW table_name and followed by END . |

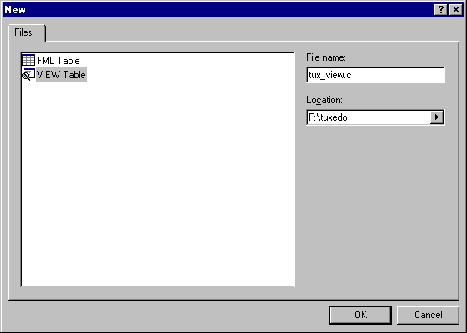

You can open new (unnamed) view files in which a blank grid is created for the view, Viewx
, where x
is a value tracked by the MDI and incremented by one each time you create a new view. You can specify a name if and when you save the view file. You can also edit an existing view file (either text or binary). Unless otherwise specified, files are saved in the directory in which the file was opened in tabbed delimited format, with .v
appended to the filename when applicable. You can compile this file to produce either 16- or 32-bit binary VIEW
and header files.
The MDI, as part of the basic framework, provides a multiple-document architecture in which you can open documents and views, regardless of type, at the same time. Examples of this design are msdev
, Excel
, and Word
. In Oracle Tuxedo terms, you can open x
number of FML tables and y
number of VIEW Table files at any time, and then use any one of them. Each document looks and feels like a workbook that contains tabs for each open document.
The following table describes the information that is validated in each column of the FML Table Editor.
The following table describes the information that is validated in each column of the VIEW Table Editor.
For information about the Oracle Tuxedo ATMI, see the following documents:
