Understanding the SNACRM



This chapter discusses the following topics:




About the SNACRM

The System Network Architecture Communications Resource Manager (SNACRM) runs as a separate native process that provides the emulation allowing Customer Information Control System (CICS), Distributed Program Link (DPL), and Information Management System (IMS) protocols to flow into and out of the Java environment.

The SNACRM System Platform

The SNACRM must run on the same platform as the SNA stack, but it may run on a different platform from the application and Java Communications Resource Manager Gateway (JCRMGW). The JCRMGW provides the configuration for the SNACRM. If the JCRMGW is running on a platform other than the one the SNACRM is on, then the SNACRM should already be started and monitoring the address specified in the JCRMGW configuration. Figure 1-1 is a diagram of a system configuration with the SNACRM located on the same platform as the application and gateway.

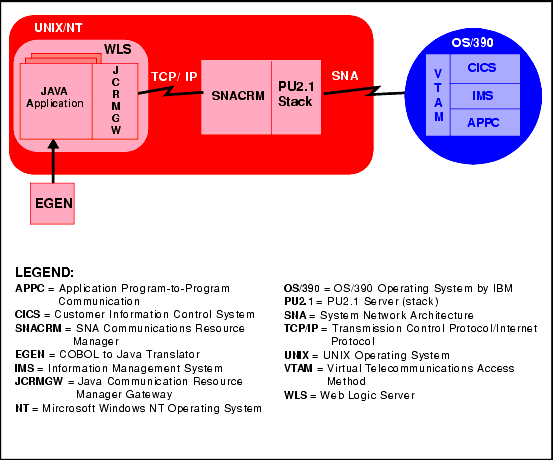

Figure 1-1 SNACRM System Diagram

Support for IMS Implicit Programs

The SNACRM supports non-transactional Information Management System (IMS) programs using implicit Application Program-to-Program (APPC) support for IMS. Implicit APPC is similar to the Customer Information Control System/Enterprise System Architecture (CICS/ESA) DPL. Any IMS program that sends and receives messages to and from the IMS message queue can be used as either a client or a server without change.

To use the implicit APPC capabilities of IMS, you must modify the APPCM file in the SYS1.PARMLIB Partitioned Data Set (PDS) under OS/390. The configuration parameters in this file associate the Logical Unit (LU) with the IMS scheduler. You must identify the LU representing the application name used by BEA eLink Java Adapter for Mainframe WLS Edition (JAM) to access the IMS region and the IMS system ID that provides scheduling for inbound requests. Consult with your mainframe support personnel before making changes to the APPCM file.




Remote Host Domain Configuration

A basic understanding of the mainframe configuration requirements provides a context for understanding the SNACRM functions and configuration requirements.

Note: Always consult with your local mainframe system administrator for specific information about your system. Any samples provided illustrate a starting point for configuring your system and do not represent all possibilities. The samples represent one way a mainframe can be configured to work in an Advanced Peer-to-Peer Networking (APPN) Local Area Network (LAN) environment.

You must ensure the CICS/ESA remote domain is prepared to conduct operations with the BEA local domain. This includes:

Establishing the VTAM Configuration

In the Java environment, SNACRM communicates with a Java application called the BEA eLink Java Adapter for Mainframe WLS Edition (JAM). This application is referred to as JAM throughout this document.

If your JAM system is used in a Virtual Telecommunications Access Method (VTAM) environment, you must ensure the host configuration supports it. Refer to "Sample VTAM Configurations," for some examples based on the requirements for JAM to be used in a VTAM environment with an Ethernet LAN and an APPN mainframe system.

Configuring the CICS/ESA LU

Before you can connect to the remote stack, the LU (Logical Unit) configuration must be established. This entails creating connection definitions, creating session definitions, and installing resource definitions.

Creating Connections at the Remote Host

If it is not already in place, you must work with the mainframe support personnel to create a remote connection definition file. When placed on the remote host, the definition provides a connection with the local domain. The following is an example of a connection definition file:

DEFINE CONNECTION(BEA)      GROUP(BEACONN)
DE(JAM EXAMPLE RDO CONNECTION)
ACCESSMETHOD(VTAM) PROTOCOL(APPC)
NETNAME(**VTAM NETWORK NAME OF REMOTE SYSTEM**)
ATTACHSEC(LOCAL) AUTOCONNECT(NO)

To install the sample connection definition, put it on the host in a separate group that does not contain an existing connection. Use the CEDA INSTALL command.

For example:

CEDA INSTALL I GROUP(BEACONN)

Defining the Session at the Remote Host

If a session definition is not already in place, you must work with the mainframe support personnel to create one. When placed on the remote host, the session definition defines the logical links by which the local domain communicates with the remote host. The following is an example of a session definition:

DEFINE SESSION(BEATEST)       GROUP(BEACONN)
CONNECTION(BEA)
DE(JAM EXAMPLE RDO SESSION)
PROTOCOL(APPC) AUTOCONNECT(YES)
MODENAME(**MODE**) MAXIMUM(**SESSNBR**,**WINNER**)

AUTOCONNECT indicates how the activation of the session is to be negotiated. YES enables the CICS/ESA host to negotiate its own winner sessions when a conversation is allocated.

The MODENAME can be either a CICS/ESA-supplied mode name, such as SMSNA100, or your own defined mode name. If another set of session definitions exist for the BEA connection, this mode name must be unique among all sets defined to the connection. The mode name corresponds to the VTAM LOGMODE name.

The MAXIMUM option defines the total number of sessions in the set and the total number of winner sessions. The total number of winner sessions must include those for the host and the remote stack. The WINNER number plus the remote WINNER number should equal the SESSNBR.

View Connection and Session Status

After you have installed group definitions, you can view the status of connections and sessions using the following CICS/ESA system commands:

CEMT I CONN(BEA)            **view the status of the connection
CEMT I NET(**Netname**) **View the status of the sessions
CEMT I MODENAME(**MODE**) **View the status of the mode

Completing Cross-Platform Definitions

Consult with your CICS/ESA remote domain administrator to obtain key parameters in the VTAM definition that must be included in the SNA stack configuration, as well as in other configuration files in the JAM local domain.

Summary of Cross-Platform Definitions

Before installing JAM software, please examine Table 1-1 for a summary of cross-platform definitions. Consult with the VTAM system administrator to obtain the value indicated in the Name column and make the corresponding entries shown in the Needed In column.

.

Table 1-1 Summary of Cross-Platform Definitions

Item

Name

Originates In

Needed In

1.

SNA Network ID
(e.g. SNANET1)

and VTAM Host ID
(e.g. VTAMHOST)

VTAM configuration

SunLink SNA Stack Configuration:
Example:
CP NQ_CP_NAME=SNANET1.SPARC1
DLC RMTNQ_CP_NAME=
SNANET1.VTAMHOST
LU NQ_LU_NAME=SNANET1.L0P0024A
PTNR_LU NQ_LU_NAME=
SNANET1.CICSSYN

SNAplus2 or IBM CS/AIX Stack Configuration:

Example:
fqcp_name=SNANET1.SPARC1
adj_cp_name=
SNANET1.VTAMHOST
fqplu_name=SNANET1.CICSSYN

2.

Mode Name
(e.g. SNA62)

VTAM-MODEENT definition

CICS Sessions Definition:
Example:
MODENAME(SNA62)

SunLink SNA Stack Configuration:
Example:
MODE NAME=SNA62

SNAplus2 Stack Configuration:
Example:
mode_name=SNA62

JCRMGW Configuration:
Example:
*JC_SNA_LINKS
MODENAME="
SNA62"

3.

Control Point Name
CPNAME
(e.g. SPARC1)

VTAM-PU definition

SunLink SNA Stack Configuration:
Example:
CP NAME=SPARC1
CP NQ_CP_NAME=SNANET1.SPARC1

SNAplus2 Stack Configuration:
Example:
fqcp_name=SNANET1.SPARC
cd_alias=
SPARC1

4.

Local LU Name
(e.g. L0F0024A)

VTAM-LU definition

CICS CONNECTION definition:
Example:
NETNAME(L0F0024A)
SunLink SNA Stack Configuration:
Example:
LU NAME=L0F0024A
LU NQ_LU_NAME=SNANET1.L0F0024A
PTNR_LU LOC_LU_NAME=L0F0024A
TP LOC_LU_NAME=L0F0024A

SNAplus2 Stack Configuration:
Example:
lu_name=L0F0024A
lu_alias=L0F0024A

JCRMGW Configuration:
Example:
*JC_SNA_STACKS
LOCALLU="
L0F0024A"

5.

CICS LU Name
(e.g. CICSSYN)

VTAM-LU definition

SunLink SNA Stack Configuration:
Example:
PTNR_LU NAME=CICSSYN
PTNR_LU NQ_LU_NAME=SNANET1.CICSSYN
MODE PTNR_LU_NAME=CICSSYN

SNAplus2 Stack Configuration:
Example:
fqplu_name=SNANET1.CICSSYN
plu_alias=CICSSYN

JCRMGW Configuration:
Example:
*JC_SNA_LINKS
RLUNAME="
CICSSYN"

6.

Terminal Identifier
(e.g. 05DF0024)

VTAM
(IDNUM+IDBLK)

SunLink SNA Stack Configuration:
Example:
DLC TERM << ALIGN=CHAR

SNAplus2 Stack Configuration:
Example:
node_id=<05000002>

7.

Local Network Device
(e.g. /dev/tr)

UNIX Configuration

SunLink SNA Stack Configuration:
Example:
TRLINE DEVICE='/dev/tr'
or
SDLCLINE DEVICE='/dev/dcp1'

8.

Local MAC Address
(token ring only)

Token ring address of Host

SunLink SNA Stack Configuration:
Example:
TRLINE Source_Address=X'080020117d7a'

9.

Remote MAC Address (token ring only)

Token ring address of local machine

SunLink SNA Stack Configuration:
Example:
DLC RMTMACADDR=X'40000101000'

SNAplus2 Stack Configuration:
Example:
mac_address=<400031720001>

10.

LAN Speed
(e.g. 4MBs)

Speed of token ring network

SunLink SNA Stack Configuration:
Example:
TRLINE LAN_rate=RING_4MBS

11.

SDLC parameters (line protocol)

VTAM-line definition

SunLink SNA Stack Configuration:
Example:
SDLCLINE DUPLEX=half
LINE=switched
NRZI=no
PAUSE=1
SPEED=4800

12.

Partner Definition (e.g. TUXPART1)

CICS/ESA

Mainframe Client Application:
(for example, COBOL with embedded CPI-C to route CICS to appropriate LU for BEA Connect SNA)
COBOL Example:
MOVE `TUXPART1' TO SYM-DEST-NAME
CALL `CMINIT' USING CONVERSATION-ID
SYM-DEST-NAME, CM_RETCODE
END-CALL

13.

Set LU definition so maximum sync-level allowed corresponds to JCRMGW.CFG entry:
*DM_SNA_LINKS
MAXSYNCLVL

Stacks

SunLink SNA Stack Configuration:
Example:
SYNC_LVL=SYNCPT

SNAplus2 Stack Configuration:
Example:
[define local_lu]
Syncpt.Support=YES

14.

Map all incoming conversations to BEA Connect SNA gateway (make sure TPs have all privileges available, e.g. CNOS, syncpoint if licensed, service conversations, etc.).

Stacks

SunLink SNA Stack Configuration:
Example:
TP_HEXNAME=x`2a'

SNAplus2 Stack Configuration:
Example:
Sna_tps
<404040...hex representation of 64 EBCDIC spaces...404040>
TYPE=QUEUED
TIMEOUT=-1
USERID=authorized_user_here
GROUP=authroized_group_here
LUALIAS=lu_name_here

15.

CICS Transaction IDs (e.g. TOUP)

CICS/ESA

JCRMGW Configuration:
Example:
*JC_REMOTE_SERVICES

Microsoft SNA Cross-Platform Definitions

It is important to communicate with the administrator of the CICS/ESA remote domain to obtain key parameters in the VTAM definition that must be included in the Microsoft SNA Server configuration, as well as in other configuration files in the JAM local domain.

Before installing JAM software, please examine the following general procedure for configuring the Microsoft SNA Server. Use the Microsoft SNA Server Manager GUI. Sample values are shown in parenthesis. Consult with the VTAM system administrator to obtain the proper values.

  1. Start Microsoft SNA Server Manager from the Start button on the Task Bar.

  2. A server is automatically created (MVSNT1). Note the configuration values displayed in the Server Properties window:

    Server: MVSNT1

    Subdomain: MVSNT1

    Server Role: Primary

    Network Transports: TCP/IP

  3. Under Link Services, define a link service (SNADLC1):

    In the Link Service Properties, define DLC 802.2 Link Service Configuration:

    Title: DLC 802.2 Link Service #1

    Adapter: <your ethernet adapter>

    Local Service Access Point (SAP): 0x4

    Use Fixed SAP

  4. Under SNA Service, Connections, define an 802.2 connection (MVSNT1):

    In the MVSNT1 Properties, define:

    General

    Name: MVSNT1

    Link Service: SnaDlc1

    Remote End: Peer System

    Allowed Directions: Both Directions

    Activation: On Server Startup

    Supports Dynamic Remote APPC LU Definition

    Address

    Remote Network Address: <host MAC address>

    Remote SAP Address: <host SAP address>

    System Identification

    Local Node Name

    Network Name: <mynetwork>

    Control Point Name: MVSNT1

    Local Node ID: <xxx nnnn>XID Type: Format 3

    Remote Node Name

    Network Name: <hostnetwork>

    Control Point Name: <vtamcpname>

    Remote Node ID: Peer DLC Role: Negotiable

    Compression Type: None

    802.2 DLC

    Take Defaults

  5. Under Local APPC LUs (SNA Service: Connections: Insert: APPC: Local LU), define a local LU (LUNT1A) in the LUNT1A Properties:

    General

    LU Alias: LUNT1A

    Network Name: <mynetwork>

    LU Name: LUNT1A

    Advanced

    Take Defaults

  6. Under Remote APPC LUs, define a remote LU (CICS1) in the CICS1 Properties:

    General

    Connection: MVSNT1

    LU Alias: CICS1

    Network Name: <hostnetwork>

    LU Name: CICS1

    Uninterpreted Name: CICS1

    Options

    Take Defaults

  7. Under APPC Modes, define a mode (SMSNA100) in the SMSNA100 Properties:

    General

    Mode Name: SMSNA100

    Limits

    Parallel Session Limit: <max sessions>

    Minimum Winner Contention Limit: <min winners>

    Partner Min Winner Contention Limit: <max sessions - min winners>

    Automatic Activation Limit: 0

    Characteristics

    Take Defaults

    Partners

    Add partnership for Server Name: MVSNT1 between Local LU: LUNT1A and Partner LU: CICS1

    Compression

    Take Defaults

Setting Stack Traces

Consult the vendor publications for instructions on how to set up stack tracing.




Sample VTAM Configurations

The following sections provide sample environments showing how BEA eLink software can be configured for use with an Ethernet LAN and an APPN system 390. Considerations for token ring and subarea-style configurations are included. It is assumed that hardware and operating system installations have been completed.

An environment properly configured for the BEA eLink system involves two general components, a local environment and a remote environment.

Local Environment

A local environment is a UNIX-based or Windows NT-based machine running JAM software. JAM is a fully bidirectional program, supporting the local system as either a client or server. This environment consists of the following components:

Remote Environment

A remote environment is an IBM mainframe that may or may not be on the same local network. As in the local environment, JAM is a fully bidirectional program, supporting the remote system as either a client or server. This environment consists of the following components:

Sample Environments

Samples of each environment are provided to illustrate a starting point when first configuring your system. These samples are not intended to be used without modifications. Any similarity between them and any actual system is coincidental.

Machine Attributes (LAN Descriptions)

The attributes of the sample environment machines are listed in the following tables for reference. The subsequent sample configurations refer to these attributes as required. Sample configurations are presented for example only and may contain components that are not supported for your system

Table 1-2 SPARCstation 5

Name

Attribute

OS

Solaris 2.5.1 or 2.6)

SNA

Brixton/CNT 4.1

APP

Tuxedo 6.5

MAC

08:00:20:7C:47:50

IP

206.189.43.14

NAME

beasun2

Table 1-3 SPARCstation 5

Name

Attribute

OS

Solaris 2.5.1 or 2.6 (SunOS 5.5.1)

SNA

SunLink 9.1

APP

Tuxedo 6.5

MAC

08:00:20:87:47:2d

IP

206.189.43.54

NAME

dalsun4

Table 1-4 HP 9000/847

Name

Attribute

OS

HP-UX B.10.20 or 11.00 (patches:PHNE_9663,9761,9889)

SNA

HPSNAPlus2 5.1 or 6.0

APP

Tuxedo 6.5

MAC

08:00:09:30:24:77

IP

206.189.43.13

NAME

dalhp10

Table 1-5 P390 Server 500

Name

Attribute

OS

MVS 5.22 9510

SNA

VTAM 4.3

APP

CICS 4.1 / IMS DC 5.1

MAC

10:00:5a:d4:3e:8e

IP

206.189.43.98

NAME

beavs

Table 1-6 P390 Server 500

Name

Attribute

OS

OS/390 1.2

SNA

VTAM 4.3

APP

CICS 4.1

MAC

10:00:5a:d4:c1:e0

IP

206.189.43.96

NAME

dalvs2

Table 1-7 Windows NT Server

Name

Attribute

OS

Windows NT Server 4.0, SP2

SNA

MS SNA Server 4.0, SP3

APP

CICS 4.1

MAC

10:00:5a:d4:c1:e0

IP

206.189.43.99

NAME

dalnt

Local Environment Configuration

HPSNAPlus2 configurations are usually setup using the HP xSnapAdmin utility, resulting in the configuration text file /etc/opt/sna/sna_node.cfg. This file can be manually created and/or maintained using a text editor; however, using the HP xSnapAdmin utility is recommended. The following example is the sna_node.cfg file for the sample environment.

Listing 1-1 HPSNAPlus2 Configuration


[define_node_config_file]
major_version = 5
minor_version = 1
update_release = 1
revision_level = 116

[define_node]
node_name = dalhp10
description = snacrm development
node_type = END_NODE
fqcp_name = BEALAN.DALHP10
cp_alias = dalhp10
mode_to_cos_map_supp = NO
mds_supported = YES
node_id = <05ffffff>
max_locates = 100
dir_cache_size = 255
max_dir_entries = 0
locate_timeout = 60
reg_with_nn = YES
reg_with_cds = YES
mds_send_alert_q_size = 100
cos_cache_size = 24
tree_cache_size = 40
tree_cache_use_limit = 40
max_tdm_nodes = 0
max_tdm_tgs = 0
max_isr_sessions = 1000
isr_sessions_upper_threshold = 900
isr_sessions_lower_threshold = 800
isr_max_ru_size = 16384
isr_rcv_pac_window = 8
store_endpt_rscvs = NO
store_isr_rscvs = NO
store_dlur_rscvs = NO
dlur_support = YES
pu_conc_support = NO
nn_rar = 128
ptf_flags = NONE

[define_ethernet_dlc]
dlc_name = ETHER0
description = ""
neg_ls_supp = YES
initially_active = NO
adapter_number = 0

[define_ethernet_port]
port_name = ethl0
description = 1st ethernet adapter
dlc_name = ETHER0
port_type = PORT_SATF
port_number = 1
max_rcv_btu_size = 1033
tot_link_act_lim = 64
inb_link_act_lim = 0
out_link_act_lim = 0
ls_role = LS_NEG
act_xid_exchange_limit = 9
nonact_xid_exchange_limit = 5
ls_xmit_rcv_cap = LS_TWS
max_ifrm_rcvd = 7
target_pacing_count = 7
max_send_btu_size = 1033
mac_address = <000000000000>
lsap_address = 0x08
implicit_cp_cp_sess_support = NO
implicit_limited_resource = NO
implicit_deact_timer = 0
effect_cap = 3993600
connect_cost = 0
byte_cost = 0
security = SEC_NONSECURE
prop_delay = PROP_DELAY_LAN
user_def_parm_1 = 0
user_def_parm_2 = 0
user_def_parm_3 = 0
initially_active = YES
test_timeout = 5
test_retry_limit = 2
xid_timeout = 5
xid_retry_limit = 2
t1_timeout = 5
t1_retry_limit = 5

[define_ethernet_ls]
ls_name = P390HP10
description = P390 - beavs
port_name = ethl0
adj_cp_name = P390.USS3270
adj_cp_type = LEARN_NODE
mac_address = <0020af543176>
lsap_address = 0x08
auto_act_supp = NO
tg_number = 0
limited_resource = NO
solicit_sscp_sessions = NO
pu_name = <0000000000000000>
disable_remote_act = NO
default_nn_server = NO
dspu_services = NONE
dspu_name = <0000000000000000>
dlus_name = <0000000000000000000000000000000000>
bkup_dlus_name = <0000000000000000000000000000000000>
link_deact_timer = 0
use_default_tg_chars = YES
ls_attributes = SNA
adj_node_id = <00000000>
local_node_id = <00000000>
cp_cp_sess_support = YES
effect_cap = 3993600
connect_cost = 0
byte_cost = 0
security = SEC_NONSECURE
prop_delay = PROP_DELAY_LAN
user_def_parm_1 = 0
user_def_parm_2 = 0
user_def_parm_3 = 0
target_pacing_count = 7
max_send_btu_size = 1033
ls_role = USE_PORT_DEFAULTS
initially_active = NO
react_timer = 30
react_timer_retry = 65535
test_timeout = 5
test_retry_limit = 2
xid_timeout = 5
xid_retry_limit = 2
t1_timeout = 5
t1_retry_limit = 5

[define_local_lu]
lu_name = LUHP10A
description = Test LU #1
lu_alias = LUHP10A
nau_address = 0
syncpt_support = YES
lu_session_limit = 0
default_pool = NO
pu_name = <0000000000000000>
sys_name = ""
timeout = -1
back_level = NO

[define_local_lu]
lu_name = LUHP10B
description = Test LU #2
lu_alias = LUHP10B
nau_address = 0
syncpt_support = YES
lu_session_limit = 0
default_pool = NO
pu_name = <0000000000000000>
sys_name = ""
timeout = -1
back_level = NO

[define_local_lu]
lu_name = LUHP10C
description = Test LU #3
lu_alias = LUHP10C
nau_address = 0
syncpt_support = YES
lu_session_limit = 0
default_pool = NO
pu_name = <0000000000000000>
sys_name = ""
timeout = -1
back_level = NO

[define_partner_lu]
description = APPC MVS LU for IMS
fqplu_name = P390.MVSLU01
plu_alias = MVSLU01
plu_un_name = MVSLU01
max_mc_ll_send_size = 32767
conv_security_ver = NO
parallel_sess_supp = YES

[define_partner_lu]
description = backend cics #1
fqplu_name = P390.C410XB01
plu_alias = C410XB01
plu_un_name = C410XB01
max_mc_ll_send_size = 32767
conv_security_ver = NO
parallel_sess_supp = YES

[define_partner_lu]
description = Second backend cics
fqplu_name = P390.C410XB02
plu_alias = CICS2
plu_un_name = C410XB02
max_mc_ll_send_size = 32767
conv_security_ver = NO
parallel_sess_supp = YES


[define_mode]
mode_name = SMSNA100
description = Sessions: 10 -- 5,5
max_ru_size_upp = 1024
receive_pacing_win = 4
default_ru_size = YES
max_neg_sess_lim = 256
plu_mode_session_limit = 10
min_conwin_src = 5
cos_name = #eLink
cryptography = NONE
auto_act = 0


Remote Environment Configurations

You must involve your mainframe system support personnel early in the process of setting up your configuration. In a large shop there will most likely be different individuals responsible for Multiple Virtual Storage (MVS), VTAM, CICS, and IMS. Make sure everyone is involved. Most of the configuration for your mainframe may have already been done.

These samples are provided for illustration. Mainframe technical support is not trivial, and this information is not intended to explain all of the possible configurations. These samples represent one way a P390 can be configured to work in an APPN LAN environment.

ATCSTRxx VTAM Start List

The following example is the VTAM start list for the BEAVS P390 machine. It supports both the subarea and APPN environments.

Listing 1-2 VTAM Start List for BEAVS P390


* --------------------------*
* VTAM START LIST FOR SYS1 *
* --------------------------*
BN=YES,
BNDYN=FULL,
XNETALS=YES,
SSCPID=06,NOPROMPT,
CONFIG=00,MAXSUBA=31,SUPP=NOSUP,
SSCPNAME=USS3270,
NETID=P390,
NODETYPE=NN,
HOSTSA=6,
CRPLBUF=(208,,15,,1,16),
IOBUF=(100,512,19,,1,20),
LFBUF=(104,,0,,1,1),
LPBUF=(64,,0,,1,1),
SFBUF=(163,,0,,1,1)


XCA Major Node Defines the LAN Adapter for SYS1

This definition is set up for use with a 3172 (emulated) for connecting an APPN network node to another APPN node. Note that it is for an Ethernet LAN, and the SAPADDR specified must be the same as the LSap specified for the local link station.

Listing 1-3 XCA Major Node


XETH2LP1 VBUILD TYPE=XCA ** EXTERNAL COMMUNICATION ADAPT**
PORTE2 PORT ADAPNO=1, ** 3172 RELATIVE ADAPTER NUMBER**
CUADDR=E22, ** CHANNEL UNIT ADDRESS **
MEDIUM=CSMACD, ** LAN TYPE=ETHERNET **
SAPADDR=8, ** SERVICE ACCESS POINT ADDRESS**
TIMER=120 ** CHANNEL ACTIVATE RESP TIME **
*
G1ETH2 GROUP DIAL=YES, ** YES required for putype 2 **
DYNPU=YES,
CALL=INOUT,
ANSWER=ON,
ISTATUS=ACTIVE
LETH20 LINE
PETH20 PU
LETHE3 LINE
PETHE3 PU
LETHF3 LINE
PETHF3 PU


Switched Network (SWNET) Definitions

The three switched network definition examples in this section specify the VTAM PU (Physical Unit), representing the local link stations that expect to connect with the host machine. The IDBLK and IDNUM definitions are provided to support 3270 traffic and must be unique, as well as match the values specified in the local link definition.

Listing 1-4 SWNET Major Node (DALHP10)


SWNETHHP   VBUILD  TYPE=SWNET,MAXNO=3,MAXGRP=3
P390HP10 PU ADDR=02,
IDBLK=05F,
IDNUM=FFFFF,
PUTYPE=2,
NETID=BEALAN,
CPNAME=DALHP10,
MAXPATH=3,
DWACT=YES,
CONNTYPE=APPN,
CPCP=YES,
DYNLU=YES
* -------------------------------------------------
* SNA SAP & HP10 MAC ADDRESS BIT REVERSED FOR TRFMT
* -------------------------------------------------
PATHHP PATH DIALNO=00041000900C24EE,
GRPNM=G1ETH2
LUHP10A LU LOCADDR=0
LUHP10B LU LOCADDR=0
LUHP10C LU LOCADDR=0


Listing 1-5 SWNET Major Node (SUN2)


SWNETH2    VBUILD  TYPE=SWNET,MAXNO=3,MAXGRP=3
P390ETH2 PU ADDR=04,
IDBLK=019,
IDNUM=10092,
PUTYPE=2,
NETID=BEALAN,
CPNAME=SUN2,
MAXPATH=3,
DWACT=YES,
CONNTYPE=APPN,
CPCP=YES,
DYNLU=YES
* -------------------------------------------------
* SNA SAP & SUN2 MAC ADDRESS BIT REVERSED FOR TRFMT
* -------------------------------------------------
PATH01 PATH DIALNO=00081000043EE20A,
GRPNM=G1ETH2
LUSUN2A LU LOCADDR=0
LUSUN2B LU LOCADDR=0
LUSUN2C LU LOCADDR=0


Listing 1-6 SWNET Major Node (SUN4)


SWNESUN4   VBUILD  TYPE=SWNET,MAXNO=3,MAXGRP=3
P390ETH4 PU ADDR=03,
IDBLK=018,
IDNUM=10092,
PUTYPE=2,
NETID=BEALAN,
CPNAME=SUN4,
MAXPATH=3,
DWACT=YES,
CONNTYPE=APPN,
CPCP=YES,
DYNLU=YES
* -------------------------------------------------
* SNA SAP & SUN4 MAC ADDRESS BIT REVERSED FOR TRFMT
* -------------------------------------------------
PATHSL4 PATH DIALNO=0008100002E1E2B4,
GRPNM=G1ETH2
LUSUN4A LU LOCADDR=0
LUSUN4B LU LOCADDR=0
LUSUN4C LU LOCADDR=0


VTAM Application Major Nodes for CICS Regions

These examples represent the partner LU definitions to be accessed from the local environment. The APPL names must match those specified in the partner LU definitions on the local machine.

Listing 1-7 Partner LU Definitions


BEACICS VBUILD TYPE=APPL               APPLICATION MAJOR NODE
* APPL DEFINITION STATEMENTS FOR CICS
* CICS 4.10 BACKEND REGION #1 SYSID=B41A
C410XB01 APPL EAS=64, ESTIMATED CONCURRENT SESSIONS
MODETAB=ISTINCLM, MAKE SURE DEFAULT MODETAB
PARSESS=YES,
AUTH=(ACQ,BLOCK,PASS) CICS CAN ACQUIRE & PASS TMLS
CICS CAN REQUEST BLOCKED INPUT

C410XB02 APPL EAS=64, ESTIMATED CONCURRENT SESSIONS
MODETAB=ISTINCLM, MAKE SURE DEFAULT MODETAB
PARSESS=YES,
AUTH=(ACQ,BLOCK,PASS) CICS CAN ACQUIRE & PASS TMLS
CICS CAN REQUEST BLOCKED INPUT
C410XB03 APPL EAS=64, ESTIMATED CONCURRENT SESSIONS
MODETAB=ISTINCLM, MAKE SURE DEFAULT MODETAB
PARSESS=YES,
AUTH=(ACQ,BLOCK,PASS) CICS CAN ACQUIRE & PASS TMLS
CICS CAN REQUEST BLOCKED INPUT
* #######################
* END OF BEACICS APPL DEF
* #######################


CICS Resource Definition Entries (RDO)

CICS connection and session definitions map the VTAM path definitions for the CICS application. Each connection represents one local LU definition in the local SNA configuration. Therefore, the names must match.

CICS session definitions associate a VTAM mode with the LU specified in the connection. The mode names and session count characteristics must match those specified in the mode definitions for the local SNA configuration. Note that these definitions set AUTOCONNECT to YES, allowing automatic session acquisition for a CICS client application.

Listing 1-8 CICS Resource Definition Entries


LIST GROUP(BEAHP10) OBJECTS
GROUP NAME: BEAHP10
----------
CONNECTIONS: FHPA FHPB FHPC
SESSION FHPA FHPB FHPC

CONNECTION(FHPA) GROUP(BEAHP10)
DESCRIPTION(1ST HP SNAP2+ CONNECTION)
CONNECTION-IDENTIFIERS
NETNAME(LUHP10A) INDSYS()
REMOTE-ATTRIBUTES
REMOTESYSTEM() REMOTENAME() REMOTESYSNET()
CONNECTION-PROPERTIES
ACCESSMETHOD(VTAM) PROTOCOL(APPC) CONNTYPE()
SINGLESESS(NO) DATASTREAM(USER) RECORDFORMAT(U)
QUEUELIMIT(NO) MAXQTIME(NO)
OPERATIONAL-PROPERTIES
AUTOCONNECT(NO) INSERVICE(YES)
SECURITY
SECURITYNAME() ATTACHSEC(LOCAL) BINDSECURITY(NO)
USEDFLTUSER(NO)
RECOVERY
PSRECOVERY(SYSDEFAULT)

CONNECTION(FHPB)       GROUP(BEAHP10)
DESCRIPTION(2ND HP SNA+ 2 CONNECTION)
CONNECTION-IDENTIFIERS
NETNAME(LUHP10B) INDSYS()
REMOTE-ATTRIBUTES
REMOTESYSTEM() REMOTENAME() REMOTESYSNET()
CONNECTION-PROPERTIES
ACCESSMETHOD(VTAM) PROTOCOL(APPC) CONNTYPE()
SINGLESESS(NO) DATASTREAM(USER) RECORDFORMAT(U)
QUEUELIMIT(NO) MAXQTIME(NO)
OPERATIONAL-PROPERTIES
AUTOCONNECT(NO) INSERVICE(YES)
SECURITY
SECURITYNAME() ATTACHSEC(LOCAL) BINDSECURITY(NO)
USEDFLTUSER(NO)
RECOVERY
PSRECOVERY(SYSDEFAULT)

CONNECTION(FHPC)      GROUP(BEAHP10)
DESCRIPTION(3RD HP SNA+ 2 CONNECTION)
CONNECTION-IDENTIFIERS
NETNAME(LUHP10C) INDSYS()
REMOTE-ATTRIBUTES
REMOTESYSTEM() REMOTENAME() REMOTESYSNET()
CONNECTION-PROPERTIES
ACCESSMETHOD(VTAM) PROTOCOL(APPC) CONNTYPE()
SINGLESESS(NO) DATASTREAM(USER) RECORDFORMAT(U)
QUEUELIMIT(NO) MAXQTIME(NO)
OPERATIONAL-PROPERTIES
AUTOCONNECT(NO) INSERVICE(YES)
SECURITY
SECURITYNAME() ATTACHSEC(LOCAL) BINDSECURITY(NO)
USEDFLTUSER(NO)
RECOVERY
PSRECOVERY(SYSDEFAULT)

 SESSIONS(FHPA)       GROUP(BEAHP10)
DESCRIPTION(1ST HP SNAP2+ SESSION)
SESSION-IDENTIFIERS
CONNECTION(FHPA) SESSNAME() NETNAMEQ()
MODENAME(SMSNA100)
SESSION-PROPERTIES
PROTOCOL(APPC) MAXIMUM(32,16) RECEIVEPFX()
RECEIVECOUNT() SENDPFX() SENDCOUNT()
SENDSIZE(4096) RECEIVESIZE(4096) SESSPRIORITY(0)
PRESET-SECURITY
USERID()
OPERATIONAL-PROPERTIES
AUTOCONNECT(YES) BUILDCHAIN(YES) USERAREALEN(0)
IOAREALEN(0,0) RELREQ(NO) DISCREQ(NO)
NEPCLASS(0)
RECOVERY
RECOVOPTION(SYSDEFAULT)

SESSIONS(FHPB) GROUP(BEAHP10)
DESCRIPTION(2ND HP SNAP2+ SESSION)
SESSION-IDENTIFIERS
CONNECTION(FHPB) SESSNAME() NETNAMEQ()
MODENAME(SMSNA100)
SESSION-PROPERTIES
PROTOCOL(APPC) MAXIMUM(32,16) RECEIVEPFX()
RECEIVECOUNT() SENDPFX() SENDCOUNT()
SENDSIZE(4096) RECEIVESIZE(4096) SESSPRIORITY(0)
PRESET-SECURITY
USERID()
OPERATIONAL-PROPERTIES
AUTOCONNECT(YES) BUILDCHAIN(YES) USERAREALEN(0)
IOAREALEN(0,0) RELREQ(NO) DISCREQ(NO)
NEPCLASS(0)
RECOVERY
RECOVOPTION(SYSDEFAULT)

 SESSIONS(FHPC)       GROUP(BEAHP10)
DESCRIPTION(3RD HPSNAP2+ SESSION)
SESSION-IDENTIFIERS
CONNECTION(FHPC) SESSNAME() NETNAMEQ()
MODENAME(SMSNA100)
SESSION-PROPERTIES
PROTOCOL(APPC) MAXIMUM(10,5) RECEIVEPFX()
RECEIVECOUNT() SENDPFX() SENDCOUNT()
SENDSIZE(4096) RECEIVESIZE(4096) SESSPRIORITY(0)
PRESET-SECURITY
USERID()
OPERATIONAL-PROPERTIES
AUTOCONNECT(YES) BUILDCHAIN(YES) USERAREALEN(0)
IOAREALEN(0,0) RELREQ(NO) DISCREQ(NO)
NEPCLASS(0)
RECOVERY
RECOVOPTION(SYSDEFAULT)
