Bundle Explorer

The Bundle Explorer is a Navigator view that allows you to browse and interact with the available bundles of signatures.

The Bundle Explorer contains a top level folder called Bundles. In the Bundles folder is a node for each bundle that's available for evaluation. Each bundle node contains all the bundle's signatures.

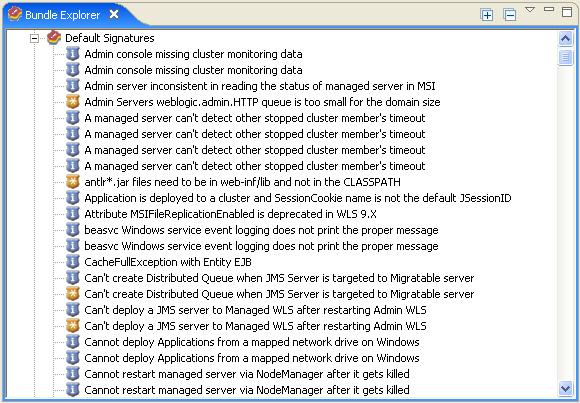

Figure 4-29 Bundle Explorer List of Bundles

Bundle Explorer List of Bundles

Signatures are grouped into different bundles based on their characteristics. For example, the Security Advisories bundle contains signatures that detect potential security problems for which BEA has issued security advisories. The Service Pack Remedy bundle contains signatures whose resolution requires installation of a specific service pack. The Bundle Details editor describes each of the Guardian signature bundles.

The signature entries in each bundle node include the following severity indicator icons. The severity indicator approximates the level of attention you should give the signature when it is detected.

Icon
Severity

Bundle Explorer List By severity

Critical

Bundle Explorer List By severity

Warning

Bundle Explorer List By severity

Informational

If you double-click a bundle in the Bundle Explorer, a Bundle Details editor opens in the Document Pane.

Similarly, if you double-click a signature in the Bundle Explorer, a Signature Details editor opens in the Document Pane.

The Bundle Explorer title bar contains these icons you can click:

Icon
Name

Bundle Explorer List By severity

Close

Bundle Explorer List By severity

Minimize

Bundle Explorer List By severity

Maximize

Bundle Explorer List By severity

Restore

Bundle Explorer List By severity

Expand all items

Bundle Explorer List By severity

Collapse all items

Bundle Explorer List By severity

Menu

Clicking the Bundle Explorer's Menu icon opens a menu that allows you to sort the signatures displayed in each bundle. From the Sort Signatures submenu, you can select:

Figure 4-30 Bundle Explorer Sort Menu

Bundle Explorer Sort Menu

Please note that selecting either of the Sort Signatures choices collapses all the bundle nodes. To see the signatures in their new sort order, either click each bundle node individually to expand it, or click the Expand all items icon to expand all the bundle nodes.
