How It Works

BEA TUXEDO ATMI is a library of C functions that give you access to BEA TUXEDO facilities and was not originally designed to be used in an object-oriented environment. The C++ Expert generates a C++ framework around the BEA TUXEDO ATMI functions that make the implementation of server and client applications easy using C++ object constructs.

As an adjunct to a C++ development environment, the C++ Expert gives you the ability to create BEA TUXEDO applications using C++ without having to leave the object oriented programming paradigm.

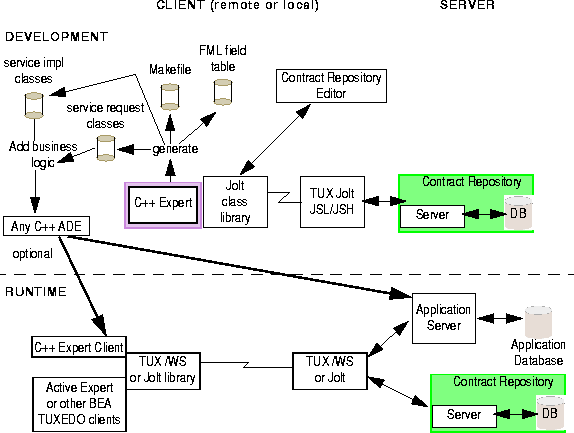

Figure 1-1 shows an architectural overview of the C++ Expert development and run-time environments.

Figure 1-1 C++ Expert Architectural Overview
