Creating a Workflow for the IFX XML Request Message

The following procedures show how to construct a converter to handle a request message.

This task is a step in Process of Configuring the Workflow to Handle an IFX XML Request.

To construct a converter to handle a request message

  1. In Siebel Tools, select the Workflow Process object type in the Object Explorer.
  2. In the Object List Editor, right-click and then choose New Record.
  3. Enter the following values:
    • Name = FINS IFX Tutorial Outbound Connector
    • Business Object = Service Request

      The other values are optional.

  4. Click anywhere outside the new row or move outside of the row with the UP or DOWN arrow keys.

    Siebel Tools saves the new object.

  5. Right-click the new record, and then choose Edit Workflow Process.

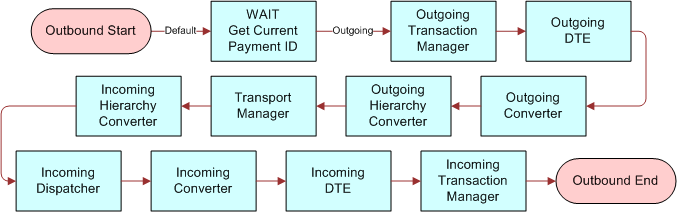

  6. Create a workflow with the required components. Figure 5 shows the structure of the finished workflow.

    For complete details about using this working space, and information about workflow processes in general, see Siebel Business Process Framework: Workflow Guide.

    Figure 5. IFX Add Payment Outbound Workflow

Adding Process Property Values

You need to create Process Property values for the workflow, to be used in later configurations.

To create process properties

  • In the Process Properties view, enter the values shown in the following table.
    Name
    Data Type

    End of Data

    String

    IFX Document Request

    String

    IFX Document Response

    String

    OP Outgoing TransMgr

    String

    PropSet Out Incoming Converter

    Hierarchy

    PropSet Out Incoming DTE

    Hierarchy

    PropSet Out Incoming Dispatcher

    Hierarchy

    PropSet Out Incoming Hierarchy Converter

    Hierarchy

    PropSet Out Incoming TransMgr

    Hierarchy

    PropSet Out Outgoing Converter

    Hierarchy

    PropSet Out Outgoing DTE

    Hierarchy

    PropSet Out Outgoing TransMgr

    Hierarchy

    SearchSpec

    String

    SearchSpec%1

    String

    Timed Out

    String

Configuring the Wait Step

The Wait step can be configured to perform an action after the workflow is initiated. When the action is taken, the remaining steps will then be performed. In this example, the Wait step is configured to retrieve the Row_ID of the current record.

To configure the Wait step

  1. Double click the Wait step of FINS IFX Tutorial Outbound Connector workflow.
  2. In the Wait applet, enter the following value:
    • Name = Get Current Payment Id
  3. Leave the Input Arguments applet empty (that is, with no records).
  4. Add output arguments in the Output Arguments applet (shown in the table below), and then click the Return to Designer button.
    Property Name
    Type
    Value
    Business
    Component Name

    SearchSpec

    Literal

    [FIN Service Request Payment Request.Payment Id]=%1



    Search Spec%1

    Expression

    [Id]

    Fin Service Request Payment Request

Configuring the FINS IFX XML Transaction Manager

The first outbound component is the transaction manager.

To configure the transaction manager

  1. Name the transaction manager appropriately (it must be unique within the workflow), and select the type.

    The example uses:

    • Name = Outgoing Transaction Manager
    • Type = Business Service
  2. Choose the type of business service from the multi-value group (MVG) window.

    For this component, choose the FINS IFX Tutorial Transaction Manager.

  3. Choose the method.

    The example uses the Execute Outbound method because the data is being sent out from the Siebel data source.

  4. Establish the input and output arguments.

    As for all Siebel business services, create a new record (CTRL+N) for a new argument. Select from the available input arguments, and type in any that do not appear in the list. Add all required arguments first, then go on to any optional arguments. See Siebel Connector for IFX XML for input and output specifications.

    When you have finished setting the input and output arguments, click the Return to Designer button.

    Following are the input argument settings for the example transaction manager configuration.

    Input Argument
    Type
    Value
    Property Name

    DispatcherMapName

    Literal

    FINS IFX Tutorial DispMap



    IXMLMapPath

    Literal

    IFX/PaySvcRs/PmtAddRs



    PrimaryRowId

    Process Property



    Object Id

    SiebelFINSOperationOut

    Literal

    SAQuery



    SiebelFINSRespIntObjName

    Literal

    FINS IFX Tutorial Payment Add Internal IntgObj



    SearchSpec

    Process Property



    SearchSpec

    SearchSpec%1

    Process Property



    SearchSpec%1

    Following are the output argument settings for the example transaction manager configuration.

    Property Name
    Type
    Value
    Output Argument

    PropSet Out Outgoing Transmgr

    Output Argument



    XML Hierarchy

Configuring the FINS IFX XML Data Transformation Engine

The second component is the data transformation engine (DTE).

To configure the DTE

  1. Name the DTE appropriately (it must be unique within the workflow).

    The example uses:

    • Name = Outgoing DTE
    • Type = Business Service
  2. Choose the type of business service from the multi-value group (MVG) window.

    For this component, choose the FINS IFX Tutorial DTE.

  3. Choose the method.

    The example uses the Transform to External Hierarchy method because the data is moving from a Siebel internal system to an external system.

  4. Set the input and output arguments.

    These arguments include the DTE map name, created during the configuration of the internal and external integration objects.

    Following are the input argument settings for the example DTE configuration.

    Input Argument
    Type
    Value
    Property Name

    XML Property Set

    Process Property



    PropSet Outgoing TransMgr

    Following are the input argument settings for the example DTE configuration.

    Property Name
    Type
    Value
    Output Argument

    PropSet Out Outgoing DTE

    Output Argument



    XML Property Set

Configuring the FINS IFX XML Converter

The third component is the converter.

To configure the converter

  1. Name the converter appropriately (it must be unique within the workflow).

    The example uses:

    • Name = Outgoing Converter
    • Type = Business Service
  2. Choose the type of business service from the multi-value group (MVG) window.

    For this component, choose the FINS IFX Tutorial Converter.

  3. Choose the method.

    The example uses the PropSetToXMLPropSet method because the converter is converting a property set from the DTE into a standard XML property set.

  4. Set the input and output arguments.

    Following are the input argument settings for the example converter configuration.

    Input Argument
    Type
    Value
    Property Name

    Client Application Name

    Literal

    Siebel FINS Application



    Client Application Organization

    Literal

    Siebel FINS



    Client Application Version

    Literal

    7.0



    Date Output Format

    Literal

    YYYY-MM-DD



    Enable Data Formatting

    Literal

    true



    IFX Application Business Service Name

    Literal

    FINS IFX XML Extension



    Is Client

    Literal

    true



    Is Log Out

    Literal

    true



    Service Provider Name

    Literal

    Partner IFX Middleware



    XMLEnvIntObjectName

    Literal

    FINS IFX Tutorial Envelope



    XML Property Set

    Process Property



    PropSet Out Outgoing DTE

    Following are the output argument settings for the example converter configuration.

    Property Name
    Type
    Value
    Output Argument

    PropSet Converter

    Output Argument



    XML Property Set

Configuring an XML Hierarchy Converter

The fourth component is a hierarchy converter. For information about Siebel hierarchy converters, see Siebel Business Process Framework: Workflow Guide.

To configure an XML hierarchy converter

  1. Name the hierarchy converter appropriately (it must be unique within the workflow).

    The example uses:

    • Name = Outgoing Hierarchy Converter
    • Type = Business Service
  2. Choose the type of business service from the multi-value group (MVG) window.

    For this component choose the XML Hierarchy Converter.

  3. Choose the method.

    This example uses the XML Hierarchy to XML Document method because, for an outgoing message, the final conversion is from an XML hierarchy to an XML document that can be accepted by any XML-compliant converter at the external location.

  4. Set the input and output arguments, XML Hierarchy name, and XML document name.

    Following are the input argument settings for the example hierarchy converter configuration.

    Input Argument
    Type
    Value
    Property Name

    Escape Name

    Literal

    false



    XML Header Text

    Literal

    <!DOCTYPE IFX SYSTEM "http://IFXWebSite/IFX101.dtd">

    Replace IFXWebSite with a valid connection string that connects to the IFX101.dtd.



    XML Hierarchy

    Process Property



    PropSet Out Outgoing Converter

    Following are the output argument settings for the example hierarchy converter configuration.

    Property Name
    Type
    Value
    Output Argument

    IFX Document Request

    Output Argument



    XML Document
