Siebel Fundamentals for Siebel Open UI > About Records, Fields, and Field Controls >

About the Calendar Control

You use the calendar control to select date and time information for a field. Figure 28 shows an example of the calendar control. You access the calendar control by clicking the calendar select button in a date field or a date and time field.

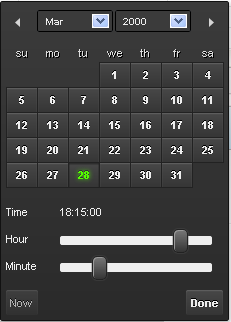

Figure 28. Example of the Calendar Control

Table 13 describes each element of the calendar control.

Table 13.  Description of Calendar Control Elements
Element
Description

Month and Year

Shows the month and year. Use the left and right arrows to navigate to the previous and next month. Use the drop-down arrow next to the month to select a different month, and use the drop-down arrow next to the year to select a different year.

Calendar

Shows the calendar for the month. Use the calendar to select a date by clicking the date in the calendar.

Time field

Shows the time. This field appears only if you access the calendar control for a field that requires a time.

Hour slide bar

Sets the hour in the Time field. This field appears only if you access the calendar control for a field that requires a time.

Minute slide bar

Sets the minute in the Time field. This field appears only if you access the calendar control for a field that requires a time.

Now button

Sets the value for a date field to the current date and the value for a date and time field to the current date and time.

Done button

Saves your selections. If you do not want to save your selections, then click outside of the control to cancel your selections.

You cannot enter an incorrect value for a date. For example, if you enter a date of 221/45/1902, then your entry is not populated in the field. When you enter only two digits to represent a year, an assumption is made about whether the digits are preceded by 19 or 20 (19xx or 20xx). If the two digits are greater than or equal to 50, then the year of 19xx is assumed. If the two digits are less than 50, then the year of 20xx is assumed.

NOTE:  You can set Strict Date Format in System Preferences. This preference enforces a deployment-wide standard date format and overrides all display formats defined in Siebel Tools. It applies only to date information. For example, if a control is set to MM/DD/YY hh:mm in Siebel Tools when the strict date format is set to DD/MM/YYYY, then the date portion of that control is replaced by the strict date format, and the resulting format is DD/MM/YYYY hh:mm.
