Using Change Management

This chapter covers the following topics:

Change Management Overview

Change Management enables you to centrally set up, track and manage the changes that occur within and outside of your organization.

Change Management provides a workflow-based, collaborative change management system that enables you to track, manage, and resolve various product and process issues, Change Requests, and Change Orders across your organization. You can also use Change Management to manage changes to documents.

Change Management also enables you to manage changes externally, with suppliers and customers. Using Change Management you can capture and track ideas, investigate them with issues, evaluate changes for them on engineering Change Requests, and then implement the desired changes with a change order.

Once submitted, a change tracked through Change Management is visible throughout the lifecycle of the product or document. For example, a product change approved by Engineering will be visible through the item’s entire lifecycle. Because of this long-term visibility, during the maintenance phase of the item, even field service representatives can review the change that occurred earlier in the item’s lifecycle.

Searching for Ideas, Issues, and Changes

You can search for ideas, issues, change requests, and change orders using either a simple or advanced search. Simple search enables you to search for ideas, issues, change requests, and change orders using a keyword search, wildcard search, search excluding keywords, fuzzy search, and stemming search.

To perform a simple search

  1. Click on the Change Simple Search link in the Change Management section of the Applications tree menu.

  2. On the Simple Search page, select a change category, then search using one or more of the following options:

    Keyword Search

    Enter a partial or whole value for the change object's number, name, or description in the Search field. You can narrow your search results by entering as many keywords as possible.

    Wildcard Search

    Use "%", also known as the wildcard character, to enter partial searches as part of your search criteria. For example, you can search for all change requests that have "Engine" and "Overheating" in the name as follows: %Engine%Overheating.

    Search Excluding Keywords

    Refine your queries by excluding certain keywords from your search. For example, you can search for issues containing the keyword DEF-3% and exclude issues that contain the keyword DEF-32%.

    Fuzzy Search

    Enter '?' before the keywords to perform a fuzzy search. Use keywords that sound similar to the word you are searching for. For example, enter “?Clik” to search for an issue containing the word “click.”

    Stemming Search

    Enter '$' before the keywords to perform a stemming search on the name, number, description, line name, or line description of the change category selected. Stemming Search allows you to search for words whose spelling is derived, or stems from the keyword. For example, a search on the keyword "$contract" could return: "contract," "contracts," "contracted," and "contracting."

  3. Click Search. Simple search returns all matching results for the search criteria entered. You can view these search results using different results formats. For details about how you can personalize and create result formats see Managing Display Formats, Oracle Product Information Management Implementation Guide.

To perform an advanced search

  1. Click on the Change Advanced Search link in the Change Management section of the Applications tree menu.

  2. On the Advanced Search page, select the change category (such as issue, change request, or change order) from the list of categories and click Go.

  3. Choose a search criteria template from the list to select predefined search criteria fields for your search, then click Go.

    For details about how to define and personalize criteria templates, see Managing Search Criteria, Oracle Product Information Management Implementation Guide.

  4. Optionally, you can change the search criteria for only this search by using the following buttons:

    To change the search criteria, select one or more attributes, then click one of the above buttons.

  5. To add search criteria to only this search, click Add Criteria.

    In the Add Criteria page, if you simply wish to locate a single attribute, enter its name and click Find. To search for attributes by attribute group, select the attribute group and click Go.

    Move search criteria back and forth from the Available Criteria list to the Selected Criteria list using the Move, Move All, Remove, and Remove All shuttles. When finished, click Apply.

  6. Enter values for one or more search criteria.

  7. Select a display format, then click Go.

    The display format enables you to switch between different views of the search results. The view in the Display Format region shows the columns that will appear in the Results page. For information about defining and personalizing display formats, see Managing Display Formats, Oracle Product Information Management Implementation Guide.

  8. Click Search to perform the search.

    In the Results page, you can switch between display formats to view different attributes.

To perform actions on changes in the Results page

You can select changes and perform the following actions:

  1. Complete the steps in To perform a simple item search or To perform an advanced search above, then select one or more change records.

To export all results to a spreadsheet

  1. Click Export to export all change records in the Results page to a spreadsheet.

  2. In the Export page, select an export template and an output format. Click Export.

    For more information about export (report) templates, see Defining Change Category Reports, Oracle Product Information Management Implementation Guide.

To perform all other actions

  1. In the Select Change (Object): field, select an action, then click Go.

    For more information, see: Performing Actions.

Creating Issues

The system provides a workflow-based collaborative issue management system that enables you to track, manage, and resolve various product/process related issues across your enterprise as well as with suppliers and customers. The system issue management helps to speed identification, communication, and resolution of quality problems or design changes to your product.

Your system administrator has configured the issue creation process so that it is optimized for your enterprise. For example, in a company that designs or manufactures computer motherboards, you may have the issue types: Design, Defect, Documentation, and Implementation. Depending on the issue type selected, the workflow processes for each status may already be defined by default, thereby ensuring that all new issues are captured and managed in a way that is consistent with your company’s product development processes.

You can link issues to new change requests and change orders, effectively copying required information from the issue to the new change request or change order.

To create an issue

  1. On the Create Issue: Select Issue Type page, select the appropriate Issue Type and click Continue.

    User-defined issue types enable your enterprise to build categorizations for different types of issues so that you can apply consistent review and approval processes to different categories of issues. For example, for each issue type, there is a specialized workflow that best suits the review and resolution process required by the particular type of issue. Issue types best suited for your enterprise's product development processes are listed in the Issue Type field. For details about your enterprise's issue types, contact your system administrator.

  2. On the Create Issue page, provide the required primary attribute information, as well as any required user-defined attribute information. Depending on the configuration of the issue type selected, you can specify a subject for the issue. Following are the possible subjects of an issue:

    The person or group in the Assigned To field is defaulted based on the item or component role specified in the assignment rule for the issue type. If no item or component is selected, you can enter a valid assignee name.

    Note: You are not required to select a subject for the issue. If you prefer not to assign a subject to the issue, select the blank or empty value. If no item or component is selected, then your (the requestor's) name becomes the default value in the Assigned To field.

  3. Depending on the configuration of the issue type selected, you may be required to provide data in any of the following sections (in addition to any user-defined sections or pages) when creating an issue:

    After providing the required information you can Submit the new issue, which starts the Workflow for the first status and notifies the assignee. If you have not completed adding all the information, click Save for Later. You or anyone with the appropriate role can update the issue later on.

  4. After submitting and creating an issue, you can view and update the following information:

To perform an action

See: Performing Actions

To create a relationship

See: Creating Relationships

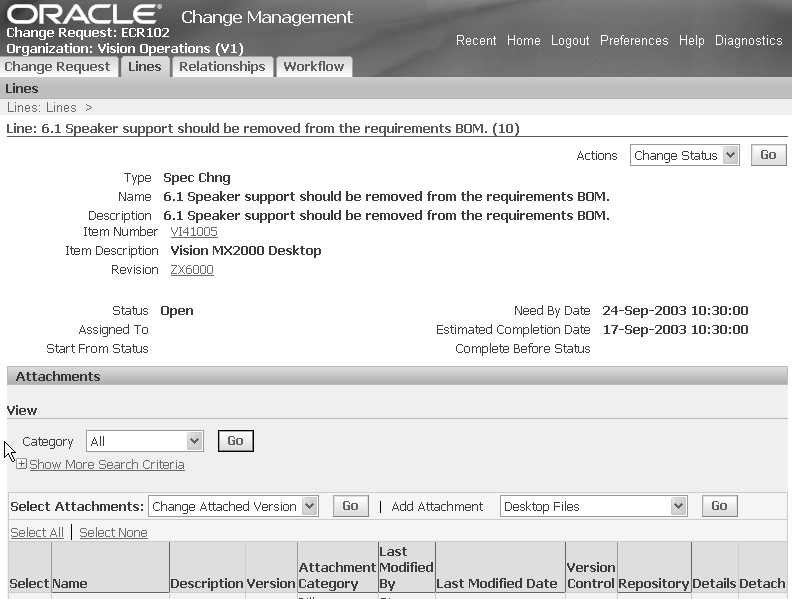

To add an attachment to an issue line

See: To add an attachment to a change line:

To create a change order from an issue

See: To create a change order from a change request/issue/idea

Creating Ideas

Ideas capture suggestions for improving products or processes. Ideas can also capture suggestions, innovations, and improvements.

The system provides a workflow-based collaborative idea management system that enables you to track, manage, and implement ideas across the enterprise, as well as with suppliers and customers.

Your system administrator has configured the idea creation process so that it is optimized for your enterprise.

To create an idea

  1. On the Create Idea: Select Idea Type page, select the appropriate Idea Type and click Continue.

    User-defined idea types enable your enterprise to build categorizations for different types of issues so that you can apply consistent review and approval processes to different categories of issues. For example, for each idea type, there is a specialized workflow that best suits the review and implementation process required by the particular type of idea. For details about your enterprise's idea types, contact your system administrator.

  2. On the Create Idea page, provide the required primary attribute information, as well as any required user-defined attribute information. Depending on the of the idea type selected, you can specify a subject for the idea.

    The person or group in the Assigned To field is defaulted based the idea type.

    Note: You are not required to select a subject for the idea. If you prefer not to assign a subject to the idea, select the blank or empty value. If no item or component is selected, then your (the requestor's) name becomes the default value in the Assigned To field.

  3. Depending on the configuration of the idea type selected, you might be required to provide the following data related to the idea:

    After providing the required information you can Submit the new idea, which starts the Workflow for the first status and notifies the assignee. If you have not completed adding all the information, click Save for Later. You or anyone with the appropriate role can update the idea later..

  4. After submitting and creating an idea, you can view and update the following information:

To perform an action

See: Performing Actions

To create a relationship

See: Creating Relationships

To add an attachment to an idea line

See: To add an attachment to a change line:

To create a change order from an idea

See: To create a change order from a change request/issue/idea

Creating Change Requests

The system provides a workflow-based collaborative change request management system that enables you to track, manage, and analyze solutions to various product/process related issues within your enterprise. After an issue is closed, appropriate parties can analyze proposed solutions via change requests; analysis can be conducted and proposals routed to relevant parties for review and approval.

You can link issues to new change orders, effectively copying required information from the change request to the new change order.

To create a change request

  1. On the Create Change Request: Select Change Request Type page, select the appropriate Change Request Type and click Continue.

    User-defined change request types enable your enterprise to build categorizations for different types of change requests so that you can apply consistent review and approval processes to different categories of change requests. For example, for each change request type, there is a specialized workflow that best suits the review and resolution process required by the particular type of change request. Change request types best suited for your enterprise's product development processes are listed in the Change Request Type field. For details about your enterprise's change request types, contact your system administrator.

  2. On the Create Change Request page, provide the required primary attribute information, as well as any required user-defined attribute information. Depending on the configuration of the change request type selected, you can specify a subject for the change request. Following are the possible subjects of a change request:

    The person or group in the Assigned To field is defaulted based on the item or component role specified in the assignment rule for the change request type. If no item or component is selected, you can enter a valid assignee name.

    Note: You are not required to select a subject for the change request. If you prefer not to assign a subject to the change request, select the null or empty value. If no item or component is selected, then your (the requestor's) name becomes the default value in the Assigned To field.

  3. Depending on the configuration of the change request type selected, you may be required to provide data in any of the following sections (in addition to any user-defined sections or pages) when creating a change request:

    After providing the required information you can Submit the new change request, which starts the Workflow for the first status and notifies the assignee. If you have not completed adding all the information, click Save for Later. You or anyone with the appropriate role can update the change request later on.

  4. After submitting and creating a change request, you can view and update the following information:

    To perform an action

    See: Performing Actions

To create a change order from a change request/issue/idea

The system provides a workflow-based collaborative change management system that enables you to track, manage, and resolve various product/process related issues, change requests and change orders, across your enterprise as well as with suppliers and customers. The system change management helps to speed identification, communication, and resolution of quality problems or design changes to your product.

A simple change cycle includes the following:

  1. Customers log issues against a product and/or new ideas related to the product are collected from all stakeholders

  2. The issues and ideas are consolidated and analyzed

  3. A change request is created to request changes to the product design to address the ideas and issue

  4. Based on the change request, a change order is created to implement the design changes.

The system provides the ability to copy information from source change objects (like issues and ideas in the above cycle) and default them on to appropriate destination change objects like change requests and change orders. Thus new change objects can be quickly created with minimal data entry and with appropriate relationships established with the source change objects.

The following copy actions are allowed:

  1. To add a change request detail page, select the action, Add to Change Order, and then choose the Go button.

    the picture is described in the document text

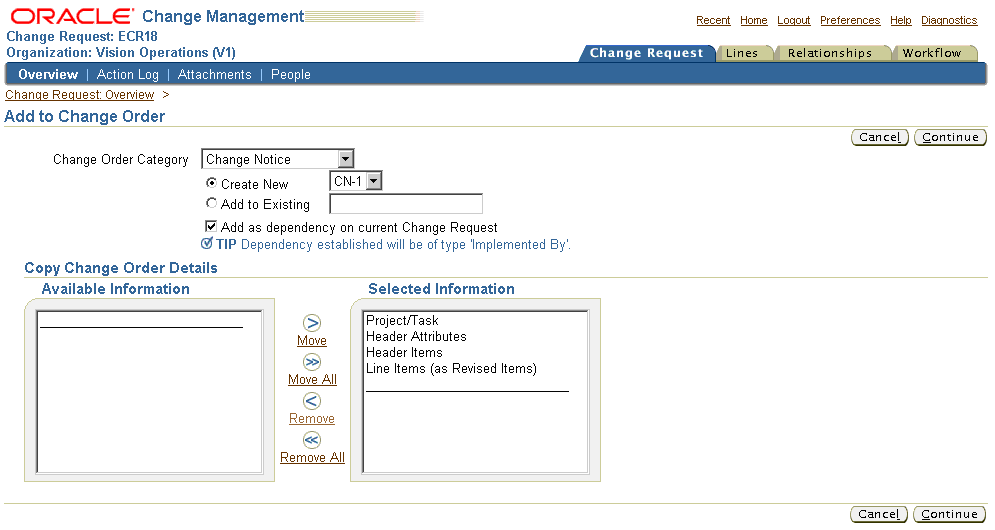

  2. On the Add to Change Order page

    the picture is described in the document text

  3. On the ‘Create Change Order’ page enter/modify data in any of the sections. For details about creating change orders refer ‘Creating Change Orders’

  4. Similarly, you can add an issue or an idea to a change order:

    The process is similar to adding a change request to a change order, except for the following differences:

    To add an issue/idea/change request to another change request:

    To add an issue/idea to another issue:

    The process is similar to adding a change request to a change order.

    To add an idea to another idea:

    The process is similar to adding a change request to a change order.

Creating Change Notifications

Change Notification enables users to distribute documents and files to multiple recipients and track their response. The creation steps for notifications are similar to those for change requests. The documents or files to be distributed are added to the change lines.

See: Document Change Management and Distribution, Oracle Product Lifecycle Management Implementation Guide for details.

Creating Change Orders

You can use change orders to specify and implement changes for item attributes, attachments, AMLs, and structures. For a specific change order you can specify changes for several items, route the change order for approval, schedule the effective date, and automatically implement the changes on the scheduled effective date. A change order also can be propagated to many organizations within your company; depending on how your company's organization policy is defined, a change order can be automatically propagated to other organizations in your company hierarchy whenever it reaches a particular status.

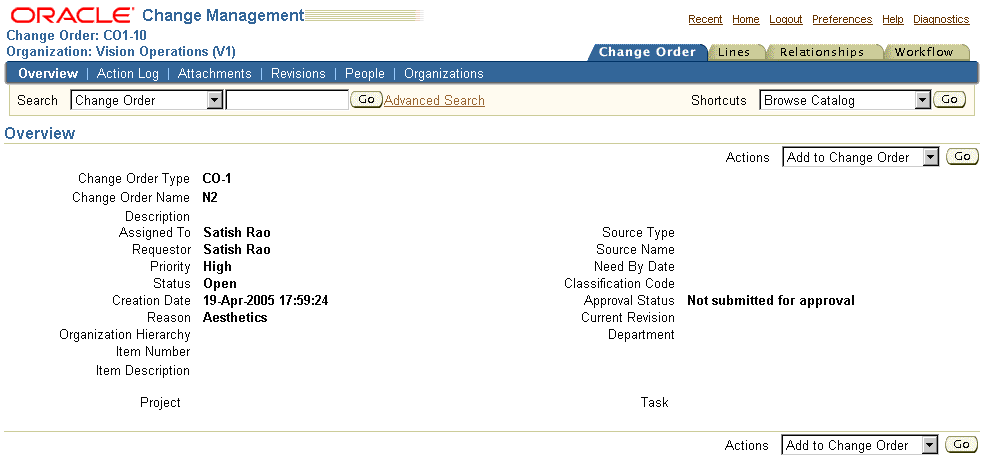

To create a change order

  1. On the Create Change Order: Select Change Order Type page, select the appropriate Change Order Type and click Continue.

    User-defined change order types enable your enterprise to build categorizations for different types of change orders so that you can improve the accuracy of change orders with review and approval workflows, and automatically implement changes on a scheduled effective date. For example, for each change order type, there is a specialized workflow that best suits the review and resolution process required by the particular type of change order. Change order types best suited for your enterprise's product development processes are listed in the Change Order Type field. For details about your enterprise's change order types, contact your system administrator.

  2. On the Create Change Order page, provide the required primary attribute information, as well as any required user-defined attribute information. Depending on the configuration of the change order type selected, you can specify a subject for the change order. Following are the possible subjects:

    The person or group in the Assigned To field is defaulted based on the item role specified in the assignment rule for the change order type, or it can be explicitly entered. If no item is selected, you can enter a valid assignee name.

    Note: You are not required to select a subject for the change order. If you prefer not to assign a subject to the change order, select the null or empty value. If no item is selected, then your (the requestor's) name becomes the default value in the Assigned To field.

  3. Depending on the configuration of the change order type selected, you may be required to provide data in any of the following sections (in addition to any user-defined sections or pages) when creating a change order:

  4. After creating a change order, you can view and update the following information:

To perform an action:

See: Performing Actions

To create a relationship:

See: Creating Relationships

Performing Actions

You can manage the workflow of a an issue, change request, or change order using change management actions. Change management actions can be executed from change detail pages, item change lists, and change management search results lists.

Typically, actions are used to update, reassign, or change the priority or status of an issue, change request, or change order. Some actions, such as schedule, release, and implement, are only available to issues, change requests, or change orders with revised items enabled. All actions are recorded in the action log.

The following actions are available to all change categories:

Submit

Submits an issue, change request, or change order to an assigned person or group.

Submit for Approval

Submits a change object for approval.

Update

Updates the primary attributes of an issue, change request, or change order.

Reassign

Reassigns an issue, change request, or change order to a person or group.

Change Priority

Changes the priority of the issue, change request, or change order.

Change Status

Changes the status of the issue, change request, or change order.

Request/Post Comment

Requests a comment from one or more people.

The following actions are available to change categories with revised items enabled:

Release

Releases all revised item changes for implementation. The status is changed to Released.

Schedule

Schedules implementation based on the effective date. The status is changed to Scheduled.

Put On Hold

Places the issue, change request, or change order on hold. The status is changed to On Hold.

Cancel

Cancels all changes. The status is changed to Cancelled. Alternatively, you can cancel individual change lines during the Approval status if the change type definition has Allow Updates selected.

Implement

Implements the revised item changes. The status is changed to Implemented.

Reschedule

The issue, change request, or change order is rescheduled for implementation based on the effective date.

Change Effectivity Date

Changes the effective date for all revised items. Propagate ECO propagates the ECO to other organizations. Reopen changes the status to Open.

Generate Report

Generate report creates a report with specified issue or change information. You can choose to generate a report by selecting report templates defining the change information the report will contain and a report output format such as pdf, html, rtf, xls, and xml.

You can also generate a change report from change search results page.

Add to Change Order

Add the issue or idea to a change order.

Add to Change Request

Associate the issue or idea with a change request

Promote

Change the issue or idea's status. For example from Review to Approval.

The following action is available for only Change Issues and Change Ideas:

Add to Issue

Associate the issue or idea with another issue.

To perform an action

  1. On an issue, change request, or change order detail page, select an Action and click Go.

  2. Enter information in the required fields.

  3. Optionally, enter a comment and click Apply.

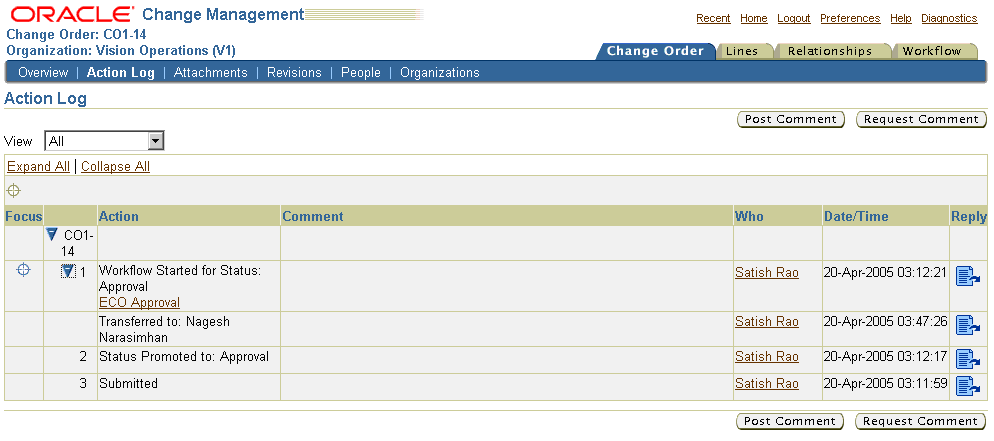

Managing the Action Log

For tracing and auditing efficiency, you can maintain a complete history of all actions and comments related to a change object. All actions such as reassignments, status and priority changes, along with comments and responses to requests, are posted in the action log. The name of the action, who performed the action, a date/time stamp, and all comments are recorded in the action log.

You can filter and sort the action log to show only certain actions such as approval requests, status and priority changes, comments from specific people, and reassignments.

To view the action log

  1. On an issue, change request, or change order detail page, click the Workflow tab, then click Action Log.

  2. Expand or collapse any or all entries in the action log to view responses, replies to requests, and comments.

To request a comment

  1. On an issue, change request, or change order detail page, select Request Comment and click Go.

  2. Enter a person's or group's name.

  3. Enter a subject and click Apply.

To post a comment in the action log

  1. On an issue, change request, or change order detail page, click the Workflow tab, then click Action Log.

  2. Click Post Comment.

  3. Enter a comment then click Apply.

To post a reply in the action log

  1. On an issue, change request, or change order detail page, click the Workflow tab, then click Action Log.

  2. Click the Reply icon in the Action Log row to which you would like to reply.

  3. Enter a comment then click Apply.

Creating Change Revisions

You can create revisions for issues, change requests, or change orders to track and audit modifications. When you create a new revision the approval status is reset to Not Submitted for Approval, thereby enabling you to make additional edits to the change object.

To create a revision for an issue, change request or change order

  1. On an issue, change request or change order detail page, click the Revisions tab.

  2. On the Revisions page, click Create.

  3. On the Create Revision page, enter a Revision and a Start Date. Optionally, enter Comments describing the purpose for the new revision.

  4. Click Apply.

To update a revision for an issue, change request or change order

  1. On an issue, change request or change order detail page, click the Revisions tab.

  2. On the Revisions page, click the Update icon.

  3. Update the comments for the revision.

  4. Click Apply.

To delete a revision for an issue, change request or change order

  1. On an issue, change request or change order detail page, click the Revisions tab.

  2. On the Revisions page, select the revision you wish to delete and click the Delete icon.

    Note: You can only delete future effective revisions.

Managing Change Header Attachments

An attachment is unstructured information related to a change object. For example, unstructured information attached to a change object could be a marked up CAD drawing, test results, a specification sheet, or a URL. You can add attachments to an issue, change request, or change order from your desktop or a repository (such as Oracle Universal Content Management (UCM)). You can also attach folders, text, or URLs. When you add an attachment, you can specify an attachment category to classify the attachment. The valid attachment categories are created by your system administrator. Folders can only be attached from an Oracle repository such as UCM; files within such folders are not attached.

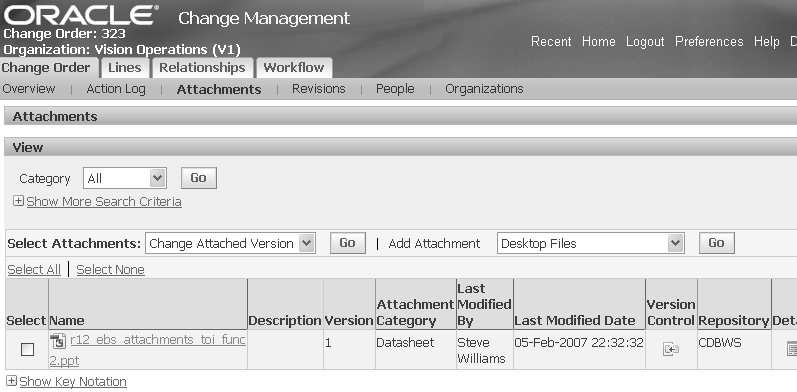

To manage attachments to a change header

  1. On an issue, change request, or change order's Overview page, click the Attachments tab.

    This brings you to the Attachments page.

    the picture is described in the document text

  2. In the Attachments page, you can perform all of the actions described below. Please note that some tasks vary, depending on the content repository used.

Related Topics

Using E-Business Suite Attachments

Managing Attachments

Logging On to Repositories

Troubleshooting Attachments

Setting Up E-Business Suite Attachments, Oracle Product Information Management Implementation Guide

Managing People and Roles

Change management enables you to secure issues, change request, and change orders through role-based data level security. You can grant roles explicitly or implicitly to people and groups associated with an issue, change request, or change order. A change management role determines whether or not you can simply view an issue, change request, or change order, or view and edit it.

You can grant all people within an organization a role for all issue, change request, or change orders within a specific change category. You can map item roles to change roles. For example, if the Design Engineer item role is mapped to the Change Manager change role for change orders, you will be granted a Change Manager role on all change orders related to an item for which you have a Design Engineer role. The creator, requestor, and assignee of an issue, change request, or change order are always granted a role on it. These scenarios are "implicit role grants" added by the system.

Of course you can always grant an explicit change role to a person or group for any issue, change request, or change order. For example, you may grant a Change Reviewer role to a supplier engineer on a specific change order.

To view people who have access to an issue, change request, or change order

  1. On an issue, change request, or change order detail page, click the People tab.

  2. On the People page, in the Direct Change Roles section you can view people and groups explicitly granted a role by a user on the issue, change request, or change order. In the Inherited Change Roles section you can view people and groups implicitly granted a role by the system on the issue, change request, or change order. For example, the system automatically grants a role to the creator, assignee, and requestor.

    Note: You can view each person's or group's role on the issue, change request, or change order, the start and end date of their assigned role, and their company.

To provide a person or group access to an issue, change request, or change order

  1. On an issue, change request, or change order detail page, click the People tab.

  2. On the People page, click Update, then click Add People. When the page refreshes, select a role, people type (such as person or group), and then choose a person or group.

    Enter a start date and optionally, an end date, specifying when the role for the person or group is to be effective.

  3. Click Apply.

    Note: People can also be implicitly granted a role by the system. For more information on roles granted to people by the system see Types and Adding People and Roles.

To delete a person or group from an issue, change request, or change order

  1. On an issue, change request, or change order detail page, click the People tab.

  2. On the People page, select one or more people and click Delete.

    Note: You cannot delete people or groups added by the system.

Managing Issue and Change Request Lines

You can add lines to any issue or change request that has line types configured for the change category. Lines are useful for specifying details and assigning responsibility for completion of tasks related to an issue or change request. For example, you can assign a line to an engineer to investigate and report on the cost of a change.

You can add a line of any valid line type to an issue or change request. You can edit a line as long as the approval status is not 'Submitted for approval' or 'Approved.' If you are assigned a line you automatically get a Reviewer role on the issue or change request, which enables you to view the details and edit the assigned line. Notifications are sent to inform assignees of their line assignments.

When you add or edit a line for an issue or change request you can specify a name, description, item number, assigned to, need by date, and estimated completion date. You can also attach files and folders to a line. The assignee may be defaulted in based on line type rules set up by a system administrator (for example, a specific item role).

To add an attachment to a change line

  1. On the idea, issue, change request or change notification Overview page, click the Lines tab.

  2. Select a line, then drill into the Line page using one of the following methods:

  3. In the Attachments region, in the Add Attachment field, select the source of the attachment you want to add, then click Go.

    Attachment Sources

    the picture is described in the document text

Managing Change Order Revised Items

Change order revised items list changes to specific items. For each revised item you can specify changes to item attributes, attachments, AMLs, and structures. The revised item changes are implemented when the change order is implemented either manually or on the scheduled effective date. You can optionally schedule item changes at the revised item level.

To manage change order revised items

  1. On the change order's Overview page, click the Lines tab. On the Revised Items page you can view, edit, and add revised items depending on the role you are assigned on the change order. Optionally, you can add revised items from a spreadsheet. You can view and edit the following information for each revised item:

To upload revised items to a change order

Upload a text file containing revised item information directly to the ENG_REVISED_ITEMS_INTERFACE table. The text file must contain the ENG_REVISED_ITEMS_INTERFACE table column values separated by commas. For example, a text file contains the following information for a revised item row:

IBQCH382,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,2004-02-28 01:10:00,,,,,,,,,,,,,,,,,,,,,,,,,V1,Engine10414-PLM,,,,,CREATE,,,,,,,,,,,

For information about the ENG_REVISED_ITEMS_INTERFACE table columns, refer to the Oracle eBusiness Suite Electronic Technical Reference Manual, located in My Oracle Support, http://www.metalink.oracle.com. Search on ENG_REVISED_ITEMS_INTERFACE

Important: Before beginning the upload process, you must create the text file.

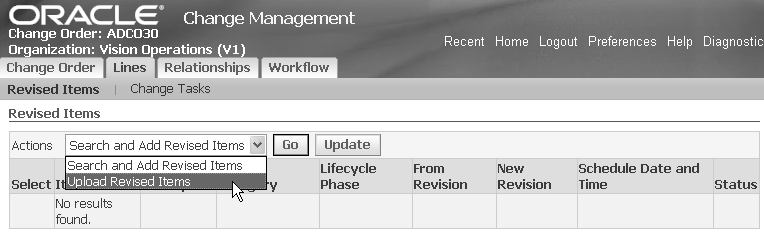

  1. Navigate to the Revised Items page.

  2. Select Upload Revised Items from the Actions field, then click Go.

    the picture is described in the document text

  3. In the Upload Revised Items field, use the Browse button to find or enter the text file name and location.

  4. Click Apply.

To add revised items to a change order based on a Where-Used search

Change order revised items list changes to specific items. For each revised item you can specify changes to item attributes, attachments, AMLs, and structures. The revised item changes are implemented when the change order is implemented either manually or on the scheduled effective date.

Based on the changes to a revised item, the assemblies or sub-assemblies in which the revised item is used, may also need to be revised to accommodate the changes proposed for the context revised item. Change Management provides the ability to quickly identify such parent assemblies and sub-assemblies from within the context of a change order and add them as new revised items on the same change order. Thus the changes to the context revised item and its parent assemblies or sub-assemblies can be managed through the same change order.

  1. On the change order's Overview page, click the Lines tab

    Change Management Lines Tab

    the picture is described in the document text

  2. On the Revised Items page, select Item Where Used from the tableaction drop-down list, and the click the Go button.

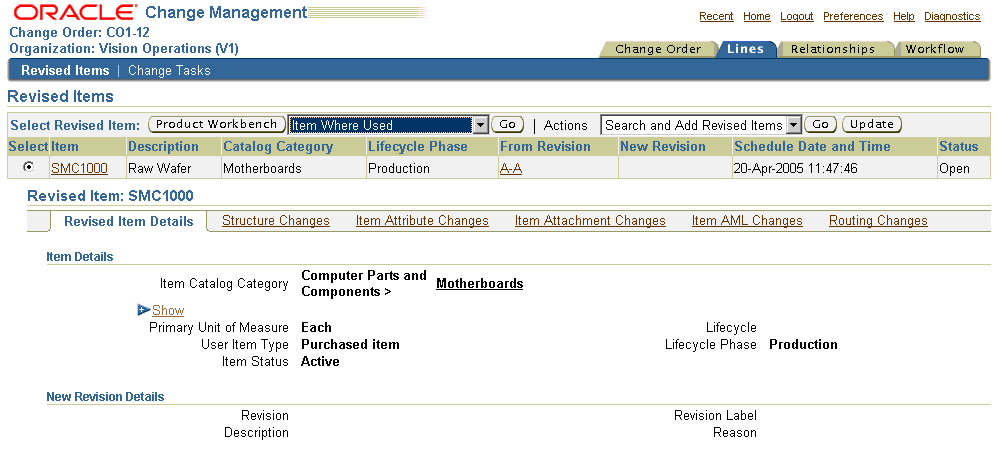

    Items Where Used Example

    the picture is described in the document text

    The Revised Item Where Used page appears.

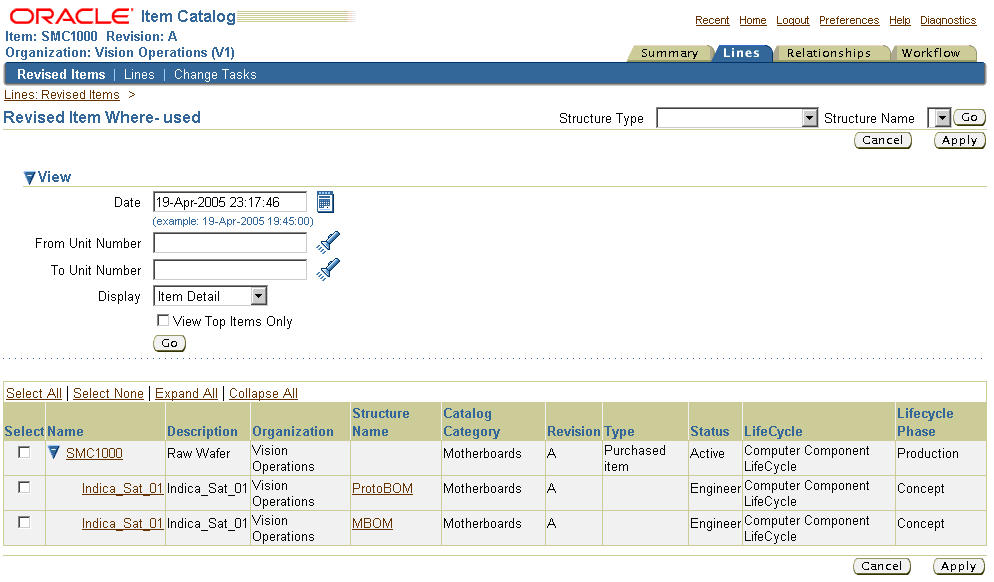

    Revised Items Where Used Page

    the picture is described in the document text

    On the Revised Item Where Used page, you can do the following:

    On the Update Revised Items page, you can specify other details of the newly added revised item.

    Note: The date specified in the ‘Date’ field is defaulted as the Scheduled date for the new revised item. If this date is in the past, then the system date is defaulted as the scheduled date for the new revised item

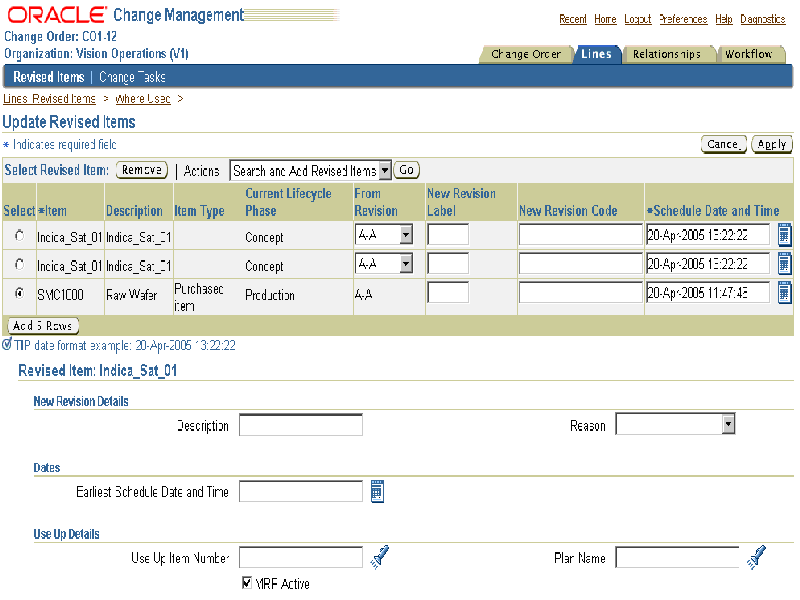

    Update Revised Items Page

    the picture is described in the document text

    For detailing and managing the changes to the newly added revised item, see Managing Change Order Revised Items.

To access the Product Workbench

  1. Create a change order.

  2. Click on the change order number link.

  3. You can view the workbench of the change order.

  4. Click on the Lines tab.

  5. Update and add a revised item.

    Note: Once a revised item is added, a Product Workbench button appears.

Managing Change Tasks

Change tasks help ensure that mandatory work is completed before a change order is implemented or promoted to the next status. You can use change tasks to create and assign work to individuals or groups. Each change task must be started after and completed before specific statuses. Before you promote a change order through its various statuses, its Mandatory change tasks must be completed. If a task is listed, but is not Mandatory, the change order can be promoted to the next status without the task being completed.

You can change the status of an existing change task, reassign it, update it, or delete it.

To manage change tasks

  1. On the change order's Overview page, click the Lines tab. Then, on the Revised Items page, click the Change Tasks tab.

  2. On the Lines: Change Tasks page, select the change task whose status you wish to edit, reassign, update, or delete.

Creating Relationships

You can link one or more change objects (such as an issue, change request, or change order) to each other as dependencies. You can specify the type of dependency to describe how the linked change objects are related to each other. For example, a dependency can show the number, name, and status of change order that implements a change request, or it can show an issue that is required by a change order.

Following are the Dependency Types:

Implemented By

A change object is implemented by the dependent change object.

Implements

A change object implements the dependent change object.

Required By

A change object that is required by the dependent change object.

Requires

A change object that requires the dependent change object.

Resolved By

An issue is resolved by a change request or change order.

Resolves

A change request or change order resolves an issue

To view a change object's dependencies, navigate to a change object's detail page, click the Relationships tab, then click Dependencies.

To link a dependency to a change object

  1. On a change object's detail page, click the Relationships tab, then click Dependencies.

  2. Select a Change Category and click Go.

  3. Select a Relationship Type.

  4. Enter a change object number.

  5. Click Apply.

To add a reporting reference to an issue, change request, or change order

You can add one or more reporting references to an issue, change request, or change order. Reporting references show items that are related to an issue, change request, or change order in context. For example, a change order may implement several component item changes. In such a case, the assembly item may be listed as a reporting reference to provide convenient access to the item.

To view an issue, change request, or change order's reporting references, navigate to an issue, change request, or change order detail page, click the Relationships tab, then click Reporting References.

  1. On an issue, change request, or change order detail page, click the Relationships tab, then click References.

  2. Select an object to reference, such as an item, and click Go.

  3. Enter information in the required fields.

  4. Click Apply.

Managing Workflows

In the Setup Workbench you can associate multiple workflow templates with a given change type. You associate multiple workflow templates with a workflow status at the header level of a idea, issue, change request, change notification, or change order. You can also add ad-hoc step assignees to the workflow based on role, group, and person filters. This enables a user to abort the workflow within a status, and to choose a different template for that status.

Once these associations are made, when creating an individual change object within that type, you can select various workflow options. This enables you to select a specialized workflow to reach those people who need to approve specific changes different from those who would approve changes.

You can set up workflow templates to use when requesting approval or review of an issue, change request, or change order. This enables reviewers and approvers to select the template with the steps that best meets their needs and specific people, based on role, group, and person filters. You can have multiple templates at any status.

An issue, change request, or change order can only be approved through the successful completion of an approval routing. When you create an issue, change request, or change order, an approval routing is created automatically based on a template, or manually by any user granted an edit privilege on the issue, change request, or change order.

An approval routing consists of one or more approval steps. Each approval step specifies a workflow process and to whom it is assigned. For example, you can create steps to request approval, request comment, or send an FYI notification. You can create custom activities using Oracle Workflow Builder.

The approval status of an issue, change request, or change order reports the progress of the approval. For example, when you submit a change object for approval, the approval status changes to Submitted for Approval, and then Approved or Rejected, depending on the outcome of the approval routing workflow. Every time a new revision is created for an issue, change request, or change order, the approval status is reset to Not Submitted for Approval. You cannot edit an issue, change request, or change order's attributes, lines, or attachments after it has been approved. However, you can perform actions (such as reassign, change status, change priority, and request comment) to manage the workflow of the issue, change request, or change order.

Notifications are sent to each of the assignees of a step when the step is started. Each assignee is requested to respond by the Date Required. If an assignee does not respond by the Date Required, then they will receive a reminder notification every N days, where N is the value specified for Response Required in N Days. The Date Required for a step is calculated to be the date/time the step is submitted, plus the Response Required in N Days. You can respond either through the email notification or directly from the workflow notification. When the issue, change request, or change order is approved or rejected, a notification is sent to the Creator, Requestor, and Assignee. If the approval routing workflow is aborted, then a notification is sent to all people in the approval routing that were previously notified regarding an assigned workflow process in a step.

A workflow consists of one or more steps. Each step specifies a workflow process and to whom it is assigned. For example, you can create steps to request approval, request comment, or send an FYI notification. Notifications are sent to each of the assignees of a step when the step is started.

To edit a step in an approval routing

  1. On an issue, change request, or change order's detail page, click the Workflow tab, then click Approval.

  2. On the Approval page, click the Update icon for the approval process you wish to edit.

  3. On the Update Step page, make updates to any of the following fields:

    Response Required From

    Selecting all means all assignees must respond. Selecting One means only one of the assignees must respond.

    Response Required in N Days

    A response is required D days from the date the workflow is submitted.

    Instructions

    Provide any instructions you have for assignees.

    Add Assignee

    Select and add assignees to include in the approval workflow. You can add assignees through a group, role, or person. When using a group or role, you can add individual assignees.

  4. Click Apply.

    Note: You can edit steps that have not yet begun in an approval routing, even after the workflow is started. For steps derived from the approval routing template, you cannot change the Workflow Process or Response Required From, nor can you delete the derived Assignees.

To insert a step in an approval routing

  1. On an issue, change request, or change order's detail page, click the Workflow tab, then click Approval.

  2. On the Approval page, click Add Step.

  3. On the Add Step page, provide the following information:

    Step Number

    The step number determines the order in which steps are executed in the approval routing.

    Workflow Process

    Select a workflow process (such as Request Approval, Request Comment, or FYI).

    Response Required From

    If the workflow process is Request Approval or Request Comment, then choose whether responses are required from all or one of the assignees.

    Response required in N Days

    Enter the number of days, from the time the step is submitted, that all responses are required.

    Instructions

    Enter any instructions to be included in the notifications sent to assignees.

    Add Assignee

    Click Add to add an assignee. You can add assignees through group, role, or person. When using a group or role, you can add individual assignees.

  4. Click Apply.

    Note: Steps must be inserted after the last completed step or step that is currently in process.

To delete a step in an approval routing

  1. On an issue, change request, or change order's detail page, click the Workflow tab, then click Approval.

  2. On the Approval page, click the Update icon for the step you wish to delete.

  3. On the Update Step page select all assignees you wish to delete and click Delete, then click Apply.

  4. On the Approval page, click the Delete icon for the step you wish to delete.

    Note: You must delete all assignees for a step before you can delete the step.

To start or stop an approval

  1. On an issue, change request, or change order's Overview page, click the Workflow tab, then select the Approval status.

  2. In the Status: Approval region of the Statuses page, click Start Approval to start the approval workflow.

  3. If the approval workflow is running, click Abort Approval to stop the workflow.

    Note: If the status of an issue, change request, or change order is Draft, then you cannot start the approval process. Also, it is recommended that you click Refresh Assignees before starting the approval process (in case there have been any changes in item or change role assignments).

To view the progress of an approval

  1. On an issue, change request, or change order's detail page, click the Workflow tab, then click Approval.

  2. On the Approval page, you can view all the steps in the approval routing, the date required to respond, and the response outcome for each workflow process assigned in the step.

    Click the Show link to view the date the step was submitted on, the date of the response, instructions, and response comments.

    Note: The Date Required of a step is based on the date the step is started plus the number of days a response is required.

To switch a template

You can set up workflow templates to use when requesting approval or review of an issue, change request, or change order. This enables reviewers and approvers to select the template with the steps that best meets their needs. You can also assign steps in the workflow to certain people, based on role, group, and person filters.

Within Setup Workbench, you can associate multiple workflow templates to a given change type. Once these associations are made, when creating an individual change object within that type, the system picks up the default template automatically. Optionally, the system provides a drop-down list where you can select from various workflow options.

  1. On an issue, change request, or change order's detail page, click the Workflow tab, then click Approval.

  2. On the Approval page, click Switch Template.

  3. On the Switch Template page, select the approval routing template to associate with the change type. The currently applied template does not appear in the list of templates.

  4. Click Apply.

    Note: When you switch templates, all current steps/assignees--whether derived from the previous template or added after creation (ad-hoc)--are deleted.

To switch templates before moving to the Approval status

  1. Navigate to Change Simple Search.

  2. Search for a Change Request.

  3. Select the Number link for a particular change request.

  4. In the Change Request Summary page, click the Change Request Number link.

  5. Select the Workflow tab.

  6. Select the Approval status. This change request is not yet at this status. Previously, we set up some default workflow templates for change requests at this status

  7. In the Status: Approval region, click Switch Template.

  8. In the Workflow field, select a different template using the drop-down list. The workflow steps for the selected template are shown below.

  9. Click Apply.

To switch templates when the Approval status is in process

You should have adequate permissions to abort the workflow within a status to choose a different template. After applying the new template, it can be used for the approval staus for the particular change object.

Note: To use the new template, restart the Workflow and the change object will flow through the steps for this template for the Approval Status. At this point, you can designate new assignees based on the newly selected workflow template.

  1. From the Workflow tab, Statuses page, click Abort Workflow.

  2. Click Switch Template.

  3. In the Workflow field, select a different template using the drop-down list. The workflow steps for the selected template are shown below.

  4. Click Apply.

  5. Click Start Workflow.

To view the approval history

You can submit an issue, change request, or change order for approval multiple times. The approval history lists a summary of all past and present approval workflows. The approval history displays for each approval workflow the issue, change request, or change order revision at the time the approval was submitted, who submitted the approval, the date submitted and completed, and the final result of the approval workflow. The result of a workflow may be Approved, Rejected, or Aborted.

  1. On an issue, change request, or change order detail page click the Workflow tab, then click Approval History.

  2. On the Approval page, click the Details icon to view the complete approval routing for a specific approval workflow.

To transfer workflow notifications

If you are one of the step assignees, then you can transfer these notifications to another user (transferee) who you feel is more qualified to take the decision. The transferee receives a notification requesting approval or comment. Thus, the onus for approving a change or commenting on it, is shifted to the transferee.

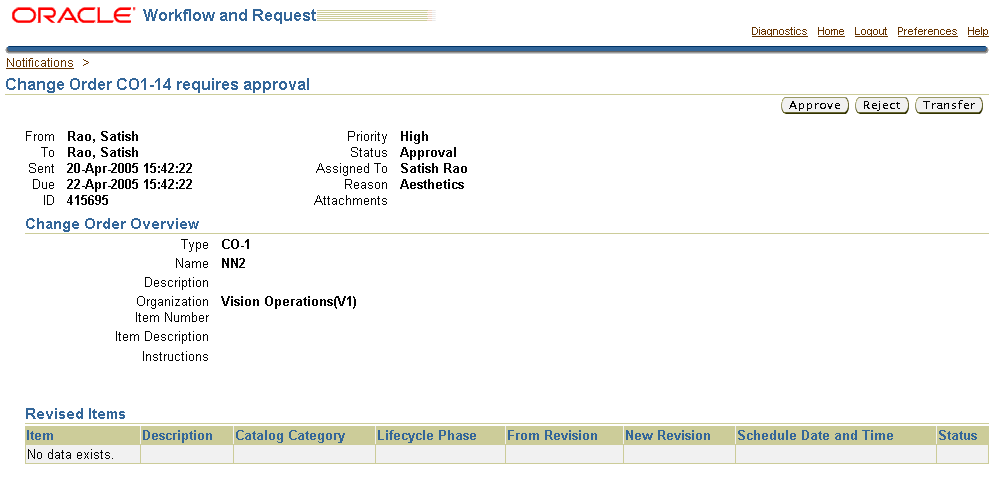

  1. To transfer a notification, you must access the Notifications list from the Home page and launch the notification detail page of the relevant notification

    the picture is described in the document text

  2. Choose the Transfer button to transfer this notification to another user.

    Note: The transfer button is available only for To Do notifications, such as Request Comment or Request Approval notifications.

  3. On the Transfer Notification page, select a person to transfer the notification to. You can optionally enter comments and then choose the Submit button to transfer the notification.

    The person, to whom the notification is transferred to, automatically gets an appropriate role on the change object. If the original notification is an approval notification, the original assignee no longer has the privilege to approve the change object after the notification is transferred.

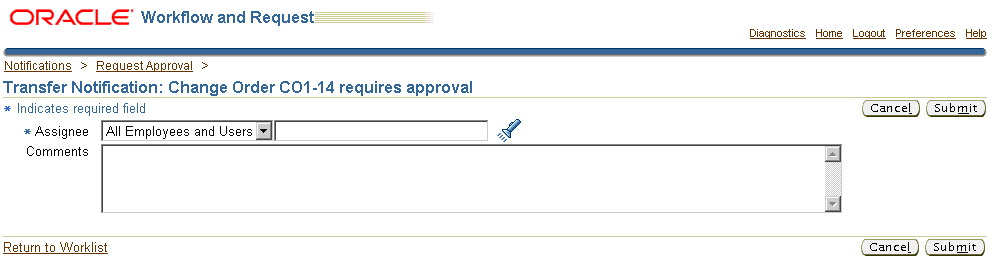

    Transfer Notifcation

    the picture is described in the document text

    Note: You cannot transfer notifications to a group or to a role. You can notifications only to other individuals.

    On transfer, the transferee gets an approval or request comment notification. A new workflow step assignee record with the same step number is inserted in the workflow table on the notification details page in order to capture the response from the transferee.

    After transfer, the ‘to do’ notifications related to the change object in the original assignees worklist, no longer remain in the open status.

    Change Order - Approval Request

    the picture is described in the document text

    When the notification is transferred, the action is recorded in the Action Log.

    Change Order - Action Log

    the picture is described in the document text

To set vacation rules

You can set vacation rules to redirect or auto-respond to workflow notifications. You set vacation rules using the Worklist page.

  1. On the Worklist page, select the Vacation Rules link.

  2. Create a vacation rule on the Vacation Rules page.

  3. By selecting an Item Type, you can specify the type of notification that will activate this rule.

  4. Select a notification format to activate this rule.

  5. Specify a message, set the validity period of the rule, and specify who the appropriate notifications should be transferred to.

    Note: The functional rule governing the transfer of notifications are listed in the Transfer Workflow Notifications section.

How to Set the Digital Signing Option

Digital Certificates provide a means of proving your identity in electronic transactions. With a Digital Certificate, you can assure other stakeholders that the electronic information they receive from you are authentic.

The most widely accepted format for Digital Certificates is defined by the CCITT X.509 international standard; thus certificates can be read or written by any application complying with X.509.

The system enables users to set up digital signature options for a change type. Thus, a response to any approval or request comment notifications for a change object belonging to this change type, would require a certificate-based signature from the stakeholder.

  1. To set this option, you have to navigate to the Status Property page of a status associated with a change type

    Note: Navigation: Setup Workbench -> ‘Change Management’ tab -> ‘Categories’ sub-tab -> Highlight a change category -> click on ‘Types’ -> Click on any change type link -> click on ‘Workflow’ link in the bin -> click on ‘Update Properties’ icon for any Status)

    Status Properties Page

    the picture is described in the document text

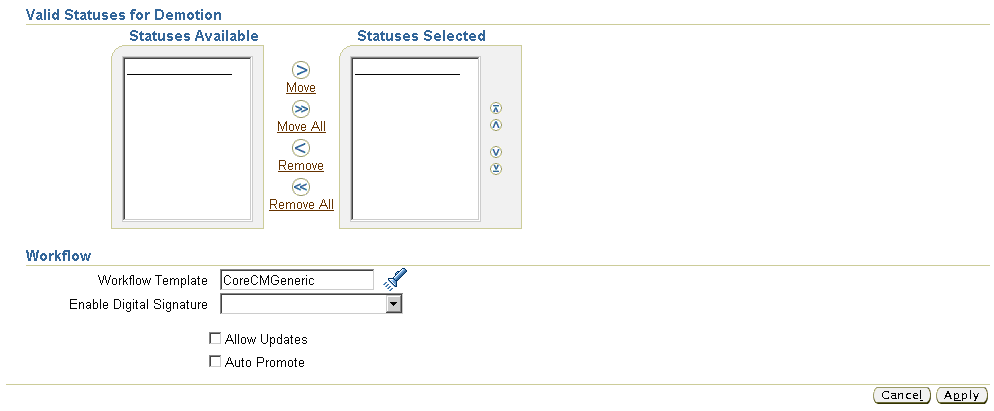

    Status Properties

    the picture is described in the document text

  2. Select one of the three options from the Enable Digital Signature drop-down list.

    Note: The default value is Empty.

    If you enable the digital signature for a change type, then all the request comment and approval notifications for changes belonging to this change type will need to be commented on or approved with a certificate based digital signature

How to Use Digital Certificates for Signing

  1. Navigate to the Worklist page, and select any Request Comment or Request Approval notification.

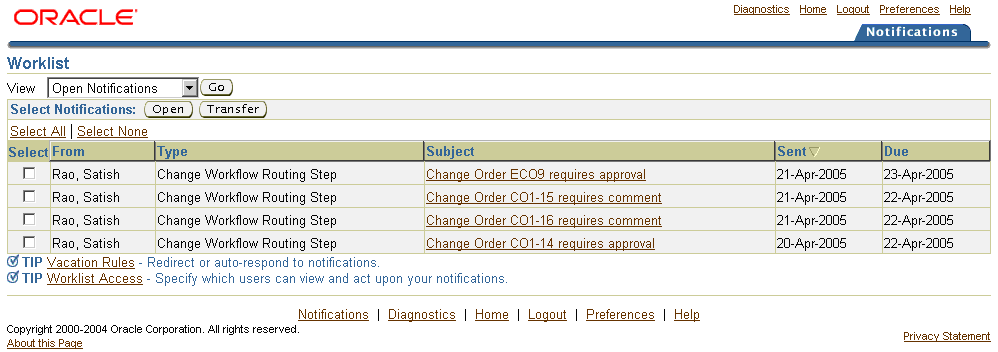

    Workflow Worklist Page

    the picture is described in the document text

  2. On the notification detail page, choose the Approve/Reject/Reply/Transfer button (whichever is appropriate).

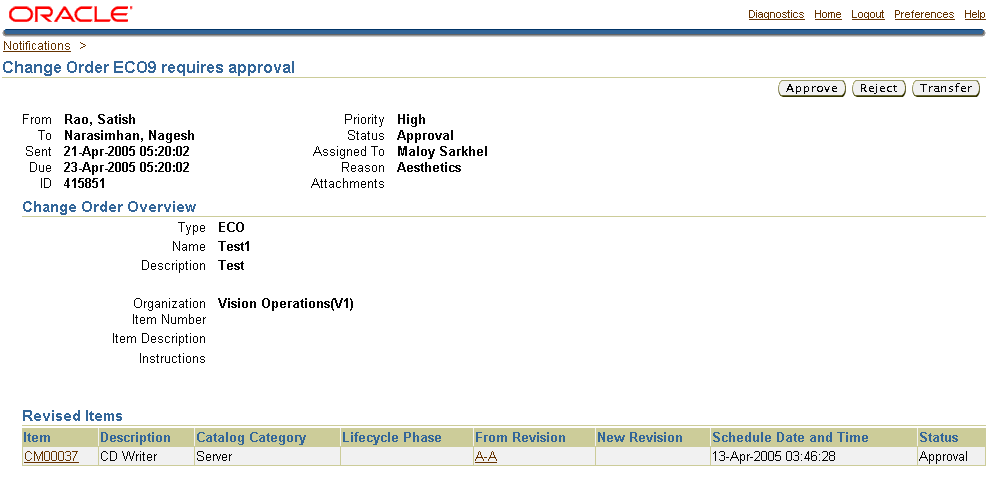

    Notifications Detail Page

    the picture is described in the document text

    The notification signing page appears

  3. Choose the Sign button.

  4. Select the appropriate certificate in the Certificates window, and then choose the OK button.

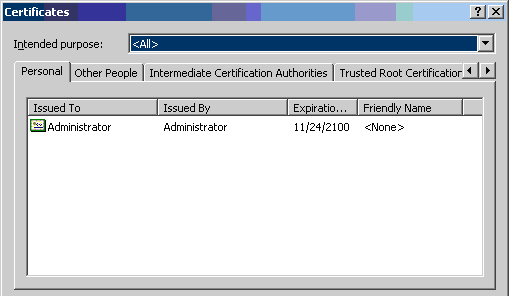

    Certificates Window

    the picture is described in the document text

    After the signing process, the system automatically returns to the Worklist page.

Importing Changes

You can import issues, change requests and change orders using the Engineering Change Order Open Interface, or through the Import Workbench.

You can also import people and user attributes for issues, change requests and change orders.

Importing Changes Using the Engineering Change Order Open Interfaces

Instead of requiring you to enter cryptic ID and system-specific values, the ECO Business Object Interface enables you to enter only the necessary business information that defines your changes. The Open Interface program validates all data before importing it into the production tables.

To import issues, change requests and change orders

  1. Load the Engineering Open Interface tables with the data you want to import. For detailed help on loading the Open Interface tables, refer to the Oracle Manufacturing Open Interfaces and APIs Manual or the Oracle Integration Repository.

  2. Navigate to the Engineering Responsibility in Oracle Applications.

  3. Navigate to the Submit a New Request window by selecting Other from the Requests menu.

  4. Click Submit New Request.

  5. Select the request option to submit a single request, or submit a predefined group of requests by selecting Request Set.

  6. Click OK.

  7. Select Import Changes for the name of the request.

    Note: A parameters window automatically appears if you select a request that requires parameter values.

  8. After entering the values in the required parameter fields, click OK.

  9. Click Submit.

To import user attributes for changes

  1. Load the Engineering Open Interface table (ENG_CHG_USR_ATR_INTERFACE Column Details) with the data you want to import. For detailed help on loading the Open Interface tables, refer to the Oracle Manufacturing Open Interfaces and APIs Manual or the Oracle Integration Repository.

  2. Navigate to the Engineering Responsibility in Oracle Applications.

  3. Navigate to the Submit a New Request window by selecting Other in the Requests menu.

  4. Click Submit New Request.

  5. Select the request option to submit a single request, or submit a predefined group of requests by selecting Request Set.

  6. Click OK.

  7. Select Change User Attributes Import for the name of the request.

    Note: A parameters window automatically appears if you select a request that requires parameter values.

  8. After entering the values in the required parameter fields, click OK.

  9. Click Submit.

To import change people

  1. Load the Engineering Open Interface table (ENG_CHANGE_PEOPLE_INTF) with the data you want to import. For detailed help on loading the Open Interface tables, refer to the Oracle Manufacturing Open Interfaces and APIs Manual or the Oracle Integration Repository.

  2. Navigate to the Engineering Responsibility in Oracle Applications.

  3. Navigate to the Submit a New Request window by selecting Other in the Requests menu.

  4. Click Submit New Request.

  5. Select the request option to submit a single request, or submit a predefined group of requests by selecting Request Set.

  6. Click OK.

  7. Select Change People Import for the name of the request.

    Note: A parameters window automatically appears if you select a request that requires parameter values.

  8. After entering the values in the required parameter fields, click OK.

  9. Click Submit.

To import change lines

  1. Load the Engineering Open Interface table (ENG_CHANGE_LINES_INTERFACE) with the data you want to import. For detailed help on loading the Open Interface tables, refer to the Oracle Manufacturing Open Interfaces and APIs Manual or the Oracle Integration Repository.

  2. Navigate to the Engineering Responsibility in Oracle Applications.

  3. Navigate to the Submit a New Request window by selecting Other from the Requests menu.

  4. Click Submit New Request.

  5. Select the request option to submit a single request, or submit a predefined group of requests by selecting Request Set.

  6. Click OK.

  7. Select Import Changes for the name of the request.

    Note: A parameters window automatically appears if you select a request that requires parameter values.

  8. After entering the values in the required parameter fields, click OK.

  9. Click Submit.

Using the Import Workbench to Import Change Objects

Using the Import Workbench, you have the option to create change orders or add existing change orders when importing items or structures.

Oracle Product Information Managementcentralizes product data from disparate systems across an enterprise within a master repository. By combining data from numerous systems and content providers, the enterprise creates a superset of product data within its hub.

Item import management uses configurable match rules to identify equivalent products and to take the different versions of a particular product record, and blend them into a single enterprise version. Data quality tools ensure that equivalent or duplicate parts are identified, quality is verified, and source system cross-references are maintained as data enters the hub.

When a match is identified, and the source system item attribute and structure details are denoted, the item is defined as the source of truth (SST). This information is used to update the SST record to maintain a best-of-breed, blended product record. If the change policy of the SST item demands a change order, one is automatically created on import. This change order can then be routed for approval, before the changes are applied to the SST item. Similarly, if a record is identified as a new item and the catalog category requires a new item request, one is automatically created on import. The new item request can then be routed for further definition and approval, before the new item is created.

For more information about how to use the Import Workbench see: Overview of Inbound Product Data Synchronization and Data Quality Management

Engineering Change Order Open Interface Tables

ENG_CHG_USR_ATR_INTERFACE

The following table shows the columns in the ENG_CHG_USR_ATR_INTERFACE database table. For more details about the columns in ENG_CHG_USR_ATR_INTERFACE, see ENG_CHG_USR_ATR_INTERFACE Details.

ENG_CHG_USR_ATR_INTERFACE table
Column Name Data Type Required?
TRANSACTION_ID NUMBER(15) Yes
PROCESS_STATUS NUMBER(9) Yes
DATA_SET_ID NUMBER(15) Yes
ORGANIZATION_CODE VARCHAR2(3) Yes
CHANGE_NUMBER VARCHAR2(10) Yes
CHANGE_MGMT_TYPE_CODE VARCHAR2(30) Yes
CHANGE_LINE_NAME VARCHAR2(240)
ROW_IDENTIFIER NUMBER(38) Yes
ATTR_GROUP_INT_NAME VARCHAR2(30) Yes
ATTR_INT_NAME VARCHAR2(30) Yes
ATTR_VALUE_STR VARCHAR2(150)
ATTR_VALUE_NUM NUMBER(38)
ATTR_VALUE_DATE DATE
ATTR_DISP_VALUE VARCHAR2(150)
TRANSACTION_TYPE VARCHAR2(10) Yes
ORGANIZATION_ID NUMBER(15)
CHANGE_ID NUMBER(15)
CHANGE_TYPE_ID NUMBER(15)
REVISION_ID NUMBER
ATTR_GROUP_ID NUMBER(15)
REQUEST_ID NUMBER(15)
PROGRAM_APPLICATION_ID NUMBER(15)
PROGRAM_ID NUMBER(15)
PROGRAM_UPDATE_DATE Date
CREATED_BY NUMBER(15) Yes
CREATION_DATE DATE Yes
LAST_UPDATED_BY NUMBER(15) Yes
LAST_UPDATE_DATE DATE Yes
LAST_UPDATE_LOGIN NUMBER(15)
CHANGE_LINE_ID NUMBER
CHANGE_LINE_SEQUENCE_NUMBER NUMBER (15)

ENG_CHG_USR_ATR_INTERFACE Column Details

TRANSACTION_ID

The primary key for this table; its value should be generated from the sequence ENG_CUA_TRANSACTION_ID_S.

PROCESS_STATUS

Whether this row has yet to be processed, is currently being processed, encountered an error, or was successfully processed. The value of this column should correspond to the following constants in EGO_CHANGE_USER_ATTRS_PUB:

DATA_SET_ID

The data set identifier. Identifies a group of rows to be processed together; all rows being processed as part of a single request must share the same DATA_SET_ID, whose value must be generated from the sequence ENG_CUA_DATA_SET_ID_S.

ORGANIZATION_CODE

The organization to which the change belongs.

CHANGE_NUMBER

The engineering change number/notice.

CHANGE_MGMT_TYPE_CODE

The internal category name of the engineering change.

CHANGE_LINE_SEQUENCE_NUMBER

If the change line name is provided along with the change number and organization information, then the program will identify that this particular row needs to be processed for change line user attributes import. Both change and change line user attributes are supported through this interface table.

Because the user-defined attributes framework is so flexible, its structure must be flattened out for this interface table. To understand this flattening it is useful to first define a logical attribute group row. For single-row attribute groups, the logical attribute group row is just the collection of attributes in the attribute group, but for multi-row attribute groups, each row in the attribute group is a logical attribute group row. For example, the single-row attribute group "Dimensions," with Attributes "Width" and "Height" has only one logical attribute group row, but multi-row attribute group "Orders," with attributes "Date" and "Price" has as many logical attribute group rows as there are separate orders to be recorded.

Every interface table row contains data for one attribute in a logical attribute group row, and a logical attribute group row spans as many interface table rows as there are attributes in the logical attribute group row. To keep these flattened-out logical attribute group rows in order, there is the ROW_IDENTIFIER column, which uniquely identifies each logical attribute group row (for example, all attributes with the same ROW_IDENTIFIER value will belong to the same logical attribute group row). Thus, if a multi-row attribute group has ten attributes and three rows of values (for example, three logical attribute group rows), then there will be thirty interface table rows for the attribute group and three distinct ROW_IDENTIFIER values in those thirty rows.

ROW_IDENTIFIER

The grouping identifier for a logical attribute group row; its value must be the same for all interface table rows in the logical attribute group row, and no two logical attribute group rows in the same data set may share the same ROW_IDENTIFIER value.

ATTR_GROUP_INT_NAME

The internal name of the attribute group to which the current interface table row's attribute belongs.

ATTR_INT_NAME

The internal name of the attribute for which the current interface table row holds a value.

ATTR_VALUE_STR

If its data type is string, the value of the current interface table row's attribute.

ATTR_VALUE_NUM

If its data type is number, the value of the current interface table row's attribute.

ATTR_VALUE_DATE

If its data type is date, the value of the current interface table row's attribute. Values are converted to and from date data types using the format specified in EGO_USER_ATTRS_DATA_PVT.G_DATE_FORMAT.

ATTR_DISP_VALUE

The value of the current interface table row's attribute (as a string, regardless of its data type) if the attribute has a value set with separate display and internal values (for example, value sets with validation type of independent or table). In all other cases, use the preceding three columns.

TRANSACTION_TYPE

The mode of processing for a logical attribute group row; its value should correspond to the following constants in EGO_USER_ATTRS_DATA_PVT:

Note that rows will be processed in the order they were just presented (for example, deletion first, followed by updates and synchronization, with creation last), in accordance to Oracle Applications standards.

ORGANIZATION_ID

This column is for internal use; any user-entered values are ignored.

CHANGE_ID

This column is also for internal use, but you may enter the CHANGE_ID if it is known. If the change ID is passed for a given change number, then it may save on conversion time. It is validated using CHANGE_NUMBER and ORGANIZATION_ID.

CHANGE_TYPE_ID

This column is for internal use; any user-entered values are ignored.

ATTR_GROUP_ID

This column is provided in case you know the attribute group ID for this interface table row's attribute group. If left blank, the attribute group internal name is used to identify the attribute group.

CHANGE_LINE_ID

The change line identifier. Calculation is based on the CHANGE_LINE_NAME, CHANGE_NUMBER, and ORGANIZATION_ID.

CHANGE_LINE_SEQUENCE_NUMBER

The change line sequence number uniquely identifies the change line for a change header. It is validated using CHANGE_NUMBER and ORGANIZATION_ID.

REQUEST_ID

This column is for internal use (to record the concurrent program request that ordered the processing of this row).

PROGRAM_APPLICATION_ID

This column is for internal use (to record the application ID of the concurrent program that processed this row).

PROGRAM_ID

This column is for internal use (to record the ID of the concurrent program that processed this row).

PROGRAM_UPDATE_DATE

This column is for internal use (to record the time the concurrent program processed this row).

CREATED_BY

A standard "Who" column whose value must be entered when you load the interface table.

CREATION_DATE

A standard "Who" column whose value must be entered when you load the interface table.

LAST_UPDATED_BY

A standard "Who" column whose value must be entered when you load the interface table.

LAST_UPDATE_DATE

A standard "Who" column whose value must be entered when you load the interface table.

LAST_UPDATE_LOGIN

A standard "Who" column whose value must be entered when you load the interface table.

ENG_CHANGE_PEOPLE_INF

The following table shows the columns in the ENG_CHANGE_PEOPLE_INTF database table. For more details about the columns in ENG_CHANGE_PEOPLE_INTF, see ENG_CHANGE_PEOPLE_INTF Details.

ENG_CHANGE_PEOPLE_INTF table
Column Name Data Type Required?
CHANGE_ID NUMBER(15)
CHANGE_NOTICE VARCHAR2(10) Yes
CHANGE_MGMT_TYPE_CODE VARCHAR2(30) Yes
ORGANIZATION_ID NUMBER(15)
GRANTEE_PARTY_ID NUMBER(15)
INTERNAL_ROLE_ID NUMBER(15)
INTERNAL_ROLE_NAME VARCHAR2(30)
LAST_UPDATE_DATE DATE
LAST_UPDATED_BY NUMBER(15)
CREATION_DATE DATE
CREATED_BY NUMBER(15)
LAST_UPDATE_LOGIN NUMBER(15)
REQUEST_ID NUMBER(15)
PROGRAM_APPLICATION_ID NUMBER(15)
PROGRAM_ID NUMBER(15)
PROGRAM_UPDATE_DATE DATE
ORGANIZATION_CODE VARCHAR2(3) Yes
DISPLAY_ROLE_NAME VARCHAR2(80) Yes
GRANTEE_TYPE VARCHAR2(8) Yes
GRANTEE_NAME VARCHAR2(360) Yes
START_DATE DATE Yes
END_DATE DATE
TRANSACTION_TYPE VARCHAR2(10) Yes
TRANSACTION_ID NUMBER(15) Yes
PROCESS_STATUS NUMBER(15) Yes
DATA_SET_ID NUMBER(15) Yes

ENG_CHANGE_PEOPLE_INTF Column Details

CHANGE_ID

The change identifier. The import program populates the CHANGE_ID for the corresponding CHANGE_NOTICE.

CHANGE_NOTICE

The engineering change notice. CHANGE_NOTICE must be valid (in other words, it has already been created).

CHANGE_MGMT_TYPE_CODE

The internal category name of the engineering change. This column should be a valid entry in the ENG_CHANGE_MGMT_TYPES table.

ORGANIZATION_ID

The organization identifier. The import program populates this column for the corresponding organization code.

GRANTEE_PARTY_ID

The party identifier of the grantee. Populated by the import program.

INTERNAL_ROLE_ID

The internal role identifier. Populated by the import program. INTERNAL_ROLE_NAME The internal role name. Populated by the import program.

LAST_UPDATE_DATE

A standard "Who" column.

LAST_UPDATED_BY

A standard "Who" column.

CREATION_DATE

A standard "Who" column.

CREATED_BY

A standard "Who" column.

LAST_UPDATE_LOGIN

A standard "Who" column.

REQUEST_ID

A concurrent "Who" column.

PROGRAM_APPLICATION_ID

A concurrent "Who" column.

PROGRAM_ID

A concurrent "Who" column.

PROGRAM_UPDATE_DATE

A concurrent "Who" column.

ORGANIZATION_CODE

The organization code.

DISPLAY_ROLE_NAME

The display name of the role.

GRANTEE_TYPE

The type of grantee. Valid values are: USER, GROUP, COMPANY, or GLOBAL.

GRANTEE_NAME

The name of the grantee. Value will be the name of the user/group/company.

START_DATE

The start date of the grant to user/group/company/global.

END_DATE

The end date of the grant to user/group/company/global.

TRANSACTION_TYPE

The type of action. Valid values are: SYNC, CREATE, UPDATE or DELETE. SYNC will create grants if not existent; otherwise, it will update grants.

TRANSACTION_ID

The transaction identifier.

PROCESS_STATUS

The row status as input by the user. Valid values are 1, 2, 3, and 4. Records with the value 1 are processed by the import program. The value of this column will be updated to 2, 3 or 4 by the import program as follows:

DATA_SET_ID

The identifier of the data set.

ENG_CHANGE_LINES_INTERFACE

The following table shows the columns in the ENG_CHANGE_LINES_INTERFACE database table. For more details about the columns in ENG_CHANGE_LINES_INTERFACE, see ENG_CHANGE_LINES_INTERFACE Details.

ENG_CHANGE_LINES_INTERFACE table
Column Name Data Type Required?
ECO_NAME VARCHAR2(10)
ORGANIZATION_CODE VARCHAR2(3)
CHANGE_TYPE_CODE VARCHAR2(10)
NAME VARCHAR2(240)
DESCRIPTION VARCHAR2(2000)
SEQUENCE_NUMBER NUMBER
ORIGINAL_SYSTEM_REFERENCE VARCHAR2(50)
RETURN_STATUS VARCHAR2(1)
TRANSACTION_TYPE VARCHAR2(30)
TRANSACTION_ID NUMBER
CHANGE_MGMT_TYPE_NAME VARCHAR2(45)
ORGANIZATION_ID NUMBER
ENG_CHANGES_IFCE_KEY VARCHAR2(30)
PROCESS_FLAG NUMBER
STATUS_NAME VARCHAR2(80)
OBJECT_DISPLAY_NAME VARCHAR2(240)
PK1_NAME VARCHAR2(240)
PK2_NAME VARCHAR2(240)
PK3_NAME VARCHAR2(240)
PK4_NAME VARCHAR2(240)
PK5_NAME VARCHAR2(240)
ASSIGNEE_NAME VARCHAR2(360)
NEED_BY_DATE DATE
SCHEDULED_DATE DATE
IMPLEMENTATION_DATE DATE
CANCELATION_DATE VARCHAR2(240)
COMPLETE_BEFORE_ STATUS_CODE NUMBER
START_AFTER_STATUS_ CODE NUMBER
TYPE_CLASSIFICATION VARCHAR2(30)

ENG_CHANGE_LINES_INTERFACE_Column Details

ECO_NAME

The Change notice. A not-null value is required.

ORGANIZATION_CODE

The 3-character Organization code. A not-null value is required.

CHANGE_TYPE_CODE

The Change Type of this Change Line. A not-null value is required.

NAME

The Name of this Change Line. A not-null value is required.

DESCRIPTION

A Description of this Change Line. May be null.

SEQUENCE_NUMBER

Sequence Number of this Change Line (typically 10, 20, 30, ...). A not-null value is required.

ORIGINAL_SYSTEM_REFERENCE

In case this information comes from a migration from a different system, the identifier of this Change Line in the previous system. May be null.

RETURN_STATUS

The result of importing this Change Line into the system; only used internally, a user provided value will be ignored.

TRANSACTION_TYPE

The mode of processing this Change Line; its value should correspond to the following constants in ENG_ECO_PVT: G_DELETE_MODE, G_UPDATE_MODE, G_SYNC_MODE (which either creates or updates, as appropriate), and G_CREATE_MODE. Note that rows will be processed in the order they were just presented (for example, deletion first, followed by updates and synchronization, with creation last), in accordance with Oracle Applications standards. A not-null value is required.

TRANSACTION_ID

The Primary Key for this table; its value should be generated from the sequence MTL_SYSTEM_ITEMS_B_S. A not-null value is required.

CHANGE_MGMT_TYPE_NAME

The Change Category to which the Change belongs. A not-null value is required.

Note: A null value is required if submitting the import request directly from Oracle Engineering instead of from Oracle Product Lifecycle Management. Change categories do not exist in Oracle Engineering.

ORGANIZATION_ID

This column is for internal use, and any user-entered values are ignored.

ENG_CHANGES_IFCE_KEY

If this Change Line is imported at the same time as its Change Header, the value in this column must match the sequence-generated value of the ENG_CHANGES_IFCE_KEY in the ENG_ENG_CHANGES_INTERFACE table. A not-null value is required.

PROCESS_FLAG

Whether this row has yet to be processed, is currently being processed, encountered an error, or was successfully processed; its value should correspond to the following constants in EGO_CHANGE_USER_ATTRS_PUB: G_PS_TO_BE_PROCESSED, G_PS_IN_PROCESS, G_PS_ERROR, and G_PS_SUCCESS.

STATUS_NAME

The Status Name of this Change Line. A not-null value is required.

OBJECT_DISPLAY_NAME

The Display Name of the Type of subject: Item, Document. May be null if there is no subject for this Change Line.

PK1_NAME

The first part of the identifier for the subject of this Change Line. May be null if there is no subject for this Change Line.

PK2_NAME

The second part of the identifier for the subject of this Change Line. May be null.

PK3_NAME

The third part of the identifier for the subject of this Change Line. May be null.

PK4_NAME

The fourth part of the identifier for the subject of this Change Line. May be null.

PK5_NAME

The fifth part of the identifier for the subject of this Change Line. May be null.

ASSIGNEE_NAME

The User Name of the person to whom this Change Line is assigned. A not-null value is required.

NEED_BY_DATE

The Date by which this Change Line has to be completed. A not-null value is required.

SCHEDULED_DATE

The Date by which this Change Line is expected to be completed. A not-null value is required.

IMPLEMENTATION_DATE

The Date on which this Change Line was implemented. A not-null value is required.

CANCELATION_DATE

The Date on which this Change Line was cancelled. A not-null value is required.

COMPLETE_BEFORE_STATUS_CODE

Column not supported.

START_AFTER_STATUS_CODE

Column not supported.

TYPE_CLASSIFICATION

Column not supported.

Managing Reports

Change management reports are basically search results that you can save, browse, email, or print. You can create reports for any change management category (issues, change requests, and change orders). You can browse a report sequentially or using a summary view. Browsing a report sequentially enables you to step through the contents of a report in page layout format. A summary view displays the report in tabular column format. You can send a report to other users including registered suppliers and customers. You can export change management and issue reports to Adobe Acrobat or XML using custom report formats. Design your report formats using familiar desktop tools such as Adobe Acrobat and Microsoft Word.

Creating a report from your most common or frequent searches saves you the time of selecting a change category, criteria template and results format and repeating the same search over and over again. You can give reports meaningful names as well. For example, a search for all open change orders may yield dozens of change orders, each identified by change order name and number. You can simply name the report "Open Change Orders."

Report security is consistent with search security: you can only access change objects on which you have the required role.

Before creating a report, you must have a Display Format defined for the change categories in which you intend to generate reports.

To create a report

  1. In the Applications tree menu, click the "Change Reports" link.

  2. On the Reports page, click Create Report.

  3. On the Create Report page, select the change category in which the report will be generated and click Go. Any search criteria or display formats that exist in the selected change category will appear in the Search Criteria and Display Format pulldowns.

  4. When the Create Report page refreshes, provide the following:

    Name

    Provide a name for the Report.

    Description

    Optionally, provide a description of the Report.

    Criteria

    Select the criteria to be used in the search. You can use an existing search criteria template (if one exists for the change category selected), or add criteria here by clicking Add Criteria.

    Format

    Select a format for the report. You can use an existing display format by selecting it from the Display Format pulldown and clicking Go.

    Optionally, select the Preview mode for the report and click Go. It is recommended that you preview the report before it is actually created to make sure it contains all the information you want in the format that you want it. Previewing a report sequentially enables you to step through the contents of a report in page layout format. A summary view displays the report in tabular column format.

    You can also create reports based on search results or item change management lists.

  5. In the Export Format section, you can optionally select an export template and output format, such as .pdf or .xml, in which you want to generate the report.

  6. Click Apply.

To browse a report

You have the option of browsing your reports in either Inline or Sequential format.

  1. In the Applications tree menu, click the "Change Reports" link.

  2. On the Reports page, select the report you want to browse:

    Inline View

    Click the Inline View icon to browse the report in tabular column format.

    Browse Sequentially

    The Browse Sequentially option enables you to browse a report sequentially by scrolling through the contents of a report in page layout format. You can scroll through and view each change order in a report as you would on a Summary page.

    Export File

    If the Export File icon is enabled, you have the option to create an Export File for the report. The Export File icon is only enabled if an export template and output format are specified for the report.

To send a report

You can send a report to any registered user.

  1. In the Applications tree menu, click the "Change Reports" link.

  2. On the Reports page, select the report you wish to send, select the Send action, and then click Go.

  3. On the Send Report page, provide the following:

    Name

    Enter the name(s) of the people or groups to which you wish to send the report. If you wish to send the report to more people than listed in the fields provided, click Add People.

    Subject

    The default Subject for the email is the report name--you are free to edit it.

    Browse

    Select the Browse mode you wish the report to appear in.

    Message

    The message that you enter here precedes the report when delivered to recipients.

  4. Click Send.

To update a report

As time and business dictates, you may want to revise the criteria or results for a report.

  1. In the Applications tree menu, click the "Change Reports" link.

  2. On the Reports page, select the report you wish to update, select the Update action, and click Go.

  3. On the Update Report page, update the criteria or the display format. You can add additional criteria attributes, update criteria operators or values, and select different results formats.

  4. After completing your revisions, click Apply.

    Note: Only the administrator can update reports created by the administrator.

To export a report

  1. In the Applications tree menu, click the "Change Reports" link.

  2. On the Reports page, select the report you want to export, select the Export action, and then click Go.

  3. On the Export page, select an export template and an output format for the report.

  4. Click Export.

To print a report

  1. In the Applications tree menu, click the "Change Reports" link.

  2. On the Reports page, select the report you want to print, select the Inline View or Browse Sequential action, and then click Go.

  3. On the Report page, click Printable Page to display the report in a printer-friendly format. Print the report from your web browser.

To delete a report

  1. In the Applications tree menu, click the "Change Reports" link.

  2. On the Reports page, select the report you wish to delete, select the Delete action, and click Go.

To create a report list

The Reports page allows you to create personalized report lists. These lists are displayed in the View pulldown on the Reports page. You can add or remove reports that you have added to the lists.

  1. In the Applications tree menu, click the "Change Reports" link.

  2. On the Reports page, click Personalize.

  3. On the Report Lists page, click Create List.

  4. On the Create Report List page, provide the following:

    Name

    Enter a name for the report list. This will be displayed in the View pulldown on the Reports page.

    Description

    Enter a description for the report list.

  5. Click Add Reports to add existing reports to the report list.

  6. On the Add Reports page, select the reports you want to add to the list.

  7. Click Apply.

To update a report list

  1. In the Applications tree menu, click the "Change Reports" link.

  2. On the Reports page, click Personalize.

  3. On the Report Lists page, click the Update action corresponding to the report list you want to update.

  4. On the Update Report List page, make the necessary changes and click Apply.

To delete a report list

  1. In the Applications tree menu, click the "Change Reports" link.

  2. On the Reports page, click Personalize.

  3. On the Report Lists page, click the Delete action corresponding to the report list you want to delete.
