3 Create the Argus Insight Datamart Structure

The Argus Insight Schema Creation Tool lets you create the Argus Insight Datamart structure. It creates a link between your source Argus database and your new Argus Insight Datamart. The ETL process uses this link to transfer data from your Argus database to the Argus Insight Datamart for reporting purposes. During this process, you are required to create four database users: one for logging in to the Argus Insight application, two other users who are schema owners, and one for supporting Private DB Links.

Note: The Argus Insight database must be created with same Character Set as the Argus Safety Database. Make sure you have installed that requisite software as explained in the Hardware and Software Requirements topic.

Before you run the schema creation tool, contact your Database Administrator (DBA) to verify these database parameter values in the Database configuration file for the Argus Insight database:

• global_name = false

• job_queue_processes=10

• Add "SET ARRAYSIZE 5000" in file glogin.sql ($ORACLE_HOME/sqlplus/admin/glogin.sql)

3.1 Argus Insight Database Parameters

The following table lists the minimum values required on different Database Parameters for Argus Insight. The Database Administrator should monitor these values to increase/decrease the parameters.

S. No.	Argus Insight Database Instance Parameters	Small (Less than 30,000 Cases)	Medium (30,000 - 200,000 Cases)	Large (200,000 - 1 Million Cases)	Very Large (More than 1 Million Cases)	Remarks
		Value	Value	Value	Value
1	Shared_Pool_Size	Default	Default	Default	Default
2	DB_Block_Buffers (Size in MB) / DB_Cache_Size	Default	Default	Default	Default
3	DB_Block_Size (bytes)	Default	Default	Default	Default
4	SGA_Target	1 GB	2.5 GB	3.5 GB	4.5 GB	The 32-bit architecture allows for 4 GB of physical memory to be addressed, DBAs are requested to verify the maximum addressable RAM for their respective architectures.
5	SGA_Max_Size	>= value for SGA_TARGET	>= value for SGA_TARGET	>= value for SGA_TARGET	>= value for SGA_TARGET
6	PGA_AGGREGATE_TARGET	0.5 GB	2 GB	3 GB	4 GB
7	CURSOR_SHARING	EXACT	EXACT	EXACT	EXACT
8	OPTIMIZER_SECURE_VIEW_MERGING	TRUE	TRUE	TRUE	TRUE
9	WORKAREA_SIZE_POLICY	AUTO	AUTO	AUTO	AUTO
10	QUERY_REWRITE_ENABLED (If Computing Statistics regularly)	TRUE	TRUE	TRUE	TRUE
	QUERY_REWRITE_ENABLED (If Not Computing Statistics regularly)	FALSE	FALSE	FALSE	FALSE
11	QUERY_REWRITE_INTEGRITY	Default	Default	Default	Default
12	GLOBAL_NAME	False	False	False	False
13	PARALLEL_MAX_SERVERS	16	32	Default	Default
14	OPTIMIZER_MODE	ALL_ROWS	ALL_ROWS	ALL_ROWS	ALL_ROWS
15	COMPATIBLE (For Oracle 10g)	10.2.0.1 or Higher	10.2.0.1 or Higher	10.2.0.1 or Higher	10.2.0.1 or Higher
16	COMPATIBLE (For Oracle 11g)	11.1.0.6 or Higher	11.1.0.6 or Higher	11.1.0.6 or Higher	11.1.0.6 or Higher
17	UNDO_MANAGEMENT	AUTO	AUTO	AUTO	AUTO
18	NLS_LENGTH_SEMANTICS	CHAR	CHAR	CHAR	CHAR

S. No.	Argus Insight Database I/O Configuration	Small	Medium	Large	Very Large	Remarks
		Value	Value	Value	Value
1	Number and Size of Redo Log Files	Default	3 X 500 MB	5 X 500 MB	5 X 500 MB	Depends on the characteristics of the I/O subsystem like the I/O bandwidth, Storage Disks type, RAID Level, etc. (Oracle recommends RAID 1+0 or similar)
2	TEMP Tablespace size	32 GB	32 GB	64 GB	128 GB
3	Undo Tablespace size	16 GB	32 GB	64 GB	128 GB	The recommended UNDO Tablespace size is based on the projections with the following two Parameter values: RETENTION=NOGUARANTEE UNDO_RETENTION=900 (seconds)

S. No.	Argus Insight Database Server Configuration	Small	Medium	Large	Very Large	Remarks
		Value	Value	Value	Value
1	RAM	4-8 GB	8-16 GB	16-32 GB	16-32 GB
2	CPU	Equivalent to 2-4 Dual Core, 3GHz	Equivalent to 4-8 Dual Core, 3GHz	Equivalent to 16 Dual Core, 3GHz	Equivalent to 24 Dual Core, 3GHz

Note: The Argus Insight Database and Argus Database TNS names entry must be available in both Argus Insight Database Server and Argus Safety Database Server. Argus Safety Database TNS should also be present in the Argus Insight Web server.

3.2 Argus Insight Mart Tablespaces

The following are the Tablespaces for Argus Insight MART.

S.No.	Tablespace	S.No.	Tablespace
1	APR_CFG_DATA_01	19	APR_MRPT_DATA_02
2	APR_MCAS_DATA_01	20	APR_MRPT_DATA_03
3	APR_MCAS_DATA_02	21	APR_MRPT_INDEX_01
4	APR_MCAS_INDEX_01	22	APR_MRPT_INDEX_02
5	APR_MCAS_INDEX_02	23	APR_MRPT_INDEX_03
6	APR_MCAS_LOB_01	24	APR_MWHOC_DATA_01
7	APR_MCFG_DATA_01	25	APR_MWHOC_INDEX_01
8	APR_MCFG_INDEX_01	26	APR_SESM_DATA_01
9	APR_MCFG_LOB_01	27	APR_SESM_INDEX_01
10	APR_MCFG_LOG_01	28	APR_SESM_LOB_01
11	APR_MEDM_DATA_01	29	APR_STAGE_DATA_01
12	APR_MEDM_INDEX_01	30	APR_STAGE_DATA_02
13	APR_MEDM_LOB_01	31	APR_STAGE_DATA_03
14	APR_MFACT_DATA_01	32	APR_STAGE_INDEX_01
15	APR_MFACT_DATA_02	33	APR_STAGE_INDEX_02
16	APR_MFACT_INDEX_01	34	APR_STAGE_INDEX_03
17	APR_MFACT_INDEX_02	35	APR_STAGE_LOB_01
18	APR_MRPT_DATA_01	36	APR_SWHOC_DATA_01

S.No.	Tablespace
37	APR_MCAS_HIST_DATA_01
38	APR_MCAS_HIST_DATA_02
39	APR_MCAS_HIST_INDEX_01
40	APR_MCAS_HIST_LOB_01
41	APR_MCFG_HIST_INDEX_01
42	APR_MCFG_HIST_LOB_01
43	APR_MFACT_HIST_DATA_01
44	APR_MFACT_HIST_DATA_02
45	APR_MFACT_HIST_INDEX_01
46	APR_MFACT_HIST_INDEX_02
47	APR_MRPT_HIST_DATA_01
48	APR_MRPT_HIST_DATA_02
49	APR_MRPT_HIST_DATA_03
50	APR_MRPT_HIST_INDEX_01
51	APR_MRPT_HIST_INDEX_02
52	APR_MRPT_HIST_INDEX_03

3.3 Creating the Database Schema

Use the following procedure to create the database schema and run the Initial ETL.

1. Log in (RDC) to Insight Web Server after installing Argus Insight 6.0 application using build.

   INSTALLDIR: - Default is "C:\Program Files\Oracle"

3.3.1 Creating Users and Roles in the Argus Safety Database

1. Run the schema creation tool.

2. Click Argus User Creation.

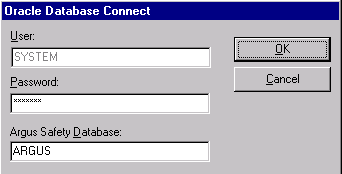

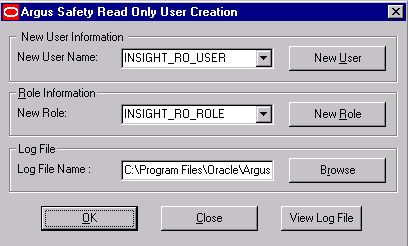

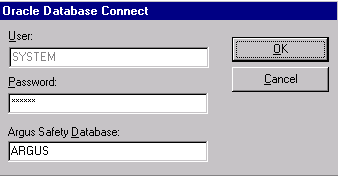

3. When the system opens the following dialog box, enter the Argus Safety database instance name and password for "SYSTEM". Click OK.




4. When the system opens the following dialog box, click New User.

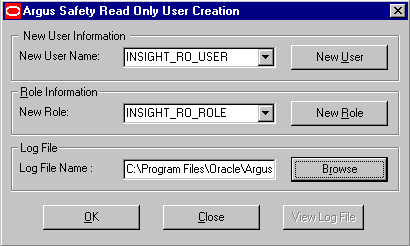

5. When the system opens the following dialog box, enter the name of the Argus Safety user you wish to create in the New User Name field. Click OK.




   Note: You must create the INSIGHT_RO_USER and INSIGHT_RO_ROLE even if they already exist in the Argus Safety schema. Make the appropriate selection in step 8 below for New User Name and New Role drop downs and proceed.




6. When the system redisplays the following dialog box, click New Role.

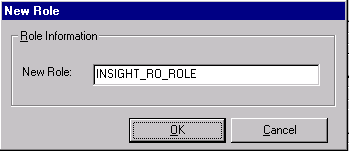

7. When the system opens the following dialog box, enter the name of the role to create in the New Role field. Click OK.




8. When the system opens the following dialog box, select New User Name and New Role from the dropdown menu as 'INSIGHT_RO_USER' and 'INSIGHT_RO_ROLE'.

9. When the system opens the following dialog box, click Browse to select the location for the log files.

10. When the system opens the following dialog box, enter the name of the log file where you want to store the user creation information in the File name field.




11. When the system returns to the following dialog box, click OK.

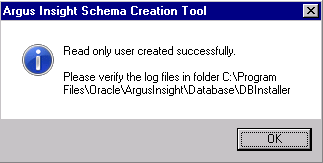

12. When the system opens the following screen, verify that the information on the screen is correct and press Enter.




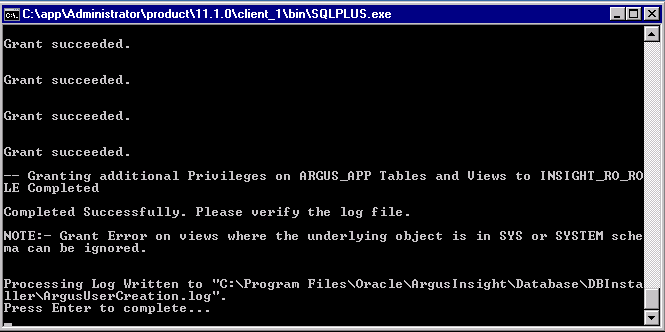

13. When the system displays the following screen, verify that the information is correct and press Enter to complete the installation.




14. When the system displays the following message, click OK.




15. When the system redisplays the following dialog box, click View Log File.

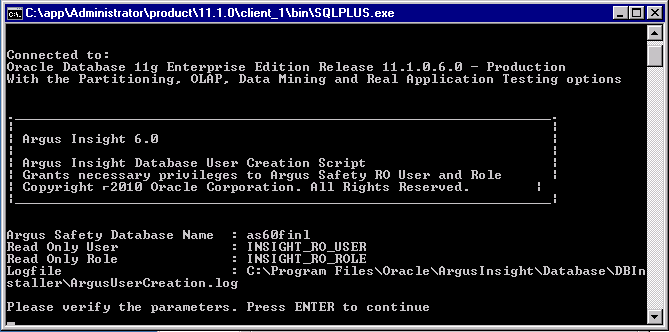

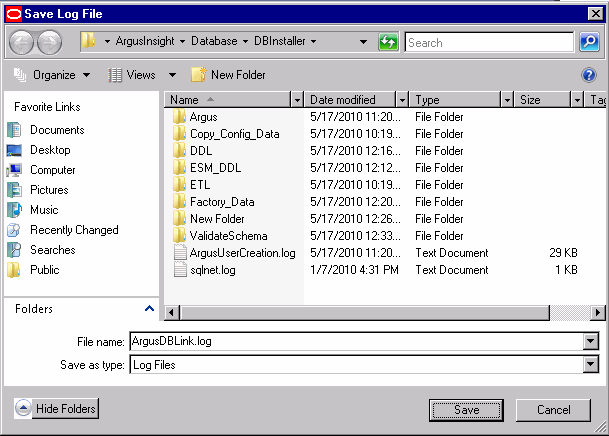

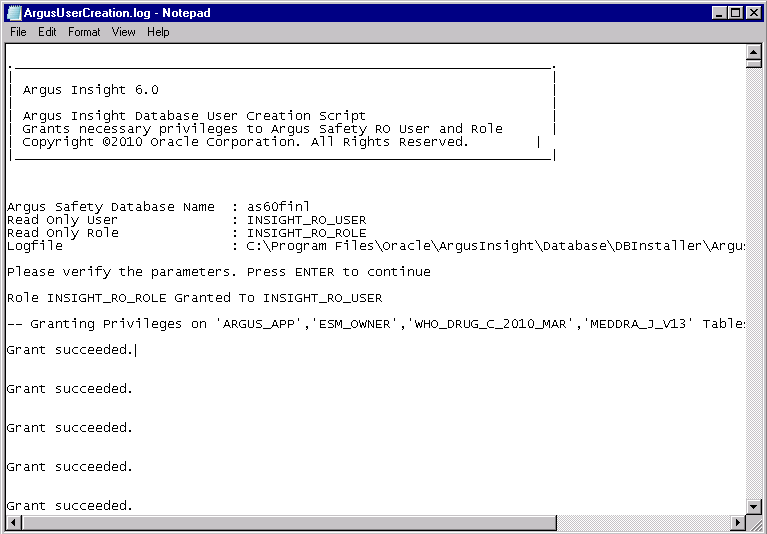

16. When the system displays the log file, verify the log file for any errors during read only user creation.




17. Close the log file.

18. Click Close button to close the 'Argus Safety Read Only User Creation' dialog.

3.3.2 Creating a New Database Schema

Use the following procedures to create or upgrade the database schema, as applicable.

3.3.2.1 Clearing the Cache

If you are using the same DB Installer used to create an earlier schema, you must clear its cache. Use the following procedure to clear the cache.

1. Press and hold the CTRL key and right-click the mouse.

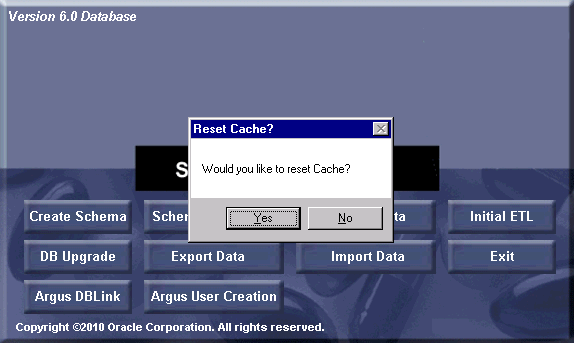

2. When the system presents the following dialog box, click Yes.




   The system logs the action in the createlog.rtf file.

3.3.2.2 Creating a New Schema for Argus Insight

Use the following procedure to create a new schema for Argus Insight:

1. Go to Start>Programs>Oracle>Argus Insight>Schema Creation Tool.

2. When the system opens the following dialog box, click Create Schema.






   Note: You mustconvert the Oracle parameter NLS_LENGTH_SEMENTICS to CHAR in the Argus Insight data mart and restart the database instance. You will not be able to proceed further without changing the NLS_LENGTH_SEMENTICS to CHAR.




3. When the system opens the following dialog box:

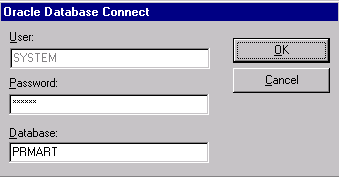

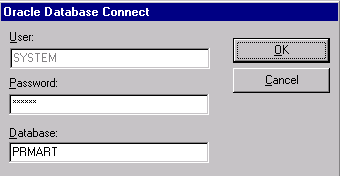

   • Enter the SYSTEM user password in the Password field.

   • Type the TNS Entry for the Insight Database in the Database field.

   • Click OK.

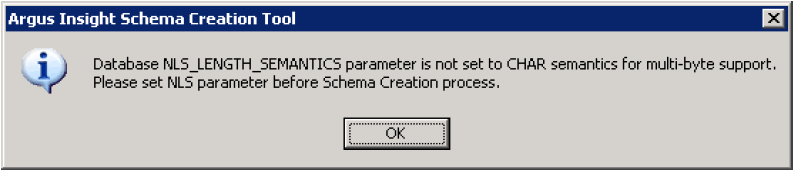

4. The system displays the following message if the NLS_LENGTH_SEMANTICS parameter is not set to CHAR. You must set this parameter before you can proceed.

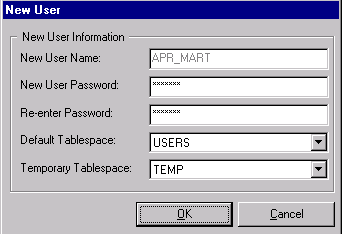

5. When the system opens the following dialog box, set the APR_MART password. Click OK.




6. When the system opens the following dialog box, set the APR_APP password. Click OK.






   Note: This user will be used for all the application access and reporting. The password for this user is stored in encrypted form in CMN_PROFILE table. We cannot change password of this user as it will break down the Insight application access. If you wish to change the password for this user, please contact Oracle support for getting encrypted value of new password.

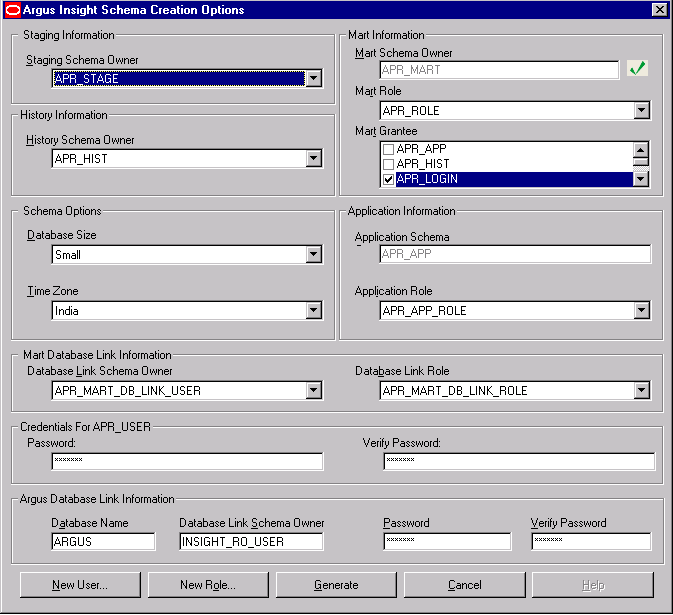

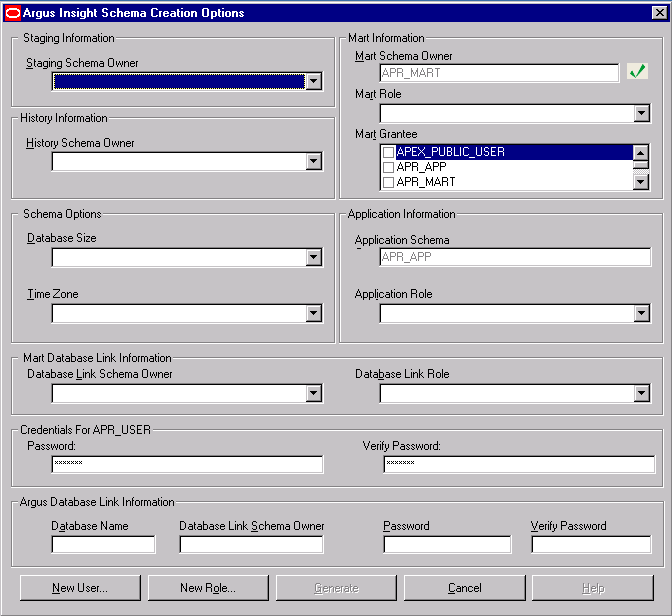

7. When the system opens the Argus Insight Schema Creation Options screen, click New User to create the following users:

   • APR_STAGE

   • APR_LOGIN

   • APR_HIST

   • APR_MART_DB_LINK_USER

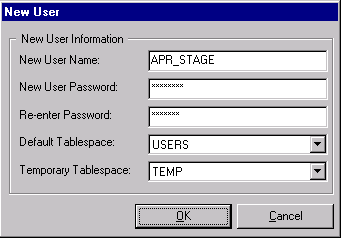

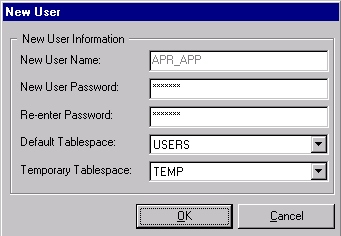

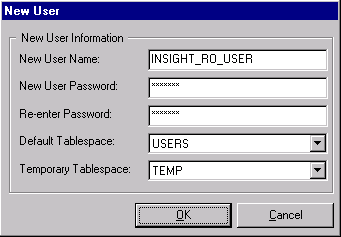

8. When the system opens the New User dialog box, do the following:

   1. Enter one of the following names in the New User Name field:

      • APR_STAGE

      • APR_LOGIN

      • APR_MART_DB_LINK_USER

      • APR_HIST

   2. Enter the user password in the New User Password field.

   3. For verification, enter the user password in the Re-enter Password field.

   4. Click OK.

   5. The system redisplays the Argus Insight Schema Creation Options screen.

   6. Repeat Step 7 and Steps 8a through 8d until you have created all four (4) users.




9. When the system redisplays the Argus Insight Schema Creation Options screen, click New Role to create the following user roles:

   1. APR_ROLE

   2. APR_MART_DB_LINK_ROLE

   3. APR_APP_ROLE

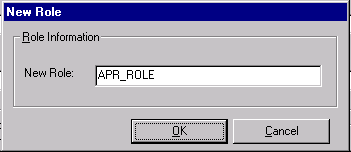

10. When the system opens the New Role dialog box, do the following:

    1. Enter one of the following names in the New Role field:

       • APR_ROLE

       • APR_MART_DB_LINK_ROLE

       • APR_APP_ROLE

    2. Click OK.

    3. The system redisplays the Argus Insight Schema Creation Options screen.

    4. Repeat Step 9 and Steps 10a through 10c until you have created all three (3) roles.




11. When the system redisplays the Argus Insight Schema Creation Options screen:

    1. Select APR_MART_DB_LINK_USER in the Database Link Schema Owner field of MART Database Link Information section.

    2. Select APR_MART_DB_LINK_ROLE in the Database Link Role field of MART Database Link Information section.

    3. Enter INSIGHT_RO_USER in the Database Link Schema Owner field of Argus Database Link Information section.

12. Click Generate.




    Note: Enter the insight read only user name in 'Database Link Schema Owner' text box of Argus Safety link information, created using 'Argus User Creation'. Button.








    Note: If you want to change the password for APR_USER, edit the entries for APR_USER password textbox.

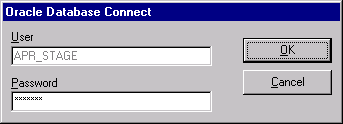

13. When the system prompts for staging user's password (APR_STAGE user's password), enter the password and click OK.

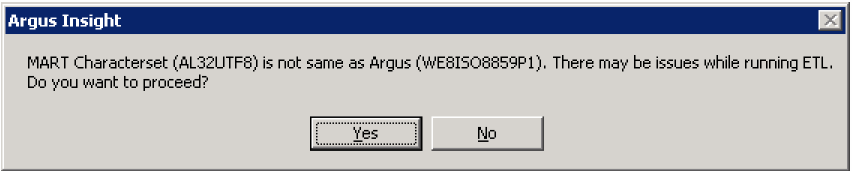

    Note: The system displays the following message if the MART Character set is not same as the Argus character set. Please make sure the character sets for Argus Insight and Argus Safety database are the same.






14. Click Yes to proceed with schema creation (not recommended) else press No.




    Note: If character set of Argus Safety database is UTF and Insight database is ISO, the ETL process may fail due to different character set. If character set of Argus Safety database is ISO and Insight database is UTF, then we can proceed by ignoring the character set difference.




15. When the system displays the following message, follow these steps:

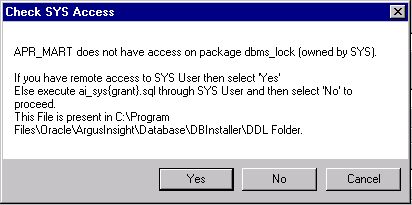

    1. If you do not have remote access to SYS User, follow the instructions given in the message box "Check SYS Access" provided above. After executing the ai_sys{grant}.sql through SYS user, Click No and go to Step 16 of this procedure.

    2. If you do have remote access to SYS user, click Yes and go to Step 15 of this procedure.

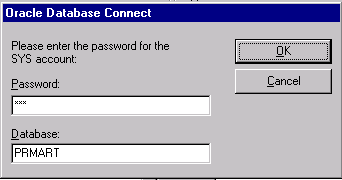

16. When the system opens the following dialog box, provide the SYS user password and click OK.

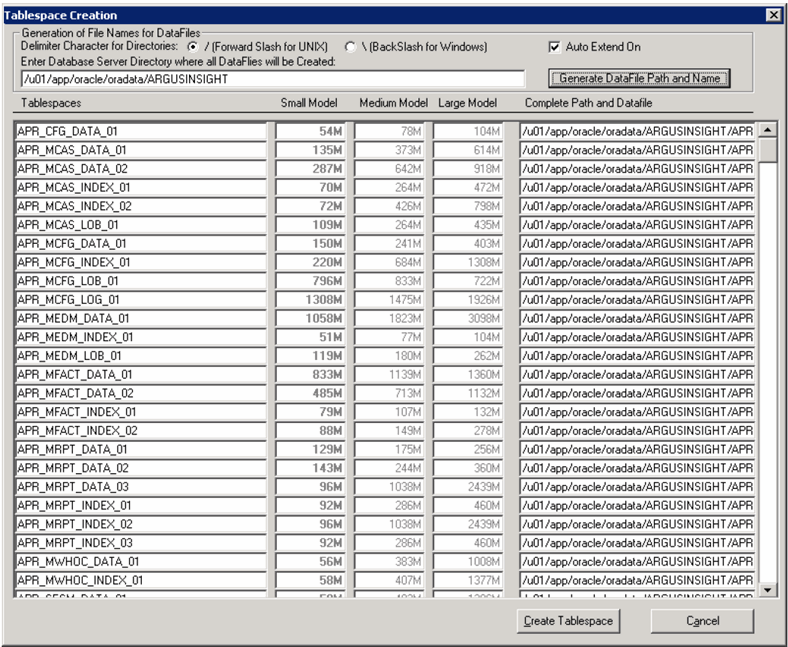

17. The system opens the Tablespace Creation screen as follows:

    • Schema Creation Tool will automatically select the Delimiter Character for the Directories radio button, based on the Database Server Operating System.

    • Provide the datafile path in "Enter Database Server Directory….." Textbox (For e.g. /u01/app/oracle/SMTEST, PLEASE MAKE SURE THIS DIRECTORY EXISTS) and click on button "Generate Datafile path and name".

    • It will fill "Complete Path and Datafile" textboxes for all table spaces.

18. Click Create Tablespace to create all table spaces.

19. Wait while the system creates the table spaces.




20. When the system opens the following window, click Continue to Start Schema Creation.

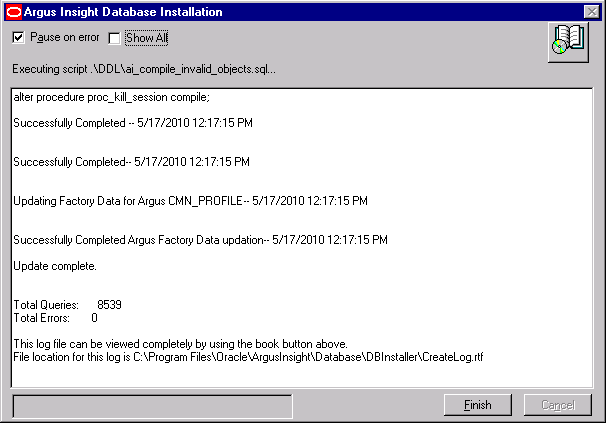

21. When the system displays the following window, schema creation is complete. Click Finish.




3.3.2.3 Loading Factory Data

Use the following procedure to load the factory data:

1. Click Factory Data to load the factory data.

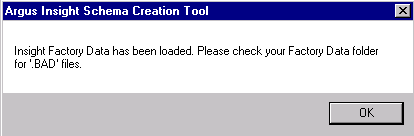

2. The system displays the following message when it finishes loading the factory data.




3.3.3 Upgrading an Existing Argus Insight Schema

This section provides instructions for the upgrading from the following:

Note: Before upgrading a schema, ensure that you have validated the schema with the CTL file of the existing Argus Insight version. For example, before upgrading from Argus Insight 5.1 to Argus Insight 6.0, validate the schema for Argus Insight 5.1.

Argus Insight v5.1/5.1.1 to Argus Insight v6.0

Note: We recommend that you stop the Cognos service on Cognos server before starting the schema upgrade. You can start the Cognos service once schema upgrade is complete.

1. Go to Start > Programs > Oracle > Argus Insight > Schema Creation Tool.




2. Follow the instructions given in section "Creating Users and Roles in the Argus Insight Database" for creating Argus User and Role before proceeding for the DB Upgrade.

3. Once Argus User and role creation is complete, Click DB Upgrade.

4. When the system opens the following dialog box, do the following:

   • Enter the SYSTEM user password in the Password field.

   • Enter the TNS Entry for the Argus Insight Database in the Database field.

   • Click OK.

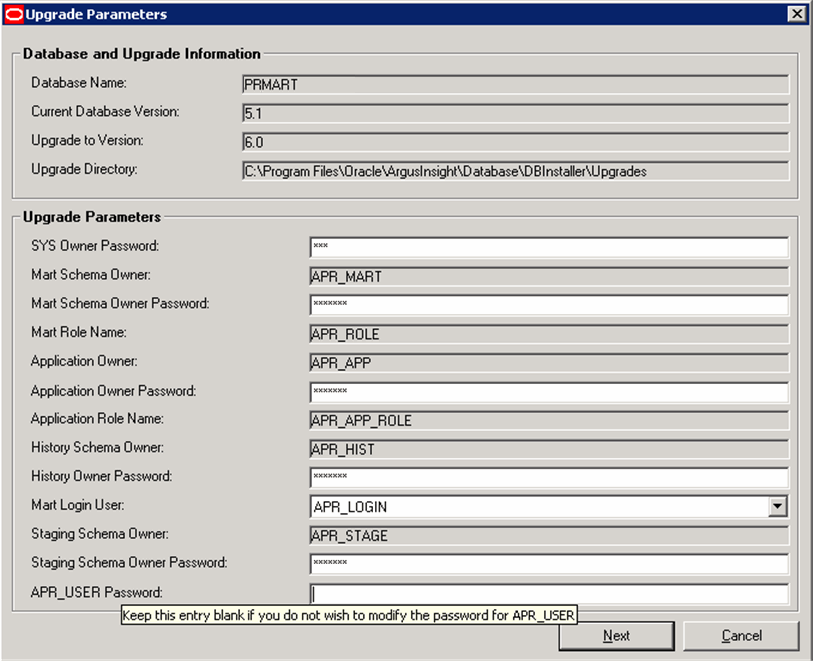

5. When the system opens the Upgrade Parameters window, enter the following information:

   1. Type passwords in the following fields:

      • SYS Owner Password

      • Mart Schema Owner Password

      • Application Owner Password

      • History Owner Password

      • Staging Schema Owner Password




        Note: As shown in the tool tip, enter the password for APR_USER only if you wish to modify it, otherwise leave this field blank.




   2.


      Click Next.

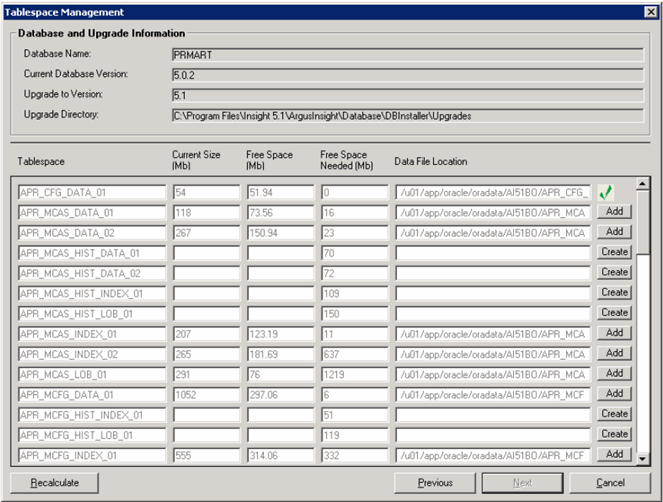

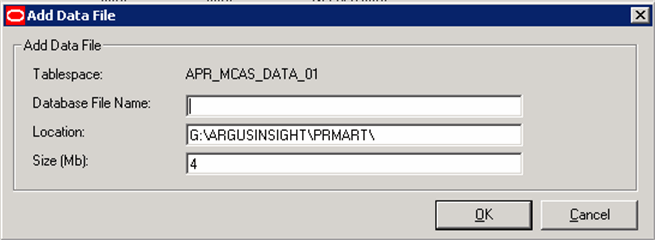

6. When the system opens the following window, click Add to add a new data file to an existing tablespace.




7. On clicking Add, the system opens the following dialog box. Enter the new data file name in the Database File Name field. Click OK.




8. Perform the above two steps to add all the tablespaces.

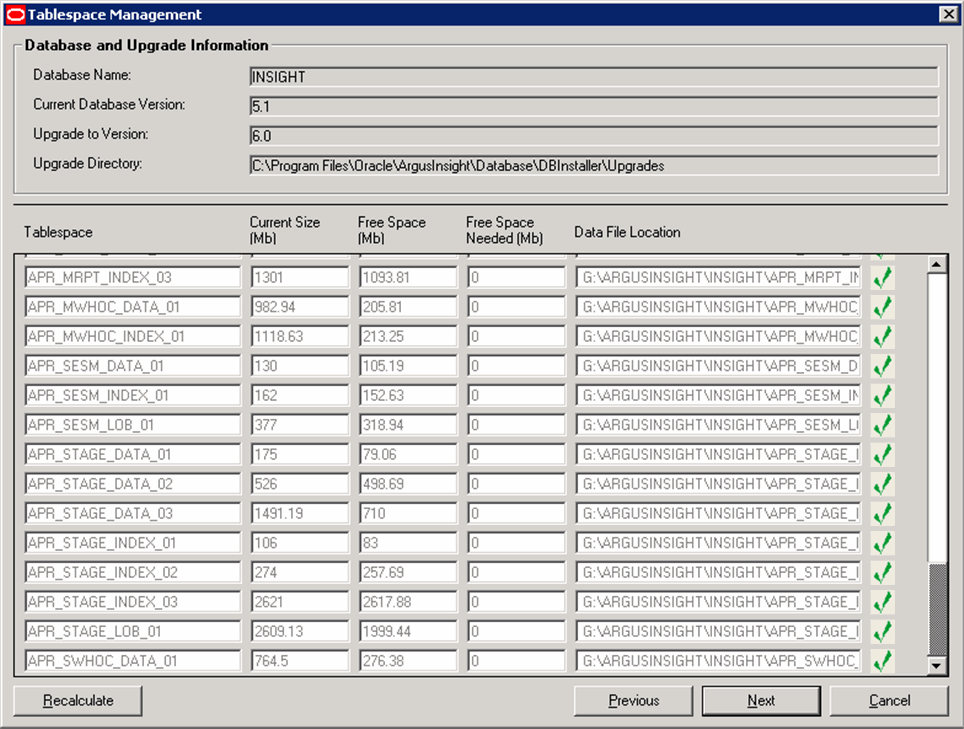

9. After adding and creating all the needed tablespaces and data files, click Next.

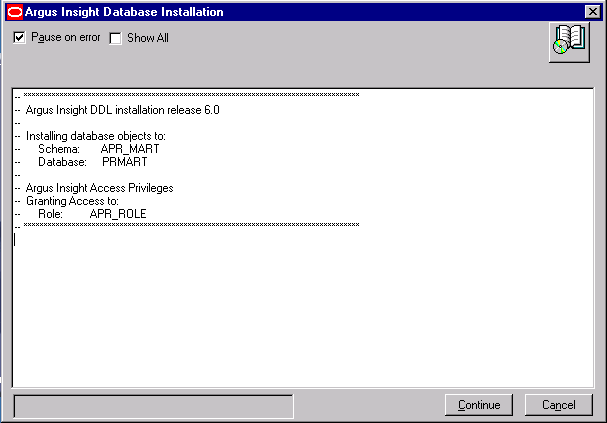

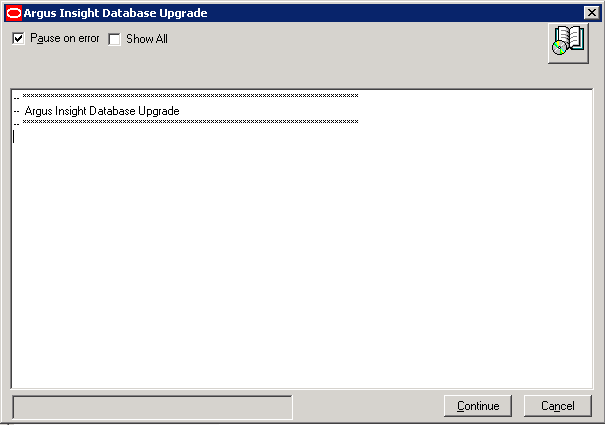

10. When the system opens the following window, click Continue to start the upgrade.




11. When the system completes the upgrade, click OK.

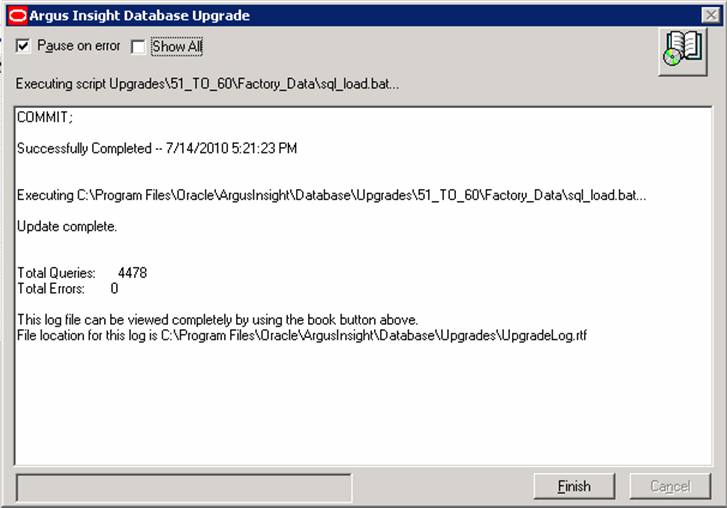

12. The system opens the following screen. Click Finish to complete the upgrade.




Note: If you have upgraded Argus Insight 6.0 using an Argus Safety version earlier than the 6.0 version, and have then upgraded Argus Safety to its 6.0 version, you need to execute the User Password Update Utility. To use this utility, click the AIPwdUpdate.exe present in the \Oracle\Database\DBInstaller folder.

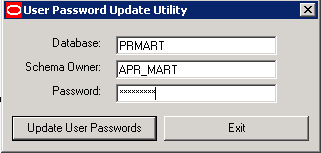

3.3.3.1 Using the User Password Update Utility

Execute the following steps if you wish to use the Upgrade utility:

1. Go to the <Insight_Install_Path>\Database\DBInstaller folder and double-click AIPwdUpdate.exe. The following screen is displayed.

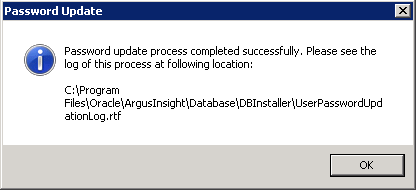

2. Enter the database name and click Update User Passwords. On successful update, the following dialog is displayed.




3. Click OK. The password process has been updated successfully.

3.4 Validate the Schema

Use the following procedure to validate the database schema:

1. Click Schema Validation to validate the schema.

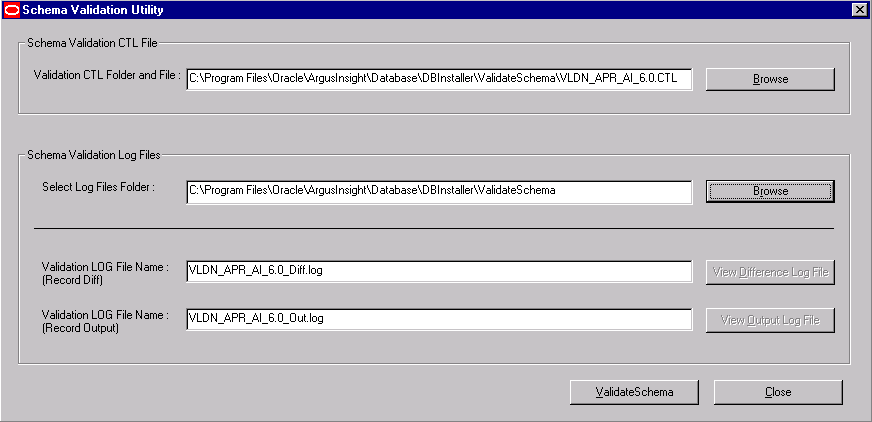

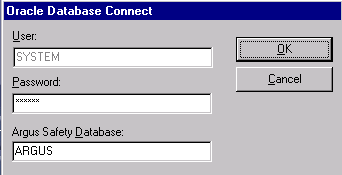

2. When the system opens the following dialog box, enter the SYSTEM password and MART instance name and click OK.

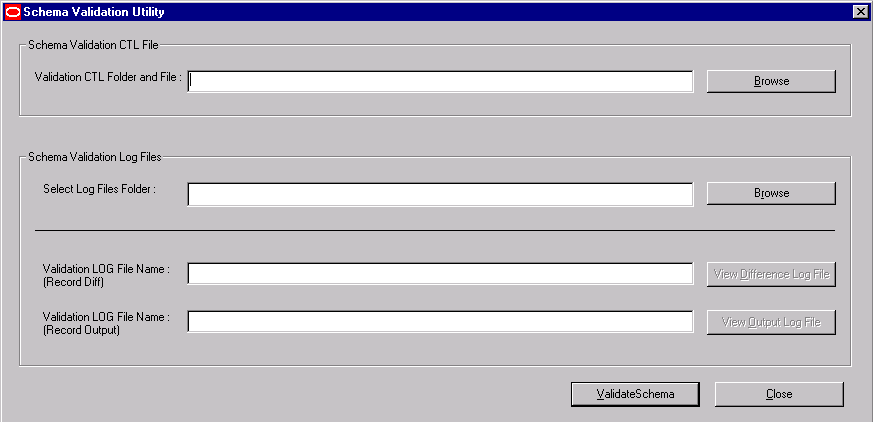

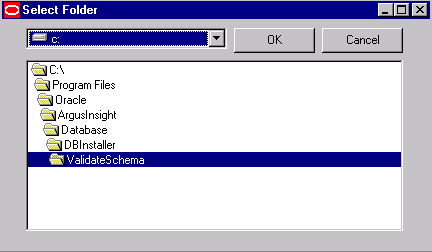

3. When the system opens the following dialog box, click Browse to the right of the Validation CTL Folder and File field.

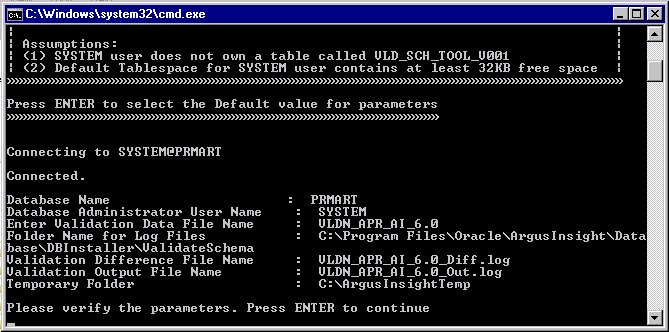

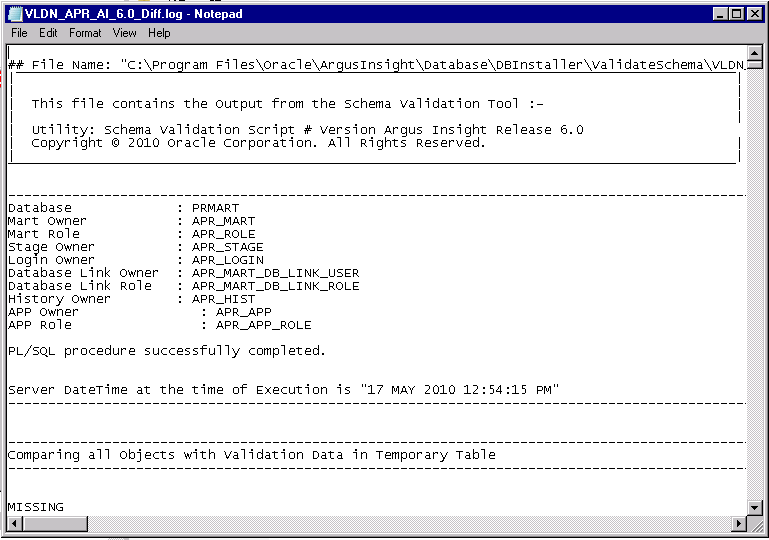

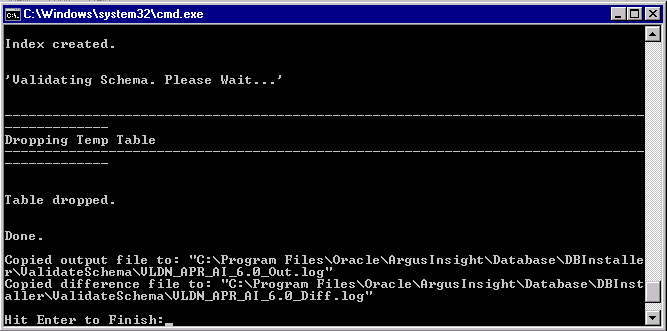

4. When the system opens the following window, select the validation CTL file. Click Open.




5. When the system redisplays the following dialog box, click Browse to the right of the Select Log Files Folder field.




6. When the system opens the following dialog box, select the Log files folder. Click OK.




7. Click Validate Schema.

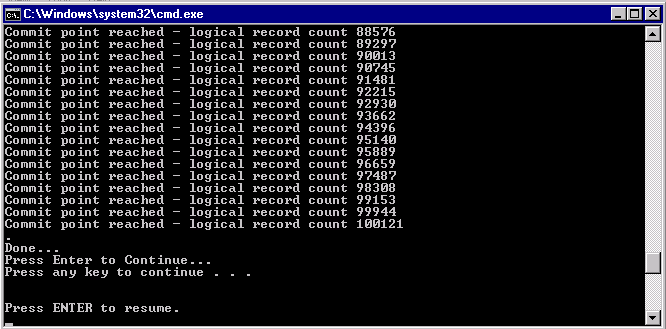

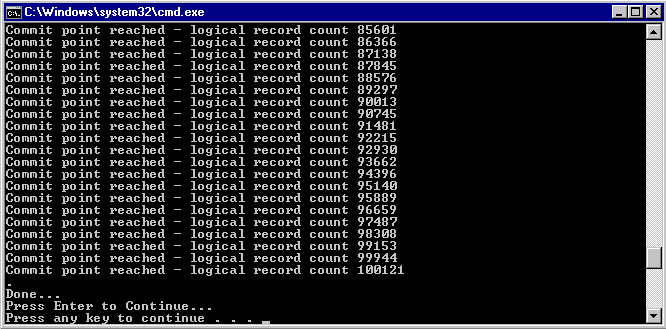

8. The system displays a series of command screens as follows. Press Enter when prompted to do so.







9. When the system opens the following dialog box, click OK.

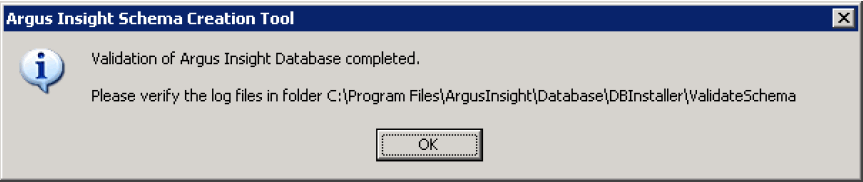

10. When the system displays the log file, verify the log file for any schema discrepancies.




3.5 Create DB Link from Argus Safety to Argus Insight Database

Use the following procedure to create the database link from the Argus Safety database to the Argus Insight database.

1. Go to Start>Programs>Oracle>Argus Insight>Schema Creation Tool.




2. Click Argus DBLink.

3. When the system opens the following dialog box, enter the information for the Argus Safety database. Click OK.

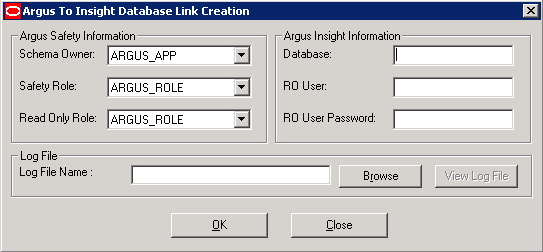

4. When the system opens the following dialog box, enter the following:




   Under Argus Safety Information:

   • Select the Argus Safety Schema Owner in the Schema Owner field.

   • Select the Argus Safety role in the Safety Role field.

   • Select the Insight_RO_Role in the Read Only Role field.

   Under Argus Insight Information:

   • Enter the name of the Argus Insight database in the Database field.

   • Enter the name of the RO user in the RO user field.

   • Enter the password for the RO user in the RO User Password field.

   • Click Browse.

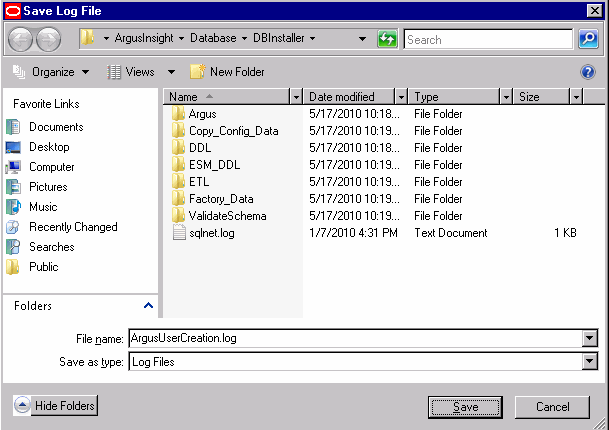

5. When the system opens the following window, select the Log File for storing the DBLink creation information. Click Save.




6. When the system returns to the following dialog box, click OK.

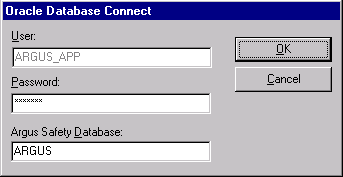

7. When the system opens the following dialog boxes:

   • Enter the ARGUS_APP database information. Click OK.




   • Enter the SYSTEM database information. Click OK.

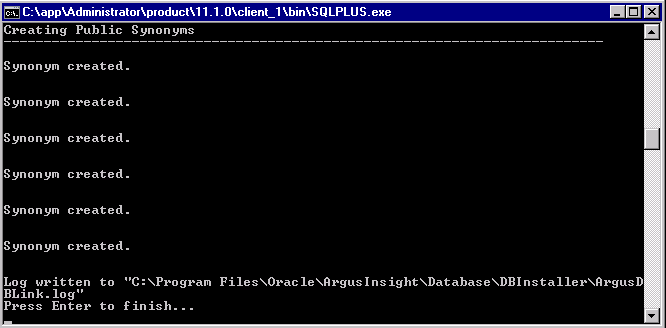

8. When the system opens the following command screen, press Enter to finish.




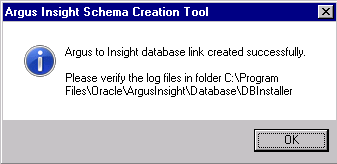

9. When the system opens the following dialog verify the log files. Click OK.
