SunScreen EFS Release 3.0 Reference Manual

Policies List Page

The Policy List page identifies the policies that have been stored for a Screen. The Policies List page allows you to add, copy, rename, verify, delete, backup, and restore your policy (see the Administration Guide for procedures). The following figure shows the Policies List page.

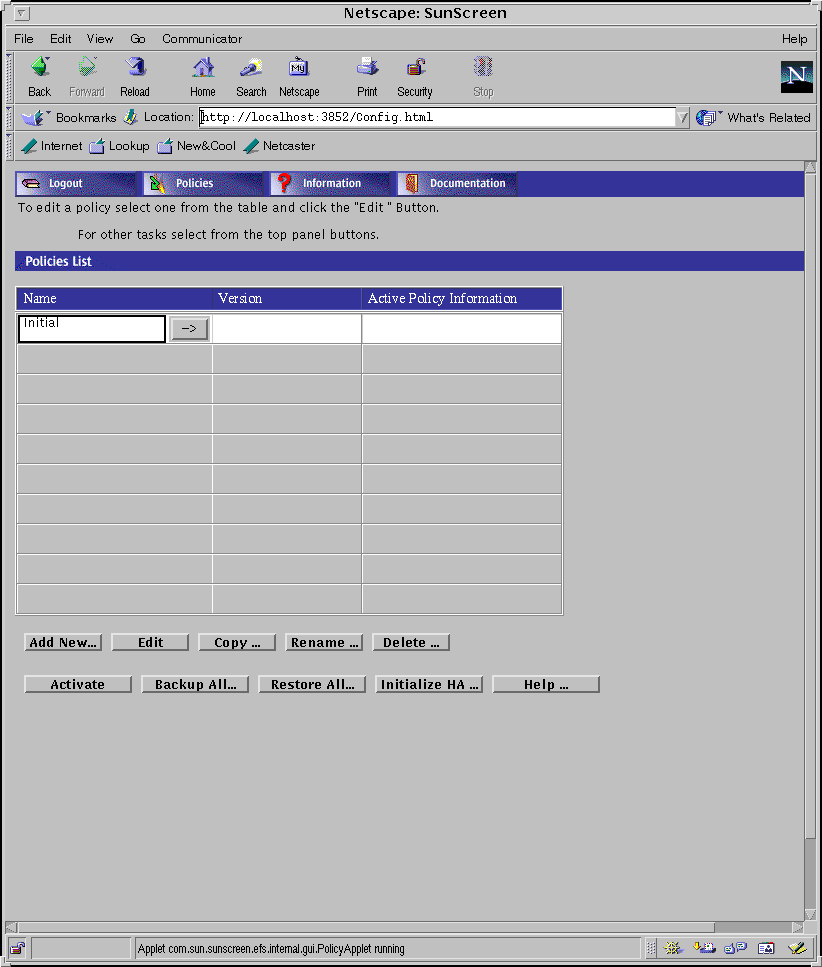

Figure 3-2 Policies List Page

Graphic

Note -

Changes made to the Policy List page take effect immediately. You cannot use the Revert Changes button to undo changes you make in this page.

The following table describes the controls available on the Policy List page.

Table 3-3 Controls on the Policy List Page

Control

Description

Policy list

Lists the policies that have been set up for your SunScreen EFS 3.0. You can manipulate Screen policies by selecting an entry in the Policy List and then clicking one of the buttons in the Policy List page.

Add New button

Opens a dialog window that prompts you for the name of the policy you want to add.

Edit button

Opens the Policy Edit page and allows you to manipulate the policy.

Copy button

Opens a dialog window that prompts you for the name of the policy to which you want to copy the information in the selected policy.

Rename button

Opens a dialog window asking for the new name you want to assign to the selected policy.

Delete button

Opens a dialog window asking you to confirm you want to delete the selected policy.

Activate button

Activates the selected policy for the Screen. After you click the Activate rule, the Config Name field in the Active Policy page turns green.

Initialize HA button

Opens the Initialize HA page.

Help button

Opens the topical help for Policy List page.

Backup All button

Opens the Backup All window, which lets you copy the SunScreen EFS 3.0 policy to a file or diskette. You cannot use the Backup All button you are using a browser whose security restrictions do not allow access to the file system from applets.

Restore All button

Opens the Restore All window, which lets you restore a SunScreen EFS 3.0 policy from a file or diskette. You cannot use the Restore All button if you are using a browser whose security restrictions do not allow access to the file system from applets.

Version -> button

Lists the different policy versions set up for your system. When you click on the Version -> button, it shows the different versions available for the selected policy, and changes to a left (<-). To remove the version information, click again and it reverts back to a right (->).
