A P P E N D I X  A
InfiniBand Cable Pin Assignments

This appendix lists the cable pin assignments for the Sun IB-Host Channel Adapter PCI-ExpressModule. It contains the following section:

Cable Pin Assignments

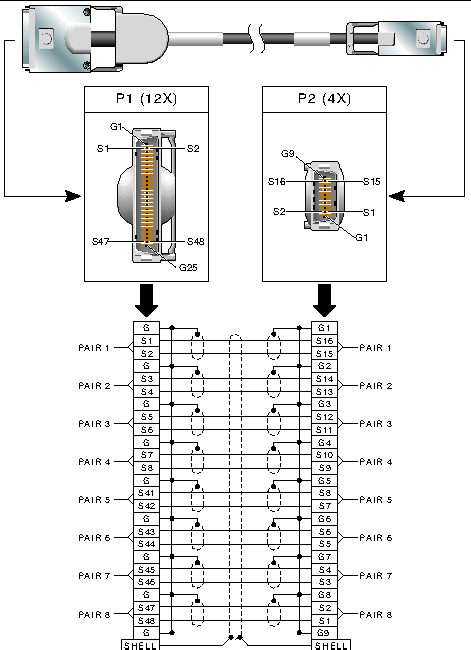

FIGURE A-1 shows the InfiniBand cable connectors and pin assignments.


FIGURE A-1 Sun 4x-to-12x InfiniBand Cable Pin Assignments

Figure shows the InfiniBand cable connectors and pin assignments
