C H A P T E R 1

Product Overview

This chapter provides an overview of the Sun Dual Port 4x IB Host Channel Adapter PCI-X card and includes the following sections:

Product Features

Hardware Description

I/O Interfaces

LED Displays

Hardware, Software, and Cable Requirements

Product Features

Sun Dual Port 4x IB Host Channel Adapter PCI-X card features include:

Dual 10 Gb/sec (4x) InfiniBand ports

Integrated serializer/deserializer (SerDes)

PCI-X Revision 2.2-compatible

64-bit or 32-bit 133 MHz PCI-X

InfiniBand Trade Association (IBTA) version 1.1 interoperability

Dual copper connectors (MicroGigaCN)

Hardware Description

The Sun Dual Port 4x IB Host Channel Adapter PCI-X card is an InfiniBand (IB) host channel adapter (HCA) card and is referred to as the IB-HCA in this manual. This adapter is a PCI-X Revision 2.2, 64-bit, 133MHz compatible card with dual 4x MicroGigaCN InfiniBand-compliant connectors for copper cables. FIGURE 1-1 shows the IB-HCA card.

The board characteristics are:

Power: approx. 12 watts total

Low profile PCI form-factor card (approx. 2.5 in. by approx. 6.7 in.)

Requires 4x InfiniBand cables

3.3V PCI-X or PCI slot (Note that the IB-HCA can not be plugged into a 5V connector.)

Link status indication LED

Two 4x InfiniBand (IB) ports

Two faceplate sizes: standard and low profile

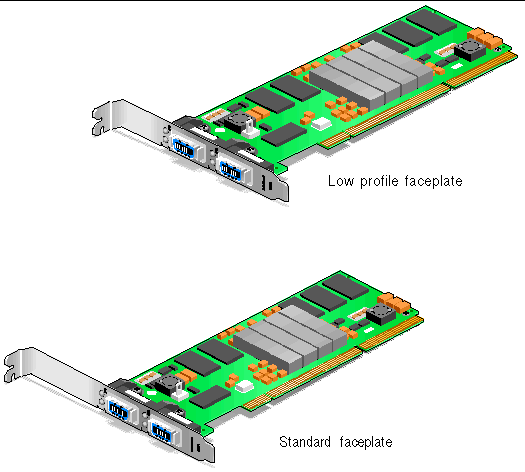

The standard PCI/PCI-X interface is used for data traffic, management traffic, and to generate and receive inbound configuration packets.FIGURE 1-1 Sun Dual Port 4x IB Host Channel Adapter PCI-X Card

Figure showing both the standard faceplate and low-profile faceplate adpaters.

I/O Interfaces

The IB-HCA includes the following interfaces:

Two 4x InfiniBand copper connectors

PCI-X 64-bit 133 MHz edge connector

InfiniBand Interface

The IB-HCA provides two 4x InfiniBand v1.1 connector (or ports) for external copper cables and is IBTA specification 1.1-compliant.

PCI-X Interface

The PCI-X bus is a PCI-X version 2.2-compliant 64-bit 133 MHz interface. The adapter can be either a master initiating the PCI bus operations or a slave responding to PCI bus operations. The PCI/PCI-X bus can connect to a host CPU in an HCA application.

LED Displays

Two InfiniBand ports connectors are located on the front panel of the adapter. Each port has two LEDs, as shown in FIGURE 1-2. An explanation of the LEDs is given in TABLE 1-1.

TABLE 1-1 IB-HCA LEDs
Color	Meaning
Green	Physical Link - The physical link LED illuminates once the Tavor driver is successfully attached to the port.
Amber	Logical Link - The logical link LED illuminates once the InfiniBand port is in the Up state. This LED also blinks when there is traffic on the port.

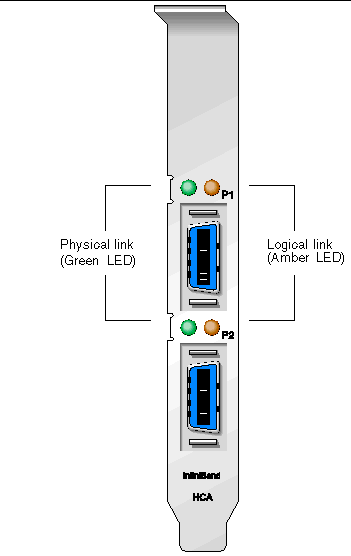

FIGURE 1-2 LED Layout

Figure showing the adapter faceplate with 2 ports and 4 LEDs, 2 per port. [ D ]

Hardware, Software, and Cable Requirements

The hardware, software, and cable requirements for the Sun Dual Port 4x IB Host Channel Adapter PCI-X card are listed in TABLE 1-2.

TABLE 1-2 Hardware , Software , and Cable Requirements
Operating System	Servers
Solaris 10 SPARC	Sun Fire V240, V440, V490, V890, V1280, E2900, E4900, E6900, E20K, E25K
Solaris 10 X86	Sun Fire V20z, V40z
InfiniBand Switch
X3152A	Sun InfiniBand Switch P9
Diagnostics Version
	SunVTS Version 6.0 Patch Set 1 and subsequent compatible releases
Supported Cables
X9280A X9281A	Sun 4x-to-12x InfiniBand cable, 2 meter length Sun 4x-to-12x InfiniBand cable, 5 meter length Note: Use only supported cables to ensure reliable InfiniBand interface connections. These cables can be ordered from Sun Microsystems, Inc.
