SCI Switch Status LED Locations

Clusters with three or four nodes can be connected through one or two SCI switches. The switch status LEDs provide information that can be used to troubleshoot SCI switch failures (Figure 6-1). Guidelines for interpreting these LEDs are provided in "Port Status LEDs"" and "General Switch Status LED".

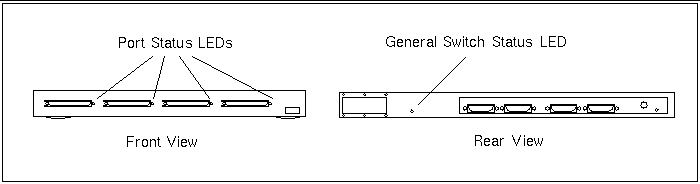

Figure 6-1 SCI Status LED Locations
