C H A P T E R 2 - Fundamental Concepts

C H A P T E R 2

Fundamental Concepts

This chapter summarizes a few basic concepts that you should understand to get the most out of Sun's HPC ClusterTools software. It contains the following sections:

Clusters and Nodes

Partitions

Load Balancing

Processes

Jobs

How the CRE Environment Is Integrated With Distributed Resource Management Systems

How Distributed Resource Managers Work

How CRE Works With Zones in the Solaris 10 Operating System

Clusters and Nodes

High performance computing clusters ^[1] are groups of Sun SMP servers interconnected by any Sun-supported, TCP/IP-capable interconnect. Each server in a cluster is called a node.

Note - A cluster can consist of a single SMP server. However, to execute MPI jobs on even a single-node cluster, Sun Cluster Runtime Environment (CRE) must be running on that cluster.

When using CRE, you can select the cluster and nodes on which your MPI programs will run and how your processes will be distributed among them. For instructions, see Chapter 4, "Running Programs With mprun."

Partitions

You can group a cluster's nodes into partitions. Partitions let you run different jobs simultaneously on different subsets of the cluster. You can also use partitions to create groups of nodes with similar characteristics such as memory size, CPU count, or I/O support, so you can target jobs that benefit from those characteristics.

Note - Sun servers can be configured into "logical nodes," called domains. You can also group these domains into CRE partitions. For more information about domains, refer to the documentation that came with your Sun Fire hardware.

You can define multiple partitions within a cluster.

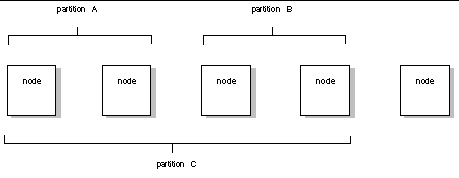

FIGURE 2-1 Defining Multiple Partitions Within a Cluster

Graphic image depicting the organization of partitions within a cluster

Partitions do not have to include every node in the cluster. Nodes that are not included in any partition are called independent or free-floating nodes.

A single node can be included in more than one partition. However, two partitions with overlapping nodes cannot run jobs simultaneously. Only one of them can be enabled at a time. In the example above, partitions A and B can run jobs simultaneously with each other, but not with partition C.

How Partitions Are Enabled and Selected

A job can run only on a partition that has been enabled. Normally, the system administrator who manages the cluster enables and disables partitions (for more information, see the Sun HPC ClusterTools Software Administrator's Guide).

To find out which partitions are currently enabled, use the -P option to the mpinfo command, as described in To Display Information About All Partitions (-P).

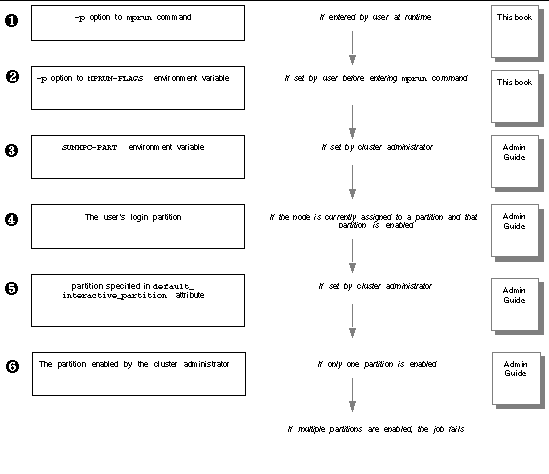

If only one partition is enabled, all jobs must run on that partition. If multiple partitions are enabled, where your particular job runs depends upon which environment variables the cluster administrator set and which options to the mpruncommand you entered. To determine the partition, CRE steps through the criteria shown in FIGURE 2-2, in order.FIGURE 2-2 CRE Partitio n Selection Criteria

Graphic image depicting CRE's partition selection criteria.

Load Balancing

CRE load-balances programs when more CPUs are available than are required for a job. When you issue the mprun command to start a job, CRE first determines what criteria (if any) you have specified for the node or nodes on which the program is to run. It then determines which nodes within the partition meet these criteria. If more nodes meet the criteria than are required to run your program, CRE starts the program on the node or nodes that are least loaded. It examines the one-minute load averages of the nodes and ranks them accordingly.

This load-balancing mechanism ensures that your program's execution will not be unnecessarily delayed because it was placed on a heavily loaded node. It also ensures that some nodes do not sit idle while other nodes are heavily loaded, which keeps the overall throughput of the partition as high as possible.

Processes

When a serial program executes on a Sun HPC cluster, it becomes a Solaris process with a Solaris process ID, or PID. When CRE executes a distributed message-passing program it spawns multiple Solaris processes, each with its own PID.

CRE allows you to control several aspects of jobs and process execution, such as:

Number of processes per job

Process spawning

Mapping processes to nodes

For tasks and instructions, see Chapter 4.

Jobs

CRE assigns a job ID, or jid, to a program. In an MPI job, the jid applies to the overall job. Many CRE commands take jids as arguments. CRE provides a variety of information about jobs. To find out how to obtain that information, see Chapter 7.

How the CRE Environment Is Integrated With Distributed Resource Management Systems

As described in Chapter 1, the ClusterTools 6 environment provides close integration between CRE and three different DRM systems:

SGE/SGEE/N1GE

The integration process is similar for all three, with some individual differences. The DRM system, whether SGE, LSF, or PBS, launches the job through a script. The script calls mprun, and passes it a host file of the resources that have been allocated for the job, plus the job ID assigned by the DRM system.

Graphic image depicting communications between DRMs and CRE.

The CRE environment continues to perform most of its normal parallel-processing actions, but its child processes do not fork any executable programs. Instead, each child process identifies a communications channel (specifically, a listen query socket) through which it can be monitored by the CRE environment while running in the DRM system.

You can also invoke a similar process interactively, without a script. Instructions for script-based and interactive job launching are provided in Chapter 5.

How Programs Are Launched

The exact instructions vary from one resource manager to another, and are affected by CRE's configuration, but they all follow these general guidelines:

1. You can launch the job either interactively or through a script. Instructions for both are provided in Chapter 5 and the following man pages:

lsf_cre(1)

pbs_cre(1)

sge_cre(1)

2. Enter the DRM processing environment before launching jobs with mprun.

3. Reserve resources for the parallel job and set other job control parameters from within their resource manager.

4. Invoke the mprun command with the applicable resource manager flags. Those flags are described in Chapter 5 and the mprun(1) manpage.

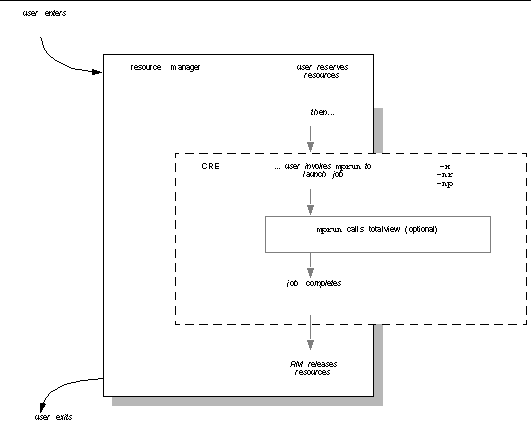

Here is a diagram that summarizes the user interaction:

Graphic image depicting the pattern of user interaction with DRMs and CRE.

How Distributed Resource Managers Work

If you are using a Distributed Resource Manager (DRM) such as Sun Grid Engine, PBS, or LSF for resource management, all Sun HPC ClusterTools jobs are handled by the DRM's Batch system. Consequently, Sun HPC ClusterTools job submission involves the following:

When a Sun HPC ClusterTools job is submitted, it is placed in a job queue, running interactively.

These queues are created by the system administrator. Each queue is defined by a set of job-start criteria, called job-scheduling policies. These policies can be specified by the administrator, or default queue policies can be used.

If a job has particular resource requirements and if a particular queue's job-scheduling policies meet those requirements, you can specify that the job be placed on that queue. If a job does not require special execution conditions, you can leave the choice of queue to the DRM's Batch system.

The job waits in its queue until it reaches the head of the queue and the cluster is able to satisfy the job scheduling policies of that queue. At that point the job is started.

For further information about using DRMs with CRE, see the man pages sge_cre.1, pbs_cre.1, and lsf_cre.1.

How CRE Works With Zones in the Solaris 10 Operating System

The Solaris 10 Operating System (Solaris 10 OS) allows you to create secure, isolated areas within a single instance of the Solaris 10 OS. These areas, called zones, provide secure environments for running applications. Applications that execute in one zone cannot monitor or affect activity in another zone. You can create multiple non-global zones to run as virtual instances of the Solaris OS on the same hardware.

The global zone is the default zone for the Solaris system. You install Sun HPC ClusterTools software into the global zone. However, any non-global zones running under that Solaris system cannot "inherit" that installation, and installing HPC ClusterTools into an individual non-global zone is not supported. This means that you must install and configure HPC ClusterTools in the global zone only, though you may compile/run/debug in either a global or a non-global zone.

^{1 (Footnote) SunCluster is a completely different technology used for high availability (HA) applications.}
