Sun XVR-2200 and XVR-2400 Graphics Accelerator Test (graphicstest)

graphicstest verifies the functionality of XVR-2200 and XVR-2400 frame buffers. Test accuracy is checked using direct image comparison against compressed images. Failed pixel locations are printed as error messages.

Caution - Do not run any other application or screen saver program that uses the framebuffer's accelerator port while running graphicstest. This combination causes SunVTS to return incorrect errors.

Test Requirements

Disable all screen savers before testing any graphics device. To disable the Solaris screen saver, type the following at a UNIX prompt:

# xset s off

To turn Display Power Management off, type the following at a UNIX prompt:

# xset -dpms

The display resolution must be 1280x1024. To change resolution, go to a UNIX prompt and type:

# fbconfig -res 1280x1024x76

For full instructions on testing frame buffers, see Testing Frame Buffers.

Test Preparation

Perform the steps in this section prior to performing graphicstest to ensure the test runs as smoothly as possible.

1. You must run graphicstest through the SunVTS user interface. The window system (such as CDE or GNOME) must be running on the XVR-2200 or XVR-2400, and the window system must be setup to run in 24-bit mode (the default depth for XVR-2200 and XVR-2400).

2. Turn Power Management off, if it is enabled. See Test Requirements.

3. Verify that no other program is running that might modify the screen during the test.

4. Verify you have permission to lock the X server. graphicstest is designed to lock the X server during testing to prevent screen changes.

5. Verify that the CDE login window is not displayed during testing.

6. Verify that the window system is running on one frame buffer only.

`graphicstest` Options

To reach the dialog box below, right-click on the test name in the System Map and select Test Parameter Options. Because graphics test can test multiple types of frame buffers, the test name that is displayed will correspond to the particular framebuffer being tested. If you do not see this test in the System Map, you might need to expand the collapsed groups, or your system may not include the device appropriate to this test. Refer to the SunVTS User's Guide.

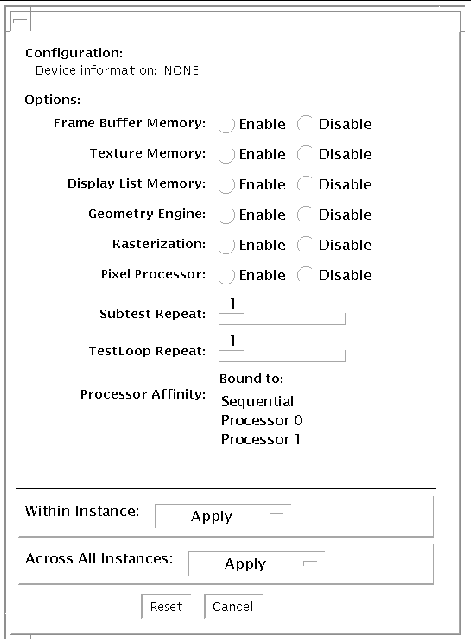

By default, all graphicstestoptions are enabled. FIGURE 5-1 graphicstest jfb0 Test Parameter Options Dialog Box

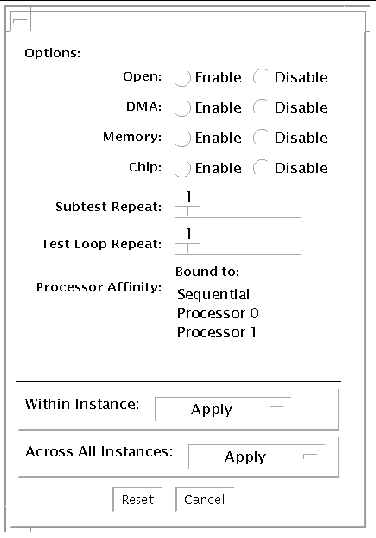

FIGURE 5-2 graphicstest kfb0 Test Parameter Options Dialog Box

TABLE 5-1 `graphicstest` Options
Options	Description
Open test	The open test verifies that the graphics device can be correctly opened. First the device is opened with an open system call. Next the register and framebuffer regions are mapped into the virtual address space of the test process. Next a subset of the read/write resisters are written to and read back from to verify that the register region was correctly mapped. Next selected areas of the framebuffer are written to and read back from to see if the the framebuffer was correctly mapped. This test takes little time and no progress is displayed.
Memory test	The memory tests verifies that all the memory on the graphics card is working. The test opens the device, allocates all the device memory, and then writes to it using DMA or programmed I/O. The test then reads back the values from memory and checks to see if the correct values were read back.
DMA test	The DMA test verifies that the DMA engine on the device is functioning. The test writes data to an area of the frame buffer using DMA, then reads back the same area using programmed I/O and checks if the values are correct. The second part of the test writes data into the framebuffer and reads it back using the DMA engine and checks to see if the correct values were read back.
Chip Test	The chip test exercises the graphics chip on the board to see if it is functioning correctly. The chip test exercises the main data paths through the graphics chip. Commands are sent to the graphics board to initiate a graphics program. Once the program has run the results are read from the frame buffer to verify if they are correct.

`graphicstest` Test Modes

Due to the nature of graphic tests, reading data from, or writing data to the frame buffer during graphic tests will disturb user operation. For this reason, graphicstest is only available in offline Functional test mode.

TABLE 5-2 `graphicstest` Supported Test Modes
Test Mode	Description
Functional	Performs the entire set of tests offline.

`graphicstest` Command-Line Syntax

/opt/SUNWvts/bin/sparcv9/graphicstest standard_arguments -o [[dev=device_name] [open=Enable/Disable] [dma=Enable/Disable] [mem=Enable/Disable] [chip=Enable/Disable] [B=n] [F=n] [S=value]]

TABLE 5-3 `graphicstest` Command-Line Syntax
Argument	Description
`dev=`device_name	device_name is the relative path name of the device being tested with respect to `/dev/fbs`. There is no default.
`open=`Enable/Disable	Enables or disables the open test. Default is enable.
`dma=`Enable/Disable	Enables or disables the dma test. Default is enable.
`mem=`Enable/Disable	Enables or disables the memory test. Default is enable.
`chip=`Enable/Disable	Enables or disables the chip test. Default is enable.
`B=`n	Defines times to repeat each test loop Default is one.
`F=`n	Defines the number of times to repeat each subtest. Default is one.
`S=`value	Sets a bit mask to select which subtests will be used. Bit 1, test open Bit 2, test dma Bit 3, test mem Bit 4, test chip For example `-o S=3` would run the open and dma tests only. The default is to run all tests

Note - 64-bit tests are located in the /bin/64 directory, or the relative path in which you installed SunVTS. If a test is not present in this directory, then it might be available as a 32-bit test only. For more information, see 32-Bit and 64-Bit Tests.
