Low-Level PMI
The Solstice EM Portable Management Interface (PMI) provides a low-level Common Management Information Server (CMIS)-like, distributed, transport-independent interface for application programs. CMIS-like messages are sent and received across this interface. These messages are routed to and from the Message Routing Module (MRM) component of the Management Information Server (MIS).
This chapter comprises the following topics:
- Section 4.1 Communication Path
- Section 4.2 Root Classes for the Low-Level PMI
- Section 4.3 Low-Level PMI Classes
- Section 4.69 Constants and Defined Types
4.1 Communication Path
The Low-Level PMI uses paired sets of Transport-Independent and Transport-Dependent Service Access Points (SAPs) to provide a communication path between an application and the MRM. The set of paired SAPs use the transport mechanism specified by the transport dependent SAP to pass messages between SAPs (between an application and the MRM). Each set of SAPs normally resides in separate Unix processes. Solstice EM currently uses a CMIS-like protocol over the Lightweight Presentation Protocol (LPP) and TCP/IP to pass messages between the paired SAPs.

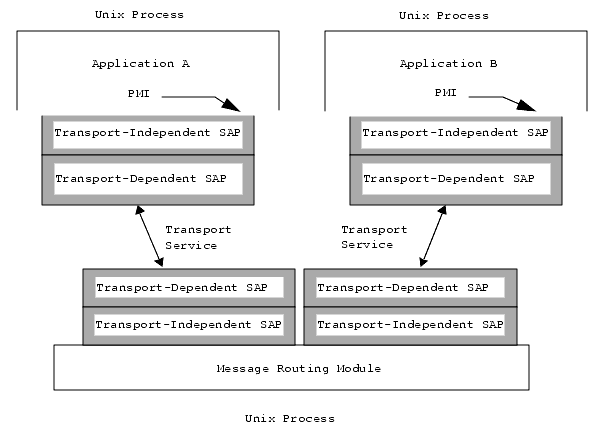

FIGURE 4-1 shows how the Low-Level PMI communicates between applications and the MRM.
FIGURE 4-1 Applications to MRM Communication4.2 Root Classes for the Low-Level PMI
The root classes for the Low-Level PMI include:
- Message Class
- MessageSAP Class
- MessScope Class
In addition, the Asn1Value and DataUnit classes are common base classes.
The data contained in the class structures based on Message class and defined in the /opt/SUNWconn/em/include/pmi/message.hh file are primarily based on the Asn1Value class, defined in asn1_val.hh. The Asn1Value class in turn relies on structures and methods defined in the DataUnit class, defined in du.hh.
4.3 Low-Level PMI Classes
4.3.1 Class Inheritance
The Message class is the base class used by almost all messages passed between SAPs and the PMI. The messages contained in the message.hh file largely define the syntax of the low-level usage of the PMI.
A number of CMIS-like messages are subclasses of the Message class. The three primary types of messages are:
- Request messages
- Response messages
- Error response messages
Solstice EM CMIS messages are derived from Message, the base message class. It contains data that is common to every type of message sent via a MessageSAP interface. All of the other base message classes derive either directly or indirectly from the Message class. You should never instantiate this class, only derive other classes from it.
Other base message classes contain a parameter or set of parameters that are commonly used together in more than one Solstice EM CMIS message. Some messages commonly use more than one set of parameters and therefore, some of the base message classes are combinations of other base message classes formed via inheritance. The parameters that are included in the base message classes include only those parameters that are used by the Message Routing Module (MRM) to perform scoping, filtering, access control, and synchronization.
Note – Each of the classes derived from the Message class relies on the ISO specifications of the CMIP protocol and ASN.1 data encoding.

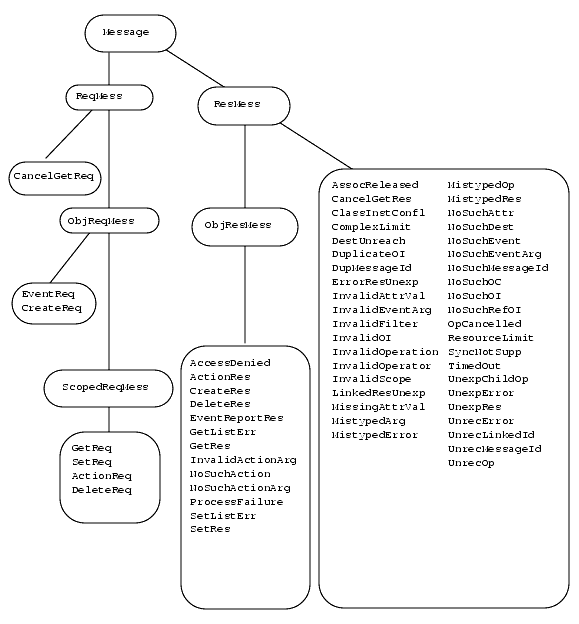

FIGURE 4-2 shows the inheritance hierarchy for the classes based on Message:
FIGURE 4-2 Inheritance Tree of the Message Class
4.3.2 Class Summary
TABLE 4-1 lists the Low-Level PMI classes.
4.4 AccessDenied Class
Inheritance: public ObjResMess, public ResMess, public Message, public QueueElem
Method Types: No public member functions are declared in this class.
In addition to the functions or variables it inherits, the AccessDenied class adds an Asn1Value parameter to store a current time. The oc, oi, and curr_time members are only defined when returning an error from a scoped ACTION_REQ or DELETE_REQ.
TABLE 4-2 lists the AccessDenied public data member.
TABLE 4-2 AccessDenied Public Data Member Asn1Value curr_time An optional parameter specifying the time that this response message was generated.
4.4.1 Constructor
The constructor for AccessDenied takes no parameters. It initializes its parent class.
4.5 ActionReq Class
Inheritance: public ScopedReqMess, public ObjReqMess, public ReqMess, public Message
Method Types: No public member functions are declared in this class.
An instance of ActionReq serves as a repository for information identifying an action request message.
TABLE 4-3 lists the ActionReq public data members.
4.5.1 Constructor
The constructor for ActionReq takes no parameters and does nothing more than initialize its parent classes.
4.6 ActionRes Class
Inheritance: public ObjResMess, public ResMess, public Message, public QueueElem
Method Types: No public member functions are declared in this class.
In addition to the functions or variables it inherits, the ActionRes class adds three Asn1Value parameters to store a current time, an action type, and some action reply information.
TABLE 4-4 lists the ActionRes public data members.
4.6.1 Constructor
The constructor for ActionRes takes no parameters. It only initializes its parent classes.
4.7 AssocReleased Class
Inheritance: public ResMess, public Message, public QueueElem
Method Types: No public member functions are declared in this class.
The AssocReleased class defines no functions or variables beyond those it inherits. The error message that this class represents is patterned after the ROSE error message initiator-releasing. The usage of this message is described in detail in the documentation covering the ROSE protocol. It is used within the Solstice EM MIS to indicate that a request could not be serviced because the association on which that request was received is either about to or has already gone away.
4.7.1 Constructor
This constructor takes no parameters. It initializes its parent classes.
4.8 CancelGetReq Class
Inheritance: public ReqMess, public Message, public QueueElem
Method Types: No public member functions are declared in this class.
In addition to the functions or variables it inherits, the CancelGetReq class adds a MessId parameter. This parameter specifies the ID of the CMIS Get request that is being cancelled by this request.
TABLE 4-5 lists the CancelGetReq public variable.
TABLE 4-5 CancelGetReq Public Variable MessId get_id The ID of the CMIS Get request that is being cancelled by this request
4.8.1 Constructor
This constructor takes no parameters. It only initializes its parent classes.
4.9 CancelGetRes Class
Inheritance: public ResMess, public Message, public QueueElem
Method Types: No public member functions are declared in this class.
The CancelGetRes object class contains all of the member variables and member functions that are present in the classes it has derived from, whether directly or indirectly. No additional parameters are available for this response message.
4.9.1 Constructor
This constructor takes no parameters. It only initializes its parent classes.
4.10 ClassInstConfl Class
Inheritance: public ResMess, public Message, public QueueElem
Method Types: No public member functions are declared in this class.
In addition to the functions or variables it inherits, the ClassInstConfl class adds two Asn1Value parameters to store an object class and an object instance.
TABLE 4-6 lists the ClassInstConfl public data members.
4.10.1 Constructor
This constructor takes no parameters. It only initializes its parent classes.
4.11 CreateReq Class
Inheritance: public ObjReqMess, public ReqMess, public Message, public QueueElem
Method Types: No public member functions are declared in this class.
In addition to the functions or variables it inherits, the CreateReq class adds four Asn1Value parameters to store a superior object instance, access control information, a reference object instance, and an attribute list.
TABLE 4-7 lists the CreateReq public data members.
4.11.1 Constructor
This constructor takes no parameters. It initializes its parent classes and its internal data.
4.12 CreateRes Class
Inheritance: public ObjResMess, public Message, public QueueElem
Method Types: No public member functions are declared in this class.
In addition to the functions or variables it inherits, the CreateRes class adds two Asn1Value parameters to store a current time and an attribute list.
TABLE 4-8 lists the CreateRes public data members.
4.12.1 Constructor
This constructor takes no parameters. It initializes its parent classes.
4.13 DeleteReq Class
Inheritance: public ScopedReqMess, public ObjReqMess, public ReqMess, public Message, public QueueElem
Method Types: No public member functions are declared in this class.
The DeleteReq object class contains all of the member variables and member functions that are present in the classes that it has derived from, either directly or indirectly. It does not add any parameters other that those that it inherits.
4.13.1 Constructor
This constructor takes no parameters. It only initializes its parent classes.
4.14 DeleteRes Class
Inheritance: public ObjResMess, public ResMess, public Message, public QueueElem
Method Types: No public member functions are declared in this class.
In addition to the functions or variables it inherits, the DeleteRes class adds an Asn1Value parameter to store a current time.
TABLE 4-9 lists the DeleteRes public data member.
TABLE 4-9 DeleteRes Public Data Member Asn1Value curr_time An optional parameter specifying the time that this response message was generated
4.14.1 Constructor
This constructor takes no parameters. It only initializes its parent classes.
4.15 DuplicateOI Class
Inheritance: public ResMess, public Message, public QueueElem
Method Types: No public member functions are declared in this class.
In addition to the functions or variables it inherits, the DuplicateOI class adds an object instance parameter.
TABLE 4-10 lists the DuplicateOI public variable.
4.15.1 Constructor
This constructor takes no parameters. It only initializes its parent classes.
4.16 DupMessageId Class
Inheritance: public ResMess, class Message, class QueueElem
Method Types: No public member functions are declared in this class.
The DupMessageId object class contains all of the member variables and member functions that are present in the classes that it has derived from, either directly or indirectly. This class defines no functions or variables beyond those it inherits. The error message that this class represents is patterned after the ROSE error message duplicate-invocation.
4.16.1 Constructor
This constructor takes no parameters. It only initializes its parent classes.
4.17 ErrorResUnexp Class
Inheritance: public ResMess, public Message, public QueueElem
Method Types: No public member functions are declared in this class.
The ErrorResUnexp object class contains all of the member variables and member functions that are present in the classes that it has derived from, either directly or indirectly. This class defines no functions or variables beyond those it inherits. The error message that this class represents is patterned after the ROSE error message error-response-unexpected. It is used to indicate that an error message was generated in response to a non-confirmed request.
4.17.1 Constructor
This constructor takes no parameters. It only initializes its parent classes.
4.18 EventReq Class
Inheritance: public ObjReqMess, public ReqMess, public Message, public QueueElem
Method Types: No public member functions are declared in this class.
In addition to the functions or variables it inherits, the EventReq class adds three Asn1Value parameters to store an event type, an event time, and some event information.
TABLE 4-11 lists the EventReq public data members.
4.18.1 Constructor
This constructor takes no parameters. It only initializes its parent classes.
4.19 GetListErr Class
Inheritance: public ObjResMess, public Message, public QueueElem
Method Types: No public member functions are declared in this class.
In addition to the functions or variables it inherits, the GetListErr class adds two Asn1Value parameters to store a current time and a get an information list.
TABLE 4-12 lists the GetListErr public data members.
4.19.1 Constructor
This constructor takes no parameters. It only initializes its parent classes.
4.20 GetReq Class
Inheritance: public ScopedReqMess, public ObjReqMess, public ReqMess, public Message, public QueueElem
Method Types: No public member functions are declared in this class.
In addition to the functions or variables it inherits, the GetReq class adds an attribute ID list parameter.
TABLE 4-13 lists the GetReq public variable.
TABLE 4-13 GetReq Public Variable Asn1Value attr_id_list A list of attribute IDs whose attribute values are to be returned in the response to this Get request.
4.20.1 Constructor
This constructor takes no parameters. It only initializes its parent classes.
4.21 GetRes Class
Inheritance: public ObjResMess, public ResMess, public Message, public QueueElem
Method Types: No public member functions are declared in this class.
In addition to the functions or variables it inherits, the GetRes class adds two ASN1Value parameters to store a current time and an attribute list.
TABLE 4-14 lists the GetRes public data members.
4.21.1 Constructor
This constructor takes no parameters. It only initializes its parent classes.
4.22 InvalidActionArg Class
Inheritance: public ResMess, public Message, public QueueElem
Method Types: No public member functions are declared in this class.
In addition to the functions or variables it inherits, the InvalidActionArg class adds two Asn1Value parameters to store a current time and some action information. There are two choices defined for the invalidArgument error message and this class defines the actionValue choice (first of the two). The oi and curr_time members are only defined when returning an error from a scoped ACTION_REQ.
TABLE 4-15 lists the InvalidActionArg public data members.
4.22.1 Constructor
This constructor takes no parameters. It only initializes its parent classes.
4.23 InvalidAttrVal Class
Inheritance: public ResMess, public Message, public QueueElem
Method Types: No public member functions are declared in this class.
In addition to the functions or variables it inherits, the InvalidAttrVal class adds an attribute parameter.
TABLE 4-16 lists the InvalidAttrVal public variable.
TABLE 4-16 InvalidAttrVal Public Variable Asn1Value attr This is the invalid attribute that caused the generation of this error message.
4.23.1 Constructor
This constructor takes no parameters. It only initializes its parent classes.
4.24 InvalidEventArg Class
Inheritance: public ResMess, public Message, public QueueElem
Method Types: No public member functions are declared in this class.
In addition to the functions or variables it inherits, the InvalidEventArg class adds three Asn1Value parameters to store an object class, event type, and some event information. There are two choices defined for the invalidArgument error message and this class defines the eventValue choice (second of the two).
TABLE 4-17 lists the InvalidEventArg public data members.
4.24.1 Constructor
This constructor takes no parameters. It only initializes its parent classes.
4.25 InvalidFilter Class
Inheritance: public ResMess, public Message, public QueueElem
Method Types: No public member functions are declared in this class.
In addition to the functions or variables it inherits, the InvalidFilter class adds a filter parameter.
TABLE 4-18 lists the InvalidFilter public variable.
TABLE 4-18 InvalidFilter Public Variable Asn1Value filter The filter that was invalid and caused the generation of this error message.
4.25.1 Constructor
This constructor takes no parameters. It only initializes its parent classes.
4.26 InvalidOI Class
Inheritance: public ResMess, public Message, public QueueElem
Method Types: No public member functions are declared in this class.
In addition to the functions or variables it inherits, the InvalidOI class adds an object instance parameter.
TABLE 4-19 lists the InvalidOI public variable.
TABLE 4-19 InvalidOI Public Variable Asn1Value oi The invalid object instance that caused the generation of this error message.
4.26.1 Constructor
This constructor takes no parameters. It only initializes its parent classes.
4.27 InvalidOperation Class
Inheritance: public ResMess, public Message, public QueueElem
Method Types: No public member functions are declared in this class.
The InvalidOperation object class contains all of the member variables and member functions that are present in the classes that it has derived from, either directly or indirectly. This class defines no functions or variables beyond those it inherits.
4.27.1 Constructor
This constructor takes no parameters. It only initializes its parent classes.
4.28 InvalidOperator Class
Inheritance: public ResMess, public Message, public QueueElem
Method Types: No public member functions are declared in this class.
In addition to the functions or variables it inherits, the InvalidOperator class adds a modify operator parameter.
TABLE 4-20 lists the InvalidOperator public variable.
TABLE 4-20 InvalidOperator Public Variable Asn1Value mod_op The invalid modify operator that was specified in a Set request and thus caused the generation of this error message.
4.28.1 Constructor
This constructor takes no parameters. It only initializes its parent classes.
4.29 InvalidScope Class
Inheritance: public ResMess, public Message, public QueueElem
Method Types: No public member functions are declared in this class.
In addition to the functions or variables it inherits, the InvalidScope class adds a scope parameter.
TABLE 4-21 lists the InvalidScope public variable.
TABLE 4-21 InvalidScope Public Variable MessScope scope The invalid scope parameter, extracted from the request message, which caused the generation of this error message.
4.29.1 Constructor
This constructor takes no parameters. It only initializes its parent classes.
4.30 LinkedResUnexp Class
Inheritance: public ResMess, public Message, public QueueElem
Method Types: No public member functions are declared in this class.
The LinkedResUnexp object class contains all of the member variables and member functions that are present in the classes that it has derived from, either directly or indirectly. This class defines no functions or variables beyond those it inherits. The error message that this class represents is patterned after the ROSE error message "linked-response-unexpected." It is used within the Solstice EM MIS to indicate that a linked request was received and the linked ID specified did not refer to a request for which a linked ID could be generated.
4.30.1 Constructor
This constructor takes no parameters. It only initializes its parent classes.
4.31 Message Class
The Message class is the base class used by almost all messages passed between SAPs and the PMI. The messages contained in the message.hh file largely define the syntax of the low-level usage of the PMI.
TABLE 4-22 lists the Message class public data members.
TABLE 4-23 lists the Message class method types.
4.31.1 Constructor
This constructor, above, takes a MessType as its argument and records it as the value of the private variable type. For the possible values of MessType, refer to Section 4.69.7 MessType.
4.31.2 Message Member Functions
This section describes the member functions of the Message class.
basetype
This function call returns the message's base type.
delete_message
This function call deletes the Message instance to which mp points. Use this function as a destructor for messages.
dup
This function call creates a duplicate of the message and returns a pointer to the duplicate. Note that the embedded Asn1Values are copied by reference.
is_error
This function call returns TRUE if this is an error message and FALSE if it is not. The message is determined to be an error based on its t member variable.
is_request
This function call returns TRUE if this is a request message and FALSE if it is not. The message is determined to be a request based on its t member variable.
is_response
This function call returns TRUE if this is a response message and FALSE if it is not. The message is determined to be a response based on its t member variable.
new_message
This function call creates a new Message type.
type
This function call returns the type of this message. For the possible values of the returned enumeration, refer to Section 4.69.7 MessType.
4.32 MessageSAP Class
A key class for the low-level use of the PMI is the MessageSAP class. The KernelMessageSAP, is a subclass of the MessageSAP class. The classes listed in TABLE 4-24 are subclasses of MessageSAP.
The MessageSAP object class is used as the endpoint of a communications link between two Solstice EM modules. A MessageSAP is created on each end of a communications path by a routine called to register a module or application with the MRM. This routine creates both MessageSaps and then notifies both parties of the MessageSAP that they are to use for communication to the other end.
The MessageSAP maintains a message ID so that request messages issued from this MessageSAP can be uniquely identified. In addition, it contains two instances of the Event object class. These two instances are the receive_request event and the detach event. These are used to notify the owner of the MessageSAP that a request message has been received and also to notify the owner of the MessageSAP that the other side (the MessageSAP to which this one is attached) has been deleted.
The MessageSAP object class defines a number of member functions which are used to either send or receive messages. In addition, member functions are provided that return a unique message ID and cancel a callback for a message or an event.
The MessageSAP class defines queues of pointers to messages. The messages pointed to are all subclasses of the Message class defined in the /opt/SUNWconn/em/include/pmi/message.hh file.

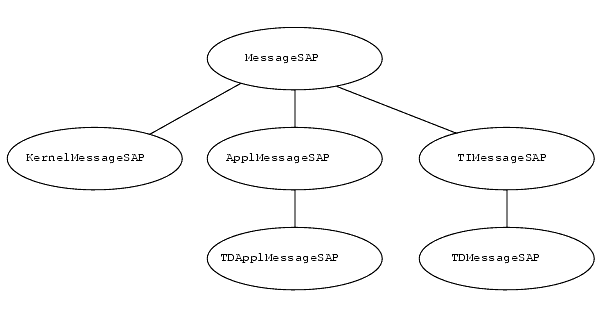

FIGURE 4-3 shows the inheritance hierarchy for the classes based on MessageSAP.
FIGURE 4-3 Inheritance Tree of the MessageSAP Class
TABLE 4-25 lists the MessageSAP public data members.
TABLE 4-25 MessageSAP Public Data Members Callback receive_request_cb The event to be posted when an incoming request arrives. Callback detach_cb The event to be posted when the message sap detaches.
TABLE 4-26 lists the MessageSAP method types.
4.32.1 Constructor
This example is the constructor for the MessageSAP.
4.32.2 MessageSAP Member Functions
This section describes the member functions of the MessageSAP class.
cancel_callback
This function call cancels the pending response callback for a particular message ID. This form of the cancel_callback member function cancels the callback that was attached to a request sent via the non-blocking form of the send member function. This function takes a message id m_id as input and searches for any callback routine which might have been specified for the response identified by m_id. The callback is removed from the list of callbacks so that when the response message arrives, it is dropped. It returns OK if the callback is successfully cancelled.
Alternatively,
This function call cancels the pending response callback for any matching message. This form of the cancel_callback member function cancels the callback that was attached to a request sent via the non-blocking form of the send member function. This function takes an event reference e as input and searches references to this event in the callback list. If any are found, they are deleted from the list. Later, when the response message arrives, it is dropped.
new_id
This function call generates a new message identifier (one greater than the last ID this MessageSAP supplied), stores it privately in the MessId instance, and returns its value.
receive_request
This function call receives the next pending request message. This function is called after a notification has arrived via the receive_request_callback mechanism. The receive_request_callback receives a notification that a request message has been queued up for this MessageSAP and then this routine should be called to actually access the message. The function takes a reference to a Message pointer and this pointer is set to point to the message received.
This function call receives the next response for a given message. The message whose response is sought is identified either by its message ID (m_id) or by a response handle (rh). This function is called after the owner of the MessageSAP has been notified that a response message has been queued to this MessageSAP. The notification takes place by having the blocking form of the MessageSAP::send return successful for a confirmed request message. This notification can also occur if the event for the non-blocking form of the send member function is notified. The function sets mp with a pointer to the response message. It returns OK if the first argument successfully identifies a response and the message pointer is successfully set to the response message.
send
This function call is the blocking form of the send member function. This version of send takes a pointer to an instance of the Message object class and a block_time parameter. The message pointer points to the message that is to be sent via this MessageSAP. The block_time parameter specifies how long the caller of this function is willing to wait for the message to be sent. If the message cannot be sent within the time specified, an error is returned.
Messages might not be sent because of resource limitations or a host of other problems.
The above function call returns an error code that specifies why a message could not be sent. The possible values of SendResult are shown below.
typedef enum SendResult { SENT,BAD_MESSAGE,WOULD_BLOCK,NO_MEM };If this is a request message and the function returns SENT, the request message has been successfully sent and the response to this request has been queued to this MessageSAP. If this was a non-confirmed request, SENT indicates only that the request has been sent successfully.
If this is a response message, SENT indicates that the response has been sent.
The following function call is the non-blocking form of the send member function. This version of send takes a pointer to an instance of the Message object class, an instance of the Event object class, and a block_time parameter. This version of send should only be used to send confirmed request messages. It should not be used to send unconfirmed requests or responses.
The message pointer mp points to the message that is to be sent via this MessageSAP. The callback cb specifies a procedure that is to be called whenever the response for this request message has been queued to this MessageSAP. The block_time parameter specifies how long the caller of this function is willing to wait for the message to be sent. If the message cannot be sent within the time specified, an error is returned.
It might not be possible to send a message because of resource limitations or a host of other problems. This routine returns an error code that indicates why a message could not be sent.
4.32.3 MessageSAP Initialization
Following is a sample on how to initialize a MessageSAP.
The parameter, sap_p_p, is initialized as a result of the call to init_kernel_msg_sap. It is the MessageSAP your driver module should use to send and receive messages from the Solstice EM MRM. After init_kernel_msg_sap has been called, the MessageSAP parameter should be initialized to point to the callback handlers that are used by the MRM.
The function returns a value whose type is Result: that is, a boolean value defined as either OK or NOT_OK. Result is defined in the /opt/SUNWconn/em/include/pmi/sys_type.hh file.
4.33 MessQOS Class
Method Types: No public member functions are declared in this class.
The MessQOS class represents the Quality of Service indicator included in all messages. This class is currently a null class (that is, it has no member functions or variables). Its purpose is to store data that affects the type of service to be given to a message. This data might include such things as the allowable lifetime of the message and the type of behavior associated with the transportation of this message. Some examples are:
- request time-out parameters
- security parameters
- reliability/retry parameters
4.34 MessScope Class
Method Types: No method types are declared in this class.
The MessScope class defines a message's scope (that is, the range of objects to which the message is to be applied). An instance of MessScope contains a MessScopeType variable and an optional level. The enumeration defines five types of scoping.
TABLE 4-28 lists the MessScope public data members.
TABLE 4-28 MessScope Public Data Members MessScopeType type {BASE_OBJECT, NTH_LEVEL, BASE_TO_NTH_LEVEL, ALL_LEVELS} U32 level
4.34.1 Constructors
This section specifies the constructors of the MessScope class.
4.35 MissingAttrVal Class
Inheritance: public ResMess, public Message, public QueueElem
Method Types: The public methods Message::new_message, Message::delete_message, and MessagePtr dup() are defined in this class. These classes are described in Section 4.31 Message Class.
In addition to the functions or variables it inherits, the MissingAttrVal class adds an attribute ID list parameter.
TABLE 4-29 lists the MissingAttrVal public variable
4.35.1 Constructor
This constructor takes no parameters. It only initializes its parent classes.
4.36 MistypedArg Class
Inheritance: public ResMess, public Message, public QueueElem
Method Types: The public methods Message::new_message, Message::delete_message, and MessagePtr dup() are defined in this class. These classes are described in Section 4.31 Message Class.
The MistypedArg object class contains all of the member variables and member functions that are present in the classes that it has derived from, either directly or indirectly. This class defines no functions or variables beyond those it inherits. The error message that this class represents is patterned after the ROSE error message mistyped-argument. The usage of this message is described in detail in the documentation covering the ROSE protocol. It is used within the Solstice EM MIS to indicate that one of the arguments supplied with a request message was not supposed to be present.
4.36.1 Constructor
This constructor takes no parameters. It only initializes its parent classes.
4.37 MistypedError Class
Inheritance: public ResMess, public Message, public QueueElem
Method Types: The public methods Message::new_message, Message::delete_message, and MessagePtr dup() are defined in this class. These classes are described in Section 4.31 Message Class.
The MistypedError object class contains all of the member data members and member functions that are present in the classes that it has derived from, either directly or indirectly. This class defines no functions or variables beyond those it inherits. The error message that this class represents is patterned after the ROSE error message mistyped-parameter. It is used within the Solstice EM MIS to indicate that an error message, generated in response to a particular request, contained a parameter which either was not expected as part of the error message or which was not formed properly.
4.37.1 Constructor
This constructor takes no parameters. It only initializes its parent classes.
4.38 MistypedOp Class
Inheritance: public ResMess, public Message, public QueueElem
Method Types: The public methods Message::new_message, Message::delete_message, and MessagePtr dup() are defined for this class. These classes are described in Section 4.31 Message Class.
The MistypedOp object class contains all of the member variables and member functions that are present in the classes that it has derived from, either directly or indirectly. This class does not add any additional parameters.
4.38.1 Constructor
This constructor takes no parameters. It only initializes its parent classes.
4.39 MistypedRes Class
Inheritance: public ResMess, public ResMess, public Message, public QueueElem
Method Types: The public methods Message::new_message, Message::delete_message, and MessagePtr dup() are defined for this class. These classes are described in Section 4.31 Message Class.
The MistypedRes object class contains all of the member variables and member functions that are present in the classes that it has derived from, either directly or indirectly. This class defines no functions or variables beyond those it inherits. The error message that this class represents is patterned after the ROSE error message mistyped-result. It is used within the Solstice EM MIS to indicate that a result message, generated for a particular request, contained a parameter that was either not expected or was not formed properly.
4.39.1 Constructor
This constructor takes no parameters. It only initializes its parent classes.
4.40 NoSuchAction Class
Inheritance: public ObjResMess, public Message, public QueueElem
Method Types: The public methods Message::new_message, Message::delete_message, and MessagePtr dup() are defined for this class. These classes are described in Section 4.31 Message Class.
In addition to the functions or variables it inherits, the NoSuchAction class adds two Asn1Value parameters to store a current time and an action type.
The action_type and curr_time members are only defined when returning an error from a scoped ACTION_REQ.
TABLE 4-30 lists the NoSuchAction public data members.
4.40.1 Constructor
This constructor takes no parameters. It only initializes its parent classes.
4.41 NoSuchActionArg Class
Inheritance: public ObjResMess, public ResMess, public Message, public QueueElem
Method Types: The public methods Message::new_message, Message::delete_message, and MessagePtr dup() are defined for this class. These classes are described in Section 4.31 Message Class.
In addition to the functions or variables it inherits, the NoSuchActionArg class adds two Asn1Value parameters to store a current time and an action type. There are two choices defined for the noSuchArgument error message and this class defines the actionId choice (first of the two).
The action_type and curr_time members are only defined when returning an error from a scoped ACTION_REQ.
TABLE 4-31 lists the NoSuchActionArg public data members.
4.41.1 Constructor
This constructor takes no parameters. It only initializes its parent classes.
4.42 NoSuchAttr Class
Inheritance: public ResMess, public Message, public QueueElem
Method Types: The public methods Message::new_message, Message::delete_message, and MessagePtr dup() are defined for this class. These classes are described in Section 4.31 Message Class.
In addition to the functions or variables it inherits, the NoSuchAttr class adds an attribute ID parameter.
TABLE 4-32 lists the NoSuchAttr public variable.
TABLE 4-32 NoSuchAttr Public Variable Asn1Value attr_id This is the invalid attribute ID that caused the generation of this error message.
4.42.1 Constructor
This constructor takes no parameters. It only initializes its parent classes.
4.43 NoSuchEvent Class
Inheritance: public ResMess, public Message, public QueueElem
Method Types: The public methods Message::new_message, Message::delete_message, and MessagePtr dup() are defined for this class. These classes are described in Section 4.31 Message Class.
In addition to the functions or variables it inherits, the NoSuchEvent class adds two Asn1Value parameters to store an object class and an event type.
TABLE 4-33 lists the NoSuchEvent public data members.
4.43.1 Constructor
This constructor takes no parameters. It only initializes its parent classes.
4.44 NoSuchEventArg Class
Inheritance: public ResMess, public Message, public QueueElem
Method Types: The public methods Message::new_message, Message::delete_message, and MessagePtr dup() are defined for this class. These classes are described in Section 4.31 Message Class.
In addition to the functions or variables it inherits, the NoSuchEventArg class adds two Asn1Value parameters to store an object class and an event type. There are two choices defined for the noSuchArgument error message and this class defines the eventId choice (second of the two).
TABLE 4-34 lists the NoSuchEventArg public data members.
4.44.1 Constructor
This constructor takes no parameters. It only initializes its parent classes.
4.45 NoSuchMessageId Class
Inheritance: public ResMess, public Message, public QueueElem
Method Types: The public methods Message::new_message, Message::delete_message, and MessagePtr dup() are defined for this class. These classes are described in Section 4.31 Message Class.
In addition to the functions or variables it inherits, the NoSuchMessageId class adds a get ID parameter.
TABLE 4-35 lists the NoSuchMessageId public variable.
TABLE 4-35 NoSuchMessageId Public Variable Asn1Value get_id This is the invalid message ID that caused generation of this error message.
4.45.1 Constructor
This constructor takes no parameters. It only initializes its parent classes.
4.46 NoSuchOC Class
Inheritance: public ResMess, public Message, public QueueElem
Method Types: The public methods Message::new_message, Message::delete_message, and MessagePtr dup() are defined for this class. These classes are described in Section 4.31 Message Class.
In addition to the functions or variables it inherits, the NoSuchOC class adds an Asn1Value parameter to store an object class.
TABLE 4-36 lists the NoSuchOC public variable.
TABLE 4-36 NoSuchOC Public Variable Asn1Value oc The invalid object class that caused the generation of this error message.
4.46.1 Constructor
This constructor takes no parameters. It only initializes its parent classes.
4.47 NoSuchOI Class
Inheritance: public ResMess, public Message, public QueueElem
Method Types: The public methods Message::new_message, Message::delete_message, and MessagePtr dup() are defined for this class. These classes are described in Section 4.31 Message Class.
In addition to the functions or variables it inherits, the NoSuchOI class adds an Asn1Value parameter to store an object instance.
TABLE 4-37 lists the NoSuchOI public variable.
TABLE 4-37 NoSuchOI Public Variable Asn1Value oi The invalid object instance that caused the generation of this error message.
4.47.1 Constructor
This constructor takes no parameters. It only initializes its parent classes.
4.48 NoSuchRefOI Class
Inheritance: public ResMess, public Message, public QueueElem
Method Types: The public methods Message::new_message, Message::delete_message, and MessagePtr dup() are defined for this class. These classes are described in Section 4.31 Message Class.
In addition to the functions or variables it inherits, the NoSuchRefOI class adds an object instance parameter.
TABLE 4-38 lists the NoSuchRefOI public variable.
TABLE 4-38 NoSuchRefOI Public Variable Asn1Value oi The invalid object instance that caused the generation of this error message.
4.48.1 Constructor
This constructor takes no parameters. It only initializes its parent classes.
4.49 ObjReqMess Class
Inheritance: public ReqMess, public Message, public QueueElem
Method Types: The public methods Message::new_message, Message::delete_message, and MessagePtr dup() are defined for this class. These classes are described in Section 4.31 Message Class.
In addition to the functions or variables it inherits, the ObjReqMess class adds two Asn1Value parameters for an object class and an object instance.
TABLE 4-39 lists the ObjReqMess public data members.
4.49.1 Constructor
4.50 ObjResMess Class
Inheritance: public ResMess, public Message, public QueueElem
Method Types: The public methods Message::new_message, Message::delete_message, and MessagePtr dup() are defined for this class. These classes are described in Section 4.31 Message Class.
In addition to the functions or variables it inherits, the ObjResMess class adds two Asn1Values to store an object class and an object instance. Any response (also linked request, error, and linked error) messages which include object class and object instance parameters in the message would be derived from this class.
TABLE 4-40 lists the ObjResMess public data members.
TABLE 4-40 ObjResMess Public Data Members Asn1Value oc The object class for this response message. . Asn1Value oi The object instance for this response message.
4.50.1 Constructor
This constructor takes a MessType variable as input and passes this variable on to the constructor(s) for the classes from which this class is derived.
4.51 OpCancelled Class
Inheritance: public ResMess, public Message, public QueueElem
Data Members: No public data members are declared in this class.
Method Types: The public methods Message::new_message, Message::delete_message, and MessagePtr dup() are defined for this class. These classes are described in Section 4.31 Message Class.
The OpCancelled object class contains all of the member variables and member functions that are present in the classes that it has derived from, either directly or indirectly. This class defines no functions or variables beyond those it inherits.
4.51.1 Constructor
This constructor takes no parameters. It only initializes its parent classes.
4.52 ProcessFailure Class
Inheritance: public ObjResMess, public ResMess, public Message, public QueueElem
Method Types: The public methods Message::new_message, Message::delete_message, and MessagePtr dup() are defined for this class. These classes are described in Section 4.31 Message Class.
In addition to the functions or variables it inherits, the ProcessFailure class adds a specific error information parameter.
TABLE 4-41 lists the ProcessFailure public variable.
4.52.1 Constructor
This constructor takes no parameters. It only initializes its parent classes.
4.53 ReqMess Class
Inheritance: public Message, public QueueElem
Method Types: The public methods Message::new_message, Message::delete_message, and MessagePtr dup() are defined for this class. These classes are described in Section 4.31 Message Class.
In addition to the functions or variables it inherits, the ReqMess class adds a MessMode parameter to a message. The usage of MessMode variables are described in Section 4.69.2 MessMode.
TABLE 4-42 lists the ReqMess public data members.
4.53.1 Constructor
This constructor takes a MessType variable as input and sets the member variable mode equal to the variable passed in.
4.54 ResMess Class
Inheritance: public Message, public QueueElem
Method Types: The public methods Message::new_message, Message::delete_message, and MessagePtr dup() are defined for this class. These classes are described in Section 4.31 Message Class.
In addition to the functions or variables it inherits, the ResMess class adds a Boolean variable called linked that indicates whether this is a linked response message. In all cases, a linked response contains the same data as would be found in an unlinked response so that (applied to the same message) linked_get_result returns the same data as get_result. Error messages are considered to be response messages, but can also be linked requests.
TABLE 4-43 lists the ResMess public variable.
TABLE 4-43 ResMess Public Variable Boolean linked When this variable is set to TRUE, this is a linked request message. When FALSE, this is a response message.
4.54.1 Constructor
This constructor takes a MessType variable as input and passes this variable on to the constructor(s) for the classes from which this class is derived.
4.55 ResourceLimit Class
Inheritance: public ResMess, public Message, public QueueElem
Method Types: The public methods Message::new_message, Message::delete_message, and MessagePtr dup() are defined for this class. These classes are described in Section 4.31 Message Class.
The ResourceLimit object class contains all of the member variables and member functions that are present in the classes that it has derived from, either directly or indirectly. This class defines no functions or variables beyond those it inherits. The error message that this class represents is patterned after the ROSE error message resource-limitation. It is used within the Solstice EM MIS to indicate that the receiver of a request message was unable to service the request due to a lack of resources.
4.55.1 Constructor
This constructor takes no parameters. It only initializes its parent classes.
4.56 ScopedReqMess Class
Inheritance: public ObjReqMess, public ReqMess, public Message, public QueueElem
Method Types: The public methods Message::new_message, Message::delete_message, and MessagePtr dup() are defined for this class. These classes are described in Section 4.31 Message Class./font>
In addition to the functions or variables it inherits, the ScopedReqMess class adds a MessScope variable, two Asn1Value parameters specifying a filter and access control, and a MessSync parameter. These parameters are present in all request messages for which scoping can be specified. Each of these parameters is optional.
TABLE 4-44 lists the ScopedReqMess public data members.
TABLE 4-44 ScopedReqMess Public Data Members MessScope scope The type of scoping to be used for this request message. The possible scoping types are listed in Section 4.69.4 MessScopeType. Asn1Value filter This defines a filter that all objects selected via scoping must pass. The message is not sent to any object that does not pass the filter. Asn1Value access This defines the access control that objects selected via scoping must be pass. The message is not sent to any object that does not pass the access control. MessSync sync The type of synchronization for this scoped message; {ATOMIC,BEST_EFFORT}
4.56.1 Constructor
This constructor takes a MessType variable as input and passes this variable on to the constructor(s) for the classes from which this class derived.
4.57 SetListErr Class
Inheritance: public ObjResMess, public Message, public QueueElem
Method Types: The public methods Message::new_message, Message::delete_message, and MessagePtr dup() are defined for this class. These classes are described in Section 4.31 Message Class.
In addition to the functions or variables it inherits, the SetListErr class adds two Asn1Value parameters to store a current time and a set information list. TABLE 4-45 lists the SetListErr public data members.
4.57.1 Constructor
This constructor takes no parameters. It only initializes its parent classes.
4.58 SetReq Class
Inheritance: public ScopedReqMess, public ReqMess, public Message, public QueueElem
Method Types: The public methods Message::new_message, Message::delete_message, and MessagePtr dup() are defined for this class. These classes are described in Section 4.31 Message Class.
The SetReq object class contains all of the member variables and member functions that are present in the classes that it has derived from, either directly or indirectly. In addition to the functions or variables it inherits, the SetReq class adds an attribute list parameter.
TABLE 4-46 lists the SetReq public variable.
TABLE 4-46 SetReq Public Variable Asn1Value modify_list Each element of this list contains an attribute ID, an attribute value, and a modify operator.
4.58.1 Constructor
This constructor takes no parameters. It only initializes its parent classes.
4.59 SetRes Class
Inheritance: public ObjResMess, public ResMess, public Message, public QueueElem
Method Types: The public methods Message::new_message, Message::delete_message, and MessagePtr dup() are defined for this class. These classes are described in Section 4.31 Message Class.
In addition to the functions or variables it inherits, the SetRes class adds two Asn1Value parameters to store a current time and an attribute list. TABLE 4-47 lists the SetRes public data members.
4.59.1 Constructor
This constructor takes no parameters. It only initializes its parent classes.
4.60 SyncNotSupp Class
Inheritance: public ResMess, public Message, public QueueElem
Method Types: The public methods Message::new_message, Message::delete_message, and MessagePtr dup() are defined for this class. These classes are described in Section 4.31 Message Class.
In addition to the functions or variables it inherits, the SyncNotSupp class adds a sync parameter.
Each of the classes derived from Message relies on the ISO specifications of the CMIP protocol and ASN.1 data encoding. TABLE 4-48 lists the SyncNotSupp public variable.
TABLE 4-48 SyncNotSupp Public Variable MessSync sync Specifies the type of synchronization which was not able to be performed and caused the generation of this error message.
4.60.1 Constructor
This constructor takes no parameters. It only initializes its parent classes.
4.61 TimedOut Class
Inheritance: public ResMess, public Message, public QueueElem
Method Types: The public methods Message::new_message, Message::delete_message, and MessagePtr dup() are defined for this class. These classes are described in Section 4.31 Message Class.
This class defines no functions or variables beyond those it inherits. The error message that this class represents is generated whenever the life-span of a message has been exceeded. Future functionality envisioned for the Solstice EM MIS would be to include in the MessQOS (quality of service) class some indication of how long the requester is willing to wait for a response to a given request message (a message lifetime). A TimedOut message would be generated whenever the lifetime for a given request message had been exceeded (that is, whenever the request has not been responded to within its lifetime).
4.61.1 Constructor
This constructor takes no parameters. It only initializes its parent classes.
4.62 UnexpChildOp Class
Inheritance: public ResMess, public Message, public QueueElem
Method Types: The public methods Message::new_message, Message::delete_message, and MessagePtr dup() are defined for this class. These classes are described in Section 4.31 Message Class.
The UnexpChildOp object class contains all of the member variables and member functions that are present in the classes that it has derived from, either directly or indirectly. This class defines no functions or variables beyond those it inherits. The error message that this class represents is patterned after the ROSE error message unexpected-child-operation. It is used within the Solstice EM MIS to indicate that a linked request was received and that the linked ID specified did not refer to a request for which this type of linked reply is valid.
4.62.1 Constructor
This constructor takes no parameters. It only initializes its parent classes.
4.63 UnexpError Class
Inheritance: class UnexpError : public ResMess, public Message, public QueueElem
Data Members: No public data members are declared in this class.
Method Types: The public methods Message::new_message, Message::delete_message, and MessagePtr dup() are defined for this class. These classes are described in Section 4.31 Message Class.
The UnexpError class defines no functions or variables beyond those it inherits. The error message that this class represents is patterned after the ROSE error message unexpected-error. It is used to indicate that an error message, generated in response to a particular request, is not one of the set of error messages that can be sent in response to that request.
4.63.1 Constructor
This constructor takes no parameters. It only initializes its parent classes.
4.64 UnexpRes Class
Inheritance: public ResMess, public Message, public QueueElem
Data Members: No public data members are declared in this class.
Method Types: The public methods Message::new_message, Message::delete_message, and MessagePtr dup() are defined for this class. These classes are described in Section 4.31 Message Class.
The UnexpRes object class defines no functions or variables beyond those it inherits. The error message that this class represents is patterned after the ROSE error message "result-response-unexpected". It is used to indicate that a result message was generated for as non-confirmed request.
4.64.1 Constructor
This constructor takes no parameters. It only initializes its parent classes.
4.65 UnrecError Class
Inheritance: public ResMess, public Message, public QueueElem
Method Types: No public member functions are declared in this class.
The UnrecError class defines no functions or variables beyond those it inherits. The error message that this class represents is patterned after the ROSE error message "unrecognized-error". It is used to indicate that an error message, generated in response to a particular request, is not one of the set of error messages known within Solstice EM.
4.65.1 Constructor
This constructor takes no parameters. It only initializes its parent classes.
4.66 UnrecLinkedId Class
Inheritance: public ResMess, public Message, public QueueElem
Method Types: The public methods Message::new_message, Message::delete_message, and MessagePtr dup() are defined for this class. These classes are described in Section 4.31 Message Class.
The UnrecLinkedId class defines no functions or variables beyond those it inherits. The error message that this class represents is patterned after the ROSE error message "unrecognized-linked-id." It is used to indicate that a linked request could not be serviced because the linked ID specified in the request did not refer to any known outstanding request.
4.66.1 Constructor
This constructor takes no parameters. It only initializes its parent classes.
4.67 UnrecMessageId Class
Inheritance: public ResMess, public Message, public QueueElem
Method Types: The public methods Message::new_message, Message::delete_message, and MessagePtr dup() are defined for this class. These classes are described in Section 4.31 Message Class.
The UnrecMessageId class defines no functions or variables beyond those it inherits. The error message that this class represents is patterned after the ROSE error message"unrecognized-invocation". It is used to indicate that a result or error message was generated where the message ID specified did not refer to any outstanding request.
4.67.1 Constructor
This constructor takes no parameters. It only initializes its parent classes.
4.68 UnrecOp Class
Inheritance: public ResMess, public Message, public QueueElem
Method Types: The public methods Message::new_message, Message::delete_message, and MessagePtr dup() are defined for this class. These classes are described in Section 4.31 Message Class.
The UnrecOp object class defines no functions or variables beyond those it inherits. The error message that this class represents is patterned after the ROSE error message "unrecognized operation." The usage of this message is described in detail in the documentation covering the ROSE protocol. It is used to indicate that the operation requested is not known to the receiver of the request.
4.68.1 Constructor
This constructor takes no parameters. It only initializes its parent classes.
4.69 Constants and Defined Types
The following subsections describe the constants and defined types for the low-level usage of the PMI.
- MessId
- MessMode
- MessagePtr
- MessScopeType
- MessSync
- MessBaseType
- MessType
- MESSTYPE_MAX
- ResponseHandle
- SendResult
4.69.1 MessId
A MessId variable is included in each message passed by way of a MessageSAP. The MessId variable is used to uniquely identify outstanding request messages for a Solstice EM module or application. Each Solstice EM module is responsible for generating new request messages that have unique message IDs. Unique means that the message can not have the same ID as another request (that is, still outstanding from this module or applicatio). The MessId variable is declared in the /opt/SUNWconn/em/include/pmi/message.hh file.
4.69.2 MessMode
The MessMode variable is declared in the /opt/SUNWconn/em/include/pmi/message.hh file.
{CONFIRMED,UNCONFIRMED };4.69.3 MessagePtr
The MessagePtr variable is declared in the /opt/SUNWconn/em/include/pmi/message.hh file.
4.69.4 MessScopeType
The MessScopeType variable is declared in the /opt/SUNWconn/em/include/pmi/message.hh file.
{BASE_OBJECT,NTH_LEVEL,BASE_TO_NTH_LEVEL,ALL_LEVELS,ALL_LEVELS_EXCEPT_BASE };4.69.5 MessSync
This enumeration defines the types of message synchronization that can be requested: ATOMIC or BEST_EFFORT. Currently only BEST_EFFORT is supported, since the requirements for ATOMIC synchronization are not fully defined by the standards organizations.
The MessSync variable is declared in the /opt/SUNWconn/em/include/pmi/message.hh file.
{BEST_EFFORT,ATOMIC };4.69.6 MessBaseType
The MessBaseType variable is declared in the /opt/SUNWconn/em/include/pmi/message.hh file.
{MESSAGE,REQ_MESS,OBJ_REQ_MESS,SCOPED_REQ_MESS,RES_MESS,OBJ_RES_MESS };4.69.7 MessType
The MessType enumeration defines a unique ID for each type of message that can be sent within Solstice EM. This includes all the CMIS request messages, CMIS response messages, CMIS error messages, ROSE user-reject responses, SNMP requests, SNMP responses, and Solstice EM error responses. CODE EXAMPLE 4-1 provides an exhaustive list of the messages it is possible to send via the MessageSAP interface. Each of these messages derives from one of the base message classes defined in the /opt/SUNWconn/em/include/pmi/message.hh file.
4.69.8 MESSTYPE_MAX
The MESSTYPE_MAX variable is declared in the /opt/SUNWconn/em/include/pmi/message.hh file.
4.69.9 ResponseHandle
The ResponseHandle variable is declared in the /opt/SUNWconn/em/include/pmi/message.hh file.
4.69.10 SendResult
The SendResult variable is declared in the /opt/SUNWconn/em/include/pmi/message.hh file.
{SENT,BAD_MESSAGE,WOULD_BLOCK,NO_MEM };// Used by the MessageSAP class.#define SENT TRUE
|
Sun Microsystems, Inc. Copyright information. All rights reserved. |
Doc Set | Contents | Previous | Next | Index |
