Site/SunNet/Domain Manager products are platforms upon which
to develop management capabilities and explore issues surrounding the management
of complex, heterogeneous environments. Site/SunNet/Domain Manager is designed
for extensibility and includes a number of mechanisms to support customization.
Part 1 focuses on the features for one of those areas--writing new managers.
The Site/SunNet/Domain Manager design is based on the manager/agent
model in the Open Systems Interconnection (OSI) management framework. The
manager is a process started by the user (for example, the Console). The agent
is a process that collects data from the managed object and reports it to
the manager.

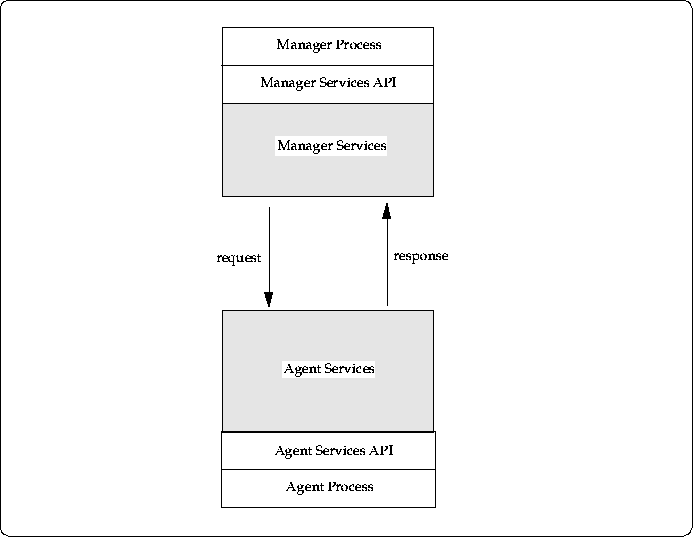

Figure 1-1
shows the manager and agent relationship.
The Manager/Agent Services libraries provide the management
infrastructure and handle the communication services. The agent and manager
need not be concerned with the underlying networking involved in their communication.
The agent process need be concerned only with collecting data from the managed
object. The manager and agent processes make use of the Services through Application
Programming Interfaces (APIs).
Managers can do many different kinds of things, depending on
the goal of the application. These include keeping a database of network elements
and their capabilities, sending and receiving requests for information, interacting
with the user, and so on.
The Manager Services library provides services needed to
support the manager-agent communication model. These services are provided
to relieve the application writer of the burden of managing connections, encoding/decoding
network data, etc. It also lays the groundwork for a standard mechanism where
manager and agent applications can communicate without prior agreements.
As such, the Manager Services library simplifies the job
an application programmer needs to do to send requests to agents and collect
data and event reports. It does not help the manager support a database of
network elements and requests and does not provide any support for user interaction.
Manager application libraries will become available for these functions in
the future.
Applications interact with the Manager Services library
in several different functional areas. These areas are:
Not all activities pertain to every manager application. For
example, a trouble-ticketing application might only be interested in getting
event reports, which would mean registering for them, getting them, and finally
unregistering on application exit. In this case application will not need
to start/stop requests, handle data reports, and so on.
The remaining chapters in Part 1 describe each area in detail.
This section lists the default locations for files and directories
that are mentioned in this guide, such as configuration and sample source
code files.
The default location for the example manager applications
is indicated in
Table 1-1
.
There is a README file in this directory that
explains its contents.
Throughout the rest of this guide we will refer to this
location as simply "the API_examples directory."
1.3.2 Header Files
At various points in this guide we make reference to header
files that you can include in your programs.
Table 1-2
indicates the location of these files.
1.3.3 Default Locations for Various Files
In addition to the API examples and header files, a number
of additional files referred to in this guide have different default directory
locations in the Solaris 2.4 version than in the Solaris 1.1.1 version.
Table 1-3
lists the default location for these files for both the Solaris 1.1.1 and
Solaris 2.4 versions of Site/SunNet/Domain Manager 2.3.
NOTE - If you install any of the files mentioned
in this section into non-default locations, then you will need to make appropriate
modifications to the path names used in examples in this guide.
