This appendix lists the specifications for the Sun Quad GbE UTP x8 PCIe ExpressModule. It contains the following sections:
Connectors

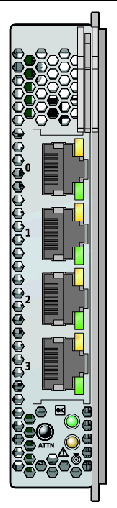

FIGURE A-1 shows the connectors for the Sun Quad GbE UTP x8 PCIe ExpressModule.
FIGURE A-1 Sun GbE UTP x8 PCIe ExpressModule Connectors
The green LED indicates the link status and the yellow LED indicates the link activity.
TABLE A-1 lists the characteristics of the connectors used by the Sun Quad GbE UTP x8 PCIe ExpressModule.
TABLE A-1 Connector Characteristics
|
Parameter
|
Description
|
|
Connector type
|
1x4 RJ45
|
|
Distance
|
100 meters
|
Table lists the ExpressModule’s connector characteristics.
Performance Specifications
TABLE A-2 Performance Specifications
|
Feature
|
Specification
|
|
Bus type
|
x8 lane PCI Express 1.1
|
|
Bus width
|
x8 lane PCI Express 1.1
|
|
Bus speed (x8, encoded rate)
|
20 Gbit/sec unidirectional; 40 Gbit/sec bidirectional (theoretical)
|
|
Maximum Ethernet transfer rate
|
1 Gbps (full-duplex)
|
Table lists the ExpressModule’s performance specifications.
Physical Characteristics
TABLE A-3 Physical Characteristics
|
Dimension
|
Measurement
|
|
Length
|
170 mm (6.69 inches)
|
|
Width
|
21.5 mm (.85 inches)
|
|
Height
|
112 mm (4.41 inches)
|
Table lists the ExpressModule’s physical characteristics.
Power Requirements
TABLE A-4 Power Requirements
|
Specification
|
Measurement
|
|
Power consumption
|
14.31W RMS typical
17.56 W maximum
|
|
Voltage
|
12V @ 1.460A maximum (1.191A RMS typical)
3.3V @ 0.012A maximum (0.005A RMS typical)
|
Table lists the ExpressModule’s power requirements in watts and volts.
