ILOM Supplement for Sun Fire X2250 Server
|
This supplement contains information for using Integrated Lights Out Manager (ILOM) with the Sun Fire
X2250 Server.
This document provides information about the following topics:
Hardware Information
This section provides information about the system hardware.
Server Locator Indicator
The Server Locator indicator is a pair of small lights that you turn on to help you identify a specific server among many in a data center. One light is positioned on the front of the server in the upper-left corner, and the other light is on the back of the server in the lower-center section.
Hardware Port Locations
ILOM communicates through the server’s serial management port and through a network management Ethernet port. FIGURE 1 shows the location of the serial port and the network management Ethernet port on the Sun Fire X2250 server.

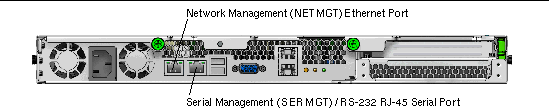

FIGURE 1 Sun Fire X2250 Rear Panel with Service Processor Port Locations
[ D ]
How to Reset the Service Processor and BIOS Passwords
You can reset the service processor (SP) password and clear the BIOS password by resetting a jumper on the Sun Fire X2250 motherboard. This jumper procedure is described in the Sun Fire X2250 Server Service Manual (820-4593). When you perform this procedure, the service processor Administrator password is reset and the BIOS password is cleared.
- The Administrator (root) password becomes changeme.
- The BIOS password is cleared, so that when you attempt to access the BIOS Setup utility, it does not prompt for a password.
Sensors
The Venus server includes a number of sensors that generate entries in the system event log (SEL) when the sensor crosses a threshold. Many of these readings are used to adjust the fan speeds and perform other actions, such as illuminating LEDs and powering off the chassis.
These sensors can also be configured to generate IPMI PET traps as described in the Sun Integrated Lights Out Manager 2.0 User’s Guide (820-1188).
|
Caution - Do not use any interface other than the Integrated Lights Out Manager (CLI) or web interface to alter the state or configuration of any sensor or LED. Doing so could void your warranty.
|
This section describes the sensors and provides details about their operation.
Temperature and Voltage Readings
The system monitors two temperature sensors and fourteen voltage sensors. They all generate IPMI events that are logged in to the system event log (SEL) when an upper threshold is exceeded. The temperature sensor readings are used to adjust the fan speeds. Any sensor outside a threshold will cause the SP to illuminate the service LEDs and possibly power off the chassis.
The sensors and their respective thresholds are as follows:
- Ambient temperature
- Upper noncritical - 30 degrees C
- Upper critical - 45 degrees C
- Upper nonrecoverable - 52 degrees C
- Voltage
- Upper noncritical - +/-10% V
- Upper critical - +/-20% V
- Upper nonrecoverable - +/-25% V
List of Sensors
TABLE 1 lists the sensors. TABLE 2 provides more detailed information about individual sensors.
TABLE 1 List of Sensors
|
Sensor Name
|
|
ACPI
|
|
MB/P0/PRSNT
|
|
MB/P1/PRSNT
|
|
MB/T_AMB0
|
|
MB/T_AMB1
|
|
MB/V_+12V
|
|
MB/V_VTT
|
|
MB/V_+1V5
|
|
MBV_/V_+1V5_ESB
|
|
MB/P0/V_VCC
|
|
MB/P1/V_VCC
|
|
MB/V_+3V3
|
|
MB/V_+5V
|
|
MB/V_+1V5_FBD
|
|
MB/V_+1V8
|
|
MB/V_+1V2_NIC
|
|
MB/V_+1V8_NIC
|
|
MB/V_+0V9
|
|
MB/V_+3V3_STBY
|
|
F0/TACH
|
|
F1/TACH
|
|
F2/TACH
|
|
F3/TACH
|
TABLE 2 provides detailed information about individual sensors.
TABLE 2 Sensor Details
|
Sensor
|
Data
|
|
Sensor ID
|
ACPI (0x0)
|
|
Entity ID
|
7.0
|
|
Sensor Type (Discrete)
|
System ACPI Power State
|
|
States Asserted
|
System ACPI Power State
[S0/G0: working]
|
|
|
|
|
Sensor ID
|
MB/P0/PRSNT (0x1)
|
|
Entity ID
|
3.0
|
|
Sensor Type (Discrete)
|
Entity Presence
|
|
States Asserted
|
Availability State
[Device Present]
|
|
|
|
|
Sensor ID
|
MB/P1/PRSNT (0x2)
|
|
Entity ID
|
3.1
|
|
Sensor Type (Discrete)
|
Entity Presence
|
|
States Asserted
|
Availability State
[Device Absent]
|
|
|
|
|
Sensor ID
|
MB/T_AMB0 (0x3)
|
|
Entity ID
|
7.1
|
|
Sensor Type (Analog)
|
Temperature
|
|
Sensor Reading
|
30 (+/- 0) degrees C
|
|
Status
|
ok
|
|
Lower Non-Recoverable
|
na
|
|
Lower Critical
|
na
|
|
Lower Non-Critical
|
na
|
|
Upper Non-Critical
|
50.000
|
|
Upper Critical
|
55.000
|
|
Upper Non-Recoverable
|
60.000
|
|
Assertions Enabled
|
unc+ ucr+ unr+
|
|
Deassertions Enabled
|
unc+ ucr+ unr+
|
|
|
|
|
Sensor ID
|
MB/T_AMB1 (0x4)
|
|
Entity ID
|
7.2
|
|
Sensor Type (Analog)
|
Temperature
|
|
Sensor Reading
|
31 (+/- 0) degrees C
|
|
Status
|
ok
|
|
Lower Non-Recoverable
|
na
|
|
Lower Critical
|
na
|
|
Lower Non-Critical
|
na
|
|
Upper Non-Critical
|
50.000
|
|
Upper Critical
|
55.000
|
|
Upper Non-Recoverable
|
60.000
|
|
Assertions Enabled
|
unc+ ucr+ unr+
|
|
Deassertions Enabled
|
unc+ ucr+ unr+
|
|
|
|
|
Sensor ID
|
MB/V_+12V (0x5)
|
|
Entity ID
|
10.0
|
|
Sensor Type (Analog)
|
Voltage
|
|
Sensor Reading
|
12.096 (+/- 0) Volts
|
|
Status
|
ok
|
|
Lower Non-Recoverable
|
na
|
|
Lower Critical
|
9.576
|
|
Lower Non-Critical
|
10.773
|
|
Upper Non-Critical
|
13.167
|
|
Upper Critical
|
14.364
|
|
Upper Non-Recoverable
|
na
|
|
Assertions Enabled
|
lnc- lcr- unc+ ucr+
|
|
Deassertions Enabled
|
lnc- lcr- unc+ ucr+
|
|
|
|
|
Sensor ID
|
MB/V_VTT (0x6)
|
|
Entity ID
|
10.1
|
|
Sensor Type (Analog)
|
Voltage
|
|
Sensor Reading
|
1.091 (+/- 0) Volts
|
|
Status
|
ok
|
|
Lower Non-Recoverable
|
na
|
|
Lower Critical
|
0.995
|
|
Lower Non-Critical
|
1.079
|
|
Upper Non-Critical
|
1.314
|
|
Upper Critical
|
1.438
|
|
Upper Non-Recoverable
|
na
|
|
Assertions Enabled
|
lnc- lcr- unc+ ucr+
|
|
Deassertions Enabled
|
lnc- lcr- unc+ ucr+
|
|
|
|
|
Sensor ID
|
MB/V_+1V5 (0x7)
|
|
Entity ID
|
10.2
|
|
Sensor Type (Analog)
|
Voltage
|
|
Sensor Reading
|
1.490 (+/- 0) Volts
|
|
Status
|
ok
|
|
Lower Non-Recoverable
|
na
|
|
Lower Critical
|
1.193
|
|
Lower Non-Critical
|
1.349
|
|
Upper Non-Critical
|
1.646
|
|
Upper Critical
|
1.794
|
|
Upper Non-Recoverable
|
na
|
|
Assertions Enabled
|
lnc- lcr- unc+ ucr+
|
|
Deassertions Enabled
|
lnc- lcr- unc+ ucr+
|
|
|
|
|
Sensor ID
|
MBV_/V_+1V5_ESB (0x8)
|
|
Entity ID
|
10.3
|
|
Sensor Type (Analog)
|
Voltage
|
|
Sensor Reading
|
1.490 (+/- 0) Volts
|
|
Status
|
ok
|
|
Lower Non-Recoverable
|
na
|
|
Lower Critical
|
1.193
|
|
Lower Non-Critical
|
1.349
|
|
Upper Non-Critical
|
1.646
|
|
Upper Critical
|
1.794
|
|
Upper Non-Recoverable
|
na
|
|
Assertions Enabled
|
lnc- lcr- unc+ ucr+
|
|
Deassertions Enabled
|
lnc- lcr- unc+ ucr+
|
|
|
|
|
Sensor ID
|
MB/P0/V_VCC (0x9)
|
|
Entity ID
|
10.4
|
|
Sensor Type (Analog)
|
Voltage
|
|
Sensor Reading
|
1.140 (+/- 0) Volts
|
|
Status
|
ok
|
|
Lower Non-Recoverable
|
na
|
|
Lower Critical
|
0.970
|
|
Lower Non-Critical
|
1.096
|
|
Upper Non-Critical
|
1.336
|
|
Upper Critical
|
1.462
|
|
Upper Non-Recoverable
|
na
|
|
Assertions Enabled
|
lnc- lcr- unc+ ucr+
|
|
Deassertions Enabled
|
lnc- lcr- unc+ ucr+
|
|
|
|
|
Sensor ID
|
MB/P1/V_VCC (0xa)
|
|
Entity ID
|
10.5
|
|
Sensor Type (Analog)
|
Voltage
|
|
Sensor Reading
|
1.607 (+/- 0) Volts
|
|
Status
|
ok
|
|
Lower Non-Recoverable
|
0.844
|
|
Lower Critical
|
0.844
|
|
Lower Non-Critical
|
0.895
|
|
Upper Non-Critical
|
1.544
|
|
Upper Critical
|
1.594
|
|
Upper Non-Recoverable
|
na
|
|
Assertions Enabled
|
lnc- lcr- unc+ ucr+
|
|
Deassertions Enabled
|
lnc- lcr- unc+ ucr+
|
|
|
|
|
Sensor ID
|
MB/V_+3V3 (0xb)
|
|
Entity ID
|
10.6
|
|
Sensor Type (Analog)
|
Voltage
|
|
Sensor Reading
|
3.371 (+/- 0) Volts
|
|
Status
|
ok
|
|
Lower Non-Recoverable
|
na
|
|
Lower Critical
|
2.632
|
|
Lower Non-Critical
|
2.958
|
|
Upper Non-Critical
|
3.629
|
|
Upper Critical
|
3.956
|
|
Upper Non-Recoverable
|
na
|
|
Assertions Enabled
|
lnc- lcr- unc+ ucr+
|
|
Deassertions Enabled
|
lnc- lcr- unc+ ucr+
|
|
|
|
|
Sensor ID
|
MB/V_+5V (0xc)
|
|
Entity ID
|
10.7
|
|
Sensor Type (Analog)
|
Voltage
|
|
Sensor Reading
|
5.096 (+/- 0) Volts
|
|
Status
|
ok
|
|
Lower Non-Recoverable
|
na
|
|
Lower Critical
|
3.978
|
|
Lower Non-Critical
|
4.498
|
|
Upper Non-Critical
|
5.486
|
|
Upper Critical
|
5.980
|
|
Upper Non-Recoverable
|
na
|
|
Assertions Enabled
|
lnc- lcr- unc+ ucr+
|
|
Deassertions Enabled
|
lnc- lcr- unc+ ucr+
|
|
|
|
|
Sensor ID
|
MB/V_+1V5_FBD (0xd)
|
|
Entity ID
|
10.8
|
|
Sensor Type (Analog)
|
Voltage
|
|
Sensor Reading
|
1.436 (+/- 0) Volts
|
|
Status
|
ok
|
|
Lower Non-Recoverable
|
na
|
|
Lower Critical
|
1.197
|
|
Lower Non-Critical
|
1.348
|
|
Upper Non-Critical
|
1.638
|
|
Upper Critical
|
1.789
|
|
Upper Non-Recoverable
|
na
|
|
Assertions Enabled
|
lnc- lcr- unc+ ucr+
|
|
Deassertions Enabled
|
lnc- lcr- unc+ ucr+
|
|
|
|
|
Sensor ID
|
MB/V_+1V8 (0xe)
|
|
Entity ID
|
10.9
|
|
Sensor Type (Analog)
|
Voltage
|
|
Sensor Reading
|
1.664 (+/- 0) Volts
|
|
Status
|
ok
|
|
Lower Non-Recoverable
|
na
|
|
Lower Critical
|
1.438
|
|
Lower Non-Critical
|
1.617
|
|
Upper Non-Critical
|
1.974
|
|
Upper Critical
|
2.153
|
|
Upper Non-Recoverable
|
na
|
|
Assertions Enabled
|
lnc- lcr- unc+ ucr+
|
|
Deassertions Enabled
|
lnc- lcr- unc+ ucr+
|
|
|
|
|
Sensor ID
|
MB/V_+1V2_NIC (0xf)
|
|
Entity ID
|
10.10
|
|
Sensor Type (Analog)
|
Voltage
|
|
Sensor Reading
|
1.219 (+/- 0) Volts
|
|
Status
|
ok
|
|
Lower Non-Recoverable
|
na
|
|
Lower Critical
|
0.959
|
|
Lower Non-Critical
|
1.076
|
|
Upper Non-Critical
|
1.265
|
|
Upper Critical
|
1.295
|
|
Upper Non-Recoverable
|
na
|
|
Assertions Enabled
|
lnc- lcr- unc+ ucr+
|
|
Deassertions Enabled
|
lnc- lcr- unc+ ucr+
|
|
|
|
|
Sensor ID
|
MB/V_+1V8_NIC (0x10)
|
|
Entity ID
|
10.11
|
|
Sensor Type (Analog)
|
Voltage
|
|
Sensor Reading
|
1.936 (+/- 0) Volts
|
|
Status
|
ok
|
|
Lower Non-Recoverable
|
na
|
|
Lower Critical
|
1.438
|
|
Lower Non-Critical
|
1.617
|
|
Upper Non-Critical
|
1.974
|
|
Upper Critical
|
2.153
|
|
Upper Non-Recoverable
|
na
|
|
Assertions Enabled
|
lnc- lcr- unc+ ucr+
|
|
Deassertions Enabled
|
lnc- lcr- unc+ ucr+
|
|
|
|
|
Sensor ID
|
MB/V_+0V9 (0x11)
|
|
Entity ID
|
10.12
|
|
Sensor Type (Analog)
|
Voltage
|
|
Sensor Reading
|
0.884 (+/- 0) Volts
|
|
Status
|
ok
|
|
Lower Non-Recoverable
|
na
|
|
Lower Critical
|
0.719
|
|
Lower Non-Critical
|
0.808
|
|
Upper Non-Critical
|
0.987
|
|
Upper Critical
|
1.076
|
|
Upper Non-Recoverable
|
na
|
|
Assertions Enabled
|
lnc- lcr- unc+ ucr+
|
|
Deassertions Enabled
|
lnc- lcr- unc+ ucr+
|
|
|
|
|
Sensor ID
|
MB/V_+3V3_STBY (0x12)
|
|
Entity ID
|
10.13
|
|
Sensor Type (Analog)
|
Voltage
|
|
Sensor Reading
|
3.302 (+/- 0) Volts
|
|
Status
|
ok
|
|
Lower Non-Recoverable
|
na
|
|
Lower Critical
|
2.632
|
|
Lower Non-Critical
|
2.958
|
|
Upper Non-Critical
|
3.629
|
|
Upper Critical
|
3.956
|
|
Upper Non-Recoverable
|
na
|
|
Assertions Enabled
|
lnc- lcr- unc+ ucr+
|
|
Deassertions Enabled
|
lnc- lcr- unc+ ucr+
|
|
|
|
|
Sensor ID
|
F0/TACH (0x13)
|
|
Entity ID
|
29.0
|
|
Sensor Type (Analog)
|
Fan
|
|
Sensor Reading
|
6750 (+/- 0) RPM
|
|
Status
|
ok
|
|
Lower Non-Recoverable
|
540.000
|
|
Lower Critical
|
na
|
|
Lower Non-Critical
|
1080.000
|
|
Upper Non-Critical
|
na
|
|
Upper Critical
|
na
|
|
Upper Non-Recoverable
|
na
|
|
Assertions Enabled
|
lnc- lnr-
|
|
Deassertions Enabled
|
lnc- lnr-
|
|
|
|
|
Sensor ID
|
F1/TACH (0x14)
|
|
Entity ID
|
29.1
|
|
Sensor Type (Analog)
|
Fan
|
|
Sensor Reading
|
6750 (+/- 0) RPM
|
|
Status
|
ok
|
|
Lower Non-Recoverable
|
540.000
|
|
Lower Critical
|
na
|
|
Lower Non-Critical
|
1080.000
|
|
Upper Non-Critical
|
na
|
|
Upper Critical
|
na
|
|
Upper Non-Recoverable
|
na
|
|
Assertions Enabled
|
lnc- lnr-
|
|
Deassertions Enabled
|
lnc- lnr-
|
|
|
|
|
Sensor ID
|
F2/TACH (0x15)
|
|
Entity ID
|
29.2
|
|
Sensor Type (Analog)
|
Fan
|
|
Sensor Reading
|
3240 (+/- 0) RPM
|
|
Status
|
ok
|
|
Lower Non-Recoverable
|
540.000
|
|
Lower Critical
|
na
|
|
Lower Non-Critical
|
1080.000
|
|
Upper Non-Critical
|
na
|
|
Upper Critical
|
na
|
|
Upper Non-Recoverable
|
na
|
|
Assertions Enabled
|
lnc- lnr-
|
|
Deassertions Enabled
|
lnc- lnr-
|
|
|
|
|
Sensor ID
|
F3/TACH (0x16)
|
|
Entity ID
|
29.3
|
|
Sensor Type (Analog)
|
Fan
|
|
Sensor Reading
|
2970 (+/- 0) RPM
|
|
Status
|
ok
|
|
Lower Non-Recoverable
|
540.000
|
|
Lower Critical
|
na
|
|
Lower Non-Critical
|
1080.000
|
|
Upper Non-Critical
|
na
|
|
Upper Critical
|
na
|
|
Upper Non-Recoverable
|
na
|
|
Assertions Enabled
|
lnc- lnr-
|
|
Deassertions Enabled
|
lnc- lnr-
|
