Sun PGX64 Graphics Card Overview
|
The Sun PGX64 graphics card (FIGURE 1-1) is a 24-bit high-resolution
PCI-based graphics frame buffer. The Sun PGX64 graphics card runs on all Sun
PCI-based system platforms.
Installation Kit
The PGX64 graphics card installation kit includes:
-
Sun PGX64 graphics card
-
Antistatic wrist strap
-
Sun PGX64 software on CD-ROM
-
HD15 to 13W3 adapter cable
-
Sun PGX64 Graphics Card Installation Guide
, this document
Features
The PGX64 graphics card (FIGURE 1-1) offers the following features:
-
2D 24-bit graphics
-
Flexible 8- and 24-bit color application support
-
24-bit color, high resolution for multihead displays in supported systems
-
HD15 monitor connector for a wide range of Sun and third party monitors
-
3D support through the software

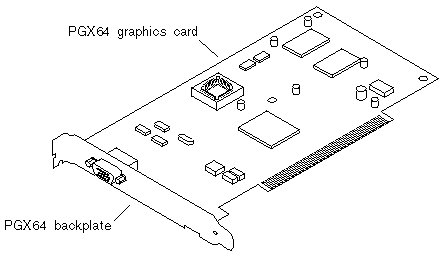

FIGURE 1-1 Sun PGX64 Graphics Card
FIGURE 1-2 shows the Sun PGX64 graphics card backplate and HD15 monitor connector.
FIGURE 1-2 Sun PGX64 Backplate
Sun PGX64 Screen Resolutions and Video Formats
TABLE 1-1 lists the monitor screen resolutions and video formats supported by the Sun PGX64 graphics card:
TABLE 1-1 Sun PGX64 Monitor Screen Resolutions
|
Display Resolution
|
Vertical Refresh Rate
|
Sync Standard
|
Aspect Ratio Format
|
Color Depth
|
|
1920 x 1200
|
70 Hz
|
Sun
|
16:10
|
8-bit
|
|
1920 x 1080
|
72 Hz
|
Sun
|
16:9
|
8-bit
|
|
1600 x 1280
|
76 Hz
|
Sun
|
5:4
|
8-bit
|
|
1600 x 1200
|
75 Hz
|
VESA
|
4:3
|
24-bit
|
|
1600 x 1000
|
66, 76 Hz
|
Sun
|
16:10
|
24-bit
|
|
1440 x 900
|
76 Hz
|
Sun
|
16:10
|
24-bit
|
|
1280 x 1024
|
60, 75, 85 Hz
|
VESA
|
5:4
|
24-bit
|
|
1280 x 1024
|
67, 76 Hz
|
Sun
|
5:4
|
24-bit
|
|
1280 x 800
|
76 Hz
|
Sun
|
16:10
|
24-bit
|
|
1152 x 900
|
66, 76 Hz
|
Sun
|
5:4
|
24-bit
|
|
1152 x 864
|
75 Hz
|
VESA
|
4:3
|
24-bit
|
|
1024 x 768
|
60, 70, 75, 85 Hz
|
VESA
|
4:3
|
24-bit
|
|
800 x 600
|
56, 60, 72, 75, 85 Hz
|
VESA
|
4:3
|
24-bit
|
|
720 x 400
|
85 Hz
|
VESA
|
9:5
|
24-bit
|
|
640 x 480
|
60, 72, 75, 85 Hz
|
VESA
|
4:3
|
24-bit
|
|
Note - For assistance and information not found in this document concerning the Sun PGX64 card, see SunServiceSM at http://www.sun.com/service/online/.
|
