Sun Fire Link Software
Installation Guide

This manual provides instructions for installing the software that supports the Sun FireTM Link high-performance cluster interconnect for the Sun Fire 15K/12K servers from Sun Microsystems, Inc.

This software includes the following components:


Preparing for the Installation

Before installing the Sun Fire Link software, you need to perform the following procedures:

Read the Sun Fire Link Release Notes

The Sun Fire Link Software Release Notes list the supported hardware configurations and the required versions of the SolarisTM operating environment and other related software. The release notes also describe open bugs and any workarounds there are for the bugs.

Install the Sun Fire Link Network Hardware

Install the Sun Fire Link hardware: Sun Fire Link I/O assemblies, optical cables, and Sun Fire Link switches (if used). For Sun Fire Link hardware installation instructions, see the documents listed in TABLE 1.

TABLE 1 Location of Sun Fire Link Hardware Installation Instructions

Sun Fire Link Hardware Installation Guide

/cdrom/sun-fire-link_1.1/Docs/Solaris_8/PDF/hw_install.pdf

/cdrom/sun-fire-link_1.1/Docs/Solaris_9/PDF/hw_install.pdf



Sun Fire Link Switch Installation and Service Manual

/cdrom/sun-fire-link_1.1/Docs/Solaris_8/PDF/switch.pdf

/cdrom/sun-fire-link_1.1/Docs/Solaris_9/PDF/switch.pdf




Note - A single set of Sun Fire Link documents is provided. These manuals apply to both Solaris 8 and Solaris 9 installations. The manuals are provided in this mirrored-tree arrangement to make it easier for you to access the documents, regardless of which operating environment is running on the target systems.



Identify Your Target Systems

TABLE 2 identifies the various servers and other host systems that play some role in the Sun Fire Link software installation process. Note that some roles can be performed by a single system. Ensure that the host systems shown in TABLE 2 are available.

TABLE 2 Systems Involved in Sun Fire Link Software Installation

Role

Description

Requirements

Installation host

The system on which you will load the Sun Fire Link software CD-ROM.

  • Connected by TCP/IP network to all Sun Fire systems on which Sun Fire Link software will be installed.

Sun Fire Link Fabric Management server and console

The system where the Sun Fire Link Manager (FM) software will reside. This system may also be host to the Sun Management Center console. It is also referred to as the Sun Fire Link Management Station.

  • Connected by TCP/IP network to all Sun Fire systems that are also connected to the Sun Fire Link network.
  • This machine must be external to the Sun Fire Link network.

Sun Management Center server and console (optional)

The Sun Management Center software is the recommended way to administer Sun Fire Link clusters. This software is installed on a server, which may be the same as the Sun Fire Link server.

  • Connected by TCP/IP network to all Sun Fire systems containing the Sun Fire Link nodes.
  • This may be the same system as the FM server or it may be a different machine.

Cluster nodes

These are Sun Fire 15K/12K system domains that are nodes in a Sun Fire Link network.

  • Connected to both Sun Fire Link and TCP/IP networks.

Sun Fire Link Switch System Controllers (optional)

System Controller (SC) for the Sun Fire Link switch; its role is similar to System Controllers in Sun Fire systems, but is not a Solaris platform.

  • A terminal or server must be connected to the switch SC's serial port for configuring the SC and flash updating the switch firmware.

Verify Required Software

TABLE 3 identifies various dependencies that the Sun Fire Link software has on other software. Verify that these dependencies are satisfied.



Note - Some of the software listed in TABLE 3 may require patches. See the Sun Fire Link Release Notes for up-to-date patch information.



TABLE 3 List of Software Requirements

Operating environment

Solaris 8 2/02, Solaris 9 12/02, or Solaris 9 4/03

RSM in Solaris 8

Incorporated in the Solaris 8 software distribution

RSM in Solaris 9

Incorporated in the Solaris 9 software distribution

Sun Fire 15K/12K firmware

SMS 1.3

Switch firmware

1.12.30

Sun Management Center

3.0 PU4, General Availability

3.0 PU4 adapter (for add-on installation and setup)

Sun Fire Link Addons

SunVTS for Solaris 8

4.6

SunVTS for Solaris 9

5.1 PS1

Java JDK

Use a version of Java 1.2.2 that is later than Java 1.2.1_06




Note - The following procedures assume that version 1.3 of the Sun Management System (SMS) software, including any required patches, have already been installed on the Sun Fire 15K/12K systems. They also assume that both SCs in the Sun Fire 15K/12K systems have been configured and their firmware updated.



Load the Sun Fire Link CD-ROM

Load the Sun Fire Link CD-ROM on the server chosen to be the installation host. The server is used as an NFS server for the software installation. In the following example, install_host is the host name of this system.

1. Log in to the server and become superuser.

2. If the CD-ROM is not already inserted into this system, insert it now.

3. Check that the CD-ROM contents are visible.

install_host# cd /cdrom/sun-fire-link_1.1/
install_host# ls
Docs     Patches     Product

4. Add the following line to /etc/dfs/dfstab to support remote sharing of files.

If this file does not already exist, create it and add the following line to it.

share -o ro /cdrom/sun-fire-link_1.1/

5. Stop and restart the NFS daemons so the new share command takes effect.

install_host# /etc/init.d/nfs.server stop
install_host# /etc/init.d/nfs.server start

6. Verify that the CD-ROM is available for mounting by remote systems.

install_host# share
-               /cdrom/sun-fire-link_1.1/  ro    ""

Configure a Server for Upgrading Firmware

The Sun Fire Link firmware is copied from the CD-ROM onto an FTP server or web server, from which it is flashed onto the boards and switches of the Sun Fire cluster.

The server can be any preconfigured FTP or web server, or you can configure the administration server to serve this purpose. Use your preferred method to configure an FTP server or web server. One simple method is to run the script documented in the Solaris man page for ftpd that creates an anonymous FTP server.

1. Find the ftp-script description on the ftpd man page and copy it to your chosen FTP server.

% man ftpd
...

2. Add the anonymous ftp user name and password entry to the /etc/passwd file. For example:

ftp:x:30000:30000:Anonymous FTP:/export/anonymous-ftp:/nosuchshell

3. Add the following line to the /etc/shadow file:

ftp:NP:6445::::::

4. As superuser, run ftp-script on the FTP server (named ftp_host in this example).

ftp_host# ftp-script /export/anonymous-ftp

5. Create a directory on the FTP server to hold the Sun Fire Link firmware.

ftp_host# mkdir /export/anonymous-ftp/firmware

6. On the FTP server, install the package that loads the switch firmware. The package name is SUNWwcsfi.

Assuming that the Sun Fire Link CD-ROM is inserted in the administration server and the FTP server is a different system, change directory to either the Solaris_8 or Solaris_9 directory and add the SUNWwcsfi package, as shown below.

For the Solaris 8 operating environment, enter:

ftp_host# cd /net/admin_host/cdrom/sun-fire-link_1.1/Product/Solaris_8
ftp_host# pkgadd -d . SUNWwcsfi

For the Solaris 9 operating environment, enter:

ftp_host# cd /net/admin_host/cdrom/sun-fire-link_1.1/Product/Solaris_9
ftp_host# pkgadd -d . SUNWwcsfi

7. Copy the Sun Fire Link switch firmware from its destination on the FTP server into the server's firmware directory.

Step 6 loaded the switch firmware into the /opt directory on the FTP server. This step makes it available for anonymous FTP access.

ftp_host# cp /opt/SUNWwcsfi/flash/SscApp.jflash /export/anonymous-ftp/firmware


Updating Switch Firmware and Sun Fire Link Software

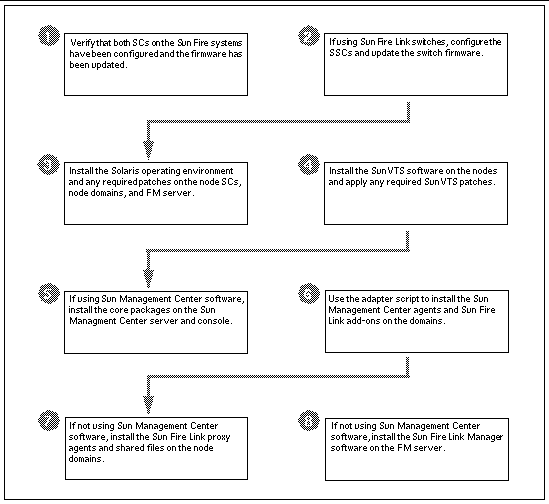

FIGURE 1 illustrates the sequence of procedures you perform to install the software components provided on the Sun Fire Link software distribution CD-ROM. Detailed instructions for these procedures follow. FIGURE 1 Sun Fire Link Software Installation Sequence

Diagram depicting Sun Fire Link software installation procedures in sequence, as described in the sections that follow

Verify the Sun Fire 15K/12K SCs

Before configuring the switch SC and updating its firmware, ensure that the System Controllers in the node chassis have been configured and the firmware has been updated.

Configure the Switch SCs and Update the Switch Firmware

If your cluster configuration includes Sun Fire Link switches, you need to configure each switch system controller (SSC). If you did not perform this procedure at the time of installing the switch hardware, do so now.


procedure icon  To Configure the Switch SC

1. Connect to the SSC (switch1 in this example) via the serial port.

For the requested password, enter the password that was specified as part of the switch installation procedure.

2. Use setupplatform to configure the SSC.

3. Assign the SSC's RMI password.

switch1:SSC> rmi_password
Enter new password:
Enter new password again:


procedure icon  To Update the Firmware on the Switch SC

1. Update the firmware on the SSC from the flashupdate server you set up previously--either an FTP server or HTTP server.

The following example shows the update being done from an FTP server:

switch1:SSC> flashupdate -f ftp://ftp-server-ip/firmware/SscApp.jflash

2. Reboot the SSC.

switch1:SSC> reboot

Repeat these SSC configuration and firmware update procedures on the remaining Sun Fire Link switches.

Set Up Cluster Domains

When setting up domains in the Sun 15K/12K systems, configure some to include the I/O slots that contain Sun Fire Link link assemblies. These domains can then be included as nodes in the Sun Fire Link network

Install the Solaris Operating Environment

Perform an "Entire Distribution" installation of the Solaris operating environment onto the FM server, on each cluster node SC, and on each cluster domain. Also, apply any patches identified in the Sun Fire Link Release Notes.

Install the SunVTS Software

The Solaris 8 and Solaris 9 operating environments require different versions of the SunVTS software.

  • Solaris 8 - SunVTS 4.6 FCS
  • Solaris 9 - SunVTS 5.1 FCS

The SunVTS packages, including those that support Sun Fire Link, are listed below. Install all packages on each domain of the Sun Fire Link cluster.

Operating Environment

SunVTS
Package Name

SunVTS
Package Description

Dependencies

Solaris 8

SUNWvts
SUNWvtsx

Core SunVTS

Core SunVTS (64-bit)

...

SUNvts

Solaris 9

SUNWvts
SUNWvtsx

Core SunVTS

Core SunVTS (64-bit)

...

SUNvts


1. Insert the software supplement CD-ROM supplied with the Solaris 8 or Solaris 9 operating environment CD-ROM. This supplement CD-ROM contains the SunVTS core software packages.

2. Install the SunVTS core software:

For the Solaris 8 operating environment:

# cd $S8_BASEDIR/SUNWvts_4.6
# pkgadd -d . SUNWvts
# pkgadd -d . SUNWvtsx

where $S8_BASEDIR is the root directory for the SunVTS packages in the Solaris 8 path.

For the Solaris 9 operating environment:

# cd $S9_BASEDIR/SUNWvts_5.1
# pkgadd -d . SUNWvts
# pkgadd -d . SUNWvtsx

where $S9_BASEDIR is the root directory for the SunVTS packages in the Solaris 9 path.

3. Verify that the packages are installed.

For the Solaris 8 operating environment:

# pkginfo | grep SUNWvts
system      SUNWvts       ...
system      SUNWvtsx      ...

For the Solaris 9 operating environment:

# pkginfo | grep SUNWvts
system      SUNWvts       ...
system      SUNWvtsx      ...

4. Apply any patches identified in the Sun Fire Link Release Notes.

5. Repeat the SunVTS installation procedure on each domain of the Sun Fire Link cluster.


Using Sun Management Center or Not Using Sun Management Center

The next steps in the installation process depend on whether or not you are planning to use the Sun Management Center 3.0 PU4 software to administer Sun Fire Link clusters.

If you will be using version 3.0 PU4 of the Sun Management Center software, you must use a special script, called install, which is part of this release of the Sun Fire Link software. The primary purpose of this script is to make it possible for various add-on packages, including a set of Sun Fire Link add-ons to be installed and used with Sun Management Center 3.0 PU4 software.

However, install also installs and sets up all the Sun Fire Link software packages, both the basic packages and add-ons. This means, if you are going to use the install script for its adaptation purposes, you will not need to install and set up the Sun Fire Link packages by hand. The general process for using this approach consists of the following:

If you will not be using Sun Management Center software, you will need to install and set up the Sun Fire Link management software by hand, as described in Install the FM and FM Proxy Agent Software by Hand.



Note - If you want to install localized Sun Fire Link add-on packages, use pkgadd to install them after the Sun Managment Center and Sun Fire Link add-on software has been installed, but before the setup script is run. Separate instructions are provided for installing English-language and localized Sun Fire Link add-on packages.



TABLE 4 identifies the various Sun Fire Link add-on packages, including localized packages that provide support for the console and FM server layers.

TABLE 4 Sun Fire Link Add-On Package Summary

Package Name

Package Description

Installation Location

Common Packages





SUNWeswci

Sun MC - Sun Fire Link Manager Console

Sun Management Center console

SUNWswsrv

Sun MC - Sun Fire Link Server

Sun Management Center server

SUNWwhelp

Sun MC - Sun Fire Link Help

Sun Management Center console

  SUNWensfl

Sun MC Fire Link English Message Files

All components except console

Solaris 8 or 9 Packages[1]





SUNWeswcx

Sun MC - Sun Fire Link Switch Agent

FM server

SUNWeswfm

Sun MC - Sun Fire Link Manager Agent

FM server

SUNWsflcm

Sun MC Fire Link Common Package

All components except console

SUNWwccmn

Common jar file

FM server

SUNWwcfmr

Sun Fire Link Manager Root Package

FM server

SUNWwcfmu

Sun Fire Link Manager User Package

FM server

SUNWrsmpr

RSM Proxy Root Package

RSM domains

SUNWrsmpu

RSM Proxy User Package

RSM domains

SUNWswrsm

Sun Management Center - WRSM Agent

RSM domains

SUNWwcfms

Sun Fire Link Manager Shared Files

FM server and RSM domains

Localized Packages





SUNWjsflc

Japanese Sun MC - Fire Link Common Package

All components

SUNWjeswc

Japanese support for Sun MC - Fire Link console

Sun Management Center console

SUNWjswsr

Japanese support for Sun MC - Fire Link server

Sun Management Center server

SUNWjwhlp

Japanese support for Sun MC Fire Link online help

Sun Management Center server and console

SUNWcsflc

Simplified Chinese Sun MC Fire Link Common Package

All components

SUNWceswc

Simplified Chinese support for Sun MC Fire Link console

Sun Management Center console

SUNWcswsr

Simplified Chinese support for Sun MC Fire Link server

Sun Management Center server

SUNWcwhlp

Simplified Chinese support for Sun MC Fire Link online help

Sun Management Center server and console

SUNWfsflc

French Sun MC - Fire Link Common Package

All components

SUNWfeswc

French support for Sun MC - Fire Link console

Sun Management Center console

SUNWfswsr

French support for Sun MC - Fire Link server

Sun Management Center server

SUNWfwhlp

French support for Sun MC Fire Link online help

Sun Management Center server and console



Install the Sun Management Center 3.0 Software

Install the General Availability (GA) version of the Sun Management Center 3.0 software as described in the Sun Management Center 3.0 Software Installation Guide.

Note that the Sun Management Center installation script, es-inst, changes various /etc/system entries to provide sufficient resources for database activities that the Sun Management Center software performs. These changes are shown in TABLE 5.

TABLE 5 Changes Made by es-inst to /etc/system
set shmsys:shminfo_shmmax=536870912
set shmsys:shminfo_shmmin=1
set shmsys:shminfo_shmmni=100
set shmsys:shminfo_shmseg=10
set semsys:seminfo_semmni=100
set semsys:seminfo_semmsl=115
set semsys:seminfo_semmns=200
set semsys:seminfo_semopn=100
set semsys:seminfo_semvmx=32767

Refer to the Sun Fire Link Release Notes to see what patches may be required by the Sun Management Center software and apply any that are listed.


Run the install Script

The images for the Sun Fire Link add-on packages that are supported by the install adapter script are contained in image/Addons/SunFireLink directory.

The procedure described below focuses on installing and setting up the SunFireLink add-on packages. However, the installation procedure is the same for all three groups of add-ons.

The usage for the install script is:

# install -h
Usage: install [-S dir] [-h]

where the options represent:
S dir: dir is the location of the image to be installed.
h : prints this usage report.

Install Script Preview

After you start the install script, it will perform the adaptation tasks that allow the version 3.0 es-inst tool to install and set up the SunFireLink, Sun-Fire-15000, and SunFireLink add-on packages. Once those tasks are complete, install will start es-inst, which will manage the actual installation and setup operations. That's why you will see es-inst prompts at various points in the operation.

Before the script installs a set of packages, it checks to see if previous versions of the add-on packages are present. If so, it prints out a list of the packages that were found. In such cases, you must exit from the script and remove the earlier versions using pkgrm before continuing with the installation.



Caution - Do not use es-uninst to remove the previously installed add-on packages. The Sun Management Center 3.0 version of es-uninst may remove other packages you want to keep.



Using the install Script With Non-Localized Sun Fire Link Add-On Packages

procedure icon  To Install and Set Up Sun Fire Link Add-Ons

1. Stop the Sun Management Center components.

# /opt/SUNWsymon/sbin/es-stop -A

2. Go to the directory containing the install script and start the script.

Use the -S flag to specify the image source directory.

# cd /cdrom/sun-fire-link_1.1/Product/Sun_Management_Center_Sun_Fire_Supplements_5_03/adapter_script
# ./install -S ../disk1/image

3. Answer the installation and setup prompts.

For each set of component packages, es-inst will ask if you want to install that component. Install only those components that belong on the current system. Refer to TABLE 4 for guidance.



Note - During the cluster node setup phase, you will see a prompt asking for a valid DNS hostname for this host. Specify the name of the network interface that is connected to the FM server. Otherwise, the FM won't be able to manage the RSM proxy on the node.



4. When the installation and setup process completes, the script will print the path to the installation log file and an "End of Installation" message.

5. Start the agents that were stopped in Step 1.

# /opt/SUNWsymon/sbin/es-start -A

6. Apply any required RSM patches to all cluster node systems.

See the Sun Fire Link Release Notes for a list of required RSM patches.

7. Reboot the nodes.

8. Apply any required FM patches.

See the Sun Fire Link Release Notes for a list of required FM patches.

9. Reboot the FM server.

Using the install Script With Localized Sun Fire Link Add-On Packages

See TABLE 4 for a list of the localized Sun Fire Link add-on packages.


procedure icon  To Install the Sun Fire Link Add-Ons

1. Stop the Sun Management Center agents.

# /opt/SUNWsymon/sbin/es-stop -A

2. Go to the directory containing the install script and start the script.

Use the -S flag to specify the image source directory.

# cd /cdrom/sun-fire-link_1.1/Product/Sun_Management_Center_Sun_Fire_Supplements_5_03/adapter_script
# ./install -S ../disk1/image

3. Answer the installation prompts.

For each set of component packages, es-inst will ask if you want to install that component. Install only those components that belong on the current system. Refer to TABLE 4 for guidance.

4. When the install script completes the package installation phase, it will ask if you want to start the setup phase. Enter n to exit the script without starting the setup phase.

Do you want to run setup now? [y|n|q] n

5. Install the localized Sun Fire Link common add-on packages on the agent layer.

# cd /cdrom/sun-fire-link_1.1/Product/Sun_Management_Center_Sun_Fire_Supplements_5_03/disk1/image/Addons/SunFireLink/Common/Basic
# pkgadd -d . SUNWjsflc SUNWcsflc SUNWfsflc

6. Verify that the packages were successfully installed.

# pkginfo SUNWjsflc SUNWcsflc SUNWfsflc
system      SUNWcsflc    ...
system      SUNWfsflc    ...
system      SUNWjsflc    ...

7. Install the localized Sun Fire Link common packages and the localized packages support for the Sun Management Center/FM console and online help on the console layer.

# pkgadd -d . SUNWjsflc SUNWcsflc SUNWfsflc SUNWjeswc SUNWceswc SUNWfeswc SUNWjwhlp SUNWcwhlp SUNWfwhlp

8. Verify that the packages were successfully installed.

# pkginfo SUNWjsflc SUNWcsflc SUNWfsflc SUNWjeswc SUNWceswc SUNWfeswc SUNWjwhlp SUNWcwhlp SUNWfwhlp
system      SUNWceswc    ...
system      SUNWcsflc    ...
system      SUNWcwhlp    ...
system      SUNWfeswc    ...
system      SUNWfsflc    ...
system      SUNWfwhlp    ...
system      SUNWjeswc    ...
system      SUNWjsflc    ...
system      SUNWjwhlp    ...

9. Install the localized Sun Fire Link common packages and the localized packages support for the Sun Management Center/FM server and online help on the server and FM layers.

# pkgadd -d . SUNWjsflc SUNWcsflc SUNWfsflc SUNWjswsr SUNWcswsr SUNWfswsr SUNWjwhlp SUNWcwhlp SUNWfwhlp

10. Verify that the packages were successfully installed.

# pkginfo SUNWjsflc SUNWcsflc SUNWfsflc SUNWjswsr SUNWcswsr SUNWfswsr SUNWjwhlp SUNWcwhlp SUNWfwhlp
system      SUNWcsflc    ...
system      SUNWcswsr    ...
system      SUNWcwhlp    ...
system      SUNWfsflc    ...
system      SUNWfswsr    ...
system      SUNWfwhlp    ...
system      SUNWjsflc    ...
system      SUNWjswsr    ...
system      SUNWjwhlp    ...

11. Once all the localized add-on packages are installed, run the setup script.

# /opt/SUNWsymon/sbin/es-setup



Note - During the cluster node setup phase, you will see a prompt asking for a valid DNS hostname for this host. Specify the name of the network interface that is connected to the FM server. Otherwise, the FM won't be able to manage the RSM proxy on the node.



12. When the installation and setup process completes, the script will print the path to the installation log file and an "End of Installation" message.

13. Start the agents that were stopped in Step 1.

# /opt/SUNWsymon/sbin/es-start -A

14. Apply RSM patches to all cluster node systems.

See the Sun Fire Link Release Notes for a list of required RSM patches.

15. Reboot the nodes.

16. Apply FM patches to the FM server.

See the Sun Fire Link Release Notes for a list of required FM patches.

17. Reboot the FM server.


Install the FM and FM Proxy Agent Software by Hand

The Sun Fire Link Manager consists of six packages, which are identified below. On each cluster domain, install the shared file package, the common jar file package, and the two proxy packages. On the FM server, install the shared file package, the common jar file package, and the Sun Fire Link root and user packages.

Installation Location

Sun Fire Link Manager
Package Name

Sun Fire Link Manager
Package Description

Dependencies

Cluster domains

SUNWwcfms

SUNWrsmpr

SUNWrsmpu

Sun Fire Link Manager Shared Files

RSM Proxy Root Package

RSM Proxy User Package

...

SUNWwcfms

SUNWrsmpr

FM server

SUNWwcfms

SUNWwccmn

SUNWwcfmr

SUNWwcfmu

Sun Fire Link Manager Shared Files

Common jar file

Sun Fire Link Manager Root Package

Sun Fire Link Manager User Package

...

...

SUNWwcfms, SUNWwccmn

SUNWwcfmr


If you think one or more of these packages might have been previously installed, check the FM server and cluster domains to see if they are present. If so, remove them before performing the installation procedure described below.

Removal of the SUNWwcfmu package will usually stop any existing fabrics that are listed in the fabric base data directory, as indicated in the file /opt/SUNWwcfm/config/wcfm_base_data_dir.cfg on the FM server. This means you do not need to run /opt/SUNWwcfm/bin/killfabrics to clear any existing fabrics from the RMI registry.



Note - An exception to this will occur when one or more fabrics were previously created and listed in the RMI registry and then the FM was reset using the wcfm_setup command. In this case, removing SUNWwcfmu will not cause these fabrics to be stopped. You must run /opt/SUNWwcfm/bin/killfabrics to clear them from Sun Fire Link fabrics from the RMI registry. See the Sun Fire Link Fabric Administrator's Guide for information on the killfabrics command.




procedure icon  To Install the FM Proxy Packages and Shared Files on the Cluster Nodes

1. On each RSM domain, become superuser and change directory to either the Solaris_8 or Solaris_9 location in the software distribution path.

For the Solaris 8 operating environment, enter:

# cd /cdrom/sun-fire-link_1.1/Product/Solaris_8

For the Solaris 9 operating environment, enter:

# cd /cdrom/sun-fire-link_1.1/Product/Solaris_9

2. Install the RSM proxy packages and the Sun Fire Link Manager shared files.

# pkgadd -d . SUNWwcfms
# pkgadd -d . SUNWrsmpr
# pkgadd -d . SUNWrsmpu
# pkginfo | egrep "SUNWrsmp|SUNWwcfm"
system      SUNWrsmpr    ...
system      SUNWrsmpu    ...
system      SUNWwcfms    ...

3. On each RSM domain, set up the RSM proxies.

As superuser, run the script that sets up the RSM proxies.

# /opt/SUNWwrsmp/bin/wrsm_proxy_setup

4. On each RSM domain, start the RSM proxies.

As superuser, run the script that starts the RSM proxies.

# /etc/init.d/wrsm_proxy start



Note - On each RSM domain, verify that the host name in the domain's /opt/SUNWwrsmp/node_name.cfg file is the name of the network interface connected to the FM server. If not, edit the file so that the host name corresponds to the interface to the FM server.



5. On each RSM domain, establish security settings for Sun Fire Link user access.

a. Edit /etc/group.

Add a group named sfladmin and add the appropriate users to this group.

b. Edit /etc/passwd.

Add the users you listed in /etc/group to /etc/passwd.

c. Execute pwconv to update /etc/shadow.

d. Execute passwd to assign passwords to the new users.


procedure icon  To Install the FM Packages on the FM Server

1. On the FM server, become superuser and change directory to either the Solaris_8 or Solaris_9 location in the software distribution path.

For the Solaris 8 operating environment, enter:

fm_host# cd /cdrom/sun-fire-link_1.1/Product/Solaris_8

For the Solaris 9 operating environment, enter:

fm_host# cd /cdrom/sun-fire-link_1.1/Product/Solaris_9

2. Install the Sun Fire Link Manager packages.

fm_host# pkgadd -d . SUNWwcfms
fm_host# pkgadd -d . SUNWwccmn
fm_host# pkgadd -d . SUNWwcfmr
fm_host# pkgadd -d . SUNWwcfmu
fm_host# pkginfo | egrep "SUNWwcfm|SUNWwcc"
...

Install the Localized Sun Fire Link Add-On Packages (optional)

The following procedure explains how to install the localized Sun Fire Link packages. See TABLE 4 for a complete list of the localized Sun Fire Link add-on packages.


procedure icon  To Install the Localized Sun Fire Link Add-On Packages

1. Insert the Sun Fire Link CD-ROM.

2. Install the localized Sun Fire Link common add-on packages on the agent layer.

# cd /cdrom/sun-fire-link_1.1/Product/Sun_Management_Center_Sun_Fire_Supplements_5_03/disk1/image/Addons/SunFireLink/Common/Basic
# pkgadd -d . SUNWjsflc SUNWcsflc SUNWfsflc

3. Verify that the packages were successfully installed.

# pkginfo SUNWjsflc SUNWcsflc SUNWfsflc
system      SUNWcsflc    ...
system      SUNWfsflc    ...
system      SUNWjsflc    ...

4. Install the localized Sun Fire Link common packages and the localized packages support for the Sun Management Center/FM console and online help on the console layer.

# pkgadd -d . SUNWjsflc SUNWcsflc SUNWfsflc SUNWjeswc SUNWceswc SUNWfeswc SUNWjwhlp SUNWcwhlp SUNWfwhlp

5. Verify that the packages were successfully installed.

# pkginfo SUNWjsflc SUNWcsflc SUNWfsflc SUNWjeswc SUNWceswc SUNWfeswc SUNWjwhlp SUNWcwhlp SUNWfwhlp
system      SUNWcsflc    ...
system      SUNWcswsr    ...
system      SUNWcwhlp    ...
system      SUNWfsflc    ...
system      SUNWfswsr    ...
system      SUNWfwhlp    ...
system      SUNWjsflc    ...
system      SUNWjswsr    ...
system      SUNWjwhlp    ...

6. Install the localized Sun Fire Link common packages and the localized packages support for the Sun Management Center/FM server and online help on the server and FM layers.

# pkgadd -d . SUNWjsflc SUNWcsflc SUNWfsflc SUNWjswsr SUNWcswsr SUNWfswsr SUNWjwhlp SUNWcwhlp SUNWfwhlp

7. Verify that the packages were successfully installed.

# pkginfo SUNWjsflc SUNWcsflc SUNWfsflc SUNWjswsr SUNWcswsr SUNWfswsr SUNWjwhlp SUNWcwhlp SUNWfwhlp
system      SUNWcsflc    ...
system      SUNWcswsr    ...
system      SUNWcwhlp    ...
system      SUNWfsflc    ...
system      SUNWfswsr    ...
system      SUNWfwhlp    ...
system      SUNWjsflc    ...
system      SUNWjswsr    ...
system      SUNWjwhlp    ...

Set Up the Sun Fire Link Manager


procedure icon  To Set Up the Sun Fire Link Manager

1. As superuser, run the wcfm_setup script. Be prepared to supply a location for dynamically created files. For example:

fm_host# /opt/SUNWwcfm/bin/wcfm_setup

Please enter base directory ABSOLUTE path name of a NEW directory for the FM
DATA files. The subdirectory SUNWwcfm will be added there and will store log
and cfg files for each fabric. Suggested location is a new subdirectory of
/var/opt [?] /var/opt/FM
....

2. On the FM server, establish security settings for Sun Fire Link users.

a. Edit /etc/group.

Add a group named sfladmin and add sfluser to this group.

b. Edit /etc/passwd.

Add sfluser to /etc/passwd.

c. Execute pwconv to update /etc/shadow.

d. Execute passwd to assign passwords to the new users.


Next Steps

To Configure the RSM Network

After installing the Sun Fire Link software, the next step is to configure the RSM controllers. This can be done in two ways:

  • By using Sun Management Center software. This is the recommended method.
  • By using the Sun Fire Link Manager command-line interface tools.

Both methods are described in the Sun Fire Link Fabric Administrator's Guide, which is provided as a PDF file on the Sun Fire Link CD-ROM.

To Configure the DLPI Interface

After configuring the RSM controllers, you may wish to configure the DLPI interface to permit communication via the TCP/IP protocol. Use your preferred method, as on any other cluster interconnect.


1 (TableFootnote) The Solaris 8 and Solaris 9 add-on packages have the same names.
