Chapter 11 Developing a Messaging Server Architecture

This chapter describes how to design the architecture of your Messaging Server, which provides for how Messaging Server components are distributed across hardware and software resources.

Understanding the Two-tiered Messaging Architecture

A two-tiered messaging architecture provides the optimum design for scalability and reliability. Instead of having a single host run all the components of a messaging system, a two-tiered architecture separates the components onto different machines. These separate components perform specific specialized functions. As the load for a particular functional component increases—for example, more Message Storage is required, or more outbound relaying is needed—you can add more servers to handle the larger loads.

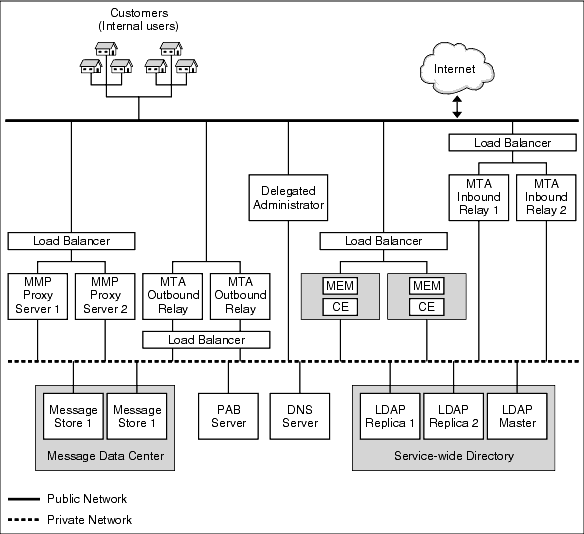

The two-tiered architecture consists of an access layer and a data layer. The access layer is the portion of the architecture that handles delivery, message access, user login, and authentication. The data layer is the portion of the architecture that holds all the data. This includes the LDAP master servers and Messaging Server machines that are configured to store user messages.

Public Access Network. The network connecting the Messaging Server to internal users and the Internet. Each deployment defines its own network requirements, however, the basic Messaging Server requirement is connectibility to end users and the Internet using standard protocols such as SMTP, POP, IMAP, and HTTP.

Private Data Network. This network provides secure connectivity between the public access network and Messaging Server data. It consists of a secure access layer and a data layer, which includes the service-wide directory, the message data center, and the personal address book (PAB) server.

LDAP directory server. Directory server used for storing and retrieving information about the user base. It stores user and group aliases, mailhost information, delivery preferences, and so on. Depending on your design requirements, there could be more than one identical directory for the system. Figure 11-1 shows a master directory and two replicas. An LDAP directory server is provided as part of the Messaging Server product. If desired, you can use data from an existing Sun Java System Directory Server directory. The data format of the existing directory must also be compliant with the Messaging Server schema.

Message Store. Holds and stores user mail. Sometimes referred to as a “back end.” The Message Store also refers to the Message Access Components such as the IMAP server, the POP server, and the Webmail (Messenger Express) servers. Figure 11-1 shows a deployment that has two message stores. You can add more stores as needed.

Personal Address Book (PAB) Server. Stores and retrieves users’ addresses in an LDAP server, which can be the same server or a different server from the LDAP server described above.

DNS server. Maps host names to IP addresses. The DNS server determines what host to contact when routing messages to external domains. Internally, DNS maps actual services to names of machines. The DNS server is not part of the Messaging Server product. You must install an operating DNS server prior to installing Messaging Server.

Load Balancer. Balances network connections uniformly or by algorithm across multiple servers. Using load balancers, a single network address can represent a large number of servers, eliminating traffic bottlenecks, allowing management of traffic flows and guaranteeing high service levels. Figure 11-1 shows load balancers for the MMPs, the MTAs, and the MEMs. Load balancers are not part of the Java Enterprise System product. You cannot use load balancers on the Message Store or directory masters. You use them for connections to MMPs, MEMs, Communications Express, MTAs, directory consumers, and with Messaging Server’s MTA’s use of the Brightmail product.

MTA Inbound Relay. MTA dedicated to accepting messages from external (Internet) sites and routing those messages to internal hosts and the local Message Store server. Because this is the first point of contact from the outside, the MTA inbound relay has the added responsibility of guarding against unauthorized relaying, spam filtering, and denial of service attack. You can use MX records to balance incoming mail traffic. See Mail Exchange (MX) Records for more information.

MTA Outbound Relay. MTA that only receives mail from internal or authenticated users and routes those messages to other internal users or to external (Internet) domains. While a single machine can be an inbound relay as well as an outbound relay, in a large scale Internet-facing deployment, separate these functions to two separate machines. This way, internal clients sending mail do not have to compete with inbound mail from external sites.

Delegated Administrator Server. Provides a GUI management console for administrators, enabling more advanced administrative tasks, such as adding and deleting users.

Messaging Multiplexor or MMP. Enables scaling of the Message Store across multiple physical machines by decoupling the specific machine that contains a user’s mailbox from its associated DNS name. Client software does not have to know the physical machine that contains its Message Store. Thus, users do not need to change the name of their host message store every time their mailbox is moved to a new machine. When POP or IMAP clients request mailbox access, the MMP forwards the request to the Messaging Server system containing the requested mailbox by looking in the directory service for the location of the user’s mailbox. When you use multiple MMPs, they should be located behind a load balancer.

Messenger Express Multiplexor or MEM. A specialized server that acts as a single point of connection to the HTTP access service for Webmail. All users connect to the single messaging proxy server, which directs them to their appropriate mailbox. As a result, an entire array of messaging servers will appear to mail users to be a single host name. While the Messaging Multiplexing Proxy (MMP) connects to POP and IMAP servers, the Messenger Express Multiplexor connects to an HTTP server. In other words, the Messenger Express Multiplexor is to Messenger Express as MMP is to POP and IMAP. When you use multiple MEMs, they should be used with a load balancer. For Communications Express deployments, Communications Express software is also deployed on the same host that contains the MEM.

Two-tiered Architecture—Messaging Data Flow

This section describes the message flow through the messaging system. How the message flow works depends upon the actual protocol and message path.

Sending Mail: Internal User to Another Internal User

Synopsis: Internal User -> Load Balancer -> MTA Outbound Relay 1 or 2 -> MTA Inbound Relay 1 or 2 -> Message Store 1 or 2

Messages addressed from one internal user to another internal user (that is, users on the same email system) first go to a load balancer. The load balancer shields the email user from the underlying site architecture and helps provide a highly available email service. The load balancer sends the connection to either MTA Outbound Relay 1 or 2. The outbound relay reads the address and determines that the message is addressed to an internal user. The outbound relay sends the message to MTA Inbound Relay 1 or 2 (or directly to the appropriate message store if so configured). The MTA Inbound Relay delivers the message to the appropriate Message Store. The Message Store receives the message and delivers it to the mailbox.

Retrieving Mail: Internal User


Note	An increasingly more common scenario is to use LMTP to deliver mail directly from the outbound relay to the store. In a two-tiered deployment, you can make this choice.

Synopsis: Internal User -> Load Balancer -> MMP/MEM/Communications Express Proxy Server 1 or 2 -> Message Store 1 or 2

Mail is retrieved by using either POP, HTTP, or IMAP. The user connection is received by the load balancer and forwarded to one of the MMP, or MEM/Communications Express servers. The user then sends the login request to the access machine it is connected to. The access layer machine validates the login request and password, then sends the request over the same protocol designated by the user connection to the appropriate Message Store (1 or 2). The access layer machine then proxies for the rest of the connection between the client and servers.

Sending Mail: Internal User to an External (Internet) User

Synopsis: Internal User -> Load Balancer -> MTA Outbound Relay 1 or 2 -> Internet

Messages addressed from an internal user to an external user (that is, users not on the same email system) go to a load balancer. The load balancer shields the email user from the underlying site architecture and helps provide a highly available email service. The load balancer sends the message to either MTA Outbound Relay 1 or 2. The outbound relay reads the address and determines that the message is addressed to an external user. The outbound relay sends the message to an MTA on the Internet.

Sending Mail: External (Internet) User to an Internal User

Messages addressed from an external user (from the Internet) to an internal user go to either MTA Inbound Relay 1 or 2 (a load balancer is not required). The inbound relay reads the address and determines that the message is addressed to an internal user. The inbound relay determines by using an LDAP lookup whether to send it to Message Store 1 or 2, and delivers accordingly. The appropriate Message Store receives the message and delivers it to the appropriate mailbox.

Understanding Horizontal and Vertical Scalability in Messaging Server

Scalability is the capacity of your deployment to accommodate growth in the use of messaging services. Scalability determines how well your system can absorb rapid growths in user population. Scalability also determines how well your system can adapt to significant changes in user behavior, for example, when a large percentage of your users want to enable SSL within a month.

This section helps you identify the features you can add to your architecture to accommodate growth on individual servers and across servers. The following topics are covered:

Planning for Horizontal Scalability

Horizontal scalability refers to the ease with which you can add more servers to your architecture. As your user population expands or as user behavior changes, you eventually overload resources of your existing deployment. Careful planning helps you to determine how to appropriately scale your deployment.

If you scale your deployment horizontally, you distribute resources across several servers. There are two methods used for horizontal scalability:

Spreading Your Messaging User Base Across Several Servers

To distribute load across servers is to divide clients’ mail evenly across several back-end Message Stores. You can divide up users alphabetically, by their Class of Service, by their department, or by their physical location and assign them to a specific back-end Message Store host.

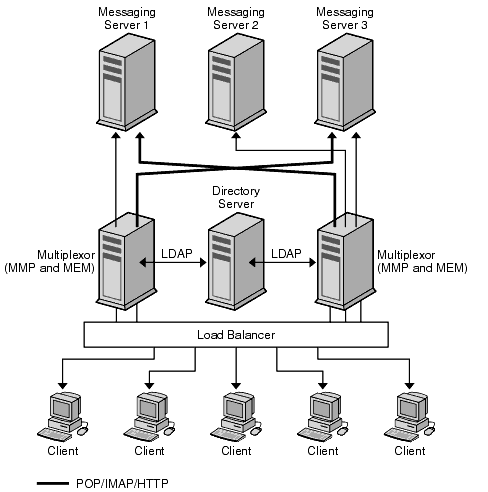

Often, both the MMP and the MEM are placed on the same machine for ease of manageability. Figure 11-2 shows a sample deployment where users are spread across multiple back-end servers and multiplexors enabled to handle incoming client connections.

Spreading users across back-end servers provides simplified user management, as long as you use MMPs or MEMs. Because users connect to one back-end server, where their mail resides, you can standardize setup across all users. This configuration also makes administration of multiple servers easier to manage. And, as the demand for more Messaging Server hosts increases, you can add more hosts seamlessly.

Spreading Your Messaging Resources Across Redundant Components

If email is a critical part of your organization’s day-to-day operations, redundant components, like load balancers, mail exchange (MX) records, and relays are necessary to ensure that the messaging system remains operational.

By using redundant MTAs, you ensure that if one component is disabled, the other is still available. Also, spreading resources across redundant MTAs enables load sharing. This redundancy also provides fault tolerance to the Messaging Server system. Each MTA relay should be able to perform the function of other MTA relays.

Installing redundant network connections to servers and MTAs also provides fault tolerance for network problems. The more critical your messaging deployment is to your organization, the more important it is for you to consider fault tolerance and redundancy.

Mail Exchange (MX) Records

MX records are a type of DNS record that maps one host name to another. Equal priority MX records route messages to redundant inbound MTAs. For example, the sending MTA from the Internet will find that the MX record for siroe.com corresponds to MTAA.siroe.com and MTAB.siroe.com. One of these MTAs is chosen at random, as they have equal priority, and an SMTP connection is opened. If the first MTA chosen does not respond, the mail goes to the other MTA. See the following MX record example:

Inbound and Outbound MTAs

When Messaging Server hosts are each supporting many users, and there is a heavy load of sending SMTP mail, offload the routing task from the Messaging Server hosts by using separate inbound and outbound MTAs. You can further share the load by designating different MTAs to handle outgoing and incoming messages.

Often, both the inbound and outbound MTAs are combined as a single In/Out SMTP host. To determine if you need one or more MTA hosts, identify the inbound and outbound message traffic characteristics of the overall architecture.

Load Balancers

Load balancing can be used to distribute the load across several servers so that no single server is overwhelmed. A load balancer takes requests from clients and redirects them to an available server by algorithms such as keeping track of each server’s CPU and memory usage. Load balancers are available as software that runs on a common server, as a pure external hardware solution, or as a combined hardware and software package.

Planning for Vertical Scalability

Vertical scalability pertains to adding resources to individual server machines, for example, adding additional CPUs. Each machine is scaled to handle a certain load. In general, you might decide upon vertical scalability in your deployment because you have resource limitations or you are unable to purchase additional hardware as your deployment grows.

Planning for a Highly Available Messaging Server Deployment

High availability is a design for your deployment that operates with a small amount of planned and unplanned downtime. Typically, a highly available configuration is a cluster that is made up of two or more loosely coupled systems. Each system maintains its own processors, memory, and operating system. Storage is shared between the systems. Special software binds the systems together and allows them to provide fully automated recovery from a single point of failure. Messaging Server provides high-availability options that support both the Sun Cluster services and Veritas clustering solutions.

When you create your high availability plan, you need to weigh availability against cost. Generally, the more highly available your deployment is, the more its design and operation will cost.

High availability is an insurance against the loss of data access due to application services outages or downtime. If application services become unavailable, an organization might suffer from loss of income, customers, and other opportunities. The value of high availability to an organization is directly related to the costs of downtime. The higher the cost of downtime, the easier it is to justify the additional expense of having high availability. In addition, your organization might have service level agreements guaranteeing a certain level of availability. Not meeting availability goals can have a direct financial impact.

Performance Considerations for a Messaging Server Architecture

This section describes how to evaluate the performance characteristics of Messaging Server components to accurately develop your architecture.

Message Store Performance Considerations

The preceding factors list the approximate order of impact to the Message Store. Most performance issues with the Message Storage arise from insufficient disk I/O capacity. Additionally, the way in which you lay out the store on the physical disks can also have a performance impact. For smaller standalone systems, it is possible to use a simple stripe of disks to provide sufficient I/O. For most larger systems, segregate the file system and provide I/O to the various parts of store.

Messaging Server Directories

Messaging Server uses six directories that receive a significant amount of input and output activity. Because these directories are accessed very frequently, you can increase performance by providing each of those directories with its own disk, or even better, providing each directory with a Redundant Array of Independent Disks (RAID). The following table describes these directories.

Table 11-1 High Access Messaging Server Directories
High I/O Directory	Description and Defining Parameter
MTA queue directory	In this directory, many files are created, one for each message that passes through the MTA channels. After the file is sent to the next destination, the file is then deleted. The directory location is controlled by the IMTA_QUEUE option in the imta_tailor file. Before modifying the MTA queue directory, read about this option in the Sun Java System Messaging Server Administration Reference. Default location: /var/opt/SUNWmsgrsr/queue
Messaging Server log directory	This directory contains log files which are constantly being appended with new logging information. The number of changes will depend on the logging level set. The directory location is controlled by the configutil parameter logfile..logdir, where can be a log-generating component such as admin, default, http, imap, or pop. The MTA log files can be changed with the IMTA_LOG option in the imta_tailor file. Default location: /var/opt/SUNWmsgsr/log
Mailbox database files	These files require constant updates as well as cache synchronization. Put this directory on your fastest disk volume. These files are always located in the /var/opt/SUNWmsgsr/store/mboxlist directory.
Message store index files	These files contain meta information about mailboxes, messages, and users. By default, these files are stored with the message files. The configutil parameter store.partition..path, where is the name of the partition, controls the directory location. If you have the resources, put these files on your second fastest disk volume. Default location: /var/opt/SUNWmsgsr/store/partition/primary
Message files	These files contain the messages, one file per message. Files are frequently created, never modified, and eventually deleted. By default, they are stored in the same directory as the message store index files. The location can be controlled with the configutil parameter store.partition.partition_name.messagepath, where partition_name is the name of the partition. Some sites might have a single message store partition called primary specified by store.partition.primary.path. Large sites might have additional partitions that can be specified with store.partition.partition_name.messagepath, where partition_name is the name of the partition. Default location: /var/opt/SUNWmsgsr/store/partition/primary
Mailbox list database temporary directory	The directory used by the Message Store for all temporary files. To maximize performance, this directory should be located under the fastest file system. For Solaris, use the configutil command to configure the store.dbtmpdir variable to a directory under tmpfs, for example, /tmp/mboxlist. Default location: /var/opt/SUNWmsgsr/store/mboxlist

The following sections provide more detail on Messaging Server high access directories.

MTA Queue Directories

In non-LMTP environments, the MTA queue directories in the Message Store system are also heavily used. LMTP works such that inbound messages are not put in MTA queues but directly inserted into the store. This message insertion lessens the overall I/O requirements of the Message Store machines and greatly reduces use of the MTA queue directory on Message Store machines. If the system is standalone or uses the local MTA for Webmail sends, significant I/O can still result on this directory for outbound mail traffic. In a two-tiered environment using LMTP, this directory will be lightly used, if at all. In prior releases of Messaging Server, on large systems this directory set needs to be on its own stripe or volume.

MTA queue directories should usually be on their own file systems, separate from the message files in the Message Store. The Message Store has a mechanism to stop delivery and appending of messages if the disk space drops below a defined threshold. However, if both the log and queue directories are on the same file system and keep growing, you will run out of disk space and the Message Store will stop working.

Log Files Directory

The log files directory requires varying amounts of I/O depending on the level of logging that is enabled. The I/O on the logging directory, unlike all of the other high I/O requirements of the Message Store, is asynchronous. For typical deployment scenarios, do not dedicate an entire LUN for logging. For very large store deployments, or environments where significant logging is required, a dedicated LUN is in order.

In almost all environments, you need to protect the Message Store from loss of data. The level of loss and continuous availability that is necessary varies from simple disk protection such as RAID5, to mirroring, to routine backup, to real time replication of data, to a remote data center. Data protection also varies from the need for Automatic System Recovery (ASR) capable machines, to local HA capabilities, to automated remote site failover. These decisions impact the amount of hardware and support staff required to provide service.

mboxlist Directory

The mboxlist directory is highly I/O intensive but not very large. The mboxlist directory contains the databases that are used by the stores and their transaction logs. Because of its high I/O activity, and due to the fact that the multiple files that constitute the database cannot be split between different file systems, you should place the mboxlist directory on its own stripe or volume in large deployments. This is also the most likely cause of a loss of vertical scalability, as many procedures of the Message Store access the databases. For highly active systems, this can be a bottleneck. Bottlenecks in the I/O performance of the mboxlist directory decrease not only the raw performance and response time of the store but also impact the vertical scalability. For systems with a requirement for fast recovery from backup, place this directory on Solid State Disks (SSD) or a high performance caching array to accept the high write rate that an ongoing restore with a live service will place on the file system.

Multiple Store Partitions

The Message Store supports multiple store partitions. Place each partition on its own stripe or volume. The number of partitions that should be put on a store is determined by a number of factors. The obvious factor is the I/O requirements of the peak load on the server. By adding additional file systems as additional store partitions, you increase the available IOPS (total IOs per second) to the server for mail delivery and retrieval. In most environments, you will get more IOPS out of a larger number of smaller stripes or LUNs than a small number of larger stripes or LUNs.

With some disk arrays, it is possible to configure a set of arrays in two different ways. You can configure each array as a LUN and mount it as a file system. Or, you can configure each array as a LUN and stripe them on the server. Both are valid configurations. However, multiple store partitions (one per small array or a number of partitions on a large array striping sets of LUNs into server volumes) are easier to optimize and administer.

Raw performance, however, is usually not the overriding factor in deciding how many store partitions you want or need. In corporate environments, it is likely that you will need more space than IOPS. Again, it is possible to software stripe across LUNs and provide a single large store partition. However, multiple smaller partitions are generally easier to manage. The overriding factor of determining the appropriate number of store partitions is usually recovery time.

First of all, the fsck command can operate on multiple file systems in parallel on a crash recovery caused by power, hardware, or operating system failure. If you are using a journaling file system (highly recommended and required for any HA platform), this factor is small.

Secondly, backup and recovery procedures can be run in parallel across multiple store partitions. This parallelization is limited by the vertical scalability of the mboxlist directory as the Message Store uses a single set of databases for all of the store partitions. Store cleanup procedures (expire and purge) run in parallel with one thread of execution per store partition.

Lastly, mirror or RAID re-sync procedures are faster with smaller LUNs. There are no hard and fast rules here, but the general recommendation in most cases is that a store partition should not encompass more than 10 spindles.

The size of drive to use in a storage array is a question of the IOPS requirements versus the space requirements. For most residential ISP POP environments, use “smaller drives.” Corporate deployments with large quotas should use “larger” drives. Again, every deployment is different and needs to examine its own set of requirements.

Message Store Processor Scalability

The Message Store scales well, due to its multiprocess, multithreaded nature. The Message Store actually scales more than linearly from one to four processors. This means that a four processor system will handle more load than a set of four single processor systems. The Message Store also scales fairly linearly from four to 12 processors. From 12 to 16 processors, there is increased capacity but not a linear increase. The vertical scalability of a Message Store is more limited with the use of LMTP although the number of users that can be supported on the same size store system increases dramatically.

Setting the Mailbox Database Cache Size

Messaging Server makes frequent calls to the mailbox database. For this reason, it helps if this data is returned as quickly as possible. A portion of the mailbox database is cached to improve Message Store performance. Setting the optimal cache size can make a big difference in overall Message Store performance. You set the size of the cache with the configutil parameter store.dbcachesize.

You should use the configutil parameter store.dbtmpdir to redefine the location of the mailbox database to /tmp, that is, /tmp/mboxlist.

The mailbox database is stored in data pages. When the various daemons make calls to the database (stored, imapd, popd), the system checks to see if the desired page is stored in the cache. If it is, the data is passed to the daemon. If not, the system must write one page from the cache back to disk, and read the desired page and write it in the cache. Lowering the number of disk read/writes helps performance, so setting the cache to its optimal size is important.

If the cache is too small, the desired data will have to be retrieved from disk more frequently than necessary. If the cache is too large, dynamic memory (RAM) is wasted, and it takes longer to synchronize the disk to the cache. Of these two situations, a cache that is too small will degrade performance more than a cache that is too large.

Cache efficiency is measured by hit rate. Hit rate is the percentage of times that a database call can be handled by cache. An optimally sized cache will have a 99 percent hit rate (that is, 99 percent of the desired database pages will be returned to the daemon without having to grab pages from the disk). The goal is to set the cache so that it holds a number of pages such that the cache will be able to return at least 95 percent of the requested data. If the direct cache return is less than 95 percent, then you need to increase the cache size.

The database command db_stat can be used to measure the cache hit rate. In the following example, the configutil parameter store.dbtmpdir has redefined the location of the mailbox database to /tmp, that is, /tmp/mboxlist. The db_stat command is run against this location:

2MB 513KB 604B  Total cache size.
1               Number of caches.
2MB 520KB       Pool individual cache size.
0               Requested pages mapped into the process’ address space.
55339             Requested pages found in the cache (99%).

In this case, the hit rate is 99 percent. This could be optimal or, more likely, it could be that the cache is too large. The way to test this is to lower the cache size until the hit rate moves to below 99 percent. When you hit 98 percent, you have optimized the DB cache size. Conversely, if db_stat shows a hit rate of less than 95 percent, then you should increase the cache size with the store.dbcachesize parameter. The maximum size is the total of all the *.db files in the store/mboxlist directory. The cache size should not exceed the total size of all of the .db files under the store/mboxlist directory.

Setting Disk Stripe Width

When setting disk striping, the stripe width should be about the same size as the average message passing through your system. A stripe width of 128 blocks is usually too large and has a negative performance impact. Instead, use values of 8, 16, or 32 blocks (4, 8, or 16 kilobyte message respectively).

MTA Performance Considerations

MTA performance is affected by a number of factors including, but not limited to:

The MTA is both CPU and I/O intensive. The MTA reads from and writes to two different directories: the queue directory and the logging directory. For a small host (four processors or less) functioning as an MTA, you do not need to separate these directories on different file systems. The queue directory is written to synchronously with fairly large writes. The logging directory is a series of smaller asynchronous and sequential writes. On systems that experience high traffic, consider separating these two directories onto two different file systems.

In most cases, you will want to plan for redundancy in the MTA in the disk subsystem to avoid permanent loss of mail in the event of a spindle failure. (A spindle failure is by far the single most likely hardware failure.) This implies that either an external disk array or a system with many internal spindles is optimal.

MTA and RAID Trade-offs

There are trade-offs between using external hardware RAID controller devices and using JBOD arrays with software mirroring. The JBOD approach is sometimes less expensive in terms of hardware purchase but always requires more rack space and power. The JBOD approach also marginally decreases server performance, because of the cost of doing the mirroring in software, and usually implies a higher maintenance cost. Software RAID5 has such an impact on performance that it is not a viable alternative. For these reasons, use RAID5 caching controller arrays if RAID5 is preferred.

MTA and Processor Scalability

The MTA does scale linearly beyond eight processors, and like the Message Store, more than linearly from one processor to four.

MTA and High Availability

It is rarely advisable to put the MTA under HA control, but there are exceptional circumstances where this is warranted. If you have a requirement that mail delivery happens in a short, specified time frame, even in the event of hardware failure, then the MTA must be put under HA software control. In most environments, simply increase the number of MTAs that are available by one or more over the peak load requirement. This ensures that proper traffic flow can occur even with a single MTA failure, or in very large environments, when multiple MTAs are offline for some reason.

In addition, with respect to placement of MTAs, you should always deploy the MTA inside your firewall.

MMP Performance Considerations

The MMP runs as a single multithreaded process and is CPU and network bound. It uses disk resources only for logging. The MMP scales most efficiently on two processor machines, scales less than linearly from two to four processors and scales poorly beyond four processors. Two processor, rack mounted machines are good candidates for MMPs.

In deployments where you choose to put other component software on the same machine as the MMP (MEM, Calendar Server front end, Communications Express web container, LDAP proxy, and so on), look at deploying a larger, four processor SPARC machine. Such a configuration reduces the total number of machines that need to be managed, patched, monitored, and so forth.

MMP sizing is affected by connection rates and transaction rates. POP sizing is fairly straight forward, as POP connections are rarely idle. POP connections connect, do some work, and disconnect. IMAP sizing is more complex, as you need to understand the login rate, the concurrency rate, and the way in which the connections are busy. The MMP is also somewhat affected by connection latency and bandwidth. Thus, in a dial up environment, the MMP will handle a smaller number of concurrent users than in a broadband environment, as the MMP acts as a buffer for data coming from the Message Store to the client.

If you use SSL in a significant percentage of connections, install a hardware accelerator.

MMP and High Availability

Never deploy the MMP under HA control. An individual MMP has no static data. In a highly available environment, add one or more additional MMP machines so that if one or more are down there is still sufficient capacity for the peak load. If you are using Sun Fire Blade™ Server hardware, take into account the possibility that an entire Blade rack unit can go down and plan for the appropriate redundancy.

MEM Performance Considerations

The MEM provides a middle-tier proxy for the Webmail (Messenger Express) client. This client enables users to access mail and to compose messages through a browser. The benefit of the MEM is that end users only connect to the MEM to access email, regardless of which back-end server is storing their mail. MEM accomplishes this by managing the HTTP session information and user profiles via the user’s LDAP information. The second benefit is that all static files and LDAP authentication states are located on the Messaging Server front end. This benefit offsets some of the additional CPU requirements associated with web page rendering from the Message Store back end.

You can put the MMP and MEM on the same set of servers. The advantage to doing so is if a small number of either MMPs or MEMs are required, the amount of extra hardware for redundancy is minimized. The only possible downside to co-locating the MMP and MEM on the same set of servers is that a denial of service attack on one protocol can impact the others.

Messaging Server and Directory Server Performance Consideration

For large-scale installations with Access Manager, Messaging Server, and an LDAP Schema 2 directory, you might want to consolidate the Access Control Instructions (ACIs) in your directory.

When you install Access Manager with Messaging Server, a large number of ACIs initially are installed in the directory. Many default ACIs are not needed or used by Messaging Server. You can improve the performance of Directory Server and, consequently, of Messaging Server look-ups, by consolidating and reducing the number of default ACIs in the directory.


Note	As your user base changes, the hit rate can also change. Periodically check and adjust this parameter as necessary. This parameter has an upper limit of 2 GB imposed by the database.

For information about how to consolidate and discard unused ACIs, see “Appendix D: ACI Consolidation” in the Sun Java System Communications Services Delegated Administrator Guide:
