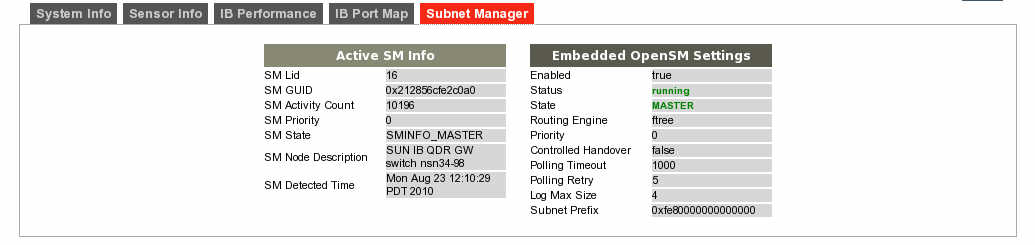

The following figure provides an example of the Subnet Manager tab.
The Subnet Manager tab displays information about the Subnet Manager within the switch. Information displayed is categorized into the following groups:
Active SM Info – Information about the active Subnet Manager, LID, GUID, activity, priority, and state
Embedded OpenSM Settings – Information about the management controller’s Subnet Manager’s configuration, read from the /opensm/opensm.conf file
The active Subnet Manager might not be the embedded Subnet Manager within the management controller.
