How to Install Windows Server 2008

If you want to configure your boot drive for RAID1 (mirroring), you need to do so using the LSI Logic integrated RAID controller’s setup utility (accessible by pressing Ctrl+C when prompted during server boot) before you install the Windows operating system. For more details, refer to the Sun LSI 106x RAID User’s Guide.
For your chosen Windows media delivery method, refer to the following requirements table.

Method	Action or Items Required
Windows local	Have the Microsoft Windows Server 2008 installation media available to insert in the server's CD/DVD-ROM drive when prompted.
Windows remote	Insert the Microsoft Windows Server 2008 installation media into the JavaRConsole system’s DVD-ROM drive. Make sure you have selected “CD-ROM” from the JavaRConsole Device menu.
Windows image	Ensure that the Windows Server 2008 installation ISO image is accessible from the JavaRConsole system. Make sure you have selected “CD-ROM image” from the JavaRConsole Device menu.

Power cycle your server.
If you are using the Windows Remote or Windows Image method, you can do this through ILOM.
The BIOS POST process begins.

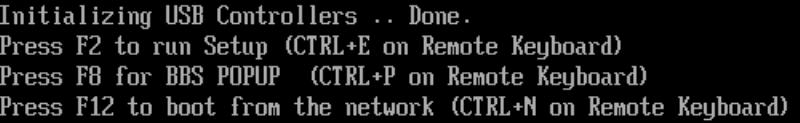

Press F8 when the Press F8 for BBS POPUP prompt appears on the BIOS POST screen.
The BBS POPUP menu allows you to select a boot device.

Note - BIOS POST messages, including the prompt for the BBS Popup menu, can go by quickly and you might miss them. If so, power cycle the server and hold down the F8 key during boot until the BBS Popup menu (shown in Step 3) appears.

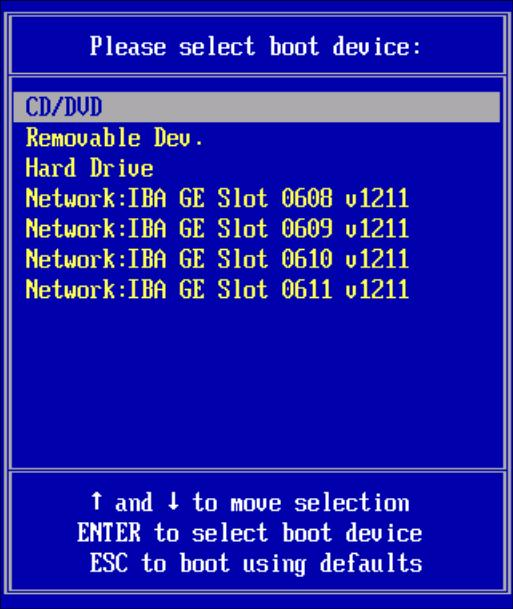

Once the BIOS POST process is complete, the Boot Device menu appears. If you have selected the Windows Local installation method, insert the Windows media DVD in the server’s DVD drive now.
Do one of the following:
- If you are using the Windows Local method, select CD/DVD from the Boot Device menu and press Enter.
- If you are using the Windows Remote or Windows Image method, select the virtual CD/DVD from the Boot Device menu and press Enter.
If prompted with Press any key to boot from CD, quickly press any key.
The Windows installation wizard starts.

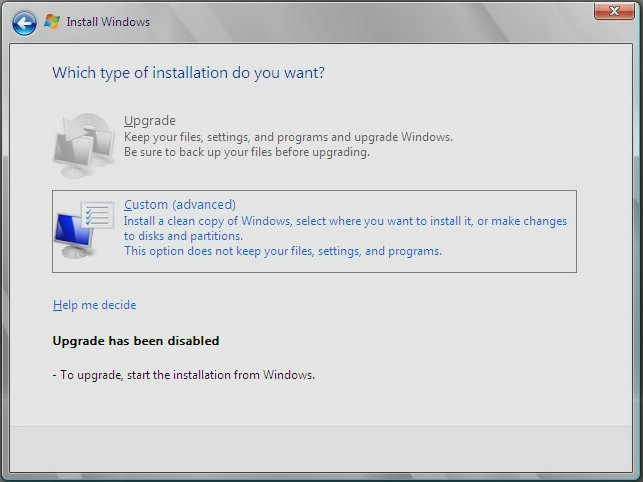

Proceed through the installation wizard until you see the Installation Type page displayed, and then click Custom (advanced).

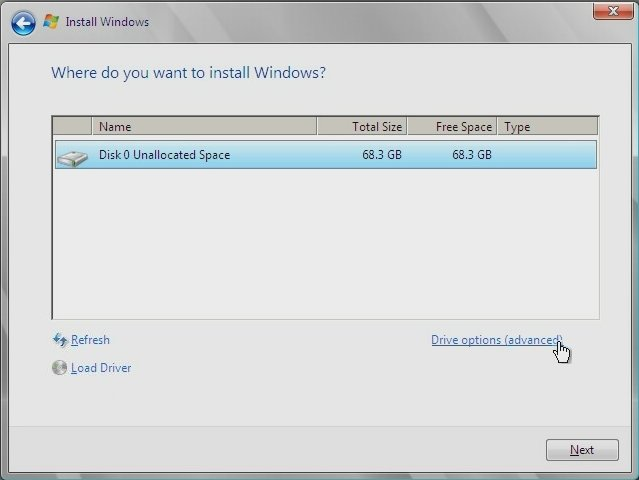

At the Where to Install Windows page, do one of the following:
- If you do not want to override the Windows default partition settings, click Next and skip to Step 8
- If you do want to override the Windows default partition settings, click Driver Options (advanced) and proceed to the next step.

  Caution - Formatting or re-partitioning a pre-existing partition destroys all data on the partition.

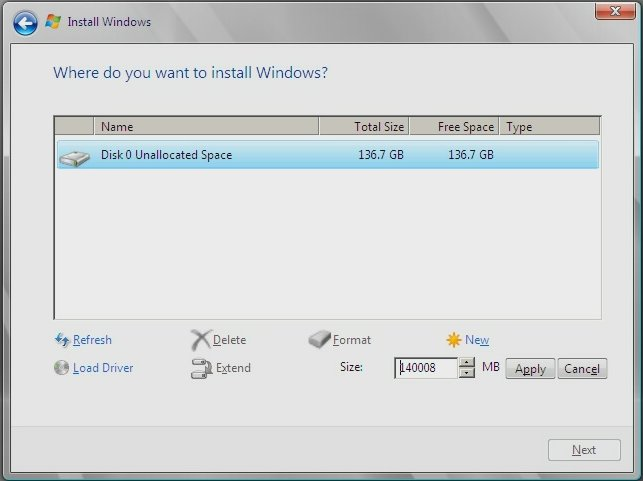

At the Advanced Driver Options page, do the following:
1. Click Delete to delete the existing partition.
2. Click New to create the new partition.
3. Change size settings as needed, and then click Apply.
4. Click Next and proceed to the next step.
The Windows installation begins.
The server will reboot multiple times during the installation process.
When Windows installation is complete, Windows starts and prompts you to change the user password. Click OK and proceed to setup your initial user login account.
Note - Windows Server 2008 enforces stronger password schemes for user accounts. Password standards include restrictions on length, complexity and history. If you need more details, click the Accessibility link at the account creation page.

Once you have created your initial account, the Windows Server 2008 desktop is displayed. The Windows Server 2008 interface is new; review the Microsoft documentation to familiarize yourself with the changes.

Next Steps

Proceed to Updating Critical Drivers and Installing Supplemental Software.
