Chapter 2 Configuring Identity Server with a Provisioned Directory

This chapter describes how to install and configure Sun Java™ System Identity Server 2004Q2 with a directory that is already provisioned with user data, including how to configure Identity Server to work with your directory information tree (DIT) and how to make the necessary changes to your existing Directory Server and directory entries. The number and scope of changes you will need to make depends on how your directory tree is structured and how you plan to use Identity Server.

Overview of Installation and Configuration Tasks

This section describes the steps you must perform before you will see your existing directory data in Identity Server. This chapter groups these steps into two distinct phases: installation and post-installation configuration.

Installing and Starting Identity Server 2004Q2

Install Identity Server 2004Q2.

To install Identity Server 2004Q2, you must run the Sun Java Enterprise System installer. When the installer asks “Is Directory Server provisioned with user data?”, answer “yes”. For information about the installer, refer to the Sun Java Enterprise System 2004Q2 Installation Guide on the following documentation web site:

http://docs.sun.com/coll/entsys_04q2

Start Identity Server.

For detailed instructions, see Starting Identity Server and Logging In in this chapter.

Post-Installation Configuration

Manually configure Directory Server to work with Identity Server.

In this step you enable the Directory Server referential integrity plug-in and create new database indexes. See Configuring Directory Server in this chapter.

Enable User Management services, as follows:

Add Marker Object Classes to Existing Directory Entries.

Before Identity Server can recognize the data in an existing directory, you must add special object classes to entries for all organizations, groups and users that will be managed by Identity Server. Sample scripts are bundled in the product to help you automatically add these object classes to your directory. Detailed steps and examples are provided in this chapter. See Adding Identity Server Object Classes to Existing Directory Entries.

Add Custom Object Classes to Identity Server Schema.

If your existing directory tree contains custom object classes, Identity Server won’t recognize them until you manually configure both Identity Server and Directory Server. The types of changes you need to make are illustrated in this chapter using the directory tree for MadisonParc, a fictitious company. Detailed steps are in Adding Custom Object Classes to Identity Server Schema.

Load Identity Server LDIF into your directory.

In this step, you commit all of your LDIF modifications to make actual changes in the Directory Server. Detailed instructions are in Loading Identity Server LDIF into Your Directory.

In the Identity Server Console, enable User Management.

This is the last step in the instructions for Enabling User Management Services.

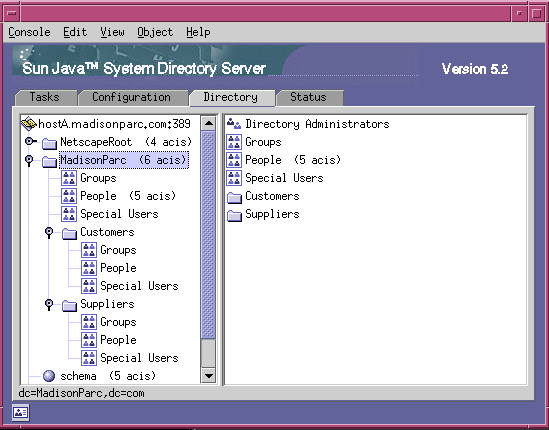

MadisonParc Examples Used in This Chapter

The MadisonParc examples in this chapter show the types of manual modifications you must make in both Directory Server and Identity Server. Figure 2-1 illustrates the Directory Server console view of the directory tree for MadisonParc. The tree includes three organizational units (ou) at the top level of the tree: Groups, People, and Special Users. These organizational units contain entries for MadisonParc employees. Two organizations (dc), Customers and Suppliers, were created under the root level to contain entries for non-employees.

The MadisonParc example has two custom object classes and three custom attributes. These object classes and attributes are not included in the Identity Server schema nor in the Directory Server 5.1 SP1 schema.Table 2-1 summarizes the custom objects and their uses in the MadisonParc directory tree.

Before a MadisonParc administrator can use Identity Server to manage these extensions, you must make the following modifications to the Identity Server schema:

Table 2-1 User-defined Objects Used in the MadisonParc Directory Tree
Object	Description
madisonparc-org	Object class added to all organization entries.
madisonparc-org-description	Attribute added to each organization entry; required by madisonparc-org.
company	Object class added to all user entries.
acctNumber	Attribute added to each user entry; required by the company object class.
companyName	Attribute added to each user entry; required by the company object class.

Add the two custom object classes and three custom attributes to umsExisting.xml.

Add madisonparc-org to amEntrySpecific.xml.

Add madisonparc-org-description to amEntrySpecific.properties.

Add companyName and acctNumber to amUser.xml.

Add companyname and acctNumber to amUser.properties.

If your existing directory tree contains custom object classes or attributes, you’ll need to make similar changes in your directory and in your Identity Server XML files.

Directory Server Considerations

Before you install Identity Server against an existing Directory Server that is provisioned with user data, consider the following Directory Server issues:

Migrating Pre-2004Q2 Versions of Directory Server

Backing Up Your Directory Server

Accessing Directory Server

For more information, see the documentation for Directory Server on the following Web site:

Migrating Pre-2004Q2 Versions of Directory Server

If you are using a pre-2004Q2 version of Directory Server, you can upgrade your existing Directory Server to version 2004Q2 and then migrate your existing data to the upgraded directory. For detailed instructions, see the Directory Server 5 2004Q2 Installation and Migration Guide.

Backing Up Your Directory Server

The installation and post-installation tasks described in this chapter make changes to your existing directory. Before you begin, back up your Directory Server using db2ldif, db2bak, or the Directory Server Console. For information about backing up your directory, see the Sun ONE Directory Server 5.2 Administration Guide.

Accessing Directory Server

To access Directory Server, you must also have the appropriate administrator privileges to modify user entries.

Installing Identity Server User and Policy Management Services

See the Java Enterprise System Installation Guide for instructions about installing Identity Server User and Policy Management Services. The Java Enterprise System installer will guide you to provide information about your existing provisioned directory. After the installation program is finished, you can start Identity Server and log in to its administration console.

Starting Identity Server and Logging In

After you’ve installed Identity Server and configured Directory Server appropriately, you can check the installation. Start Identity Server and log in to the Identity Server Console as the user amAdmin. After you successfully log in, you’ll see the Identity Server web interface.

To Start Identity Server

Start Directory Server.

Execute the start or restart command in the directory where the Directory Server instance is installed. For example, on Solaris systems:

DirectoryServer_base/slapd-hostName/slapd-start

or:

DirectoryServer_base/slapd-hostName/slapd-restart

Start the web container that Identity Server is using.

If the web container is Web Server, execute the start command in directory were the Web Server instance is installed. For example, on Solaris systems:

WebServer_base/https-hostName/start

If the web container is Application server, execute the start command in the directory where the Application Server instance is installed. For example, on Solaris systems:

ApplicationServer_base/bin/asadmin start-server1 --user admin_user--password

where server1 is the instance name by default

If the web container is BEA WebLogic or IBM WebSphere, refer to the instructions for starting the server in the documentation that comes with the product.

To Log in to the Identity Server Console

Access the login URL as follows:

http://host.domain:port/amserver/

where host-name.domain-name:port is the fully qualified host name and port of the web container you are using. For example:

http://ishost.sesta.com:58080/amserver/

On the login page, enter the Top-Level Administrator user name amAdmin and the password you specified during installation.

The Policy Management services are automatically installed against your existing provisioned directory. When you see the Identity Server interface (see Figure 2-2), you can immediately begin creating policies. For more information, see the Java System Identity Server 2004Q2 Administration Guide.

You will see the root suffix and organizations you specified during installation. For the MadisonParc example used at the beginning of this chapter, you would see the root suffix MadisonParc, and the two organizations Customers and Suppliers.


Note	You will not see directory entries below the organization level until you complete the post-configuration tasks described in the following sections: Configuring Directory Server Enabling User Management Services

Also immediately after Installation, if you look in the Directory Server console view, you’ll see the Identity Server object classes, roles, users, and services Figure 2-3 illustrates the Identity Server objects and existing directory tree for the MadisonParc examples used in this chapter.

Figure 2-3 Policy Management Services Installed Against the Existing MadisonParc Directory Tree

Configuring Directory Server

After you’ve installed the Identity Server schema, you must configure Directory Server to work with Identity Server. Perform the steps in the following procedures:

Enable the Directory Server referential integrity plug-in

Add Identity Server indexes

When the referential integrity plug-in is enabled, it performs integrity updates on specified attributes immediately after a delete or rename operation. This ensures that relationships between related entries are maintained throughout the database. Database indexes enhance the search performance in Directory Server.

To Enable the Referential Integrity Plug-In


Note	Before continuing with these procedures, be sure that Directory Server is running.

In Directory Server console, click Configuration.

In the navigation tree, double-click Plug-ins to expand the list of Plug-ins.

In the Plug-ins list, click “referential integrity postoperation.”

In the properties area, check the “Enable plug-in” box.

Click Save.

To Add Identity Server Indexes

In Directory Server console, click Configuration.

Add the nsroledn index:

In the navigation tree, double-click the Data icon, and then click the root suffix that contains the directory entries you want to use in Identity Server.

Click the Indexes tab.

Under “Additional Indexes,” for the nsroledn attribute, check the following check boxes: Equality, Presence, and Substring.

Click Save.

In the “Indexes” window, after the index is successfully created, click Close.

Add the memberof index:

In the Indexes tab, click “Add attribute...”

In the “Select Attributes” window, select the attribute memberof, and then click OK.

In the Indexes tab, for the memberof attribute, check the following check boxes: Equality and Presence.

Click Save.

In the “Indexes” window, after the index is successfully created, click Close.

Add the iplanet-am-static-group index:

In the Indexes tab, click “Add attribute...”

In the “Select Attributes” window, select the attribute iplanet-am-static-group, and then click OK.

In the Indexes tab, for the iplanet-am-static-group attribute, check the following Equality check box.

Click Save.

In the “Indexes” window, after the index is successfully created, click Close.

Add the iplanet-am-modifiable-by index:

In the Indexes tab, click “Add attribute...”

In the “Select Attributes” window, select the attribute iplanet-am-modifiable-by, and then click OK.

In the Indexes tab, for the iplanet-am-modifiable-by attribute, check the following check box: Equality.

Click Save.

In the “Indexes” window, after the index is successfully created, click Close.

Add the iplanet-am-user-federation-info-key index:

In the Indexes tab, click “Add attribute...”

In the “Select Attributes” window, select the attribute iplanet-am-user-federation-info-key, and then click OK.

In the Indexes tab, for the iplanet-am-user-federation-info-key attribute, check the following check box: Equality.

Click Save.

In the “Indexes” window, after the index is successfully created, click Close.

Restart Directory Server.

Enabling User Management Services

This section provides an overview of the configuration tasks you’ll need to perform in order to see your existing user data displayed in the Identity Server interface. If you want to enable user management before proceeding with the configuration tasks, first log in to Identity Server, and then skip to step Step 8 this section. Note that if you skip to step Step 8 without performing the necessary configuration, although you will be able to create and manage new user entries, you will not be able to access your existing data through Identity Server.

To enable User Management Services

Add Identity Server object classes and attributes to your existing DIT.

For detailed instructions, see Adding Identity Server Object Classes to Existing Directory Entries in this chapter.

Modify the Identity Server schema.

See Adding Custom Object Classes to Identity Server Schema in this chapter for more information. The section provides detailed instructions on performing the following steps:

Modifying the Creation Templates

Adding Attributes to the Organization Schema

Adding Attributes to the User Schema

To load all XML files, enter the following command:

/etc/opt/SUNWam/config/ums/amserveradmin
"user_naming_attibute=amadmin,ou=people,root_suffix" password

Load installExisting.ldif file into your Directory Server.

For detailed instructions, see Loading Identity Server LDIF into Your Directory in this chapter.

Load install.ldif file into your Directory Server.

For detailed instructions, see install.ldif in this chapter.

Restart Identity Server. To start Identity Server services, you must start both Directory Server and the web container that runs Identity Server.

Start Directory Server.

Execute the start or restart command in the directory where the Directory Server instance is installed. For example, on Solaris systems:

DirectoryServer_base/slapd-instanceName/slapd-start

Start the web container that runs Identity Server.

If the web container is Web Server, then execute the start command in directory were the Web Server instance is installed. For example, on Solaris systems:

WebServer_base/https-instanceName/start

If the web container is Application Server, then execute the start command in the directory where the Application Server instance is installed. For example, on Solaris systems, where server1 is the instance name by default:

ApplicationServer_base/bin/asadmin start-server1 --user admin_user--password your_admin_passwd server1

If the web container is BEA WebLogic or IBM WebSphere, then see the instructions for starting the server in the documentation that comes with the product.

You will not see your existing groups and users from your existing directory tree until you complete the following two steps.

In the Identity Server Console, click Service Management and then Administration.

In the Administration window, click the “Enable User Management” box and then click Save.

Once you’ve checked the “Enable User Management” box, you should see all entries beneath the organization level in Identity Server. For instructions on using Identity Server to create or manage users and policies, see the Java System Identity Server 2004Q2 Administration Guide.

Adding Identity Server Object Classes to Existing Directory Entries

After you’ve installed configured Identity Server, you must modify your existing directory entries to include the necessary Identity Server object classes and attributes. You can think of the Identity Server object classes as markers that indicate the directory entries you want to manage through Identity Server. These markers enable Identity Server to recognize the entries in your directory. The object classes contain special attributes that are necessary to achieve delegated administration.

Before You Begin

There are a number of resources you can use to facilitate the remaining steps for using an existing directory.

Examples Used in This Section

The examples used in this chapter are based on the directory tree for a fictitious company named MadisonParc. Figure 2-5 shows two organizations, Customers and Suppliers, under the root.

Utilities and Scripts You Can Use

You can make these modifications by using Directory Server Console, or by using the ldapmodify or db2ldif utilities that come with Directory Server. You can also use the sample scripts that come with Identity Server.

Directory Server Utilities

Make sure that you’re using the appropriate version of ldapmodify. Set your path to use the ldapmodify command that is included with Directory Server. (Do not use the version included with Solaris, which is in the /bin or /usr/bin directory.)

On Solaris systems, add IdentityServer_base/SUNWam/ldaplib/ldapsdk to your LD_LIBRARY_PATH to access the appropriate Directory Server libraries.

For detailed information about how to make changes to the directory using these utilities or by using the console, see the documentation for Directory Server:

Sample Migration Scripts

The sample scripts included with Identity Server require Perl 5.x or later. Table 2-2 provides descriptions of what each script adds to existing directory entries. You’ll find the sample scripts in the following location on Solaris systems:

Solaris systems: IdentityServer_base/SUNWam/migration

Linux systems: IdentityServer_base/identity/migration

While these samples should prove useful, keep in mind that they are only tools to assist you in properly formatting the directory tree and other data. Each script generates an LDIF file that you can inspect before making actual changes in your directory. You run each script a second time with the last line uncommented to make the actual changes. Steps for using each sample script are included in this chapter under the following headings:

Table 2-2 Scripts for Adding Identity Server Marker Object Classes
Script	What it Does
update-o.pl	Adds the following to each organization entry: sunManagedOrganization sunISManagedOrganization sunNameSpace inetDomain inetDomainStatus
update-people.pl	Adds iplanet-am-managed-people-container to each people container.
update-ou.pl	Adds iplanet-am-managed-org-unit to each organizational unit.
update-users.pl	Adds the following to each user entry: inetadmin iplanet-am-managed-person iplanet-am-user-service inetuser iPlanetPreferences inetOrgPerson
udpate-static-groups.pl	Adds the following to each static group: iplanet-am-managed-static-group iplanet-am-managed-group
update-filtered-groups	Adds the following to each dynamic, or filtered, group: iplanet-am-managed-group iplanet-am-managed-filtered-group
update-assignable-dynamic-groups	Adds the following to each assignable dynamic group: iplanet-am-managed-group iplanet-am-managed-assignable group
update-groups.pl	Adds iplanet-am-managed-group-container to each organizational unit that contains groups.

Marking Organizations

Marking People Containers

Marking Organizational Units

Marking Users

Marking Static Groups

Marking Dynamic (Filtered) Groups

Marking Assignable Dynamic Groups

Marking Group Containers

Important: The changes made by using these scripts cannot be automatically undone. Be sure to back up your data before running each script.

Two Approaches to Modifying the Existing Directory Tree

You can use one of two approaches for modifying the directory tree. One option is to make all the necessary modifications to your directory tree before loading the Identity Server LDIF and XML configuration files. This procedure is more error-prone, but may be faster if you have experience using LDAP.

The other option is to make a few modifications in your LDIF and XML files, and then start Identity Server to make sure those modifications were done correctly. This second approach is the recommended approach. For example, you may want to add the Identity Server object classes for each of your organizations, restart Identity Server, and verify that your organizations appear in the Identity Server Administration Console. Then add marker object classes for groups, check them and so forth.

Marking Organizations

If you used an existing organization as your default organization during installation, you do not have to make these changes. The installation program automatically added these object classes and attributes. Skip to Marking People Containers.

If you have sub-organizations or custom organizations you must make the following changes:

Add the following object classes to each organization entry:

sunManagedOrganization

sunNameSpace

inetDomain

Add the following attribute to each organization entry:

inetDomainStatus

In the MadisonParc example, these object classes and their attributes are added to the organizations dc=Customers and dc=Suppliers.

To Mark Organizations Using the Sample Script

Copy update-o.pl to the following directory:

DirectoryServer_base/shared/bin

Set the $base variable to the base suffix of the directory tree to be managed by Identity Server. Example: dc=MadisonParc,dc=com

In the directory where the script is located, enter the following command:

perl update-o.pl

When prompted, provide the following information:

Enter Host Name: Enter the name of the computer system in which your Directory Server is installed.

Enter Bind User Name: Enter a user name that has sufficient privileges for accessing the entire directory. Example: cn=Directory Manager

Enter Bind password: Enter the password for the user you specified above.

Enter port number: Enter the Directory Server port number. Example: 389

Check the results in the file orgs-updated.ldif that is generated by the script, and verify that the appropriate changes are listed. The changes contained in this file will automatically be made in the directory in the next step.

Important Note: If there are organizations that you do not want to be managed by Identity Server, you should delete those entries from this orgs-updated.ldif now. Then, instead of going on to the next step, manually load the file using the following command:

ldapmodify -h hostname -p port -D bind_user -w password -a -c -f
orgs-updated.ldif

In the script update-o.pl, uncomment the last line and replace variables appropriately. For example, to add marker object classes to MadisonParc directory entries, the last line of the script is changed from this:

#system("$LDAP_MODIFY -h'$host' -p'$port' -D'$bind_user'
-w'$bind_pwd' -a -c -f orgs-updated.ldif");

to this:

system("$LDAP_MODIFY -h'ginac.MadisonParc.com' -p'389'
-D'cn=Directory Manager' -w'password' -a -c -f
orgs-updated.ldif");

In Code Example 2-1, the modifications to the MadisonParc directory entries are indicated in bold:

Marking People Containers

People containers are typically assigned the ou attribute and are used to store all user entries for a branch of the directory. To each people container, add the iplanet-am-managed-people-container object class.

To Mark People Containers Using the Sample Script

Copy update-people.pl to the following directory:

DirectoryServer_base/shared/bin

Be sure the $base variable is set to the base suffix of the directory tree to be managed by Identity Server. For example: dc=MadisonParc,dc=com

In the MadisonParc example, the script was also modified to include people containers located under the organizations. In Code Example 2-2, bold indicates the change in the search scope.

Code Example 2-2 Scope in update-people-container.pl is Modified


# run search to find all people containers, putting their DNs in to a file
system("$LDAP_SEARCH -h \"$host\" -p \"$port\" -D \"$bind_user\"
-w \"$bind_pwd\" -b \"$base\" -s sub -T \"(&(ou=$people)
*(!(objectclass=iplanet-am-)))\"** dn > people.dn");

In the directory where the script is located, at the command line enter the following:

perl update-people.pl

When prompted, provide the following information:

Enter Host Name: Enter the name of the computer system in which your Directory Server is installed.

Enter Bind User Name: Enter a user name that has sufficient privileges for accessing the entire directory. Example: cn=Directory Manager

Enter Bind password: Enter the password for the user you specified above.

Enter port number: Enter the Directory Server port number. For example: 389

Enter People Container: Enter the name of the people container that contains the uids you want to modify. For example: People

Check the results in the file people-updated.ldif which is created in the same directory as the script, and verify that the appropriate changes were made. The changes contained in this file will automatically be made in the directory in the next step.

Important Note: If there are people containers that you do not want to be managed by Identity Server, you should delete those entries from people-updated.ldif now. Then, instead of going on the to next step, manually load the file using the following command:

ldapmodify -h hostname -p port -D bind_user -w password -a -c -f
people-updated.ldif

In the script update-people.pl, uncomment the last line and replace variables appropriately. In the MadisonParc example, the last line of the script is changed from this:

#system("$LDAP_MODIFY -h'$host' -p'$port' -D'$bind_user'
-w'$bind_pwd' -a -c -f people-updated.ldif");

to this:

system("$LDAP_MODIFY -h'ginac.MadisonParc.com' -p'389'
-D'cn=Directory Manager' -w'password' -a -c -f
people-updated.ldif");

In Code Example 2-3, marker object class for the people container under dc=Customers is indicated in bold.

Code Example 2-3 People container entry with marker object class.

...
dn: ou=People,dc=Customers,dc=MadisonParc,dc=com
ou: People
objectClass: top
objectClass: organizationalunit
objectClass: iplanet-am-managed-people-container

Marking Organizational Units

Organizational units are typically assigned the ou attribute. To each container that is an organizational unit, add the following object class:

To Mark Organizational Units Using the Sample Script

Copy update-ou.pl to the following directory:

DirectoryServer_base/shared/bin

Set the $base variable to the base suffix of the directory tree to be managed by Identity Server. For example: dc=MadisonParc,dc=com.

In the directory where the script is located, at the command line enter the following:

perl update-ou.pl

When prompted, provide the following information:

Enter Host Name: Enter the name of the computer system in which your Directory Server is installed.

Enter Bind User Name: Enter a user name that has sufficient privileges for accessing the entire directory. For example: cn=Directory Manager

Enter Bind password: Enter the password for the user you specified above.

Enter port number: Enter the Directory Server port number. For example: 389

Check the results in the file orgunit-updated.ldif which is created in the same directory as the script, and verify that the appropriate changes are listed. The changes contained in this file will automatically be made in the directory in the next step.

Important Note: If there are organizational units that you do not want to be managed by Identity Server, you should delete those entries from this ou-updated.ldif now. Then, instead of going on the to next step, manually load the file using the following command:

ldapmodify -h hostname -p port -D bind_user -w password -a -c -f
orgunit-updated.ldif

In the script update-ou.pl, uncomment the last line and replace variables appropriately. In the MadisonParc example, the last line of the script is changed from this:

#system("$LDAP_MODIFY -h'$host' -p'$port' -D'$bind_user'
-w'$bind_pwd' -a -c -f orgunit-updated.ldif");

to this:

system("$LDAP_MODIFY -h'ginac.MadisonParc.com' -p'389'
-D'cn=Directory Manager' -w'password' -a -c -f
orgunit-updated.ldif");

In Code Example 2-4, marker object class for the organizational units under dc=MadisonParc,dc=com is indicated in bold.

Marking Users

iplanet-am-managed-person

iplanet-am-user-service

inetuser

iPlanetPreferences

inetOrgPerson

inetadmin

To Mark Users Using the Sample Script

Copy update-users.pl to the following directory:

DirectoryServer_base/shared/bin

Be sure the $base variable is set to the base suffix of the directory tree to be managed by Identity Server. For example: dc=MadisonParc,dc=com

Be sure the $base-component variable is set to the base suffix of the directory tree.For example: dc=MadisonParc,dc=com

In the directory where the script is located, at the command line enter the following:

perl udpate-users.pl

Check the results in the file users-updated.ldif which is created in the same directory as the script, and verify that the appropriate changes were made. The changes contained in this file will automatically be made in the directory in the next step.

Important Note: If there are users that you do not want to be managed by Identity Server, you should delete those entries from users-updated.ldif now. Then, instead of going on the to next step, manually load the file using the following command:

ldapmodify -h hostname -p port -D bind_user -w password -a -c -f
users-updated.ldif

In the script update-users.pl, uncomment the last line and replace variables appropriately. In the MadisonParc example, the last line of the script is changed from this:

#system("$LDAP_MODIFY -h'$host' -p'$port' -D'$bind_user'
-w'$bind_pwd' -a -c -f users-updated.ldif");

to this:

system("$LDAP_MODIFY -h'ginac.MadisonParc.com' -p'389'
-D'cn=Directory Manager' -w'password' -a -c -f
users-updated.ldif");

Code Example 2-5 User Entry With User Marker Object Class

dn: uid=scarter, ou=People, dc=MadisonParc,dc=com

nsUniqueId: d8855082-1dd111b2-8024a6c9-802bec30

givenName: Sam

telephoneNumber: +1 408 555 4798

sn: Carter

ou: Accounting

ou: People

l: Sunnyvale

roomNumber: 4612

mail: scarter@MadisonParc.com

facsimileTelephoneNumber: +1 408 555 9751

objectClass: top

objectClass: person

objectClass: organizationalPerson

objectClass: inetOrgPerson

objectClass: inetuser

objectClass: inetadmin

objectClass: iplanet-am-managed-person

objectClass: iplanetPreferences

objectClass: iplanet-am-user-service

uid: scarter

cn: Sam Carter

userPassword: {SSHA}3XwjhBgbt6ae5syCndDeANoossEGRJ1NdnLyZw==

employeeType: Manager

departmentNumber: 1000

businessCategory: East

inetUserStatus: Active

Marking Static Groups

Static groups formed by adding uids to the group entry. To each group entry containing values for the uniquemember attribute, add the following object classes:

iplanet-am-managed-static-group

iplanet-am-managed-group

To Mark Static Groups Using the Sample Script

Copy update-static-groups.pl to the following directory:

DirectoryServer_base/shared/bin

Set the $base variable to the base suffix of the directory tree to be managed by Identity Server. For example: dc=MadisonParc,dc=com.

In the directory where the script is located, at the command line enter the following:

perl update-static-groups.pl

When prompted, provide the following information:

Enter Host Name: Enter the name of the computer system in which your Directory Server is installed.

Enter Bind User Name: Enter a user name that has sufficient privileges for accessing the entire directory. For example: cn=Directory Manager

Enter Bind password: Enter the password for the user you specified above.

Enter port number: Enter the Directory Server port number. For example: 389

Check the results in the file static-groups-updated.ldif which is created in the same directory as the script, and verify that the appropriate changes are listed. The changes contained in this file will automatically be made in the directory in the next step.

Important Note: If there are static groups that you do not want to be managed by Identity Server, you should delete those entries from static-groups-updated.ldif now. Then, instead of going on the to next step, manually load the file using the following command:

ldapmodify -h hostname -p port -D bind_user -w password -a -c -f
static-groups-updated.ldif

In the script update-static-groups.pl, uncomment the last line, and replace variables appropriately. For example, in the MadisonParc example, the last line of the script is changed from this:

#system("$LDAP_MODIFY -h'$host' -p'$port' -D'$bind_user'
-w'$bind_pwd' -a -c -f static-groups-updated.ldif");

to this:

system("$LDAP_MODIFY -h'ginac.MadisonParc.com' -p'389'
-D'cn=Directory Manager' -w'password' -a -c -f
static-groups-updated.ldif");

In Code Example 2-6, marker object class for static groups is indicated in bold.

Marking Dynamic (Filtered) Groups

Dynamic or filtered groups are formed by building a search construct to find all user entries containing a specific attribute. These groups contain the memberURL attribute.

To each group containing the attribute memberURL, add the following object classes:

iplanet-am-managed-group

iplanet-am-managed-filtered-group

To Mark Filtered Groups Using the Sample Script

Copy update-filtered-groups.pl to the following directory:

DirectoryServer_base/shared/bin

Set the $base variable to the base suffix of the directory tree to be managed by Identity Server.

For example: dc=MadisonParc,dc=com

In the directory where the script is located, at the command line enter the following:

perl update-filtered-groups.pl

When prompted, provide the following information:

Enter Host Name: Enter the name of the computer system in which your Directory Server is installed.

Enter Bind User Name: Enter a user name that has sufficient privileges for accessing the entire directory. For example: cn=Directory Manager

Enter Bind password: Enter the password for the user you specified above.

Enter port number: Enter the Directory Server port number. For example: 389

Check the results in the file filtered-groups-updated.ldif which is created in the same directory as the script, and verify that the appropriate changes were made. The changes contained in this file will automatically be made in the directory in the next step.

Important Note: If there are filtered or dynamic groups that you do not want to be managed by Identity Server, you should delete those entries from filtered-groups-updated.ldif now. Then, instead of going on the to next step, manually load the file using the following command:

ldapmodify -h hostname -p port -D bind_user -w password -a -c -f
filtered-groups-updated.ldif

In the script update-filtered-groups.pl, uncomment the last line in the update-o.pl file, and replace variables appropriately. In the MadisonParc example, the last line of the script is changed from this:

#system("$LDAP_MODIFY -h'$host' -p'$port' -D'$bind_user'
-w'$bind_pwd' -a -c -f filtered-groups-updated.ldif");

to this:

system("$LDAP_MODIFY -h'ginac.MadisonParc.com' -p'389'
-D'cn=Directory Manager' -w'password' -a -c -f
filtered-groups-updated.ldif");

In Code Example 2-7, marker object class for a filtered group is indicated in bold.

Marking Assignable Dynamic Groups

The assignable dynamic group is an Identity Server concept. In Identity Server, users in this type of group are typically allowed limited self-registration and account management privileges. In the MadisonParc example, users at the top level have administrators to create and manage their entries to comply with corporate specifications. Users under the Customers or Suppliers organizations are placed in assignable dynamic groups. The users can acquire membership by themselves when they log into the MadisonParc portal. Their membership entitles them to limited access to the MadisonParc portal; the information they provide at registration is minimal.

Add the following object classes to each dynamic group that you want to use as an assignable dynamic group in Identity Server:

iplanet-am-managed-group

iplanet-am-managed-assignable-group

To Mark Assignable Dynamic Groups Using the Sample Script

Copy update-assignable-dynamic-groups.pl to the following directory:

DirectoryServer_base/shared/bin

Set the $base variable to the base suffix of the directory tree to be managed by Identity Server. For example: dc=MadisonParc,dc=com

In the directory where the script is located, at the command line enter the following:

perl update-assignable-dynamic-groups.pl

When prompted, provide the following information:

Enter Host Name: Enter the name of the computer system on which your Directory Server is installed.

Enter Bind User Name: Enter a user name that has sufficient privileges for accessing the entire directory. For example: cn=Directory Manager

Enter Bind password: Enter the password for the user you specified above.

Enter port number: Enter the Directory Server port number. For example: 389

Check the results in the file assignable-dynamic-groups-updated.ldif which is created in the same directory as the script, and verify that the appropriate changes were made. The changes contained in this file will automatically be made in the directory in the next step.

Important Note: If there are assignable dynamic groups that you do not want to be managed by Identity Server, you should delete those entries from this assignable-dynamic-groups-updated.ldif now. Then, instead of going on the to next step, manually load the file using the following command:

ldapmodify -h hostname -p port -D bind_user -w password -a -c -f
assignable-dynamic-groups-updated.ldif

In the script update-assignable-dynamic-groups.pl, uncomment the last line in the update-assignable-dynamic-groups.pl file, and replace variables appropriately. In the MadisonParc example, the last line of the script is changed from this:

#system("$LDAP_MODIFY -h'$host' -p'$port' -D'$bind_user'
-w'$bind_pwd' -a -c -f
assignable-dynamic-groups-updated.ldif");

to this:

system("$LDAP_MODIFY -h'ginac.MadisonParc.com' -p'389'
-D'cn=Directory Manager' -w'password' -a -c -f
assignable-dynamic-groups-updated.ldif");

Marking Group Containers

Group containers are organizational units (ou) that contain groups. To each group container that includes the ou:Groups attribute, add the following object class:

To Mark Group Containers Using the Sample Script

Copy update-groups.pl to the following directory:

DirectoryServer_base/shared/bin

Be sure the $base variable is set to the base suffix of the directory tree to be managed by Identity Server.

For example: dc=MadisonParc,dc=com.

In the MadisonParc example, the script was also modified to include all group containers located under organizations. In Code Example 2-8, the script changes are indicated in bold.

Code Example 2-8 Scope in update-groups.pl is Modified.


# run search to find all group containers, putting their DNs in to a file
system("$LDAP_SEARCH -h \"$host\" -p \"$port\" -D \"$bind_user\"
-w \"$bind_pwd\" -b \"$base\" -T \"(&(ou=groups)
*(!(objectclass=iplanet-am-))(objectclass=organizationalunit))\**
" dn > group-container-updated.dn");

In the directory where the script is located, at the command line enter the following command:

perl update-groups.pl

When prompted, provide the following information:

Enter Host Name: Enter the name of the computer system in which your Directory Server is installed.

Enter Bind User Name: Enter a user name that has sufficient privileges for accessing the entire directory. For example: cn=Directory Manager

Enter Bind password: Enter the password for the user you specified above.

Enter port number: Enter the Directory Server port number. For example: 389

Check the results in the file groups-updated.ldif which is created in the same directory as the script, and verify that the appropriate changes were made. The changes contained in this file will automatically be made in the directory in the next step.

Important Note: If there are group containers that you do not want to be managed by Identity Server, you should delete those entries from this groups-updated.ldif now. Then, instead of going on the to next step, manually load the file using the following command:

ldapmodify -h hostname -p port -D bind_user -w password -a -c -f
groups-updated.ldif

In the script update-groups.pl, uncomment the last line, and replace variables appropriately. In the MadisonParc example, the last line of the script is changed from this:

#system("$LDAP_MODIFY -h'$host' -p'$port' -D'$bind_user'
-w'$bind_pwd' -a -c -f groups-updated.ldif");

to this:

system("$LDAP_MODIFY -h'ginac.MadisonParc.com' -p'389'
-D'cn=Directory Manager' -w'password' -a -c -f
groups-updated.ldif");

In Code Example 2-9, marker object class for a group under dc=Customers is indicated in bold.

Adding Custom Object Classes to Identity Server Schema

If your existing directory tree contains object classes you’ve created that do not come with Directory Server, then you’ll have to add those object classes and attributes to the Identity Server schema. In the examples in this section, the MadisonParc directory tree uses two object classes and two user attributes that do not come with the Directory Server schema or with Identity Server schema. These object classes and attributes help to distinguish MadisonParc employees at the top level of the directory tree from non-employees in the Customers and Suppliers organizations. Before Identity Server can manage these extensions, changes must be made in the following three Identity Server files:

umExisting.xml

amEntrySpecific.xml (for organization data)

amUser.xml (for user data)

This chapter contains detailed instructions for making these modifications. The instructions are provided here to help you see your existing data in Identity Server after you run the installer.

For background information about the Identity Server schema and detailed information about customizing Identity Server, see the Java System Identity Server 2004Q2 Developer's Guide.

Modifying the Creation Templates

The creation templates configure Identity Server to add or allow specific object classes and attributes when these entries are created. To expose custom object classes in the UI, you must modify the creation templates for both users and organizations in the umsExisting.xml file.

In the MadisonParc example, the existing directory tree has new object classes for both users and organizations.

The DAI Service

When you install Identity Server services, the ums.xml file is stored in Directory Server as the Directory Access Instructions (DAI) service. Identity Server will not allow you to load the umsExisting.xml file if the DAI service is already installed in Directory Server. Always remove the DAI service before modifying the umsExisting.xml file. Once you’re finished modifying the files, you must reload the DAI service into Directory Server.

To Remove the DAI Service

Solaris systems: IdentityServer_base/bin

Linus systems: IdentityServer_base/SUNWam/bin

./amadmin -u "user_naming_attibute=amadmin,ou=people,root_suffix"
-w password -r DAI

To Load the DAI Service

./amadmin -u "user_naming_attibute=amadmin,ou=people,root_suffix"
-w password -s umsExisting.xml

To Modify the Creation Templates

If during installation, you chose to load the Identity Server schema, or if you have already run the amserveradmin command for any reason, skip this step and go on to step 2. Otherwise, remove the DAI service.

Change to the /bin directory:

Solaris systems: IdentityServer_base/bin

Linus systems: IdentityServer_base/SUNWam/bin

Execute the following command:

./amadmin -u "user_naming_attibute=amadmin,ou=people,root_suffix"
-w password -r DAI

Locate the following file. For example, on Solaris systems:

/etc/opt/SUNWam/config/umsExisting.xml

Modify any custom naming attributes. For example, the MadisonParc directory tree uses the domain attribute instead of the organization attribute.

Under the following SubConfiguration:

"BasicOrganization" id="CreationUmsObjects

change:

<Value>objectClass=organization</Value>

to:

<Value>objectClass=domain</Value>

In Code Example 2-10, bold indicates the changed value. Note that three lines down, the naming attribute dc was changed by Identity Server during installation.

Code Example 2-10 Changing the Organization Naming Attribute in the Creation Template


<SubConfiguration name="BasicOrganization" id="CreationUmsObjects">
<AttributeValuePair> <Attribute name="name" />
<Value>BasicOrganization</Value>
</AttributeValuePair>
<AttributeValuePair> <Attribute name="javaclass" />
<Value>com.iplanet.ums.Organization</Value>
</AttributeValuePair>
<AttributeValuePair> <Attribute name="required" />
<Value>objectClass=top</Value>
<Value>objectClass=domain</Value>
<Value>objectClass=sunManagedOrganization</Value>
<Value>objectClass=sunNameSpace</Value>
<Value>dc</Value>
<Value>inetdomainstatus=Active</Value>
</AttributeValuePair>
<AttributeValuePair> <Attribute name="namingattribute"/>
<Value>dc</Value>
</AttributeValuePair>
<AttributeValuePair> <Attribute name="optional" />
<Value>*</Value>
</AttributeValuePair>
</SubConfiguration>

Add custom organization object classes.

In the MadisonParc example, madisonparc-org is added to the organization creation template. Under the following SubConfiguration:

"BasicOrganiation" id="CreationUmsObjects">

under the following element:

add the following:

<Value>objectClass=madisonparc-org</Value>
<Value>madisonparc-org-description</Value>

For example:

Code Example 2-11 Changing the Organization in the Creation Template


<SubConfiguration name="BasicOrganization" id="CreationUmsObjects">
<AttributeValuePair> <Attribute name="name" />
<Value>BasicOrganization</Value>
</AttributeValuePair>
<AttributeValuePair> <Attribute name="javaclass" />
<Value>com.iplanet.ums.Organization</Value>
</AttributeValuePair>
<AttributeValuePair> <Attribute name="required" />
<Value>objectClass=top</Value>
<Value>objectClass=domain</Value>
<Value>objectClass=sunManagedOrganization</Value>
<Value>objectClass=sunNameSpace</Value>
<Value>objectClass=madisonparc-org</Value>
<Value>dc</Value>
<Value>inetdomainstatus=Active</Value>
</AttributeValuePair>
<AttributeValuePair> <Attribute name="namingattribute"/>
<Value>dc</Value>
</AttributeValuePair>
<AttributeValuePair> <Attribute name="optional" />
<Value>*</Value>
<Value>madisonparc-org-description</Value>
</AttributeValuePair>
</SubConfiguration>

Add custom user object classes.

In the MadisonParc example, company is added to the user creation template. Under the following SubConfiguration:

"BasicUser" id="CreationUmsObjects">

under the following element:

add the following:

<Value>objectClass=company</Value>

For example:

Code Example 2-12 Adding Custom User Object Classes in the Creation Template


<SubConfiguration name="CreationTemplates" >
<SubConfiguration name="BasicUser" id="CreationUmsObjects">
<AttributeValuePair> <Attribute name="name" />
<Value>BasicUser</Value>
</AttributeValuePair>
<AttributeValuePair> <Attribute name="javaclass" />
<Value>com.iplanet.ums.User</Value>
</AttributeValuePair>
<AttributeValuePair> <Attribute name="required" />
<Value>objectClass=top</Value>
<Value>objectClass=person</Value>
<Value>objectClass=organizationalPerson</Value>
<Value>objectClass=inetOrgPerson</Value>
<Value>objectClass=iPlanetPreferences</Value>
<Value>objectClass=iplanet-am-user-service</Value>
<Value>objectClass=inetuser</Value>
<Value>objectClass=inetAdmin</Value>
<Value>objectClass=iplanet-am-managed-person</Value>
<Value>objectClass=company</Value>
<Value>cn=default</Value>
<Value>sn=default</Value>
<Value>uid</Value>
<Value>inetuserstatus=Active</Value>
</AttributeValuePair>
<AttributeValuePair> <Attribute name="optional" />
<Value>*</Value>
<Value>companyname</Value>
<Value>acctname</Value>
</AttributeValuePair>
<AttributeValuePair> <Attribute name="namingattribute"/>
<Value>uid</Value>
</AttributeValuePair>
</SubConfiguration>

Reload the DAI service (the ums.xml file or umsExisting.xml file).

In the /bin directory, execute the following command:

./amadmin -u "user_naming_attibute=amadmin,ou=people,root_suffix" -w password
-s /etc/opt/SUNWam/config/ums/umsExisting.xml

Adding Attributes to the Organization Schema

To add attributes to the Organization schema, you must modify two services files:

amEntrySpecific.xml

amEntrySpecific.properties

The Identity Server Console uses the information in amEntrySpecific.xml for display purposes. Each Identity Server abstract entry may have a subschema in this XML file. In the following example, you would add the object class external to the organization subschema. If the directory tree contained customized organizational units, groups, or people containers, you would add or modify their subschemas in the same XML file.

The subschema name for an organizational unit will be OrganizationalUnit. The subschema name for a people container will be PeopleContainer.

The “any” attribute


Note	The User subschema is not configured here in the amEntrySpecific.xml file, but in the amUser.xml file (see Adding Attributes to the User Schema.) Although any service XML file may describe an attribute that is only for a user, the amEntrySpecific.xml file can serve as a default place holder for user attributes that are not tied to a particular service.

The any attribute in the XML descriptions may have five possible values: filter, display, adminDisplay, userReadOnly, required, or optional. The values tell the Console whether the attribute should appear in the GUI. Typically, required and optional are not both displayed at the same time; they are mutually exclusive.

adminDisplay. The attribute is read/write for administrators and is not displayed for regular users.

userReadOnly. The attribute is read/write for administrators but is read only for regular users. It is displayed as a label for regular users so that it is not editable. For example, the display, adminDisplay, and userReadOnly settings are used when displaying the user profile page and can be used to customize the page.

required. The attribute is displayed in the create page and requires a value during creation of the entry. If any=required, the attribute must have a value or the Console will not allow the Create operation. In the user interface, required fields are indicated with an asterisk (*). Use an empty string (" ") to tell the Administration Console to display nothing.

optional. The attribute is displayed in the create page but does not require a value during creation of the entry. If any=optional, the attribute will appear on the Create page without an asterisk. This would indicate that you don’t have to give it a value to create the entry. In the Create User page, the User ID is a required attribute but the First Name is optional.

In the following MadisonParc example, the attribute madisonparc-org-description will be displayed on the Organization page, and will be required for creation. This is indicated by the use of the required value. It will also be used on the Search page in Identity Server Console, as indicated by the use of the filter value.

The “type” attribute

The type attribute can use a string, string list, single choice, multiple choice, or boolean value. For example, the madisonparc-org-description attribute can have only one of two descriptions: internal or external). You would make this attribute a single choice; each description would be one of the choices. The Identity Server Console would display a list containing only these cities. If multiple cities were allowed, the attribute could be a multiple choice.

To Add Attributes from a Custom Organization to the Organization Subschema

In the following file add the custom object class to the subschema Organization. For example, on Solaris systems:

/etc/opt/SUNWam/config/xml/amEntrySpecific.xml

In this example, the custom object class madisonparc-org-description was added to amEntrySpecific.xml.

<AttributeSchema name="madisonparc-org-description"

type="single"

syntax="string"

any=required|filter

In the same amEntrySpecific.xml file, create internationalization (i18n) keys (also called index keys or localization keys) for each attribute. All i18n Keys in an organization must be made up of unique strings. The Identity Server Administration Console will use this key to look up the display name for the attribute.

<AttributeSchema name="madisonparc-org-description"

type="single"

syntax="string"

any="required|filter"

i18nKey="o3"

In the following file on Solaris systems:

IdentityServer_base/SUNWam/locale/amEntrySpecific.properties

Add the value for i18n Key you created in Step 2. This is the name that will be displayed in the graphical user interface. For example:

iplanet-am-entry-specific-service-description=Identity Server Entry Specific

g1=Member List

g2=Users Can Subscribe to this Group

dg1=Membership Filter

r1=Membership Filter

o1=Full DNS name

o2=Organization Status

o3=Organization Description

All the attributes listed in the subschema are displayed in the Administration Console when an organization is displayed. If an attribute is not listed, the Administration Console will not display the attribute.



Tip	If an attribute has no i18n Key, it will not be displayed on the administration console. If you add an attribute, and you don’t see it in the administration console, be sure to check the i18n Key and properties.

Load all XML files.

In the /bin directory, execute the following command:

./amserveradmin -u "user_naming_attibute=amadmin,ou=people,root_suffix"
-w password

If you see any parsing errors, you should go back and double-check the changes you made in the previous steps. Also examine the syntax in the amEntrySpecific.xml file, and make sure you’ve used the correct syntax. If you need to look at syntax examples, look at the other service XML files located in the following directory on Solaris systems:

Adding Attributes to the User Schema

amUser.xml

amUser.properties

The amUser.xml file is where user attributes are described, just as organization and group schema are described in the amEntrySpecific.xml (see Step 2). The file amUser.xml describes the User service for Identity Server. Note that any service may describe an attribute that is for a user only. This file is just the default placeholder for user attributes that are not tied to a particular service.

When displaying a user’s attributes, the Identity Server Administration Console gets all attributes from all services that are subschema type User, and displays them using the same values as used in the amEntrySpecific.xml file (see The “any” attribute and The “type” attribute). In the following examples, a few attributes from the madisonparc-user object class are added to the file, thus it is not necessary to create a new service. It’s only necessary to modify, or extend, the iplanetamuserservice.

Additional Notes About the amUser.xml File

The file amUser.xml contains a special attribute. The any=display attribute tells Identity Server whether to display the attribute in the user profile page. This is a misleading name since it implies access control. It is strictly used for display. If this attribute is set to no then the console will not display the attribute.

Also note that the attributes are defined under subschema User and not Dynamic. Any attribute defined under User is physically an attribute in the user entry. If you want the attribute to be a role-based or organization-based attribute, then you would define it under the Dynamic subschema. For detailed information, see the Java System Identity Server 2004Q2 Developer's Guide.

To Add Attributes from a Custom Organization to the User Subschema

In the following file, add the attributes from the custom object class to the User subschema on Solaris systems:

/etc/opt/SUNWam/config/xml/amUser.xml

For example, the following two attributes from the custom object class company were added to the file:

<AttributeSchema name="companyname"

type=single

syntax=string

any=required|display

<AttributeSchema name="acctnumber"

type=single

syntax=string

any=required|filter|display

In the same amUser.xml file, create i18n Keys (also called index keys or localization keys) for each attribute. All i18n Keys in an organization must be made up of unique strings. The Identity Server Console will use this key to look up the display name for the attribute.

<AttributeSchema name="companyname"

type=single

syntax=string

any=required|display

i18nKey=u120

<AttributeSchema name="acctnumber"

type=single

syntax=string

any=required|filter|display

i18nKey=u121

Add values for the i18n Keys you created in Step 2 to the following file on Solaris systems:

IdentityServer_base/SUNWam/locale/amUser.properties

For example:


iplanet-am-user-service-description=User
iwtUser-desc=Default User Profile
u101=UserId
u102=First Name
u103=Last Name
u104=Full Name
u105=Password
u106=Email Address
u107=Employee Number
u108=Telephone Number
u109=Manager
u110=Home Address
u111=User Status
u112=Account Expiration date (mm/dd/yyyy hh:mm)
u113=User Authentication Configuration
u114=User Alias List
u115=Preferred Locale
u116=Success URL
u117=Failure URL
u118=Federation Information Key
u119=Federation Information
u120=Company Name
u121=Account Number

Load all XML files.

In the /bin directory, execute the following command:

./amserveradmin -u "user_naming_attibute=amadmin,ou=people,root_suffix"
-w password

If you see any parsing errors, you should go back and double-check the changes you made in the previous steps. Also examine the syntax in the amUser.xml file, and make sure you’ve used the correct syntax. If you need to look at syntax examples, look at the other service XML files located in the following directory on Solaris systems:

Loading Identity Server LDIF into Your Directory

Identity Server provides two different LDIF files to help you make the necessary modifications in your directory when you are enabling User Management services. You’ll need to follow instructions for both loading installExisting.ldif and install.ldif.

Figure illustrates the MadisonParc directory tree after enabling both User Management and Policy Management services. Both installExisting.ldif and install.ldif files were loaded into an existing directory.

Figure 2-6 MadisonParc Directory Tree With Both installExisting.ldif and install.ldif Added

installExisting.ldif

The installExisting.ldif file contains Identity Server-specific entries that are loaded into Directory Server during installation. Typically, you will not need to modify this file before it gets loaded during the installation process.

You can use the ldapmodify utility that comes with Directory Server to load installExisting.ldif. In the MadisonParc example, when you load the LDIF, the following occurs:

Users and marker object classes required for Identity Server are added to dc=MadisonParc,dc=com and to dc=Customers and dc=Suppliers.

Default roles for organization and help desk administrators are created at the top level.

Default Access Control Instructions (ACIs) for those administrator entries are set up.

To Load the installExisting.ldif File

Change to the /ldif directory. For example, on Solaris systems:

cd /etc/opt/SUNWam/config/ldif

At the command line, enter the following:

ldapmodify -v -c -D "cn=Directory manager" -w password -a
-f installExisting.ldif



Note	You must specify the -c option. Be sure you install only installExisting.ldif, and no other files in the same directory.

The Identity Server administration user amAdmin will be created under the ou=People,dc=MadisonParc,dc=com people container. This is the top level administrator for Identity Server. This administrator has read and write access to the entire dc=MadisonParc,dc=com root suffix. You can add one of your users to this top level administrator role after the Identity Server Console is started.

install.ldif

To Load the install.ldif File

Change to the /ldif directory. For example, on Solaris systems:

cd /etc/opt/SUNWam/config/ldif

Enter the following command:

ldapmodify -v -c -D "cn=Directory manager" -w password -a -f install.ldif



Note	You must specify the -c option. Be sure you install only install.ldif and none of the other files in the same directory.

Results of Identity Server and Directory Modifications

After making the modifications in the previous steps, all entries in your existing directory will be manageable by Identity Server. The existing ACIs for the organization administrators do not have to be modified. Even though Identity Server uses roles and ACIs by default, your existing groups and ACIs will still work.

You can convert a groups-based directory tree to one that leverages roles and ACIs. If you choose to do this, you can use the Identity Server organization administrator roles and assign them to your existing organizationList administrators. For more information, see the Java System Identity Server 2004Q2 Administration Guide.

Previous Contents Index Next
Sun Java System Identity Server 2004Q2 Migration Guide
