C H A P T E R 10 |
Kiosk Mode |
This chapter describes Kiosk Mode, which enables controlled, simplified access to anonymous users without compromising the security of the Sun Ray server. For a detailed explanation of Kiosk Mode functionality, see kiosk(5).
In earlier releases of Sun Ray Server Software, Kiosk Mode was known as Controlled Access Mode (CAM).
Kiosk Mode allows the administrator to specify what types of sessions are available to users, based on policy choices for different types of user and usage scenario. For instance, settings can differ for smart card users as opposed to non-smart card users, for those with registered as opposed to unregistered tokens, and for other characteristics.
Kiosk Mode functionality can be enabled and disabled from the System Policy section of the Advanced tab, and administered from the Kiosk Mode section, which provides check boxes to enable Kiosk Mode for smart card users, non-smart card users, or both. Enabling and disabling Kiosk Mode for individual tokens is described in Overriding Kiosk Mode Policy.
Note - Before enabling Kiosk Mode, you must configure it with the utconfig utility. |
As superuser, type the utpolicy command for your authentication policy with the addition of the -k argument. Some examples are suggested below.
All users are directed to Kiosk sessions.
All sessions are in Kiosk Mode and available only to card users unless you specify overrides.
Only card users are directed to Kiosk sessions.
Only non-card users are directed to Kiosk sessions.
To Enable Regular Sessions for Card Users and Kiosk Sessions for Non-Card Users |
Card sessions are non-Kiosk (ordinary login) sessions. Non-card sessions are Kiosk sessions.
To Enable Regular Sessions for Registered Cards and Kiosk Sessions for Non-Card Users |
Non-Kiosk card sessions are allowed only for registered tokens. Non-card sessions are Kiosk sessions.
To Enable Kiosk Sessions for Registered Cards and Regular Sessions on Registered DTUs |
Card sessions are Kiosk sessions, non-card sessions are non-Kiosk (ordinary login) sessions. Users can self-register card tokens and DTUs.
All sessions are in Kiosk Mode and available only to card users unless you specify overrides.
The Admin GUI presents a set of choices that may be more convenient to use than the CLI.
3. Select the System Policy tab (see FIGURE 10-1).
4. Select the Kiosk Mode checkbox in the Card Users section, the Non-Card Users section, or both, depending on whether you wish to enable Kiosk Mode for card users, non-card users, or both.
7. Select the relevant server(s) from the list of servers.
8. Click the Cold Restart button.
FIGURE 10-1 Kiosk Mode Enabled for Non-Card Users
It may be desirable to use a different authentication policy setting or kiosk session configuration for a particular smart card or DTU, or subset of smart cards or DTUs, than for other smart cards or DTUs. You can override Kiosk Mode policy with utkioskoverride or with the GUI. You can override the default Kiosk session selection with utkioskoverride.
For more detailed information on overriding Kiosk Mode policy and Kiosk session selection, see the utkioskoverride(1m) man page.
Use the utkioskoverride command to override Kiosk Mode policy or assign a non-default kiosk session for a user’s smart card token or for a DTU’s pseudo-token. Several usage examples are listed below.
Note - Only registered tokens--those that have already been registered--can be assigned policy overrides. |
To enable Kiosk sessions regardless of Kiosk Mode policy for the registered smart card MicroPayFlex.12345678:
To disable Kiosk sessions regardless of Kiosk Mode policy for the registered smart card MicroPayFlex.12345678:
To disable Kiosk sessions regardless of Kiosk Mode policy for the logical token user.12345678:
To assign and enable the non-default kiosk session MySession2, stored using utkiosk, to the logical token user.12345678, regardless of Kiosk Mode policy:
2. Select the token of interest from the list of tokens.
This token can be a card owner’s smart card token or a pseudo-token associated with a DTU’s MAC address. However, only tokens that have been registered in the Sun Ray Data Store can be overridden. To register a smart card token, see To Register a Token. To register a pseudo-token, see To Register a Pseudo-Token.
4. Select the desired Session Type from the list of available session types.
The available session types are Default, Kiosk, and Regular.
a. Select Default to prevent Kiosk Mode policy from being overridden for this token.
b. Select Kiosk to use a Kiosk session for this token regardless of Kiosk Mode policy.
c. Select Regular to ensure that a Kiosk session is not used for this token, regardless of Kiosk Mode policy.
FIGURE 10-2 Edit Token Properties
Once you have selected a Kiosk session, that session is launched by default to provide basic Kiosk Mode functionality. Some Kiosk sessions will support the addition of applications to extend this basic functionality.

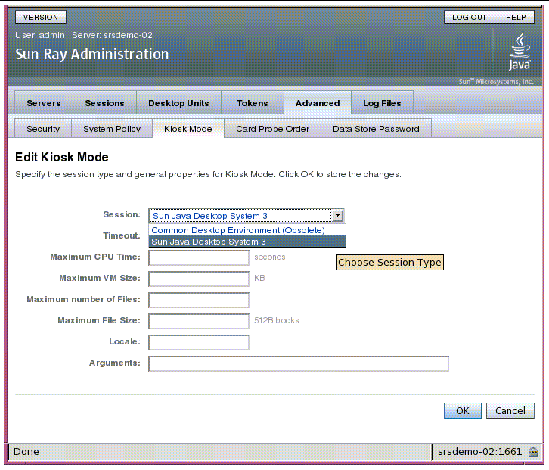

4. Select your preferred Kiosk Session from the drop-down list, as shown in FIGURE 10-3.
5. Provide appropriate values for the remaining settings. See TABLE 10-1 for descriptions of individual settings.
Changes to Kiosk Mode Settings are applied automatically to Kiosk sessions that start after the changes have been saved. Thus, there is no need to restart Sun Ray services for changes to take effect.
Caution - Choosing unsuitable values for ulimit(1)settings may cause Kiosk sessions to start incorrectly or to crash due to lack of resources. |
If the currently selected Kiosk session supports the addition of applications, there is an Applications setting at the bottom of the page.
a. To use one of the predefined Kiosk application descriptors:
i. Select Predefined Descriptor.
ii. Choose the relevant descriptor from the drop-down menu.
b. To define a custom Kiosk application descriptor:
i. Select Custom Path to use your own custom Kiosk application descriptor or a system application.
ii. Enter the path to your custom Kiosk application descriptor or executable.
If you choose Custom Path, indicate whether the path refers to a custom Kiosk application descriptor or an executable by choosing either Descriptor or Executable.
4. Select your preferred Start Mode for the application.
a. Choose USER to allow users to start the application themselves, for instance from a menu or launcher item.
b. Choose AUTO to make the application start automatically when the Kiosk session starts.
c. Choose CRITICAL to make the application start automatically when the Kiosk session starts, to allow users to start the application themselves, and to force the Kiosk session to restart if the application terminates.
5. Enter any application specific arguments.
Since Kiosk Mode bypasses the system login mechanism, you must consider the security of the applications added to the user environment. Many custom applications provide built-in security, but other applications do not and are therefore not suitable for Kiosk Mode.
For example, adding an application such as xterm provides users with access to a command-line interface from a Kiosk Mode session. This is not desirable in a public environment and is not advised. However, using a custom application for a call center would be perfectly acceptable.
In a failover environment, the Kiosk Mode administrative settings are copied from the primary server to the secondary (i.e., failover) servers. Be sure that all application descriptors and executable paths added to the Kiosk Mode sessions are copied across the servers in the failover group. For example, if the Mozilla application is added to the sessions with the executable path /usr/sfw/bin/mozilla, make sure that the path to the binary is available to all servers in the failover group. One way to ensure that sessions and applications are available on all servers in a failover group is to put them into a shared network directory, which is available on all hosts in the failover group.
