Getting Started

Packaging

To run the KCMS test suite, you first must install the Solaris operating system. It includes the KCMS Software Development Kit (SDK) package, which contains the KCMS "C" API functions.

The KCMS test suite is a packaged in the KCMS Driver Development Kit (DDK). When you package add the DDK, the test suite files are installed in the /opt/SUNWddk/kcms/kcmstest directory.

Environment Variables

To run the scripts, you need to know about two environment variables: KCMSROOT and KCMS_PROFILES.

KCMSROOT specifies the path to the top of the kcmstest directory.

KCMS_PROFILES specifies the path to the kcmstest/profiles directory. See Figure 2-1.

Prior to running test scripts using the kcmstest command, you set these variables from the command line, for example

%setenv KCMSROOTpath

where path is the path to the kcmstest directory.

Alternately, if you run the automated script files, you set the variables at the time you run the scripts. See "Using Automated Script Files To Run Test Scripts" for details.

Required File Hierarchy

Figure 2-1 shows the required directory structure you need to run test scripts. When you package add the test suite, the kcmstest directory contains the structure shown in the figure.

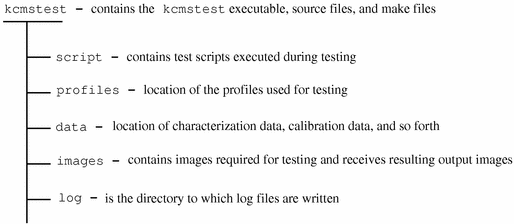

Figure 2-1 kcmstest File Hierarchy

kcmstest Directory

The kcmstest directory is at the top of the test suite hierarchy in Figure 2-1. It contains the executables necessary to run the test suite.

The initialization file icc.ini in this directory lists the all the default test scripts that are packaged with the test suite. See "Initialization File" for details on the contents of this file.

Significant Directories

Four directories shown in Figure 2-1 are of particular significance. These are

• script

• profiles

• data

• log

The script directory contains the test scripts to be executed. By default, this directory includes all the test scripts listed in icc.ini. You can run a subset of the scripts, or specify an alternate initialization file when you run the kcmstest command. See "Using kcmstest To Run Test Scripts" for details. If you have written customized versions of scripts to test your CMM, you must install them in this directory.

The profiles directory contains a default set of profiles used with the default test scripts. You can install the profiles used by your CMM into this directory. Note that this is a separate installation from the one you do to make your CMM profiles available to the KCMS framework. For details, see Chapter 6, Putting It All Together.

The data directory contains measurement and calibration data.

The log directory contains output. This directory initially is empty. It holds the results of running test scripts.

Images

The images directory contains images resulting from running the test suite and test TIFF images.

Initialization File

The default initialization file icc.ini is shown in Example 2-1.

---

Example 2-1 Initialization file icc.ini

[Verbose]
[ProfilePath]
profiles/
[ImagePath]
images/
[DataPath]
data/
[NumberOfTests]
30
[Tests]
IC_lhints.scr
IC_conerr.scr
IC_lana.scr
IC_eval.scr
IC_lmany.scr
IC_optspeed.scr
IC_connect.scr
IC_evalmany.scr
IC_attr1.scr
IC_attr2.scr
IC_layouts.scr
IC_conmany.scr
IC_optsize.scr
IC_evalerr.scr
IC_update1.scr
IC_update2.scr
IC_xprofile.scr
IC_xprofilehost.scr
IC_xprofilesav.scr
IC_xprofilesavremote.scr
IC_xwindow.scr
IC_xwindowerr.scr
IC_xdisplay.scr
IC_evalplus.scr
IC_pacbug.scr
IC_loadsol.scr
IC_sun_update.scr
IC_gray.scr
IC_gamut.scr
IC_lut.scr

---

---

Note -

The icc.ini file does not include the tests, IC_xprofilesavroot.scr and IC_updatewin.scr, which must be run as root. To run IC_xprofilesavremote.scr, you need to change the DISPLAY environment variable. See the comments in the automated test scripts (auto-kcmstest and auto-kcmstest-root) for details.

---

The icc.ini file contains the path to the profiles, images, and data required to run the test scripts. In addition, it lists the number of test scripts following the [NumberOfTests] field, and it lists the filename of each test script.

If your CMM requires a different set of test scripts, you can create an alternate initialization file. Say, for example, you edited several of the scripts to test special features of your CMM. In such a case you need to install the scripts you plan to test with in the script directory. To add to the existing initialization file, you also must create an alternate file that reflects test script changes. See "Creating An Alternate Initialization File" for details.

Creating An Alternate Initialization File

You can create an alternate initialization file if, for example, you customized scripts for your CMM.

To create the file (see Example 2-1),

1. Use a text editor to save a copy of icc.ini under a new filename, for example alternate.ini.

2. Add (or remove) test script name(s) in the file list.

3. Change the value immediately following the [NumberOfTests] field to update the number of tests.
