This appendix describes the connectors you can use to interface with the host board and application-specific devices. A brief description of each connector is given, and a detailed description and pinout for each connector is given.
This appendix contains the following topics:
B.1 Connector Locations and Assignments

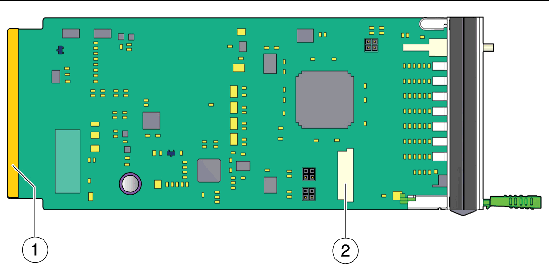

FIGURE B-1 AMC.0-LED Connector Locations
TABLE B-1 AMC.0-LED Connector Assignments
|
|
Connector
|
Function
|
|
1
|
GF1
|
AMC.0-LED Connector/Goldfingers
|
|
2
|
J1
|
OEM Connector
|
B.2 Connector Pinouts
This section lists the pinouts of the connectors on the AMC.0-LED.
B.2.1 Goldfingers (GF1) Connectors
The AMC.0-LED interfaces with the carrier board through the AMC connector. Connector usage for the AMC.0-LED is in the following table.
TABLE B-2 AMC.0-LED Goldfingers (GF1) Connectors
|
Top Side
|
Bottom Side
|
|
1
|
GND
|
170
|
GND
|
|
2
|
+12V
|
169
|
NC
|
|
3
|
PS1#
|
168
|
NC
|
|
4
|
+3.3V_STBY
|
167
|
NC
|
|
5
|
GA(0)
|
166
|
NC
|
|
6
|
NC
|
165
|
NC
|
|
7
|
GND
|
164
|
GND
|
|
8
|
NC
|
163
|
B_LED_CLK_AMC20
|
|
9
|
+12V
|
162
|
B_LED_DATA_AMC20
|
|
10
|
GND
|
161
|
GND
|
|
11
|
SERDES_TX+
|
160
|
F_LED_CLK_AMC20
|
|
12
|
SERDES_TX-
|
159
|
F_LED_DATA_AMC20
|
|
13
|
GND
|
158
|
GND
|
|
14
|
SERDES_RX+
|
157
|
NC
|
|
15
|
SERDES_RX-
|
156
|
NC
|
|
16
|
GND
|
155
|
GND
|
|
17
|
GA(1)
|
154
|
NC
|
|
18
|
+12V
|
153
|
NC
|
|
19
|
GND
|
152
|
GND
|
|
20
|
NC
|
151
|
NC
|
|
21
|
NC
|
150
|
NC
|
|
22
|
GND
|
149
|
GND
|
|
23
|
NC
|
148
|
NC
|
|
24
|
NC
|
147
|
NC
|
|
25
|
GND
|
146
|
GND
|
|
26
|
GA(2)
|
145
|
NC
|
|
27
|
+12V
|
144
|
NC
|
|
28
|
GND
|
143
|
GND
|
|
29
|
NC
|
142
|
NC
|
|
30
|
NC
|
141
|
NC
|
|
31
|
GND
|
140
|
GND
|
|
32
|
NC
|
139
|
NC
|
|
33
|
NC
|
138
|
NC
|
|
34
|
GND
|
137
|
GND
|
|
35
|
NC
|
136
|
NC
|
|
36
|
NC
|
135
|
NC
|
|
37
|
GND
|
134
|
GND
|
|
38
|
NC
|
133
|
NC
|
|
39
|
NC
|
132
|
NC
|
|
40
|
GND
|
131
|
GND
|
|
41
|
AMC_ENABLE#
|
130
|
NC
|
|
42
|
+12V
|
129
|
NC
|
|
43
|
GND
|
128
|
GND
|
|
44
|
NC
|
127
|
NC
|
|
45
|
NC
|
126
|
NC
|
|
46
|
GND
|
125
|
GND
|
|
47
|
NC
|
124
|
NC
|
|
48
|
NC
|
123
|
NC
|
|
49
|
GND
|
122
|
GND
|
|
50
|
NC
|
121
|
B_LED_CLK_AMC13
|
|
51
|
NC
|
120
|
B_LED_DATA_AMC13
|
|
52
|
GND
|
119
|
GND
|
|
53
|
NC
|
118
|
F_LED_CLK_AMC13
|
|
54
|
NC
|
117
|
F_LED_DATA_AMC13
|
|
55
|
GND
|
116
|
GND
|
|
56
|
IPMB SCL
|
115
|
B_LED_CLK_AMC12
|
|
57
|
+12V
|
114
|
B_LED_DATA_AMC12
|
|
58
|
GND
|
113
|
GND
|
|
59
|
NC
|
112
|
F_LED_CLK_AMC12
|
|
60
|
NC
|
111
|
F_LED_DATA_AMC12
|
|
61
|
GND
|
110
|
GND
|
|
62
|
NC
|
109
|
NC
|
|
63
|
NC
|
108
|
NC
|
|
64
|
GND
|
107
|
GND
|
|
65
|
NC
|
106
|
NC
|
|
66
|
NC
|
105
|
NC
|
|
67
|
GND
|
104
|
GND
|
|
68
|
NC
|
103
|
NC
|
|
69
|
NC
|
102
|
NC
|
|
70
|
GND
|
101
|
GND
|
|
71
|
IPMB SDA
|
100
|
NC
|
|
72
|
+12V
|
99
|
NC
|
|
73
|
GND
|
98
|
GND
|
|
74
|
NC
|
97
|
NC
|
|
75
|
NC
|
96
|
NC
|
|
76
|
GND
|
95
|
GND
|
|
77
|
NC
|
94
|
NC
|
|
78
|
NC
|
93
|
NC
|
|
79
|
GND
|
92
|
GND
|
|
80
|
NC
|
91
|
NC
|
|
81
|
NC
|
90
|
NC
|
|
82
|
GND
|
89
|
GND
|
|
83
|
PS0#
|
88
|
NC
|
|
84
|
+12V
|
87
|
NC
|
|
85
|
GND
|
86
|
GND
|
B.3 OEM Connector (J1)
This connection is for OEM use and should not be used for normal operations.
