Sun One Portal Server, Secure Remote Access 6.0 Administration Guide

Chapter 2 Administering the Gateway

This chapter describes gateway related concepts, and all the basic configurations required for the smooth running of the gateway. This chapter covers all the attributes in the gateway service.
The following topics are covered:

Overview of the Gateway

Creating a Gateway Profile

Starting and Stopping the Gateway

Creating Multiple Instances of a Gateway

Configuring a Proxy to Contact the Portal Server

Restarting the Gateway

Configuring the Gateway Attributes

Authentication Chaining

Disabling Browser Caching

Running the Gateway in the chroot Environment

Customizing the Gateway User Interface

Understanding the platform.conf File

Overview of the Gateway

The Secure Remote Access gateway provides the interface and security barrier between remote user sessions originating from the Internet, and your corporate intranet. The gateway presents content securely from internal web servers and application servers through a single interface to a remote user.

Creating a Gateway Profile

A gateway profile contains all the information related to gateway configuration, such as the port on which the gateway listens, SSL options, and proxy options.
When you install a gateway, if you choose the default values, a profile called "default" is created. A configuration file corresponding to the default profile exists at:
/etc/opt/SUNWps/platform.conf.default
where /etc/opt/SUNWps is the default location for all the platform.conf.* files.
See Understanding the platform.conf File for more information on the contents of the platform.conf file.
You can create multiple profiles, define attributes for each profile, and assign these profiles to different gateways as required. You can:

Assign a single profile to gateway installations on different machines.

Assign different profiles to instances of a single gateway running on the same machine.

Caution
Do not assign the same profile to different instances of the gateway running on the same machine. This will cause a conflict since the port numbers will be the same.
Do not specify the same port numbers in the different profiles created for the same gateway. Running multiple instances of the same gateway with the same port will cause a conflict.

To Create a Gateway Profile

Log in to the iPlanet Directory Server Access Management Edition admin console as administrator.

Select the Service Management view.

Click the arrow next to Gateway under SRAP Configuration.

The Gateway page appears in the right pane.

Click New.

The Create New Gateway Profile page appears.

Specify a name for the new profile in the "Enter the name of new Gateway Profile" field.

Select the profile based on which you want to create the new profile, from the "Copy the existing configuration of" drop-down list.

By default, any new profile that you create is based on the pre-packaged "default" profile. If you have created any custom profile, you can select that profile from the drop-down list. The new profile inherits all the attributes of the selected profile.

Click Create.

The new profile is created and you are returned to the Gateway page, in which the new profile is listed.

See Configuring the Gateway Attributes to configure individual gateway attributes.

Restart the gateway with this profile name if you want the changes to take effect. See "Restarting the Gateway for more information.

Starting and Stopping the Gateway

By default, the gateway starts as user noaccess.

To Start the Gateway
After installing the gateway, and creating the required profile, run the following command to start the gateway:
InstallDir/SUNWps/bin/gateway -n default start
default is the default gateway profile that is created during installation. You can create your own profiles later, and restart the gateway with the new profile. See Creating a Gateway Profile.
If you have multiple gateway instances, use:
InstallDir/SUNWps/bin/gateway start
This command starts all the gateway instances configured on that particular machine.

Note Restarting the server (the machine on which you have configured instances of the gateway) restarts all configured instances of the gateway.
Ensure that there are no old or backed up profiles in the /etc/opt/SUNWps directory.

Run the following command to check if the gateway is running on the specified port:
netstat -a | grep port number

Note The default gateway port is 443.

To Stop the Gateway
InstallDir/SUNWps/bin/gateway -n new profile name stop
If you have multiple gateway instances, use:
InstallDir/SUNWps/bin/gateway stop
This command stops all the gateway instances that are running on that particular machine.

Creating Multiple Instances of a Gateway

Use the script gwmultiinstance to create a new instance of the gateway. You can create a new instance in the following scenarios:

Creating a New Instance on a Portal Server Node

Creating a New Instance on a non-Portal Server Node

Creating a New Instance on a Portal Server Node

Login as root and navigate to the following directory:

InstallDir/SUNWps/bin

Run the multi instance script:

./gwmultiinstance

Table 2-1 lists the questions that the script asks. The first column lists the question, the second column lists the default value, and the third column has the description.

Table 2-1    Checklist for creating a new gateway instance on a Portal Server node

Parameter

Default Value

Description

New gateway uses Portal Server instance running on this node

y

The script detects an existing instance of the Portal Server and asks this question.
Specify y if you want the gateway to run with the Portal Server instance on the same node.
Choose n if you want to use a different instance of the Portal Server.
In this case, the Creating a New Instance on a non-Portal Server Node checklist applies.

Portal Server instance is the default one created during installation

y

Specify which instance of the Portal Server you want the new gateway instance to work with.
If you choose y, the default Portal Server instance that is created during installation is used with the new gateway.
If you choose n, you will be asked to specify the name of the required Portal Server instance.

New Portal Server instance created

y

This question is asked only if you have chosen not to use the default Portal Server instance.
Specify whether the Portal Server instance that you want to use with your new gateway instance has already been created.
If you choose n, you are asked to create the instance first, and the script aborts.

Name of the new Portal Server instance

Portal Server instance name

This question is asked only if you have chosen not to use the default Portal Server instance.
Specify the name of the Portal Server instance that you want the new gateway instance to use.

Port on which the new Portal Server instance listens

This question is asked only if you have chosen not to use the default Portal Server instance.
Specify the port on which the new Portal Server instance listens.

Deployment URI

/portal

This question is asked only if you have chosen not to use the default Portal Server instance.
Specify the deployment URI of the new Portal Server instance.

Name of the new gateway instance

Specify the name of the new gateway instance that you want to create.

Protocol to be used by the gateway

https

Specify whether you want the gateway to operate in HTTP or HTTPS mode.

Port on which the new gateway instance listens

Specify the port on which the new gateway instance needs to listen. Ensure that this port has not been specified for any other gateway instance.

Create certificate database for new gateway instance

y

When the gateway is installed, a default certificate database is created as follows:
/etc/opt/SUNWps/cert/default
The default directory has the following database files:
cert7.db, key3.db, secmod.db
You can choose to use the same certificate database for various instances of the gateway, or create and assign different certificate databases to different instances.
You can assign only one certificate to one instance of the gateway. If you want to assign different certificates to different organizations, you need to create multiple instances of the gateway.
Choose y to create a new certificate database for the new gateway instance.

Create self-signed certificate

y

This question is asked only if you have chosen to create a new certificate database.
Choose y to create a self-signed certificate. You are asked a series of questions in order to create this certificate.
If you choose n, you can create a self-signed certificate later. See Generating Self-signed Certificates in Chapter 4, Installing SSL Certificates in the Sun ONE Portal Server, Secure Remote Access 6.0 Installation Guide for details.

Name of the organization
Name of the division
Name of the city or locality
Name of the state or province
Two-letter country code
Password for certificate database

These details are asked only if you have chosen y to create a self-signed certificate in the previous question.

Created a profile for the new gateway instance

y

You are asked if you have already created a profile for the new gateway instance.
See To Create a Gateway Profile for details on creating a new gateway profile.

Start the new gateway instance after installation

y

This question is asked only if you choose y for the previous question, that is, you have already created a profile for the new gateway instance.
If you have not created a profile, the script reminds you to create one before starting the gateway.

Start the new instance of the gateway with the new profile name.
InstallDir/SUNWps/bin/gateway -n test start
where test is the profile name of the new gateway instance

Creating a New Instance on a non-Portal Server Node

Login as root and navigate to the following directory:

InstallDir/SUNWps/bin

Run the multi instance script:

./gwmultiinstance

Table 2-2 lists the questions that the script asks. The first column lists the question, the second column lists the default value, and the third column has the description.

Table 2-2    Checklist for creating a new gateway instance on a non- Portal Server node

Parameter

Default Value

Description

Host name of the Directory Server

hostname

This is the machine on which the Directory Server is installed.
Specify the machine on which Directory Server was installed for the Portal Server.

Sub-domain name for hostname

This is the sub-domain to which the Directory Server belongs.
Specify the sub-domain of the machine on which the Directory Server was installed for the Portal Server.

Domain name for hostname

This is the domain to which the Directory Server machine belongs.
Specify the domain of the machine on which the Directory Server was installed for the Portal Server.

Port used to access the Directory Server

389

This is the port which the Portal Server uses to access the Directory Server.
Specify the Directory Server port specified during the Portal Server installation.

Root suffix of the directory tree

o=isp

This is the default top level organization. Any new organization that you create is created under this organization.

Organization name

This is the name of the default organization that is created.

Hostname of Portal Server

Portal Server hostname

This is the hostname of the Portal Server.

sub-domain for Portal Server hostname

This is the sub-domain to which the Portal Server machine belongs.

domain name for Portal Server hostname

This is the domain to which the Portal Server machine belongs.

Port used to access Portal Server

80

This is the port used to access the Portal Server.

Protocol used to access Portal Server

http

Specify the protocol that is used to access the Portal Server.

DSAME server deployment URI

/amserver

This is the DSAME deployment URI. Do not change this value.

Portal Server deployment URI

/portal

Specify the deployment URI of the new Portal Server instance.

Name of the new gateway instance

Specify the name of the new gateway instance that you want to create.

Protocol to be used by the gateway

http

Specify whether you want the gateway to operate in HTTP or HTTPS mode.

Port on which the new gateway instance listens

Specify the port on which the new gateway instance needs to listen. Ensure that this port has not been specified for any other gateway instance.

Create certificate database for new gateway instance

y

When the gateway is installed, a default certificate database is created as follows:
/etc/opt/SUNWps/cert/default
The default directory has the following database files:
cert7.db, key3.db, secmod.db
You can choose to use the same certificate database for various instances of the gateway, or create and assign different certificate databases to different instances.
You can assign only one certificate to one instance of the gateway. If you want to assign different certificates to different organizations, you need to create multiple instances of the gateway.
Choose y to create a new certificate database for the new gateway instance.
If you choose n, the default certificate database is used.

Create self-signed certificate

y

This question is asked only if you have chosen to create a new certificate database.
Choose y to create a self-signed certificate. You are asked a series of questions in order to create this certificate.
If you choose n, you can create a self-signed certificate later. See Generating Self-signed Certificates in Chapter 4, Installing SSL Certificates in the Sun ONE Portal Server, Secure Remote Access 6.0 Installation Guide for details.

Name of the organization
Name of the division
Name of the city or locality
Name of the state or province
Two-letter country code
Password for certificate database

These details are asked only if you have chosen y to create a self-signed certificate in the previous question.

Created a profile for the new gateway instance

y

You are asked if you have already created a profile for the new gateway instance.
See To Create a Gateway Profile for details on creating a new gateway profile.

Start the new gateway instance after installation

y

This question is asked only if you choose y for the previous question, that is, you have already created a profile for the new gateway instance.
If you have not created a profile, the script reminds you to create one before starting the gateway.

Start the new instance of the gateway with the new profile name.
InstallDir/SUNWps/bin/gateway -n test start
where test is the profile name of the new gateway instance

Configuring a Proxy to Contact the Portal Server

You can configure the gateway to obtain profile information through a proxy if a direct connection is not available between the gateway and the Portal Server.

From the command-line, edit the following file:

/etc/opt/bin/platform.conf.profilename

Add the following entries:

http.proxyHost=proxy hostname

http.proxyPort=proxy port

http.proxySet=true

Restart the gateway to use the specified proxy for Profile Service requests made to the server.

InstallDir/SUNWps/bin/gateway -n profilename start

Restarting the Gateway

Normally, you do not need to restart the gateway. You need to restart only if any of the following events have occured:

You have created a new profile, and need to assign the new profile to the gateway

You have modified some attributes in the existing profile, and need the changes to take effect

To Restart the Gateway with a Different Profile
Restart the gateway using:
InstallDir/SUNWps/bin/gateway -n new profilename start

Configuring the watchdog Process to Restart the Gateway
You can schedule a watchdog process to monitor the gateway and restart it if it goes down.

To Configure the watchdog to Restart the Gateway
In a terminal window, connect as root on the gateway machine and do the following:
Start the watchdog process using:
InstallDir/SUNWps/bin/gateway watchdog on
This creates an entry in the crontab and the watchdog process is now active. The watchdog monitors the gateway port and restarts the gateway if it goes down.

Note You need to ensure that the gateway is running before enabling the watchdog.
To stop the gateway, ensure that the watchdog process is stopped first.
The watchdog process monitors all running instances of a gateway on a particular machine.

To Configure the Gateway Watchdog
You can configure the time interval at which the watchdog monitors the status of the gateway. This time interval is set to 60 seconds by default. To change this, edit the following line in the crontab:
0-59 * * * * InstallDir/bin/checkgw /var/opt/SUNWps/.gw. 5 > /dev/null 2>&1
See the man pages for crontab to configure the crontab entries.

Configuring the Gateway Attributes

This section lists the attributes that you need to configure for the gateway to function as required.

Note Click Documentation at the top right corner of the iPlanet Directory Server Access Management Edition admin console, and click SRAP Help for a quick reference on all the Secure Remote Access attributes.

Running in HTTP and HTTPS Modes

Enabling the Rewriter Proxy

Disabling Netlet

Enabling Netlet Proxy

Managing Proxies

Specifying URLS for Webproxies

Specifying URLs for which Proxies Should not be Used

Specifying the Default Domain and Subdomain

Specifying Proxy Authentication Information

Configuring Cookies

Enabling HTTP Basic Authentication

Configuring Persistent HTTP Connections

Forward Cookie Configuration

Specifying URLs that Bypass Authentication

Specifying the Maximum Connection Queue Length

Specifying the Gateway Timeout

Specifying the Maximum Number of Threads

Specifying the Cached Socket Timeout

Configuring Personal Digital Certificate (PDC) Authentication

Allowing 40-bit Browser Connections

Disabling SSL Version 2.0

Enabling Cipher Selection

Specifying the List of Configured Portal Servers

Specifying the Retry Interval for the Portal Server

Enabling Logging

Enabling Netlet Logging

Running in HTTP and HTTPS Modes
The gateway runs in HTTPS mode after installation if you have chosen to run the gateway in the HTTPS mode during installation. In the HTTPS mode, the gateway accepts SSL connections from browsers and rejects non-SSL connections.
However, you can also configure the gateway to run in HTTP mode. The benefits of doing this are performance related, since there is an overhead involved in managing SSL sessions and encrypting and decrypting the SSL traffic. Eliminating these steps speeds gateway performance.

To Configure the Gateway to Run in HTTP or HTTPS Mode

Log in to the iPlanet Directory Server Access Management Edition admin console as administrator.

Select the Service Management view from the Administration Console.

Click the arrow next to Gateway under SRAP Configuration.

The Gateway page appears.

Click Edit... next to the gateway profile for which you want to set the attribute.

The Edit Gateway Profile page appears.

Do the following:

Select the Enable HTTP Connections, Enable HTTPS Connections or both checkboxes as required.

Specify the required HTTPS port in the HTTPS Port field.

Specify the required HTTP port in the HTTP Port field.

Click Save at the top or bottom of the Edit Gateway Profile page to record the change.

From a terminal window, restart the gateway using:

InstallDir/SUNWps/bin/gateway -n gateway profile name start

Enabling the Rewriter Proxy
The rewriter proxy needs to be installed only on a Portal Server node.
Using the rewriter proxy enables secure HTTP traffic between the gateway and intranet computers. There are two advantages to using the rewriter proxy:

If there is a firewall between the gateway and server, the firewall needs to open only two ports - one between the gateway and the rewriter proxy, and another between the gateway and the Portal Server.

HTTP traffic is now secure between the gateway and the intranet even if the destination server only supports HTTP protocol (no HTTPS).
If you do not specify a rewriter proxy, the gateway component makes a direct connection to intranet computers when a user tries to access one of those intranet computers.

Note The rewriter proxy needs to be installed on the Portal Server node.
Ensure that the rewriter proxy and the gateway use the same gateway profile.

The rewriter proxy does not run automatically after installation. You need to enable the rewriter proxy as described below.

To Enable the Rewriter Proxy

Log in to the iPlanet Directory Server Access Management Edition admin console as administrator.

Select the Service Management view.

Click the arrow next to Gateway under SRAP Configuration.

The Gateway page appears.

Click Edit... next to the gateway profile for which you want to set the attribute.

The Edit Gateway Profile page appears.

Select the Enable Rewriter Proxy checkbox to enable the rewriter proxy.

Specify the desired port for the rewriter proxy in the Rewriter Proxy Port edit box.

Click Save at the top or bottom of the Edit Gateway Profile page to record the change.

Run InstallDir/SUNWps/bin/certadmin on the server to create a certificate for the rewriter proxy.

You need to run this step only if you have not chosen to create a certificate while installing the rewriter proxy.

Log in as root to the Portal Server machine and start the rewriter proxy by typing:
   InstallDir/SUNWps/bin/rwproxyd -n gateway profile name start

For the changes to take effect, restart the gateway by typing:

InstallDir/SUNWps/bin/gateway -n gateway profile name start

Disabling Netlet
Netlet enables users to securely run common TCP/IP services over insecure networks such as the internet. You can run TCP/IP applications (such as Telnet and SMTP,) HTTP applications, and any fixed port applications.
If Netlet is enabled, the gateway needs to determine whether the incoming traffic is Netlet traffic or Portal Server traffic. Disabling Netlet reduces this overhead since the gateway assumes that all incoming traffic is either HTTP or HTTPS traffic. Disable Netlet only if you are sure you do not want to use any application with the Sun ONE Portal Server.

To Disable Netlet

Log in to the iPlanet Directory Server Access Management Edition admin console as administrator.

Select the Service Management view.

Click the arrow next to Gateway under SRAP Configuration.

The Gateway page appears.

Click Edit... next to the gateway profile for which you want to set the attribute.

The Edit Gateway Profile page appears.

Select the Enable Netlet checkbox. This checkbox is selected by default. Removing the selection disables Netlet.

Click Save at the top or bottom of the Edit Gateway Profile page to record the change.

For the changes to take effect, restart the gateway by typing:

InstallDir/SUNWps/bin/gateway -n gateway profile name start

Enabling Netlet Proxy
Netlet proxy enhances the security of Netlet traffic between the gateway and the intranet by extending the secure tunnel from the client, through the gateway to the Netlet proxy that resides in the intranet. If the Netlet proxy is enabled, the Netlet packets are decrypted by the Netlet proxy and then sent to the destination server. This reduces the number of ports required to be opened in the firewall.
See "Configuring the Netlet Proxy in Chapter 3 "Configuring the Netlet for details on the Netlet Proxy.

Managing Proxies
You can configure the gateway to contact HTTP resources using web proxies. Different proxies may be used for different domains and subdomains. These entries tell the gateway which web proxy to use to contact specific subdomains in specific domains. The proxy configuration specified in the gateway works as follows:

Create a list of domains and subdomains along with the required proxies in the Proxies for Domains and Subdomains field in the gateway service.

With the Use Proxy field enabled:

The proxies specified in the Proxies for Domains and Subdomains field are used for the specified hosts

To enable direct connections for certain URLs within the domains and subdomains specified in the Proxies for Domains and Subdomains list, specify these URLs in the Do Not Use Webproxy URLs list.

With the Use Proxy field disabled:

To ensure that proxies are used for certain URLs within the domains and subdomains specified in the Proxies for Domains and Subdomains field, specify these URLs in the Use Webproxy URLs list. Although the Use Proxy option is disabled, a proxy is used to connect to the URLs listed under Use Webproxy URLs. The proxies for these URLs are obtained from the Proxies for Domains and Subdomains list.

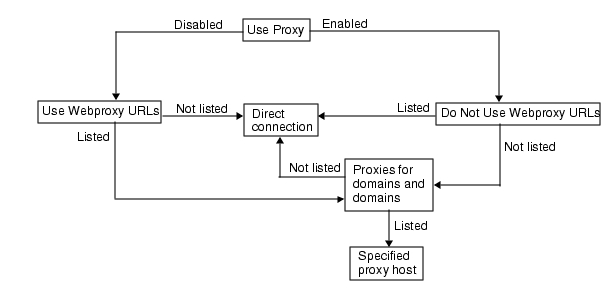

Figure 2-1 shows how the proxy information is resolved based on the proxy configuration in the gateway service.
Figure 2-1    Proxy Management

In Figure 2-1, if Use Proxy is enabled, and the requested URL is listed in the Do not Use Webproxy URLs list, the gateway connects to the destination host directly.
If Use Proxy is enabled, and the requested URL is not listed in the Do Not Use Webproxy URLs list, the gateway connects to the destination host through the specified proxy. The proxy, if specified, is looked up from the Proxies for Domains and Subdomains list.
If Use Proxy is disabled, and the requested URL is listed in the Use Webproxy URLs list, the gateway connects to the destination host using the proxy information in the Proxies for Domains and Subdomains list.
If Use Proxy is disabled, and the requested URL is not listed in the Use Webproxy URLs list, the gateway connects to the destination host directly.
If none of the above conditions are met, and a direct connection is not possible, the gateway displays an error saying that connection is not possible.

Note If you are accessing the URL through the Bookmark channel of the Sun ONE Portal Server Desktop, and none of the above conditions are met, the gateway sends a redirect to the browser. The browser accesses the URL using its own proxy settings.

Syntax
domainname [web_proxy1:port1]|subdomain1 [web_proxy2:port2]|......

Example
sesta.com wp1:8080|red wp2:8080|yellow|* wp3:8080
* is a wild card that matches everything
where,
sesta.com is the domain name and wp1 is the proxy to contact on port 8080.
red is a subdomain and wp2 is the proxy to contact on port 8080.
yellow is a subdomain. Since no proxy is specified, the proxy specified for the domain is used, that is, wp1 on port 8080.
* indicates that for all other subdomains wp3 needs to be used on port 8080.

Note Port 8080 is used by default if you do not specify a port.

Processing of the Proxy Information
When a client tries to access a particular URL, the host name in the URL is matched with the entries in the Proxies for Domains and Subdomains list. The entry that matches the longest suffix of the requested host name is considered. For example, consider that the requested host name is host1.sesta.com

The Proxies for Domains and Subdomains is scanned for host1.sesta.com. If a matching entry is found, the proxy specified against this entry is used to connect to this host.

Else, the list is scanned for *.sesta.com. If an entry is found, the corresponding proxy is used.

Else, the list is searched for sesta.com. If an entry is found, the corresponding proxy is used.

Else, the list is searched for *.com. If an entry is found, the corresponding proxy is used.

Else the list is searched for com. If an entry is found, the corresponding proxy is used.

Else the list is searched for *. If an entry is found, the corresponding proxy is used.

Else, a direct connection is attempted.
Consider the following entries in the Proxies for Domains and Subdomains list:
com p1| host1 p2 | host2 | * p3
sesta.com p4 | host5 p5 | * p6
florizon.com | host6
abc.sesta.com p8 | host7 p7 | host8 p8 | * p9
host6.florizon.com p10
host9.sesta.com p11
siroe.com | host12 p12 | host13 p13 | host14 | * p14
siroe.com | host15 p15 | host16 | * p16
* p17
The gateway internally maps these entries into a table as shown in Table 2-3. Table 2-3 has four columns. The first column lists the entry number for easy reference in the description. The second column lists the resolved entry from the example list above. The third column lists the corresponding proxy. The fourth column provides the description where appropriate.

Table 2-3    Mapping of entries in the Proxies for Domains and Subdomains List

Number

Entry in Proxies for Domains and Subdomains List

Proxy

Description

1

com

p1

As specified in the list.

2

host1.com

p2

As specified in the list.

3

host2.com

p1

Since there is no proxy specified against host2, the proxy for the domain is used.

4

*.com

p3

As specified in the list.

5

sesta.com

p4

As specified in the list.

6

host5.sesta.com

p5

As specified in the list.

7

*.sesta.com

p6

As specified in the list.

8

florizon.com

Direct

See the description for entry 14 for details.

9

host6.florizon.com

-

See the description for entry 14 for details.

10

abc.sesta.com

p8

As specified in the list.

11

host7.abc.sesta.com

p7

As specified in the list.

12

host8.abc.sesta.com

p8

As specified in the list.

13

*.abc.sesta.com

p9

As specified in the list. For all hosts other than host7 and host8 under the abc.sesta.com domain, p9 is used as the proxy.

14

host6.florizon.com

p10

This entry is the same as entry 9. Entry 9 indicates a direct connection, whereas this entry indicates that proxy p10 should be used. In a case where there are two entries such as this, the entry with the proxy information is considered as the valid entry. The other entry is ignored.

15

host9.sesta.com

p11

As specified in the list.

16

siroe.com

Direct

Since there is no proxy specified against siroe.com, a direct connection is attempted.

17

host12.siroe.com

p12

As specified in the list.

18

host13.siroe.com

p13

As specified in the list.

19

host14.siroe.com

Direct

Since no proxy is specified for host14, of for siroe.com, a direct connection is attempted.

20

*.siroe.com

p14

See the description for entry 23.

21

host15.siroe.com

p15

As specified in the list.

22

host16.siroe.com

Direct

Since no proxy is specified for host16, of for siroe.com, a direct connection is attempted.

23

*.siroe.com

p16

This is similar to entry 20. But the proxies specified are different. In such a case, the exact behavior of the gateway is not known. Either of the two proxies may be used.

24

*

p17

If no other entry matches the requested URL, p17 is used as the proxy.

Note Instead of separating the proxy entries in the Proxies for Domains and Subdomains with the | symbol, it may be simpler to have individual entries in the list. For example, instead of an entry such as:
sesta.com p1 | red p2 | * p3
you can specify it as:
sesta.com p1
red.sesta.com p2
*.sesta.com p3
This makes it easier to trap repeated entries or any other ambiguities.

Rewriting Based on the Proxies for Domains and Subdomains List
The entries in the Proxies for Domains and Subdomains list are also used by the rewriter. The rewriter rewrites all URLs whose domains match the domains listed in the Proxies for Domains and Subdomains list.

Caution
The * entry in the Proxies for Domains and Subdomains list is not considered for rewriting. For example, in the sample provided in Table 2-3, entry 24 is not considered.

See Chapter 5 "Configuring the Rewriter for more details on the rewriter and its functionality.

Default Domain and Subdomain
When the destination host in the URL is not a fully qualified host name, the default domain and subdomain are used to arrive at the fully qualified name.
Assume that the entry in the Default Domain Subdomain field of the admin console is:
red.sesta.com

Note You need to have the corresponding entry in the Proxies for Domains and Subdomains list.

In the example above, sesta.com is the default domain and the default subdomain is red.
If the requested URL is host1, this is resolved to host1.red.sesta.com using the default domain and subdomain. The Proxies for Domains and Subdomains list is then looked up for host1.red.sesta.com.

To Enable the Usage of Web Proxies

Log in to the iPlanet Directory Server Access Management Edition admin console as administrator.

Select the Service Management view.

Click the arrow next to Gateway under SRAP Configuration.

The Gateway page appears.

Click Edit... next to the gateway profile for which you want to set the attribute.

The Edit Gateway Profile page appears.

Select the Use Proxy checkbox to enable the usage of web proxies.

Click Save at the top or bottom of the Edit Gateway Profile page to record the change.

For the changes to take effect, restart the gateway by typing:

InstallDir/SUNWps/bin/gateway -n gateway profile name start

Specifying URLS for Webproxies
You can specify that the gateway needs to contact certain URLs only through the webproxies listed in the Proxies for Domains and Subdomains list, even if the Use Proxy option is disabled. You need to specify these URLs in the Use Webproxy URLs field. See "Managing Proxies for details on how this value affects the usage of proxies.

To Specify the URLs for Webproxies

Log in to the iPlanet Directory Server Access Management Edition admin console as administrator.

Select the Service Management view.

Click the arrow next to Gateway under SRAP Configuration.

The Gateway page appears.

Click Edit... next to the gateway profile for which you want to set the attribute.

The Edit Gateway Profile page appears.

Type the required URL in the Use Webproxy URLs edit box in the format http://host name.subdomain.com. Click Add.

The URL is added to the Use Webproxy URLs list.

Click Save at the top or bottom of the Edit Gateway Profile page to record the change.

For the changes to take effect, restart the gateway by typing:

InstallDir/SUNWps/bin/gateway -n gateway profile name start

Specifying URLs for which Proxies Should not be Used
The gateway tries to connect directly to the URLs listed in the Do Not Use Webproxy for URLs list. A webproxy is not used to connect to these URLs.

To Specify the URLs for which Proxies Should not be Used

Log in to the iPlanet Directory Server Access Management Edition admin console as administrator.

Select the Service Management view.

Click the arrow next to Gateway under SRAP Configuration.

The Gateway page appears.

Click Edit... next to the gateway profile for which you want to set the attribute.

The Edit Gateway Profile page appears.

Type the required URL in the Do Not Use Webproxy URLs edit box and click Add.

The URL is added to the Do Not Use Webproxy URLs list.

Click Save at the top or bottom of the Edit Gateway Profile page to record the change.

For the changes to take effect, restart the gateway by typing:

InstallDir/SUNWps/bin/gateway -n gateway profile name start

Specifying the Default Domain and Subdomain
The default domain and subdomain are useful when URLs contain only the host names without the domain and subdomain. In this case, the gateway assumes that the host names are in the default domain and subdomain, and proceeds accordingly.
For example, if the host name in the URL is host1, and the default domain and subdomain are specified as red.sesta.com, the host name is resolved as host1.red.sesta.com.

To Specify the Default Domain and Subdomain

Log in to the iPlanet Directory Server Access Management Edition admin console as administrator.

Select the Service Management view.

Click the right arrow icon next to Gateway under SRAP Configuration.

The Select Gateway Profile page appears.

Click the gateway profile for which you want to set the attribute.

The Gateway - profilename page appears.

Scroll down to the Default Domain Subdomain field and type the required default value in the format subdomain.domain name.

Click Save at the top or bottom of the Edit Gateway Profile page to record the change.

For the changes to take effect, restart the gateway by typing:

InstallDir/SUNWps/bin/gateway -n gateway profile name start

Specifying Proxies for Domains and Subdomains
See "Processing of the Proxy Information" for details on how the proxy information is applied to various hosts.

To Specify Proxies for Domains and Subdomains

Log in to the iPlanet Directory Server Access Management Edition admin console as administrator.

Select the Service Management view.

Click the right arrow icon next to Gateway under SRAP Configuration.

The Select Gateway Profile page appears.

Click the gateway profile for which you want to set the attribute.

The Gateway - profilename page appears.

Type the required information in the Proxies for Domains and Subdomains edit box and click Add. The entry is added to the Proxies for Domains and Subdomains list box.

The format for entering the proxy information is as follows:

domainname proxy1:port1|subdomain1 proxy2:port2|subdomain2 proxy3:port3|* proxy4:port4

* indicates that the proxy defined after the * needs to be used for all domains and subdomains other than those specifically mentioned.

If you do not specify the port for the proxy, port 8080 is used by default.

Click Save at the top or bottom of the Edit Gateway Profile page to record the change.

For the changes to take effect, restart the gateway by typing:

InstallDir/SUNWps/bin/gateway -n gateway profile name start

Specifying Proxy Authentication Information
You need to specify the user name and password required for the gateway to authenticate to the specified proxy server, if the proxy server requires authentication to access some or all the sites.

To Specify the Proxy Authentication Information

Log in to the iPlanet Directory Server Access Management Edition admin console as administrator.

Select the Service Management view.

Click the arrow next to Gateway under SRAP Configuration.

The Gateway page appears.

Click Edit... next to the gateway profile for which you want to set the attribute.

The Edit Gateway Profile page appears.

Scroll down to the Proxy Password List field.

Type the information for each proxy server in the format proxyserver|username|password and click Add.

The proxyserver corresponds to the proxy server defined in the Proxies for Domains and Subdomains list.

Repeat step 6 for all the proxies that require authentication.

Click Save at the top or bottom of the page to record the changes.

For the changes to take effect, restart the gateway by typing:

InstallDir/SUNWps/bin/gateway -n gateway profile name start

Configuring Cookies
Many web sites use cookies to track and manage user sessions. When the gateway routes requests to web sites that set cookies in the HTTP header, the gateway either discards or passes-through those cookies in the following manner:

Discard all cookies if the Enable Cookie Management attribute is not selected in the gateway service.

Pass-through all cookies to the user's browser and back to the appropriate web site(s) when the user makes subsequent visits to the web site(s) if the Enable Cookie Management attribute is selected.
This setting does not apply to the cookies used by the Sun ONE Portal Server to track Portal Server user sessions. It is controlled by the Forward Cookie Configuration.
This setting applies to all web sites that the user is permitted to access (that is, you cannot choose to discard cookies from some sites and retain cookies from others).

To Enable Cookie Management

Log in to the iPlanet Directory Server Access Management Edition admin console as administrator.

Select the Service Management view.

Click the arrow next to Gateway under SRAP Configuration.

The Gateway page appears.

Click Edit... next to the gateway profile for which you want to set the attribute.

The Edit Gateway Profile page appears.

Select the Enable Cookie Management checkbox to enable cookie management.

Click Save at the top or bottom of the Edit Gateway Profile page to record the change.

For the changes to take effect, restart the gateway by typing:

InstallDir/SUNWps/bin/gateway -n gateway profile name start

Enabling HTTP Basic Authentication
HTTP basic authentication can be set in the gateway service.
Web sites may be protected with HTTP Basic Authentication, requiring visitors to enter a username and password before viewing the site (the HTTP response code is 401 and WWW-authenticate: BASIC). Sun ONE Portal Server can save the username and password so that users need not re-enter their credentials when they revisit BASIC-protected web sites. These credentials are stored in the user profile on the Sun ONE Directory Server.
This setting does not determine whether or not a user may visit BASIC-protected sites, but only whether the credentials the user enters will be saved in the user's profile.
This setting applies to all web sites that the user is permitted to access (that is, HTTP basic authentication caching cannot be enabled for some sites and disabled for others).

Note Browsing to URLs served by Microsoft's Internet Information Server (IIS) protected by Windows NT challenge/response (HTTP response code 401, WWW-Authenticate: NTLM) instead of BASIC authentication is not supported.

You can also enable single sign-on using the Access List service in the admin console. See Chapter 1 "Introduction to Sun ONE Portal Server, Secure Remote Access for more information on enabling single sign-on.

To Enable HTTP Basic Authentication

Log in to the iPlanet Directory Server Access Management Edition admin console as administrator.

Select the Service Management view.

Click the arrow next to Gateway under SRAP Configuration.

The Gateway page appears.

Click Edit... next to the gateway profile for which you want to set the attribute.

The Edit Gateway Profile page appears.

Select the Enable HTTP Basic Authentication checkbox to enable HTTP basic authentication.

Click Save at the top or bottom of the Edit Gateway Profile page to record the change.

For the changes to take effect, restart the gateway by typing:

InstallDir/SUNWps/bin/gateway -n gateway profile name start

Configuring Persistent HTTP Connections
You can enable HTTP persistent connections at the gateway to prevent sockets being opened for every object (such as images and style sheets) in the web pages.

To Enable Persistent HTTP Connections

Log in to the iPlanet Directory Server Access Management Edition admin console as administrator.

Select the Service Management view.

Click the arrow next to Gateway under SRAP Configuration.

The Gateway page appears.

Click Edit... next to the gateway profile for which you want to set the attribute.

The Edit Gateway Profile page appears.

Select the Enable Persistent HTTP Connections checkbox.

Click Save at the top or bottom of the Edit Gateway Profile page to record the change.

For the changes to take effect, restart the gateway by typing:

InstallDir/SUNWps/bin/gateway -n gateway profile name start

To Specify the Maximum Number of Requests per Persistent Connection

Log in to the iPlanet Directory Server Access Management Edition admin console as administrator.

Select the Service Management view.

Click the arrow next to Gateway under SRAP Configuration.

The Gateway page appears.

Click Edit... next to the gateway profile for which you want to set the attribute.

The Edit Gateway Profile page appears.

Type the required number of requests in the Maximum Number of Requests per Persistent Connection field.

Click Save at the top or bottom of the Edit Gateway Profile page to record the change.

For the changes to take effect, restart the gateway by typing:

InstallDir/SUNWps/bin/gateway -n gateway profile name start

To Specify the Timeout for the Persistent Socket

Log in to the iPlanet Directory Server Access Management Edition admin console as administrator.

Select the Service Management view.

Click the arrow next to Gateway under SRAP Configuration.

The Gateway page appears.

Click Edit... next to the gateway profile for which you want to set the attribute.

The Edit Gateway Profile page appears.

Type the required timeout in seconds in the "Timeout after which Persistent Socket gets Closed" field.

Click Save at the top or bottom of the Edit Gateway Profile page to record the change.

For the changes to take effect, restart the gateway by typing:

InstallDir/SUNWps/bin/gateway -n gateway profile name start

To Specify Timeout to Account for Turnaround Time
This is the round trip time for the network traffic between the client (browser) and the gateway.

Log in to the iPlanet Directory Server Access Management Edition admin console as administrator.

Select the Service Management view.

Click the arrow next to Gateway under SRAP Configuration.

The Gateway page appears.

Click Edit... next to the gateway profile for which you want to set the attribute.

The Edit Gateway Profile page appears.

Type the required grace timeout in seconds in the Grace Timeout to Account for Turnaround Time field.

Click Save at the top or bottom of the Edit Gateway Profile page to record the change.

For the changes to take effect, restart the gateway by typing:

InstallDir/SUNWps/bin/gateway -n gateway profile name start

Forward Cookie Configuration
Sun ONE Portal Server utilizes a cookie to track user sessions. This cookie is forwarded to the server when the gateway makes HTTP requests to the server (for example, when the desktop servlet is called to generate the user's desktop page). Applications on the server use the cookie to validate and identify the user.
The Portal Server's cookie is not forwarded to HTTP requests made to machines other than the server, unless URLs on those machines are specified in the Forward Cookie URL Lists. Adding URLs to this list therefore enables servlets and CGIs to receive the Portal Server's cookie and use the APIs to identify the user.
URLs are matched using an implicit trailing wildcard. For example, the default entry in the list:
http://server:8080
causes the cookie to be forwarded to all URLs starting with http://server:8080.
Adding:
http://newmachine.eng.siroe.com/subdir
causes the cookie to be forwarded to all URLs starting with that exact string.
For this example, the cookie is not forwarded to any URLs starting with "http://newmachine.eng/subdir", since this string does not start with the exact string in the forward list. To have cookies forwarded to URLs starting with this variation of the machine's name, an additional entry has to be added to the forward list.
Similarly, the cookie is not forwarded to URLs starting with "https://newmachine.eng.siroe.com/subdir" unless an appropriate entry is added to the list.

To Add a Forward Cookie URL

Log in to the iPlanet Directory Server Access Management Edition admin console as administrator.

Select the Service Management view.

Click the arrow next to Gateway under SRAP Configuration.

The Gateway page appears.

Click Edit... next to the gateway profile for which you want to set the attribute.

The Edit Gateway Profile page appears.

Type the required URL in the Forward Cookie URLs edit box.

Click Add to add this entry to the Forward Cookie URLs list.

Click Save at the top or bottom of the Edit Gateway Profile page to record the change.

For the changes to take effect, restart the gateway by typing:

InstallDir/SUNWps/bin/gateway -n gateway profile name start

Specifying URLs that Bypass Authentication
You can specify that some URLs do not need any authentication. These are normally directories and folders that contain images.

Specifying Non-authenticated URL Paths

Log in to the iPlanet Directory Server Access Management Edition admin console as administrator.

Select the Service Management view.

Click the arrow next to Gateway under SRAP Configuration.

The Gateway page appears.

Click Edit... next to the gateway profile for which you want to set the attribute.

The Edit Gateway Profile page appears.

Scroll down to the Non-authenticated URLs field and type the required folder path in the format folder/subfolder.

Click Add to add this entry to the Non-authenticated URLs list.

Click Save at the top or bottom of the Edit Gateway Profile page to record the change.

For the changes to take effect, restart the gateway by typing:

InstallDir/SUNWps/bin/gateway -n gateway profile name start

Specifying the Maximum Connection Queue Length
You can specify the maximum concurrent connections that the gateway needs to accept. Any connection attempts beyond this number are not accepted by the gateway.

To Specify the Maximum Connection Queue Length

Log in to the iPlanet Directory Server Access Management Edition admin console as administrator.

Select the Service Management view.

Click the arrow next to Gateway under SRAP Configuration.

The Gateway page appears.

Click Edit... next to the gateway profile for which you want to set the attribute.

The Edit Gateway Profile page appears.

Scroll down to the Maximum Connection Queue Length field and specify the required number of connections.

Click Save at the top or bottom of the Edit Gateway Profile page to record the change.

For the changes to take effect, restart the gateway by typing:

InstallDir/SUNWps/bin/gateway -n gateway profile name start

Specifying the Gateway Timeout
You can specify the time interval in milliseconds after which the gateway times out its connection with the browser.

To Specify the Gateway Timeout

Log in to the iPlanet Directory Server Access Management Edition admin console as administrator.

Select the Service Management view.

Click the arrow next to Gateway under SRAP Configuration.

The Gateway page appears.

Click Edit... next to the gateway profile for which you want to set the attribute.

The Edit Gateway Profile page appears.

Scroll down to the Gateway Timeout (milliseconds) field and specify the interval required in milliseconds.

Click Save at the top or bottom of the Edit Gateway Profile page to record the change.

For the changes to take effect, restart the gateway by typing:

InstallDir/SUNWps/bin/gateway -n gateway profile name start

Specifying the Maximum Number of Threads
You can specify the maximum number of threads that can be pre-created in the gateway thread pool.

To Specify the Maximum Number of Threads

Log in to the iPlanet Directory Server Access Management Edition admin console as administrator.

Select the Service Management view.

Click the arrow next to Gateway under SRAP Configuration.

The Gateway page appears.

Click Edit... next to the gateway profile for which you want to set the attribute.

The Edit Gateway Profile page appears.

Scroll down to the Maximum Thread Pool Size field and specify the required number of threads.

Click Save at the top or bottom of the Edit Gateway Profile page to record the change.

For the changes to take effect, restart the gateway by typing:

InstallDir/SUNWps/bin/gateway -n gateway profile name start

Specifying the Cached Socket Timeout
You can specify the time interval in milliseconds after which the gateway times out its connection with the Portal Server.

To Specify the Cached Socket Timeout

Log in to the iPlanet Directory Server Access Management Edition admin console as administrator.

Select the Service Management view.

Click the arrow next to Gateway under SRAP Configuration.

The Gateway page appears.

Click Edit... next to the gateway profile for which you want to set the attribute.

The Edit Gateway Profile page appears.

Scroll down to the Cached Socket Timeout field and specify the interval required in milliseconds.

Click Save at the top or bottom of the Edit Gateway Profile page to record the change.

For the changes to take effect, restart the gateway by typing:

InstallDir/SUNWps/bin/gateway -n gateway profile name start

Configuring Personal Digital Certificate (PDC) Authentication
PDCs are issued by a Certification Authority (CA) and signed with the CA's private key. The CA validates the identity of a requesting body before issuing a certificate. Thus the presence of a PDC is a very powerful authentication mechanism.
PDCs contain the owner's public key, the owner's name, an expiration date, the name of the Certification Authority that issued the Digital Certificate, a serial number, and maybe some other information.
Users can use PDCs and encoded devices such as Smart Cards and Java Cards for authentication in the Sun ONE Portal Server. The encoded devices carry an electronic equivalent of a PDC stored on the card. If a user logs in using one of these mechanisms, no login screen appears and no authentication screen appears.
The PDC authentication process involves several steps:
From a browser, the user types a connection request, say https://my.sesta.com.
The response to this request depends on whether the gateway to my.sesta.com has been configured to accept certificates.

Note When a gateway is configured to accept certificates, it will accept only logins with certificates, not any other kind of login.

The gateway checks that the certificate has been issued by a known Certificate Authority, has not expired, and has not been tampered with. If the certificate is valid, the gateway lets the user proceed to the next step in the authentication process.
The gateway passes the certificate to the PDC authentication module in the server.

To Configure PDCs and Encoded Devices With the Gateway
Add the following line in the InstallDir/SUNWam/lib/AMConfig.properties file on the portal server machine:
com.iplanet.authentication.modules.cert.gwAuthEnable=yes
Configuring PDCs and encoded devices involves the following subtasks:

Importing the Required Certificates

Adding the Gateway to the Certificate-enabled Gateway List

Registering the Required Services

Modifying the Required Attributes

Restarting the gateway for the changes to take effect

Importing the Required Certificates
Import the required CA certificates into the certificate database of the gateway that you want PDC-enabled.
See Installing Certificates From a Certificate Authority in Chapter 4, Installing SSL Certificates in the Sun ONE Portal Server, Secure Remote Access 6.0 Installation Guide, for details.

Adding the Gateway to the Certificate-enabled Gateway List

Log in to the iPlanet Directory Server Access Management Edition admin console as administrator.

Choose Service Management from the View menu.

All the services are displayed in the left pane.

Click the arrow next to Gateway under SRAP Configuration.

The Gateway Profiles page is displayed in the right pane.

Type the fully qualified name of the gateway for which you want PDC authentication enabled in the Certificate-enabled Gateway Hosts field and click Add.

Add the gateway in the format host1.sesta.com.

The gateway is added to the Certificate-enabled Gateway Hosts list.

Registering the Required Services

Select User Management under the View menu.

Select the required organization.

Select Services in the Show menu.

The Core service, if already registered, displays in the navigation pane. If it is not already registered, it can be done concurrently with the Certificate-based Authentication service.

Click Register in the navigation pane.

A list of available services displays in the data pane.

Select the checkbox for Certificate-based Authentication and click Submit.

The Certificate-based Authentication service appears in the navigation pane confirming that the service has been registered.

Modifying the Required Attributes

Select User Management under the View menu.

Select the required organization.

Select Services in the Show menu.

The Core service, if already registered, displays in the navigation pane. If it is not already registered, it can be done concurrently with the Certificate-based Authentication service.

Select the Certificate-based Authentication checkbox and click the Properties arrow.

The message "No template available for this service" appears in the data pane.

Click Create.

The Certificate-based Authentication attributes appear in the data pane.

Modify the attributes as necessary.

Click Save at the top of the page to record the changes.

Enable the Dynamic User Profile Creation option under the Core service in DSAME Configuration.

Restart DSAME.

For the changes to take effect, restart the gateway by typing:

InstallDir/SUNWps/bin/gateway -n gateway profile name start

Note Dynamic User Profile Creation needs to be enabled in the Core service under DSAME Configuration. This allows the user profile to be created dynamically using the certificate attributes for users logging in using PDC.

Allowing 40-bit Browser Connections
Select this option if you want to allow 40-bit (weak) Secure Sockets Layer (SSL) connections. If you do not select this option, only 128-bit connections are supported.
If you disable this option, the user needs to ensure that the browser is configured to support the required connection type.

Note The user needs to do the following in case of Netscape Navigator 4.7x:

Select Security Info under Tools in the Communicator menu.

Click the Navigator link in the left pane.

Click Configure SSL v2 or Configure SSL v3 under Advanced Security (SSL) Configuration.

Enable the required ciphers.

To Allow 40-bit Browser Connections

Log in to the iPlanet Directory Server Access Management Edition admin console as administrator.

Select the Service Management view.

Click the arrow next to Gateway under SRAP Configuration.

The Gateway page appears.

Click Edit... next to the gateway profile for which you want to set the attribute.

The Edit Gateway Profile page appears.

Select the Allow 40-bit Browser checkbox to enable 40-bit browser connections.

Click Save at the top or bottom of the Edit Gateway Profile page to record the change.

For the changes to take effect, restart the gateway by typing:

InstallDir/SUNWps/bin/gateway -n gateway profile name start

Disabling SSL Version 2.0
You can enable or disable SSL version 2.0. Disabling SSL 2.0 means that browsers that support only the older SSL 2.0 will not be able to authenticate to the Secure Remote Access. This ensures a greater level of security.

To Disable SSL Version 2.0

Log in to the iPlanet Directory Server Access Management Edition admin console as administrator.

Select the Service Management view.

Click the arrow next to Gateway under SRAP Configuration.

The Gateway page appears.

Click Edit... next to the gateway profile for which you want to set the attribute.

The Edit Gateway Profile page appears.

Scroll down to the Enable SSL Version 2.0 field and deselect the option.

This option is enabled by default.

Click Save at the top or bottom of the Edit Gateway Profile page to record the change.

For the changes to take effect, restart the gateway by typing:

InstallDir/SUNWps/bin/gateway -n gateway profile name start

Enabling Cipher Selection
The Secure Remote Access supports a number of standard ciphers. You have the option of supporting all the pre-packaged ciphers, or selecting the required ciphers individually. You can select specific SSL ciphers for each gateway instance. If any of the selected ciphers is present at the client site, the SSL handshake occurs successfully.

To Enable Individual Cipher Selection

Log in to the iPlanet Directory Server Access Management Edition admin console as administrator.

Select the Service Management view.

Click the arrow next to Gateway under SRAP Configuration.

The Gateway page appears.

Click Edit... next to the gateway profile for which you want to set the attribute.

The Edit Gateway Profile page appears.

Scroll down to the Enable SSL Cipher Selection field and select the option.

This option enables you to select the required ciphers from the list of SSL2, SSL3 and TLS ciphers.

Click Save at the top or bottom of the Edit Gateway Profile page to record the change.

This allows you to select the ciphers that you want to be supported at your client sites. Deselecting the "Enable the SSL ciphers individually" option automatically selects all the listed ciphers.

For the changes to take effect, restart the gateway by typing:

InstallDir/SUNWps/bin/gateway -n gateway profile name start

Rewriting all URLs
See Chapter 5 "Configuring the Rewriter for details.

Specifying Domain-based Rulesets
See Chapter 5 "Configuring the Rewriter for details.

Specifying the MIME Mappings
See Chapter 5 "Configuring the Rewriter for details.

Specifying the List of Configured Portal Servers
You can configure multiple Portal Servers for the gateway to service requests. While installing the gateway, you would have specified the Portal Server that the gateway needs to work with. This Portal Server is listed in the Portal Server List by default. You can add more Portal Servers to the list in the format http://portal server name:port number. The gateway tries to contact each of the Portal Servers listed in a round robin manner to service the requests.

To Specify the List of Configured Portal Servers

Log in to the iPlanet Directory Server Access Management Edition admin console as administrator.

Select the Service Management view.

Click the arrow next to Gateway under SRAP Configuration.

The Gateway page appears.

Click Edit... next to the gateway profile for which you want to set the attribute.

The Edit Gateway Profile page appears.

Scroll down to the Portal Server List field. Specify the Portal Server in the format http://portal server name:port number in the edit field and click Add.

The specified Portal Server is added to the Portal Server List field.

Click Save at the top or bottom of the page to record the changes.

For the changes to take effect, restart the gateway by typing:

InstallDir/SUNWps/bin/gateway -n gateway profile name start

Specifying the Retry Interval for the Portal Server
You can set the frequency (in minutes) at which the gateway needs to check if the Portal Server is available.

To Specify the Retry Interval for the Portal Server

Log in to the iPlanet Directory Server Access Management Edition admin console as administrator.

Select the Service Management view.

Click the arrow next to Gateway under SRAP Configuration.

The Gateway page appears.

Click Edit... next to the gateway profile for which you want to set the attribute.

The Edit Gateway Profile page appears.

Scroll down to the Server Retry Interval field. Specify the time interval in minutes at which the gateway needs to check whether the Portal Server is available.

Click Save at the top or bottom of the page to record the changes.

For the changes to take effect, restart the gateway by typing:

InstallDir/SUNWps/bin/gateway -n gateway profile name start

Enabling Logging
You can specify the gateway log file to capture either minimum information or detailed information about each session. The log information is saved in the directory specified in the Log Location attribute as part of the Logging section of the DSAME Configuration attributes. This log is located on the Portal Server machine.
The log name has the following convention:
srapGateway_gatewayhostname_gateway profile name
The log information can be saved as a file or as a database as specified in the DSAME Configuration. The fields in the log are comma-separated ASCII values, and can be exported to other data analysis tools.

To Enable Gateway Logging

Log in to the iPlanet Directory Server Access Management Edition admin console as administrator.

Select the Service Management view.

Click the arrow next to Gateway under SRAP Configuration.

The Gateway page appears.

Click Edit... next to the gateway profile for which you want to set the attribute.

The Edit Gateway Profile page appears.

Select the Enable Logging checkbox to enable gateway logging.

Select the Enable per Session Logging checkbox to capture minimum log information such as Client Address, Request Type, and Destination Host.

Note Log information is captured only if the Enable Logging field has already been enabled.

Select the Enable Detailed per Session Logging for the gateway to capture detailed log information such as Client, Request Type, Destination Host, Type of Request, Client Requested URL, Client Post Data size, SessionID, Response Result code, and Complete Response size.

Note Detailed log information is captured only if the Enable per Session Logging checkbox has already been enabled.

Click Save at the top or bottom of the page to record the changes.

For the changes to take effect, restart the gateway by typing:

InstallDir/SUNWps/bin/gateway -n gateway profile name start

Enabling Netlet Logging
You can enable logging for Netlet related activities by selecting this option. The Netlet log will contain the following details about the Netlet sessions:

Start time

Source address

Source port

Server address

Server port(s)

Stop time

Status (start or stop)

To Enable Netlet Logging

Log in to the iPlanet Directory Server Access Management Edition admin console as administrator.

Select the Service Management view.

Click the arrow next to Gateway under SRAP Configuration.

The Gateway page appears.

Click Edit... next to the gateway profile for which you want to set the attribute.

The Edit Gateway Profile page appears.

Select the Enable Netlet Logging checkbox to enable Netlet logging.

Click Save at the bottom of the page to record the changes.

For the changes to take effect, restart the gateway by typing:

InstallDir/SUNWps/bin/gateway -n gateway profile name start

Authentication Chaining

Authentication chaining provides a higher level of security over the regular mechanism of authentication. You can enable the users to be authenticated against more than one authentication mechanism.
For example, if you chain the PDC, Unix and Radius authentication modules, the user will have to authenticate against all the three modules to access the Portal Server desktop.

Note PDC is always the first authentication module to be presented to the user if it is enabled.

To Enable Authentication Chaining

Log in to the iPlanet Directory Server Access Management Edition admin console as administrator.

Select User Management under the View menu.

Select the required organization.

Select Services in the Show menu.

The Core service, if already registered, displays under DSAME Configuration in the navigation pane.

Click the arrow icon next to Core.

The Core attributes page is displayed.

Select the Authentication Chaining Enabled checkbox under the Organization attributes.

Click Save at the top of the page to record the changes.

For the changes to take effect, restart the gateway by typing:

InstallDir/SUNWps/bin/gateway -n gateway profile name start

To Specify the Authentication Modules

Log in to the iPlanet Directory Server Access Management Edition admin console as administrator.

Select User Management under the View menu.

Select the required organization.

Select Services in the Show menu.

The Core service, if already registered, displays under DSAME Configuration in the navigation pane.

Click the arrow icon next to Core.

The Core attributes page is displayed.

List all the authentication modules required in the Authentication Chaining Modules field under the Organization attributes.

You can specify any of the authentication modules using a single space to delimit the module names.

Note Do not specify Cert as one of the entries in the Authentication Chaining Modules field if you have enabled PDC authentication. If PDC authentication is enabled, it is the first authentication module that will run.
See the Administration Guide, iPlanet Directory Server Access Management Edition for more information on authentication modules.

Click Save at the top of the page to record the changes.

For the changes to take effect, restart the gateway by typing:

InstallDir/SUNWps/bin/gateway -n gateway profile name start

Chained Certificates
A chained or stepped up certificate is one that has been upgraded from providing only 40-bit connections to also supporting 128-bit connections.

Wild Card Certificates
A wild card certificate accepts a single certificate with a wild card character in the fully-qualified DNS name of the host.
This allows the certificate to secure multiple hosts within the same domain. For example, a certificate for *.domain.com can be used for abc.domain.com, and abc1.domain.com. In fact, this certificate is valid for any host in the domain.com domain.

Creating a Wild Card Certificate
The steps to create a wild card certificate are the same as Generating a Self-Signed SSL Certificate. You need to specify a * in the fully-qualified host name. For example, if the fully-qualified host name is abc.florizon.com, specify it as *.florizon.com. The certificate that is generated is now valid for all host names in the florizon.com domain.

Disabling Browser Caching

As the gateway component provides secure access to backend corporate data from any location using just a web browser, it may be necessary that the information not be cached locally by the client.
You can disable caching of pages redirected through the gateway by modifying the attribute in the platform.conf file of the specific gateway.
Disabling this option can have an impact on the gateway performance. Every time the desktop is refreshed, the gateway has to retrieve everything referenced by the page, such as images which may have been previously cached by the browser. However, by enabling this feature, remotely accessing secure content will not leave a cached footprint on the client site. This could outweigh performance implications if the corporate network is being accessed from an Internet cafe or similar remote location that is not under corporate IT control.

To Disable Browser Caching

Log in as root, and edit the platform.conf file of the required gateway instance:

/etc/opt/SUNWps/platform.conf.profilename

Edit the following line:

gateway.allow.client.caching=true

This value is set to true by default. Change the value to false to disable browser caching at the client side.

Restart the gateway using:

InstallDir/SUNWps/bin/gateway -n new profile name start

Running the Gateway in the chroot Environment

To provide high security in a chroot environment, the chroot'd directory content must be as minimal as possible. For example, if any programs exist which allow a user to modify a file under the chrooted directory, then chroot will not protect the server against an attacker modifying files under the chroot tree. CGI programs should not be written in an interpreted language, such as bourne shell, c-shell, korn shell or perl, but should be compiled binaries so interpreters do not need to be present under the chroot directory tree.

Note The watchdog feature is not supported in the chroot environment.

To Install chroot

As root, in a terminal window, copy the following files to an external source such as a computer on the network, a backup tape or a floppy disk.

# cp /etc/vfstab external-device

# cp /etc/nsswitch.conf external-device

# cp /etc/hosts external-device

Run the mkchroot script from:

InstallDir/SUNWps/bin/chroot

Note The mkchroot script cannot be terminated by pressing Ctrl-C, once execution has begun.
In the event of an error during the execution of the mkchroot script, see Execution Failure of the mkchroot Script.

You are prompted for a different root directory (new_root_directory). The script creates the new directory.
In the following examples, /safedir/chroot is the new_root_directory.

Enter the full path name of the directory which will be the chrooted tree:/safedir/chroot

Using /safedir/chroot as root.

Checking available disk space...done

/safedir/chroot is on a setuid mounted partition.

Creating filesystem structure...dev etc sbin usr var proc opt bin lib tmp etc/lib usr/platform usr/bin usr/sbin usr/lib usr/openwin/lib var/opt var/tmp dev/fd done

Creating devices...null tcp ticots ticlts ticotsord tty udp zero conslog done

Copying/creating etc files...group passwd shadow hosts resolv.conf netconfig nsswitch.conf

done

Copying binaries...................................done

Copying libraries.....................................done

Copying zoneinfo (about 1 MB)..done

Copying locale info (about 5 MB)..........done

Adding comments to /etc/nsswitch.conf ...done

Creating loopback mount for/safedir/chroot/usr/java1.2...done

Creating loopback mount for/safedir/chroot/proc...done

Creating loopback mount for/safedir/chroot/dev/random...done

Do you need /dev/fd (if you do not know what it means, press return)[n]:

Updating /etc/vfstab...done

Creating a /safedir/chroot/etc/mnttab file, based on these loopback mounts.

Copying SRAP related data ...

Using /safedir/chroot as root.

Creating filesystem structure...........done

mkchroot successfully done.

Manually mount the Java directory mentioned in the platform.conf file to the chroot directory using the following command:

mkdir -p /safedir/chroot/javadir

mount -F lofs javadir /safedir/chroot/javadir

For Solaris 9, do the following:

mkdir -p /safedir/chroot/usr/lib/32

mount -F lofs /usr/lib/32 /safedir/chroot/usr/lib/32

mkdir -p /safedir/chroot/usr/lib/64

mount -F lofs /usr/lib/64 /safedir/chroot/usr/lib/64

To mount this directory at system startup, add a corresponding entry in the /etc/vfstab file:

javadir - /safedir/chroot/javadir lofs - no -

For Solaris 9:

/usr/lib/32 - /safedir/chroot/usr/lib/32 lofs - no -

/usr/lib/64 - /safedir/chroot/usr/lib/64 lofs - no -

Type the command below to restart the gateway:

stopping gateway ... done.

starting gateway ...

done.

Execution Failure of the mkchroot Script
In the event of an error during the execution of the mkchroot script, the script will restore the files to their initial state.
In the following examples, /safedir/chroot is the chroot directory
If the following error message is encountered:
Not a Clean Exit

Copy the backed up files in step 1 of To Install chroot, to their original locations, and execute the following commands:

# umount /safedir/chroot/usr/java1.2

# umount /safedir/chroot/proc

# umount /safedir/chroot/dev/random

Remove the /safedir/chroot directory.

To Restart the Gateway in the chroot environment
Follow these steps to run the Secure Remote Access gateway in a chroot environment whenever the gateway machine is rebooted:

Stop the gateway running from the '/' directory.

# InstallDir/SUNWps/bin/gateway -n profilename stop

Start the gateway to run from the chroot directory.

# chroot /safedir/chroot ./InstallDir/SUNWps/bin/gateway -n profilename start

Note The /safedir/chroot/etc files (such as passwd and hosts) need to be administered, just like the /etc files, but only include host and account information required by the programs running in the chroot tree.
For example, if you change the IP address of the system, also change the /safedir/chroot/etc/hosts.

Customizing the Gateway User Interface

This section discuss the various property files that can be edited. You can edit labels on the gateway admin console, error messages, or the order of log information. This is useful if you are trying to customize the product for different locales.
You can customize the following files:
InstallDir/SUNWam/locale/srapGatewayAdminConsole.properties
InstallDir/SUNWps/locale/srapGateway.properties
InstallDir/SUNWps/web-src/WEB-INF/classes/srapgwadminmsg.properties

Note You need to store a copy of each of these files in the respective locale directories if you have different locale settings.

srapGatewayAdminConsole.properties File
Edit this file to change the field names that appear on the gateway admin console.

srapgwadminmsg.properties File
Edit this file to:

Customize the labels that appear on buttons in the gateway admin console

Customize the status messages and error messages that appear when you are configuring the gateway.

srapGateway.properties File
Edit this file to:

Customize the error messages that may appear when the gateway is running.

HTML-CharSets=ISO-8859-1 specifies the character set that was used to create this file.

The number in braces (for example, {0}) indicates that the value will be displayed at run time. You can change the label associated with this number, or rearrange the labels as required. Ensure that the label corresponds to the message that will be displayed since the number and the message are associated.

Customize the log information
By default the srapGateway.properties file is located under InstallDir/SUNWps/locale directory. All messages that appear on the gateway machine (gateway related messages) are located in this file, irrespective of the language of the messages.
If you need to change the language of the messages that appear on the client desktop, you need to copy this file into the respective locale directory, for example InstallDir/SUNWps/locale_en_US.

RedirectMessage=<head><title>Document moved</title></head><body><h1>Document moved</h1>This document has moved to <a href=\"$$\">this new location</a>.<p>

#

MaximumHandlersReached=The maximum numbers of RequestHandlers has been reached. Consider increasing maximum number of handlers.

SearchingForRequestHandler=Searching for a RequestHandler.

CantFindHandlers=Can't find an available RequestHandler after too many tries. Something is drastically wrong.

ServiceNetworkError=Service found a problem with network configuration:

NotifyListener=Notifying Listeners of new connection

ServiceNetworkError=Service found a problem with network configuration:

HandlingRequest=Handling Request

SuccessConnectionManager=ConnectionManager loaded:

ConnectionManagerListening=ConnectionManager listening for new Connections.

ConnectionManagerExiting=ConnectionManager Exiting.

FailConnectionManager=Unable to to load ConnectionManager:

NotificationErrorMessage=<html><head><title>Gateway : Notification error</title></head><body>Notification Error - {0}</BODY></HTML>

InvalidGatewayHostNameErrorMessage=<html><head><title>Gateway : Invalid gateway</title></head><body>Error in the specified gateway host specified - {0}</BODY></HTML>

HostConnectErrorMessage=<html><head><title>Gateway Error : Connect error</title></head><body><p>Unable to connect to host - {0}. <p> Contact administrator</body></html>

HTML-CharSets=ISO-8859-1

RproxyPerRequestLogFormat=ID : {0} User ID : {1} Client Address : {2} Request Type {3} Destination Host : {4}

RproxyPerRequestDetailedLogFormat=ID : {0} User ID : {1} Client : {2} Request Type : {3} Destination Host {4} Type of Request {5} Client Requested URL {6} Client Post Data size {7} Response Result code {8} Complete Response size {9}

WebProxErrorMessage=<html><head><title>Gateway : Web proxy error</title></head><body>Web proxy connect error <p>Unable to connect to Web Proxy : {0}<p>Contact your administrator</BODY></HTML>

ExceptionErrorMessage=<html><head><title>Gateway : Exception</title></head><body>Exception {0} occured while processing your Request</body></html>

AccessDeniedErrorMessage=<html><head><title>Gateway : access denied</title></head><body>Access to this resource is denied !!<p>Contact your administrator</body></html>

LoginToAnotherOrg=<html><body>Logout of the current org and Login to another <a href={0}>org?</a></body></html>

#Rewriter Locale Messages

DataServiceErrorMessage=<html><head><title>Rewriter:DataServiceExc eption</title></head><body>Rewriter Unable to contact Identity Server. <br/> Please contact your administrator.</body></html>

InvalidRuleSetWarningMessage=<html><head><title>Rewriter:InvalidRu leSet</title></head><body> Either the ruleset {0} is invalid or not a valid XML content. <br/>Please contact your administrator.</body></html>

UnSupportedEncodingWarningMessage=<html><head><title>Rewriter:UnSu pportedEncoding</title></head><body>System does not support the encoding {0}<br/>Please contact your administrator.</body></html>

# CachedSSLSocketFactory

csslsf1=ID:{0}, Destination address:{1}:{2}

# CachedSocketFactory

csf1=ID:{0}, Destination address:{1}, Destination port:{2}

# Session

session1=ID:{0}, User ID:{1}, URI:{2}

session2=ID:{0}, User ID:{1}, Request size:{2}

session3=ID:{0}, User ID:{1}, IP:{2}

session4=

session5=ID:{0}, Invalid session ID:{1}

session6=Unable to get original IP. Current IP:{0}, Session ID:{1}

session7=Invalid IP. Current IP:{0}, Original IP:{1}, Session ID:{2}

session8=ID:{0}, URL:{1} is not allowed for User ID: {2}

# EProxyConnection

epc1=ID:{0}, Source address:{1}, Source port:{2}

# ESession

es1=ID:{0}, User ID:{1}, Netlet connection to Netlet proxy {2}:{3}

es2=ID:{0}, User ID:{1}, Netlet redirect connection to destination {2}:{3}

es3=ID:{0}, User ID:{1}, Netlet connection to destination {2}:{3}

# Netlet

en1=ID:{0}, UserId:{1}, Status:{2}, Source address:{3}, Source port:{4}, Server address:{5}, Server port:{6}

# HTTPConnectionManager

httpcm1=ID:{0}, Source address:{1}, Source port:{2}

StartEProxy=Starting EProxy!

StartRProxy=Starting ReverseProxy!

ResourceFileNotFound=iwtGateway properties file not found.

a1=Allow 40 Bit Browser Connections

a2=Rewrite HTML Attributes

a3=Rewrite HTML Attributes Containing JavaScript

a4=Rewrite JavaScript Function Parameters

a5=Rewrite JavaScript Variables In URLs

a6=Rewrite JavaScript Variables Function

a61=Rewrite JavaScript Function Parameters Function

a7=Rewrite JavaScript Function Parameters In HTML

a71=Rewrite JavaScript Function Parameters In JavaScript

a8=Rewrite JavaScript Variables In HTML

a81=Rewrite JavaScript Variables In JavaScript

a9=Rewrite Applet/Object Parameter Values List

a10=Rewrite Form Input Tags List

a11=Rewrite All URLs Enabled

a12=PDC Enabled Gateway List

a13=IP Address Validation Enabled

a14=HTTP Basic Authentication Enabled

a15=Forward Cookie URL List

a16=Non Portal Server Cookie Management

a17=Use Intranet Web Proxy

a18=Use Web Proxy Enabled

a19=Don't Use Web Proxy Enabled

a20=DNS Domains and Subdomains

X-x21=Gateway Port

X-x22=Gateway Protocol

X-x23=Non Authenticated URL Paths

X-x3=Trust Server SSL Certificate List

X-x4=HTTP Proxy Enabled

X-x6=HTTP Proxy Port

X-x7=Netlet Proxy Enabled

X-x8=Netlet Proxy Port

X-x9=Logging Enabled

X-x10=Gateway Timeout (milliseconds)

X-x12=ReverseProxy Maximum Socket Connections

X-x13=MIME Type Translator Class

X-x14=Maximum Thread Pool Size

Understanding the platform.conf File

The platform.conf file is located at:
/etc/opt/SUNWps
The platform.conf file contains the details that the gateway needs to start running. This section provides a sample platform.conf file and describes all the entries.
The advantage of including all the machine-specific details in the configuration file is that a common profile can be shared by gateways running on multiple machines.

Sample
#
# Copyright 11/28/00 Sun Microsystems, Inc. All Rights Reserved.
# "@(#)platform.conf 1.38 00/11/28 Sun Microsystems"
#
gateway.user=noaccess
gateway.jdk.dir=/usr/java_1.3.1_04
gateway.dsame.agent=http://abc.sesta.com:80//portal/RemoteConfigSer vlet
portal.server.protocol=http
portal.server.host=abc.sesta.com
portal.server.port=80
gateway.protocol=https
gateway.host=olyve.abc.siroe.com
gateway.port=443
gateway.trust_all_server_certs=true
gateway.trust_all_server_cert_domains=false
gateway.virtualhost=olyve.abc.siroe.com 10.12.147.53
gateway.notification.url=http://abc.sesta.com:80/notificationservic e
gateway.retries=6
gateway.locale=en_US
gateway.debug=error
gateway.debug.dir=/var/opt/SUNWps/debug
gateway.logdelimiter=&&
gateway.external.ip=10.12.147.53
gateway.certdir=/etc/opt/SUNWps/cert/default
gateway.allow.client.caching=true
gateway.userProfile.cacheSize=1024
gateway.userProfile.cacheSleepTime=60000
gateway.userProfile.cacheCleanupTime=300000
gateway.bindipaddress=10.12.147.53
gateway.sockretries=3

Description
Table 2-4 lists and describes all the fields in the platform.conf file. The table has three columns. The first column lists the entries in the file, the second column gives the default value, if any, and the third column gives a brief description of the field.

Table 2-4    platform.conf file

Entry

Default Value

Description

gateway.user

noaccess

This is the user as whom the gateway runs.
The gateway has to be started as root and after initialization, it loses its root privileges to become this user.

gateway.jdk.dir

This is the location of the JDK directory that the gateway uses.

gateway.dsame.agent

This is the URL of the iPlanet Directory Server Access Management Edition server that gateway contacts while starting up to get its profile.

portal.server.
protocol
portal.server.host
portal.server.port

This is the protocol, host and port that the default Portal Server installation is using.

gateway.protocol
gateway.host
gateway.port

This is the gateway protocol, host and port. These values are the same as the mode and port that you specified during installation. These values are used to construct the notification URL.

gateway.trust_all_
server_certs

true

This indicates whether the gateway has to trust all server certificates, or only those that are in the gateway certificate database.

gateway.trust_all_
server_cert_domains

false

Whenever there is an SSL communication between the gateway and a server, a server certificate is presented to the gateway. By default, the gateway checks if the server host name is the same as the server certificate CN.
If this attribute value is set to true, the gateway disables the domain check for the server certificate that it receives.

gateway.virtualhost

If the gateway machines has multiple hostnames configured, you can specify a different name and IP address in this field.

gateway.
notification.url

A combination of the gateway host, protocol and port is used to construct the notification URL. This is used to receive session notification from iDS/AME.
Ensure that the notification URL is not the same as any organization name. If the notification URL matches an organization name, a user trying to connect to that organization will get a blank page instead of the login page.

gateway.retries

This is the number of times that the gateway tries to contact the Portal Server while starting up.

gateway.locale

This is the gateway locale

gateway.debug

error

This sets the debug level of the gateway. The debug log file is located at debug_directory/files. The debug file location is specified in the gateway.debug.dir entry.
The debug levels are:
error - Only serious errors are logged in the debug file. The gateway usually stops functioning when such errors occur.
warning - Warning messages are logged.
message - All debug messages are logged.
on - All debug messages are displayed on the console.
The debug files are:
srapGateway.profilename - Contains the gateway debug messages.
Gateway_to_from_server.profilename - In message mode, this file contains all the requests and response headers between the gateway and internal servers.
Gateway_to_from_browser.profilename - In message mode, this file contains all the requests and response headers between the gateway and the client browser.

gateway.debug.dir

This is the directory where all the debug files are generated.
This directory should have sufficient permissions for the user mentioned in gateway.user to write to files.

gateway.
logdelimiter

Not used currently.

gateway.external.ip

In case of a multihomed gateway machine, you need to specify the external IP address here. This IP is used for the Netlet to run FTP.

gateway.certdir

This specifies the location of the certificate database.

gateway.allow.
client.caching

true

Allow or disallow client caching.
If allowed, client browsers can cache static pages and images for better performance (by reduced network traffic).
If disallowed, there is higher security as nothing is cached at client side but there will be a performance drop and higher network load.

gateway.userProfile.cacheSize

This is the number of user profile entries that get cached at the gateway. If the number of entries exceeds this value, frequent retries occur to cleanup the cache.

gateway.userProfile.cacheSleepTime

Sets the sleep time of the cache cleanup thread in seconds.

gateway.userProfile.cacheCleanupTime

The maximum time in seconds after which a profile entry can get removed.

gateway.
bindipaddress

On a multihomed machine, this is the IP address to which the gateway binds its serversocket.

gateway.sockretries

3

Not used currently.

Parameter	Default Value	Description
New gateway uses Portal Server instance running on this node	y	The script detects an existing instance of the Portal Server and asks this question. Specify y if you want the gateway to run with the Portal Server instance on the same node. Choose n if you want to use a different instance of the Portal Server. In this case, the Creating a New Instance on a non-Portal Server Node checklist applies.
Portal Server instance is the default one created during installation	y	Specify which instance of the Portal Server you want the new gateway instance to work with. If you choose y, the default Portal Server instance that is created during installation is used with the new gateway. If you choose n, you will be asked to specify the name of the required Portal Server instance.
New Portal Server instance created	y	This question is asked only if you have chosen not to use the default Portal Server instance. Specify whether the Portal Server instance that you want to use with your new gateway instance has already been created. If you choose n, you are asked to create the instance first, and the script aborts.
Name of the new Portal Server instance	Portal Server instance name	This question is asked only if you have chosen not to use the default Portal Server instance. Specify the name of the Portal Server instance that you want the new gateway instance to use.
Port on which the new Portal Server instance listens		This question is asked only if you have chosen not to use the default Portal Server instance. Specify the port on which the new Portal Server instance listens.
Deployment URI	/portal	This question is asked only if you have chosen not to use the default Portal Server instance. Specify the deployment URI of the new Portal Server instance.
Name of the new gateway instance		Specify the name of the new gateway instance that you want to create.
Protocol to be used by the gateway	https	Specify whether you want the gateway to operate in HTTP or HTTPS mode.
Port on which the new gateway instance listens		Specify the port on which the new gateway instance needs to listen. Ensure that this port has not been specified for any other gateway instance.
Create certificate database for new gateway instance	y	When the gateway is installed, a default certificate database is created as follows: /etc/opt/SUNWps/cert/default The default directory has the following database files: cert7.db, key3.db, secmod.db You can choose to use the same certificate database for various instances of the gateway, or create and assign different certificate databases to different instances. You can assign only one certificate to one instance of the gateway. If you want to assign different certificates to different organizations, you need to create multiple instances of the gateway. Choose y to create a new certificate database for the new gateway instance.
Create self-signed certificate	y	This question is asked only if you have chosen to create a new certificate database. Choose y to create a self-signed certificate. You are asked a series of questions in order to create this certificate. If you choose n, you can create a self-signed certificate later. See Generating Self-signed Certificates in Chapter 4, Installing SSL Certificates in the Sun ONE Portal Server, Secure Remote Access 6.0 Installation Guide for details.
Name of the organization Name of the division Name of the city or locality Name of the state or province Two-letter country code Password for certificate database		These details are asked only if you have chosen y to create a self-signed certificate in the previous question.
Created a profile for the new gateway instance	y	You are asked if you have already created a profile for the new gateway instance. See To Create a Gateway Profile for details on creating a new gateway profile.
Start the new gateway instance after installation	y	This question is asked only if you choose y for the previous question, that is, you have already created a profile for the new gateway instance. If you have not created a profile, the script reminds you to create one before starting the gateway.

Parameter	Default Value	Description
Host name of the Directory Server	hostname	This is the machine on which the Directory Server is installed. Specify the machine on which Directory Server was installed for the Portal Server.
Sub-domain name for hostname		This is the sub-domain to which the Directory Server belongs. Specify the sub-domain of the machine on which the Directory Server was installed for the Portal Server.
Domain name for hostname		This is the domain to which the Directory Server machine belongs. Specify the domain of the machine on which the Directory Server was installed for the Portal Server.
Port used to access the Directory Server	389	This is the port which the Portal Server uses to access the Directory Server. Specify the Directory Server port specified during the Portal Server installation.
Root suffix of the directory tree	o=isp	This is the default top level organization. Any new organization that you create is created under this organization.
Organization name		This is the name of the default organization that is created.
Hostname of Portal Server	Portal Server hostname	This is the hostname of the Portal Server.
sub-domain for Portal Server hostname		This is the sub-domain to which the Portal Server machine belongs.
domain name for Portal Server hostname		This is the domain to which the Portal Server machine belongs.
Port used to access Portal Server	80	This is the port used to access the Portal Server.
Protocol used to access Portal Server	http	Specify the protocol that is used to access the Portal Server.
DSAME server deployment URI	/amserver	This is the DSAME deployment URI. Do not change this value.
Portal Server deployment URI	/portal	Specify the deployment URI of the new Portal Server instance.
Name of the new gateway instance		Specify the name of the new gateway instance that you want to create.
Protocol to be used by the gateway	http	Specify whether you want the gateway to operate in HTTP or HTTPS mode.
Port on which the new gateway instance listens		Specify the port on which the new gateway instance needs to listen. Ensure that this port has not been specified for any other gateway instance.
Create certificate database for new gateway instance	y	When the gateway is installed, a default certificate database is created as follows: /etc/opt/SUNWps/cert/default The default directory has the following database files: cert7.db, key3.db, secmod.db You can choose to use the same certificate database for various instances of the gateway, or create and assign different certificate databases to different instances. You can assign only one certificate to one instance of the gateway. If you want to assign different certificates to different organizations, you need to create multiple instances of the gateway. Choose y to create a new certificate database for the new gateway instance. If you choose n, the default certificate database is used.
Create self-signed certificate	y	This question is asked only if you have chosen to create a new certificate database. Choose y to create a self-signed certificate. You are asked a series of questions in order to create this certificate. If you choose n, you can create a self-signed certificate later. See Generating Self-signed Certificates in Chapter 4, Installing SSL Certificates in the Sun ONE Portal Server, Secure Remote Access 6.0 Installation Guide for details.
Name of the organization Name of the division Name of the city or locality Name of the state or province Two-letter country code Password for certificate database		These details are asked only if you have chosen y to create a self-signed certificate in the previous question.
Created a profile for the new gateway instance	y	You are asked if you have already created a profile for the new gateway instance. See To Create a Gateway Profile for details on creating a new gateway profile.
Start the new gateway instance after installation	y	This question is asked only if you choose y for the previous question, that is, you have already created a profile for the new gateway instance. If you have not created a profile, the script reminds you to create one before starting the gateway.

Number	Entry in Proxies for Domains and Subdomains List	Proxy	Description
1	com	p1	As specified in the list.
2	host1.com	p2	As specified in the list.
3	host2.com	p1	Since there is no proxy specified against host2, the proxy for the domain is used.
4	*.com	p3	As specified in the list.
5	sesta.com	p4	As specified in the list.
6	host5.sesta.com	p5	As specified in the list.
7	*.sesta.com	p6	As specified in the list.
8	florizon.com	Direct	See the description for entry 14 for details.
9	host6.florizon.com	-	See the description for entry 14 for details.
10	abc.sesta.com	p8	As specified in the list.
11	host7.abc.sesta.com	p7	As specified in the list.
12	host8.abc.sesta.com	p8	As specified in the list.
13	*.abc.sesta.com	p9	As specified in the list. For all hosts other than host7 and host8 under the abc.sesta.com domain, p9 is used as the proxy.
14	host6.florizon.com	p10	This entry is the same as entry 9. Entry 9 indicates a direct connection, whereas this entry indicates that proxy p10 should be used. In a case where there are two entries such as this, the entry with the proxy information is considered as the valid entry. The other entry is ignored.
15	host9.sesta.com	p11	As specified in the list.
16	siroe.com	Direct	Since there is no proxy specified against siroe.com, a direct connection is attempted.
17	host12.siroe.com	p12	As specified in the list.
18	host13.siroe.com	p13	As specified in the list.
19	host14.siroe.com	Direct	Since no proxy is specified for host14, of for siroe.com, a direct connection is attempted.
20	*.siroe.com	p14	See the description for entry 23.
21	host15.siroe.com	p15	As specified in the list.
22	host16.siroe.com	Direct	Since no proxy is specified for host16, of for siroe.com, a direct connection is attempted.
23	*.siroe.com	p16	This is similar to entry 20. But the proxies specified are different. In such a case, the exact behavior of the gateway is not known. Either of the two proxies may be used.
24	*	p17	If no other entry matches the requested URL, p17 is used as the proxy.

Entry	Default Value	Description
gateway.user	noaccess	This is the user as whom the gateway runs. The gateway has to be started as root and after initialization, it loses its root privileges to become this user.
gateway.jdk.dir		This is the location of the JDK directory that the gateway uses.
gateway.dsame.agent		This is the URL of the iPlanet Directory Server Access Management Edition server that gateway contacts while starting up to get its profile.
portal.server. protocol portal.server.host portal.server.port		This is the protocol, host and port that the default Portal Server installation is using.
gateway.protocol gateway.host gateway.port		This is the gateway protocol, host and port. These values are the same as the mode and port that you specified during installation. These values are used to construct the notification URL.
gateway.trust_all_ server_certs	true	This indicates whether the gateway has to trust all server certificates, or only those that are in the gateway certificate database.
gateway.trust_all_ server_cert_domains	false	Whenever there is an SSL communication between the gateway and a server, a server certificate is presented to the gateway. By default, the gateway checks if the server host name is the same as the server certificate CN. If this attribute value is set to true, the gateway disables the domain check for the server certificate that it receives.
gateway.virtualhost		If the gateway machines has multiple hostnames configured, you can specify a different name and IP address in this field.
gateway. notification.url		A combination of the gateway host, protocol and port is used to construct the notification URL. This is used to receive session notification from iDS/AME. Ensure that the notification URL is not the same as any organization name. If the notification URL matches an organization name, a user trying to connect to that organization will get a blank page instead of the login page.
gateway.retries		This is the number of times that the gateway tries to contact the Portal Server while starting up.
gateway.locale		This is the gateway locale
gateway.debug	error	This sets the debug level of the gateway. The debug log file is located at debug_directory/files. The debug file location is specified in the gateway.debug.dir entry. The debug levels are: error - Only serious errors are logged in the debug file. The gateway usually stops functioning when such errors occur. warning - Warning messages are logged. message - All debug messages are logged. on - All debug messages are displayed on the console. The debug files are: srapGateway.profilename - Contains the gateway debug messages. Gateway_to_from_server.profilename - In message mode, this file contains all the requests and response headers between the gateway and internal servers. Gateway_to_from_browser.profilename - In message mode, this file contains all the requests and response headers between the gateway and the client browser.
gateway.debug.dir		This is the directory where all the debug files are generated. This directory should have sufficient permissions for the user mentioned in gateway.user to write to files.
gateway. logdelimiter		Not used currently.
gateway.external.ip		In case of a multihomed gateway machine, you need to specify the external IP address here. This IP is used for the Netlet to run FTP.
gateway.certdir		This specifies the location of the certificate database.
gateway.allow. client.caching	true	Allow or disallow client caching. If allowed, client browsers can cache static pages and images for better performance (by reduced network traffic). If disallowed, there is higher security as nothing is cached at client side but there will be a performance drop and higher network load.
gateway.userProfile.cacheSize		This is the number of user profile entries that get cached at the gateway. If the number of entries exceeds this value, frequent retries occur to cleanup the cache.
gateway.userProfile.cacheSleepTime		Sets the sleep time of the cache cleanup thread in seconds.
gateway.userProfile.cacheCleanupTime		The maximum time in seconds after which a profile entry can get removed.
gateway. bindipaddress		On a multihomed machine, this is the IP address to which the gateway binds its serversocket.
gateway.sockretries	3	Not used currently.

Previous Contents Index Next
Copyright 2002 Sun Microsystems, Inc. All rights reserved.

Last Updated September 26, 2002
