This appendix describes the switch’s connectors you can use to interface to application-specific devices.
B.1 Connector Assignments
TABLE B-1 Connector Assignments
|
Connector
|
Function
|
|
J13 Top
|
Serial MGMT Port RJ-45 (Base and Fabric)
|
|
J13 2nd
|
10/100 Ethernet MGMT Port RJ-45 (Base and Fabric)
|
|
J13 3rd
|
10/100/1000 Ethernet Port RJ-45 (Base)
|
|
J13 Bottom
|
10/100/1000 Ethernet Port RJ-45 (Base)
|
|
J8
|
ATCA Zone 3 RTM Connector Top
|
|
J7
|
ATCA Zone 3 RTM Connector Middle
|
|
J6
|
ATCA Zone 3 RTM Connector Bottom
|
|
J9
|
ATCA Zone 1 Connector
|
|
J5
|
ATCA Zone 2 P20 ZD Connector
|
|
J4
|
ATCA Zone 2 P21 ZD Connector
|
|
J3
|
ATCA Zone 2 P22 ZD Connector
|
|
J2
|
ATCA Zone 2 P23 ZD Connector
|
|
J1
|
ATCA Zone 2 P24 ZD Connector
|
B.2 Connector Locations (Topside)
FIGURE B-1 Connector Locations (Topside)
)
TABLE B-2 ATCA Zone 1 Connector (J9) Pins
|
Pin #
|
Pin Name
|
Pin #
|
Pin Name
|
|
1
|
NC
|
18
|
NC
|
|
2
|
NC
|
19
|
NC
|
|
3
|
NC
|
20
|
NC
|
|
4
|
NC
|
21
|
NC
|
|
5
|
HA(0)
|
22
|
NC
|
|
6
|
HA(1)
|
23
|
NC
|
|
7
|
HA(2)
|
24
|
NC
|
|
8
|
HA(3)
|
25
|
SHELF_GND
|
|
9
|
HA(4)
|
26
|
GND
|
|
10
|
HA(5)
|
27
|
NC
|
|
11
|
HA(6)
|
28
|
VRTN_A
|
|
12
|
HA(7)
|
29
|
VRTN_B
|
|
13
|
SCL_A
|
30
|
EARLY_A
|
|
14
|
SCD_A
|
31
|
EARLY_B
|
|
15
|
SCL_B
|
32
|
NC
|
|
16
|
SCD_B
|
33
|
-48V_A
|
|
17
|
NC
|
34
|
-48V_B
|

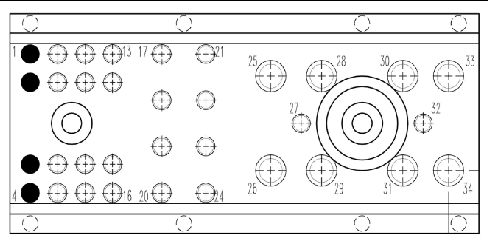

FIGURE B-2 ATCA Zone 1 Connector (J9)
B.3 ATCA Zone 2 P20 ZD Connector (J5)
TABLE B-3 ATCA Zone 2 P20 ZD Connector (J5)
|
|
|
a
|
b
|
c
|
d
|
e
|
f
|
g
|
h
|
|
1
|
Clks
|
CLK1A+
|
CLK1A-
|
CLK1B+
|
CLK1B-
|
CLK2A+
|
CLK2A-
|
CLK2B+
|
CLK2B-
|
|
2
|
Update Ch and Clks
|
AMC3 P12_TX+
|
AMC3 P12_TX-
|
AMC3 P12_RX+
|
AMC3 P12_RX-
|
CLK3A+
|
CLK3A-
|
CLK3B+
|
CLK3B-
|
|
3
|
Base
Tx2 10GbE+
|
Base
Tx2 10GbE-
|
Base
Rx2 10GbE+
|
Base
Rx2 10GbE-
|
Base
Tx3 10GbE+
|
Base
Tx3 10GbE-
|
Base
Rx3 10GbE+
|
Base
Rx3 10GbE-
|
|
4
|
Base
Tx0 10GbE+
|
Base
Tx0 10GbE-
|
Base
Rx0 10GbE+
|
Base
Rx0 10GbE-
|
Base
Tx1 10GbE+
|
Base
Tx1 10GbE-
|
Base
Rx1 10GbE+
|
Base
Rx1 10GbE-
|
|
5
|
Fabric Ch 15
|
Tx2 10GbE [15]+
|
Tx2 10GbE [15]-
|
Rx2 10GbE [15]+
|
Rx2 10GbE [15]-
|
Tx3 10GbE [15]+
|
Tx3 10GbE [15]-
|
Rx3 10GbE [15]+
|
Rx3 10GbE [15]-
|
|
6
|
Tx0 10GbE [15]+
|
Tx0 10GbE [15]-
|
Rx0 10GbE [15]+
|
Rx0 10GbE [15]-
|
Tx1 10GbE [15]+
|
Tx1 10GbE [15]-
|
Rx1 10GbE [15]+
|
Rx1 10GbE [15]-
|
|
7
|
Fabric Ch 14
|
Tx2 10GbE [14]+
|
Tx2 10GbE [14]-
|
Rx2 10GbE [14]+
|
Rx2 10GbE [14]-
|
Tx3 10GbE [14]+
|
Tx3 10GbE [14]-
|
Rx3 10GbE [14]+
|
Rx3 10GbE [14]-
|
|
8
|
Tx0 10GbE [14]+
|
Tx0 10GbE [14]-
|
Rx0 10GbE [14]+
|
Rx0 10GbE [14]-
|
Tx1 10GbE [14]+
|
Tx1 10GbE [14]-
|
Rx1 10GbE [14]+
|
Rx1 10GbE [14]-
|
|
9
|
Fabric Ch 13
|
Tx2 10GbE [13]+
|
Tx2 10GbE [13]-
|
Rx2 10GbE [13]+
|
Rx2 10GbE [13]-
|
Tx3 10GbE [13]+
|
Tx3 10GbE [13]-
|
Rx3 10GbE [13]+
|
Rx3 10GbE [13]-
|
|
10
|
Tx0 10GbE [13]+
|
Tx0 10GbE [13]-
|
Rx0 10GbE [13]+
|
Rx0 10GbE [13]-
|
Tx1 10GbE [13]+
|
Tx1 10GbE [13]-
|
Rx1 10GbE [13]+
|
Rx1 10GbE [13]-
|
B.4 ATCA Zone 2 P21 ZD Connector (J4)
TABLE B-4 ATCA Zone 2 P21 ZD Connector (J4)
|
|
|
a
|
b
|
c
|
d
|
e
|
f
|
g
|
h
|
|
1
|
Fabric Ch 12
|
Tx2 10GB [12]+
|
Tx2 10GB [12]-
|
Rx2 10GB [12]+
|
Rx2 10GB [12]-
|
Tx3 10GB [12]+
|
Tx3 10GB [12]-
|
Rx3 10GB [12]+
|
Rx3 10GB [12]-
|
|
2
|
Tx0 10GB [12]+
|
Tx0 10GB [12]-
|
Rx0 10GB [12]+
|
Rx0 10GB [12]-
|
Tx1 10GB [12]+
|
Tx1 10GB [12]-
|
Rx1 10GB [12]+
|
Rx1 10GB [12]-
|
|
3
|
Fabric Ch 11
|
Tx2 10GB [11]+
|
Tx2 10GB [11]-
|
Rx2 10GB [11]+
|
Rx2 10GB [11]-
|
Tx3 10GB [11]+
|
Tx3 10GB [11]-
|
Rx3 10GB [11]+
|
Rx3 10GB [11]-
|
|
4
|
Tx0 10GB [11]+
|
Tx0 10GB [11]-
|
Rx0 10GB [11]+
|
Rx0 10GB [11]-
|
Tx1 10GB [11]+
|
Tx1 10GB [11]-
|
Rx1 10GB [11]+
|
Rx1 10GB [11]-
|
|
5
|
Fabric Ch 10
|
Tx2 10GB [10]+
|
Tx2 10GB [10]-
|
Rx2 10GB [10]+
|
Rx2 10GB [10]-
|
Tx3 10GB [10]+
|
Tx3 10GB [10]-
|
Rx3 10GB [10]+
|
Rx3 10GB [10]-
|
|
6
|
Tx0 10GB [10]+
|
Tx0 10GB [10]-
|
Rx0 10GB [10]+
|
Rx0 10GB [10]-
|
Tx1 10GB [10]+
|
Tx1 10GB [10]-
|
Rx1 10GB [10]+
|
Rx1 10GB [10]-
|
|
7
|
Fabric Ch 9
|
Tx2 10GB [9]+
|
Tx2 10GB [9]-
|
Rx2 10GB [9]+
|
Rx2 10GB [9]-
|
Tx3 10GB [9]+
|
Tx3 10GB [9]-
|
Rx3 10GB [9]+
|
Rx3 10GB [9]-
|
|
8
|
Tx0 10GB [9]+
|
Tx0 10GB [9]-
|
Rx0 10GB [9]+
|
Rx0 10GB [9]-
|
Tx1 10GB [9]+
|
Tx1 10GB [9]-
|
Rx1 10GB [9]+
|
Rx1 10GB [9]-
|
|
9
|
Fabric Ch 8
|
Tx2 10GB [8]+
|
Tx2 10GB [8]-
|
Rx2 10GB [8]+
|
Rx2 10GB [8]-
|
Tx3 10GB [8]+
|
Tx3 10GB [8]-
|
Rx3 10GB [8]+
|
Rx3 10GB [8]-
|
|
10
|
Tx0 10GB [8]+
|
Tx0 10GB [8]-
|
Rx0 10GB [8]+
|
Rx0 10GB [8]-
|
Tx1 10GB [8]+
|
Tx1 10GB [8]-
|
Rx1 10GB [8]+
|
Rx1 10GB [8]-
|
B.5 ATCA Zone 2 P22 ZD Connector (J3)
TABLE B-5 ATCA Zone 2 P22 ZD Connector (J3)
|
|
|
a
|
b
|
c
|
d
|
e
|
f
|
g
|
h
|
|
1
|
Fabric Ch 7
|
Tx2 10GB [7]+
|
Tx2 10GB [7]-
|
Rx2 10GB [7]+
|
Rx2 10GB [7]-
|
Tx3 10GB [7]+
|
Tx3 10GB [7]-
|
Rx3 10GB [7]+
|
Rx3 10GB [7]-
|
|
2
|
Tx0 10GB [7]+
|
Tx0 10GB [7]-
|
Rx0 10GB [7]+
|
Rx0 10GB [7]-
|
Tx1 10GB [7]+
|
Tx1 10GB [7]-
|
Rx1 10GB [7]+
|
Rx1 10GB [7]-
|
|
3
|
Fabric Ch 6
|
Tx2 10GB [6]+
|
Tx2 10GB [6]-
|
Rx2 10GB [6]+
|
Rx2 10GB [6]-
|
Tx3 10GB [6]+
|
Tx3 10GB [6]-
|
Rx3 10GB [6]+
|
Rx3 10GB [6]-
|
|
4
|
Tx0 10GB [6]+
|
Tx0 10GB [6]-
|
Rx0 10GB [6]+
|
Rx0 10GB [6]-
|
Tx1 10GB [6]+
|
Tx1 10GB [6]-
|
Rx1 10GB [6]+
|
Rx1 10GB [6]-
|
|
5
|
Fabric Ch 5
|
Tx2 10GB [5]+
|
Tx2 10GB [5]-
|
Rx2 10GB [5]+
|
Rx2 10GB [5]-
|
Tx3 10GB [5]+
|
Tx3 10GB [5]-
|
Rx3 10GB [5]+
|
Rx3 10GB [5]-
|
|
6
|
Tx0 10GB [5]+
|
Tx0 10GB [5]-
|
Rx0 10GB [5]+
|
Rx0 10GB [5]-
|
Tx1 10GB [5]+
|
Tx1 10GB [5]-
|
Rx1 10GB [5]+
|
Rx1 10GB [5]-
|
|
7
|
Fabric Ch 4
|
Tx2 10GB [4]+
|
Tx2 10GB [4]-
|
Rx2 10GB [4]+
|
Rx2 10GB [4]-
|
Tx3 10GB [4]+
|
Tx3 10GB [4]-
|
Rx3 10GB [4]+
|
Rx3 10GB [4]-
|
|
8
|
Tx0 10GB [4]+
|
Tx0 10GB [4]-
|
Rx0 10GB [4]+
|
Rx0 10GB [4]-
|
Tx1 10GB [4]+
|
Tx1 10GB [4]-
|
Rx1 10GB [4]+
|
Rx1 10GB [4]-
|
|
9
|
Fabric Ch 3
|
Tx2 10GB [3]+
|
Tx2 10GB [3]-
|
Rx2 10GB [3]+
|
Rx2 10GB [3]-
|
Tx3 10GB [3]+
|
Tx3 10GB [3]-
|
Rx3 10GB [3]+
|
Rx3 10GB [3]-
|
|
10
|
Tx0 10GB [3]+
|
Tx0 10GB [3]-
|
Rx0 10GB [3]+
|
Rx0 10GB [3]-
|
Tx1 10GB [3]+
|
Tx1 10GB [3]-
|
Rx1 10GB [3]+
|
Rx1 10GB [3]-
|
B.6 ATCA Zone 2 P23 ZD Connector (J2)
TABLE B-6 ATCA Zone 2 P23 ZD Connector (J2)
|
|
|
a
|
b
|
c
|
d
|
e
|
f
|
g
|
h
|
|
1
|
Fabric Ch 2
|
Tx2 10GB [2]+
|
Tx2 10GB [2]-
|
Rx2 10GB [2]+
|
Rx2 10GB [2]-
|
Tx3 10GB [2]+
|
Tx3 10GB [2]-
|
Rx3 10GB [2]+
|
Rx3 10GB [2]-
|
|
2
|
Tx0 10GB [2]+
|
Tx0 10GB [2]-
|
Rx0 10GB [2]+
|
Rx0 10GB [2]-
|
Tx1 10GB [2]+
|
Tx1 10GB [2]-
|
Rx1 10GB [2]+
|
Rx1 10GB [2]-
|
|
3
|
Fabric Ch 1
|
Tx2 10GB [1]+
|
Tx2 10GB [1]-
|
Rx2 10GB [1]+
|
Rx2 10GB [1]-
|
Tx3 10GB [1]+
|
Tx3 10GB [1]-
|
Rx3 10GB [1]+
|
Rx3 10GB [1]-
|
|
4
|
Tx0 10GB [1]+
|
Tx0 10GB [1]-
|
Rx0 10GB [1]+
|
Rx0 10GB [1]-
|
Tx1 10GB [1]+
|
Tx1 10GB [1]-
|
Rx1 10GB [1]+
|
Rx1 10GB [1]-
|
|
5
|
ShMC Port(s)
|
SHMC
BI_A+
|
SHMC BI_A-
|
SHMC
BI_B+
|
SHMC BI_B-
|
SHMC BI_C+ or SHMC2 BI_A+
|
SHMC BI_C- or SHMC2 BI_A-
|
SHMC BI_D+ or SHMC2 BI_B+
|
SHMC BI_D- or SHMC2 BI_B-
|
|
6
|
Base Ch 2
|
BI_ DA2+
|
BI_ DA2-
|
BI_ DB2+
|
BI_ DB2-
|
BI_ DC2+
|
BI_ DC2-
|
BI_ DD2+
|
BI_ DD2-
|
|
7
|
Base Ch 3
|
BI_ DA3+
|
BI_ DA3-
|
BI_ DB3+
|
BI_ DB3-
|
BI_ DC3+
|
BI_ DC3-
|
BI_ DD3+
|
BI_ DD3-
|
|
8
|
Base Ch 4
|
BI_ DA4+
|
BI_ DA4-
|
BI_ DB4+
|
BI_ DB4-
|
BI_ DC4+
|
BI_ DC4-
|
BI_ DD4+
|
BI_ DD4-
|
|
9
|
Base Ch 5
|
BI_ DA5+
|
BI_ DA5-
|
BI_ DB5+
|
BI_ DB5-
|
BI_ DC5+
|
BI_ DC5-
|
BI_ DD5+
|
BI_ DD5-
|
|
10
|
Base Ch 6
|
BI_ DA2+
|
BI_ DA2-
|
BI_ DB2+
|
BI_ DB2-
|
BI_ DC2+
|
BI_ DC2-
|
BI_ DD2+
|
BI_ DD2-
|
B.7 ATCA Zone 2 P24 ZD Connector (J1)
TABLE B-7 ATCA Zone 2 P24 ZD Connector (J1)
|
|
|
a
|
b
|
c
|
d
|
e
|
f
|
g
|
h
|
|
1
|
Base Ch 7
|
BI_ DA7+
|
BI_ DA7-
|
BI_ DB7+
|
BI_ DB7-
|
BI_ DC7+
|
BI_ DC7-
|
BI_ DD7+
|
BI_ DD7-
|
|
2
|
Base Ch 8
|
BI_ DA8+
|
BI_ DA8-
|
BI_ DB8+
|
BI_ DB8-
|
BI_ DC8+
|
BI_ DC8-
|
BI_ DD8+
|
BI_ DD8-
|
|
3
|
Base Ch 9
|
BI_ DA9+
|
BI_ DA9-
|
BI_ DB9+
|
BI_ DB9-
|
BI_ DC9+
|
BI_ DC9-
|
BI_ DD9+
|
BI_ DD9-
|
|
4
|
Base Ch 10
|
BI_ DA10+
|
BI_ DA10-
|
BI_ DB10+
|
BI_ DB10-
|
BI_ DC10+
|
BI_ DC10-
|
BI_ DD10+
|
BI_ DD10-
|
|
5
|
Base Ch 11
|
BI_ DA11+
|
BI_ DA11-
|
BI_ DB11+
|
BI_ DB11-
|
BI_ DC11+
|
BI_ DC11-
|
BI_ DD11+
|
BI_ DD11-
|
|
6
|
Base Ch 12
|
BI_ DA12+
|
BI_ DA12-
|
BI_ DB12+
|
BI_ DB12-
|
BI_ DC12+
|
BI_ DC12-
|
BI_ DD12+
|
BI_ DD12-
|
|
7
|
Base Ch 13
|
BI_ DA13+
|
BI_ DA13-
|
BI_ DB13+
|
BI_ DB13-
|
BI_ DC13+
|
BI_ DC13-
|
BI_ DD13+
|
BI_ DD13-
|
|
8
|
Base Ch 14
|
BI_ DA14+
|
BI_ DA14-
|
BI_ DB14+
|
BI_ DB14-
|
BI_ DC14+
|
BI_ DC14-
|
BI_ DD14+
|
BI_ DD14-
|
|
9
|
Base Ch 15
|
BI_ DA15+
|
BI_ DA15-
|
BI_ DB15+
|
BI_ DB15-
|
BI_ DC15+
|
BI_ DC15-
|
BI_ DD15+
|
BI_ DD15-
|
|
10
|
Base Ch 16
|
BI_ DA2+
|
BI_ DA2-
|
BI_ DB2+
|
BI_ DB2-
|
BI_ DC2+
|
BI_ DC2-
|
BI_ DD2+
|
BI_ DD2-
|
B.8 Serial RJ-45 Connector (J13 Top)
This connector is the Cisco/Intel pinout.
TABLE B-8 Serial RJ-45 Connector (J13-Top)
|
Pin
|
Signal
|
|
1
|
RTS~
|
|
2
|
DTR
|
|
3
|
TXD
|
|
4
|
GND
|
|
5
|
GND
|
|
6
|
RXD
|
|
7
|
DSR
|
|
8
|
CTS~
|
B.9 Serial Cable
The switch uses RJ-45 connectors for its serial ports. To connect to a PC’s DB9 connector, a special cable or adapter is needed. These cables and adapters are available through various sources or can be made easily. The cable must cross over the TXD and RXD signals, as both the PC and switch are DTE. The minimum cable pinout is listed in the following table.
TABLE B-9 Minimum Serial Cable Pinouts
|
|
RJ-45
|
DB9
|
|
RXD to TXD
|
6
|
3
|
|
TXD to RXD
|
3
|
2
|
|
GND to GND
|
5
|
5
|
B.10 10/100/1000Base-T RJ-45 Connector (J13 3rd, J13 Bottom)
TABLE B-10 10/100/1000Base-T RJ-45 Connector (J13-3rd and Bottom)
|
|
Signal
|
|
1
|
MDI_0+
|
|
2
|
MDI_0-
|
|
3
|
MDI_1+
|
|
4
|
MDI_2+
|
|
5
|
MDI_2-
|
|
6
|
MDI_1-
|
|
7
|
MDI_3+
|
|
8
|
MDI_3-
|
B.11 10/100Base-TX RJ-45 Connector (J13 2nd)
TABLE B-11 10/100Base-TX RJ-45 Connector (J13-2nd)
|
|
Signal
|
|
1
|
Tx+
|
|
2
|
Tx-
|
|
3
|
Rx+
|
|
4
|
unused
|
|
5
|
unused
|
|
6
|
Rx-
|
|
7
|
unused
|
|
8
|
unused
|
B.12 ATCA Zone 3 RTM Connector Top (J8) TABLE B-12 ATCA Zone 3 RTM Connector (J8-Top))
|
|
a
|
b
|
c
|
d
|
e
|
f
|
g
|
h
|
|
1
|
Fabric MDC
|
Fabric MDIO
|
Base MDCGE
|
Base MDIO GE
|
Base MDC XE
|
Base MDIO XE
|
Base PHY RST~
|
Fabric PHY RST~
|
|
2
|
OOS LED
|
LED2 LED
|
LED3 GREEN LED
|
LED3 RED LED
|
BLUE LED
|
RTM PRSNT~
|
IPMI SDA
|
IPMI SCL
|
|
3
|
SOFT OFF
|
RSVD
|
RSVD
|
RSVD
|
RSVD
|
RSVD
|
RSVD
|
RSVD
|
|
4
|
MGMT TX+
|
MGMT TX-
|
MGMT RX+
|
MGMT RX-
|
SERIAL TX
|
SERIAL RTS~
|
SERIAL RX
|
SERIAL CTS~
|
|
5
|
RSVD
|
RSVD
|
RSVD
|
RSVD
|
RSVD
|
RSVD
|
RSVD
|
RSVD
|
|
6
|
+3.3V STBY
|
+3.3V STBY
|
RSVD
|
RSVD
|
RSVD
|
RSVD
|
RSVD
|
RSVD
|
|
7
|
+3.3V
|
+3.3V
|
+3.3V
|
+3.3V
|
+3.3V
|
+3.3V
|
+3.3V
|
+3.3V
|
|
8
|
+2.5V
|
+2.5V
|
+2.5V
|
+2.5V
|
+2.5V
|
+2.5V
|
+2.5V
|
+2.5V
|
|
9
|
+1.2V
|
+1.2V
|
+1.2V
|
+1.2V
|
+1.2V
|
+1.2V
|
+1.2V
|
+1.2V
|
|
10
|
+1.2V
|
+1.2V
|
+1.2V
|
+1.2V
|
+12V
|
+12V
|
+12V
|
+12V
|
B.13 ATCA Zone 3 RTM Connector (J7-Middle) TABLE B-13 ATCA Zone 3 RTM Connector (J7-Middle)
|
|
a
|
b
|
c
|
d
|
e
|
f
|
g
|
h
|
|
1
|
AMC1 P20 TX+
|
AMC1 P20 TX-
|
AMC1 P20 RX+
|
AMC1 P20 RX-
|
AMC1 P19 TX+
|
AMC1 P19 TX-
|
AMC1 P19 RX+
|
AMC1 P19 RX-
|
|
2
|
AMC1 P18 TX+
|
AMC1 P18 TX-
|
AMC1 P18 RX+
|
AMC1 P18 RX-
|
AMC1 P17 TX+
|
AMC1 P17 TX-
|
AMC1 P17 RX+
|
AMC1 P17 RX-
|
|
3
|
AMC2 P20 TX+
|
AMC2 P20 TX-
|
AMC2 P20 RX+
|
AMC2 P20 RX-
|
AMC2 P19 TX+
|
AMC2 P19 TX-
|
AMC2 P19 RX+
|
AMC2 P19 RX-
|
|
4
|
AMC2 P18 TX+
|
AMC2 P18 TX-
|
AMC2 P18 RX+
|
AMC2 P18 RX-
|
AMC2 P17 TX+
|
AMC2 P17 TX-
|
AMC2 P17 RX+
|
AMC2 P17 RX-
|
|
5
|
AMC3 P20 TX+
|
AMC3 P20 TX-
|
AMC3 P20 RX+
|
AMC3 P20 RX-
|
AMC3 P19 TX+
|
AMC3 P19 TX-
|
AMC3 P19 RX+
|
AMC3 P19 RX-
|
|
6
|
AMC3 P18 TX+
|
AMC3 P18 TX-
|
AMC3 P18 RX+
|
AMC3 P18 RX-
|
AMC3 P17 TX+
|
AMC3 P17 TX-
|
AMC3 P17 RX+
|
AMC3 P17 RX-
|
|
7
|
Tx2 10GB [17]+
|
Tx2 10GB [17]-
|
Rx2 10GB [17]+
|
Rx2 10GB [17]-
|
Tx3 10GB [17]+
|
Tx3 10GB [17]-
|
Rx3 10GB [17]+
|
Rx3 10GB [17]-
|
|
8
|
Tx0 10GB [17]+
|
Tx0 10GB [17]-
|
Rx0 10GB [17]+
|
Rx0 10GB [17]-
|
Tx1 10GB [17]+
|
Tx1 10GB [17]-
|
Rx1 10GB [17]+
|
Rx1 10GB [17]-
|
|
9
|
Tx2 10GB [18]+
|
Tx2 10GB [18]-
|
Rx2 10GB [18]+
|
Rx2 10GB [18]-
|
Tx3 10GB [18]+
|
Tx3 10GB [18]-
|
Rx3 10GB [18]+
|
Rx3 10GB [18]-
|
|
10
|
Tx0 10GB [18]+
|
Tx0 10GB [18]-
|
Rx0 10GB [18]+
|
Rx0 10GB [18]-
|
Tx1 10GB [18]+
|
Tx1 10GB [18]-
|
Rx1 10GB [18]+
|
Rx1 10GB [18]-
|
B.14 ATCA Zone 3 RTM Connector (J6-Bottom) TABLE B-14 ATCA Zone 3 RTM Connector (J6-Bottom)
|
|
a
|
b
|
c
|
d
|
e
|
f
|
g
|
h
|
|
1
|
Tx2 10GB [19]+
|
Tx2 10GB [19]-
|
Rx2 10GB [19]+
|
Rx2 10GB [19]-
|
Tx3 10GB [19]+
|
Tx3 10GB [19]-
|
Rx3 10GB [19]+
|
Rx3 10GB [19]-
|
|
2
|
Tx0 10GB [19]+
|
Tx0 10GB [19]-
|
Rx0 10GB [19]+
|
Rx0 10GB [19]-
|
Tx1 10GB [19]+
|
Tx1 10GB [19]-
|
Rx1 10GB [19]+
|
Rx1 10GB [19]-
|
|
3
|
Tx2 10GB [20]+
|
Tx2 10GB [20]-
|
Rx2 10GB [20]+
|
Rx2 10GB [20]-
|
Tx3 10GB [20]+
|
Tx3 10GB [20]-
|
Rx3 10GB [20]+
|
Rx3 10GB [20]-
|
|
4
|
Tx0 10GB [20]+
|
Tx0 10GB [20]-
|
Rx0 10GB [20]+
|
Rx0 10GB [20]-
|
Tx1 10GB [20]+
|
Tx1 10GB [20]-
|
Rx1 10GB [20]+
|
Rx1 10GB [20]-
|
|
5
|
BI_ DA20+
|
BI_ DA20-
|
BI_ DB20+
|
BI_ DB20-
|
BI_ DC20+
|
BI_ DC20-
|
BI_ DD20+
|
BI_ DD20-
|
|
6
|
BI_ DA21+
|
BI_ DA21-
|
BI_ DB21+
|
BI_ DB21-
|
BI_ DC21+
|
BI_ DC21-
|
BI_ DD21+
|
BI_ DD21-
|
|
7
|
Base 27 Tx2 10GB+
|
Base 27 Tx2 10GB-
|
Base 27 Rx0 10GB+
|
Base 27 Rx0 10GB-
|
Base 27 Tx3 10GB+
|
Base 27 Tx3 10GB-
|
Base 27 Rx1 10GB+
|
Base 27 Rx1 10GB-
|
|
8
|
Base 27 Tx0 10GB+
|
Base 27 Tx0 10GB-
|
Base 27 Rx2 10GB+
|
Base 27 Rx2 10GB-
|
Base 27 Tx1 10GB+
|
Base 27 Tx1 10GB-
|
Base 27 Rx3 10GB+
|
Base 27 Rx3 10GB-
|
|
9
|
Base 26 Tx2 10GB+
|
Base 26 Tx2 10GB-
|
Base 26 Rx0 10GB+
|
Base 26 Rx0 10GB-
|
Base 26 Tx3 10GB+
|
Base 26 Tx3 10GB-
|
Base 26 Rx1 10GB+
|
Base 26 Rx1 10GB-
|
|
10
|
Base 26 Tx0 10GB+
|
Base 26 Tx0 10GB-
|
Base 26 Rx2 10GB+
|
Base 26 Rx2 10GB-
|
Base 26 Tx1 10GB+
|
Base 26 Tx1 10GB-
|
Base 26 Rx3 10GB+
|
Base 26 Rx3 10GB-
|
| Sun Netra CP3240 Switch Installation Guide
|
820-3251-13
|

|
Copyright © 2009 Sun Microsystems, Inc. All rights reserved.
