This chapter provides an overview of the Sun Blade T6320 XAUI Pass-Through Fabric Expansion Module (FEM), including:
The Sun Blade T6320 XAUI Pass-Through Fabric Expansion Module (FEM) connects to the Sun Blade T6320 server module motherboard by two square NexLev connectors (FIGURE 1-1).
The FEM transmits two sets of x4 XAUI 10-Gigabit Ethernet lanes from the Sun Blade
T6320 server module to the Sun Blade 6000 10GbE Multi-Fabric Network Express Module (FIGURE 1-2).

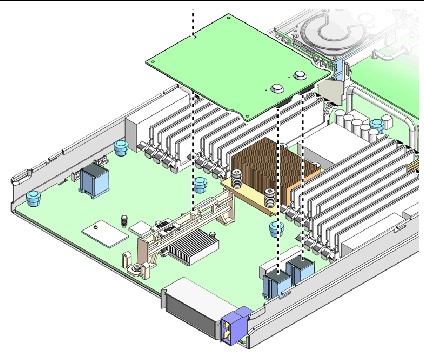

FIGURE 1-1 FEM Module for the Sun Blade T6320 Server Module

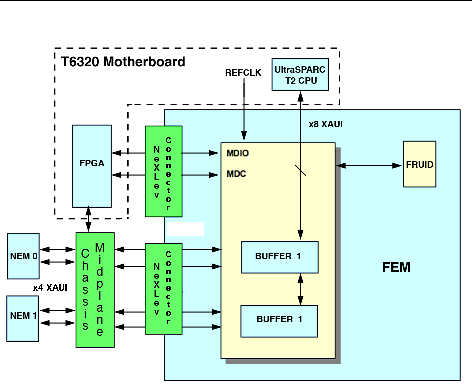

FIGURE 1-2 Signal Diagram of the Sun Blade T6320 XAUI Pass-Through Fabric Expansion Module
Before installing the FEM, ensure that your system meets the minimum hardware and software requirements in TABLE 1-1.
|
Solaris 10 8/07 OS with patch 127127-11 and 136933-02 or later |
The Sun Blade T6320 XAUI Pass-Through Fabric Expansion Module provides the following features:
