The 1.05 Gbyte Disk Drive Installation Manual accompanies the 1.05 Gbyte internal hard disk drive when it is ordered as an option for the following:
This manual contains the procedures for installing and replacing the 1.05 Gbyte disk drive, as well as procedures on how to:
Turn to the "Task Map for Installing the Drive" section for a broad overview of the installation procedures. Before you unpack the drive, read the "Safety Agency Compliance" section.
This manual was written for any Sun(TM) customer or Sun service provider who has some computer hardware experience and is qualified to install disk drives.
This manual might not include specific software commands or procedures. Instead, it names software tasks and refers you to the operating system documentation or handbook that was shipped with your new hardware.
The type of information that you might need to use references for includes:
Depending upon which of the following operating systems you are using, you can find descriptions of commands and procedures in the following documents:

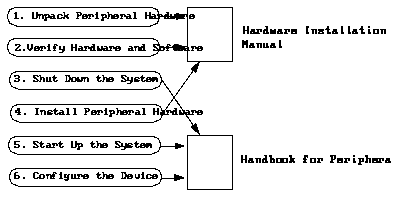

The diagram below outlines the tasks you can perform to successfully install a new peripheral. Each numbered item in the diagram represents a procedure and the arrows point to the specific manual in which these procedures are detailed.
After you perform these tasks, you will be ready to use the new peripheral with your system.
The following manuals may be useful to you:
SPARCstation 10 Field Service Manual
SBus Expansion Subsystem Installation and Troubleshooting Guide
SPARCstation IPC Field Service Manual
SPARCstation IPX Field Service Manual
SPARCclassic and SPARCstation LX Service Manual
These manuals describe how to repair the specific system problems by running diagnostic programs, and by removing and replacing parts.
This manual uses a number of typographical conventions, which are described below:
Table P-1 Typographic Conventions
-----------------------------------------------------------------------------------------
Typeface or Meaning Example Symbol -----------------------------------------------------------------------------------------
AaBbCc123 The names of commands, files, Edit your.login file.
and directories; on-screen
computer output Use ls -a to list all files.
system% You have mail.
AaBbCc123 What you type, contrasted with system% su
on-screen computer output
password:
AaBbCc123 Command-line placeholder: To delete a file, type rm filename.
replace with a real name or
value
AaBbCc123 Book titles, new words or terms, Read Chapter 6 in User's Guide.
or words to be emphasized These are called class options.
You must be root to do this.
-----------------------------------------------------------------------------------------
Before beginning any procedure, read the instructions and cautions in this section. They explain how to work safely with the internal components on your system. The equivalent information, translated into French, German, and Spanish, can be found in a separate appendix.
For your protection, observe the following safety precautions when setting up your equipment:
The following symbols, which appear in this book, mean:
Do not make mechanical or electrical modifications to the equipment. Sun Microsystems, Inc.® is not responsible for regulatory compliance of a modified Sun product.
